Northrop XP-56

[blackkite]

Hi!

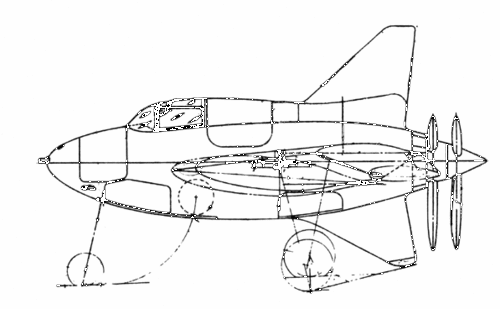

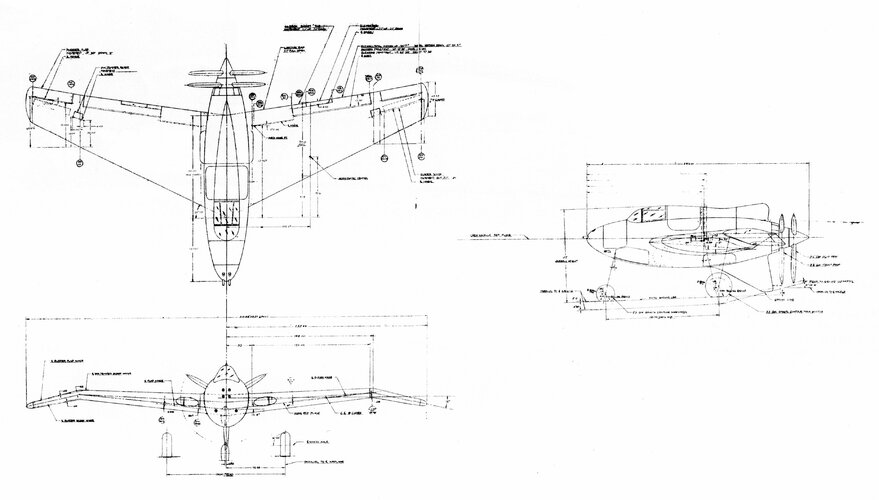

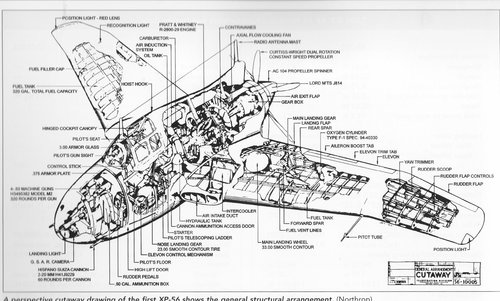

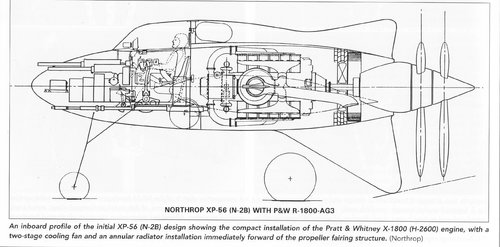

I can see turbocharger in this XP-56 initial design with X-1800 engine.

Northorp Xp-56

ww2aircraft.net



[blackkite]

The U.S. Army ordered Northrop to begin design work on 22 June 1940, and after reviewing the design ordered a prototype aircraft on 26 September 1940. Shortly after design work had begun, Pratt & Whitney, however, stopped development of the X-1800. The Pratt & Whitney R-2800 engine was substituted, although it was considered not entirely suitable

Northrop XP-56 Black Bullet

History Design and development The initial idea for the XP-56 was quite radical for 1939. It was to have no horizontal tail, only a small vertical tail, used an experimental engine, and be produced using a novel metal. The aircraft was to be a wing with a small central fuselage added to house the...

forum.warthunder.com



[blackkite]

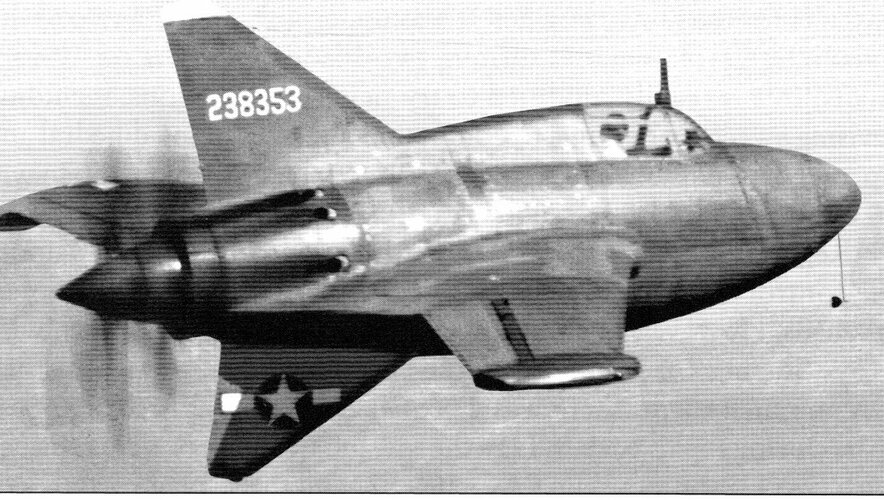

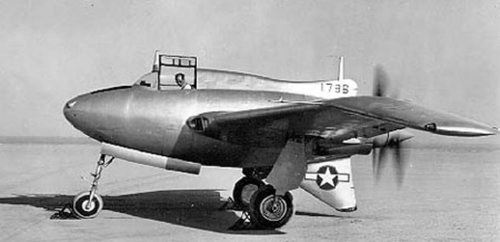

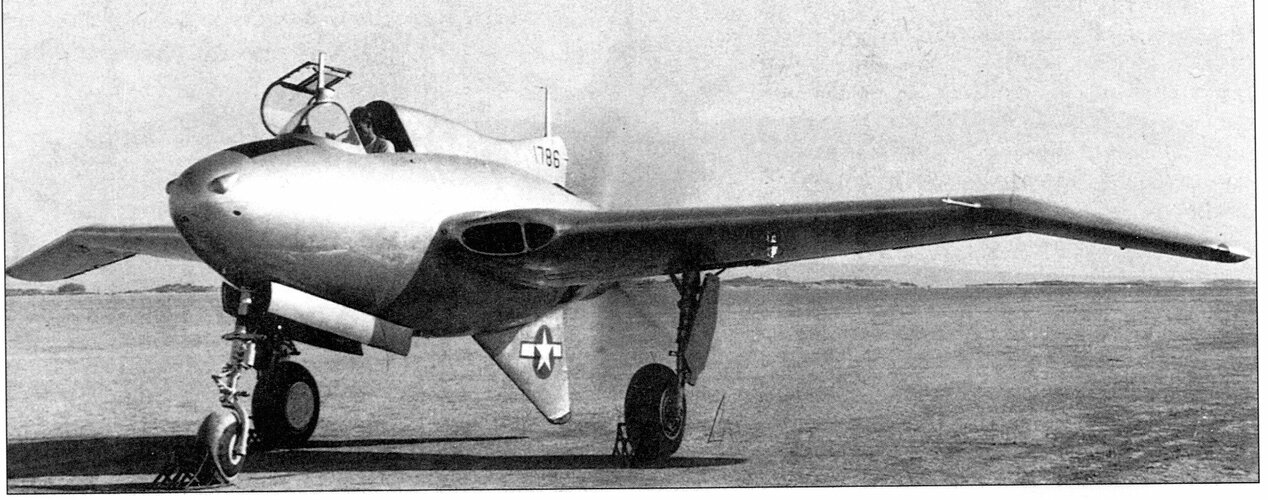

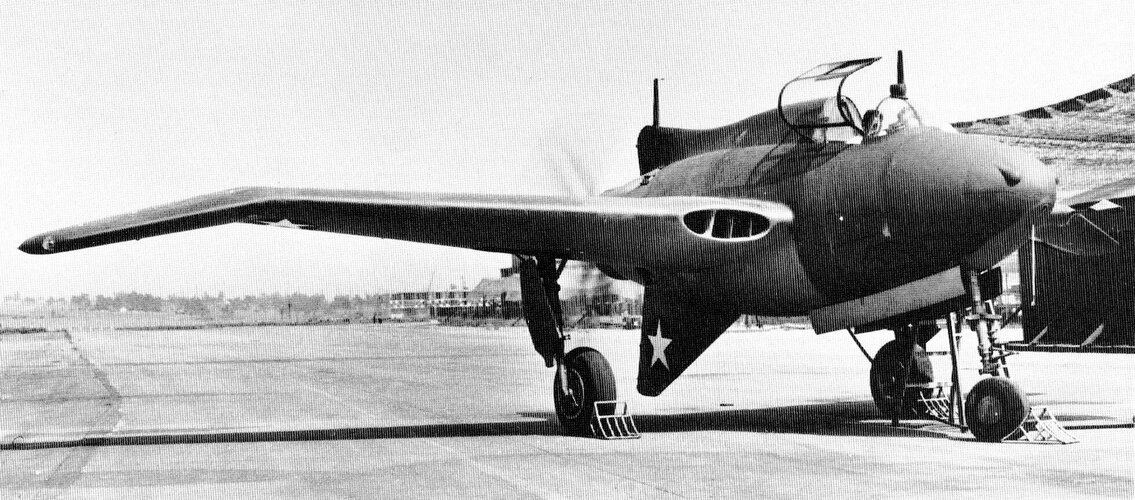

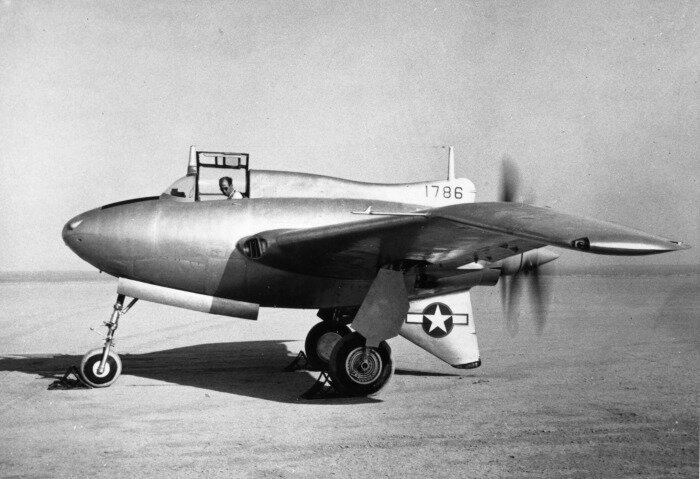

Hi! XP-55 No.1 aircraft.

Fighter in the shape of a bullet. XP-56 Black Bullet

In the history of aircraft industry, very often in the heat of the design race, trying to beat the competition and achieve a technical advantage over their developments, aircraft designers created airplanes of very unusual designs and forms. Moreover, in some cases, out of unusual projects, quite

en.topwar.ru

Radial engine 2-stage superchargers (R-2800, etc)

Can anyone shed some light on the development use of multi-stage/multi-speed superchargers in the radial engines of WWII? When did radial engine 2-stage superchargers become available? I understand later versions of the F4U Corsair had 2-stage superchargers. Allison seems to have taken a...

ww2aircraft.net



[blackkite]

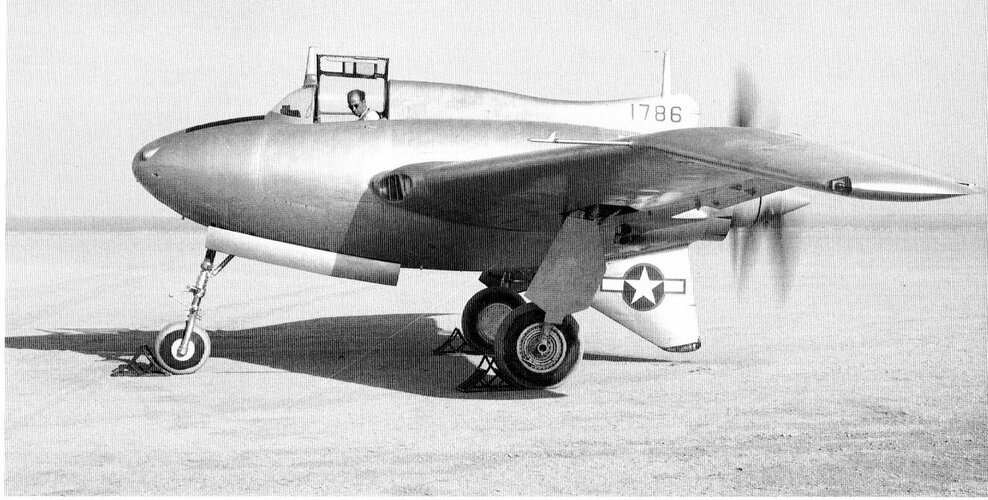

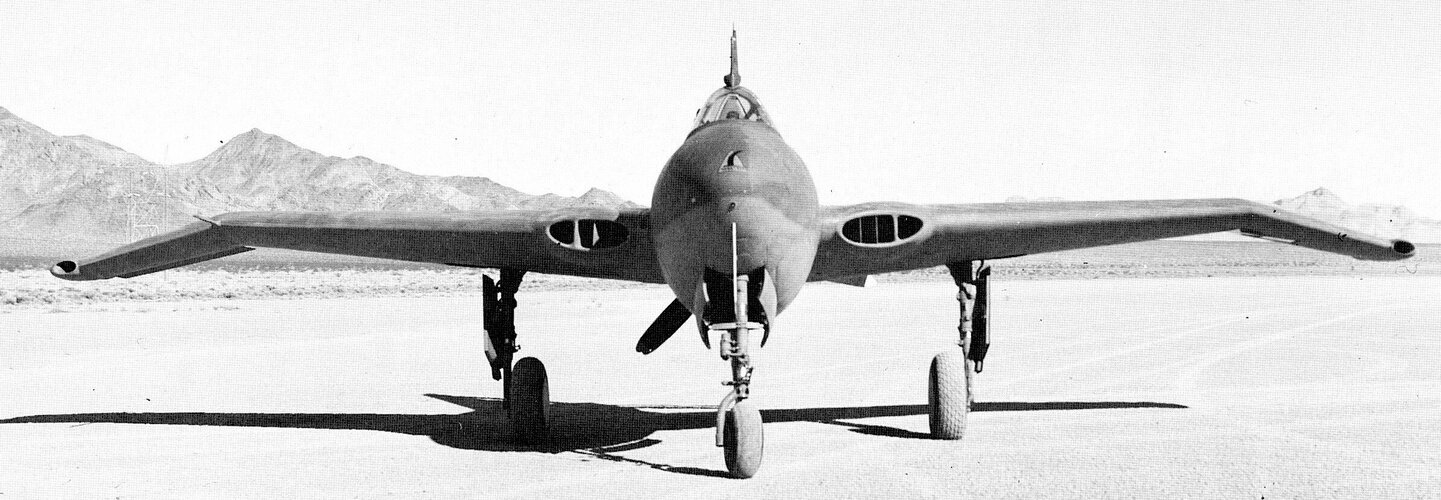

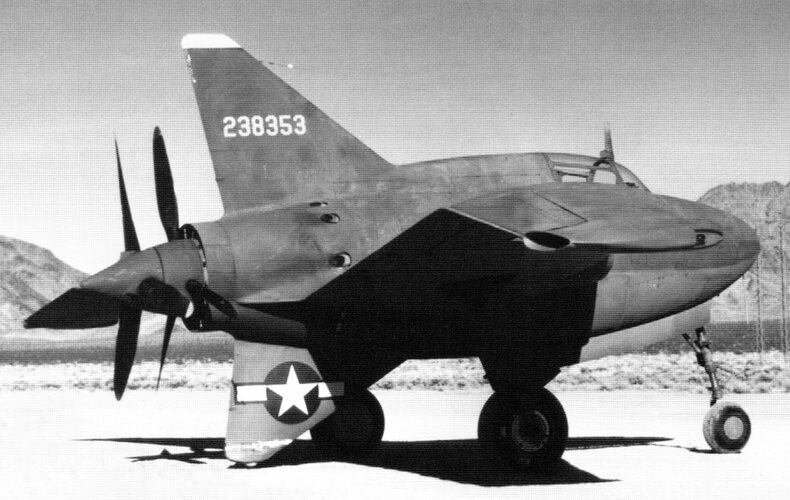

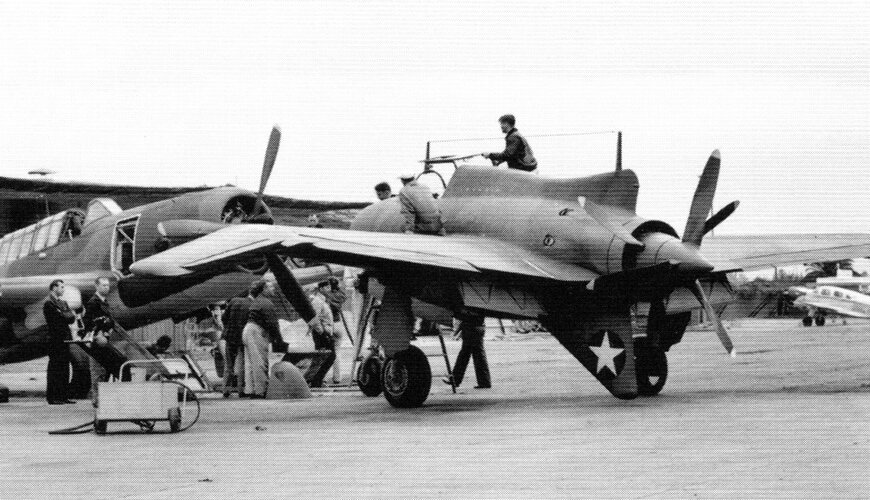

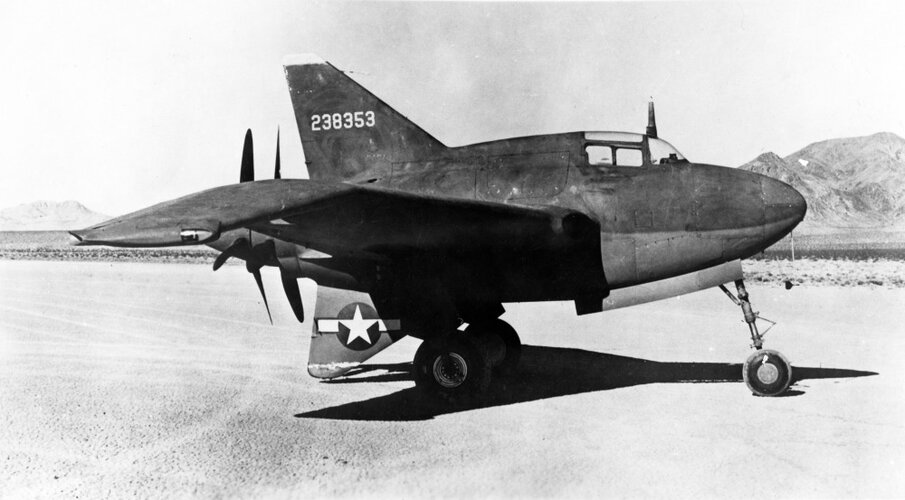

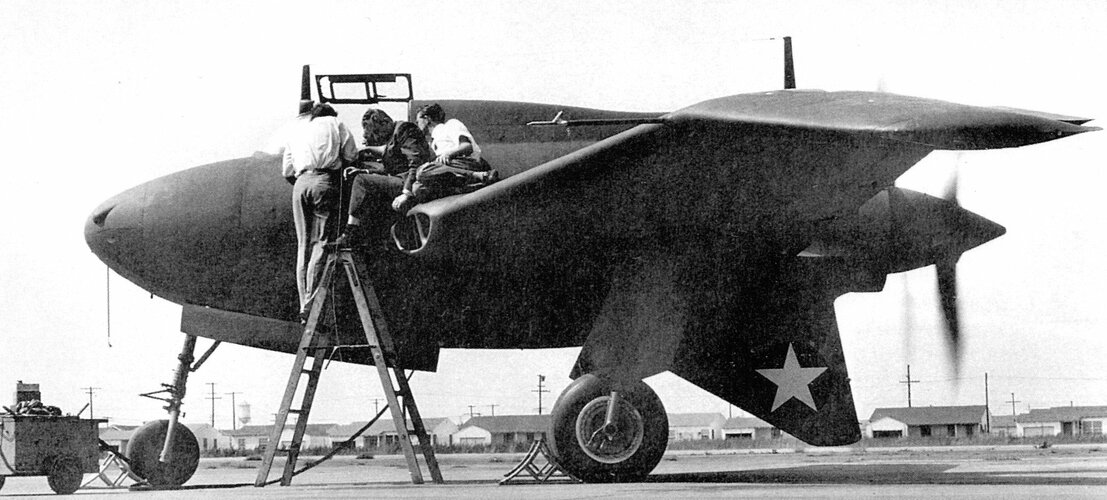

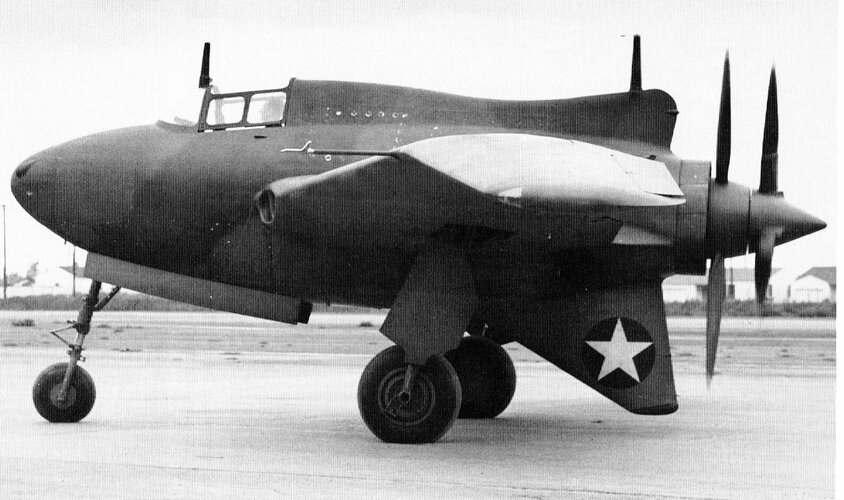

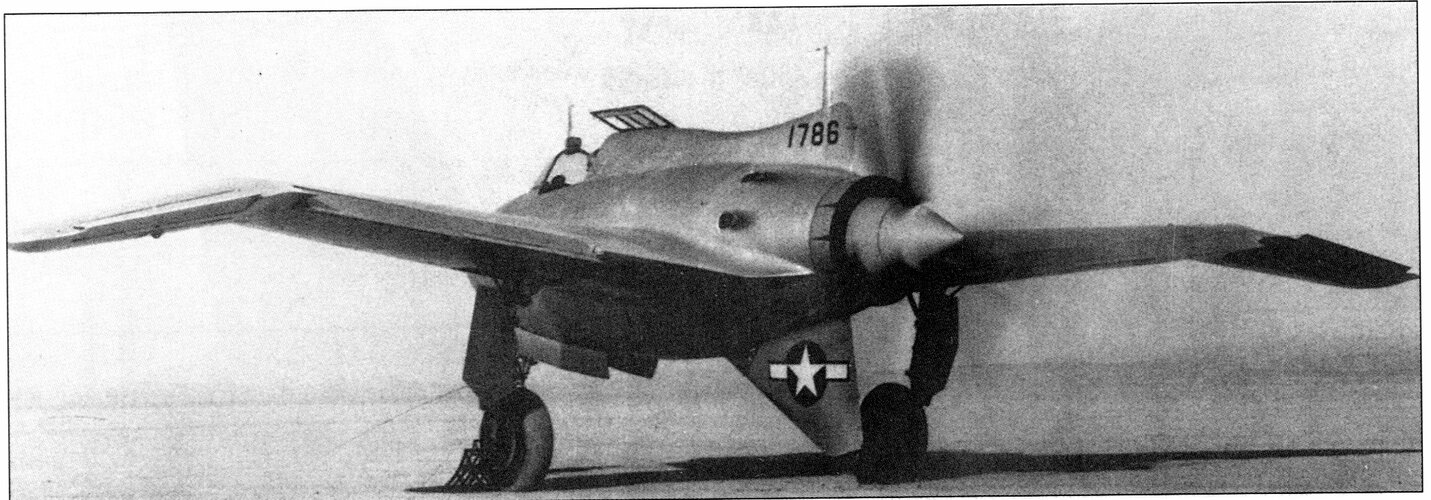

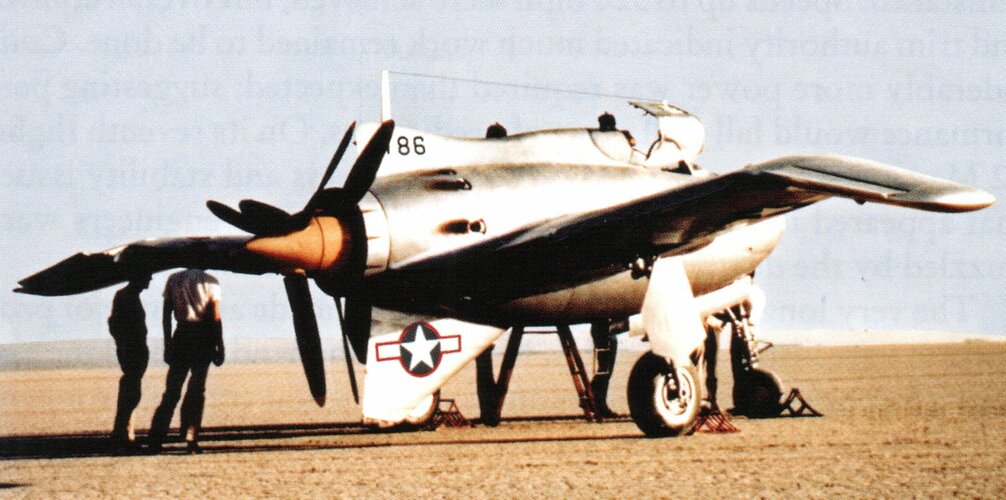

No,2 aircraft.



[blackkite]

Xp-56

Jack's concept was actually designed around a proposed liquid-cooled 24-cylinder H-block engine, Pratt & Whitney's X-1800. When the engine builder gave up on that design, however, Northrop was forced to adapt the airframe's design to accommodate a very different engine shape, the air-cooled...

ww2aircraft.net



[blackkite]

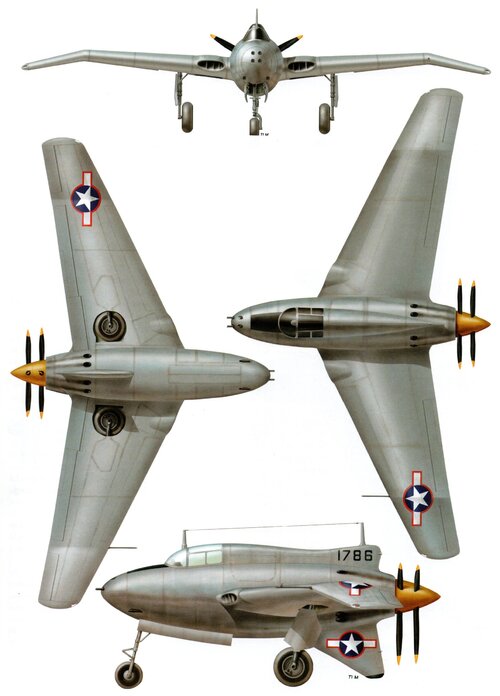

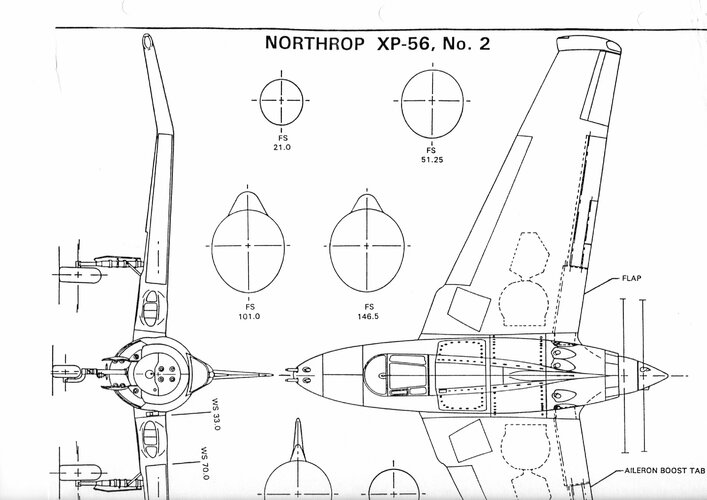

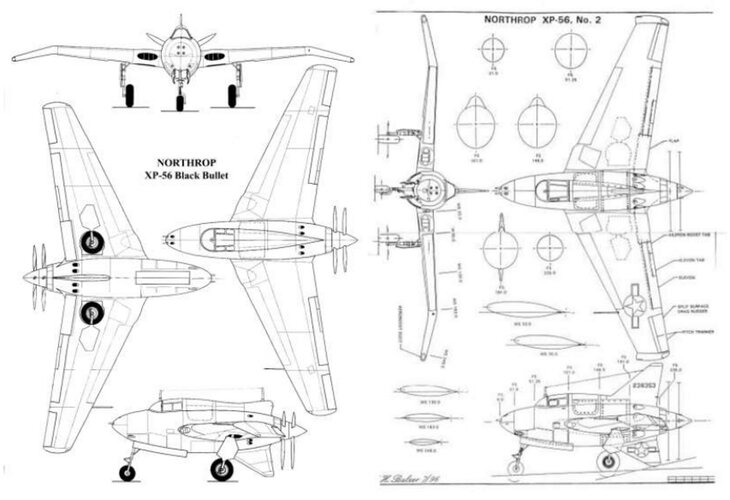

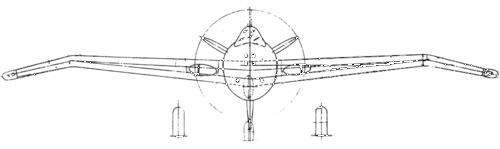

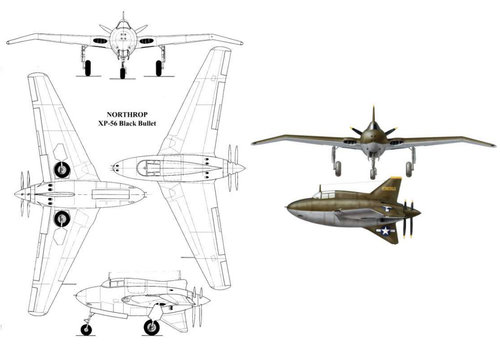

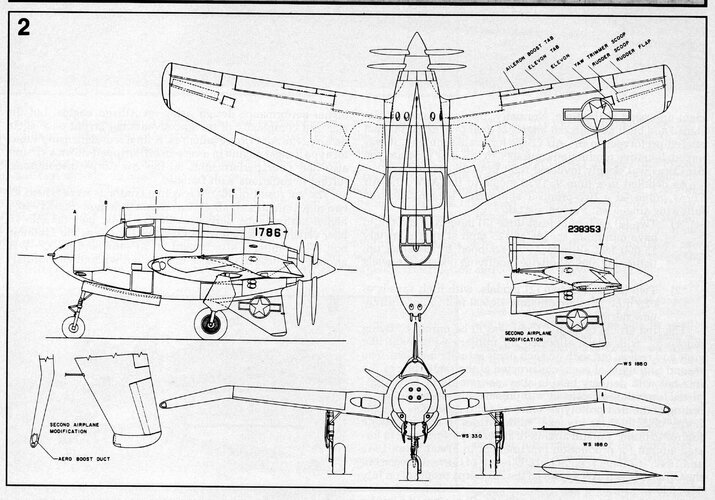

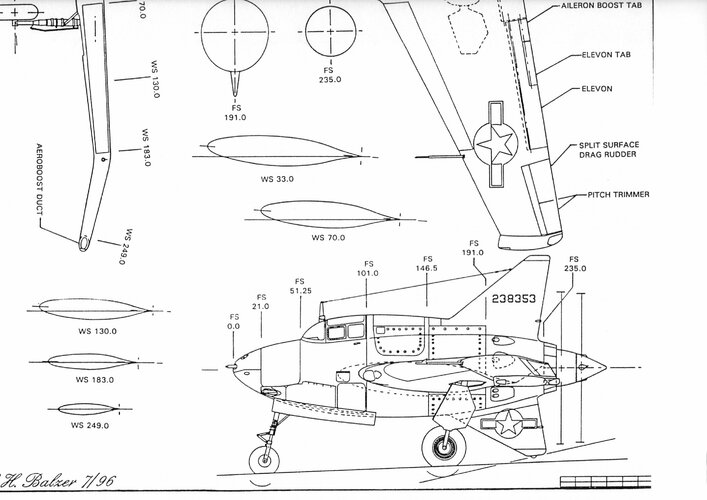

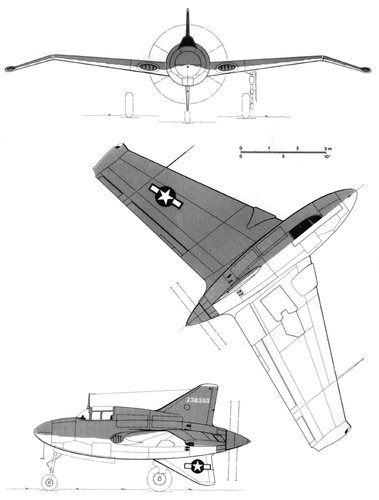

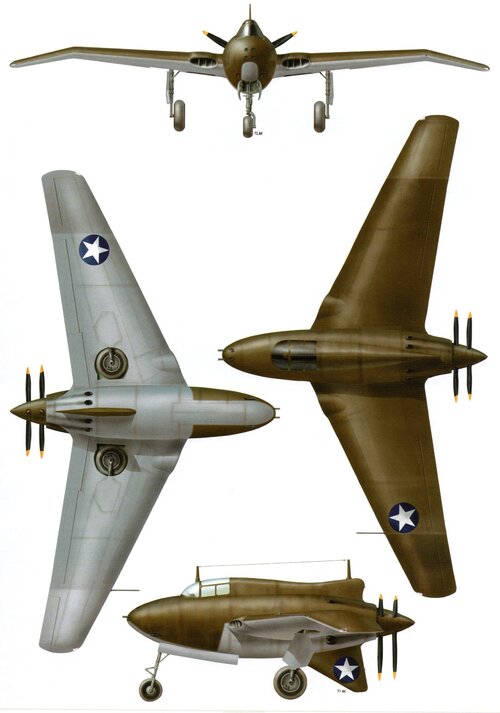

Another No,2 aircraft three side view drawing.

The XP-56 "Black Bullet"

https://www.reddit.com/r/WeirdWings/comments/3k5d51

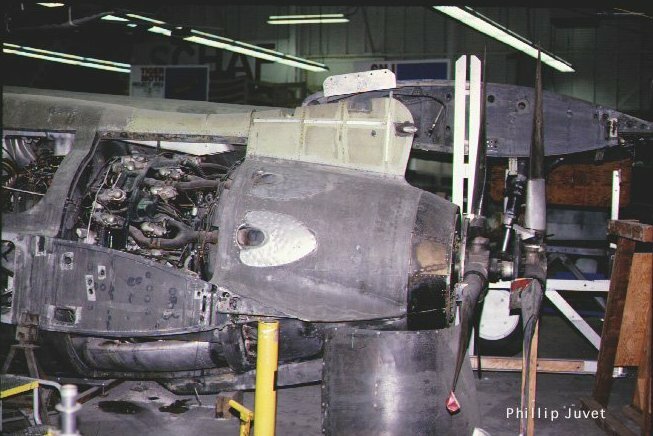

[blackkite]

Hi!

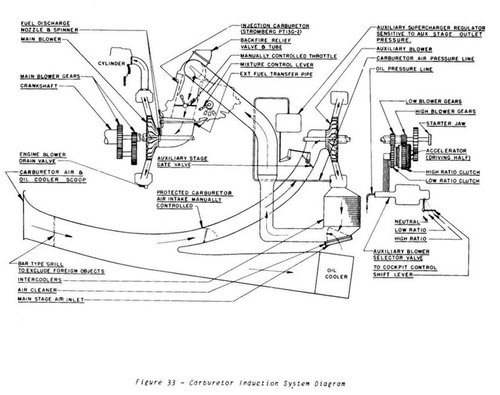

Radial engine 2-stage superchargers (R-2800, etc)

Can anyone shed some light on the development use of multi-stage/multi-speed superchargers in the radial engines of WWII? When did radial engine 2-stage superchargers become available? I understand later versions of the F4U Corsair had 2-stage superchargers. Allison seems to have taken a...

ww2aircraft.net

https://twitter.com/x/status/1163595369663479808

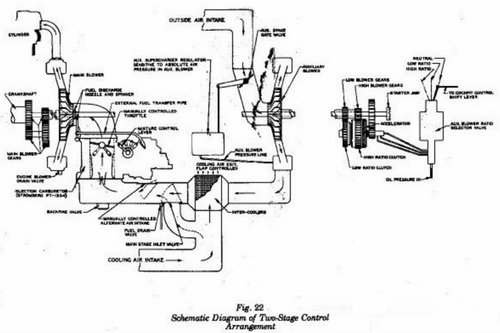

The R-2800 also has a path to bypass the first stage, and it is a specification that can be selected for three types of supercharged combinations: "only the second stage", "one stage low speed + two stages", and "one-stage high-speed + two-stage".



[hesham]

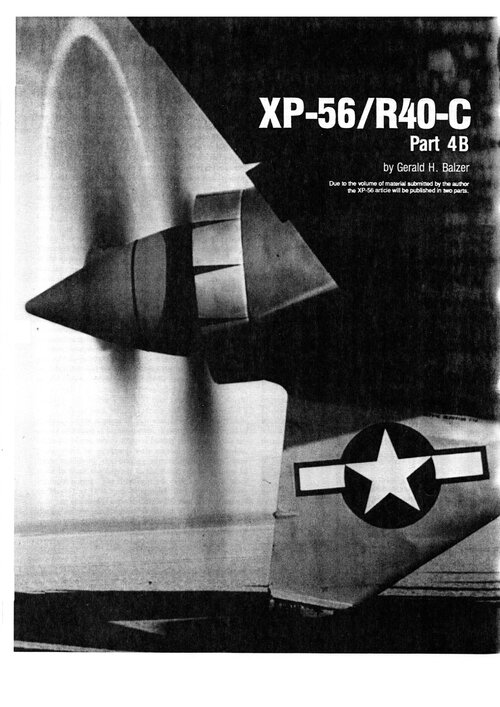

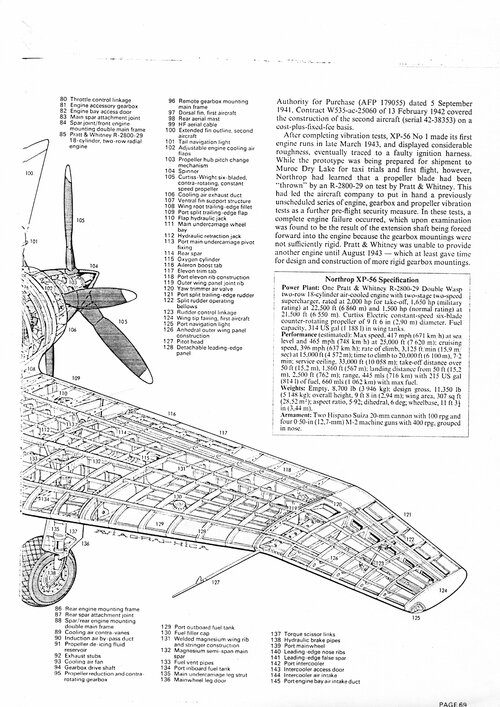

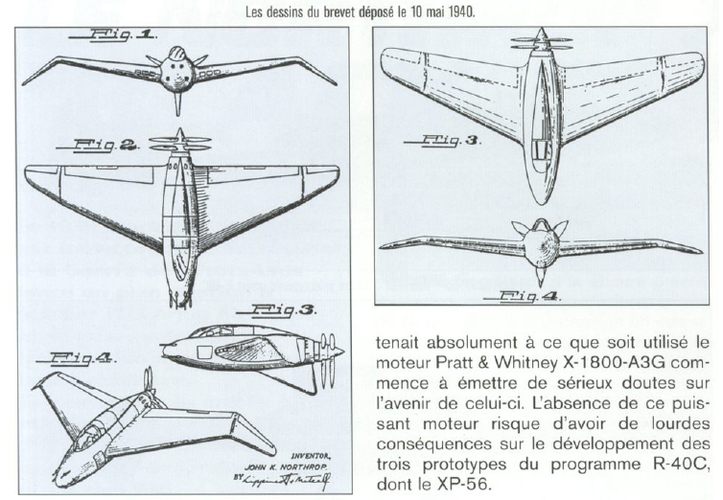

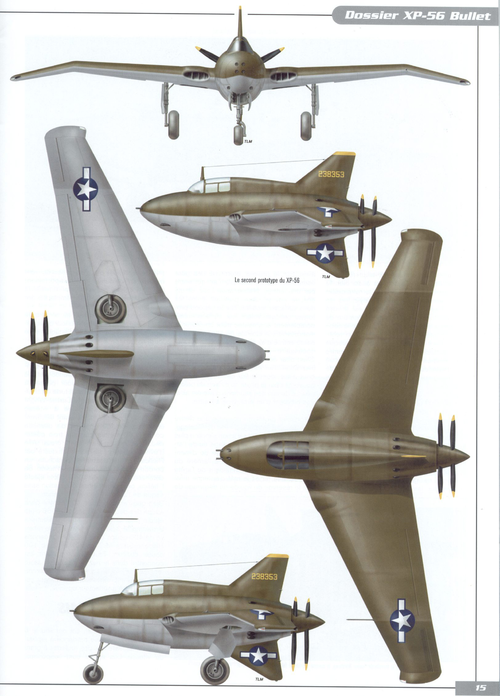

From Air Magazine 6,

please notice that in the patent,it had a straight wing at first.



[Justo Miranda]

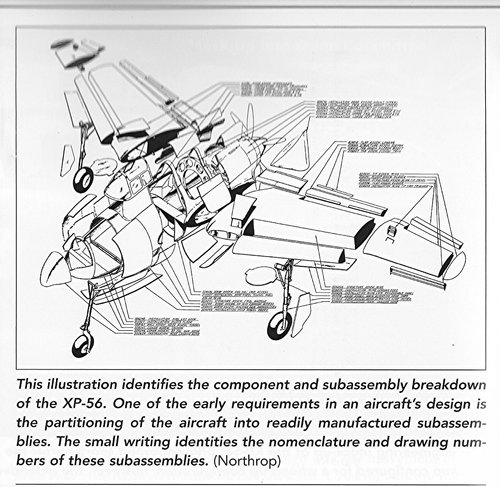

Some additional info here



[Justo Miranda]

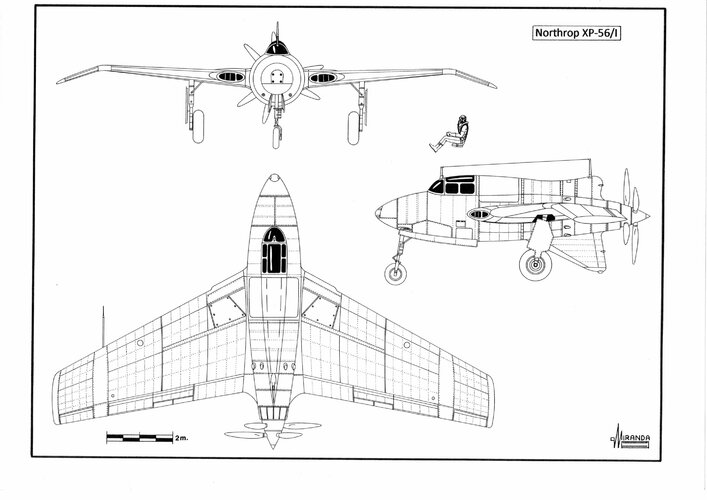

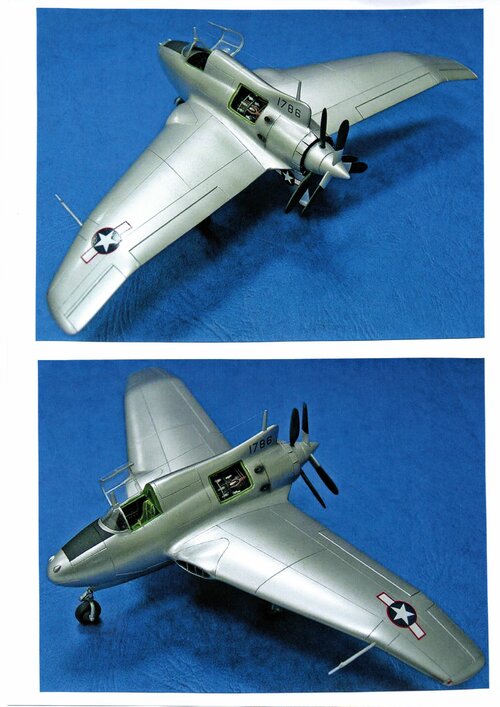

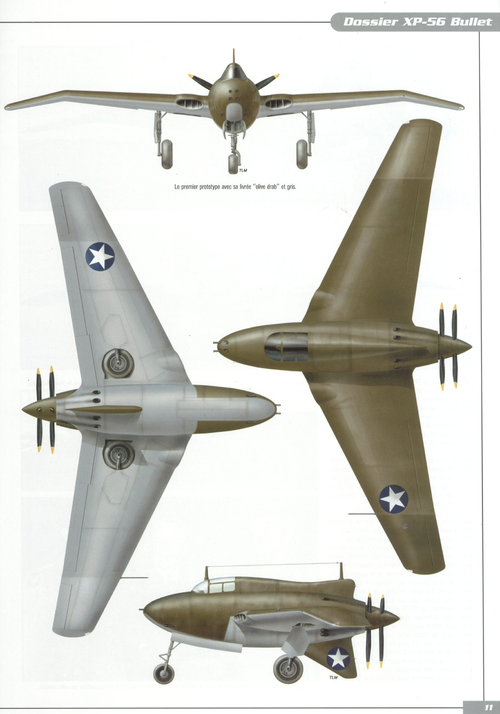

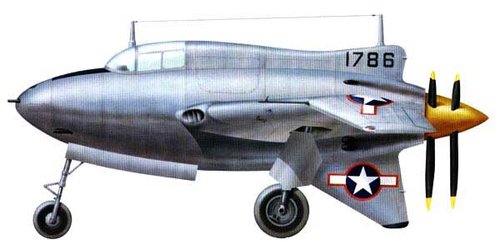

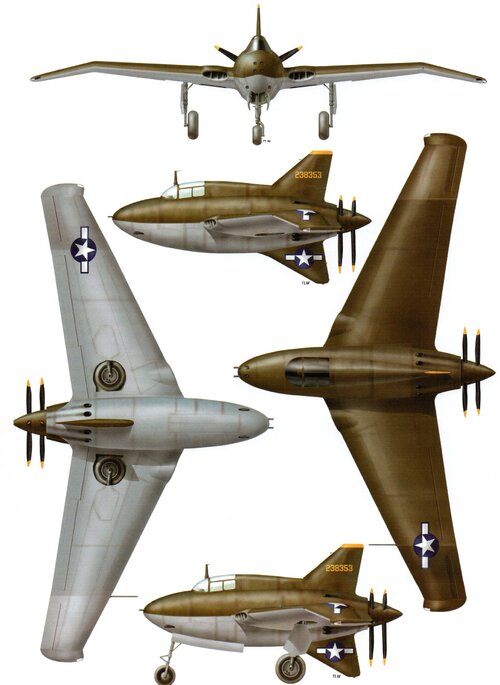

XP-56/I (Silver)



[Justo Miranda]

XP-56/I (Olive Drab)



[Justo Miranda]

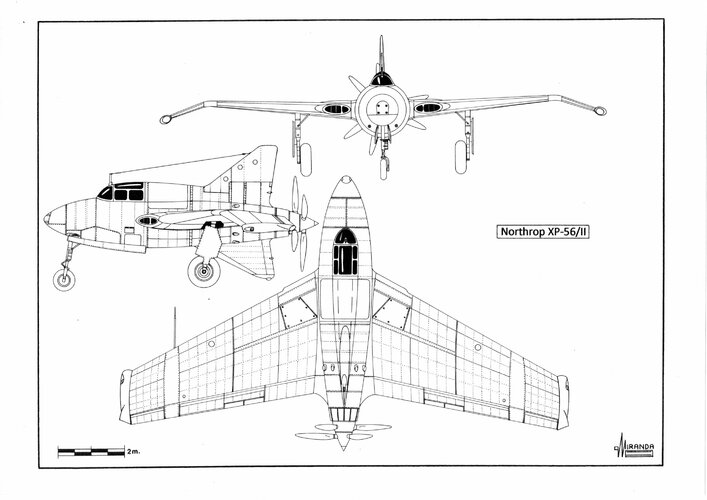

XP-56/II (Olive Drab)



[Justo Miranda]

XP-56/II (Post-2)
