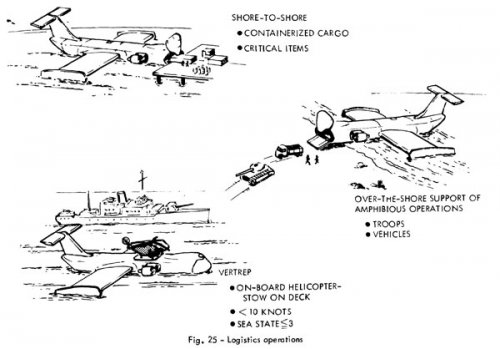

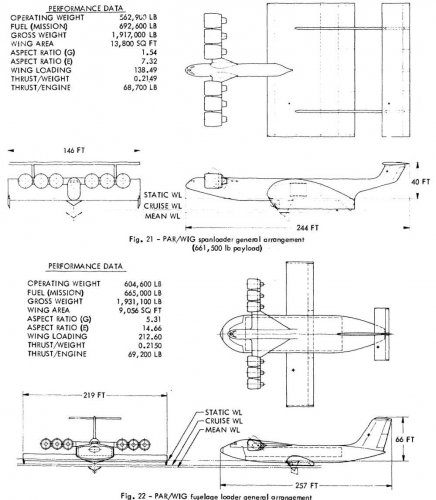

Lockheed 1979 Large WIG Transport Aircraft studies


Attachments

  • PC026-040s.gif
    64.4 KB · Views: 803
  • lockwigboth.jpg
    92.9 KB · Views: 803

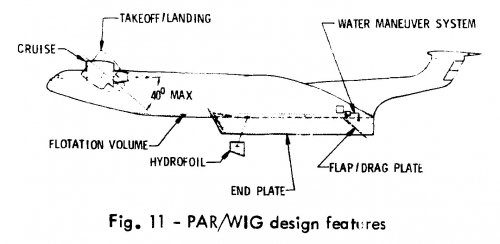

  • wigdesfeatures.jpg
    96.8 KB · Views: 694
  • wigoperations.jpg
    44.9 KB · Views: 734

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257

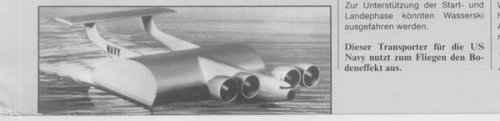

"The Russian put their eingine right in the front "
Another US used the same principle : Lockheed, too, designed
a WIG transport (from Flugrevue .9.78)

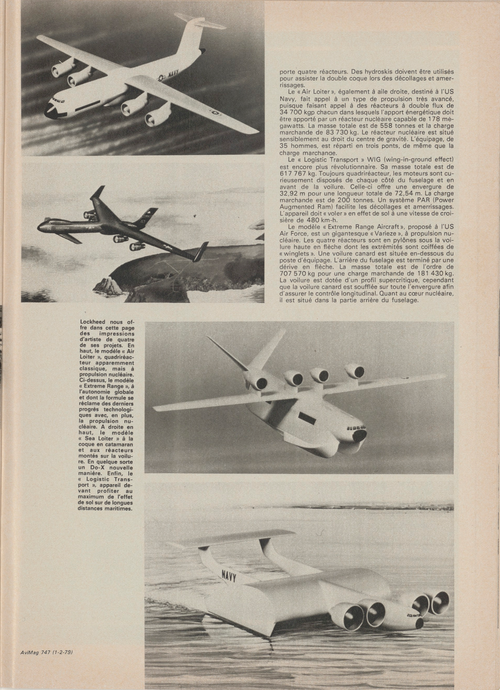

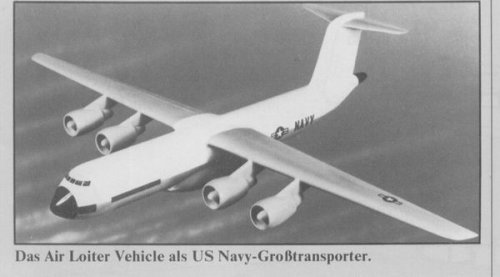

Couldn't find other info about the Airloiter (from Flugrevue .9.78, too )


Attachments

  • Lockheed-AirLoiter.jpg
    23.2 KB · Views: 380
  • Lockheed-WIG.jpg
    14.3 KB · Views: 668

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,156
Reaction score
1,300
Jemiba said:
"The Russian put their eingine right in the front "
Another US used the same principle : Lockheed, too, designed
a WIG transport (from Flugrevue .9.78)

http://www.secretprojects.co.uk/forum/index.php/topic,351.0.html


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257
Ooops, sorry for this double posting ! Maybe because I still have
difficulties, to regard WIGs as aircraft ! ;)

But as far as I now have searched this forum, this Lockheed project

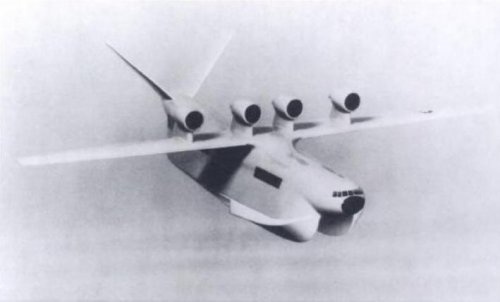

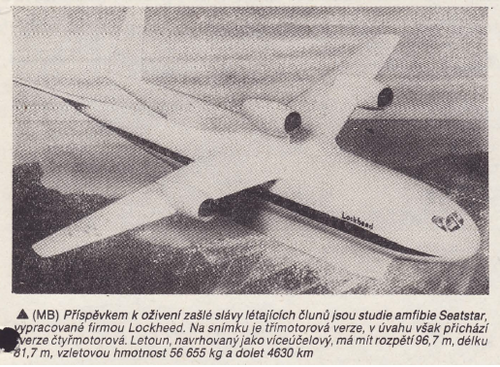

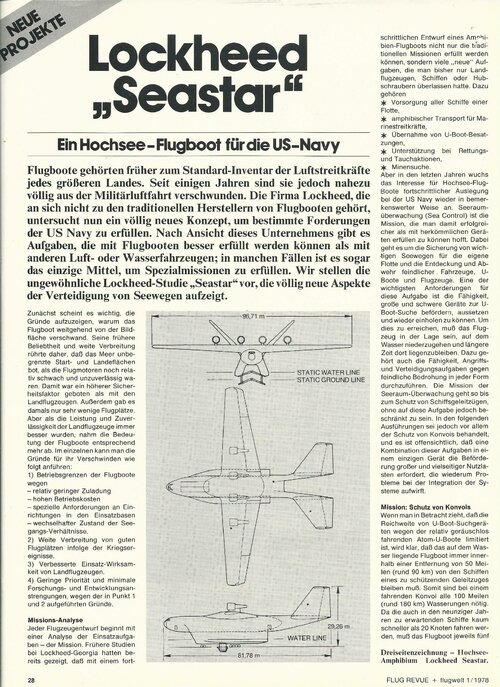

wasn't posted before, the Seastar catamaran flying boat, intended
as a kind of "flying frigate", but as an amphibious transport, too.

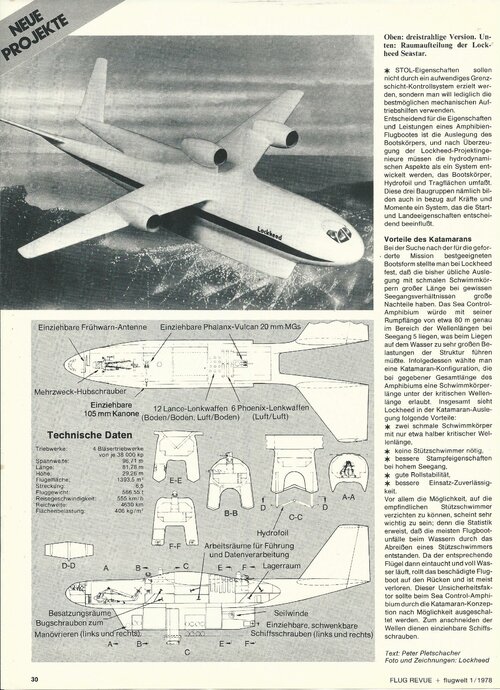

4- and 3-engined variants were shown in FlugRevue 1/1978.


Attachments

  • Lockheed_Seastar_3-engined.JPG
    37.5 KB · Views: 395
  • Lockheed_Seastar_4-engined.JPG
    24.8 KB · Views: 469

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
My dear Jemiba,

the Lockheed developed that project to anther project of 1990,and I will
get you some details.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Does anyone have additional information or images for the four-engined Lockheed "Seastar" flying boat? Any book suggestions to find additional information? Unfortunately, I just find information about the Lockheed T2V SeaStar trainer. :( Has there been a US Navy flying boat program since the cancellation of the Martin P6M SeaMaster in 1959?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257
"Does anyone have additional information or images for the four-engined Lockheed "Seastar" flying boat?"

As a transport, I can only remember this 3-engined version of the Seastar. The 4-engined
was intended as a patrol flying boat, a kind of flying FG, AFAIK.
(from FlugRevue)


Attachments

  • Lockheed_Seastar_3-engined.JPG
    37.5 KB · Views: 200

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Future Flight: The Next Generation of Flight and Aircraft Technology by Bill Siuru and John D. Busick (published October 1, 1993) calls what has been identified as the Lockheed SeaStar as a wing-in ground effect (WIG) transport that would probably operate at an altitude of 100 feet above the ocean's surface.


Attachments

  • LockheedGeorgiaWIG.JPG
    19.4 KB · Views: 242

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257

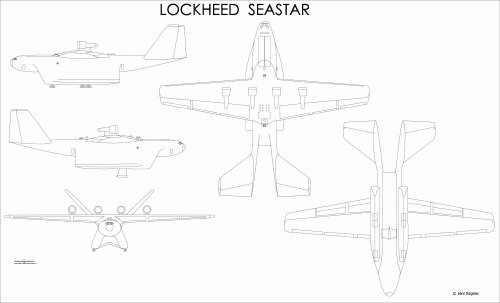

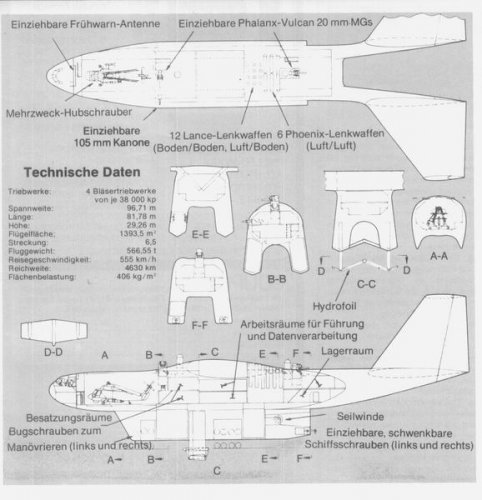

May be right, probably there were several designs based on this concept
In the mentioned FlugRevue, the 4-engined variant was just described
as an amphibium with excellent characteristics on the water, due to its
catamaran layout. The ASW is said to have hydro skis and would have been
armed with Lance missiles (?), AGM-54 Phoenix, two 105 mm howitzers
(probably similar to the AC-130 gunship installation),2 Vulcan Phalanx
AND a Seasprite helicopter in an enclosed hangar !
The dream of my youth ! B)


Attachments

  • Lockheed_Seastar.GIF
    165.8 KB · Views: 370

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996

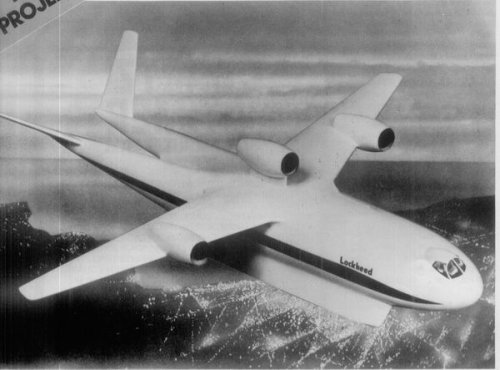

Here you see a another picture in colour of the Lockheed SeaStar modell shown in the article "They're Redesigning the Airplane", written by Micheal E. long and James A. Sugar and published in the magazine "National Geographic", January 1981, Vol. 159, No.1.
Thread: National Geographic, January 1981
The modell on the left is a Lockheed Large WIG Transport Aircraft study from 1979.
Thread: Lockheed 1979 Large WIG Transport Aircraft studies


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Jemiba said:
May be right, probably there were several designs based on this concept
In the mentioned FlugRevue, the 4-engined variant was just described
as an amphibium with excellent characteristics on the water, due to its
catamaran layout. The ASW is said to have hydro skis and would have been
armed with Lance missiles (?), AGM-54 Phoenix, two 105 mm howitzers
(probably similar to the AC-130 gunship installation),2 Vulcan Phalanx
AND a Seasprite helicopter in an enclosed hangar !
The dream of my youth ! B)

I believe Lance is a reference to the UUM-125 Sea Lance missile:
http://en.wikipedia.org/wiki/UUM-125_Sea_Lance


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,983
Reaction score
106
Jemiba said:
May be right, probably there were several designs based on this concept
In the mentioned FlugRevue, the 4-engined variant was just described
as an amphibium with excellent characteristics on the water, due to its
catamaran layout. The ASW is said to have hydro skis and would have been
armed with Lance missiles (?), AGM-54 Phoenix, two 105 mm howitzers
(probably similar to the AC-130 gunship installation),2 Vulcan Phalanx
AND a Seasprite helicopter in an enclosed hangar !
The dream of my youth ! B)

Are you sure this isn't a mistake? It sounds like the typical armament of a destroyer, not an aircraft!


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257

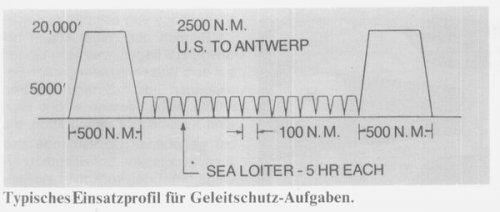

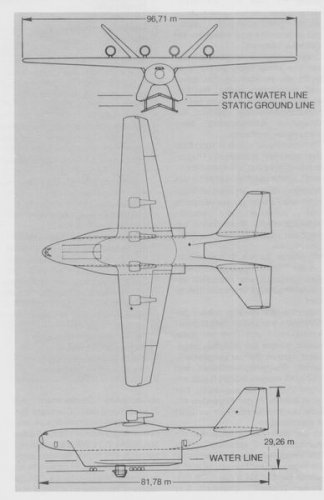

The mission mentioned in the article is sea control, especially escorting
convoys, mainly against submarine attacks. The planned mission profile
is shown in the diagram, actually it's a kind of "sprint-and-drift". The
Seastar is said to have been able to land and take-off up to a seastate 5.
What I'm really missing is a dedicated ASW weapon, but the heli surely
woud have carried ASW torpedoes and the Seastar itself was mainly
meant as a sensorplatform.


Attachments

  • Seastar_02.JPG
    54.6 KB · Views: 346
  • mission_profile.JPG
    19.6 KB · Views: 190

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
I believe Lance is a reference to the UUM-125 Sea Lance missile:
Probably not. "Thank" to the Vietnam war, Lance (MGM-52) was under consideration in the late 60s and 70s as a shipboard weapon for shore bombardment (in competition with a Terrier-derivative and possibly a new missile), for instance when a second modernization of the early Terrier cruisers with Mk-4 launchers and vertical missile magazines was considered (USS Boston CAG-1 and USS Canberra CAG-2; it didn't take place). This is coherent with the 105mm howitzers. Also the time-line for SeaStar points to Lance rather than Sea Lance. If I remember correctly, one issue of APR had a very interesting article on SeaStar.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

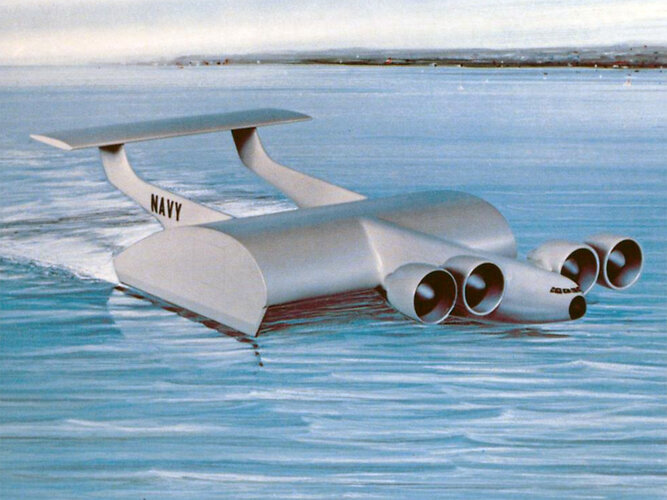

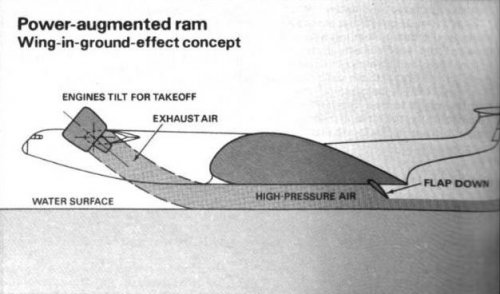

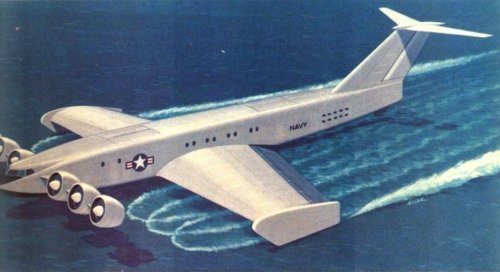

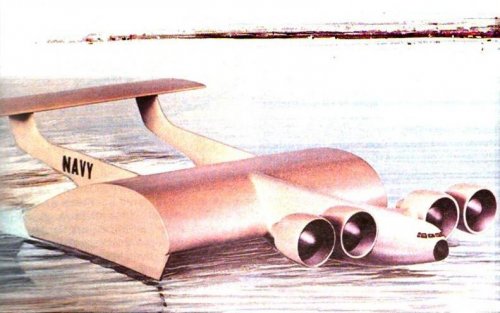

Artist impressions of NASA/Lockheed WIG transports.

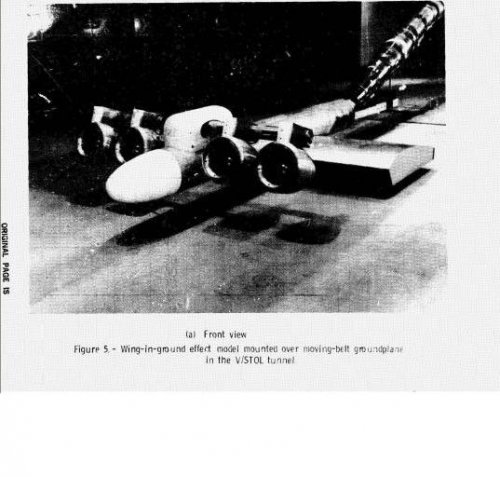

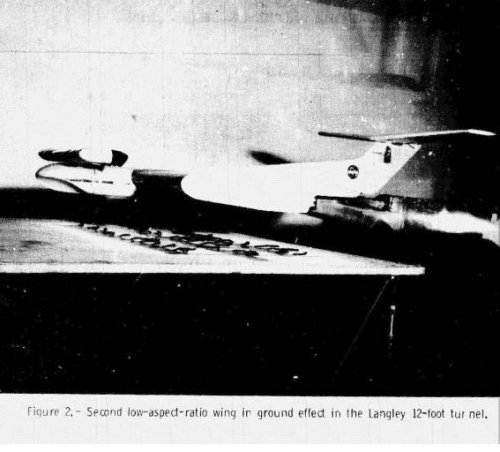

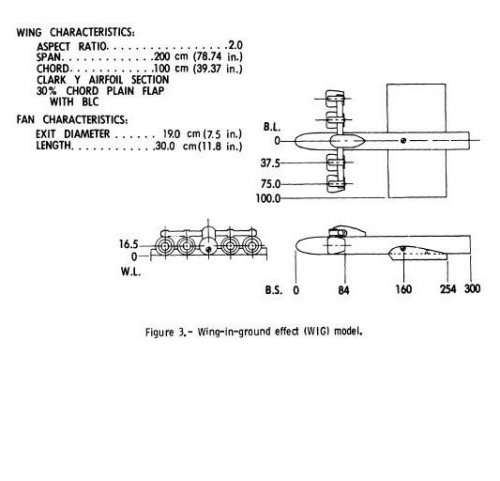

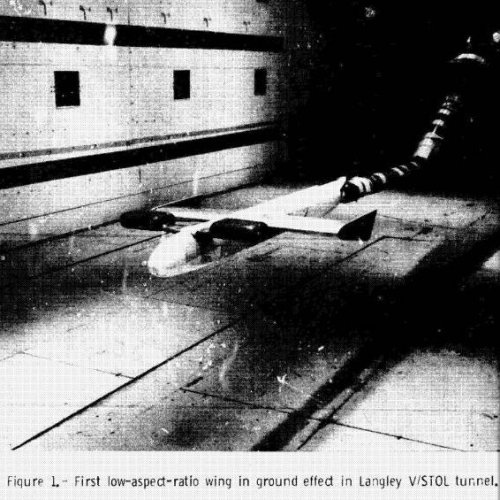

Wing-in-ground-effect (WIGE) transports would use a phenomenon that occurs when a plane flies near the surface: Wings get increased lift from a cushion of high-pressure air underneath and consequently require less power. The ground effect extends to an altitude half the wingspan. WIGE designs usually have stubby (low aspect ratio) wings for better low-speed control. They are usually seaplanes since they must fly over fairly flat surfaces with wing-tip end plates skimming over the wave tops. These NASA/Lockheed concepts would use a power-augmented ram affect to shorten takeoff and landing. Engines would tilt up, and exhaust would raise pressure under the wing. Speed would only be 400 mph. but payloads could be up to 750,000 lbs.

Source: "New-Technology Monster Transports Will Dwarf Today's Jumbo Jets" by Ben Kovicar, Popular Science, October 1980.


Attachments

  • Poweraugmentedramconcept.JPG
    30.2 KB · Views: 632
  • LockheedWIG.JPG
    55.4 KB · Views: 668
  • LockheedNASAWIG.JPG
    62.9 KB · Views: 741

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,

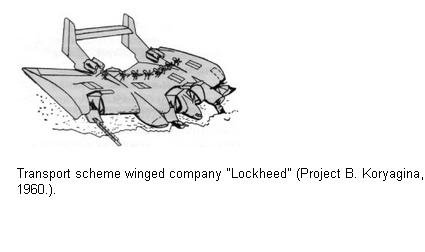

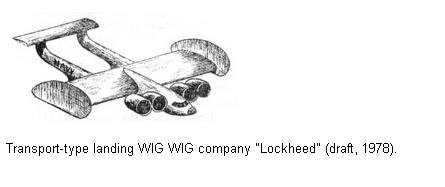

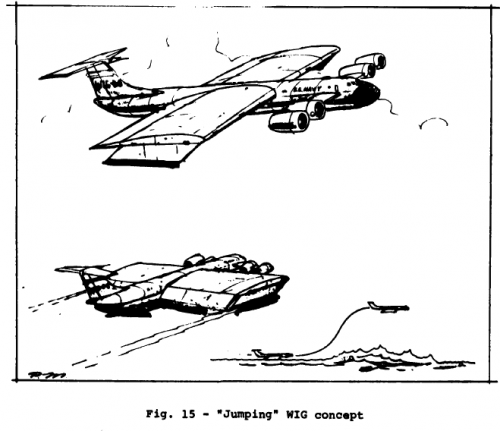

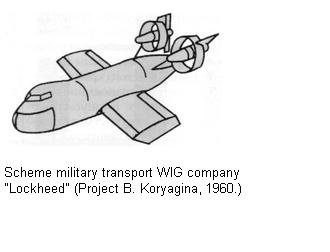

here is some Lockheed Ekranoplanes or WIG aircraft projects;


http://vadimvswar.narod.ru/ALL_OUT/TiVOut0809/EkrplUSA/EkrplUSA001.htm


Attachments

  • Lockheed 1.JPG
    Lockheed 1.JPG
    11.2 KB · Views: 488
  • Lockheed 2.JPG
    Lockheed 2.JPG
    10 KB · Views: 579
  • Lockheed 3.JPG
    Lockheed 3.JPG
    12.9 KB · Views: 257
  • Lockheed 4.JPG
    Lockheed 4.JPG
    11 KB · Views: 99

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,

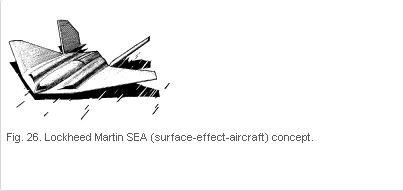

the Lockheed Martin SEA;


http://www.sciencedirect.com/science/article/pii/S0376042106000637


Attachments

  • Lockheed Martin SEA.JPG
    Lockheed Martin SEA.JPG
    8.8 KB · Views: 108

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Stargazer2006 said:
I've already posted this one somewhere.


Yes,ans sorry for this double post,


we must merge those topics;
http://www.secretprojects.co.uk/forum/index.php/topic,2717.msg108541.html#msg108541


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
hesham said:
we must merge those topics;

No, let's leave the SEA in its own topic for now. There's enough material there.

Here is the link to the topic on the Lockheed SEA:
http://www.secretprojects.co.uk/forum/index.php/topic,2717.0


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969

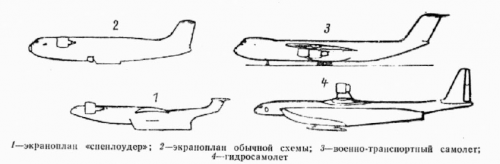

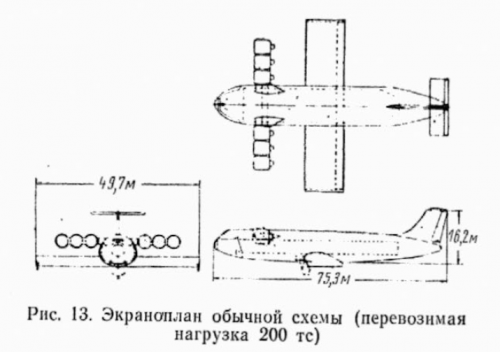

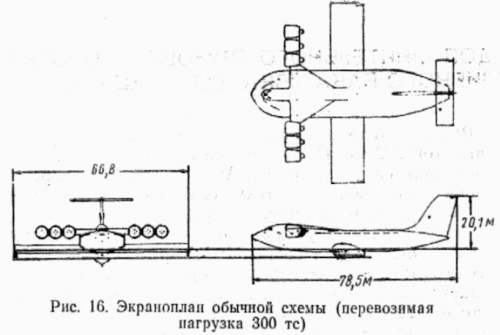

From Russian TsAGI 19/1981,


here is the Lockheed 200 and 300 ton WIG aircraft,and anther some designs.


Attachments

  • Lockheed.png
    83.8 KB · Views: 96
  • 300.png
    197.1 KB · Views: 73
  • 200.png
    131 KB · Views: 75

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,


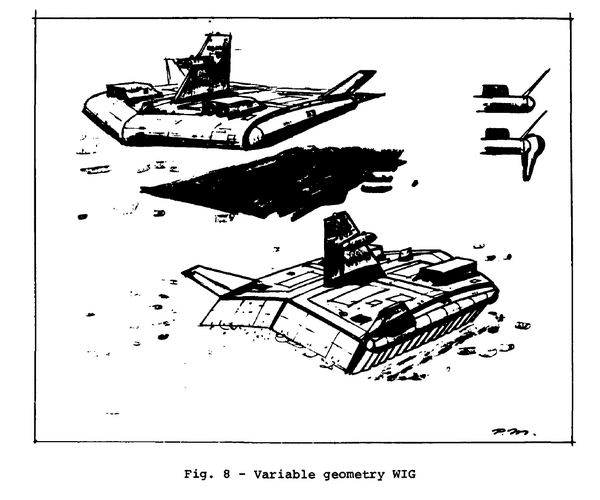

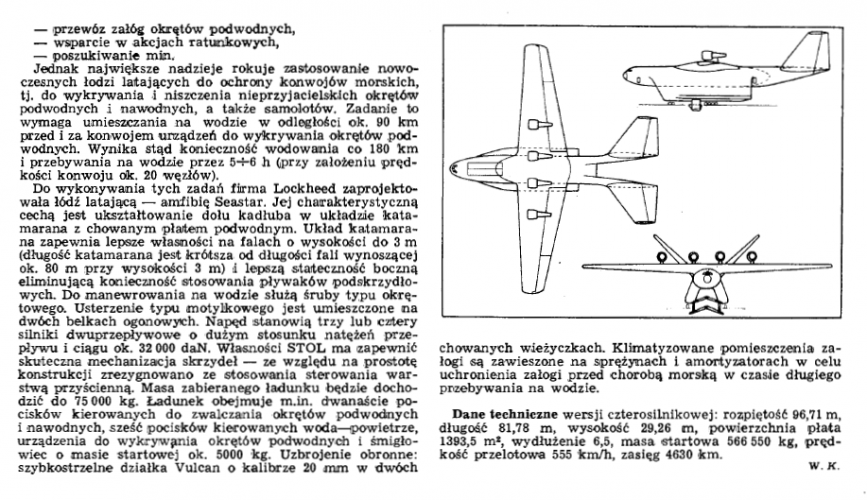

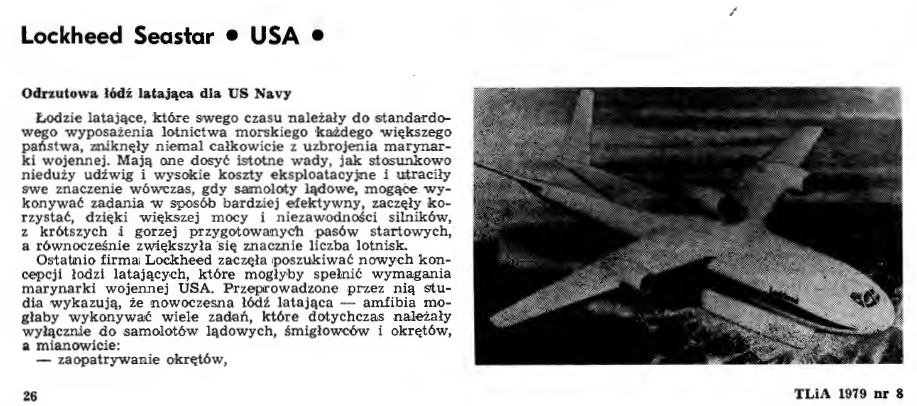

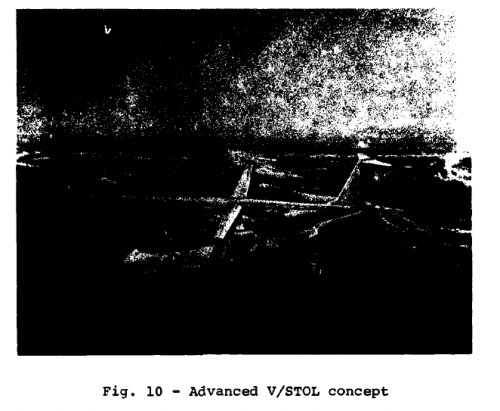

here is two Lockheed Sea Control aircraft concepts,and the third is a helicopter,also
intended for Sea Control ?.


http://www.dtic.mil/dtic/tr/fulltext/u2/a081572.pdf


Attachments

  • 1.png
    34.4 KB · Views: 76
  • 2.png
    46 KB · Views: 69
  • 3.png
    52.6 KB · Views: 83

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
149
Reaction score
156
Ooops, sorry for this double posting ! Maybe because I still have
difficulties, to regard WIGs as aircraft ! ;)

But as far as I now have searched this forum, this Lockheed project
wasn't posted before, the Seastar catamaran flying boat, intended
as a kind of "flying frigate", but as an amphibious transport, too.
4- and 3-engined variants were shown in FlugRevue 1/1978.
197801 Flug Revue 20170820-002.jpg
