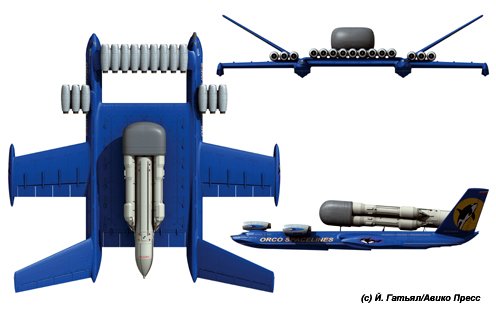

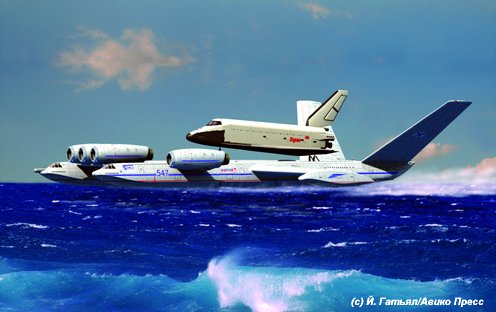

Oriol-1 - MDB WIG-craft


Attachments

  • 6-1.jpg
    164.2 KB · Views: 277
  • 7-1.jpg
    81.1 KB · Views: 295
  • 7-2.jpg
    72.2 KB · Views: 268

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
552
Reaction score
112
Website
www.avicopress.ru

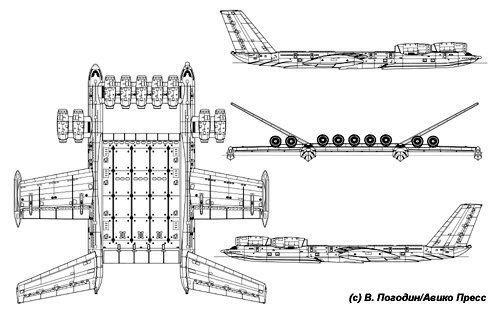

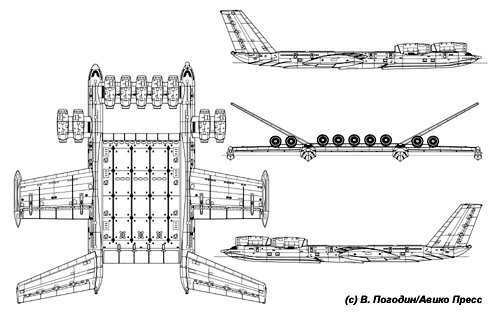

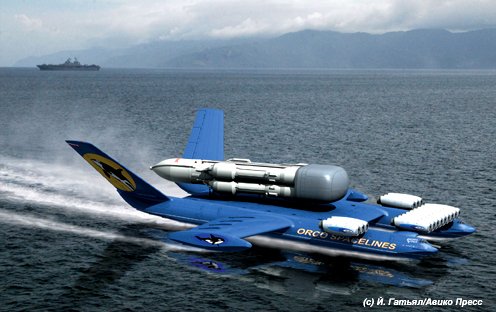

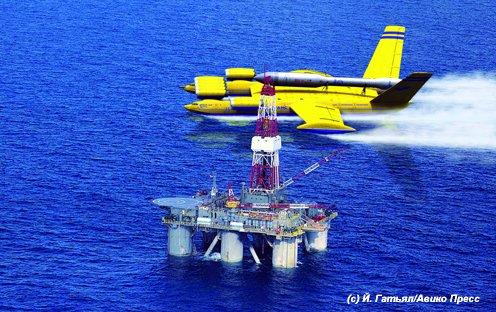

Oriol-2 MDB WIG-craft


Attachments

  • 9-2.jpg
    72.5 KB · Views: 117
  • 9-1.jpg
    108.3 KB · Views: 240
  • 8-1.jpg
    242.4 KB · Views: 234

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
552
Reaction score
112
Website
www.avicopress.ru

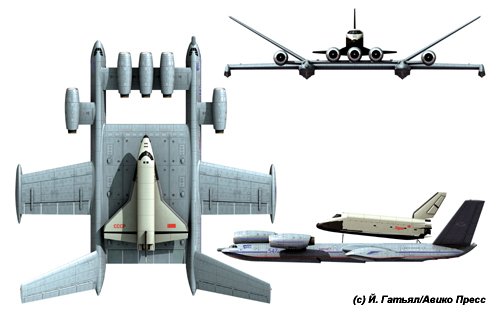

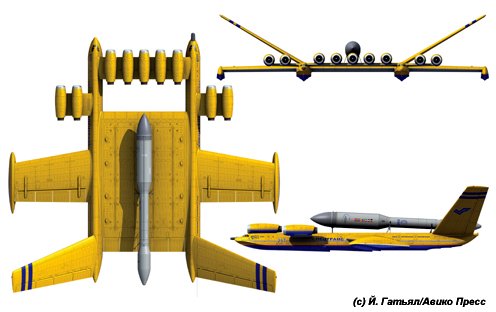

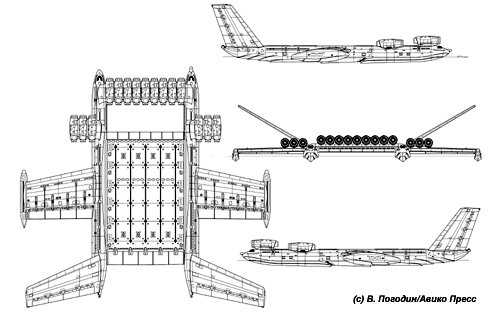

and Oriol-3 by MDB WIG-craft
This project was in 1993 and stopped of financial problems in MDB (MDB=Myasishchev Design Bureau).
Detailed info see in website www.avicopress.ru


Attachments

  • 10-3.jpg
    169.2 KB · Views: 155
  • 11-1.jpg
    97.2 KB · Views: 157
  • 11-2.jpg
    68.6 KB · Views: 133

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,955
Reaction score
1,301
question to MDB WIG-craft

how is cargo protected from hot exhaust from dozend Jet engines ?


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
552
Reaction score
112
Website
www.avicopress.ru
Dear Michael Van!

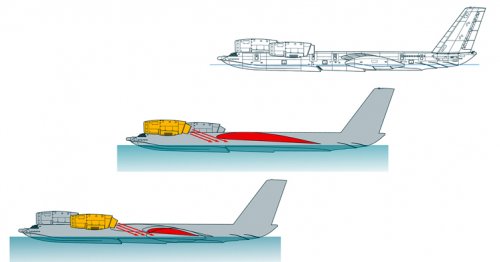

Please see attch. pic, answering your question.
Regards


Attachments

  • WIG-engines.jpg
    110.2 KB · Views: 179

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,211
Reaction score
175
Is good, the vodka. Another toast to the laws of aerodynamics (hic)!


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,955
Reaction score
1,301
ucon said:
Dear Michael Van!
Please see attch. pic, answering your question.
Regards

OOOH undersurface blowing !
perfect solution for that, including incease lift
