Lockheed-California Earth-to-space shuttle of 1964

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,103
Hi,

Lockheed-California was carrying out studies into Earth-to-space "shuttle" vehicles for
NASA's Marshall Space Flight Center. In this proposal the three-stage recoverable
vehicle was launched by a hot-water propulsion rocket sled.

http://www.flightglobal.com/pdfarchive/view/1964/1964%20-%200493.html


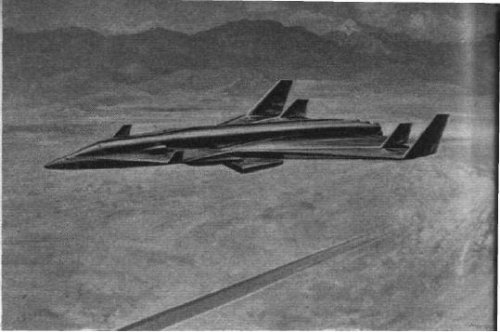

Attachments

  • Lockheed.JPG
    31 KB · Views: 659

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,103
My dears and my friends,

can anybody make a sketch or drawing to this Lockheed project ?,or
may be one can ID it,Lockheed CL-?.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,372
Reaction score
2,458
Patience please hesham
i need time to dig true my databank

from Marcus Lindroos - "death" homepage
Lockheed investigated the economics of reusable launch vehicles for crews and light space station cargo during the early 1960s. Anticipated space activites in the 1970s included a two-phase Earth-orbital space station program, a lunar base, and early Mars mission plus later Mars/Venus mission... Since the baseline "System I" 6-man Apollo CSM/Saturn-IB vehicle appeared to be uneconomical as a high-volume manned transportation system even if the crew capsule could be reused 10 times, Lockheed proposed a "System II" that would have retained the Saturn IB booster but replaced the Apollo with a new reusable 10-man spaceplane (below). This third stage spaceplane was standard for Systems III & IV as well.

the Picture show "System IV" airbreathing HTHL TSTO ramjet-rocketplane.

again Marcus Lindroos
System IV is otherwise identical to System III but uses a different booster aircraft with in-flight LOX collection + ramjet propulsion Both vehicles would be launched from a ground accelerator sled and fly orbit-once-around missions to deploy the small DynaSoar-like interorbital third stage "space taxi" containing the crew & cargo. The System III & IV requirements were as follows: 95% mission reliability (0.1% vehicle attrition rate). 2950kg payload & 10 passenger capability. 7.5 day min. turnaround between missions (11-23 days nominal). Mission life of 500 flights. Flight rates of 100-300 missions per year in 1973-80. The estimated costs were in the $6.8M (50 flts/yr.)-$1.275M (400 flts/yr.) range. These figures are in FY 1964 dollars; the inflation-adjusted cost in 1999 would be $6.85M - $36.5M per flight.

source:
"Potential of Recoverable Booster Systems for Orbital Logistics" -- Bailey & Kelly, Astronautics & Aeronautics 1964/January/p.54


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
28
Website
www.io.com
from Marcus Lindroos death home page
...Wait! Is Marcus dead, or did something get lost in the translation again? ??? ???


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,372
Reaction score
2,458
OM said:
from Marcus Lindroos death home page
...Wait! Is Marcus dead, or did something get lost in the translation again? ??? ???

i don't know...
i was referring to his homepage, how is now quite death (404)


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
28
Website
www.io.com
...Haven't we discussed this on another thread fairly recently? Wish I could recall the topic header so I could (probably unsuccessfully) search for it.


seruriermarshal

ACCESS: Top Secret
Joined
May 4, 2008
Messages
1,096
Reaction score
336
OM said:
...Haven't we discussed this on another thread fairly recently? Wish I could recall the topic header so I could (probably unsuccessfully) search for it.

thanks , wish take the topic .


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,372
Reaction score
2,458
that's Lockheed "System IV" airbreathing HTHL TSTO ramjet-rocketplane.
http://www.secretprojects.co.uk/forum/index.php/topic,6741.0.html


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
28
Website
www.io.com
Michel Van said:
that's Lockheed "System IV" airbreathing HTHL TSTO ramjet-rocketplane.
http://www.secretprojects.co.uk/forum/index.php/topic,6741.0.html

...Thought so! The memory isn't *quite* failed yet :p


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
248
Re: Lockheed-California Earth-to-space shuttle project of 1964......

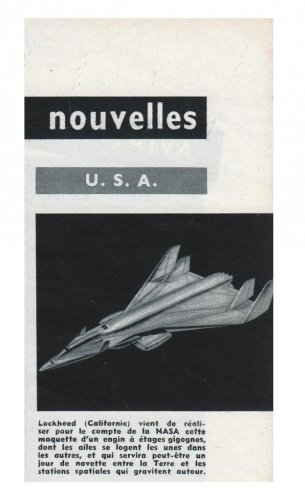

Dear Boys and Girls, here is a little picture with a caption in French of the Lockheed-California 3-stage shuttle "project" of "1964"......

The picture comes from the 15th September 1963 issue of Aviation Magazine......

Terry (Caravellarella)


Attachments

  • Lockheed 3-stage shuttle project - Aviation Magazine - Numéro 370 - 15 Septembre 1965.......jpg
    Lockheed 3-stage shuttle project - Aviation Magazine - Numéro 370 - 15 Septembre 1965.......jpg
    83.1 KB · Views: 506

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,103
And from anther site;

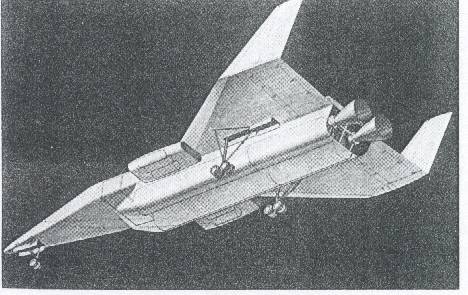

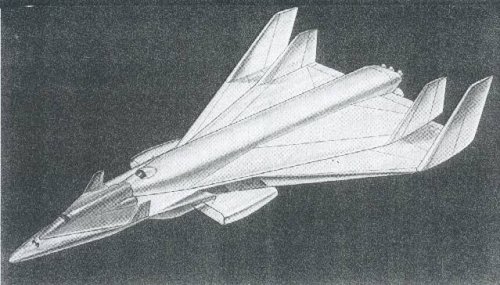

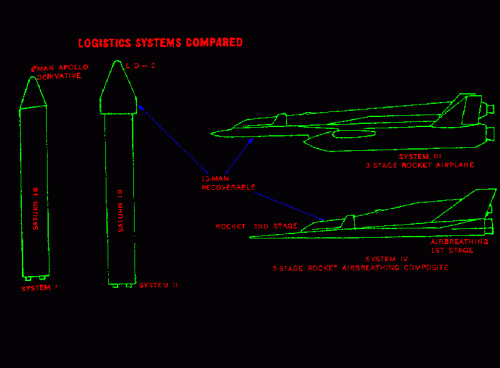

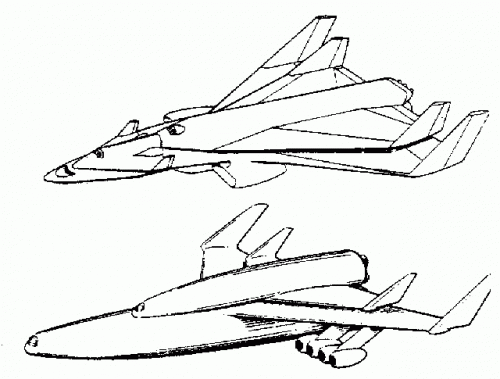

http://www.pmview.com/spaceodysseytwo/spacelvs/sld004.htm


Attachments

  • 5.gif
    9.3 KB · Views: 80
  • 4.gif
    7.4 KB · Views: 67
  • 3.jpg
    42.2 KB · Views: 69
  • 2.jpg
    40.4 KB · Views: 493
  • 1.jpg
    64.9 KB · Views: 373

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,372
Reaction score
2,458

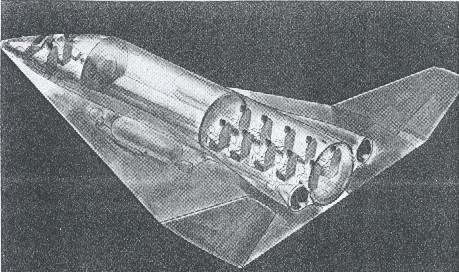

carmelo said:
But the orbital vehicle is a Dyna Soar?


only in it aerodynamic form
internal it look quite different
index.php


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,803
Reaction score
3,187
Website
www.aerospaceprojectsreview.com

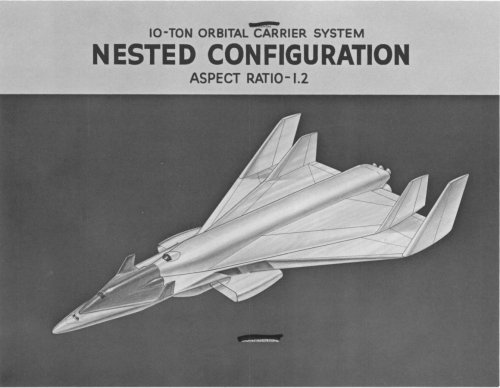

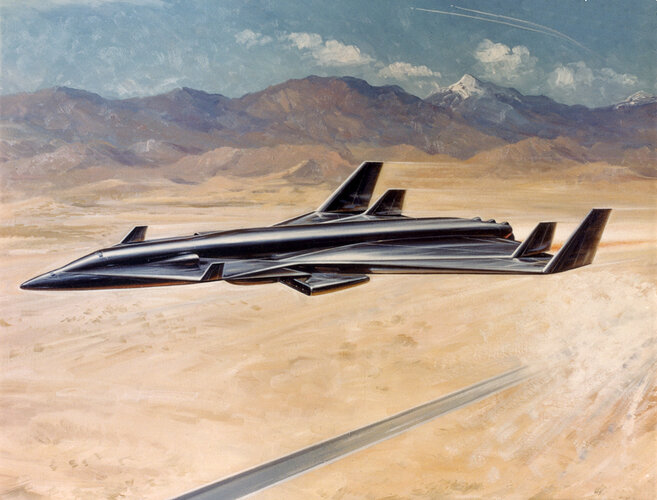

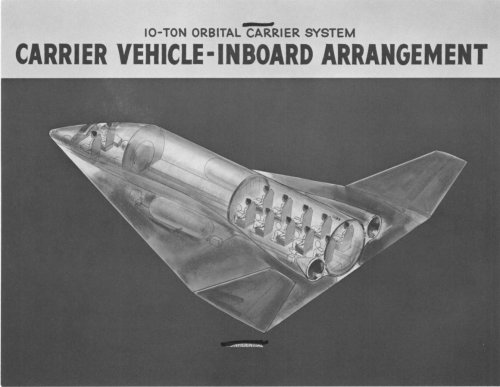

Some better versions of the images. A few more images over HERE.
