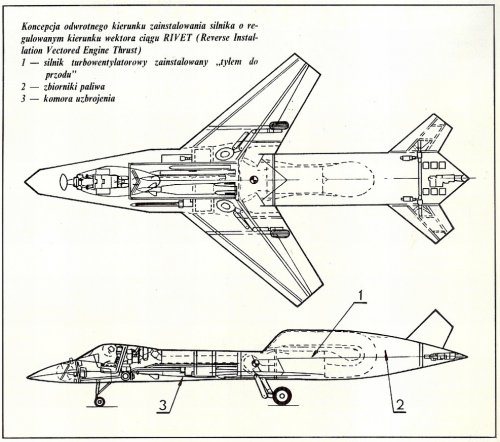

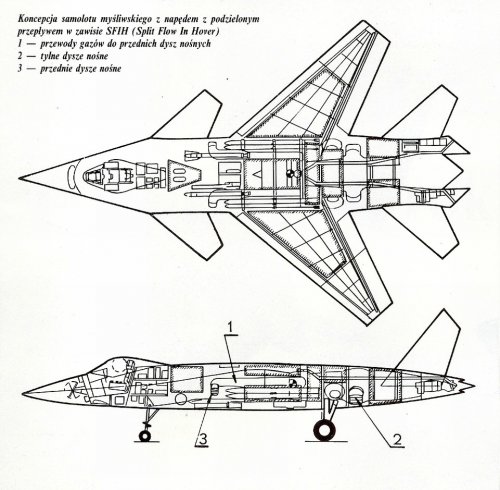

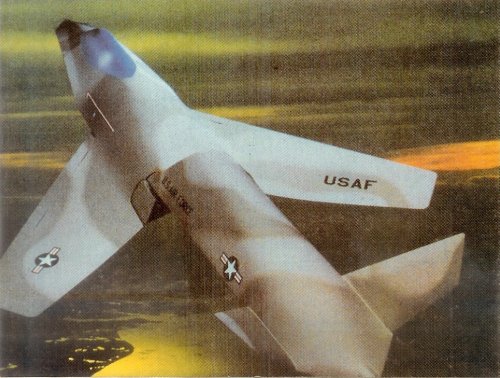

Lockheed ASTOVL, JAST, JSF projects

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
453
Website
deeptowild.blogspot.com

Attachments

InvisibleDefender

CLEARANCE: Confidential
Senior Member
Joined
Oct 27, 2010
Messages
152
Reaction score
1
Triton said:

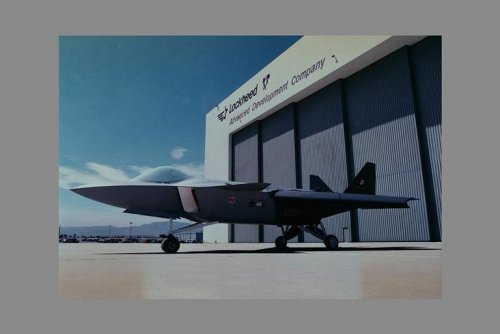

Lockheed artist's concept from Global Security grouped with Boeing X-32 pictures. Profile view of Common Affordable Lightweight Fighter (CALF)?

Source:
http://www.globalsecurity.org/military/systems/aircraft/x-32-pics.htm

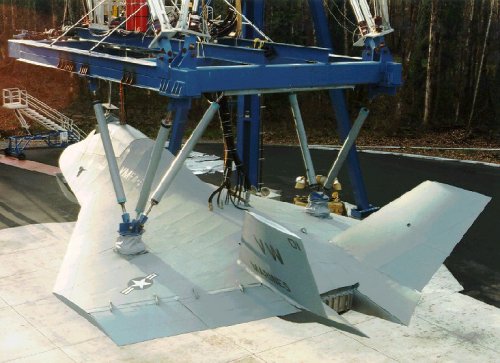

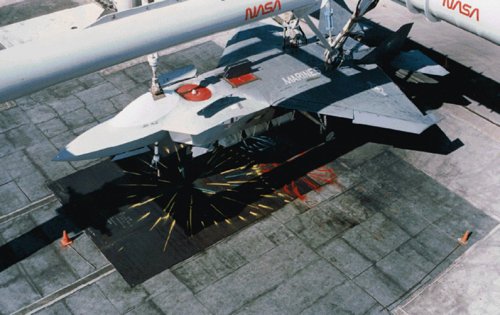

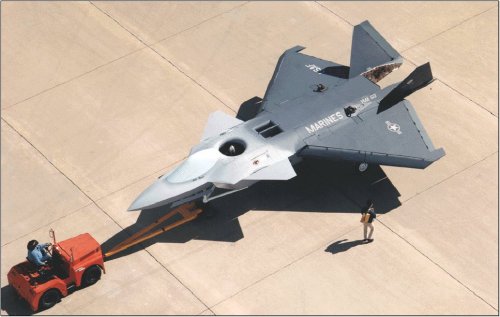

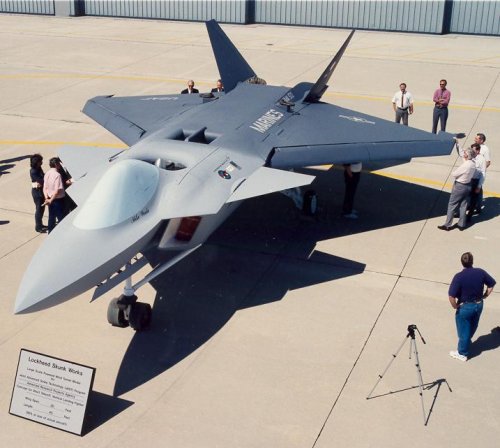

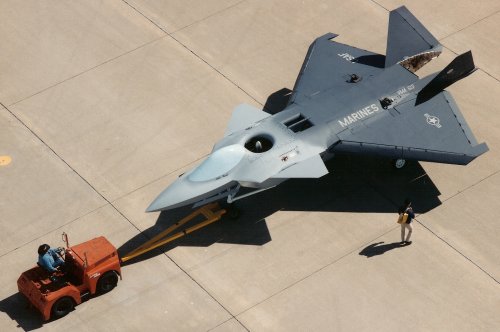

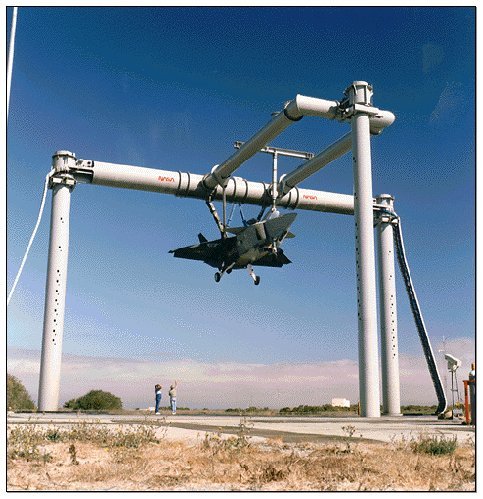

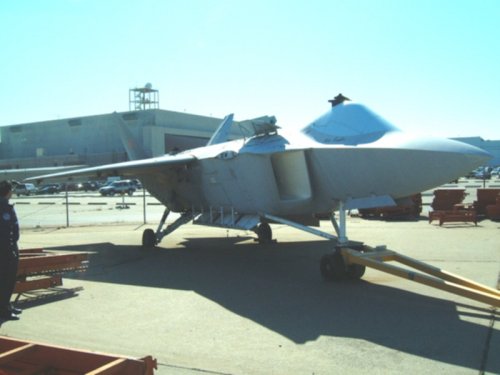

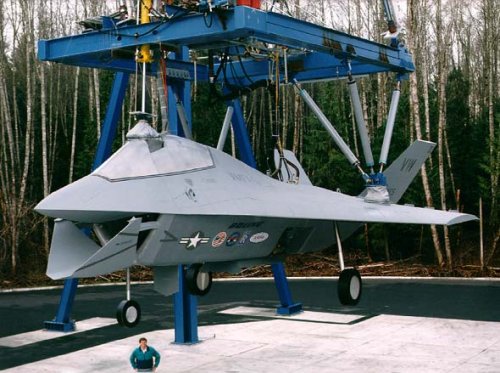

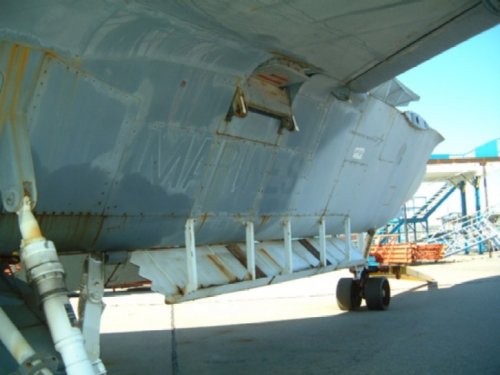

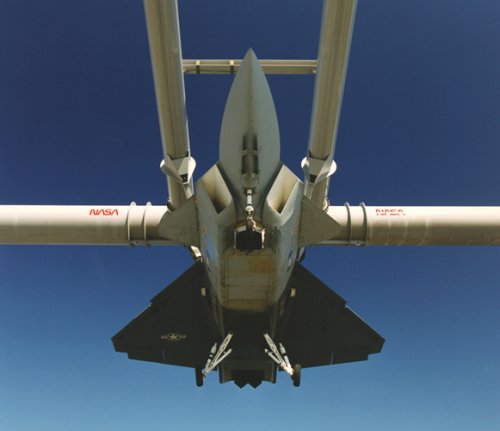

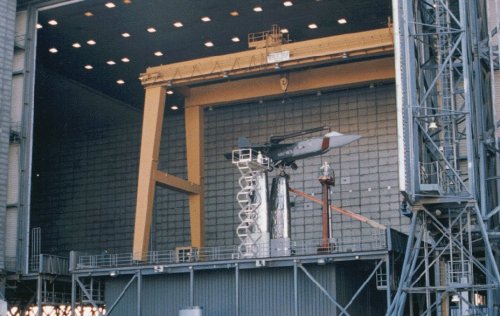

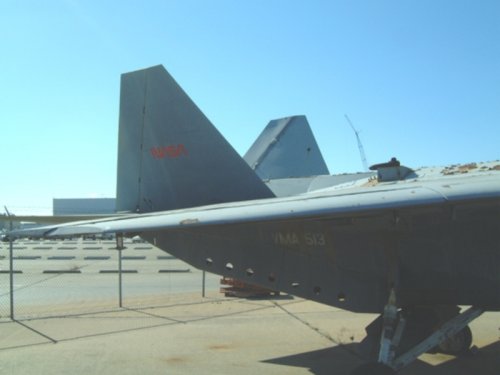

Actually that is a real photo of the Lockheed X-32 ASTOVL / JAST Large Scale Powered Model (LSPM) that was tested at NASA Ames. Now rusting away in Ft. Worth.
Boeing built one and tested it. McDonnell Douglas built one but it wasn't really used to do changes in their configuration.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
Wow, great! Can't wait for the whole story of the ASTOVL X-32/X-35 program's inception to be told!


InvisibleDefender

CLEARANCE: Confidential
Senior Member
Joined
Oct 27, 2010
Messages
152
Reaction score
1
Stargazer2006 said:
Wow, great! Can't wait for the whole story of the ASTOVL X-32/X-35 program's inception to be told!
already has been (for the most part) - reworking it with an emphasis on propulsion for the Centennial of Naval Aviation Conference in Virginia Beach later this year.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
So I infer from the above that you are Ian, right? I had not seen this article previously. It is extremely interesting and highly documented, as only an insider could have done it. Congratulations!


AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,231
Reaction score
125
Excellent paper! Thanks for sharing. :)
I'm presenting at the conference as well, I'll be sure to look up your presentation on the program and attend.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
453
Website
deeptowild.blogspot.com

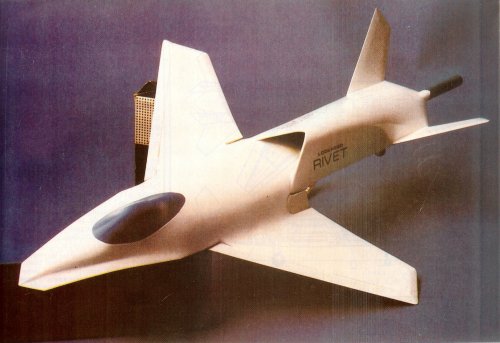

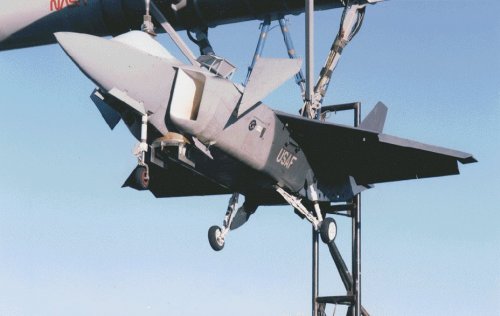

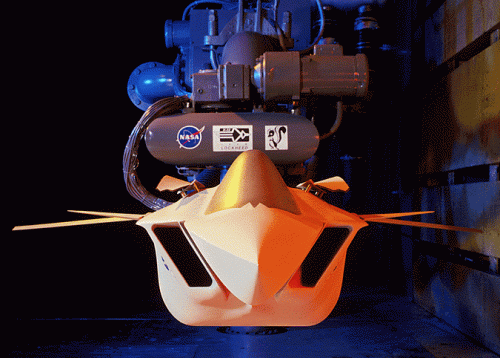

10-percent scaled model of Lockheed ASTOVL concept for wind tunnel testing.

In this cooperative program between NASA, Lockheed Corporation, and the Advanced Research and Projects Agency (ARPA), an advanced short takeoff and vertical landing (ASTOVL) model was tested in the 9- by 15-Foot Low-Speed Wind Tunnel at the NASA Lewis Research Center. The 10-percent scaled model was tested over a range of headwind velocities from 25 to 120 kn. This inlet/forebody test was a key part of an important Department of Defense program investigation enabling technologies for future high-performance ASTOVL aircraft.

The Lockheed concept is focused on a shaft-coupled lift fan system centered around Pratt & Whitney's F119 power plant. As envisioned, a conventional takeoff and landing version (CTOL) would replace the U.S. Air Force's F-16's. The ASTOVL version would eventually replace Marine and, possibly, British Harrier aircraft. The ASTOVL and CTOL versions are scheduled to begin their manufacturing development phases in 2000.

The purpose of this test was to acquire data pertinent to the inlet-forebody model. The test was very successful. Both steady-state and dynamic data were obtained. This small-scale testing, which is directed at reducing risks, may greatly reduce the risks on a full-scale aircraft.
Source:


Attachments

LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,189
Reaction score
93
Interesting paper, Ian.

Just a thought - you make the point that the Marine requirement was "a driving design consideration", but it might be worth adding that it imposed tough dimensional limits.

The first Joint Strike Fighter aircraft are currently scheduled for delivery to the services in 2008.

No comment....


InvisibleDefender

CLEARANCE: Confidential
Senior Member
Joined
Oct 27, 2010
Messages
152
Reaction score
1
LowObservable said:
Interesting paper, Ian.

Just a thought - you make the point that the Marine requirement was "a driving design consideration", but it might be worth adding that it imposed tough dimensional limits.

The first Joint Strike Fighter aircraft are currently scheduled for delivery to the services in 2008.

No comment....
Yes, well, I wrote that paper more than 10 years ago!


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,949
Reaction score
648
hole in the ground said:
isnt that usually where a wind tunnel model is mounted?
yes


Colonial-Marine

Fighting the UAV mafia.
Joined
Oct 5, 2009
Messages
672
Reaction score
32
Are there any diagrams of the lift system on the Lockheed X-32 ASTOVL/JAST large scale powered
model? Was it a 2D thrust vectoring nozzle that could swivel downwards or was another method used?


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,774
Reaction score
232
Colonial-Marine said:
Are there any diagrams of the lift system on the Lockheed X-32 ASTOVL/JAST large scale powered
model? Was it a 2D thrust vectoring nozzle that could swivel downwards or was another method used?
Do you mean the Boeing X-32? The Boeing X-32 used two nozzles at the CG for STOVL. or do you mean the early Lockheed X-35 canard design that was tested as a large model?


Colonial-Marine

Fighting the UAV mafia.
Joined
Oct 5, 2009
Messages
672
Reaction score
32
Sundog said:
Do you mean the Boeing X-32? The Boeing X-32 used two nozzles at the CG for STOVL. or do you mean the early Lockheed X-35 canard design that was tested as a large model?
I was referring to the Lockheed canard ASTOVL design that was used for that powered test model. According to some here it received the designation of X-32 back before JSF gained momentum.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,949
Reaction score
648

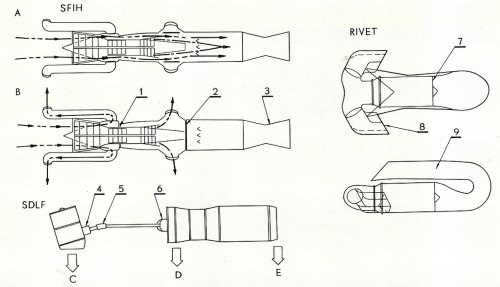

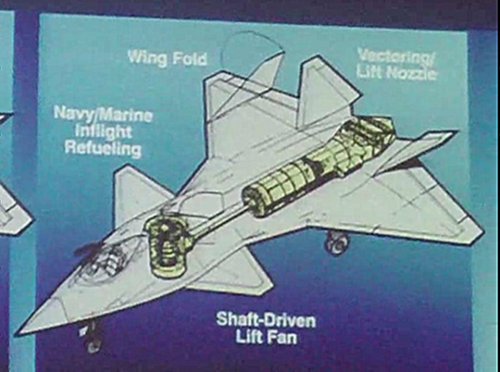

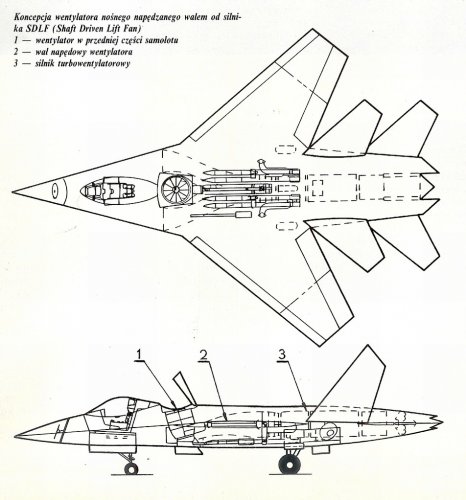

it had shaft-driven lift fan (SDLF) and 2D "lobster tail" with supported divergent flap and pressure balanced convergent flap
"...same nozzle was used for cruise and hover, but the vectoring capability was not used in up-and-away flight"

"lobster tail" diagram can be found in
AIAA 2011-6999
The Quest for Stable Jet Borne Vertical Lift: ASTOVL to F-35 STOVL
AIAA Centennial of Naval Aviation Forum "100 Years of Achievement and Progress"
21 - 22 September 2011, Virginia Beach, VA
written by two SPF members


Rafael

CLEARANCE: Confidential
Joined
Oct 23, 2006
Messages
128
Reaction score
3
Along the lines of "Google is your friend", wich it is not, I searched for SSF, "Stealth Strike Fighter", "ASTOVL", "JAST", "CALF", all accompanied with variations of "Lockheed" or "McDD", and turned up with no 3-Views of Lockheed's same.

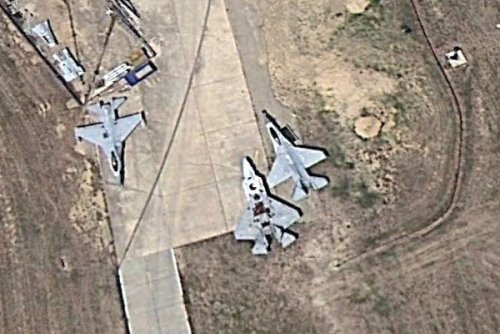

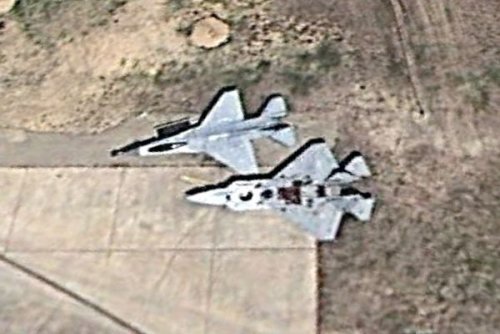

What I found, though, are the attached pictures allegedly taken from Carswell, AFB, Fort-Worth, TX. Apparently singe-engined, F-16 sized and apparently with the cavities for lift-fan apparatus

Are these prior or later iterations of the canard-equipped one?

And, please, can someone take me out of my misery and post a 3-view of this "elusive" subject

Thanks,

Rafa


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,949
Reaction score
648
Rafael said:
Along the lines of "Google is your friend", wich it is not, I searched for SSF, "Stealth Strike Fighter", "ASTOVL", "JAST", "CALF", all accompanied
with variations of "Lockheed" or "McDD", and turned up with no 3-Views of Lockheed's same.
http://www.secretprojects.co.uk/forum/index.php/topic,238.msg26964.html#msg26964


AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,231
Reaction score
125
Grigoriy, did you get the timeline off of one of Ian's AIAA papers? I think you mentioned one recently in another JSF thread. Does it say, or does anyone else for that matter know, why at one point the canard, which was so predominant in CALF, JAST, and ASTOVL, was discarded in favor of the aft tail we are familiar with?
I can think of several reasons, but I would be curious to get a definitive answer rather than just hearsay.


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,189
Reaction score
93
This is my understanding:

The LockMart design went from canard to quad-tail shortly before the CDA RFP deadline (which was in 1996). The main reason was that the carrier version was going to need a larger wing than the span-restricted (LH-class parking) CV/STOVL aircraft, and larger control surfaces. Scaling up a delta wing, while keeping its sweep angles constant (LO constraint) is difficult configuration-wise because the increase in root chord - in feet and inches - gets very large... so where do you put the (also larger) canard? A wing with less sweep and taper, and an aft tail likewise, made it easier to accommodate two wing designs on the same body shape.

The LSPM (large scale powered model) in the Google Earth photos was built as a canard, but I suspect that they modded it to get some idea of the difference in suck-down effects.


AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,231
Reaction score
125
Makes sense. I remembered it having to do with carrier compatibility, but forgot the exact reason. Thanks for the explanation.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
453
Website
deeptowild.blogspot.com

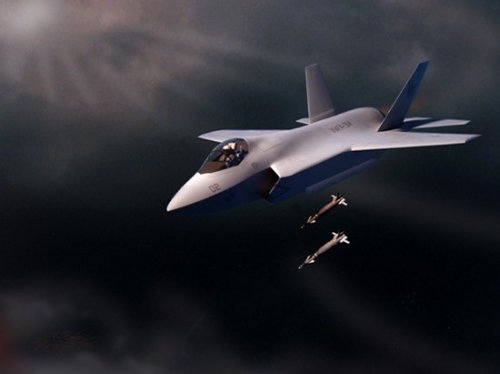

Lockheed Martin JAST concept releasing bombs from internal weapons bays.

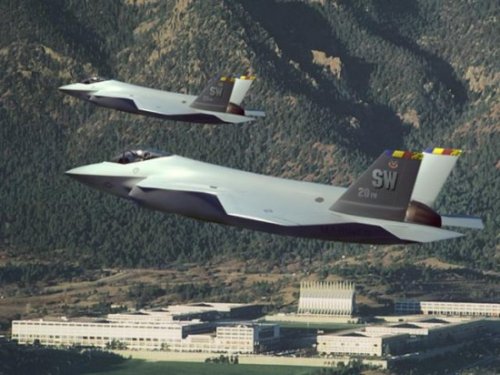

JAST convential takeoff variant designed by Lockheed Martin for the US Air Force.

Source:
http://www.aerospaceweb.org/aircraft/fighter/jsf/pics05.shtml


Attachments

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,305
Reaction score
527

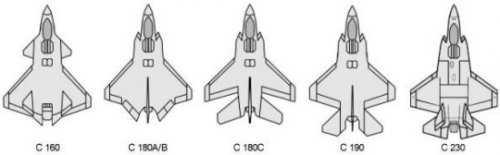

Evolution of the Lockheed Martin design for JAST culminating in the X-35
Image courtesy JSF Program Office, 2010
Source: http://www.aerospaceweb.org/aircraft/fighter/jsf/pics05.shtml


Attachments

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,122
Reaction score
2,640
LowObservable said:
This is my understanding:

The LockMart design went from canard to quad-tail shortly before the CDA RFP deadline (which was in 1996). The main reason was that the carrier version was going to need a larger wing than the span-restricted (LH-class parking) CV/STOVL aircraft, and larger control surfaces. Scaling up a delta wing, while keeping its sweep angles constant (LO constraint) is difficult configuration-wise because the increase in root chord - in feet and inches - gets very large... so where do you put the (also larger) canard? A wing with less sweep and taper, and an aft tail likewise, made it easier to accommodate two wing designs on the same body shape.

The LSPM (large scale powered model) in the Google Earth photos was built as a canard, but I suspect that they modded it to get some idea of the difference in suck-down effects.

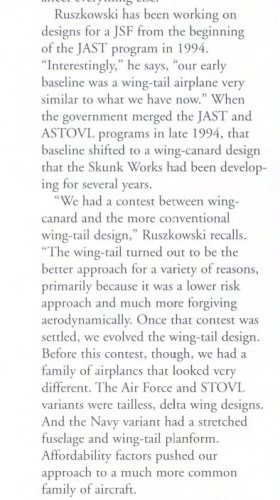

This is broadly confirmed in Code One 1996 Volume 11, Number 3, where Bob Ruzkowski says they had canard-delta USAF/STOVL versions but aft-tail carrier version which resulted in insufficient commonality:


Source:

http://www.codeonemagazine.com/images/C1_V11N3_SM_1271449318_7528.pdf

Don't forget CALF had no carrier-specific Navy variant, just USAF and STOVL versions. Adding the Navy carrier version for JSF put the canard-delta design out of contention.


Attachments

quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,104
Reaction score
100
PaulMM (Overscan) said:
Out of interest - two more drawings of the "Ghosthawk" design from Paul Bevilaqua's presentation. Looks pretty much the same as the Lockheed CALF
The model I've seen is slightly different - larger tail, longer nozzle, some details are different - but that's pretty much it.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,305
Reaction score
527

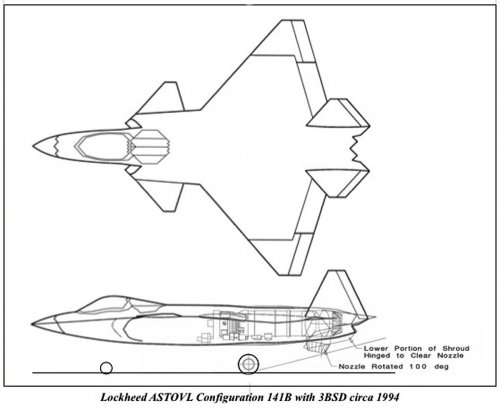

3BSD On Configuration 141B In 1994
The results of that study showed that the 3BSD design was significantly lighter than the SERN nozzle. Moreover, the design also showed superior propulsion performance in all modes. The 3BSD was subsequently included in the ASTOVL Configuration 141 – the original canard delta design of what evolved into the X-35.
Source: http://www.codeonemagazine.com/article.html?item_id=137
Picture Gallery: http://www.codeonemagazine.com/gallery_slideshow.html?gallery_id=175


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,119
Reaction score
1,181
I suspect that article will get much use. ;)
