kugelpanzer aka 'ball tank'

A

avatar

Guest
more Nazi mythos?
http://www.darkroastedblend.com/2007/11/strange-tanks-part-2.html

A

avatar

Guest
I know it was made (obviously) .... the mythos part relates to the use ...... thanks for the link anyway

A

avatar

Guest
CK that is a logical possibility because rotating/rolling pill box designs made it to the cover of atleast one pop scientific mag ;D .... but then you never know

A

avatar

Guest

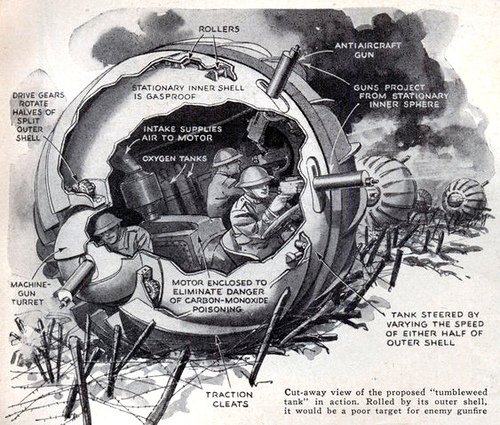

aah here is popsci july 1936


Attachments

  • 1878664364_07be7816cb.jpg
    160.6 KB · Views: 1,038

Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
34
Hallo friends:
trying to research more deeply the very strange Kugelpanzer that is part of the Kubinka tank museum collection, I found, googling around, a modelmaker URL quoting a German WW I ball tank... perhaps WW I could be a typo for WW II but, in fact, if we look at the Hansa-Lloyd Bremen Treffas-Wagen of 1917, we can see the same level of technology and even the same architecture. In fact, the Kugelpanzer is a three-cycle vehicle rather than a single-wheel or two-wheel solution, and if we compare the fotograph I enclose (one depicts a scale model), we see the same solution, like a tail-dragger aircraft.
I cant't say what the Kugelpanzer really is, but I doubt that it was really found in Manchuria and I'm sure it never was on a battlefield. Perhaps it was a proof-of-concept demonstrator of the Treffas-Wagen or a derivative project, donated by German tank designers to the Russians (German "tankers" were active in Soviet Union before the war). But, naturally, those are only assumptions...
Happy Easter
Nico


Attachments

  • Kubelwagen Model.jpg
    Kubelwagen Model.jpg
    7.2 KB · Views: 1,538

Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
34
...there was another picture...
Nico


Attachments

  • Treffas-Wagen.jpg
    78.2 KB · Views: 858

Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
483
Reaction score
129

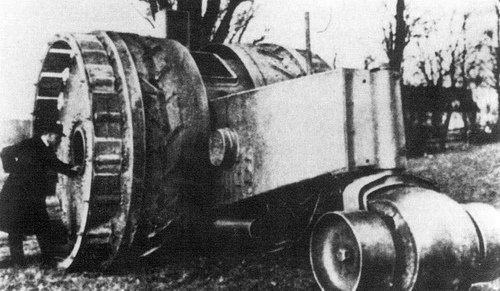

That has a distinct look of the 'Tsar Tank' about it...
http://en.wikipedia.org/wiki/Tsar_Tank

http://www.secretprojects.co.uk/forum/index.php/topic,12353.0.html


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

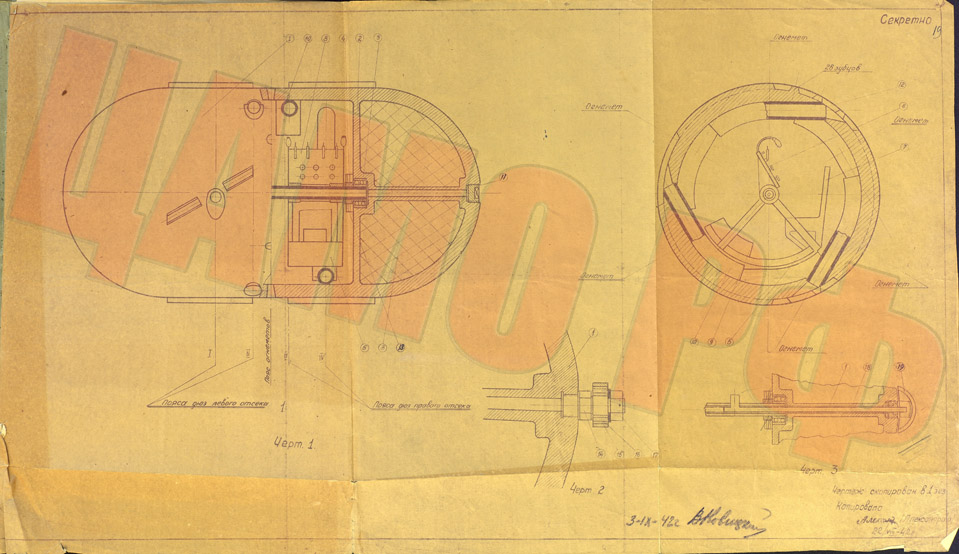

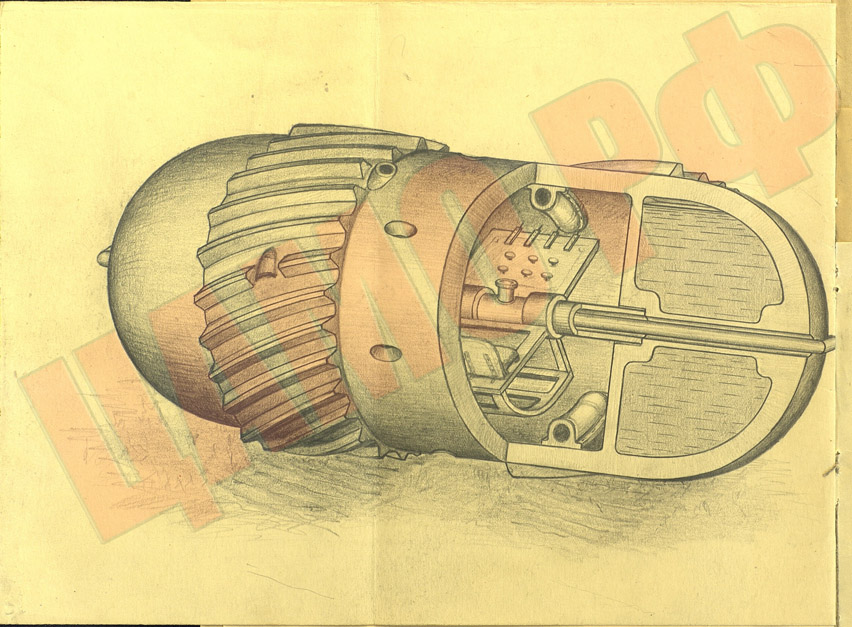

Source - Central Defence Ministry Archive (Podolsk, Russia)



Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

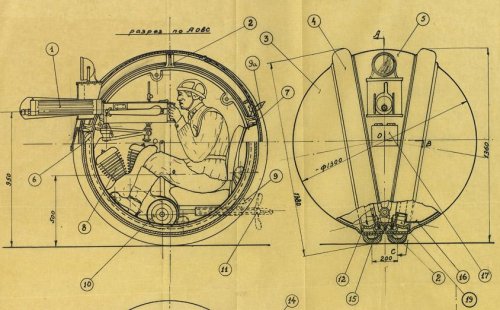

From another "Ball Tank" project. Source same - Central Defence Ministry Archive (Podolsk, Russia).

In principal, i have lots of strange projects reports form GAPTU (Central Tank Department), section of inventions.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,552
Reaction score
360
In principal, i have lots of strange projects reports form GAPTU (Central Tank Department), section of inventions.

Thanks a lot for posting it. I love bizarre machines of any kind!


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,068
Reaction score
4,799
Taranov said:
Another project, source same

That design seems to be actually somewhat logical, allowing organic heavy weapons support to keep up more easily with the advance of infantry units.


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

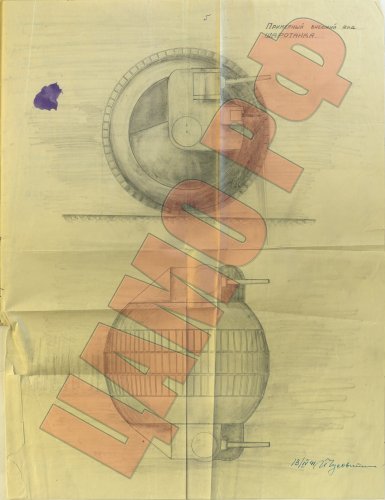

Another "Ball tank" design, april 1941 dated. Project made by I.N. Chusovitin engineer from factory #19 (Perm)


Attachments

  • chusovtank.jpg
    240.5 KB · Views: 106

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

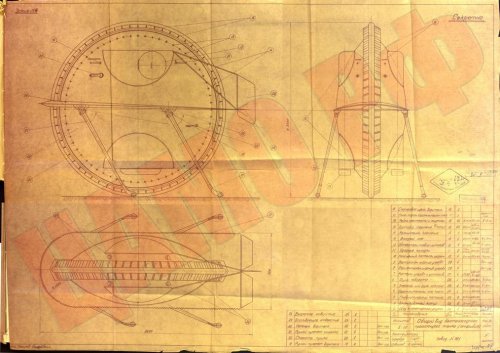

Another concept - tank destroyer, december 1943 dated.
Not sure, but looks like Maus as a prey of soviet ball tank ;D


By the way, i start work on the "Stalin's balls of steel" book. Featured over 50 soviet ball tanks project, based on the real documents.


Attachments

  • tdestroyer.jpg
    73 KB · Views: 675

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15
And another concept - "Sphebrobil",1940-41 dated.


Attachments

  • sphebrobil.jpg
    90.7 KB · Views: 681

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,315
The "Sphebrobil" even was amphibious ? Or is this thing downright just
a crutch to prevent the whole thing from capsizing ... as far, as this
would be possible in a ball ?


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15
Yes, it's amphibious ball-tank.

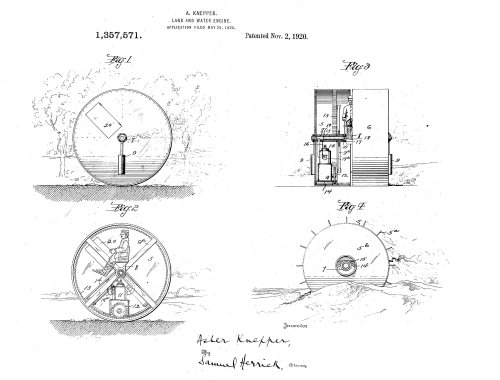

Lots of similar projects also with amphibious ability. As i remember, first ball-tank with amphibious ability patented in 1920.


Attachments

  • d008.jpg
    437.1 KB · Views: 637

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,215
Reaction score
962
Website
beyondthesprues.com
Taranov said:
By the way, i start work on the "Stalin's balls of steel" book. Featured over 50 soviet ball tanks project, based on the real documents.


If nothing else, I love the book title! ;)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,315
GTX said:
If nothing else, I love the book title! ;)

I just have doubts, that it will pass censorship ! ;D

Judging the distribution of weight, as it is recognisable in the "Sphebrobil",
I think, it would hardly have been stable without artificial stabilisation. And I don't know,
if something like that was available. Maybe a rather simple gyroscope would have been
sufficient ?


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15
Another project, summer 1941 dated. Idea of Moscow Factory #381 engineers. 2-man crew, 6 MG + 2 heavy MG, 300 km/h speed, jumping ability... :eek:
By the way, i already see light in the end of tunnel. 3/4 of text is done.


Attachments

  • 38-11350-2116-p09.jpg
    121.7 KB · Views: 436

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,070
Reaction score
1,574
Taranov said:
By the way, i start work on the "Stalin's balls of steel" book. Featured over 50 soviet ball tanks project, based on the real documents.

I love this title !
and what Stalin comment about this ?


i hope the book include the concrete fortress moving by vibration ;D


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15
Another project - "Protivodot" (Antibunker). Designed in 1942 by ingeneer-major Novitsky from Zhukovsky Air Force Engineering Academy.
Powered by rocket engines, maximum speed - 100 km/h. 200 mm armor, 70 t weigh


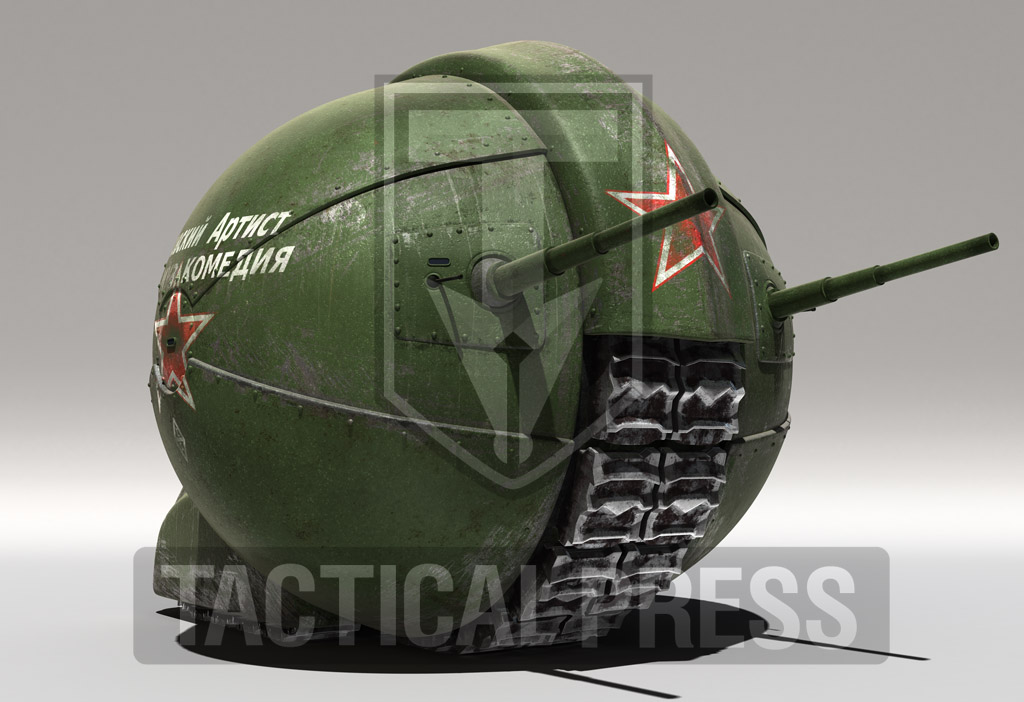

And ours artist impression of Protivodot


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,984
Reaction score
108
Taranov said:
Another concept - tank destroyer, december 1943 dated.
Not sure, but looks like Maus as a prey of soviet ball tank ;D


By the way, i start work on the "Stalin's balls of steel" book. Featured over 50 soviet ball tanks project, based on the real documents.

Be sure to let us know when it is finished.

It would be extremely interesting if it had a discussion on civilian monowheel research and some of the design issues (e.g. the five different methods of directional control, problems with stopping etc.)


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,984
Reaction score
108
P.S. Some civilian pictures: http://www.darkroastedblend.com/2008/08/monowheels-weirdest-transport-known-to.html


Aapmens

I really should change my personal text
Joined
May 27, 2012
Messages
1
Reaction score
0
thinking about the Kugelpanzer a long time now: Would it not possibly be a way of delivering an explosive charge, like the Goliath?
That would explain the lack of armament.


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15
Aapmens said:
thinking about the Kugelpanzer a long time now: Would it not possibly be a way of delivering an explosive charge, like the Goliath?
That would explain the lack of armament.
Look like it's experimental vehicle, technology demonstrator.
Same thing ( technology demonstrator) was built in 1942 in Achkhabad. Spherical one-wheeler, 3 m diameter, 15 t weight, 10 km/h speed.


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

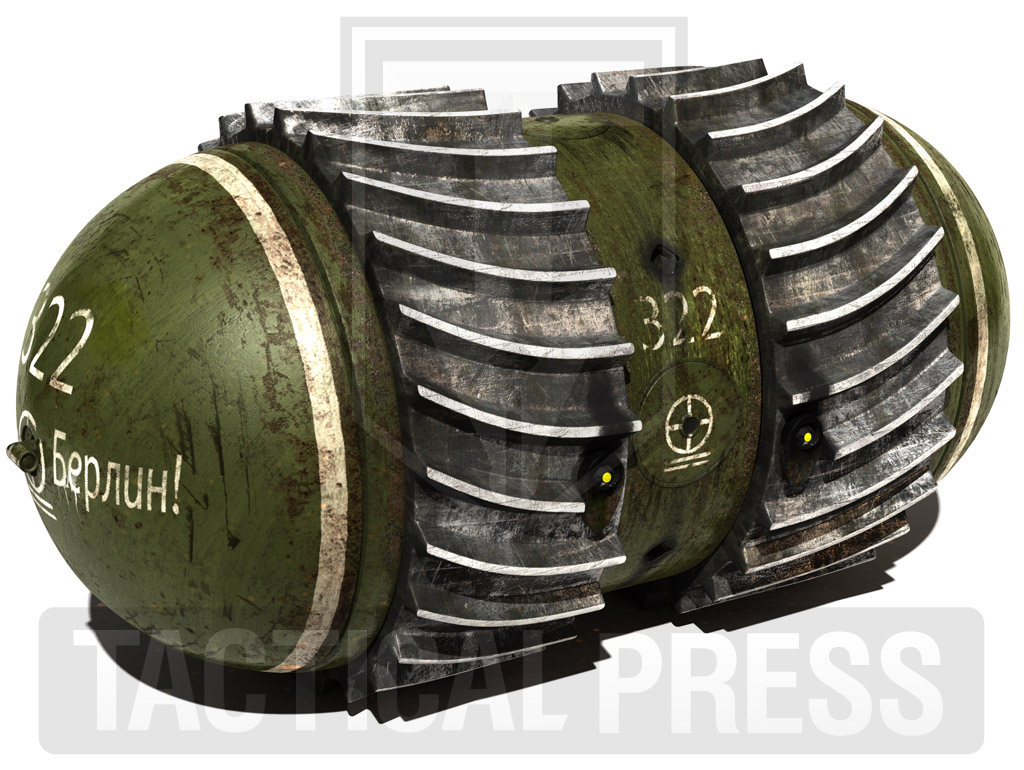

Mikov spherical tank reconstruction

Book almost done - 466K letters, over 200 illustrations, gone to print in early september.


Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,638
Reaction score
903
Michel Van said:
how to hell turn that thing around ?!

One track in forward one in reverse like any other tank


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,070
Reaction score
1,574
Jemiba said:
... I just wouldn't be too keen to be inside that thing on uneven ground !


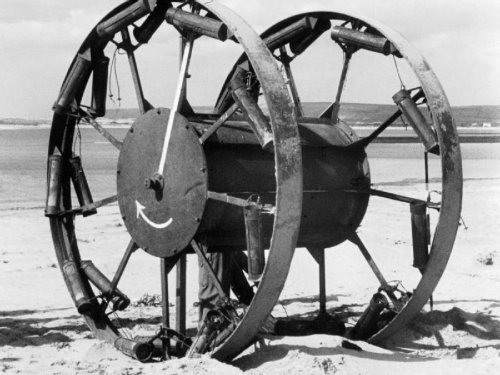

some think like this ....?
http://www.youtube.com/watch?v=P35QZIgntes


bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
30
Oh, the company behind the World of Tanks is the sponsor/publisher? :) That will attract additional readership. Any ETA on english version?


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15
bigvlada said:
Oh, the company behind the World of Tanks is the sponsor/publisher? :) That will attract additional readership. Any ETA on english version?
Release in october. Russian language first, english version in future plans.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,070
Reaction score
1,574
i wish you much luck on good sales for the book.
because i want a English version of it !


ninjrk

ACCESS: Restricted
Joined
Apr 10, 2008
Messages
39
Reaction score
11
I definitely want this book! is there a place to order it from the USA?

Matt
