Kharkov KhAI-2 with jet engine

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

http://xplanes.free.fr/lavo/arl-2.html


Attachments

  • TN_khAI-2_01.jpg
    5.5 KB · Views: 651

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Little best qualities.

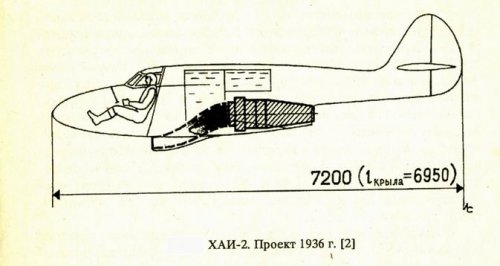

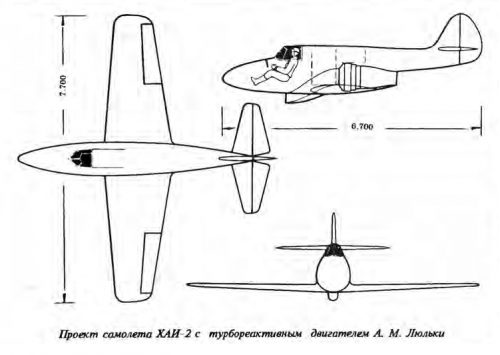

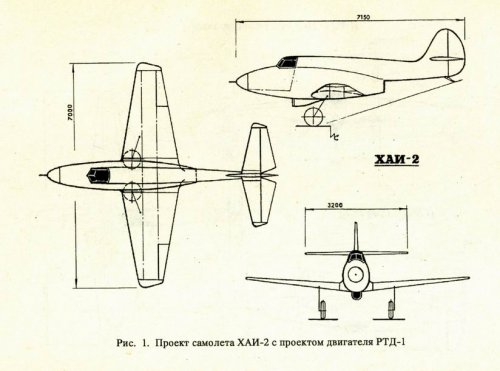

Project KHAI-2 (1936) by A.Eryomenko
Engine RTD-1/project/ by A.Lyul'ka
from:I.SULTANOV "History of the first soviet jet planes"


Attachments

  • KhAI-2 .jpg
    KhAI-2 .jpg
    26.7 KB · Views: 451
  • KhAI-2..jpg
    52.3 KB · Views: 436

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
562
Reaction score
164
MANUFACTURER: Kharkov Aviation Institute KhAI-2
BRIEF DESCRIPTION: Experimental Jet Fighter

A low-wing experimental jet aeroplane project. The airframe began as a glider from a P.P. Postschev design. It was to have been fitted with a Lyulka experimental jet engine.

After A.M. Lyulka's first involvement in the maintenance of a gas turbine auxiliary engine in 1936, his second was more significant. The second was a two years later which was a project with a turbojet called the RTD-1 which was his first domestic jet engine turbine aircraft with take-off thrust of 50 kg for fighter aircraft KhAI-2, with an estimated flight speed of 900 km/h. This pioneering turbine work led to the PT-1 engine.

This type is believed never to have flown.

DETAILED SPECIFICATION:
ENGINE: 1 x Lyulka RTD-1 (50 kg st)
WING SPAN: 7.7 m
LENGTH: 6.7 m
MAXIMUM SPEED: 900 km/h
PROJECT START: 1938


NB: This project is not the same as the KhAI No.2 project. There was also an experimental missile project from the late 1930's which was wind-tunnel tested at KhAI and described as the KhAI No.2.

SOURCES:
Aircraft of the Ukraine, Savin V.S. (Osmnova 1995)


Attachments

  • Kharkov_Aviation_Institute_KhAI-2_Project_Schematic.PNG
    170.6 KB · Views: 187
