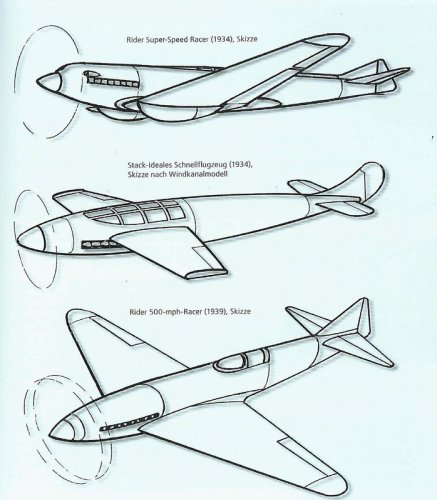

Mainly known for his quite successful Rider R-4 racer (also known as
"Schoenfeldt Firecracker"), Keith Rider designed several other racing

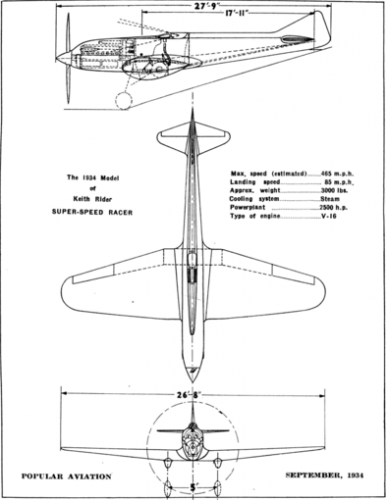

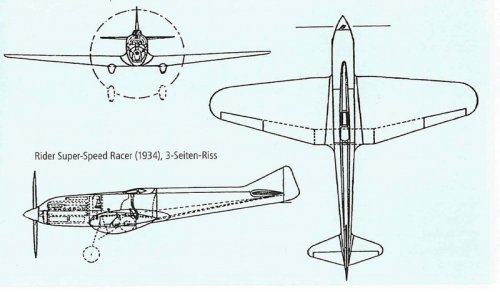

and record aircraft, from the Super-Speed Racer from the year 1934 to

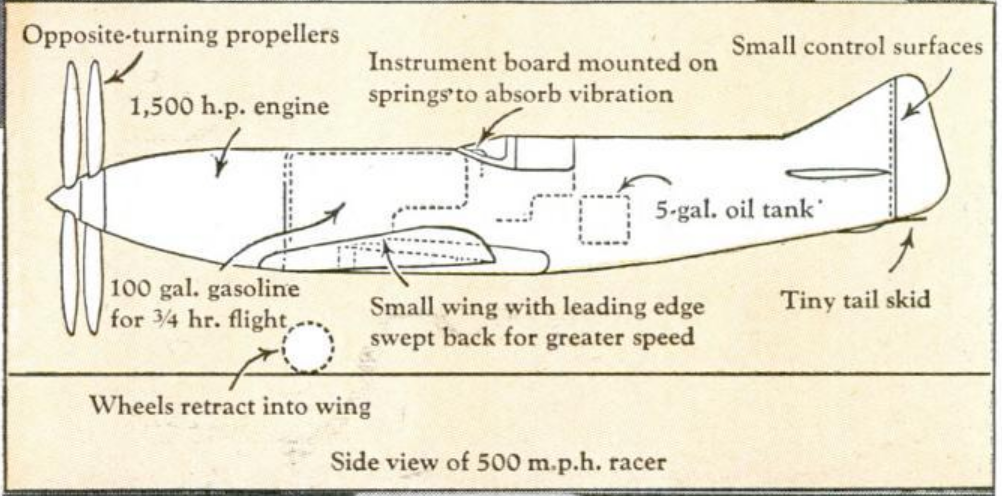

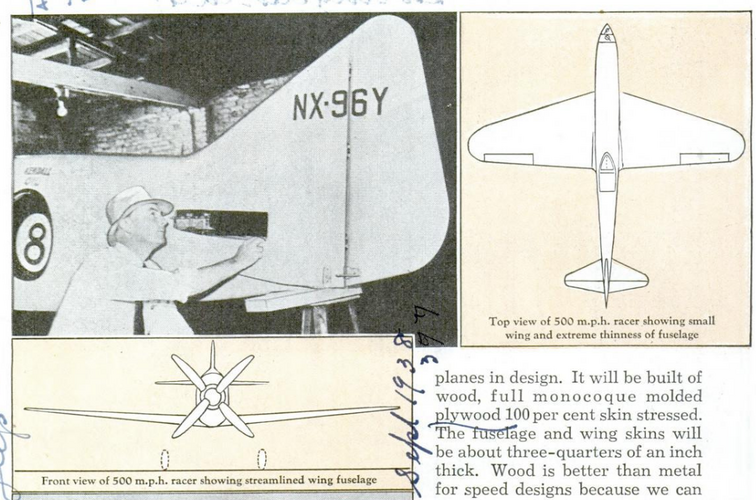

the1939 "Rider 500-mph-Racer", which was intended to conquer the world
speed record. Non of those designs ever came to fruition due to financial
contrains.
The designs by Keith Rider and his actually built aircraft are theme of an article
in the German Fliegerkalender 2012.


Attachments

  • K_Rider_01.jpg
    119.4 KB · Views: 437
  • K_Rider_02.jpg
    67.6 KB · Views: 446

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,285
Reaction score
4,043
My dear Jemiba,

here is a Keith Rider racer aircraft project,page 159;

https://books.google.com.eg/books?id=i5WxOMws32YC&printsec=frontcover&hl=ar&source=gbs_ge_summary_r&cad=0#v=onepage&q&f=false


Attachments

  • 1.png
    62.4 KB · Views: 187
J

joncarrfarrelly

Guest

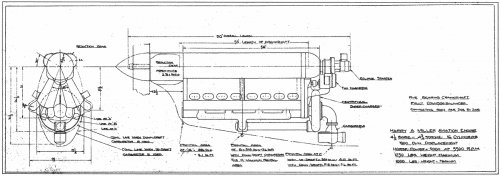

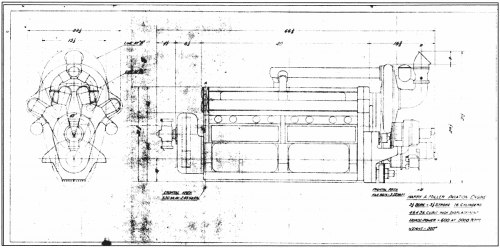

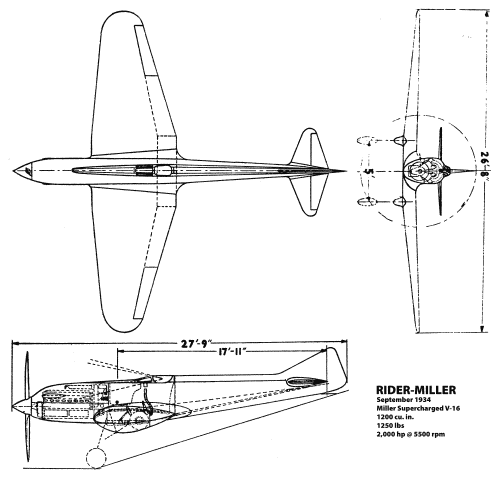

The 1934 design was to have a V-16 engine designed by Harry Miller that never became a reality.
The V-16 was one of a family of notional aircraft engine designs by Miller in the early to late 30s,
various capacity V-12 and V-16, inverted and upright, layouts were sketched. Author Mark Dees,
The Miller Dynasty, is of the opinion that these basic designs are the same ones that Preston
Tucker later flogged to the Navy and Army in an attempt to gain funding for an engine plant. The
inspectors were not impressed with Tucker's promises or facilities, and rightfully so as Tucker had
a habit of making promises he couldn't keep.

References:
The Miller Dynasty, Mark L. Dees, revised 2nd. ed., Hippodrome 1993
Miller: Cars and Biography, Griffith Borgeson, MBI 1993
The Marvelous Mechanical Designs of Harry A. Miller, Gordon Eliot White, Iconographix 2004


Attachments

  • RIDER-MILLER_01.png
    28.7 KB · Views: 180
  • MILLER_IV-1200_01.png
    31.3 KB · Views: 174
  • MILLER_V-465_01.png
    47.4 KB · Views: 86
