Kawasaki Ki-91 Long Range Heavy Bomber Project

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,672
Reaction score
3,465
I don't have this book,but the big surprice to me that my friend told me ,
he saw Kawasaki G11K bomber in Japanese book (possibly devloped from Ki-91)
and he don't know it is fiction or not.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,672
Reaction score
3,465
here is an artist picture to Kawasaki Ki-91 bomber.


Attachments

  • Ki-91.jpg
    76.6 KB · Views: 1,364

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
362
Reaction score
22
Hello dear people
Has someone technical drawnings or artist inpressions of the Kawasaki bomber project?
Im very interested in Japanese ww2 aircraft projects
greetings T-50


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,213
Reaction score
1,863
Here some Ki.91 stuff...


Attachments

  • Escanear0001.jpg
    167.9 KB · Views: 792
  • Escanear0002.jpg
    286.6 KB · Views: 835

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233

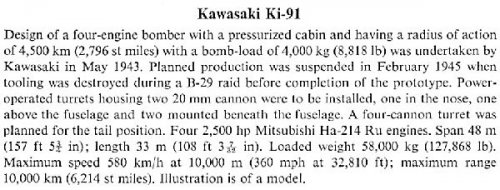

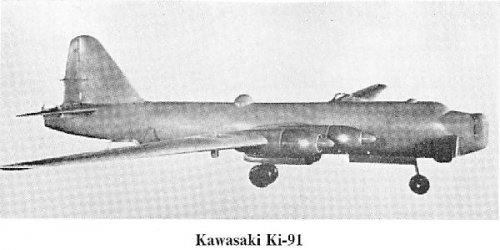

These from Putnam's 'Japanese aircraft of the Pacific War' p.484:-

cheers,
Robin.


Attachments

  • Kawasaki Ki-91.jpg
    Kawasaki Ki-91.jpg
    36.9 KB · Views: 580
  • Kawasaki Ki-91 Data.jpg
    Kawasaki Ki-91 Data.jpg
    56.7 KB · Views: 570

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103
...from "The XPlanes Of Imperial Japanese Army & Navy 1924-45"


Attachments

  • Ki 91 inboard.jpg
    Ki 91 inboard.jpg
    76.5 KB · Views: 394

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
362
Reaction score
22

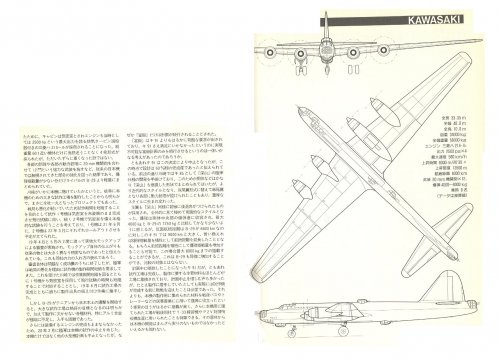

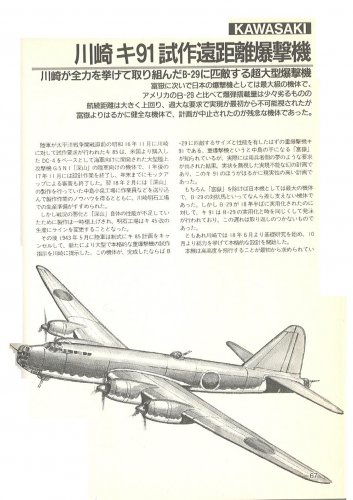

Hello folks thaks for the info and drawnings,especially those from Escanaer these are realy cool!


Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
7
Artistic vision of the Kawasaki Ki-91s formation ...


Attachments

  • Kawasaki Ki-91.jpg
    Kawasaki Ki-91.jpg
    76.6 KB · Views: 149

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

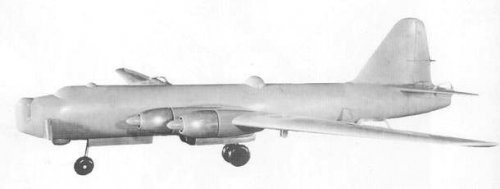

Hi! Enjoy. Vertical tail stabilizer was abnormally large. ;D


Attachments

  • ki91-1.jpg
    578.4 KB · Views: 210
  • ki91-2.jpg
    166.6 KB · Views: 167
  • Ki91-3.jpg
    39.2 KB · Views: 154

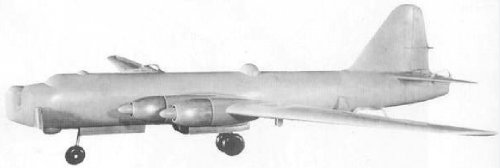

  • ki91 wind tunnel test model.jpg
    ki91 wind tunnel test model.jpg
    11.6 KB · Views: 141

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Hi! Kawasaki Ki 91.
Over all length:33.35m, Height:10.00m, Wing span:48.00m, Wing Area:224.0m2, Empty:34000kg, MTOW:58000kg, Max Speed:580km/h(@10,000m). Service ceiling:13500m, Range:9000km. Engine:Mitsubishi HA214 LU 2,500hp at take off: Crew:8, Armament:20mm cannon×12; Bomb:4,000kg~8,000kg
Sorry for low quality. You can see larger image by enlarging 3 side view drawing in the PDF file. How about this drawing, T-50-san?
Source:http://www.sjac.or.jp/common/pdf/kaihou/201002/20100203.pdf


Attachments

  • Ki-91.jpg
    316.4 KB · Views: 327
  • ki91.jpg
    11.6 KB · Views: 255
  • Ki 91.jpg
    Ki 91.jpg
    57.6 KB · Views: 326

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
blackkite said:
Hi! Kawasaki Ki 91.
Over all length:33.35m, Height:10.00m, Wing span:48.00m, Wing Area:224.0m2, Empty:34000kg, MTOW:58000kg, Max Speed:580km/h(@10,000m). Service ceiling:13500m, Range:9000km. Engine:Mitsubishi HA214 LU 2,500hp at take off: Crew:8, Armament:20mm cannon×12; Bomb:4,000kg~8,000kg
Sorry for low quality.
ok, low quality, but nice drawing of Kawasaki Ki-91 :)


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,897
Reaction score
806
It is probably a good thing that this never made it to the hardware stage, it was powered by the same Ha.214 engines used in the Rikugan Ki-93 and they came in a very long way under power, in fact each engine on the Ki-91 would probably have been 700hp short of design power.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Hi! The best I have. Enjoy.


Attachments

  • Ki-91.jpg
    316.4 KB · Views: 389

Winston

ACCESS: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
10
Just a little 'bump'.

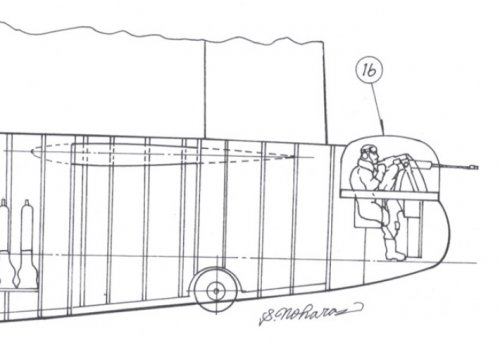

Here is the layout of the Ki-91.


Source: the Xplanes of the Imperial Japanese Army & Navy, 1924-1945. Page 100-101.


Attachments

  • Ki-91_1.jpg
    162.9 KB · Views: 149
  • Ki-91_2.jpg
    130.1 KB · Views: 154
  • Ki-91_3.jpg
    262.7 KB · Views: 234
  • Ki-91_4.jpg
    210.3 KB · Views: 646
  • Ki-91_5.jpg
    168 KB · Views: 651
  • Ki-91_6.jpg
    102.5 KB · Views: 724

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Winston said:
Just a little 'bump'.
Here is the layout of the Ki-91.


Source: the Xplanes of the Imperial Japanese Army & Navy, 1924-1945. Page 100-101.

Thanks. Just surprising Kawasaki Ki-91 detail drawings!!! How about Fugaku? ;)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Hi! Kawasaki Ki-91 long range heavy bomber
Length : 33.35 m
Height : 10.00 m
Span : 48.00 m
Wing area : 224.0 m²
Aspect ratio : 10.3
Wing cross section : Laminar flow wing
Empty weight : 34,000 kg

Gross weight : 58,000 kg
Maximum speed : 570 km/h (at 10,000 m)
Service ceiling : 13,500 m
Time climb to 8,000 m: 20minutes 30seconds
Range : 9,000 km(with 4ton bomb)
Over 10,000km(without bomb)
Engine : Mitsubishi HA214Ru turbo charged air cooling radial 18cylinders(2,500 hp × 4)
Propeller : constant speed, 4 blades, diameter 4.4 m
Fuel :27,500ℓ(the wing contained almost fuel)
Crews : 8
Armaments : 20 mm cannon × 9、Bomb : 8,000 kg(max)


The line which connect inner and outer propeller spinner top in the 3 side view is parallel to the wing leading edge line, but the wind tunnel test model's same line is not parallel to the wing leading edge line.

http://matever.com/archives/ct01complete/_91_1144.html


Attachments

  • ki9167.JPG
    52.7 KB · Views: 197
  • ki9152.JPG
    43.5 KB · Views: 913
  • img_1456955_51075258_1.jpg
    32.2 KB · Views: 892
  • 2012-07-22_2132.jpg
    45.5 KB · Views: 919
  • img_1456955_51075258_0.jpg
    49.4 KB · Views: 960
  • Ki-91.jpg
    316.4 KB · Views: 1,001

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
It must be an optical illusion or maybe my age has taken some of my eye sight but I can't see the main landing gear bogies retracting up into and fitting in to their respective wheel wells. Maybe it's me. -SP


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
48

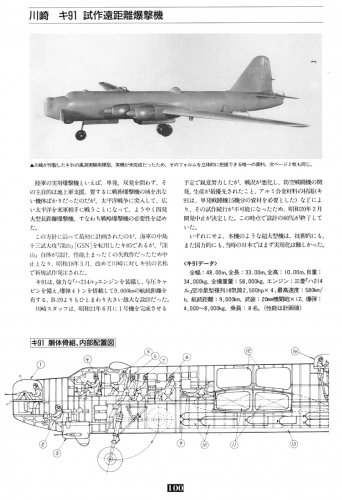

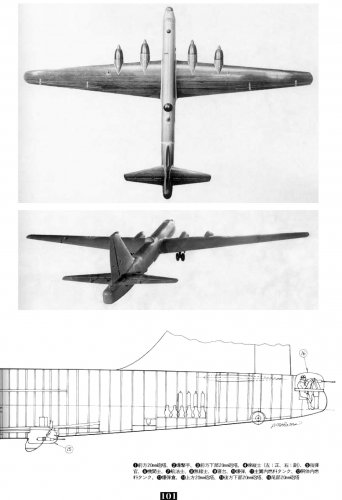

From "The X-planes of Imperial Japanese Army & Navy":


Attachments

  • Japan Xplanes_100.jpg
    Japan Xplanes_100.jpg
    333.6 KB · Views: 177
  • Japan Xplanes_101.jpg
    Japan Xplanes_101.jpg
    187.3 KB · Views: 187
  • Japan Xplanes_102.jpg
    Japan Xplanes_102.jpg
    241.6 KB · Views: 201
  • Japan Xplanes_103.jpg
    Japan Xplanes_103.jpg
    191.2 KB · Views: 242

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
362
Reaction score
22
very nice drawings of the Kawasaki Ki-91 heavy bomber redstar72!
This plane and the Nakajima G8N Rita were if build exelent bombers for the longrange squadrons of the Japanese army airforce!
And If Nakajima had managed to build the ultra heavy super bomber the G10N Fugaku,then were the alied citys also turned into rubble.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Many thanks Steve san, redstar72 san and T-50 san!
In May of 1943, the IJA decided to cancel Ki-85(modified Shinzan,G5N,), ordered Kawasaki to develop long range heavy bomber Ki-91 in 9th of July.
Required Ki-91 performance were as follows.
Maximum speed : 580km/h(at 10,000m)
Range : 9,000km with 4 ton bomb
Armament : 20mm cannon ×9, bomb 8ton(max)
To realize required performance, pressurized cabin and turbo charged engine were needed.
But Kawasaki did not have pressurized cabin technology at the day, decided to develop No.1 aircraft without pressurized cabin and used as a stability and control test bed. Finally No.1 aircraft was planned to have pressurized cabin.So I believe that the planned final shape of Ki-91 was little different from this 3 side view drawing and this wind tunnel test model shape, especially cabin shape. We have the chance to guess it's shape . No.1 aircraft was planned to complete in June 1946, No.2 aircraft was planned to complete in march 1947. The first full scale mock up examination was carried out in April 1944, the second was carried out in May 1944. In June 1944, fabrication of jig begun. But in November 1944, B-29 bombing became hard, it became impossible to continue development for such a big aircraft, Ki-91 was canceled in February 1945 when 60% of design was finished. Wing cross section was laminar flow type which applied Ki-94 fighter. Finally HA-50 engine was planned to use.(same as Fugaku)
I think Ki-91's mission was Saipan B-29 base bombing.
Source : All the Experimental Aircraft in Japanese Army, Kantosha, ISBN978-4-87357-233-8 C9476


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Saipan B-29 base received several Japanese aircraft attack. And some B-29 were destroyed without Ki-91.
Japanese aircraft which attack Saipan B-29 base were the IJA's Mitsubishi type 97 bomber(97式重爆撃機), the IJN's Mitsubishi type 1 bomber(一式陸上攻撃機) and Mitsubishi Zero fighter(零式艦上戦闘機) from Iou island(硫黄島). They were all Mitsubishi's aircrafts. ;)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

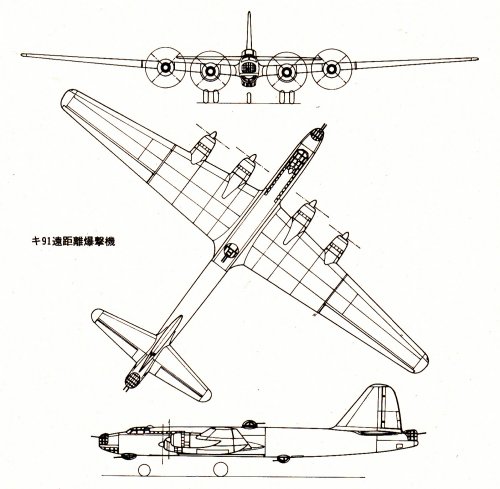

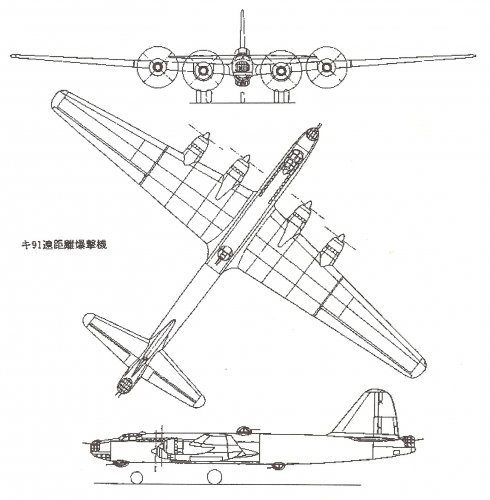

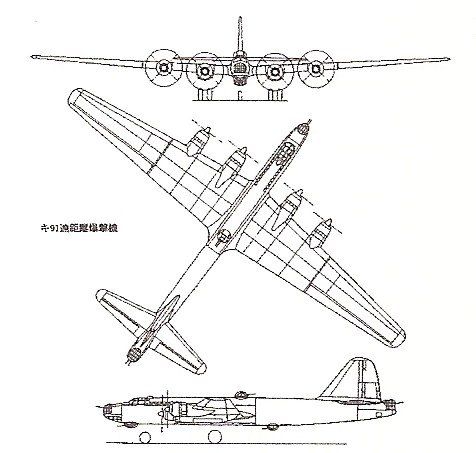

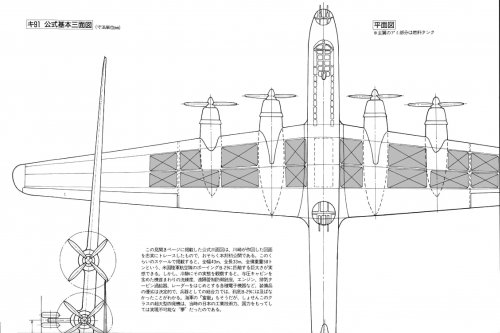

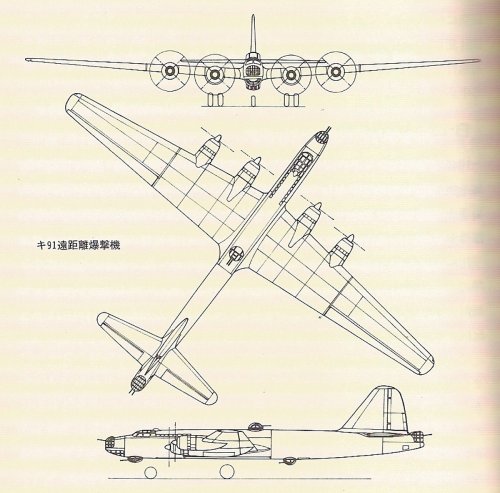

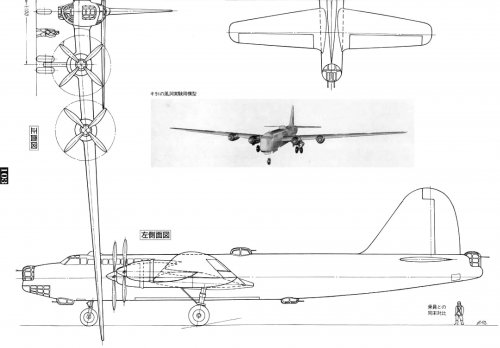

Hi! 3-side view.


Attachments

  • Ki-91 3 side view.jpg
    Ki-91 3 side view.jpg
    793.2 KB · Views: 177

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

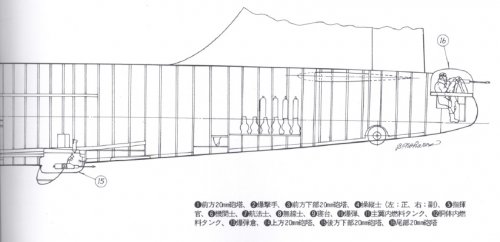

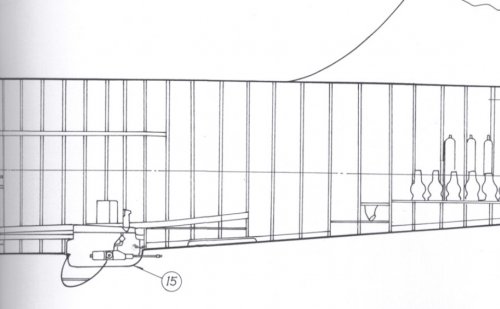

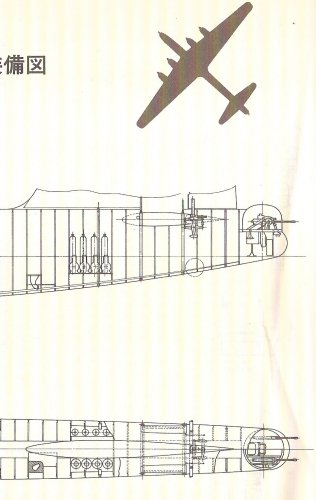

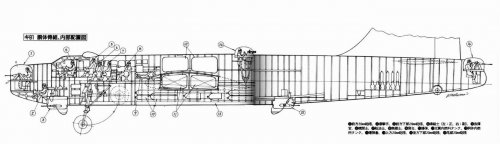

Hi! General arrangement.
Source : 50 years memory of aircrafts design by Takeo Doi, Kantosha, ISBN4-87357-014-X C0053 P2890E


Attachments

  • Ki-91 side view 1.jpg
    Ki-91 side view 1.jpg
    671.9 KB · Views: 162
  • Ki-91 3 side view 2.jpg
    Ki-91 3 side view 2.jpg
    233.5 KB · Views: 172

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

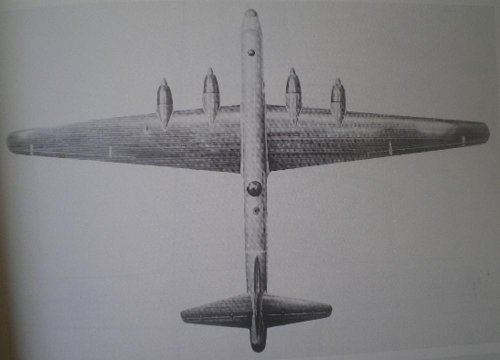

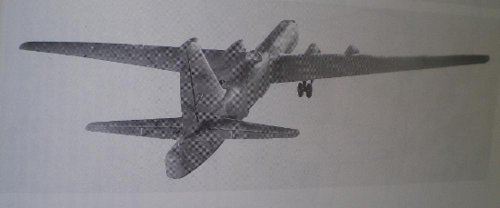

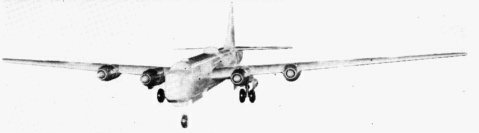

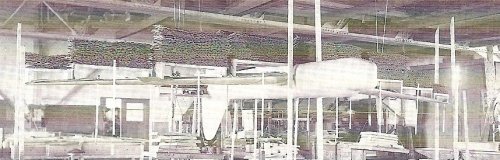

Hi! Ki-91 strength test model.


Attachments

  • Ki-91 strength test model.jpg
    Ki-91 strength test model.jpg
    148.5 KB · Views: 151

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
362
Reaction score
22
blackkite said:
Hi! Ki-91 strength test model.
[/quote
thank you again blackkite san! these are marvelous pics! very rare in the west that I can asure you!
]


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

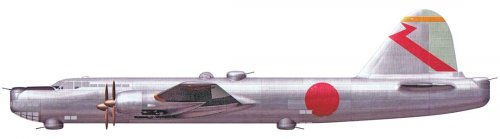

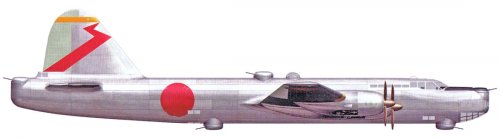

Attachments

  • Ki-91 3 side view.jpg
    Ki-91 3 side view.jpg
    793.2 KB · Views: 193
  • Ki-91 pic2 (1).jpg
    Ki-91 pic2 (1).jpg
    67.2 KB · Views: 778
  • Ki-91 pic2 (2).jpg
    Ki-91 pic2 (2).jpg
    121.1 KB · Views: 792

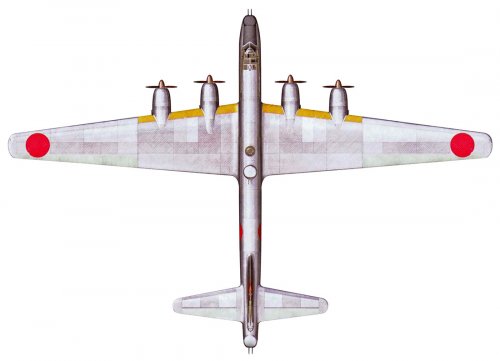

  • Ki-91 plan view.jpg
    Ki-91 plan view.jpg
    67.8 KB · Views: 822
  • Ki-91 side view 2.jpg
    Ki-91 side view 2.jpg
    42.5 KB · Views: 850
  • Ki-91 side view.jpg
    Ki-91 side view.jpg
    41.7 KB · Views: 864

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

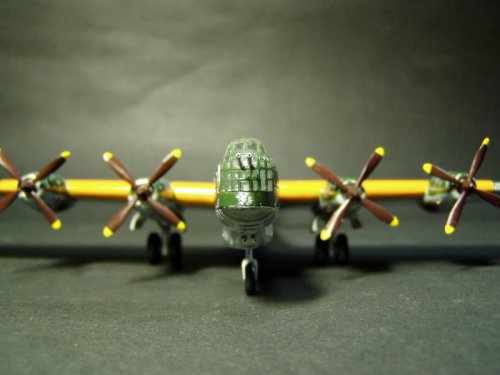

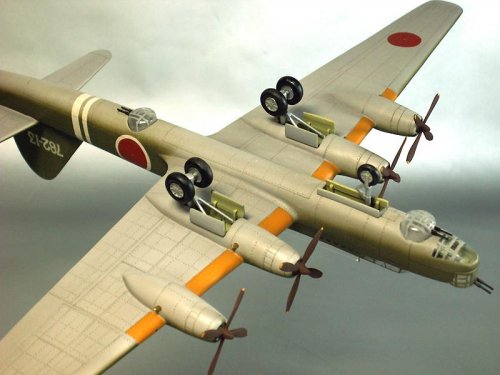

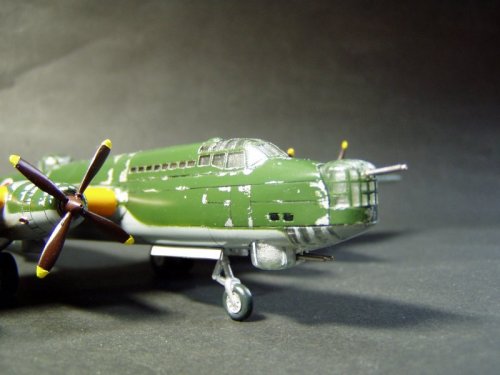

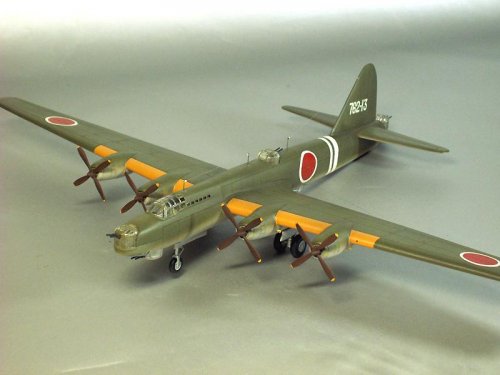

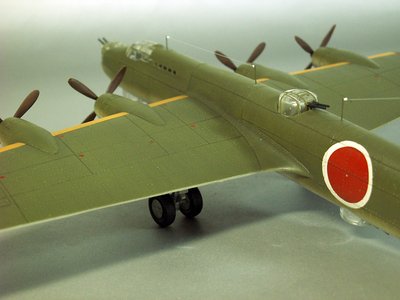

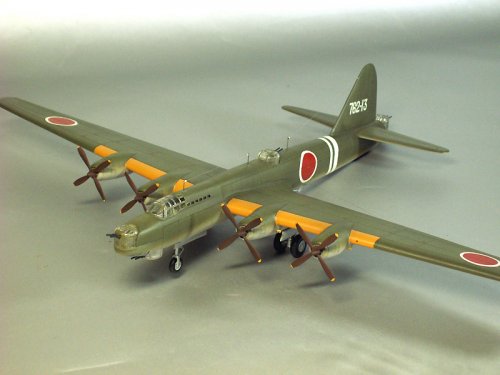

ANiGRAND's Ki-91 1/144 scale model shape is same as Kawasaki's 3 side view drawing.


Attachments

  • Anigrand ki-91 1.jpg
    Anigrand ki-91 1.jpg
    62 KB · Views: 118
  • Anigrand ki-91 2.jpg
    Anigrand ki-91 2.jpg
    54.1 KB · Views: 124

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
blackkite said:
Please marge these topics,too. :D

Done! Thanks a lot blackkite for this precious contribution, which means we now have all the forum's information and pics about the Ki-91 in one place.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Many thanks Star. Great effort!!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

Attachments

  • vulkan coupling.jpg
    vulkan coupling.jpg
    115.6 KB · Views: 140
  • Hien-201112Kakamigahara-13.jpg
    124.2 KB · Views: 152
  • Original Ki-91 drawing.jpg
    Original Ki-91 drawing.jpg
    120.4 KB · Views: 134

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

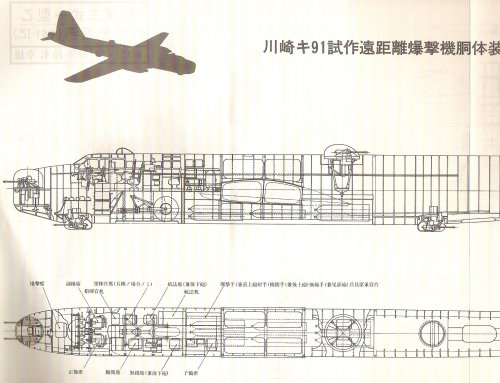

Hi! Better image.

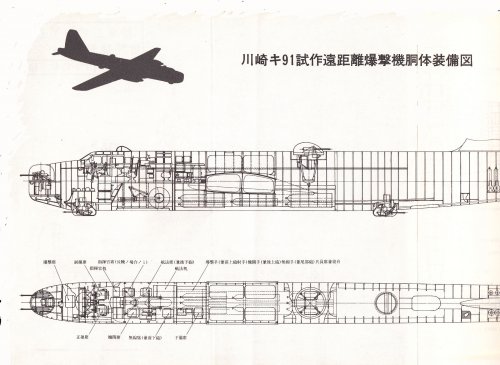

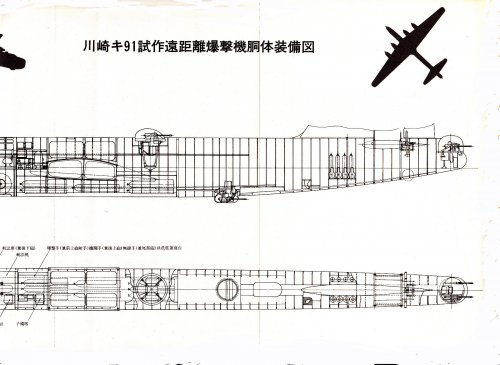

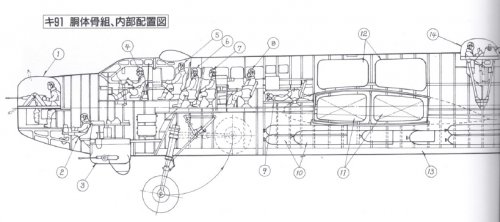

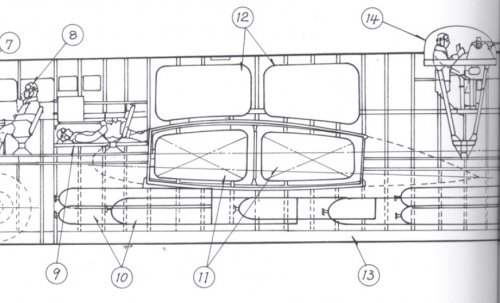

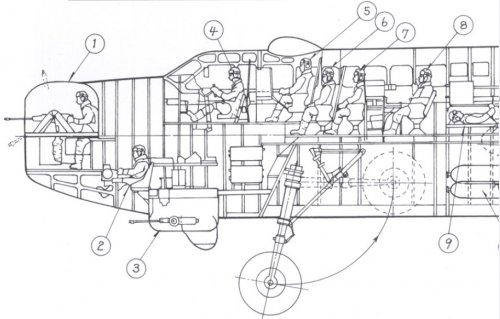

(1)爆撃席 (2)副操席 (3)正操席 (4)指揮官席(長機ノ場合ノミ)(5)指揮官机 (6)機関席 (7)航法席(兼後下砲)(8)無線席(兼前下砲)(9)航法机 (10)予備席

(1) Seat of a bomb aimer (2) Co-pilot seat (3) Pilot seat (4) commanders' seat (it installed only the airplane formation commander got into the airplane) (5) commander's desk (6) Flight engineers' seat (7) Navigator’s seat(Navigator operated the swivel cannon installed in the lower part of the rear fuselage of the airplane) (8) Radio operator’s seat(Radio operator operated swivel cannon installed in the lower part of forward fuselage of the airplane)(9) Navigator's desk (10)Reserve seat

(11)爆撃手(兼前上砲射手)機関手(兼後上砲)無線手(兼尾部砲)兵員席兼寝台
(11)Bomb aimer(Bomb aimer operated the swivel cannon installed in the upper part of the front fuselage of the airplane), flight engineer(flight engineer operated the swivel cannon installed in the upper part of the rear fuselage of the airplane), Radio operator(Radio operator operated tail swivel cannon) seats/beds


Attachments

  • Ki-91.jpg
    732.1 KB · Views: 145
  • Ki-91 general arrangement.jpg
    Ki-91 general arrangement.jpg
    389 KB · Views: 168
  • Ki-91 general arrangement 2.jpg

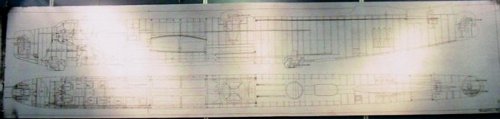

    Ki-91 general arrangement 2.jpg
    395.8 KB · Views: 165

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Hmmm.....This model is little different from Kawasaki's original drawing.


Similar threads

Top
