Ki-21 competition

swallow

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
59
Reaction score
5
Hi all !

In 1935 the Japanese Army held a competition for a new twin-engined heavy bomber.
The winner was Mitsubishi Ki-21 " Sally ", but there where also two other competing
aircraft , the Nakajima Ki-19 four aircraft of the Ki-19 where build , but the third aircraft
the Kawasaki Ki-22 ( project ) is still a mystery for me , anyone knowing more ?

Source : Japanese Aircraft of the Pacific War , R.J.Francillon


burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
76
Reaction score
32
Two prototypes Ki-19 were built, first flight occured 03.1937. They were very similar with Ki-21. Designer was Kenichi Matsumura, he was assisted by Setsuro Nishimura and Toshio Matsuda.

Ki-19 data:
2 radial engines Ha-5 (850 HP)
Start mass 7150 kg
Empty mass 4750 kg
Wingspan 22m
Length 15,3m
Area square 62,7 sq.m.
Cruise speed 350 km/h
Max range 4000 km (ferry)
Max bomb load 1000 kg
Armament 3 7,7mm machine guns
Crew 5 person

In Autumn 1937 engines were repalced to Ha-6 (probably, the idea about 4 prototypes appeared because really there was 2 prototypes and both were modernized with new engines). Anyway, in November 1937 JAA preferred Ki-21 and Ki-19 was abandoned.

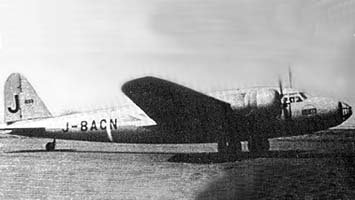

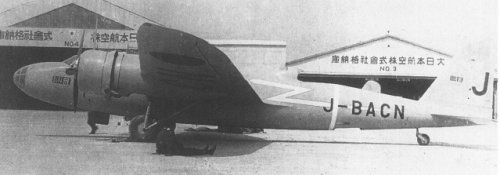

Here is the second prototype in photos. In April, 1939 Nakajima sold it to publishing company Domei Tsushin Sa as mailplane. It got a civil registration J-BACN. Of course, armament was removed (you don't see dorsal turret, for example) and bomb bay rebuilt for cargo delivery.

I'd like to look on the photos of the first prototype if possible.


Attachments

  • ki19_1.jpg
    21.5 KB · Views: 788
  • ki19_2.jpg
    57.1 KB · Views: 738

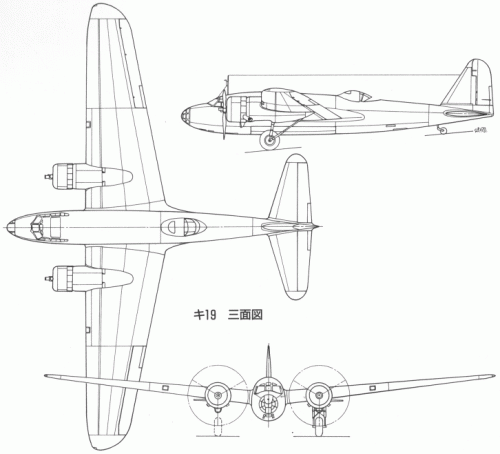

  • ki19_3v.gif
    92.3 KB · Views: 785

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,227
Reaction score
1,871

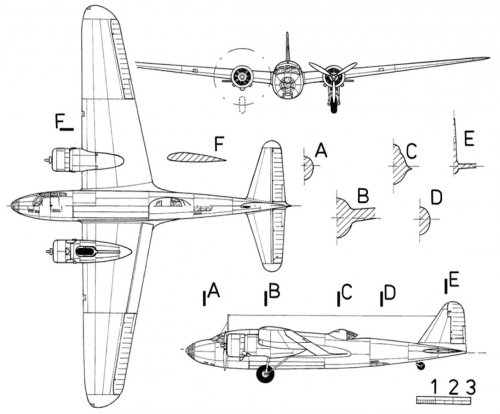

Ki -19 from "Japan project aircraft" KOEI publications


Attachments

  • Escanear.jpg
    157.8 KB · Views: 733

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
76
Reaction score
32
Justo Miranda,

frankly, I doubt about correctness of some data in the previous draft.

The span in the draft from "Japan project aircraft" is 833 pixels, the length 585 pixels.
If we assume the span is 22m, the length is 585/833 * 22 = 15,3 like in my sources, not 16,22 placed in the draft.
In the draft posted by me there are the same proportions (15,3 / 22).

The wide cabin indicates that here is two pilot inside (usual practice for Japan). So the crew shoud be 5 persons.
(2 pilots, bomber-navigator and gunners for dorsal and ventral turrets).

Other data seems reasonable, accounting that it's data after the modification (with Ha-6). So masses, speed are higher, the range is for the maximal bomb load.
750 kg is nominal and 1000 kg maximal bomb load according to the specifications (compare with Ki-21).


Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,345
Reaction score
715
Do somebody know data or maybe drawings of the Kawasaki Ki-22 Heavy (More like Medium) Bomber Project?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,686
Reaction score
3,468

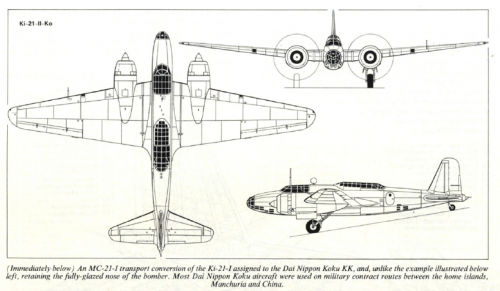

From Air International 8/1986,


here is the Mitsubishi Ki-21 and MC-21 variants.


Attachments

  • Ki-21-II.png
    389.9 KB · Views: 108
  • Ki-21 & MC-21.png
    Ki-21 & MC-21.png
    429.4 KB · Views: 422

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,375
Reaction score
2,542
Ki-22 is a heavy bomber aiming at defeating the airplane of the enemy airfield planned by the line-of-investigation revision in 1935.
It is the design proposal upon which it was decided by the Japanese army in 1935 and which Kawasaki submitted to the new heavy bomber trial production plan with Nakajima Ki-19 and Mitsubishi Ki-21.
Ki-22 became a failure in the stage of basic design audit in January, 1936, and the aircraft was not manufactured.
Source : 日本の陸軍機


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,375
Reaction score
2,542
Hmmm....Very hard to find any valuable information for Kawasaki Ki-22 heavy bomber in Japanese sources. :'(


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
355
Reaction score
103

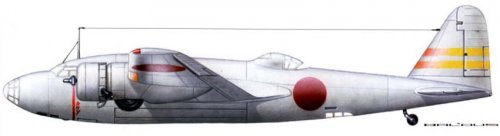

For what it's worth here is what I have on the Ki-19. Sorry, no plans for the Ki-22.


Attachments

  • Ki-19 3 view.gif
    Ki-19 3 view.gif
    68.2 KB · Views: 42
  • Ki-19 3 view.jpg
    Ki-19 3 view.jpg
    143.1 KB · Views: 39
  • Ki-19.jpg
    27.6 KB · Views: 38

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,375
Reaction score
2,542

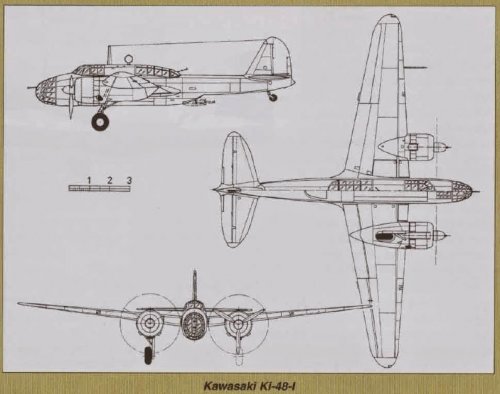

Type 99/Ki-48 light bomber is like this.
http://japaneseaircraftofwwii.blogspot.jp/2015/03/kawasaki-ki-48.html


Attachments

  • trgtrnshynmuyujm.jpg
    77.7 KB · Views: 39
