Jumo 222 installations??

sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1
Specifically, cowl and radiator configuration for the Jumo 222 fitted to the Ju388 and He219B. While the He219 might be a really iffy one-of, though a whole family of versions was proposed, there were several Ju388 prototypes fitted and flown with Jumo222s.


Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
13
If you can find a photo of it, William Green gives the He 219A-7/R6 (KZ + RZ) as the only prototype fitted with Jumo 222's. Smith and Kay give the same info, quoting a top speed 700 Km/h (435 mph).
Hope this provides a little help.

Cheers Bailey.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,501

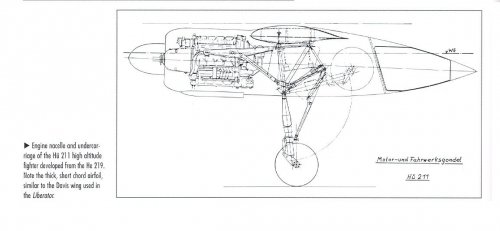

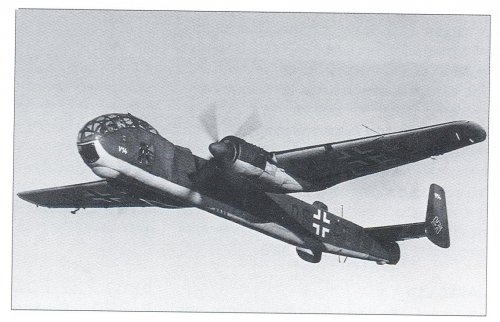

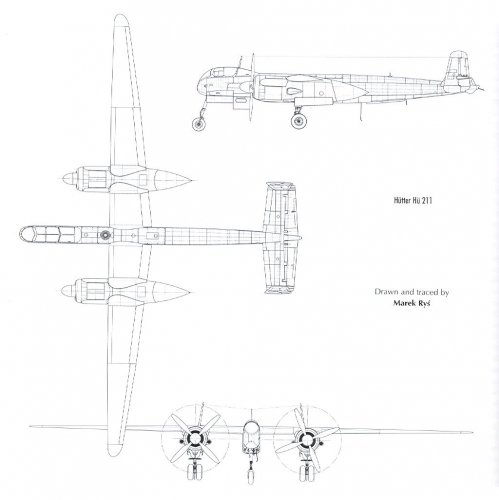

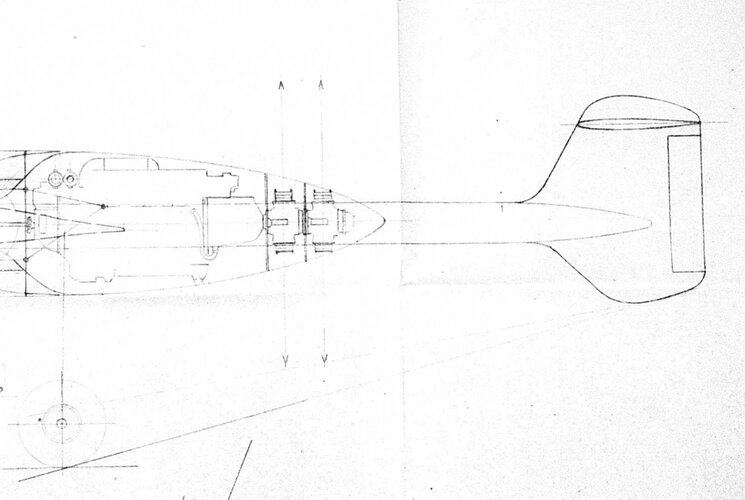

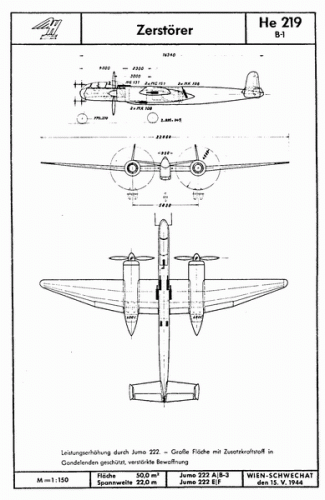

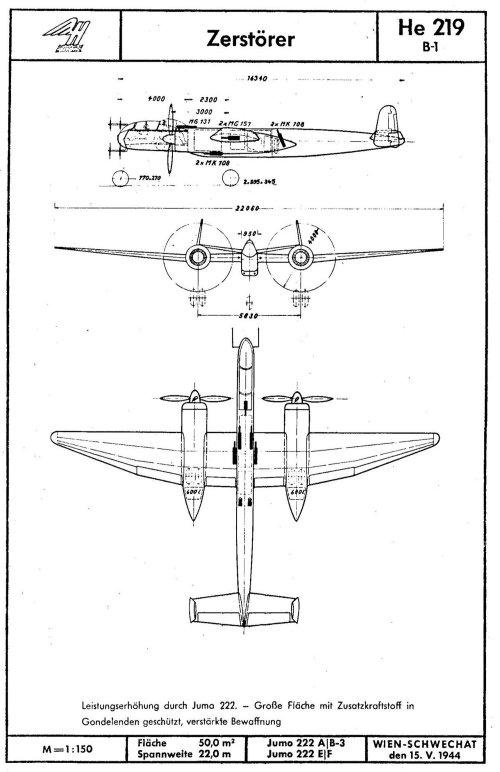

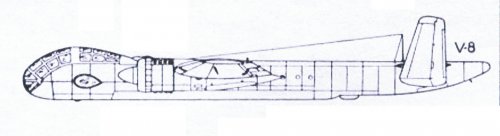

In Waffenarsenal Bd.73 is a small, not detailed drawing of the B-1:


Attachments

  • He-219B.GIF
    54.4 KB · Views: 330

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,855
Reaction score
1,495
How many Ju-388s were tested with Jumo 222s?

There are a few mentions in the Quellenübersicht page for http://ju388.de/
http://www.physik.uni-wuerzburg.de/~vernalek/Quellen.html

One mentions of "propeller procurement" for "Ju-388 test platforms with Jumo 222 A/B" seems to suggest that test seven aircraft are specified. But a further mention says that the 9-8222s are to be installed in Ju-388 Nr. 7.

In another case, 6 Ju-388 Jumo 222 (9-8222 A/B) testbeds are to be built. Anyone know the number built for certain?


sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1
According to the Vernaleken and Handig book on the Ju388, while there were plans for a fair number of machines to test fly various Jumo222s, it seemed likely that only one machine was actually fitted with the engines, Ju388V9, the rest were either never completed to accept the engines or were re-refitted for other engines, destroyed before the engines could be fitted, or the engines were never delivered/flight cleared.

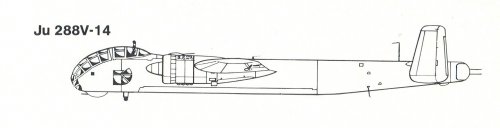

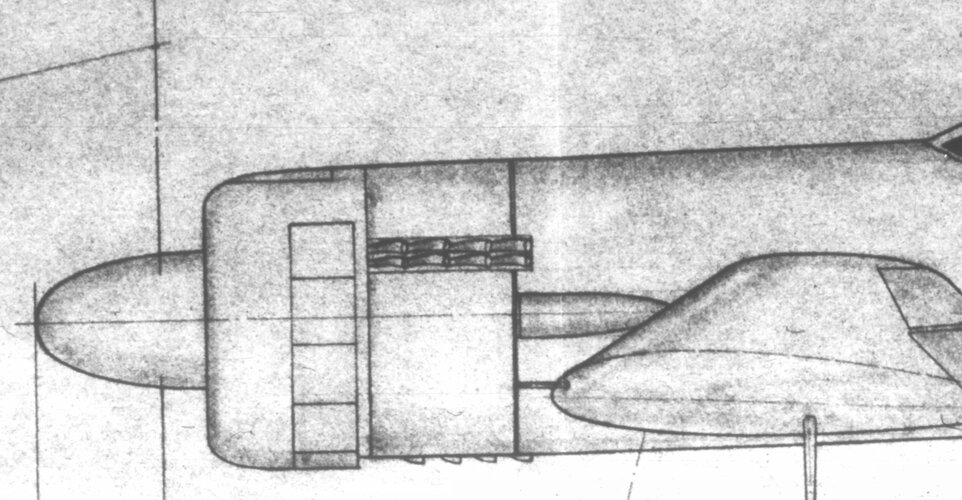

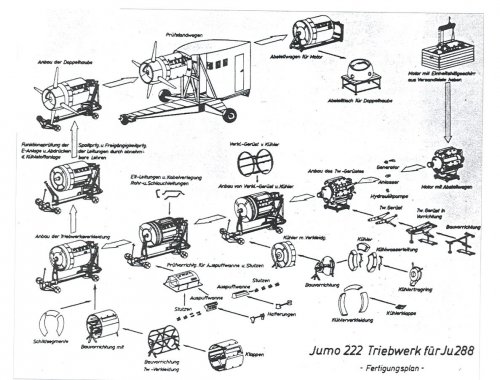

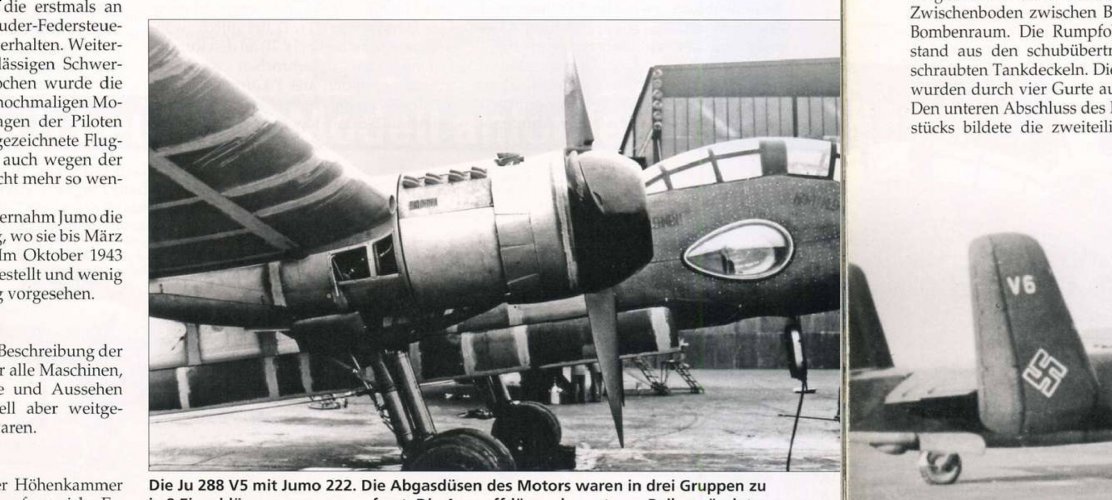

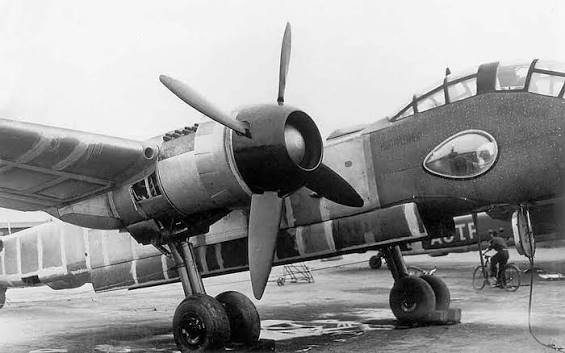

While looking for data on Jumo222 installations, I was just reminded that at last one Ju288 was fitted with a conventional spinner+radiator fitted to a Jumo222, rather than the hollow spinner version. Now if I can just find any clear photos of the units. The old Green WPotTR has a couple of shots, but they not very clear as published.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,855
Reaction score
1,495
sagallacci: thanks for the Ju-388 clarification. I'd be interested in any images of the Ju-288 with conventional spinners.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,077
Reaction score
4,195
Website
www.amazon.com

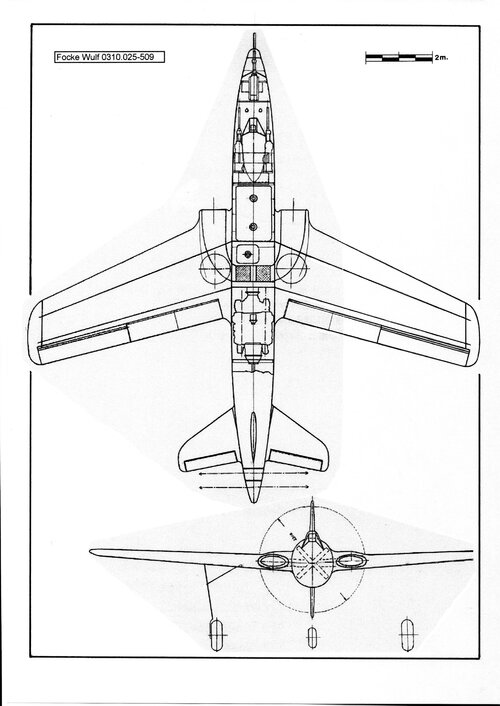

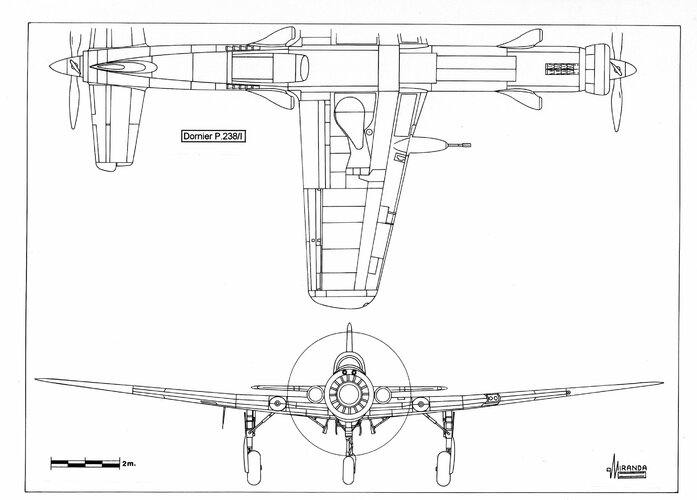

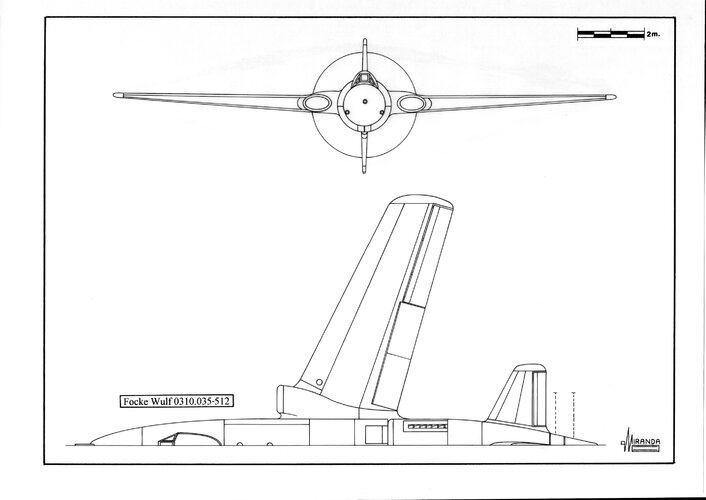

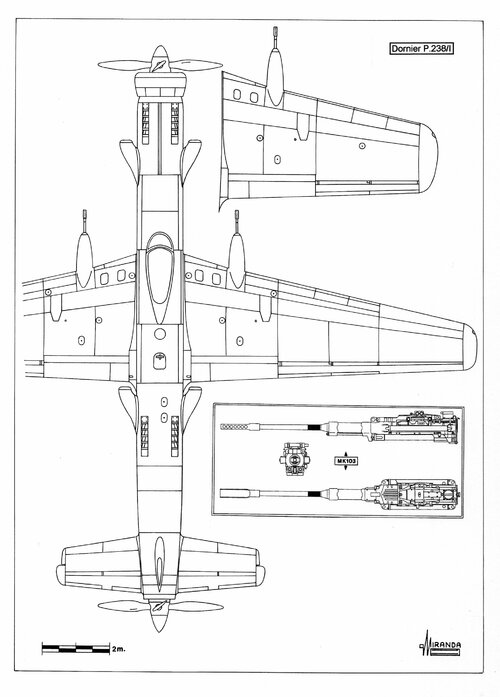

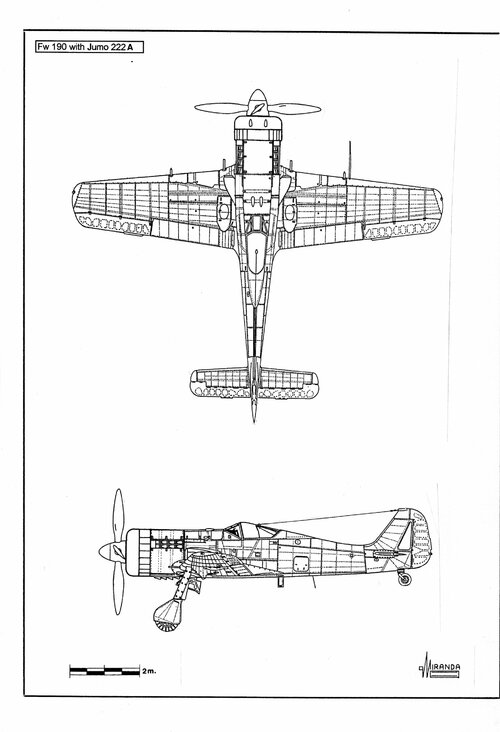

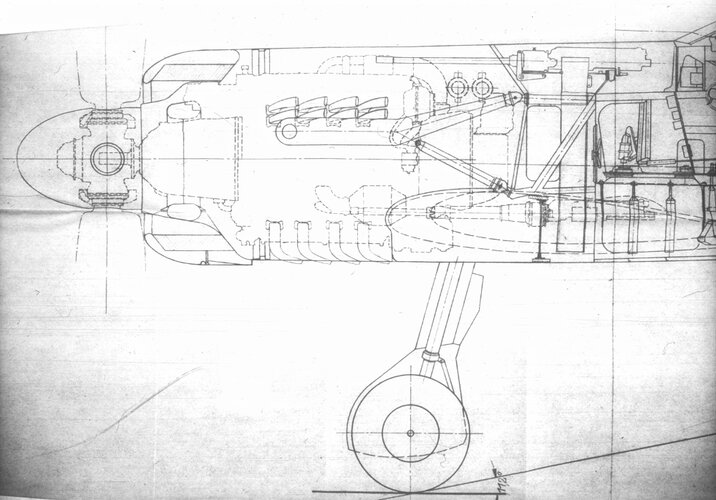

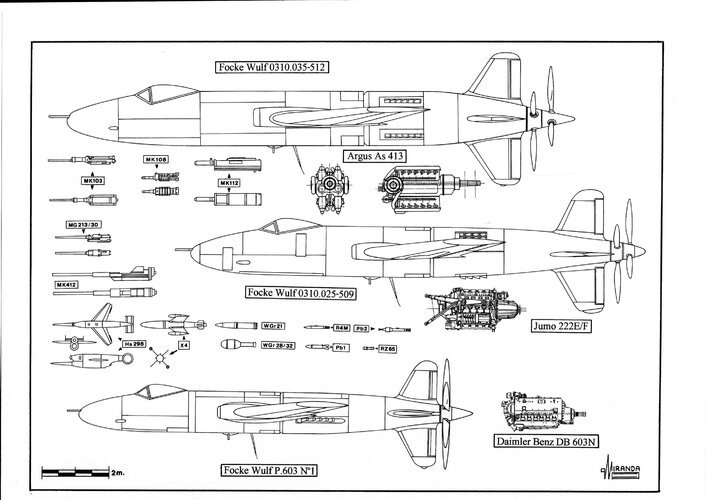

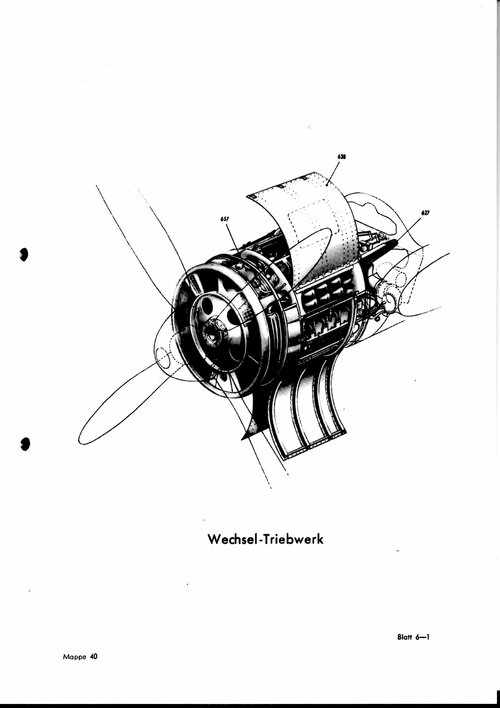

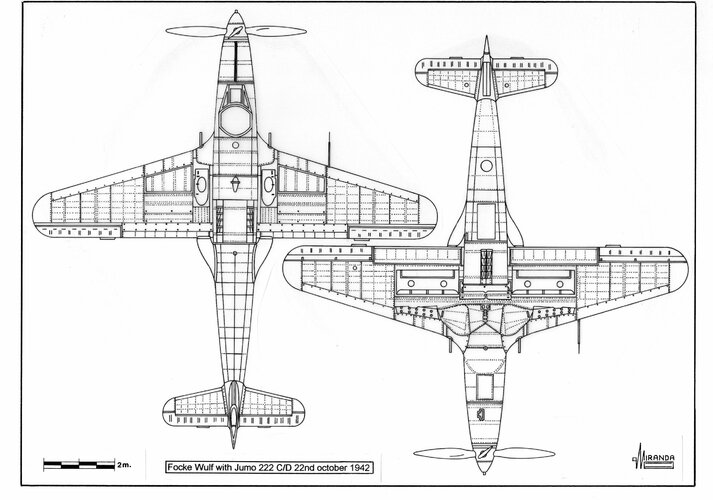

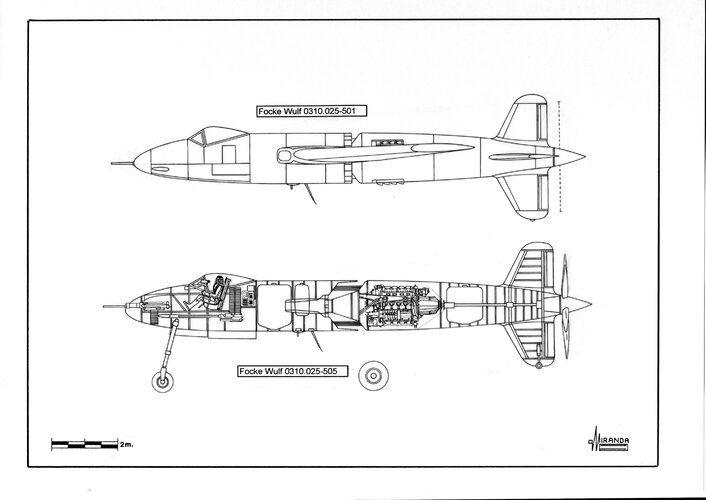

Found some info


Attachments

  • Escanear0001.jpg
    160.3 KB · Views: 249
  • Escanear0002.jpg
    249.2 KB · Views: 212
  • Escanear0003.jpg
    38.6 KB · Views: 195
  • Escanear0004.jpg
    134 KB · Views: 210
  • Escanear0005.jpg
    67.2 KB · Views: 216
  • Escanear0006.jpg
    62.3 KB · Views: 208

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,077
Reaction score
4,195
Website
www.amazon.com

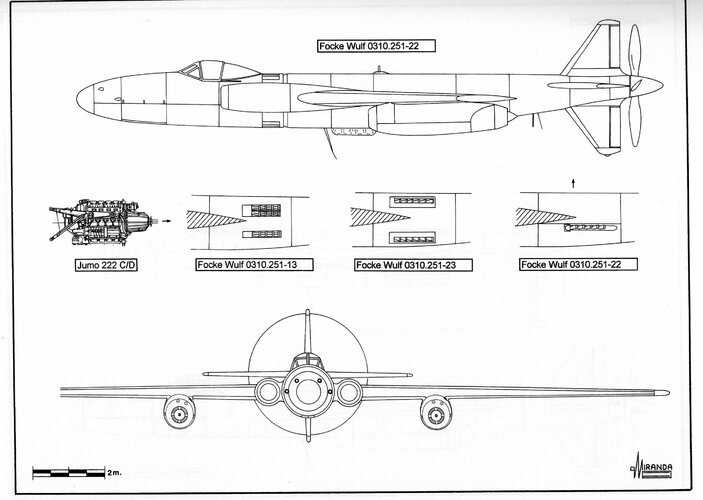

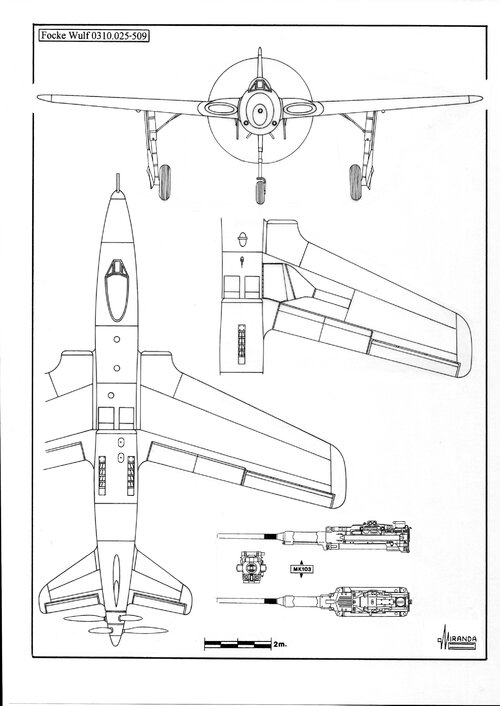

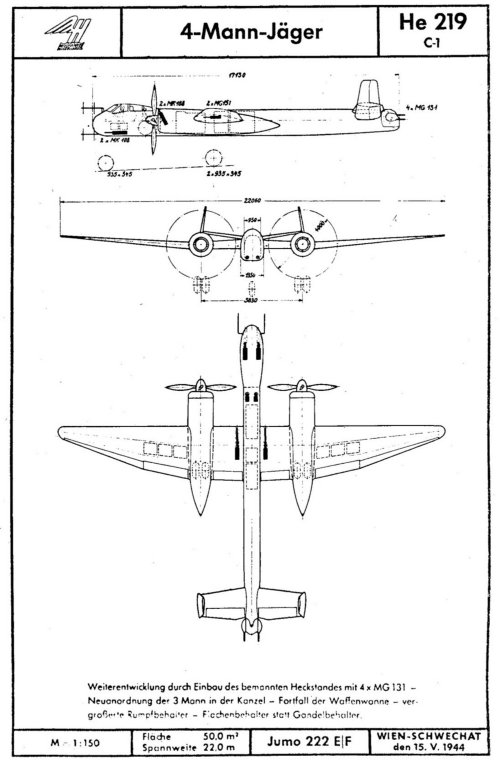

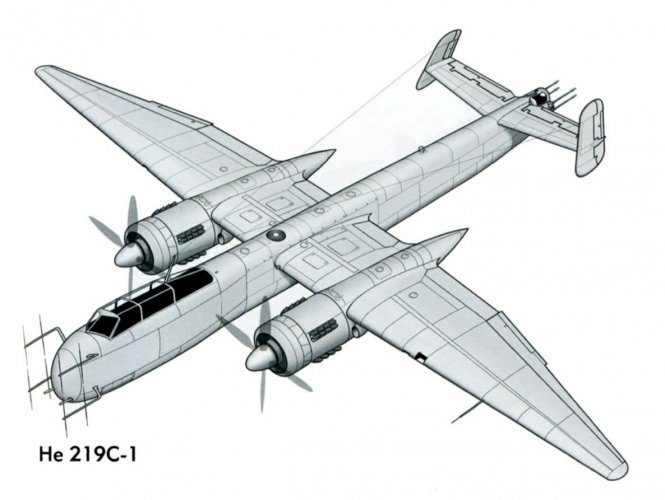

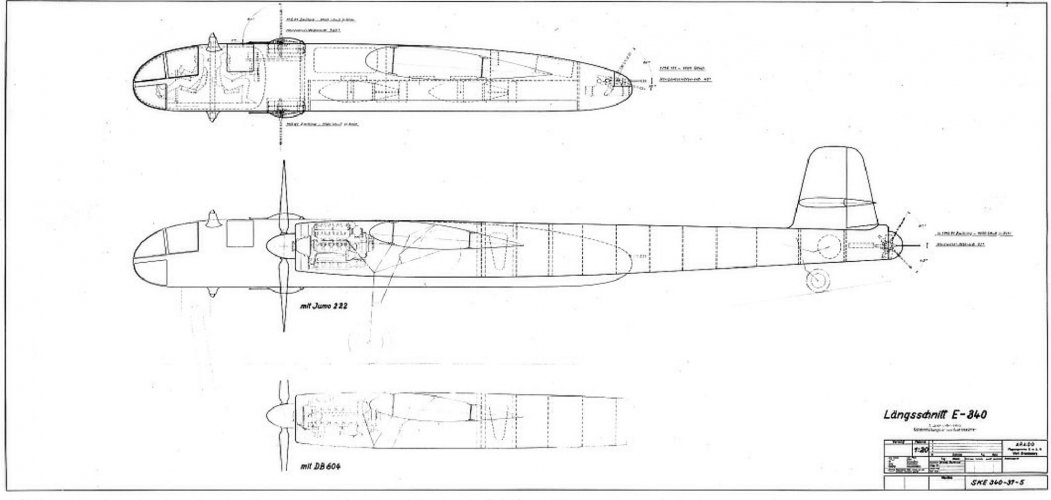

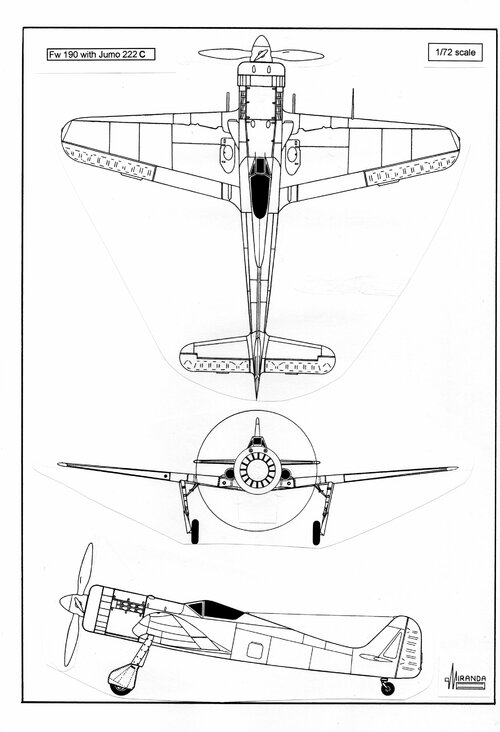

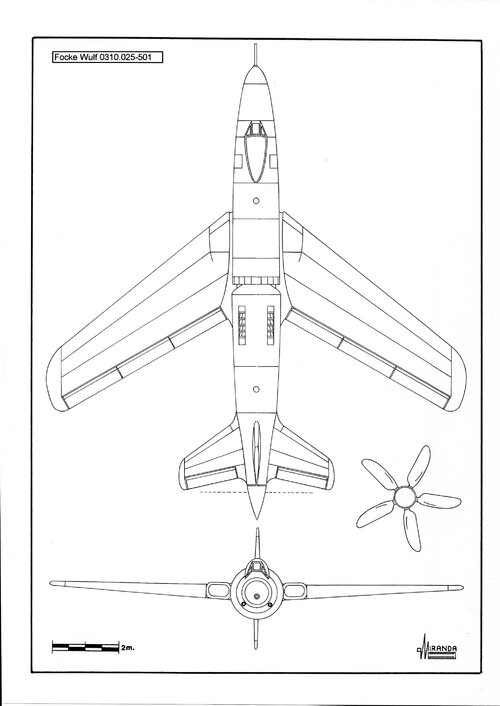

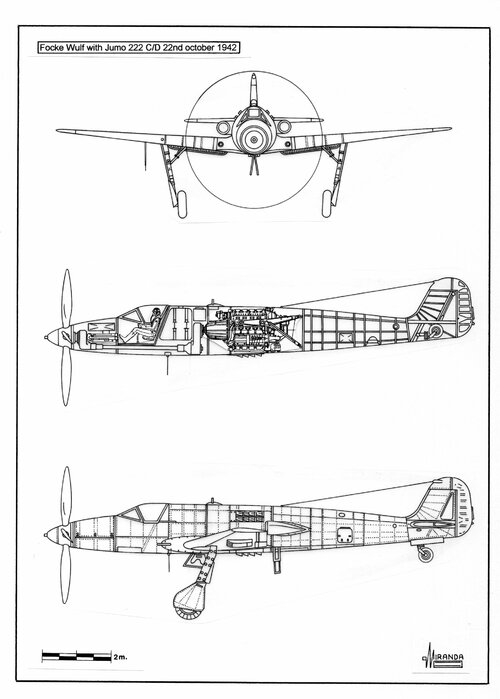

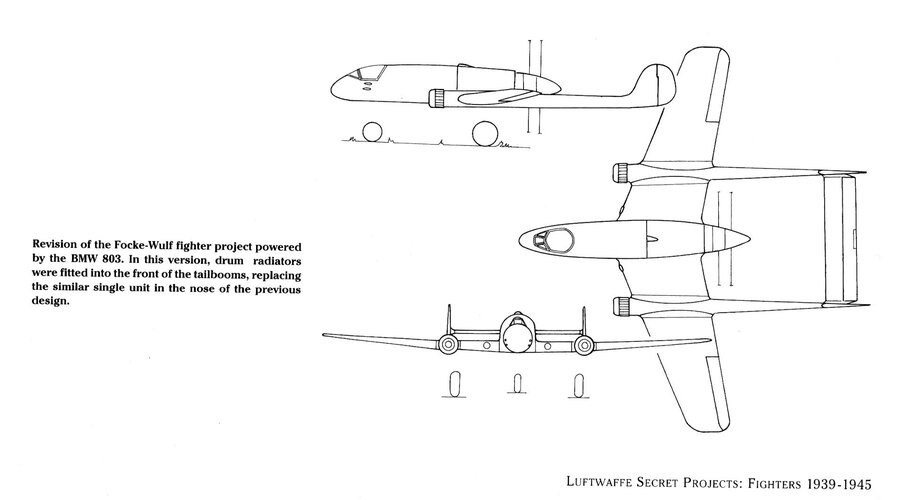

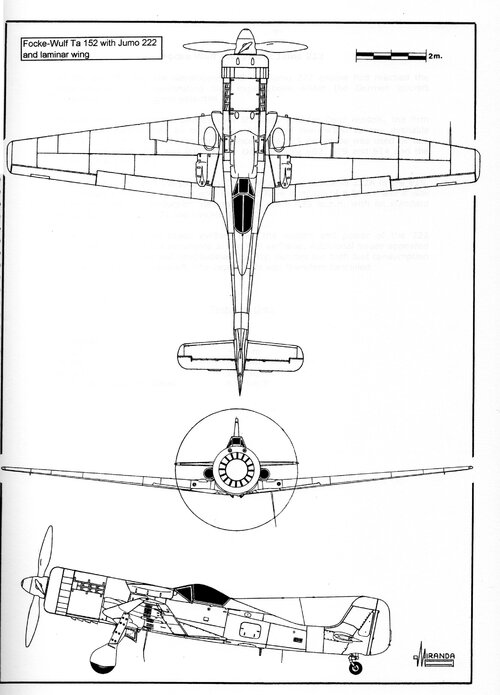

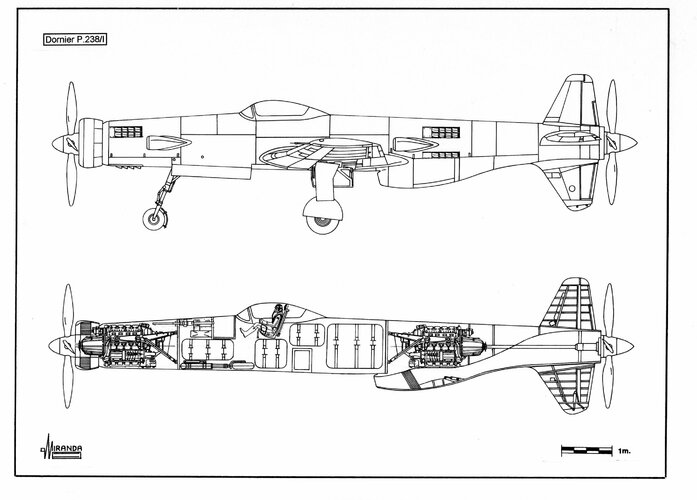

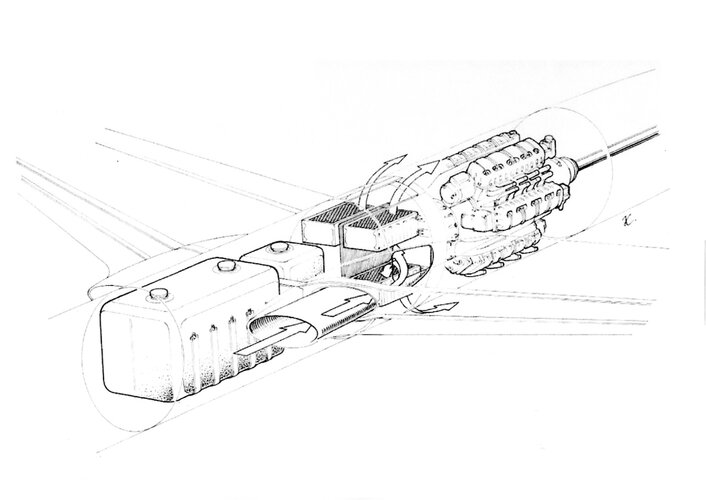

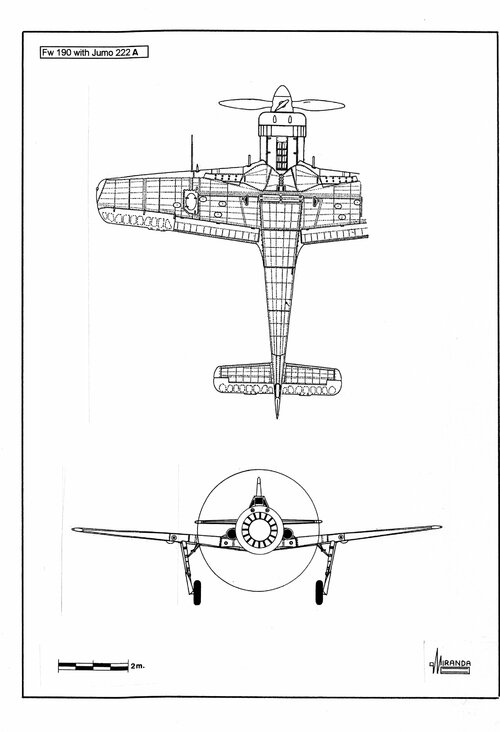

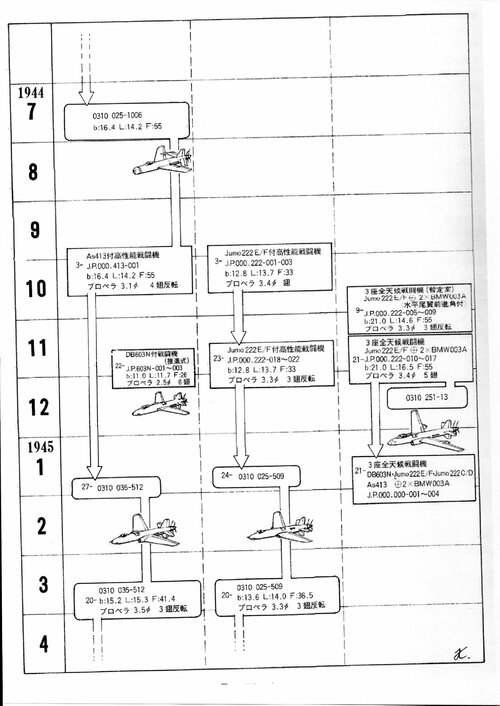

Post-2


Attachments

  • 854.jpg
    1.1 MB · Views: 82
  • 855.jpg
    472 KB · Views: 63
  • 856.jpg
    469.2 KB · Views: 62
  • 857.jpg
    552.5 KB · Views: 58
  • 858.jpg
    677.8 KB · Views: 58
  • 859.jpg
    440.7 KB · Views: 57
  • 860.jpg
    810.3 KB · Views: 57
  • 861.jpg
    571.1 KB · Views: 63

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,039
Reaction score
562

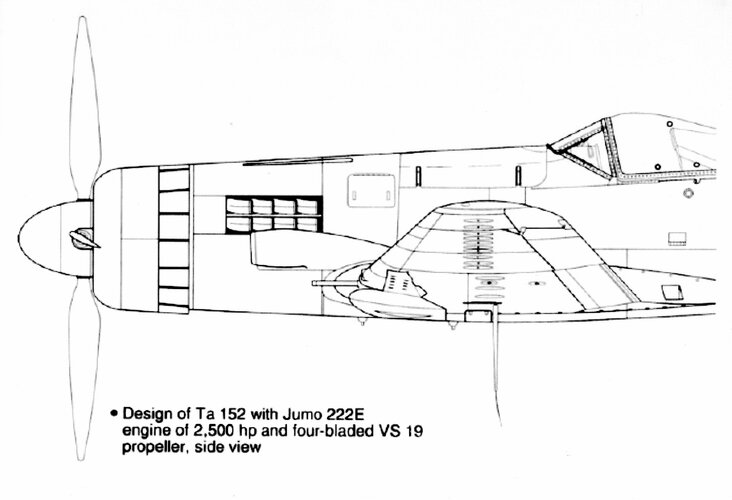

Regarding the Jumo 222 installation on the Ta152, what do the experts think about the ventrally located exhaust ? Would it affect the undercarriage ?
