Hello guys,

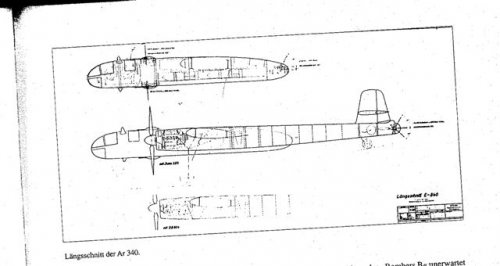

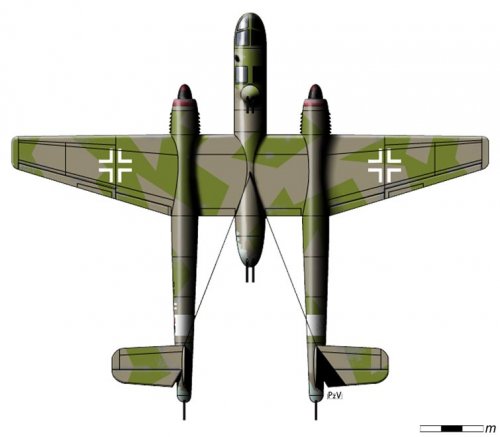

here is the well-known Ar340, showing two engine configurations: Jumo 222 and DB 604, with apparently no change in external appearance.

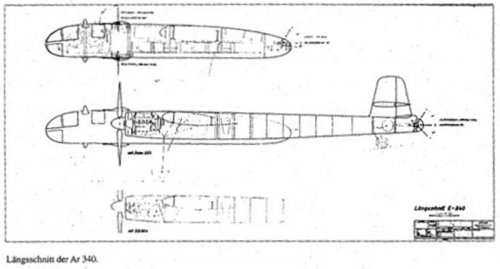

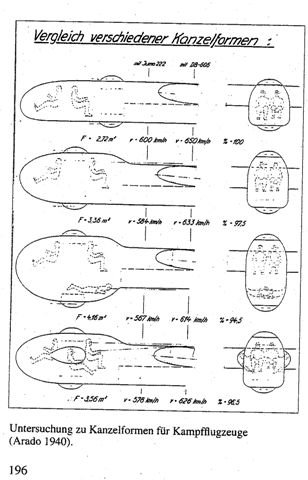

Second image relates to several flying cabins ( Kanzel or Kampfkopf ) proposed/studied for this interesting "paper bird", also the wouldbe speed with two different engines. So much for the "Bomber B" programme.

Images taken from: "Arado-Flugzeuge", by Jörg Armin Kranzhoff

Enjoy.


Attachments

  • Ar340a.jpg
    29.8 KB · Views: 929
  • Ar340b.jpg
    33.4 KB · Views: 768

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
Ar 340 illustration by T. Hitchcock, from Monogram's Close-Up #02:


Attachments

  • Ar 340 (Monogram Close-Up 02).jpg
    Ar 340 (Monogram Close-Up 02).jpg
    53.1 KB · Views: 518

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
Hi!

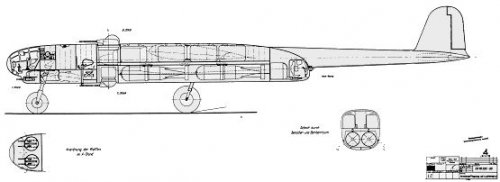

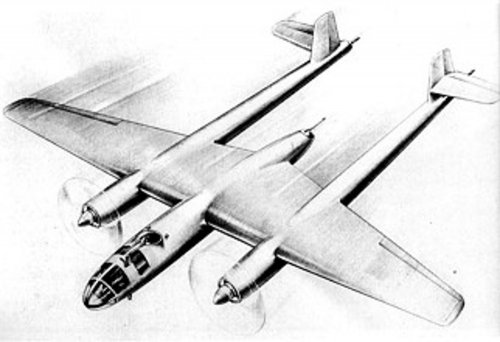

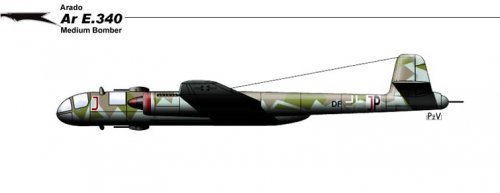

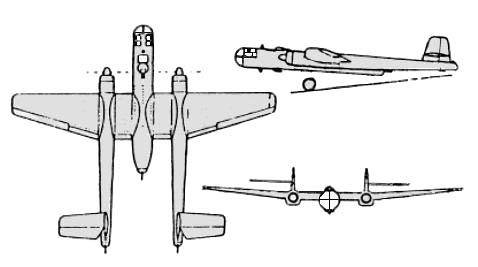

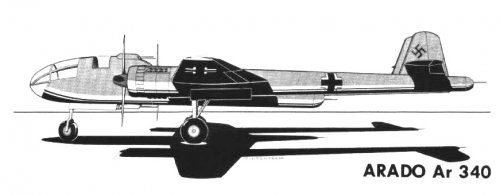

http://www.airwar1946.nl/Scalemod/SM-bomb.htm


Attachments

  • Ar E340.jpg
    Ar E340.jpg
    47.1 KB · Views: 102
  • E340.jpg
    84 KB · Views: 73
  • Arado Ar 340.jpg
    Arado Ar 340.jpg
    13.9 KB · Views: 107
  • 33-1024x804.jpg
    144.8 KB · Views: 116
  • Top.jpg
    34.3 KB · Views: 349
  • Left.jpg
    15.8 KB · Views: 351

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
770
Reaction score
297
What would be the aerodynamic advantage of the twin tails version?
It should be very compelling to offset the obvious structural disadvantage....
Or is this not really a serious project?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
Yes it's a very abnormal design. ???
Gunner's rear view is excellent.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,968
Reaction score
83
Yes, almost certainly for the gun position. The field of fire for the fuselage guns might even be better than the ones in the tailbooms!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576

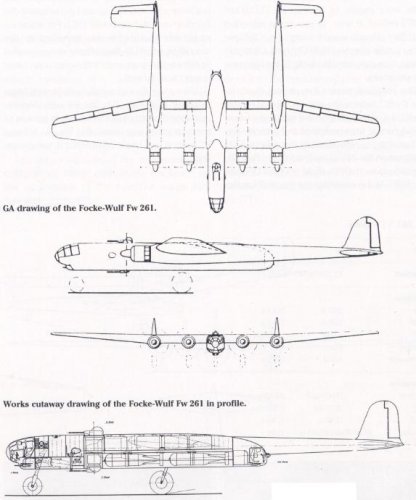

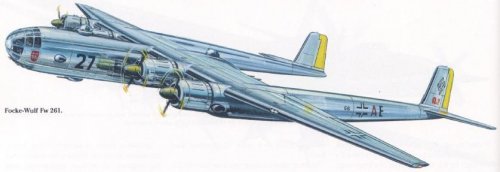

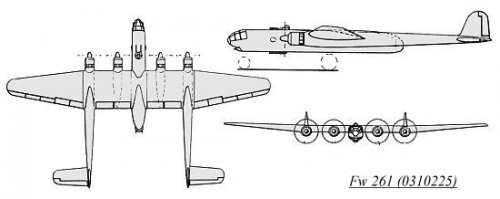

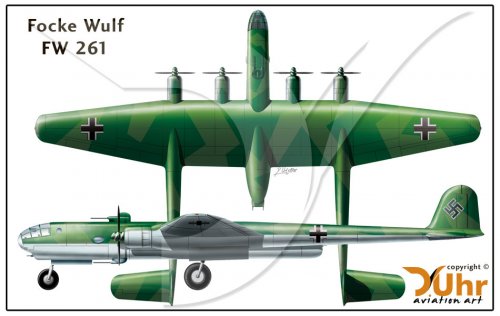

FW261 had the same shape.
Wiki German auto translation...
"The Focke-Wulf Fw 261 of Focke-Wulf Flugzeugbau GmbH was a project for a long-range bomber / fighter seaplane.
The Focke-Wulf Fw 261 should represent a detachment of the Focke-Wulf Fw 200 "Condor" which could bring the operating in the Atlantic German U-boats of the enemy convoys with long-range and considerably increased combat power. At the same time, enemy ships by means of dropping weapons should be tackled. A distance of 9000 km and a bomb load of 3000 kg, the Focke-Wulf Fw 261 should reach a speed of 560 km/h and a maximum flight duration 22 hours. As cantilever shoulder-wing Earth Ecker with central hull and two tail beams arranged behind the outer engine nacelles, the central hull to accommodate four gun stands and a portion of the fuel as well as the dropping weapons was intended. It should be noted that the designation FW 261 Focke Wulf without approval of the RLM was used."
