Italy supersonic jet fighter projects

wyvernhawk

ACCESS: Restricted
Joined
Oct 15, 2006
Messages
13
Reaction score
1
A long time ago,I looked a picture of fighter, name is sagittario III, realy?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130

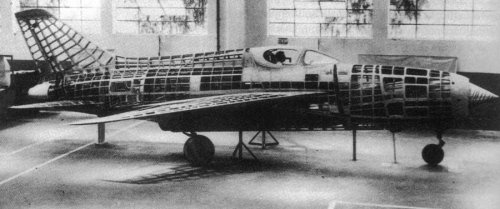

Italy actually built two supersonic jets, both experimental: the Sagittario II (Mach 1) and the Ariete (Mach 1.2). Both were from Aerfer firm and both were designed by Sergio Stefanutti. Stefanutti designed two more airplanes, in this case meant to be operational (point interceptors). They were the "Leone" (Lion), to follow the zodiacal constellation naming convention, of wich I attach a couple of pictures (first is a transparency, second is of the mock-up during building); and the XS-1, also known as Sagittario III. The would have had a Bristol Siddeley Orpheus B. Or. 12 of 3089 kg of power with afterburner. A second version would have had a De Havilland Gyron Junior, of 3180 Kg. The plane had an auxiliary rocket engine De Havilland Spectre powered by kerosene e and hydrogen peroxide. Total installed power was 4540 Kg; max horizontal speed (calculated) was Mach 2, time to go to 21000 m was 4 min and 55 sec, maximum ceiling was 25000 m. Armament was two De Havilland Firestreak. The prototype was 80 completed when project was cancelled in 1958. The intended funds were diverted to finance the license production of the Hawk AA missile (Italy too h d a "White Book" of some sort... :(
Stefanutti designed a VTOL version of th Leone, with a Bristol Siddeley Orheus with orientable nozzle ad a Napier ramjet of 7250 Kg of power.
Second supersonic plane designed by Stefanutti was the XS.1, from 1959. It had two RR RB 145 R of 1700 kg each plus a Napier Scorpion ramjet of 3165 kg. This too was an interceptor.


Attachments

  • Aerfer_Leone_2.jpg
    24.1 KB · Views: 1,087
  • Aerfer_Leone_1.jpg
    44.5 KB · Views: 997

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,433
Reaction score
1,938
Ben dis donc... You learn something everyday on this forum!

I had doubts about supersonic Italian jets (considering how good and active the Italian aircraft industry was and still is, see the M-346)... Now they are confirmed! There was better aircrafts than the fiat G.91 on the drawing board :)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130

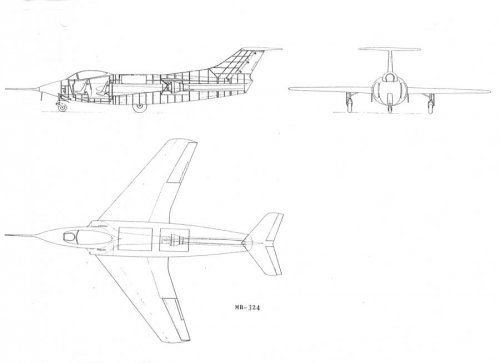

The Sagittario II was actually tendered to the NATO contest.. and disqualified for being "late"... Stefanutti tryed to protest but was said to stay quiet: the Italian contender had to be the FIAT design. Earlier, Macchi was pressured (with a "suasion" directly applied to the designer, the great Bazzocchi) not to tender the MB-324, of which I attach a rarely seen 3-view of the two place version. So, had the Italian government not decided to favour FIAT, we could have had just another Italian winner ... ;D Ok, ok, I'm joking... almost ;)


Attachments

  • MB-324-bip.jpg
    20.7 KB · Views: 1,083

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,433
Reaction score
1,938
Never talk to this NATO contest to a Frenchman!
It would tell you that the TAON (Breguet) and Etendards (II IV VI) were better than this crap F-86-copy named Fiat G.91... ::) but well, this contest was political... ;D
How many constructors had tlay in the field of jet aircrafts ??? Fiat, Aermacchi, Aerfer... more ?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
"..but well, this contest was political... "

Just tell me ONE such contest, that isn't political ??? ;D


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
How many constructors had tlay in the field of jet aircrafts Huh Fiat, Aermacchi, Aerfer... more ?
You mean in 1955? By then had actualy flown jet arplanes FIAT (the G-80 series), Aerfer and Caproni-Trento (the Frati's F.5). The MB-324 was just a project, like the SIAI-Marchetti SM-10X of 1950 (and the SM-110 Chimera II of 1950, a four-jet liner...). The first Macchi's jet-airplane to fly, the first version of the MB-326 with side-by-side seats, flew in 1957.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
845
Reaction score
147

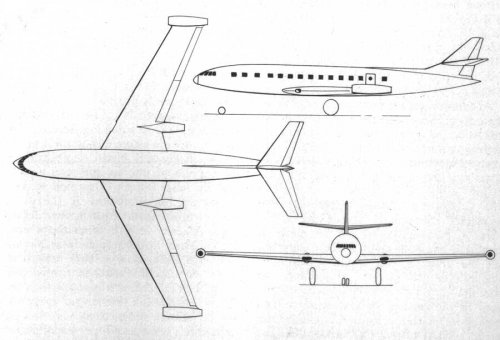

(and the SM-110 Chimera II of 1950, a four-jet liner...).

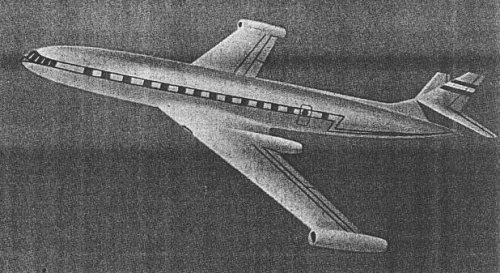

Btw, an interesting concept regarding the position of the engines (see picture from a unknown West German aviation magazine from the 1950s).

Skybolt, do you have an artwork of better quality (or even another one)? My scan is from a Xerox copy :( ...


Attachments

  • Marchetti Chimera II.jpg
    Marchetti Chimera II.jpg
    78.8 KB · Views: 806

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,433
Reaction score
1,938
Skybolt said:
How many constructors had tlay in the field of jet aircrafts Huh Fiat, Aermacchi, Aerfer... more ?
You mean in 1955? By then had actualy flown jet arplanes FIAT (the G-80 series), Aerfer and Caproni-Trento (the Frati's F.5). The MB-324 was just a project, like the SIAI-Marchetti SM-10X of 1950 (and the SM-110 Chimera II of 1950, a four-jet liner...). The first Macchi's jet-airplane to fly, the first version of the MB-326 with side-by-side seats, flew in 1957.

In the 50's in general... did SIAI marchetti flew a jet aircraft in the end ?
hmm Jemiba you're right :p :D


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
In the 50's in general... did SIAI marchetti flew a jet aircraft in the end ?
Not in the '50s. First jet airplane flown by SIAI was... a Caproni, C-22J, then the S-211, in the '80s.
Skybolt, do you have an artwork of better quality (or even another one)? My scan is from a Xerox copy Sad ...

I have a 3-view 8)


Attachments

  • SM-110.jpg
    40.6 KB · Views: 791

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
845
Reaction score
147
Thanks a lot for the quick response, Skybolt :).


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,367
Reaction score
133
Skybolt said:
How many constructors had tlay in the field of jet aircrafts Huh Fiat, Aermacchi, Aerfer... more ?
You mean in 1955? By then had actualy flown jet arplanes FIAT (the G-80 series), Aerfer and Caproni-Trento (the Frati's F.5). The MB-324 was just a project, like the SIAI-Marchetti SM-10X of 1950 (and the SM-110 Chimera II of 1950, a four-jet liner...). The first Macchi's jet-airplane to fly, the first version of the MB-326 with side-by-side seats, flew in 1957.

Hmm? All the photos I've ever seen of the MB-326 prototype show it as having tandem seating and without the tip tanks.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130

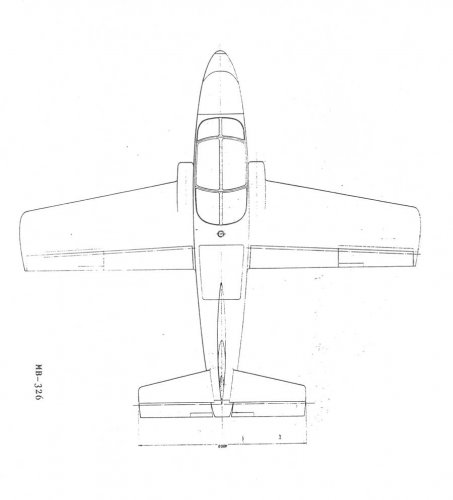

Elm, you're right... They built a small mock-up of the first design but they tendered and flew the second... Talking of going to bed earlier and don't trust memory..... :-[


Attachments

  • MB-326_side-by-side.jpg
    24.9 KB · Views: 153

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,367
Reaction score
133
Somewhat like the MB-326C was mocked up but never built. A same, that was an attractive aircraft.


wyvernhawk

ACCESS: Restricted
Joined
Oct 15, 2006
Messages
13
Reaction score
1

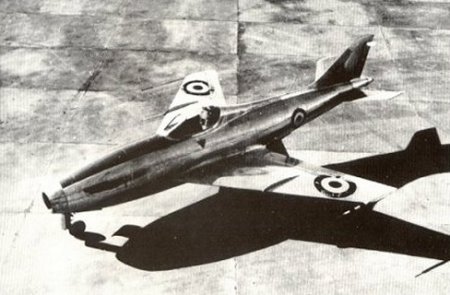

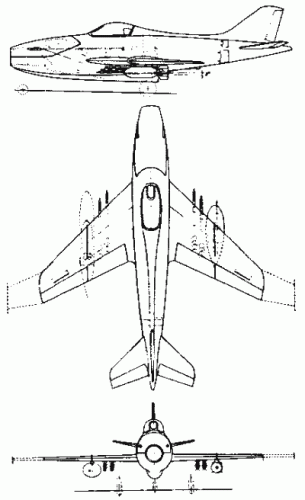

Hi this a sagittario II picture ,Iget it from internet.


Attachments

  • sagittario_II.jpg
    32.3 KB · Views: 852

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
686
Reaction score
396
Two more drawings


Attachments

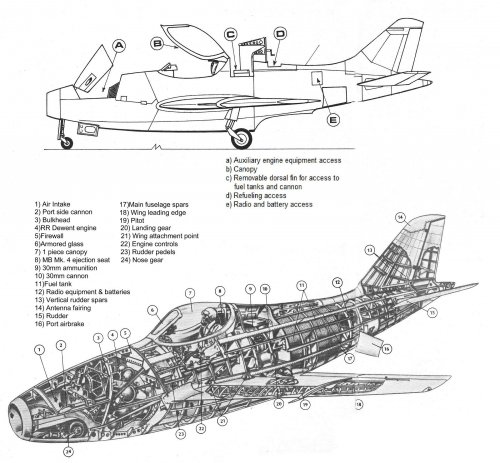

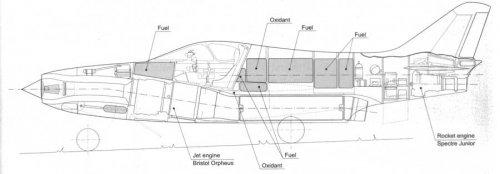

  • Sagittario.jpg
    449.9 KB · Views: 623

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,710
Reaction score
358

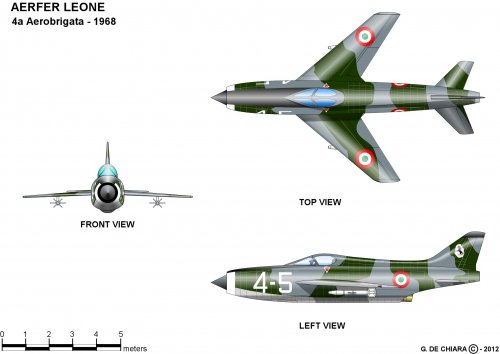

A little what-if, how would appear the Aerfer Leone with Italian Air Force markings.


Attachments

  • Aerfer Leone_02.jpg
    Aerfer Leone_02.jpg
    149.9 KB · Views: 522

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,749
Reaction score
833
lovely work, Archipeppe

What fascinate project, the Aerfer Leone a italian Interceptor with rocket engine, oddly only ten year to late.

And Fiat G.91 was a good and popular aircraft in the air forces who used it.
except in France, for some obscure reason they take a French aircraft called "ensign"

by the way
my avatar is picture of me in cockpit of a Fiat G.91


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,710
Reaction score
358
Michel Van said:
lovely work, Archipeppe

What fascinate project, the Aerfer Leone a italian Interceptor with rocket engine, oddly only ten year to late.

And Fiat G.91 was a good and popular aircraft in the air forces who used it.
except in France, for some obscure reason they take a French aircraft called "ensign"

by the way
my avatar is picture of me in cockpit of a Fiat G.91


Many thanks for your appreciation Michel. :)


I agree about Leone it was really too late and could not compete with the F-104G (the "affair" of the century indeed...) anyway it was really the latest indigenous Italian interceptor project ever (the late G-95 family was more strike rather than interceptor aircrafts).


I enjoed your avatar picture remembering that Germans used the Gina far more than Italians themselves....


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,733
Hi,

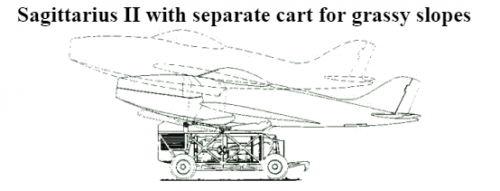

Here is some Sagittario II Projects :-

- SagittarioII/Attack : it was the same Sagittario II,but powered by one Rolls-Royce Derwent
Mk.8 engine and attack armaments.

- Sagittario II/Trolley : with this project the idea of ​​equipping Sagittarius II of a separate trolley for
take off from grassy slopes was taken up again. This cart was equipped with a 2,600 kg Allison J-35
turbojet. thrust and allowed take-off in 270 m. When the plane broke off, an automatic control
blocked the truck's steering, operated the brakes, intercepted the flow of fuel and lowered the stop
harpoon. This cart could also be operated by a Westinghouse J-34 WE 36 1.545 kg reactor. of push.

- Sagittario II/Interceptor : it was the same Sagittario II,but with increased of wing span,and some
improvements for its new roles.

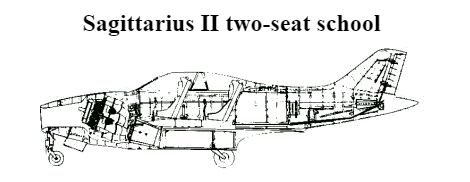

- Sagittario II/T : was a tandem two-seat jet trainer version.

- Sagittario III : was a later development called Sagittarius III, differed from the previous type to
have a total length of m. 9.60 and for a Bristol Orpheus turbojet of unspecified power.

http://xoomer.virgilio.it/aviostoria/A/AERFER/SAGITTARIO%202-PROGETTI.htm


Attachments

  • 1.png
    19.2 KB · Views: 167
  • 2.gif
    10.2 KB · Views: 157
  • 3.png
    17.4 KB · Views: 60
