ID Bell glide bomb.

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,977
Reaction score
3,504
Website
www.aerospaceprojectsreview.com

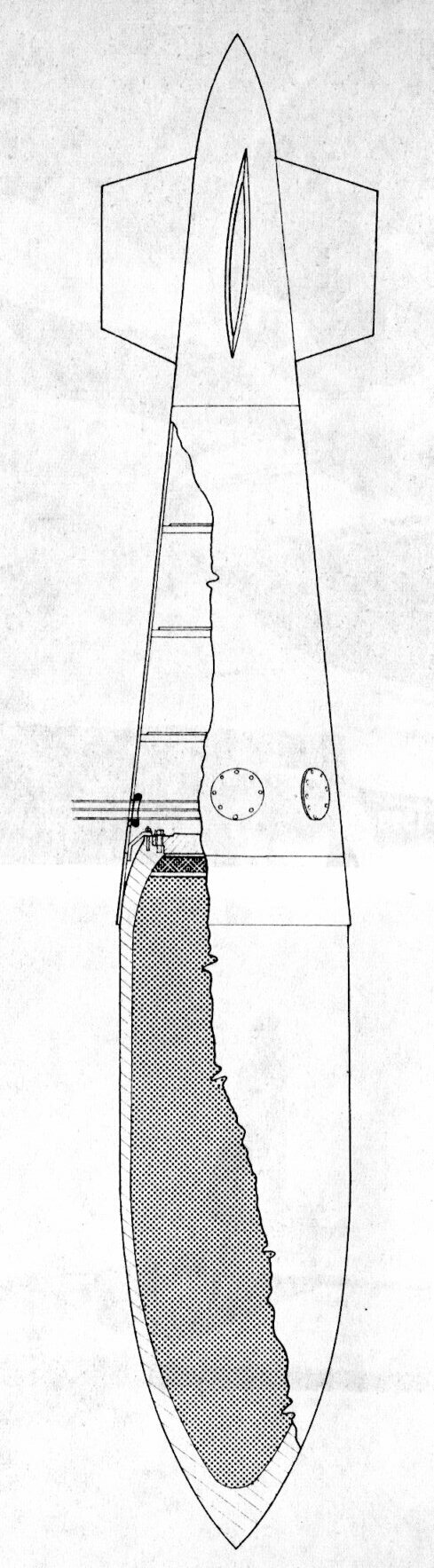

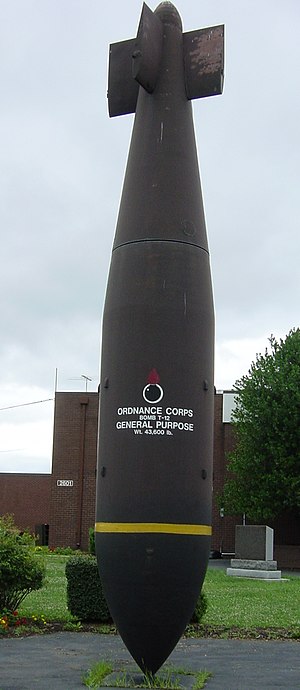

It's clearly in the "Tallboy/Grand Slam" family. The squared-off tailfins seem to be those of the T-12 "Cloudmaker," 43,000 pound bomb. The T-12, however, had four tailfins not three.



Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,999
Reaction score
6,636
Presumably an emergency program for the Korean War, more than likely for the USAF.


klem

I really should change my personal text
Joined
Mar 7, 2015
Messages
214
Reaction score
323

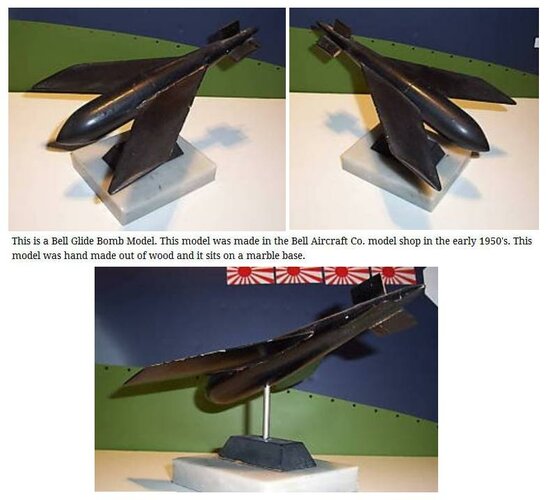

Thanks for the effort,the pictures was on an auction site without any other information.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,977
Reaction score
3,504
Website
www.aerospaceprojectsreview.com
Interesting. Why inverted wings? To allow for supersonic glide?
The forward half of the bomb is a giant iron casting filled with kerplosive. You wouldn't want spars running through that, I suppose, especially if you're trying to *not* modify existing hardware, or if you don't want to mess with the armor-piercing forward penetrator. With these forward swept wings, the spars are far enough aft that they fit through the non-kerplodey rear shell of the bomb, and are apparently part of a new structure.


kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
494
Reaction score
272
I agree, I was going to say that a spar would have incorporated the large bolt ring on the rear end of the casting


Attachments

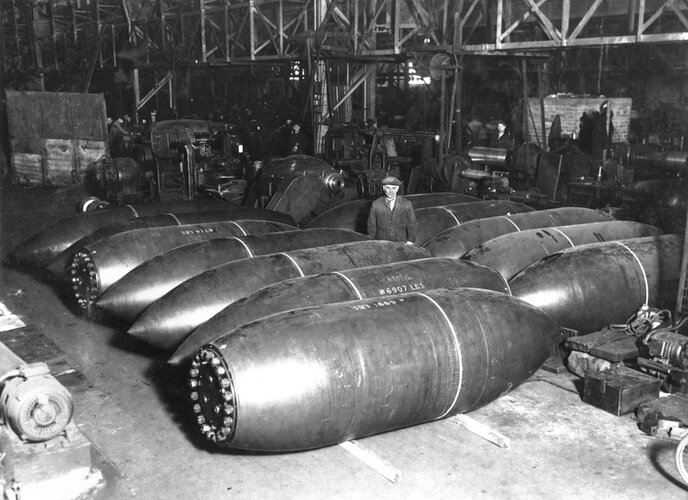

  • Grand_Slam_bombs_awaiting_delivery_(19456323542).jpg
    341.4 KB · Views: 27

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,289
Reaction score
791
It's clearly in the "Tallboy/Grand Slam" family. The squared-off tailfins seem to be those of the T-12 "Cloudmaker," 43,000 pound bomb. The T-12, however, had four tailfins not three.

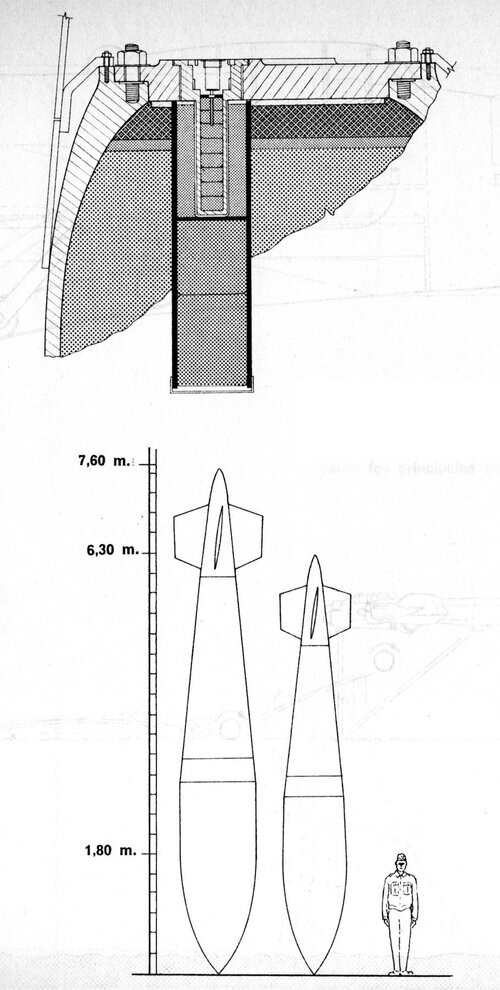

The tail fins on these bombs were also set at an incidence to impart stabilizing spin (visible in Justo's drawings), which would be undesirable for a winged weapon. So a new fin configuration was inevitable.
