Hybrid gas turbine-electric aircraft, is it feasible?

SmithW6079

ACCESS: Restricted
Joined
May 8, 2007
Messages
24
Reaction score
0
Greetings everyone,

I've been mulling over an idea lately and thought I'd check with the board's collected wisdom. Is it feasible to build an aircraft which uses a turbine to power a generator, which would in turn drive an electric motor to propel the aircraft (through a prop or ducted fan)? I was particularly thinking of VTOL applications, would the weight saved by electric transmission be an improvement on mechanical transmission systems?

Would throttle response be a problem? If you added a battery pack to improve throttle response, would its weight and those of the electric motors offset any possible savings from the transmission? I'm envisioning a tilt-rotor or tilt-wing aircraft, likely using ducted fans instead of prop rotors.

Any ideas, thoughts, and criticisms are welcome...


Racer

ACCESS: Confidential
Joined
Jan 22, 2008
Messages
84
Reaction score
3
There is a big weight problem with it.

If you're looking to the marine turbines: a RR Trent based MT30 36MW Turbine has a weight of 22t. The generator weights 55t. And you need an electric motor (weighting around 50t).

You don't need this big amount of power, but I think you can scale it down:

A F-135 weights around 2t --> generator: 5t, motor: 5t. A mechanical power distribution system is much lighter.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
SmithW6079 said:
Greetings everyone,

I've been mulling over an idea lately and thought I'd check with the board's collected wisdom. Is it feasible to build an aircraft which uses a turbine to power a generator, which would in turn drive an electric motor to propel the aircraft (through a prop or ducted fan)? I was particularly thinking of VTOL applications, would the weight saved by electric transmission be an improvement on mechanical transmission systems?

Would throttle response be a problem? If you added a battery pack to improve throttle response, would its weight and those of the electric motors offset any possible savings from the transmission? I'm envisioning a tilt-rotor or tilt-wing aircraft, likely using ducted fans instead of prop rotors.

Any ideas, thoughts, and criticisms are welcome...

The lift fan of the F-35 and your average APU could be considered oblique applications of this, but for direct power, probably not. For a STOL application, you can just remove the electric motor period and directly connect the lift fan to the engine ala F-35, and for forward propulsion, once again you're better off just using the engine directly. It works in ground applications (ships, tanks and trains) because expelling hot gasses to incur a reaction force is an inefficient way to overcome rolling or sliding friction.


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
I must admit that at one point I thought that a X-22A type VTOL with electric drive to the duct fans would be a wonderful idea. Multiple paths for providing power to the ducts to overcome battle damage and needing all that messy cross-shafting. I asked a few rotorcraft engineers, they smiled, patted me on the head and told me that there would need to be some metallurgy breakthroughs to overcome the weight and potential heat issues. That was about ten years ago. Maybe I should ask again. :-\


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,392
Reaction score
1,438
Racer said:
There is a big weight problem with it.

If you're looking to the marine turbines: a RR Trent based MT30 36MW Turbine has a weight of 22t. The generator weights 55t. And you need an electric motor (weighting around 50t).

You don't need this big amount of power, but I think you can scale it down:

A F-135 weights around 2t --> generator: 5t, motor: 5t. A mechanical power distribution system is much lighter.

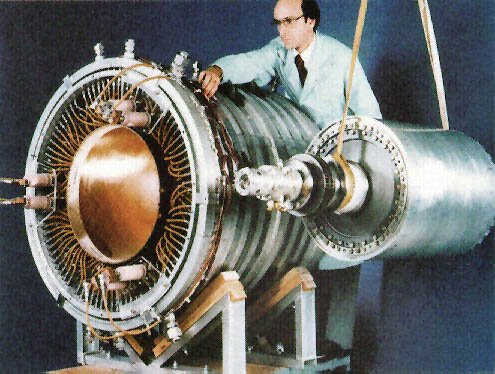

Back in the 80s when they were working on SDI stuff they got a 20 MW generator down to 3000 lbs. (This was from the Wright Propulsion site)


Attachments

  • generator 20MW 3000lbs.jpg
    generator 20MW 3000lbs.jpg
    61.7 KB · Views: 253

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940

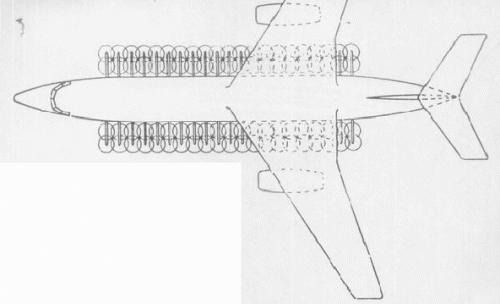

Some thoughts about electric driven liftfans were made in France, too, as I found
in Icare 1976(?). There were drawings to show the idea of a VTOL passenger a/c, using
quite a number of stowable electric liftfans. Not a project, of course, just a debatable
proposal !


Attachments

  • ADAV-electrique.GIF
    86.5 KB · Views: 237

Simon666

ACCESS: Confidential
Joined
May 9, 2007
Messages
106
Reaction score
0
There's enough info about all electric aircraft around. Seems they focus on superconducting electric motors as what has been mentioned already conventional electric motors are usually just too heavy. Trouble is cooling ofcourse. Just one example:

http://www.sciencedaily.com/releases/2007/06/070619183236.htm


ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
6
Aren't they playing around with a superconducting generator to power the ATL (advanced tactical laser) project? Though admittedly, that is using a whole C-130 for what is a very non-continuous duty cycle.


Racer

ACCESS: Confidential
Joined
Jan 22, 2008
Messages
84
Reaction score
3
sferrin said:
Back in the 80s when they were working on SDI stuff they got a 20 MW generator down to 3000 lbs. (This was from the Wright Propulsion site)

Interesting stuff. Incredible expensive though?


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
AeroVironment's Global Observer UAV has a central generating plant (either a microturbine/alternator or fuel cell) and multiple electrically powered propellers.
Without looking into this in too much detail, I've wondered from time to time whether turbine/electric drive would have a payoff. Would there be an advantage to a variable-speed, fixed-pitch propulsor? What about a light airplane with a regenerative microturbine aft of the cabin, driving ducted or open rotors? One of the problems with small turbine/prop designs is the high RPM of a small turbine and consequently heavy reduction gear.
For a UAV, too, you could slow to loiter speed and power and use the residual volts to drive the AESA.


SmithW6079

ACCESS: Restricted
Joined
May 8, 2007
Messages
24
Reaction score
0
Looking through the posts, the consensus seems to be that a hybrid electric aircraft is theoretically feasible and has even been built on a smaller scale (primarily UAV), but a V-22 sized aircraft is not possible with the current technology. It will be interesting to see what the future holds.


SmithW6079

ACCESS: Restricted
Joined
May 8, 2007
Messages
24
Reaction score
0

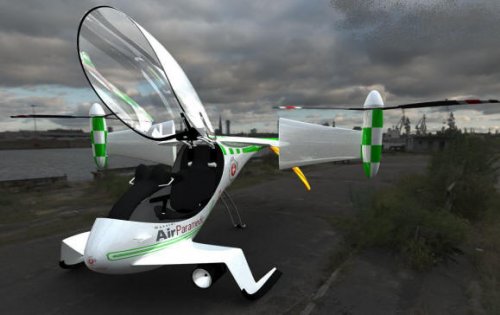

It looks as though other people are considering hybrid-electric propulsion for aircraft. Falx Air has two projects on their website, a Very Light Hybrid Transport (VLHT) and a small VTOL. Performance figures are posted but the site does not go into any details about the engines and neither aircraft has been built or tested yet. But given time (and more importantly, money)...



The official website is here:
http://www.falxair.com/

More photos can be found here:
http://www.gizmag.com/falx-air-hybrid-aircraft/9535/gallery/
http://www.gizmag.com/falx-to-debut-hybrid-electric-tilt-rotor-aircraft-with-inbuilt-solar-c/9234/gallery/


Attachments

  • VLHT_0116_Front_34_RD.jpg
    19 KB · Views: 225
  • paramedic.jpg
    29.6 KB · Views: 229

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940

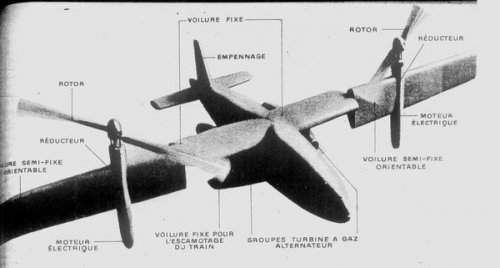

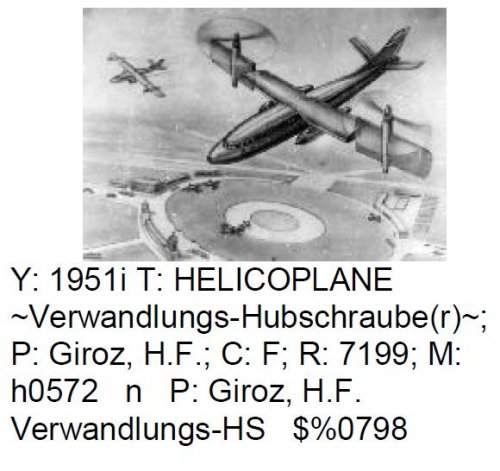

The turbo-electric aircraft is quite an old idea, although I have severe doubts about
the feasibilty of the shown Giroz Hélicoplane, a kind of tilt-wing VTOL:
(from Science & Vie 1949)


Attachments

  • Helicoplane.JPG
    24.9 KB · Views: 230

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5
I spoke to Falx. They are bench testing a hybrid electric engine made by an unnamed company that is also under evaluation by several car manufacturers, they say. Once they have real performance data from bench testing - and have found 10 million pounds from somewhere - they plan to start work on a three-seat tiltrotor. The hybrid propulsion system does sound interesting.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
161
Without getting into details, the feasibility of hybrid electric hinges on the specific power of the generators and motors. Those things are, as of today, still very heavy. I'm talking about state-of-the-art machines.
Maybe in ten-twenty years...


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
865
Reaction score
227
Hybrid cars work because the internal combustion engine of a car mostly works at low (but very variable) fractions of its full power. This makes the ICE inefficient. The car also frequently has to brake, which offers an opportunity to recover some of the energy.

An aircraft has neither. Its engine runs at a constant power and speed setting, so the engine can be optimized for that setting. Energy recovery would only happen at the end of a flight, so you'd have to carry (heavy) batteries that would only get one power cycle per flight.
So I don't really see the point of a hybrid aircraft.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940
Hobbes said:
... so you'd have to carry (heavy) batteries that would only get one power cycle per flight.
So I don't really see the point of a hybrid aircraft.

I think, the discussion was just about turbo-electric VTOL aircraft without storage of electric energy
via a battery, So, the term "hybrid" is used in a different sense here, as nowadays for cars.


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
865
Reaction score
227
In that case the question is even simpler: Does the electric motor plus generator weigh more than a drive shaft and gearing?


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
161
I can answer that - YES.
Unless you start doing weird things and need multiple long segmented shafts and gearboxes.
Otherwise, it's hard to beat the power transmission efficiency of a shaft.
Think about the equivalent electric powertrain and its efficiency:


-gearbox efficiency to run generator at optimum speed
-generator efficiency
-power losses in wires
-power conditioning
-motor efficiency


I doubt you get better than 85%. OTOH a simple shaft plus gearbox is probably in the mid nineties.


ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
6
Shaft based systems start to lose when faced with a distributed propulsion requirement, such as embedded spanwise propulsors in a BWB. Though to be fair, a similar arrangement could be achieved just by having more smaller engines, avoiding the shafting. During some reworking of NASA N+2/N+3 study results, a 767 class non-superconducting generator with electric propulsor combo was found to have a closing design, featuring a wing inboard span fitted with a thick wing with center embedded electric propulors.


Basil

ACCESS: Secret
Joined
Aug 10, 2009
Messages
257
Reaction score
51
In some concepts high temp fuel cells like SOFC (> 1000° C) with electrical efficiencies > 60% act as combustor in a gas turbine (conventional combustion chamber is replaced by the SOFC) which could lead to a very high efficiency propulsion system.
