Hi everybody

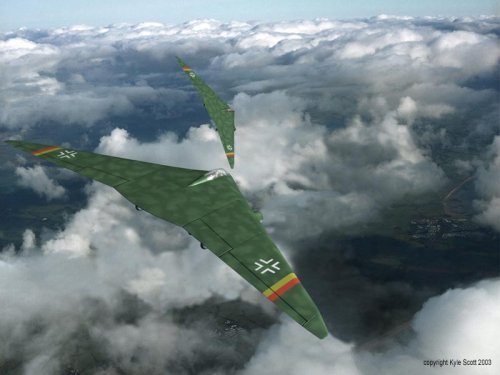

Here the Horten XVIII
http://www.luft46models.com/manufacturers/ho/ho18.shtml

Here the Horten XVIIIB-2 - EF-140
http://www.secretprojects.co.uk/forum/index.php/topic,4973.0.html
Was this the definitively version of the Horten "Fernbomber" ?

Here another Horten XVIIIB with fixed landing gear.
http://www.luft46.com/horten/ho18b.html

Many greetings


hs1216

ACCESS: Confidential
Joined
Oct 5, 2006
Messages
110
Reaction score
9
All the Horten bomber projects always struck me as underpowered, and exaggerated performance figures. I don't see how it is possible for an aircraft powered by 4 HES-011 engines could have intercontinental range.

J

joncarrfarrelly

Guest
Yildirim said:
All the Horten bomber projects always struck me as underpowered, and exaggerated performance figures. I don't see how it is possible for an aircraft powered by 4 HES-011 engines could have intercontinental range.

The engines were built by the Nibelung. ;)


Vietcong

Avation Enthusiast from VN
Joined
Jan 11, 2010
Messages
76
Reaction score
6
Website
aviationprojects.blogspot.com

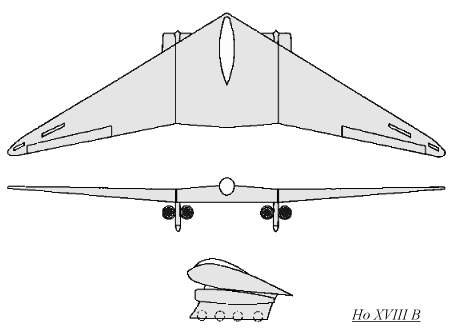

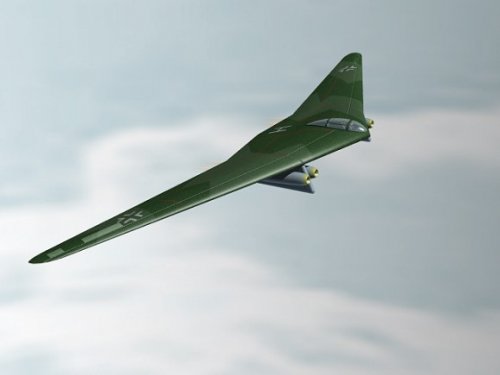

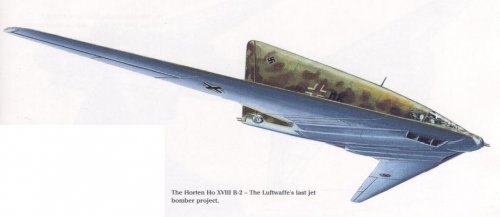

There is also another design of the Ho XVIII called Ho XVIII B-2 with Ho XVIIIA airframe and 6 jumo 004 or BMW 003 engines slung underneath


Attachments

  • hoxviiib200cg3.jpg
    29.3 KB · Views: 1,261
  • hoxviiib201fa7.jpg
    30 KB · Views: 1,166

dannydale

ACCESS: Top Secret
Joined
May 13, 2007
Messages
547
Reaction score
378
Nice pics, Vietcong; Chicken kana, yours look like Luft '46 ones.


theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
20

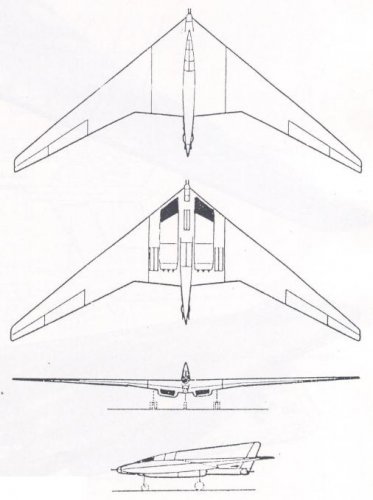

Well I'm adding the Horten Ho XVIIIB here. A redesign of "Amerika Bomber" : a flying wing with fixed undercarriage :eek: from

http://www.luft46.com/horten/ho18b.html

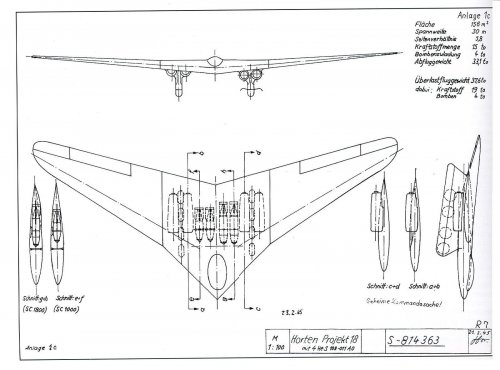

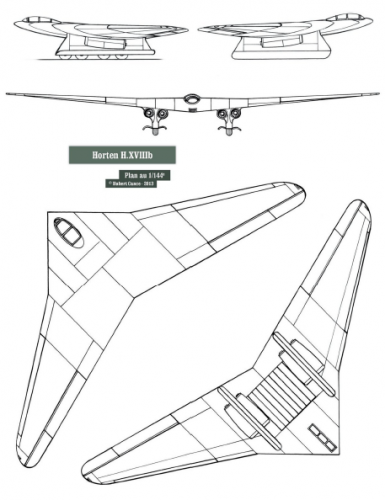

I found online an interesting drawing with the indication of Projekt 18b. Whats is your opinion? It's a original one? It've a lot more detail against the one in the luft46 site.
I'm attaching the original 3d view from luft46 and a couple of renders.


Attachments

  • Escanear0001.jpg
    163.9 KB · Views: 266
  • horten3.jpg
    19.9 KB · Views: 158
  • 3.jpg
    49.4 KB · Views: 140
  • 3bho18b.jpg
    11.1 KB · Views: 856

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,081
Reaction score
248
Yildirim said:
All the Horten bomber projects always struck me as underpowered, and exaggerated performance figures. I don't see how it is possible for an aircraft powered by 4 HES-011 engines could have intercontinental range.

That's an idea! It'd be interesting to see some modern calculations.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,879

theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
20

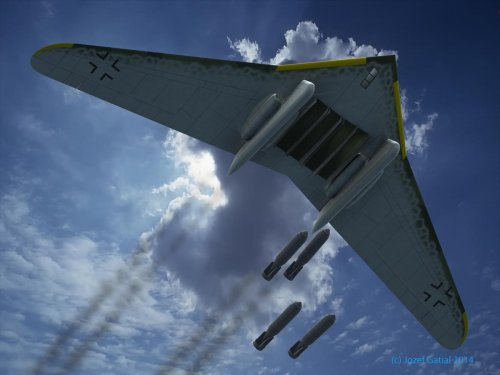

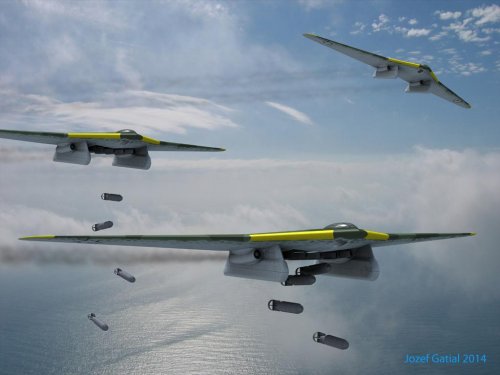

Oh fantastic Mr. Gatial. Brilliant work. Can we see more pictures? Maybe one seen from above? Can I ask which was you're reference material?

Thanks again for "bring it to life".


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,324
Reaction score
4,696
Website
www.amazon.com
From

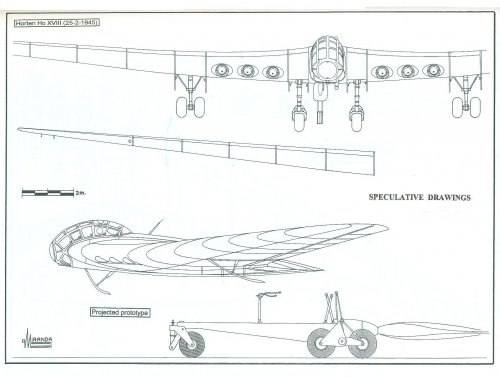

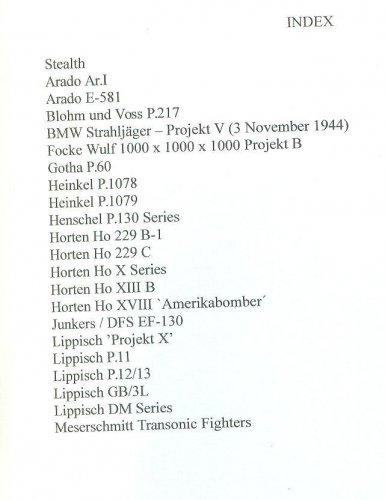

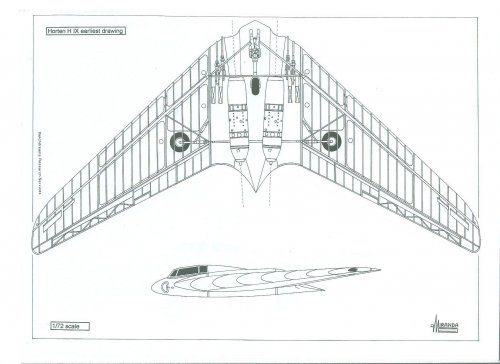

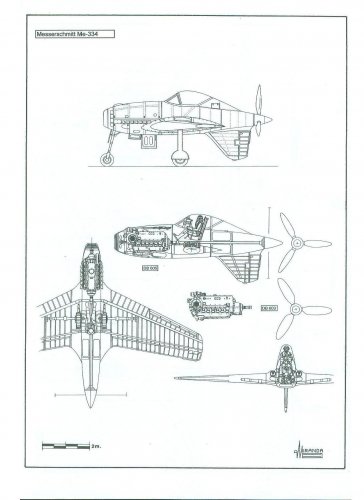

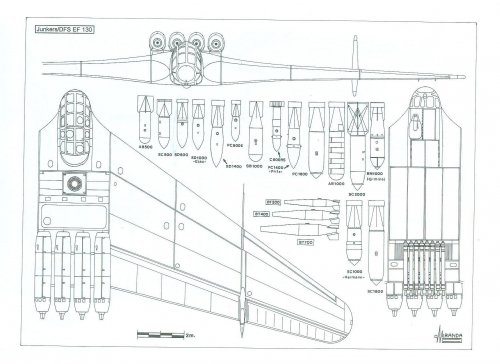

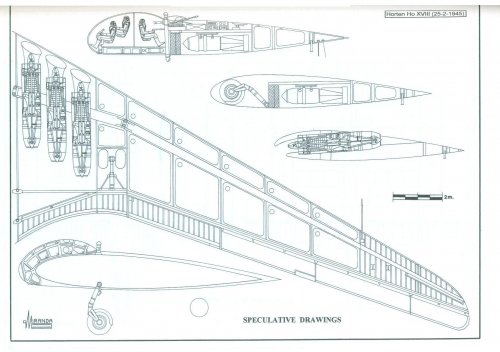

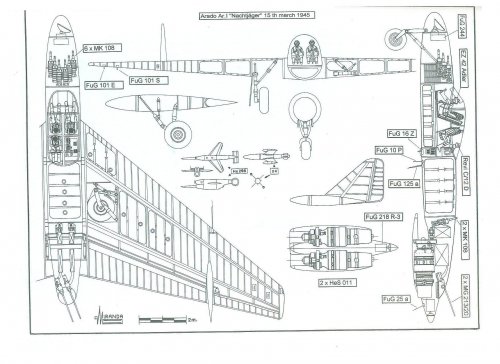

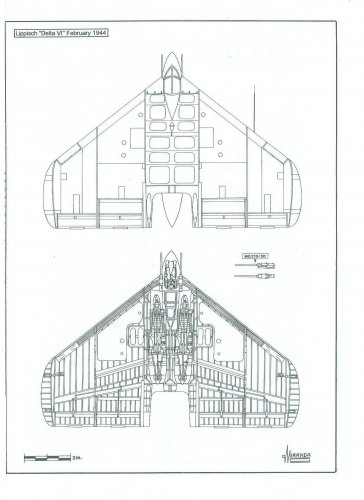

-"The Ultimate Flying Wings of the Luftwaffe"
http://www.amazon.com/The-Ultimate-Flying-Wings-Luftwaffe/dp/1781553726


Attachments

  • Ultimate flying wings.jpg
    Ultimate flying wings.jpg
    181.7 KB · Views: 414
  • Ultimate flying wings-1.jpg
    Ultimate flying wings-1.jpg
    217 KB · Views: 429

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,022
Reaction score
812

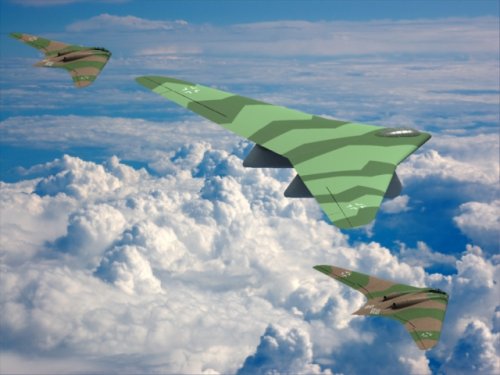

sources are from net but I didn't finish it (still temporary textures, etc.). Maybe later and with inspiration from new Justo book


Attachments

  • Ho-18_sc3.jpg
    60.9 KB · Views: 293
  • Ho -18 study.jpg
    Ho -18 study.jpg
    198.2 KB · Views: 295

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,324
Reaction score
4,696
Website
www.amazon.com

Attachments

  • Ultimate Flying Wings 003.jpg
    Ultimate Flying Wings 003.jpg
    256.2 KB · Views: 1,125
  • Ultimate Flying Wings 002.jpg
    Ultimate Flying Wings 002.jpg
    217.1 KB · Views: 1,153
  • Ultimate Flying Wings 001.jpg
    Ultimate Flying Wings 001.jpg
    195.8 KB · Views: 1,201
  • Ultimate Flying Wings.jpg
    Ultimate Flying Wings.jpg
    265.7 KB · Views: 1,216
  • Ultimate Flying Wings 000.jpg
    Ultimate Flying Wings 000.jpg
    54.2 KB · Views: 1,193

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,324
Reaction score
4,696
Website
www.amazon.com
Post-2


Attachments

  • Ultimate Flying Wings 008.jpg
    Ultimate Flying Wings 008.jpg
    195.4 KB · Views: 380
  • Ultimate Flying Wings 007.jpg
    Ultimate Flying Wings 007.jpg
    314.4 KB · Views: 387
  • Ultimate Flying Wings 006.jpg
    Ultimate Flying Wings 006.jpg
    113.5 KB · Views: 367
  • Ultimate Flying Wings 005.jpg
    Ultimate Flying Wings 005.jpg
    228.8 KB · Views: 371
  • Ultimate Flying Wings 004.jpg
    Ultimate Flying Wings 004.jpg
    203.6 KB · Views: 379

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20

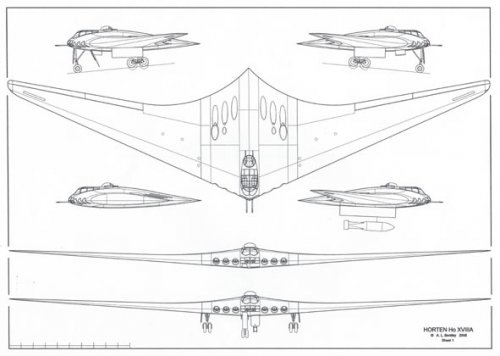

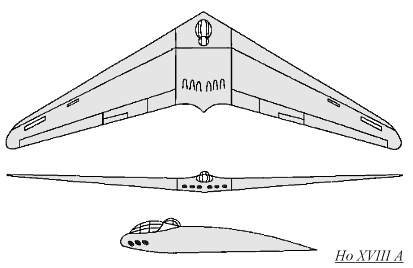

Horten HoXVIII-A drowings by A.L. Bentely. Source: http://www.albentley-drawings.com/drawings/horten-hoxviiia/horten-hoxviii-a/


Attachments

  • HoXVIIIA-sheet-1.jpg
    35.2 KB · Views: 387
W

Wingknut

Guest
Fabulous find, Dan - thanks very much for sharing. Interesting not least for the negative point about the lack of mention of RCS-reduction measures. All best, 'Wingknut'.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,547
Reaction score
6,273

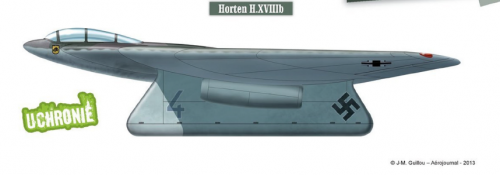

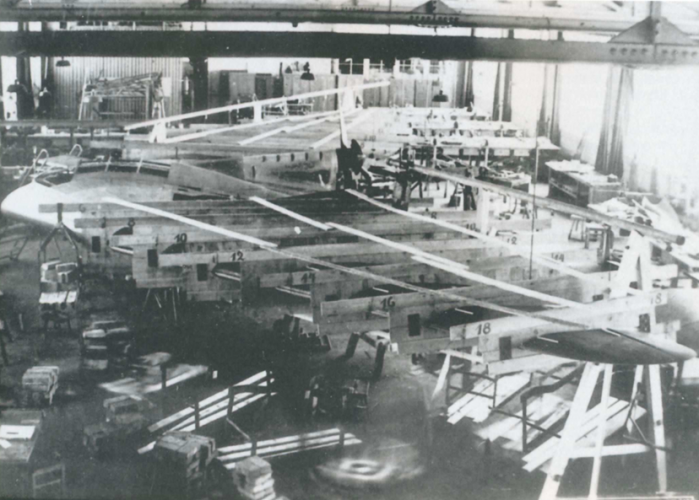

From Aero Journal 33.


Attachments

  • 1.png
    112.6 KB · Views: 249
  • 2.png
    186.8 KB · Views: 225

KHambsch

ACCESS: Restricted
Joined
May 11, 2020
Messages
49
Reaction score
69
Hi Justo, beautiful work!....can you tell me, did you choose your own wing sweep angle for the XVIII or did you find a spec. somewhere? Thanks for you time, Kevin

Last edited:

gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
142
Reaction score
116
sources are from net but I didn't finish it (still temporary textures, etc.). Maybe later and with inspiration from new Justo book
sources are from net but I didn't finish it (still temporary textures, etc.). Maybe later and with inspiration from new Justo book
Mr. Gatial, can you show us 3 view? Top, side and front?
