Hiller Models 1089, 1108 and other flying cranes

Brickmuppet

ACCESS: Confidential
Joined
Nov 11, 2006
Messages
188
Reaction score
30
Website
brickmuppet.mee.nu
I believe this was a part of a proposal to reuse Saturn 5 first stages by catching them in mid air with the aforementioned enormous whirlybird and flying them back to be refurbished. This would have avoided issues with seawater and impact...but would have added...well....catching a Saturn 5 first stage in mid air.


Update
Urp: My Bad....this is a different Chopper
The one I was thinking about is mentioned here...
http://www.thespacereview.com/article/1045/1


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Brickmuppet said:
I believe this was a part of a proposal to reuse Saturn 5 first stages by catching them in mid air with the aforementioned enormous whirlybird and flying them back to be refurbished. This would have avoided issues with seawater and impact...but would have added...well....catching a Saturn 5 first stage in mid air.


Update
Urp: My Bad....this is a different Chopper
The one I was thinking about is mentioned here...
http://www.thespacereview.com/article/1045/1

Hi Brickmuppet,

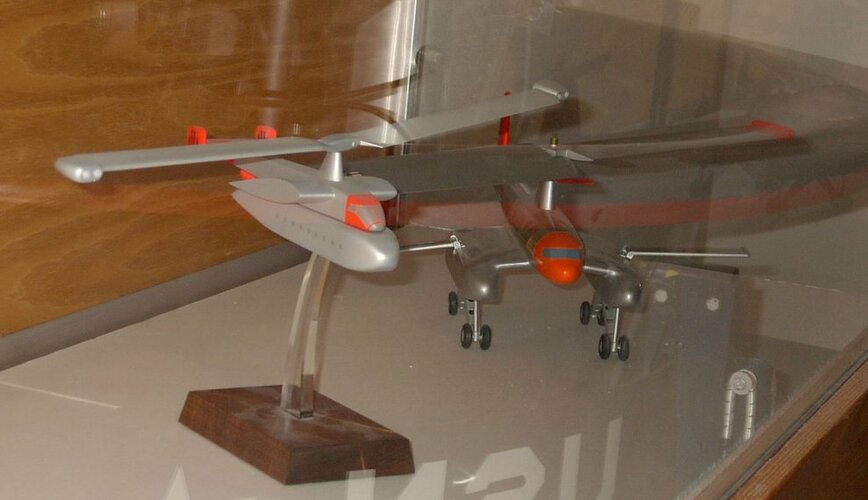

I thing it was not,and here is a model for it.


Attachments

  • 1108.JPG
    29.1 KB · Views: 442

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Did this flying crane project compete for a USN program with McDonnell's Model 86 XHCH-1? They seem to be very similar in size and shape.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
After investigating the matter for awhile, I have found means of identifying some of the many flying crane designs from Hiller:
- The Model 1108 is a Hiller-Continental proposal that won an Army contract then was canceled.
- The helicopter in Hesham's second post is NOT the Model 1108 but most probably the Class HC HEAVY LIFTER.
- The Hiller/NASA crane that was supposed to carry the Saturn V boosters is NOT the Model 1045 (the type is already identified as a T-tail tilt-wing proposal and the date is much too late for that number).

Here is a text found on the web (taken from J. P. Spencer's Whirlybirds: A History of the U.S. Helicopter Pioneers, 1998) and some new photos that shed some new light on the subject and recapitulate all the power-blade type flying crane projects that Hiller came up with:

In 1949 the company built and tested the Hiller Powerblade, the world's first hot-cycle pressure-jet rotor. Hot exhaust gases ducted through various Powerblades produced greater efficiency, which was further boosted by the use of "tip burning", a term describing the combustion of fuel at the blade's exhaust nozzle. However, even this arrangement yielded substantially less propulsive efficiency than was obtainable by mounting jet engines right at the rotor blade tips. In 1950, therefore, Hiller abandoned the pressure-jet approach to tip propulsion and dedicated his company to experimentation with tip-mounted engines.

Over the next fifteen years, Hiller actively pursued the construction of tip-powered flying cranes with a variety of jet engines at their blade tips. In 1951, the [Hiller] company offered the Army a midsize flying crane called the "Aerial Carryall" or "Flying Truck".

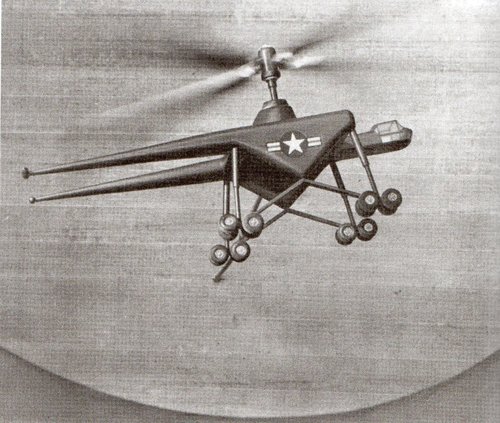

This could be the quoted Model 1005 flying crane.

It also responded to a Navy request for an aerial-resupply helicopter with the huge "Class HC Heavy Lifter", a collapsible flying crane of tubular construction. Neither of these efforts reached the prototype stage.

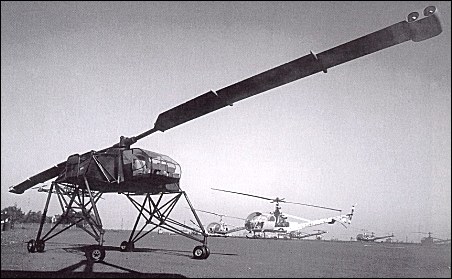

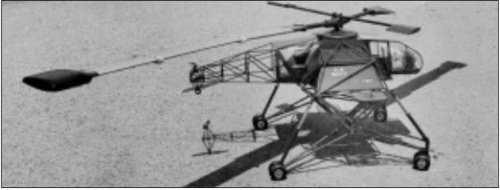

This photo most certainly depicts the Class HC HEAVY LIFTER in mock-up form.



The Army requested a design study for a flying crane with a 60m rotor in the mid-1950s. Hiller's response was BARC, an acronym for Besson's Aerial Railhead Crane. Named for Major General Frank S. Besson, chief of the Army Transportation Corps, this proposal similarly failed to find support. Neither did a series of parametric studies for a variety of tip-engined flying cranes that Hiller prepared in response to a 1955 military request.

No pics of these projects so far... About the Model 1108, presented in the first post of this page, also known as the Hiller-Continental FLYING CRANE:

By decade's end, it appeared that Hiller's continuing tip-propulsion efforts might at last pay off. Prompted by this promising body of exhaustive research, including thousands of hours of tip-powered rotor testing on Hiller whirlstands, the Army solicited industry bids for a tip-turbine-powered flying crane in the Hiller mold. Clearly favored to win a contract, Hiller teamed with Continental, manufacturer of the J69 turbojet engine. Although the Hiller-Continental team won the initial contract, funding for this Army program was cut in the early 1960s before a prototype was produced.

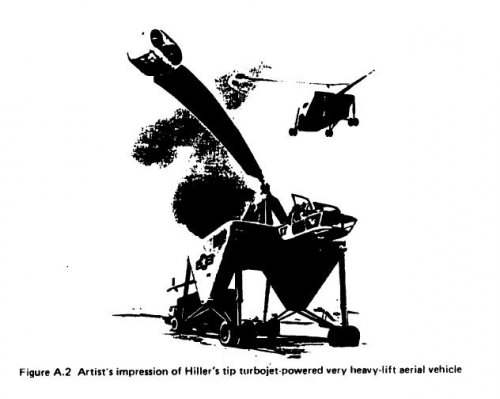

This is the Hiller-Continental crane, also known as Model 1108.



Finally, some light on the Hiller/NASA crane designed to recover Saturn V boosters (Model number unknown):

Company hopes for giant tip-powered helicopters revived briefly in 1965 when the National Aeronautics and Space Administration considered sponsoring a Hiller flying crane to recover Saturn V moon booster first stages during Project Apollo. Aerial recovery of this spent first stage, which weighed up to 400 tons, dictated that the Hiller/NASA recovery vehicle be the largest aircraft of any kind yet proposed. The resulting design featured a gross weight of about a 450t and a rotor more than 100m in diameter. Powered by two or more jet engines per blade, this rotor would have turned at 60 rpm, presenting the illusion of slow motion to observers below.

As laid out, the Hiller/NASA flying crane would loiter at 3000m some 750km downrange from Cape Kennedy. Sighting the moon booster descending by parachute, it would use special recovery gear to snag the spent rocket and winch it securely in. If the first pass was unsuccessful, sufficient time would remain for two more attempts before the booster was too near the ocean's surface for another try.

Expensive as such a helicopter would have been, the huge aircraft would have paid for itself with the first several recoveries. But long-range planning for the nation's space program was beginning to favor the concept of a reusable space shuttle over single-use rockets, and this recovery helicopter was not funded.



An artist's view of the Hiller/NASA crane proposal.

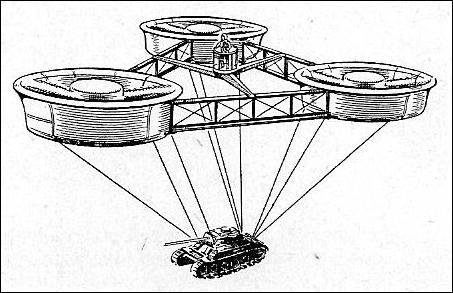

We should also add to all these helicopter-type projects a series of ducted fan/shrouded rotor flying crane proposals, all derived from research gained on the Model 1031/VZ-1 program, and as yet undesignated (see attached files).


Attachments

  • Hiller flying platform (Life's special 'Air Age' issue).jpg
    Hiller flying platform (Life's special 'Air Age' issue).jpg
    36.3 KB · Views: 96
  • popmech4b.jpg
    125.9 KB · Views: 108

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,293
Reaction score
1,243

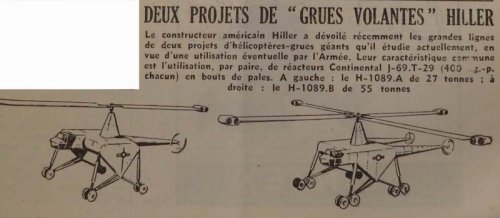

To make matters even more complicated, here are two Hiller heavy lift designs, that
surely are related to those already shown (mainly model 1108), but designated
H-1089 A and B here:
(from Les Ailes February 1961)


Attachments

  • Hiller_H-1089_01.jpg
    40.2 KB · Views: 121

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Great find,

thank you my dear Jemiba very much.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
A Hiller Flying Crane concept, circa 1957:


Attachments

  • Hiller Flying Crane concept (circa 1957).jpg
    Hiller Flying Crane concept (circa 1957).jpg
    615.2 KB · Views: 102

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,293
Reaction score
1,243

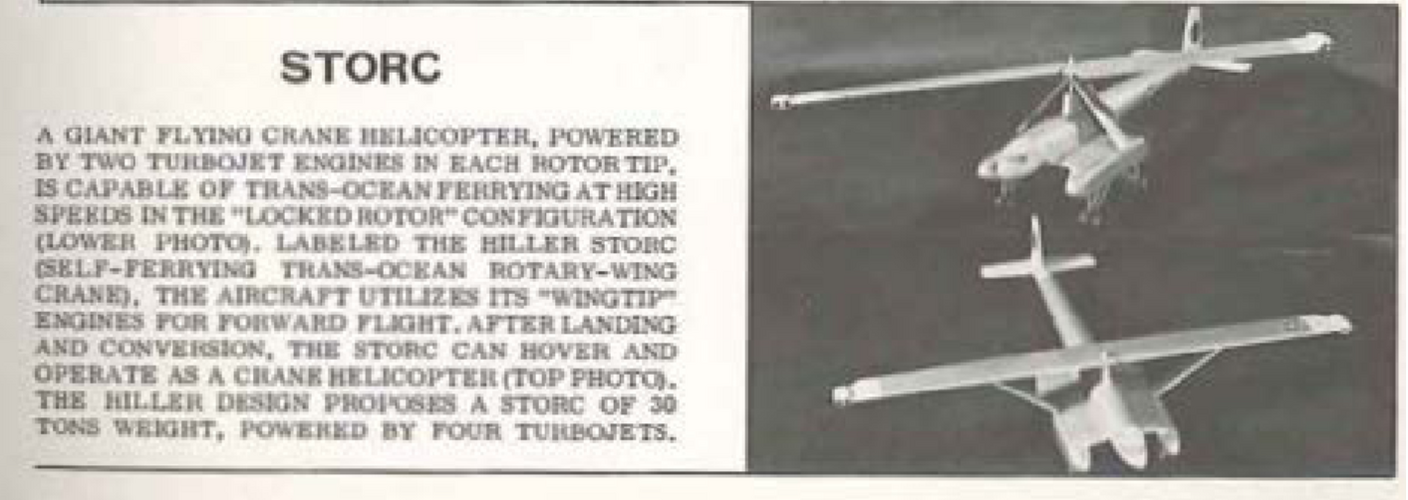

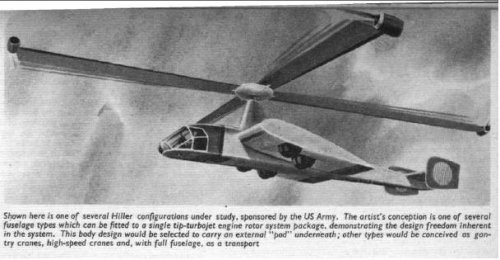

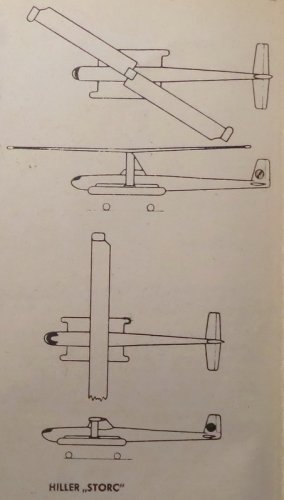

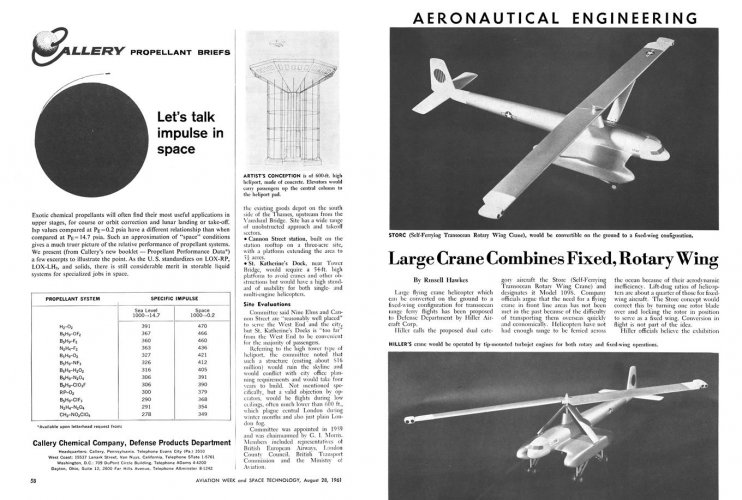

In Aero, September 1964, I've found a 2-view of the STORC (in configuration for fixed-wing
and rotary wing flight) and an artist impression, that should show the STORC, too, but too my
opinion it's more akin to the H-1089A.


Attachments

  • Hiller_Storc_11.jpg
    76.6 KB · Views: 91
  • Hiller_10.jpg
    98.1 KB · Views: 108

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

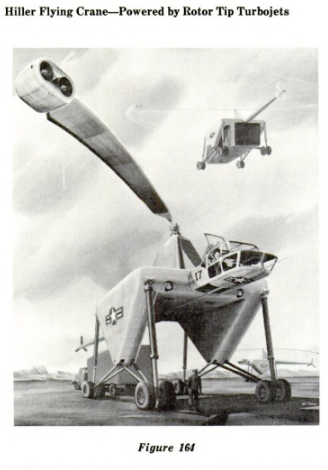

I have a color version of the same picture, which I filed under "Model 1108" but perhaps you're right about it being a 1089. I do not know exactly how different the two crane helicopter projects were.


Attachments

  • pdr_0110a.jpg
    175.5 KB · Views: 142

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,293
Reaction score
1,243
Then we have a problem, I think, because here http://www.secretprojects.co.uk/forum/index.php/topic,6820.msg118728.html#msg118728
he already had identified another type as 1108, which, with regards to Les Ailes 1961, could be the 1089 as well, at least to
my opinion. Had a look inbto the NASA paper, where the picture comes from. Not absolutely clear, but in one of the
tables there, the Hiller 1108 is mentioned, making it quite probable, that it actually is that type. Nevertheless, some
posts later another type again is designated as 1108 ....
If nobody minds, I would merge this thread with the "Hiller Type-1108" one, at least, until clarification.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
My dear Jemiba,


I do not mind to merge them.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

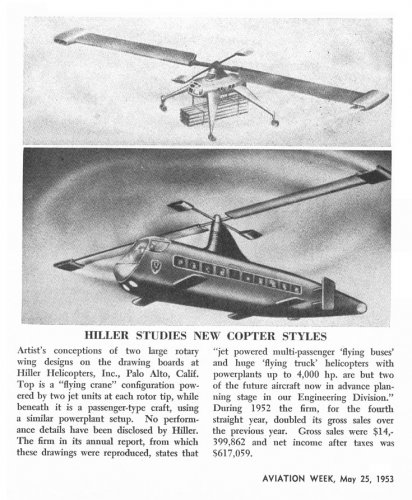

Some studies published by Aviation Week in 1953:


Attachments

  • Hiller studies.jpg
    Hiller studies.jpg
    209.7 KB · Views: 107

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Greetings All -

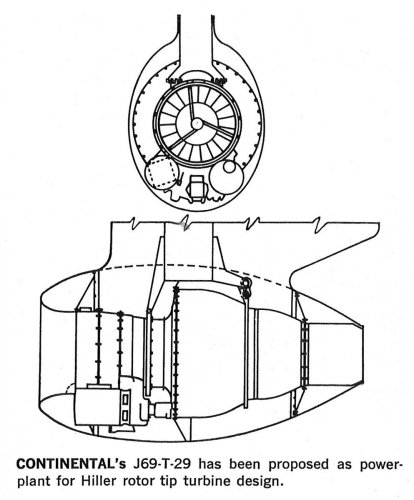

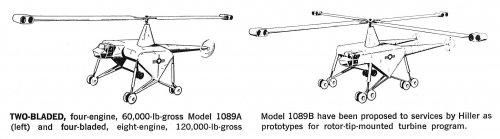

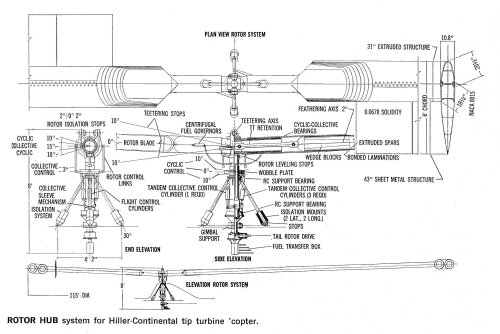

From the June 1959 issue of Space & Aeronautics, these drawings of the Model 1089A and 1089B and related info.

Not sure what the second drawing is - was part of the article and worthy of inclusion.

Enjoy the Day! Mark


Attachments

  • Hiller Continental J69-T-29 Rotor Tip Turbine Design.jpg
    Hiller Continental J69-T-29 Rotor Tip Turbine Design.jpg
    104.1 KB · Views: 109
  • Hiller-Continental Tip Turbine Rotor Hub.jpg
    Hiller-Continental Tip Turbine Rotor Hub.jpg
    282.5 KB · Views: 108

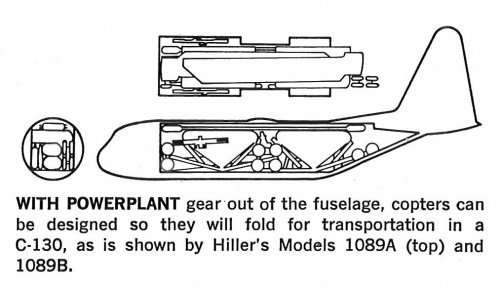

  • Hiller Model 1089A & 1089B - C-130 Transport Drawing.jpg
    Hiller Model 1089A & 1089B - C-130 Transport Drawing.jpg
    74.3 KB · Views: 104
  • Hiller Tip Turbine Heavy Lift Helicopter Artwork.jpg
    Hiller Tip Turbine Heavy Lift Helicopter Artwork.jpg
    171.2 KB · Views: 113
  • Hiller Model 1089A & 1089B designs.jpg
    Hiller Model 1089A & 1089B designs.jpg
    113.5 KB · Views: 116

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894

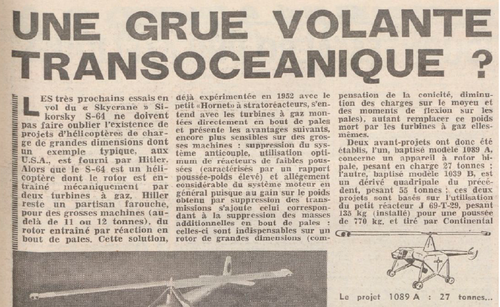

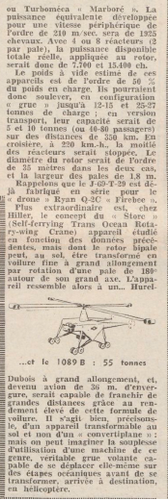

From Ailes 27/4/1962.


Attachments

  • 1.png
    447.2 KB · Views: 71
  • 2.png
    712.5 KB · Views: 67
  • 3.png
    161.3 KB · Views: 82

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
581
Reaction score
235
Attached is a photo of the Hiller Model 1089B from "Vertical Challenge The Hiller Aircraft Story" by Jay Spenser (1st books 2003) ISBN 0759633991.

The caption reads : A model of the Hiller-Continental flying crane "flies" in a wind tunnel in the early 1960s.

Apart from mentioning utilizing a turbojet tip rotor very little detailed information on the flying crane is in the book which mainly covers built designs.


Attachments

  • Hiller-Continental_Model_1089B_Flying_Crane_Windtunnel_Model.jpg
    597.8 KB · Views: 59

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894

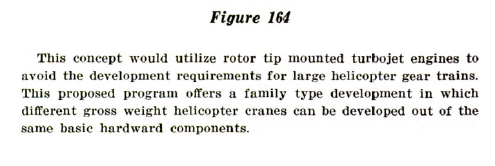

From University of Illinois at Urbana–Champaign project hummingbird 1961,


Attachments

  • 12.png
    215.9 KB · Views: 32

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894

Attachments

  • 6.png
    70.4 KB · Views: 11
