Bristol VTOL and STOL transports - Type 208, 224, 225

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,804
Reaction score
4,969
Hi,

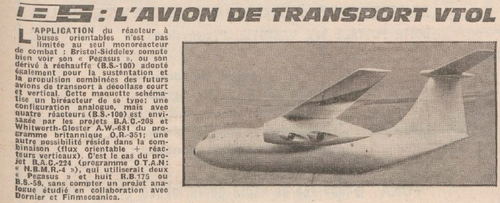

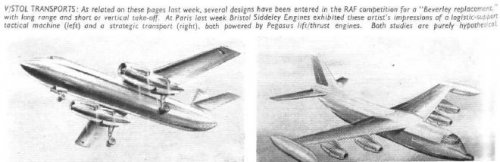

the second aircraft was a Bristol jet lift VTOL aircraft,with a weight
of 100,000 1b,may be it related to those designs;
http://www.flightglobal.com/FlightPDFArchive/1961/1961%20-%200772.pdf


Attachments

  • index.jpg
    26.4 KB · Views: 1,172
J

joncarrfarrelly

Guest

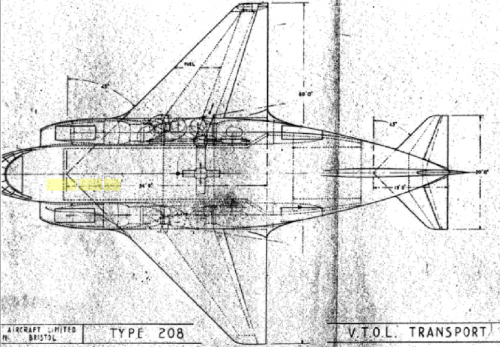

The image is from Bristol Aircraft since 1910, C.H. Barnes, 3rd edition 1988.


alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
617
Reaction score
225
NBMR4, V/STOL transport ran, 1957-65, in concert with NBMR3, V/STOL strike/fighter. Both lapsed, UK choosing, then chopping HS681+P.1154(RAF) and taking C-130K+P.1127(RAF); other NATO Members did various things, many with C-130s which could do much Stollishly, rather cheaper and more operationally practical (how on earth would conscript groundcrew ever have generated some of these schemes?) During all this the Board of Bristol Aeroplane concluded that independence was history and must set about puffing up the value of Filton, to secure best price. They bid original schemes inc. T.208, and licenced/derivation C-130s, inc. a Tyne variant: now that would have been interesting. The new BAC (inc. ex-Bristol) of 7/60 found itself bidding against itself. MoD preferred HSAL+Short.


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,520
Reaction score
840
Ken, re the Tyne-powered C-130. Aside from the pro-HSA/Shorts stance, was it dismissed due to the Air Staff's belief post-1960 that the prop was dead, long live the fan?

Chris


zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
208
Reaction score
225
Website
www.flickr.com

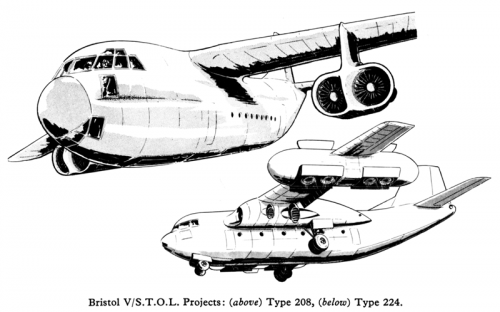

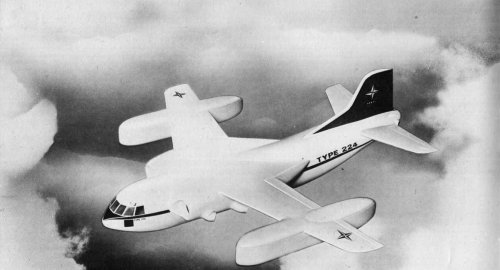

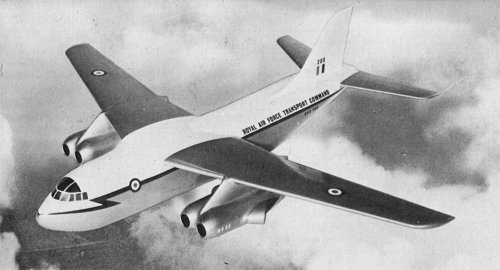

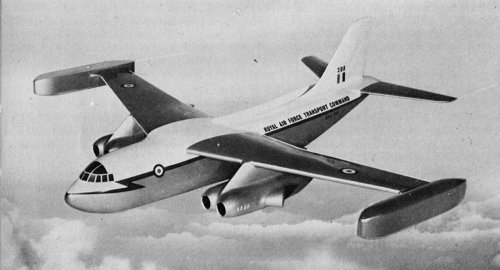

Couple of model images from James D. Oughton's Bristol, An Aircraft Album, Ian Allan 1974

First two are of the Type 208, one in STOL configuration and the other in VTOL. Final image is of the Type 224

Zeb


Attachments

  • 208-STOL.jpg
    62.1 KB · Views: 208
  • 208-VTOL.jpg
    60.5 KB · Views: 69
  • 224.jpg
    51.4 KB · Views: 68

JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
237
How did it's performance compare to the AW681?

Regards


alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
617
Reaction score
225
CJG #7: Tyne/C-130: this is my recollection. First mooted late-1959, but Argosy then preferred (all to do with rationalisation of industry into (to be HSAL, to be BAC)). By 1963-ish RR was parlous - they had nothing, having evidently backed the wrong V/STOL solution of deadweight liftjets: BSEL's owners (Bristol Aeroplane and HS Group) were simply waiting for such windfall assets as they might care to pick up. MoA, last minute, changed Pegasus to Medway on HS681, 9/63 (the Farnborough Show model's nacelles were shrouded on Day 1 pending decision). Then 10/64, the other lot got in, pledged to chop Defence. RR 11/64, sent in a Black Book (brochure) reviving Tyne/C-130E. PM/Sec.Def/Foreign Sec went to DC 12/64 and came away with Offers for everything, on tick, fixed price.

Roy Jenkins, MoA, as Aero sponsor, tried to retain something at home: Treasury's position was why on earth would we bother to pay upfront cash, uncapped, drift, bloat? How true. He secured Spey in F-4M despite RAF's active disinterest (I remember 170-ish with J79, same price as 118/Spey) and, incredibly, secured Spey in 40 of the 50 F-111K, again over RAF active disinterest. (This is during 1/65). No-one, inc. RR, could see how RR could meet US airframe production rates (UK F-4K/M would be a few of the 72 per month!!) So, no further distraction please by trying to put Tyne on C-130K. All Jenkins got on that was some lumps for Scottish Avn.: any more and we risked disrupting Marietta's line, at crushing penalties.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,804
Reaction score
4,969
Hi,

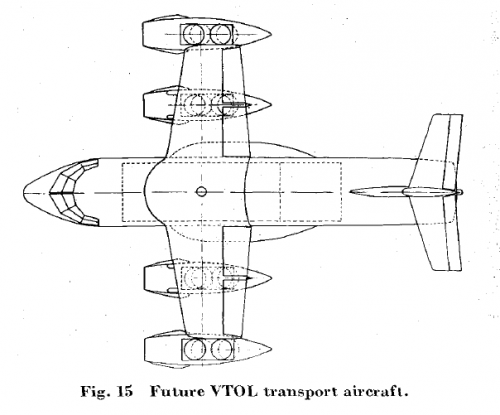

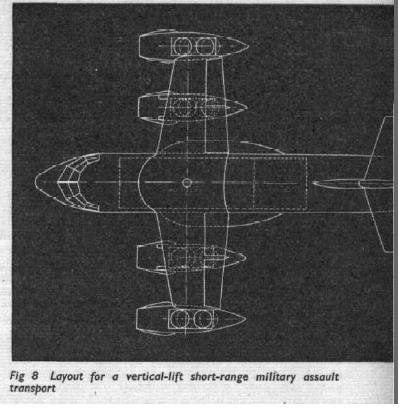

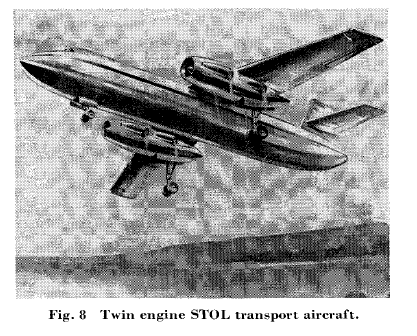

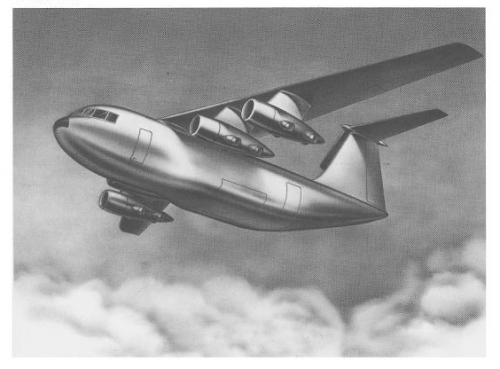

here is the Bristol STOL & VTOL transport concepts.


http://arc.aiaa.org/doi/abs/10.2514/3.43612


Attachments

  • B-2.png
    60.9 KB · Views: 76
  • B-1.png
    23.7 KB · Views: 72

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,877
Reaction score
4,823
The article is by Bristol Engines, not Bristol Aircraft. The designs are most likely theoretical illustrations of potential Pegasus applications, though they might be the work of an aircraft design company.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,804
Reaction score
4,969
PaulMM (Overscan) said:
The article is by Bristol Engines, not Bristol Aircraft. The designs are most likely theoretical illustrations of potential Pegasus applications, though they might be the work of an aircraft design company.


That's right my dear Paul,just a hypothetical designs.


Zoo Tycoon

ACCESS: Top Secret
Senior Member
Joined
May 27, 2008
Messages
532
Reaction score
709
Has anyone out there got any details and particularly a drawing of the Bristol Type 225?

Really appreciate if you could find anything.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,804
Reaction score
4,969
Hi Zootycoon,


the only info for BAC-225,it was STOL transport aircraft project for GOR-351,powered
by four Rolls Royce RB.168 turbofan engines,and there is a maritime recce version
intended for Spec. GOR357.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,877
Reaction score
4,823
Checked Nimrod's Genesis for the OR.357 version - has lots of BAC designs from Weybridge, but no Bristol 225.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257
... nor in C.H. Barnes "Bristol Aircraft Since 1910", Putnam. The list ends
with Type 221 as "last true Bristol project", which actually was the Fairey
F.D.2 with ogee wing.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,877
Reaction score
4,823
I'm pretty sure 225 existed and was a Bristol STOL transport to OR.351 (winner: AW.681) but it dates to after the BAC merger. 221 was the last project from Bristol as an independent company. 223 was SST.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,828
Reaction score
711
In the 3rd edition of 'Bristol Aircraft', Barnes gives the following data:
4 x 12400 lb s t Rolls-Royce Spey RB 168
span 148 ft 6 in
length 103 ft
height 35 ft 8 in
wing area 2350 sq ft
empty weight 86000 lb
all-up weight 217000 lb
max. speed 450 mph
max. range 5500 mls
crew of 4 for freighter, crew of 10 for MR

Quote from Barnes:
The final project to bear a Bristol type number, in 1962, was the Type 225, an enlarged STOL development of Type 208, offered with alternative fuselages to meet either O.R. 351 for a tactical freighter, or O.R. 357 for a maritime reconaissance aircraft; both variants would have had wings, tailplanes, powerplants and landing gear in common.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,877
Reaction score
4,823

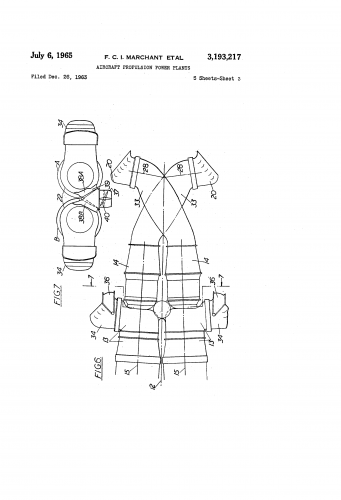

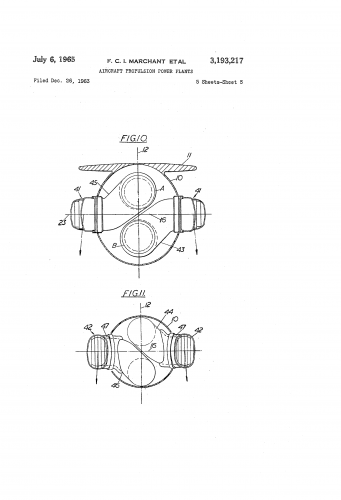

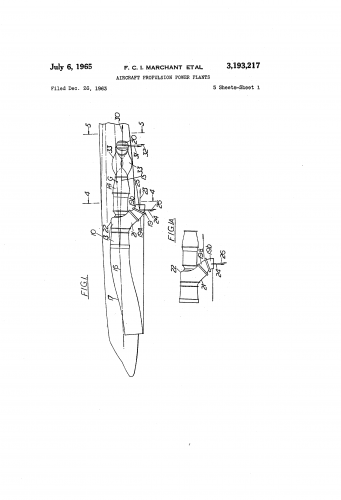

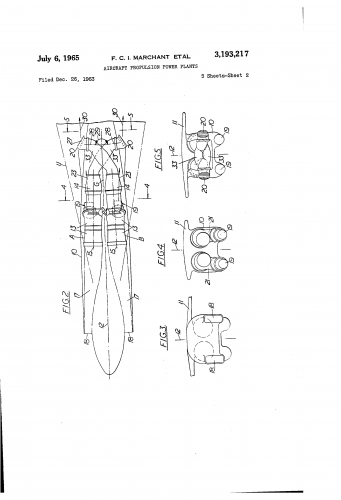

http://www.google.com/patents/US3193217


According to Andrew Dow (Pegasus: The Heart of the Harrier) this patent is Type 208 related. The 4 Pegasus engines were put in 2 nacelles, probably to avoid engines being too far outboard.


Attachments

  • US3193217-0.png
    37.4 KB · Views: 231
  • US3193217-1.png
    57.8 KB · Views: 219
  • US3193217-2.png
    51.8 KB · Views: 211
  • US3193217-3.png
    66.1 KB · Views: 206
  • US3193217-4.png
    48.3 KB · Views: 56

TsrJoe

ACCESS: Secret
Senior Member
Joined
Jan 2, 2006
Messages
447
Reaction score
335

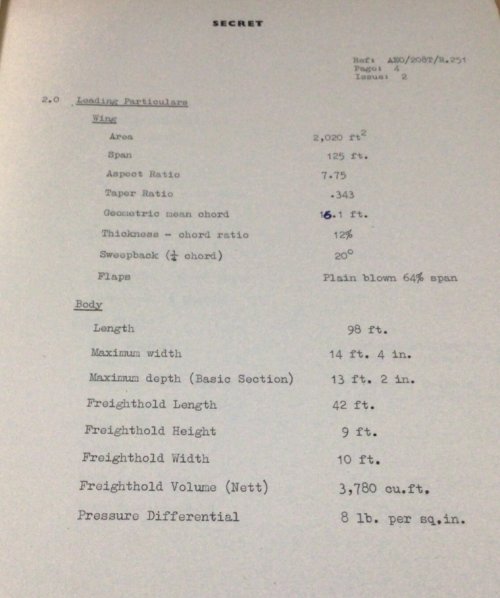

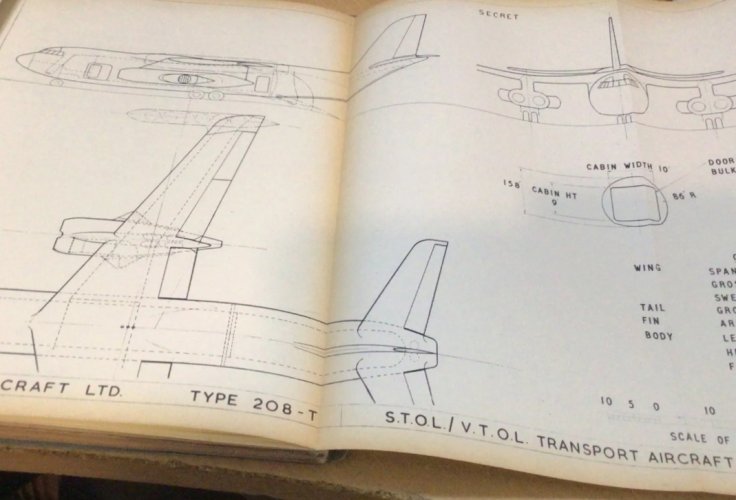

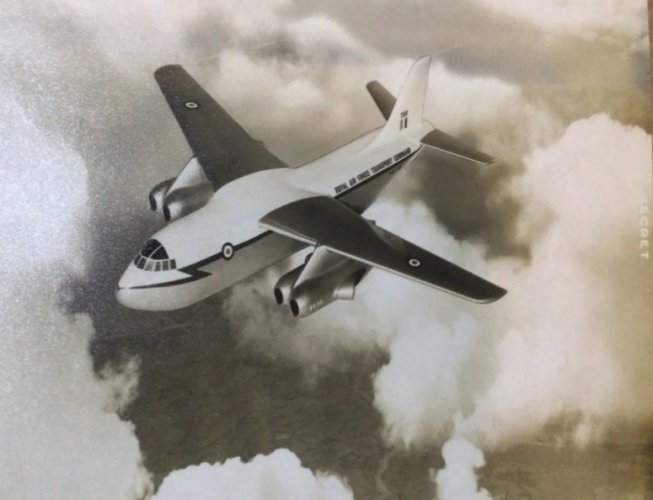

Bristol 208 tactical transport aircraft brochure ...

https://www.ebay.co.uk/itm/BRISTOL-AIRCRAFT-BRITISH-AIRCRAFT-CORPORATION-208-TACTICAL-TRANSPORT-AIRCRAFT-/232794326759


Attachments

  • s-l400.jpg
    26.4 KB · Views: 90
