Hi,

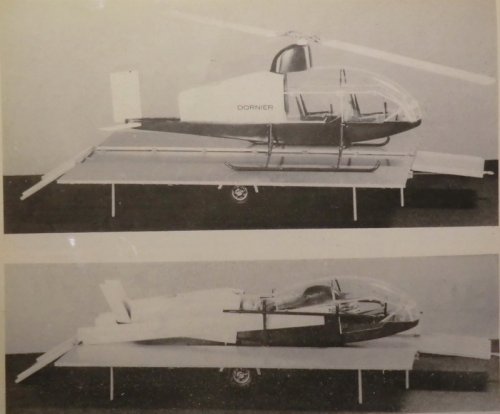

the Dornier Do.32Z was two-seat version of the Do.32 to
be powered by the 250 h.p. B.M.W. 6022 turboshaft.

http://www.flightglobal.com/pdfarchive/view/1964/1964%20-%201270.html
http://www.flightglobal.com/pdfarchive/view/1964/1964%20-%201271.html


Attachments

  • Dornier Do.32Z  1.JPG
    Dornier Do.32Z 1.JPG
    33.7 KB · Views: 637

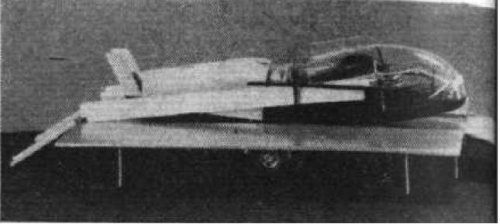

  • Dornier Do.32Z  2.JPG
    Dornier Do.32Z 2.JPG
    25.1 KB · Views: 580
LowObservable said:
It looks as if someone hit it with a rolled up newspaper.

almost right :D

this helicopter had to be used by "Bundeswehr"
and to be stored in a Container on backseat of a Jeep,
neede it pull out & assembled by the crew

Hi,

we know very well the Dornier Do.32K Kiebitz,but here is
anther development from the Do.32,the Do.32u;

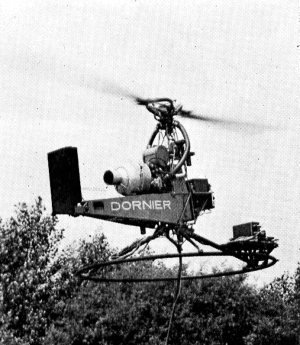

The Dornier Do 32U was a German, radio-controlled, lightweight,
foldable helicopter drone developed from the Dornier Do 32 single-
seat ultra-light helicopter reconnaissance system. The Dornier
Do 32U was powered by a MAN-Turbo 6012L turbo-compressor
providing a top speed of 120 kmh and an operating radius of 45 km
and an endurance of fifty minutes flying time.

http://www.probertencyclopaedia.com/cgi-bin/res.pl?keyword=Dornier+Do+32U&offset=0


Attachments

  • Dornier Do 32U.jpg
    Dornier Do 32U.jpg
    45.6 KB · Views: 132

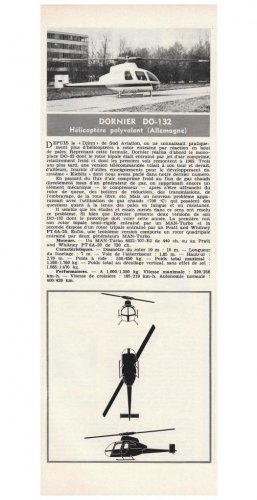

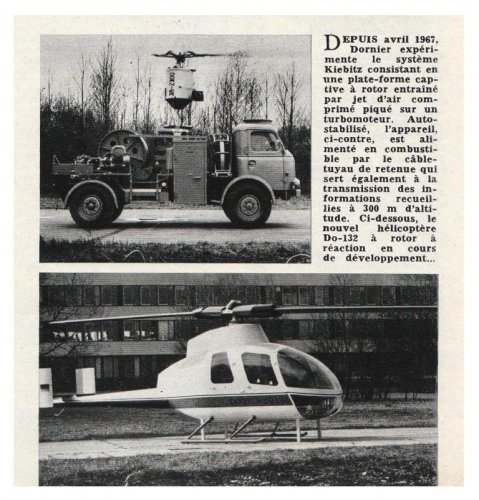

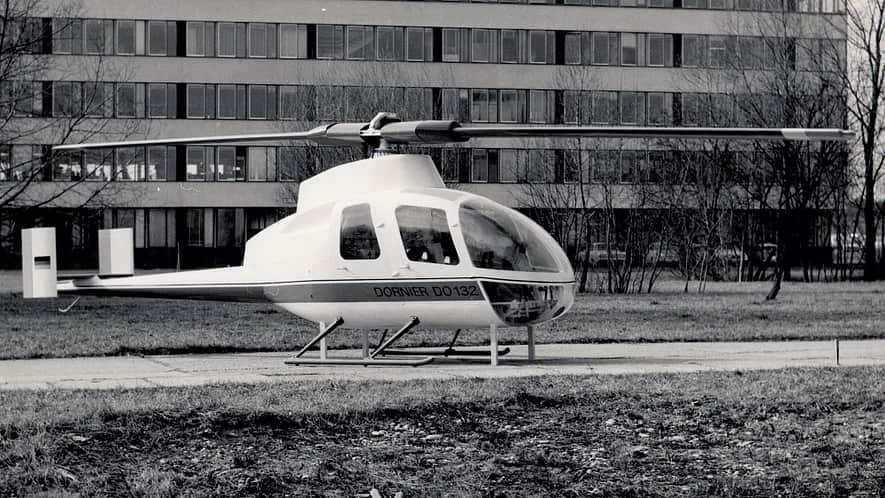

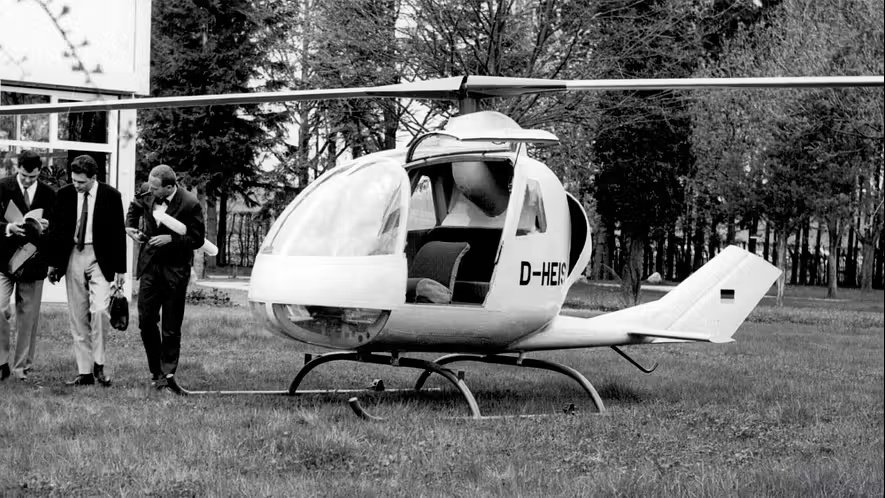

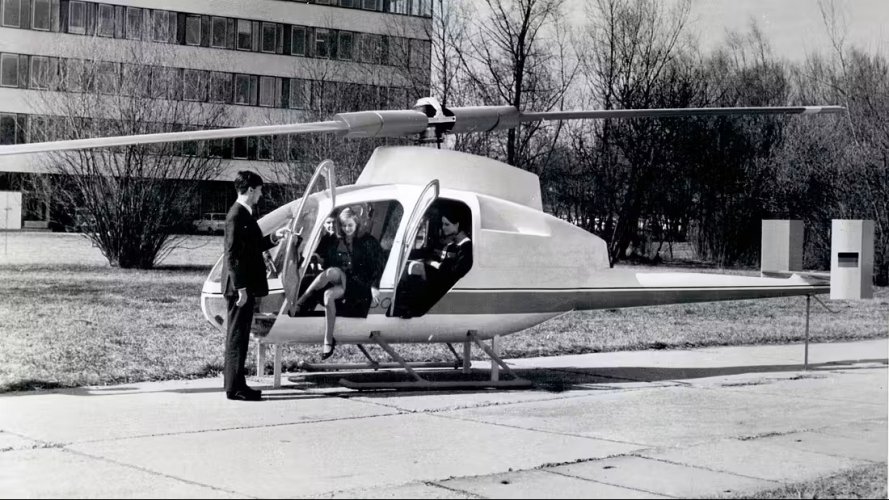

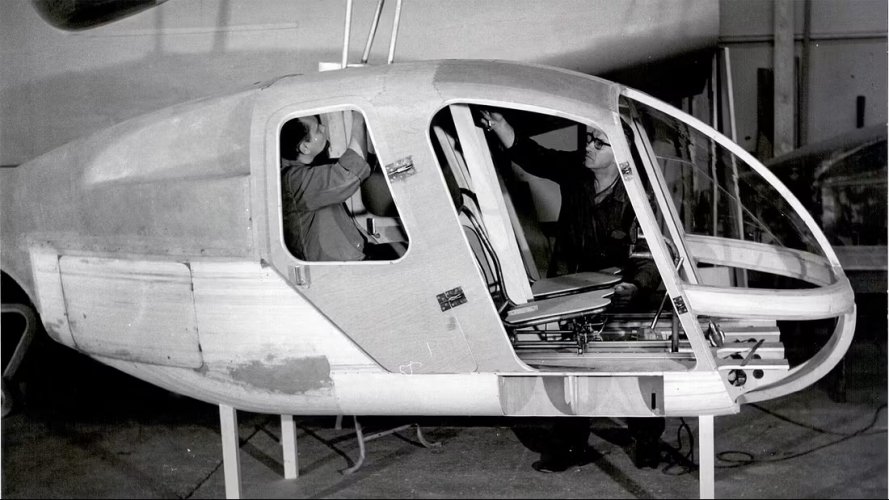

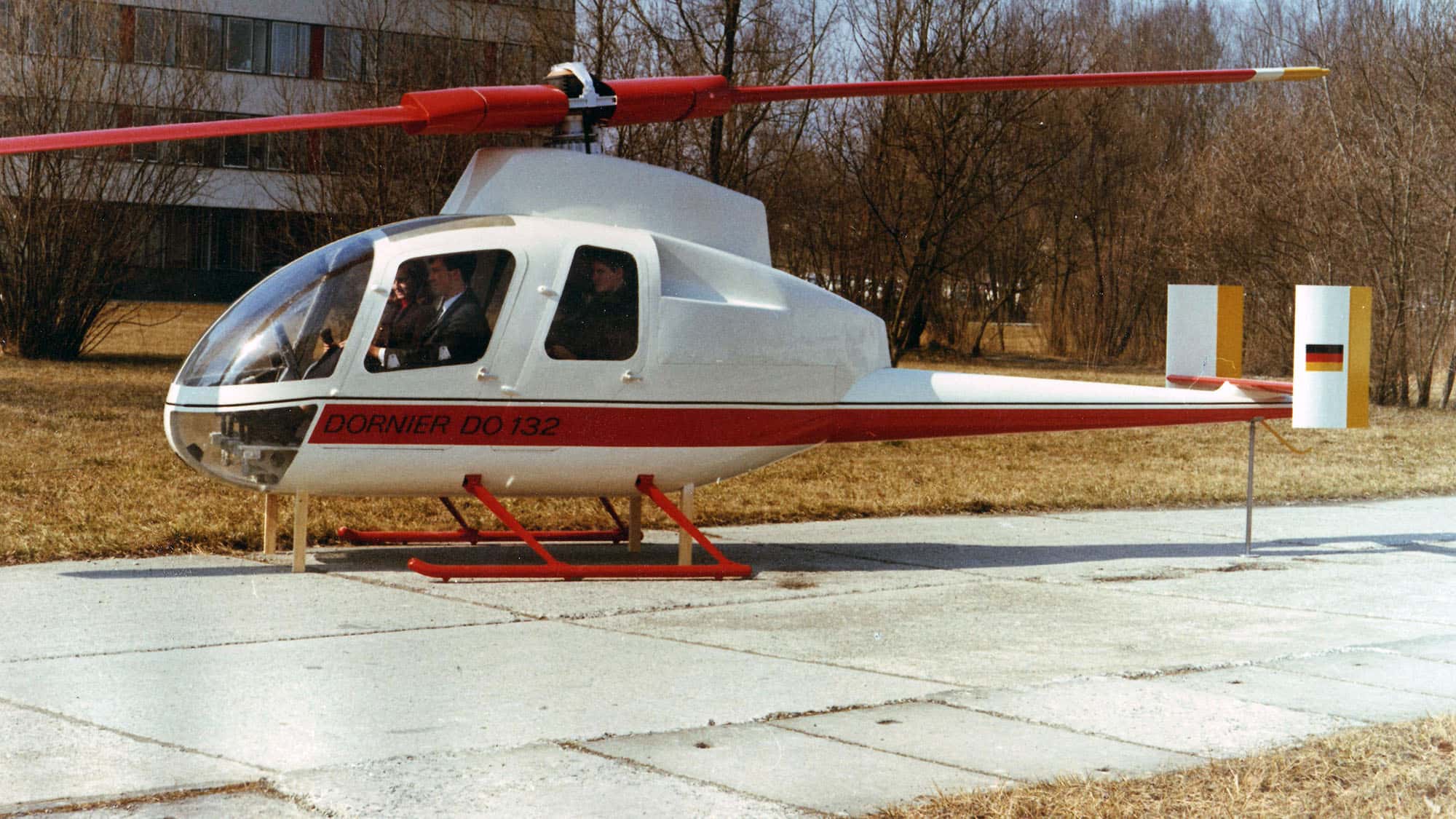

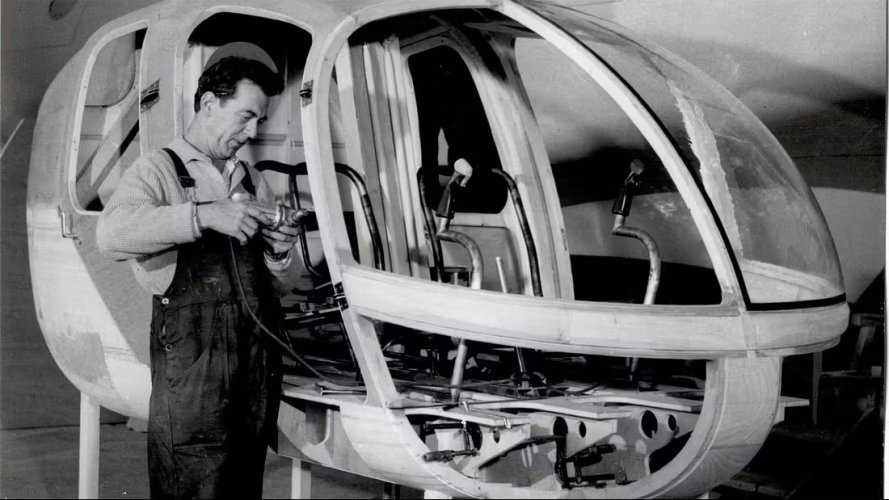

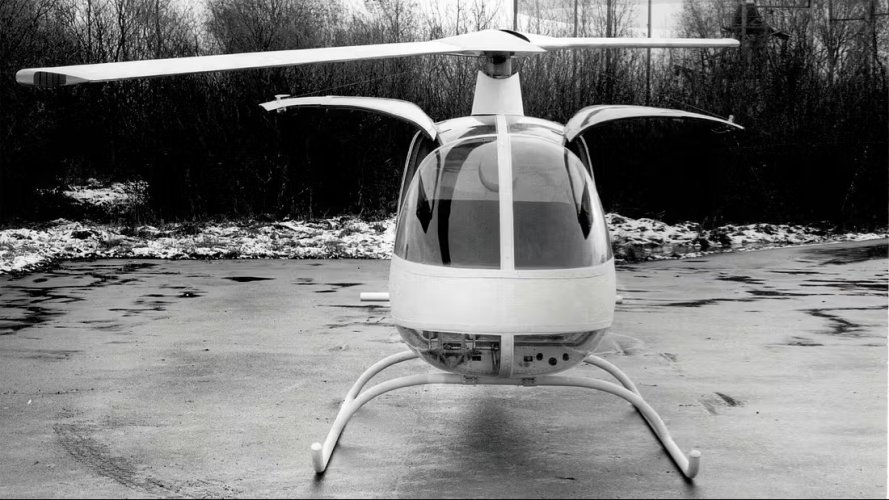

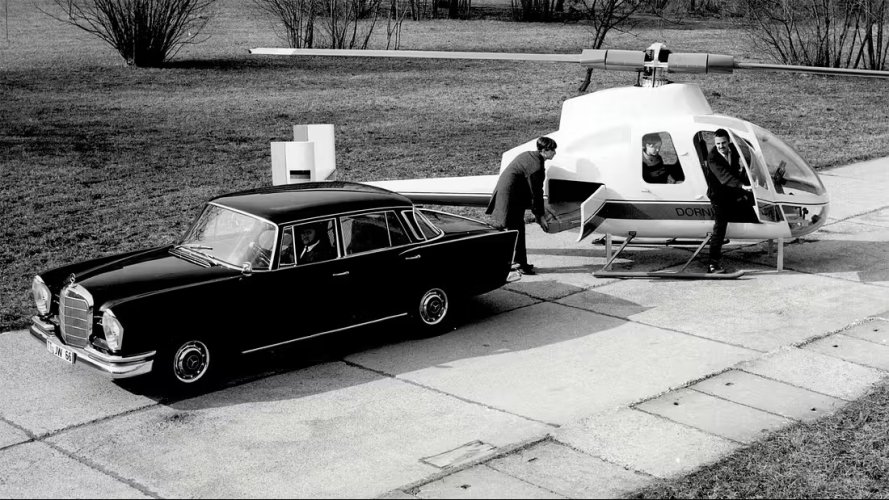

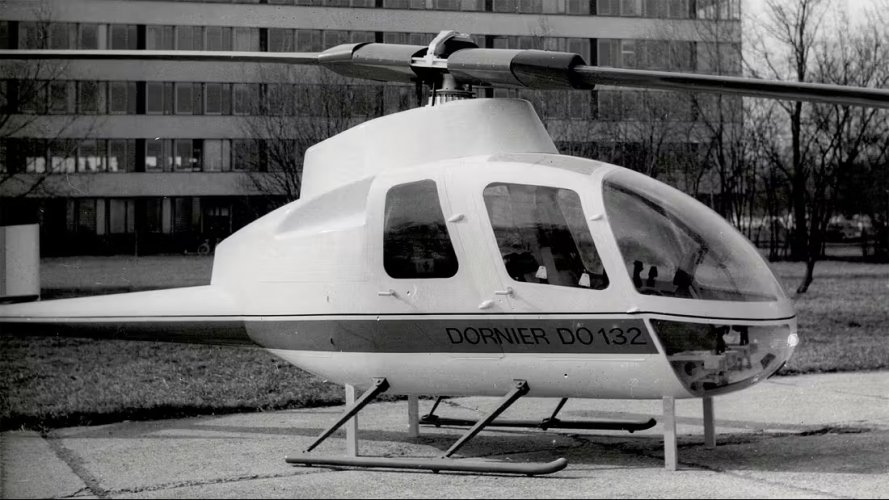

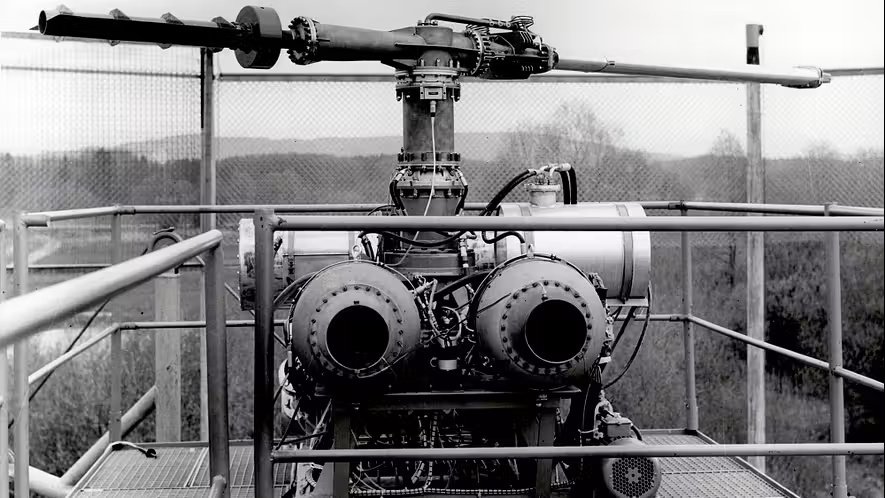

Dear Boys and Girls, here is a small feature in French about the Dornier Do-132 hot-cycle helicopter which remained a "project". The feature shows a picture of the Dornier Do-132 mock-up and also shows flight-testing of the Dornier Do-32K Kiebitz tethered surveillance helicopter which isn't a "project"......

The feature comes from the 15th April 1968 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Dornier Do-132 hot-cycle helicopter project - Aviation Magazine International - No.jpg
    Dornier Do-132 hot-cycle helicopter project - Aviation Magazine International - No.jpg
    142.1 KB · Views: 571
Dear Boys and Girls, here is a small feature in French about the Dornier Do-132 hot-cycle helicopter which remained a "project"......

The feature comes from the 1st July 1967 issue of Aviation Magazine International......

Terry (Caravellarella)......


Attachments

  • Dornier Do-132 hot-cycle helicopter project - Aviation Magazine International - No.jpg
    Dornier Do-132 hot-cycle helicopter project - Aviation Magazine International - No.jpg
    122.2 KB · Views: 487
Dear Boys and Girls, here is an article in French about the Dornier Do-132 hot-cycle helicopter "project"......

The article comes from the 15th May 1968 issue of Aviation Magazine International......

Terry (Caravellarella)......


Attachments

  • Dornier Do-132 hot-cycle helicopter project - Aviation Magazine International - No.jpg
    Dornier Do-132 hot-cycle helicopter project - Aviation Magazine International - No.jpg
    89.2 KB · Views: 466

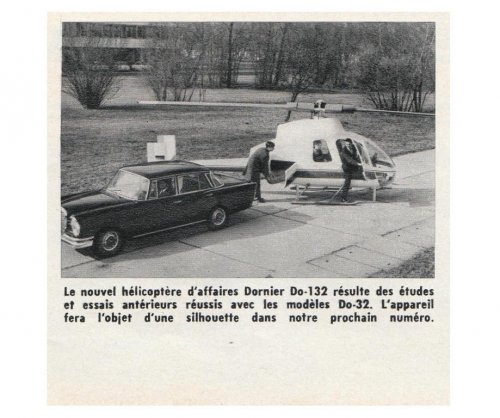

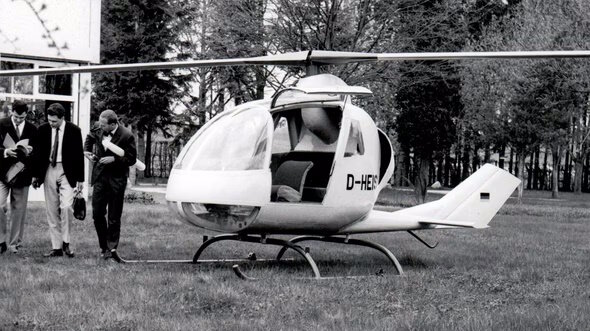

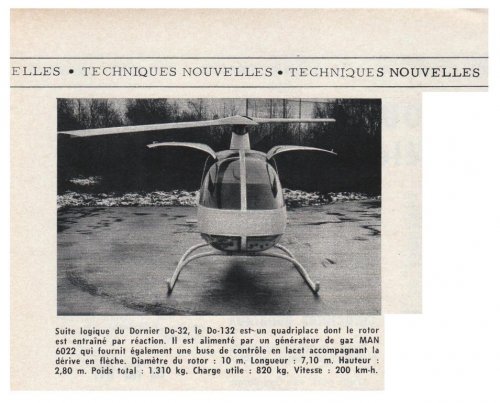

Dear Boys and Girls, here is a picture with a caption in French about the Dornier Do-132 hot-cycle helicopter "project"......

The article comes from the 1st May 1968 issue of Aviation Magazine International......

Terry (Caravellarella)......


Attachments

  • Dornier Do-132 hot-cycle helicopter project - Aviation Magazine International - No.jpg
    Dornier Do-132 hot-cycle helicopter project - Aviation Magazine International - No.jpg
    119.9 KB · Views: 440
...

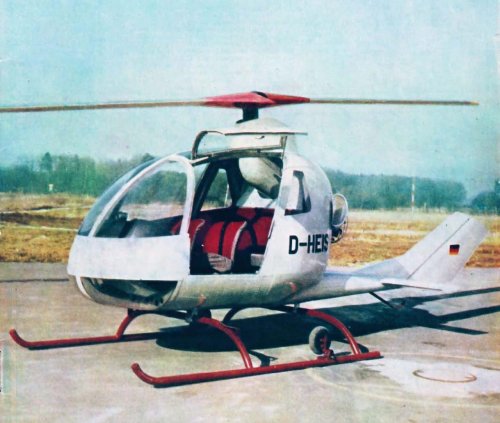

Attachments

  • Dornier DoP- (Do-132).jpg
    Dornier DoP- (Do-132).jpg
    102.9 KB · Views: 381
  • Dornier DoP- (Do-132)-.jpg
    Dornier DoP- (Do-132)-.jpg
    55.2 KB · Views: 107

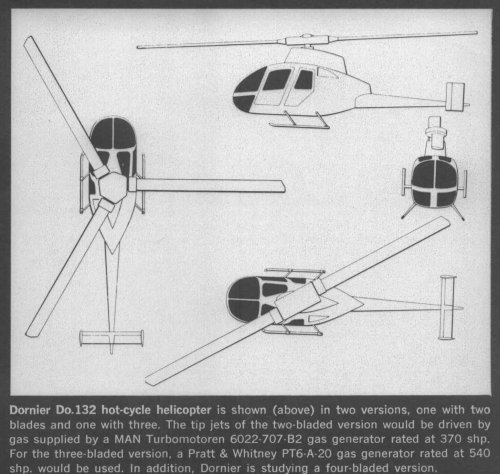

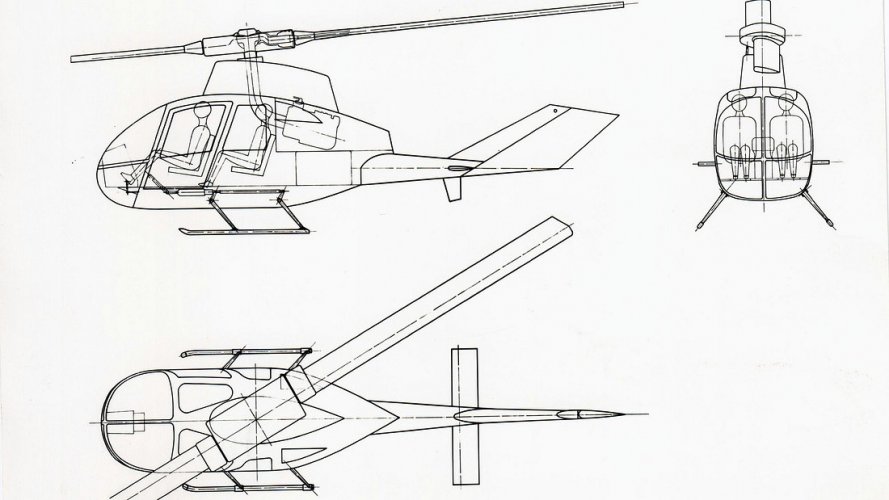

A 3-view from Aviation Week 10-18 1968, showing besides the twin-, the three-bladed
version, too, mentioning a planned version with a four-bladed rotor.
(drawing inversed)


Attachments

  • Do-132_01.jpg
    149.2 KB · Views: 113

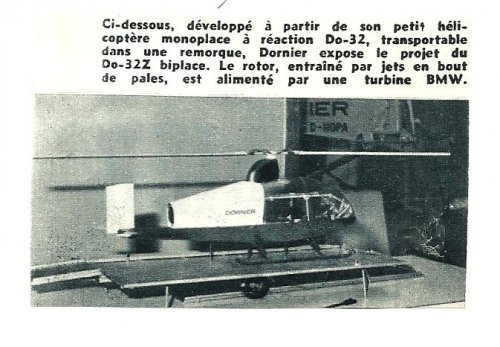

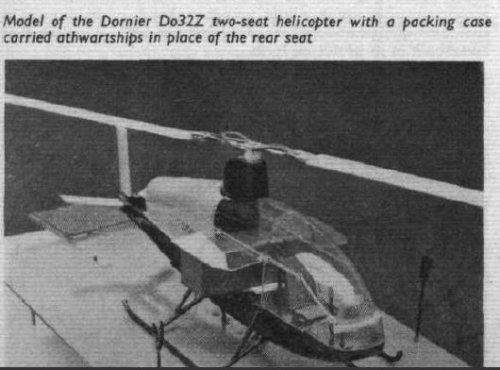

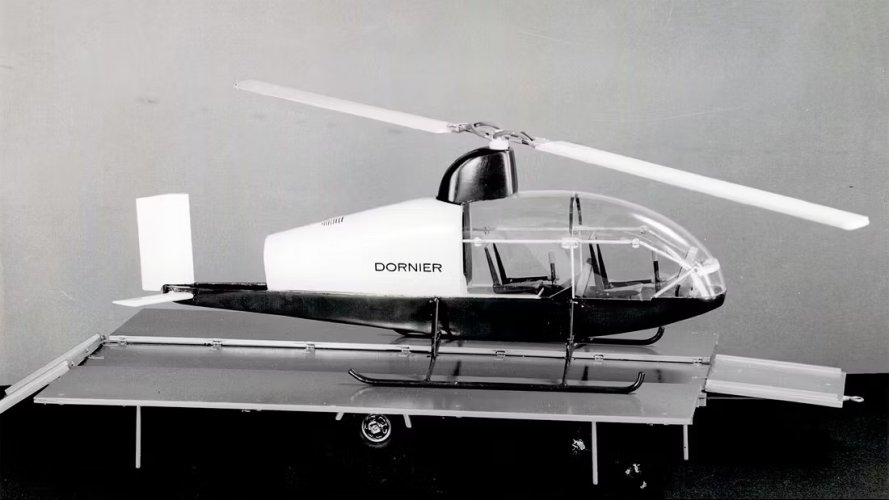

From Aero, March 1964, a somewhat better picture of the Do 32Z in erected condition,
... just before being hit with the newspaper ! :D


Attachments

  • Dornier_Dp-32Z.jpg
    100 KB · Views: 441

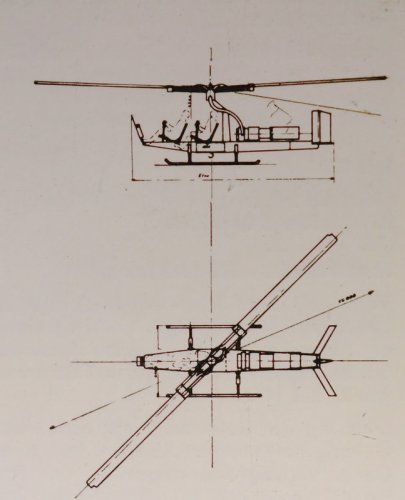

A drawing of the Do-32Z without cockpit fairing was shown in "Der Flieger", October 1963:


Attachments

  • Dornier_Do-32Z_10.jpg
    93 KB · Views: 269
I've problems with my insert image !!!!!


Attachments

  • do 32 z.jpg
    do 32 z.jpg
    73.1 KB · Views: 188
That beauty my dear Toura,


that's clearance one.

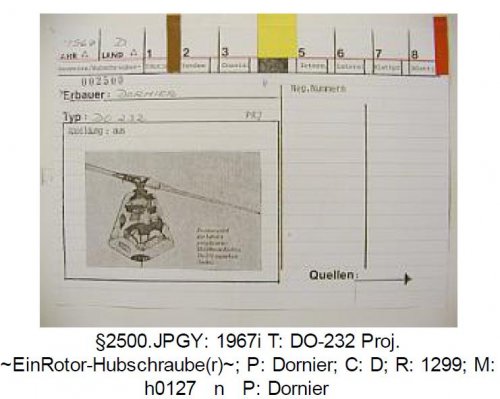

hesham said:
I don't know if it was a tethered rotor platform or not ?

Obviously, to my opinion. Haven't seen this designation before (and would regard this mention still yet
as an irrefutable proof !), but the "Kiebitz" tethered platform started its life as a derivative of the Do 32,
designated at first as Do 32K (K for "kabelgebunden" = tethered). So this designation seems quite plausible
to me, analogous to the Do 231 as a derivative of the Do 31.

Hi,

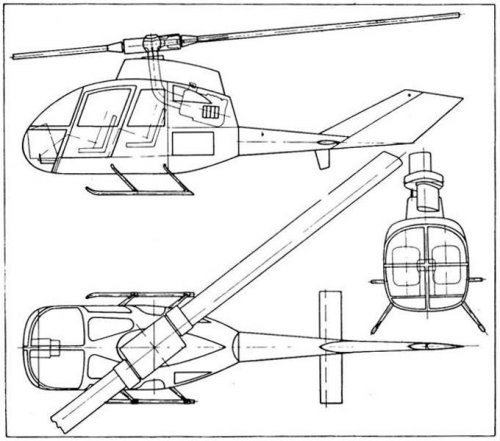

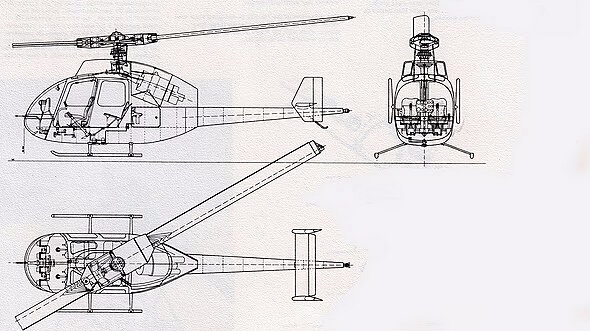

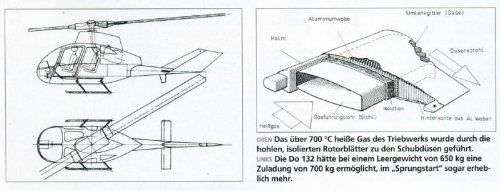

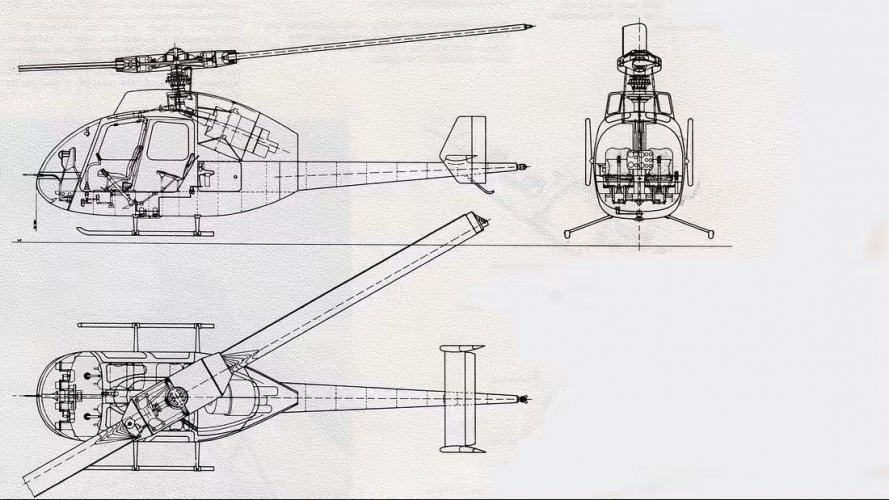

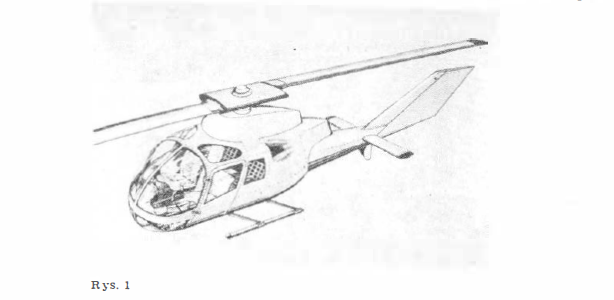

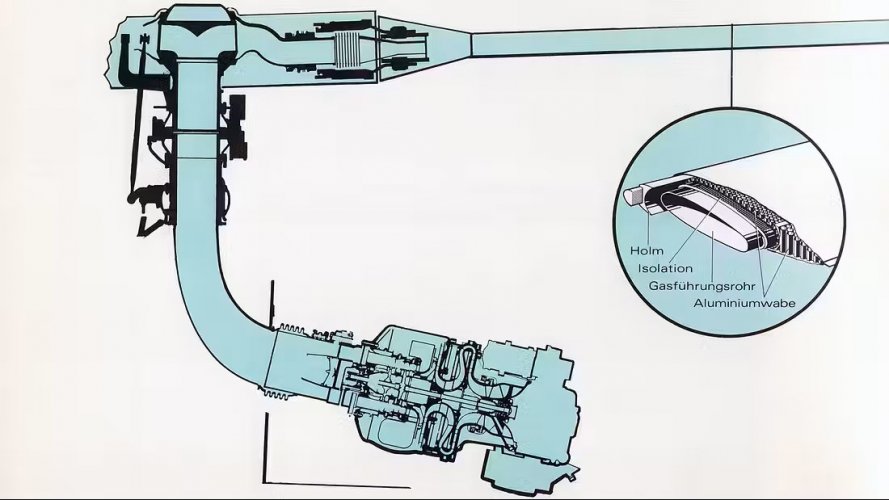

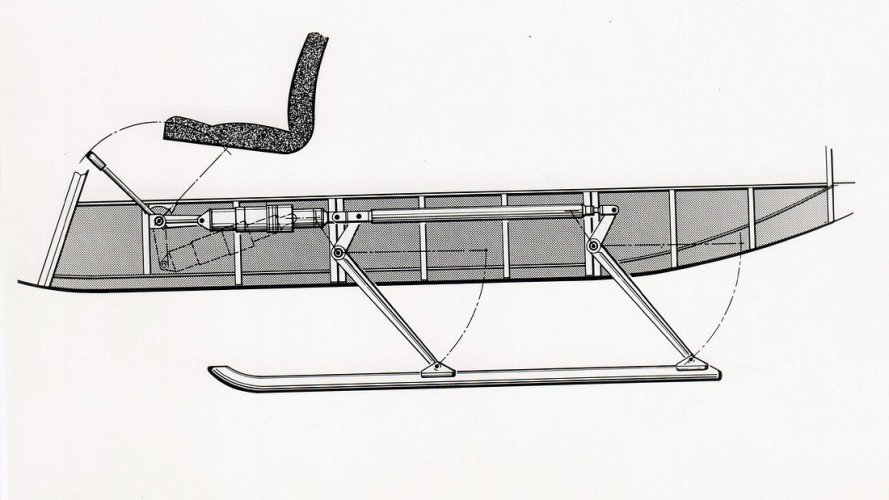

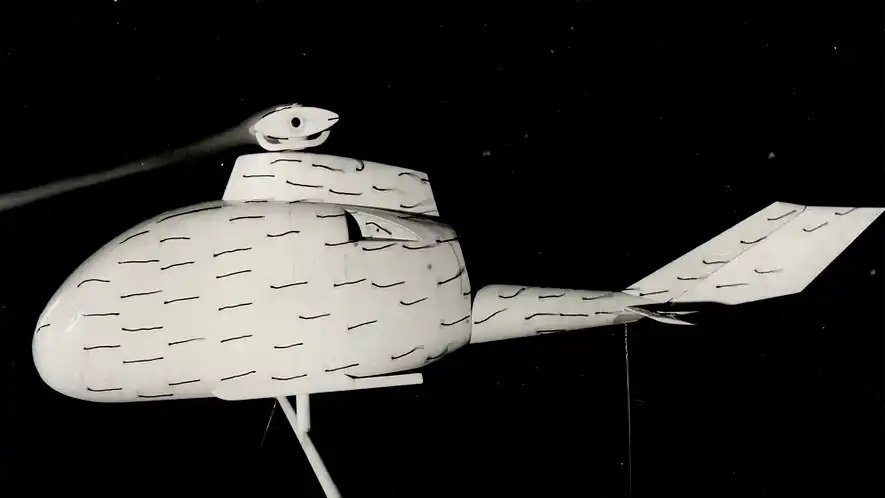

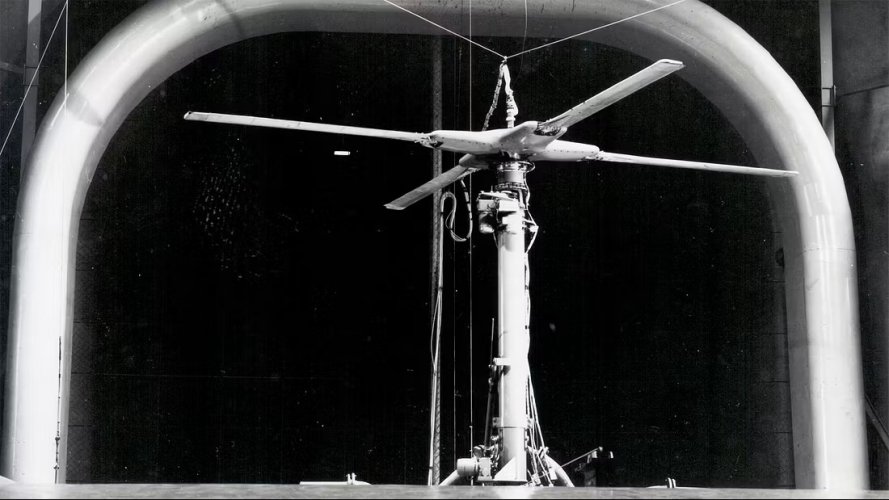

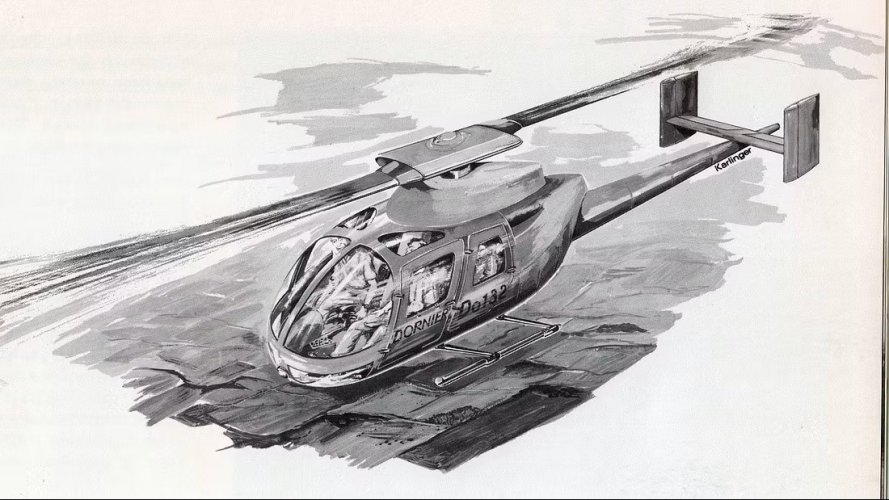

the Dornier Do.132 helicopter drawings,please note it had no tail rotor.


Attachments

  • Do.132.JPG
    53.6 KB · Views: 122

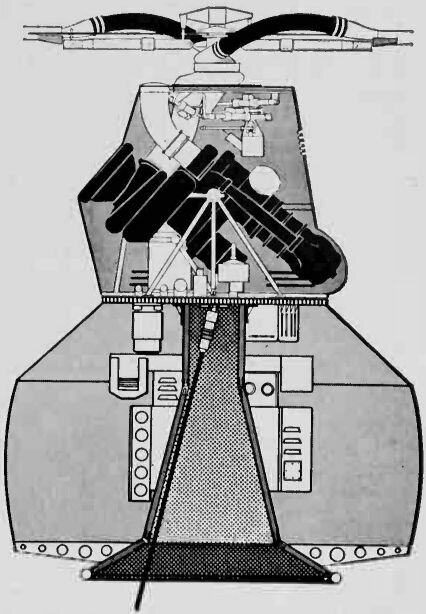

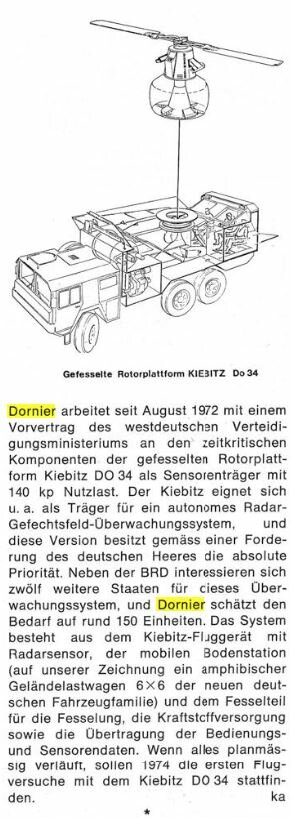

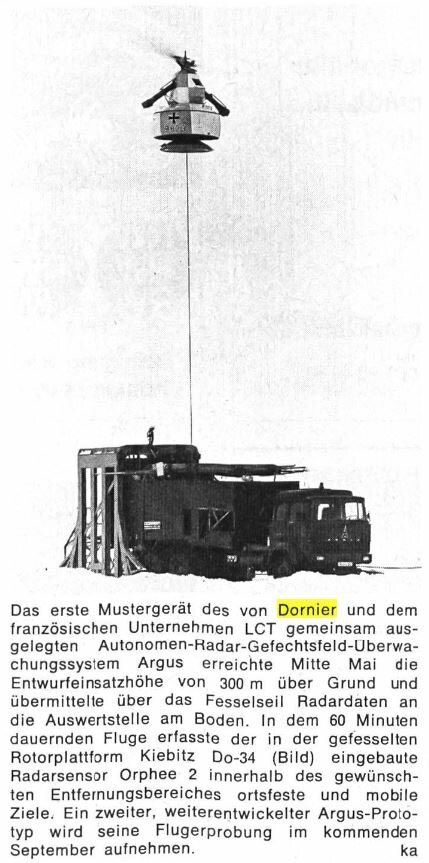

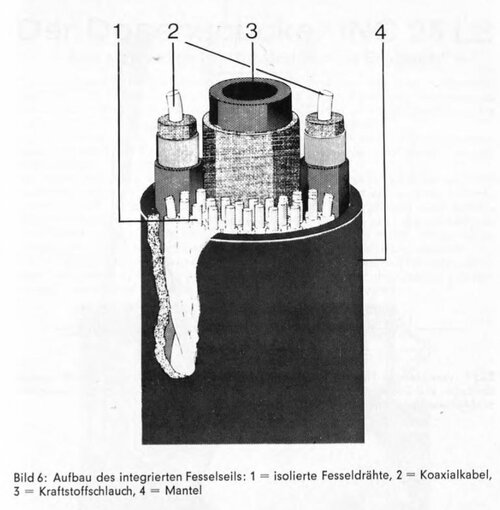

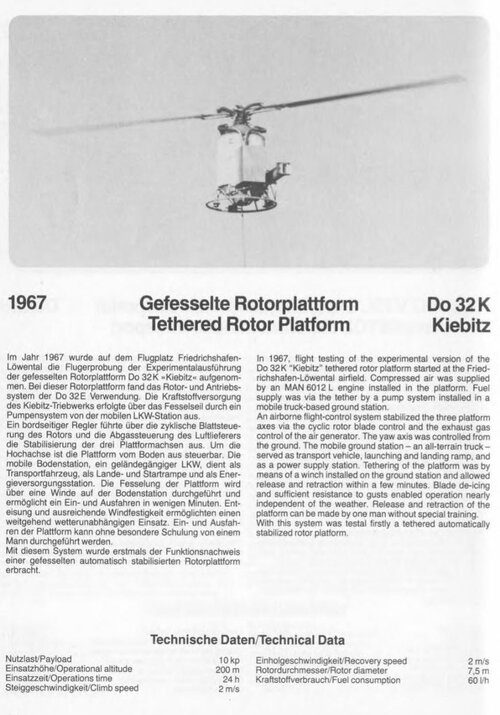

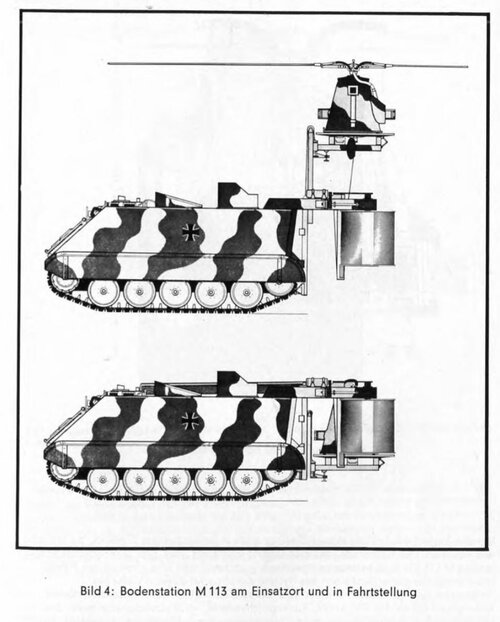

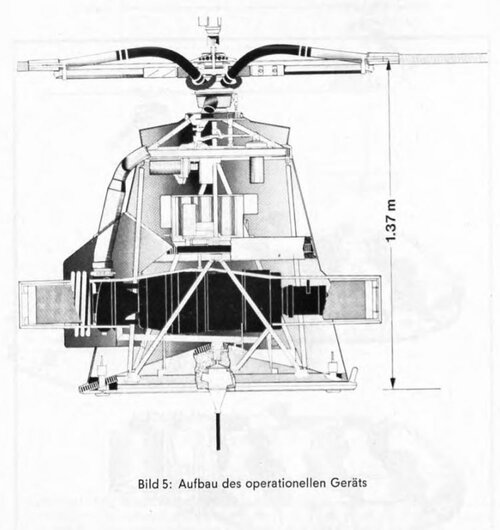

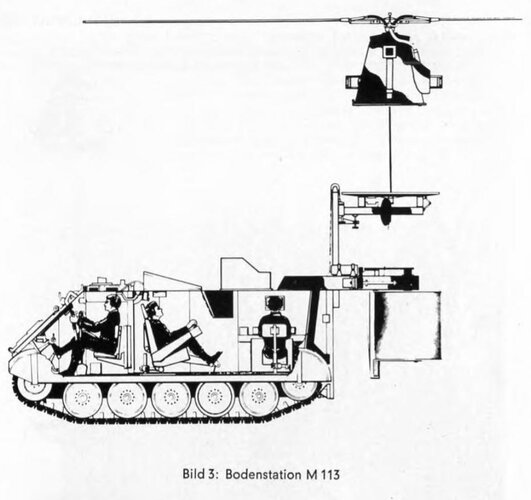

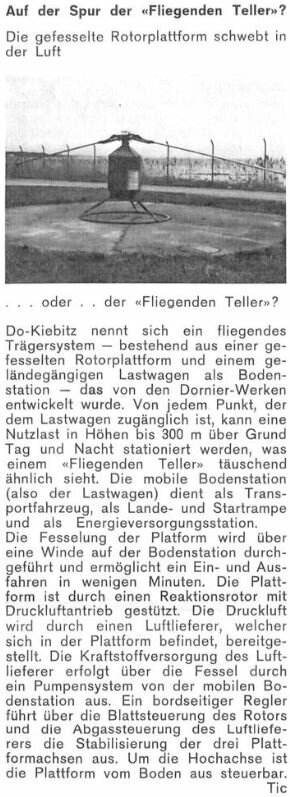

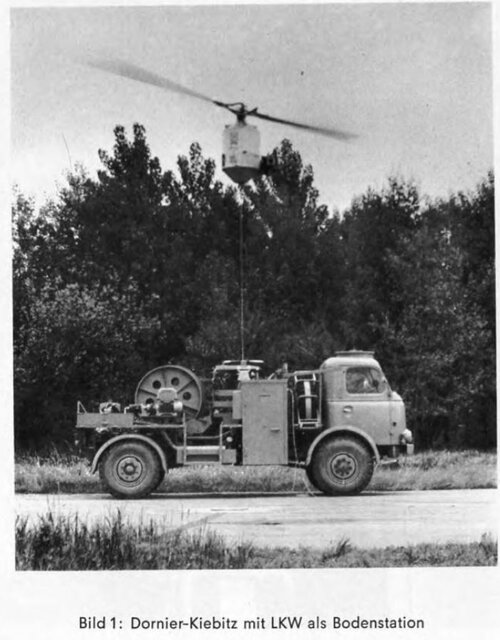

Some more pictures and info (in german) on the different iterations of the Kiebitz. Although im having a hard time establishing a clear timeline of the different versions. It was to be used as a radar platform for "primary" reconnaissance. It had some issues with stability (maybe in high winds) so later versions had two additional jets on arms to stabilize it (can be seen in the photo with the truck). It was supplied with fuel through the tether, which limited the height it could operate at. This seems to have been the main factor in its cancellation.


Attachments

  • Kiebitz.jpg
    69.8 KB · Views: 37
  • Do-Kiebitz.JPG
    74.4 KB · Views: 34
  • DO34.JPG
    69.2 KB · Views: 36
  • ARGUS.JPG
    79.2 KB · Views: 38
more images from here

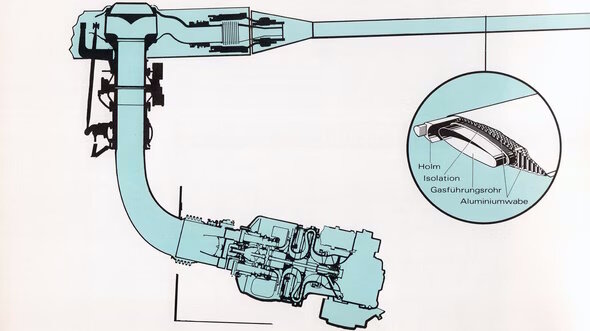

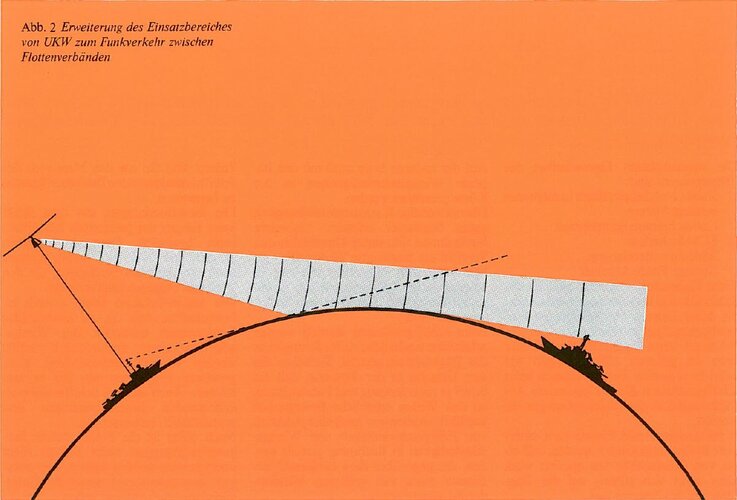

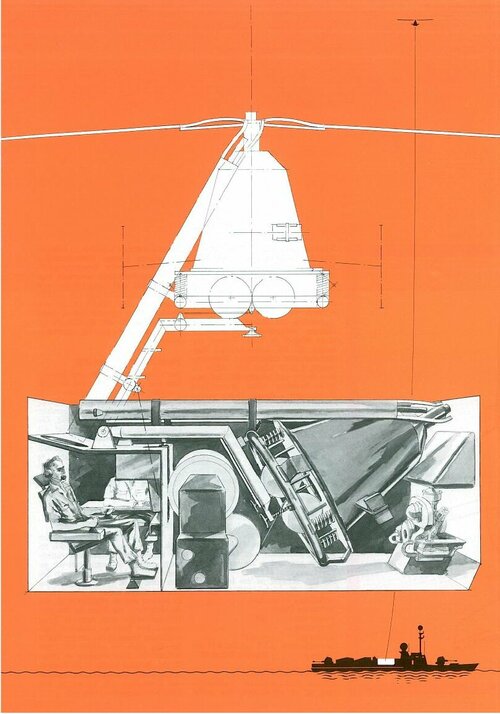

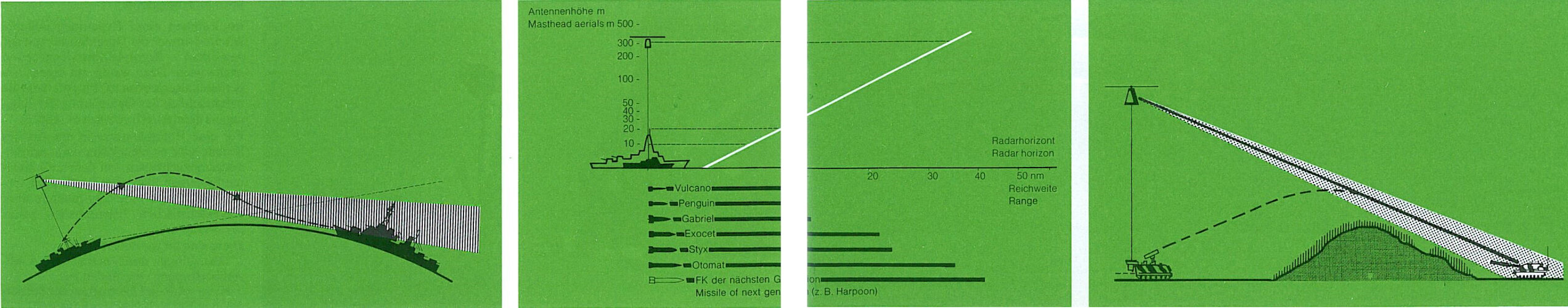

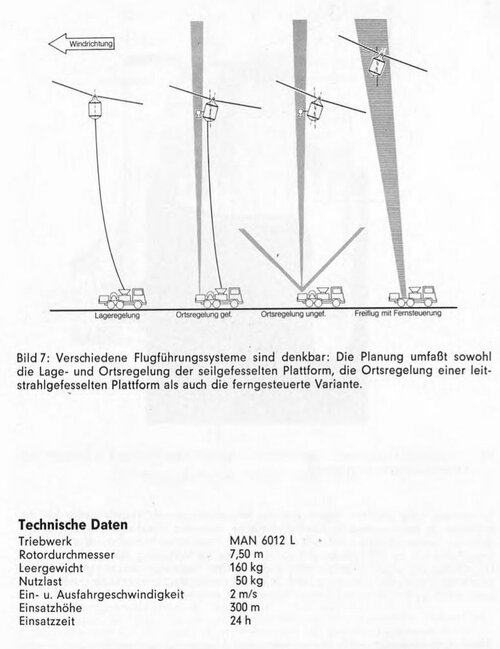

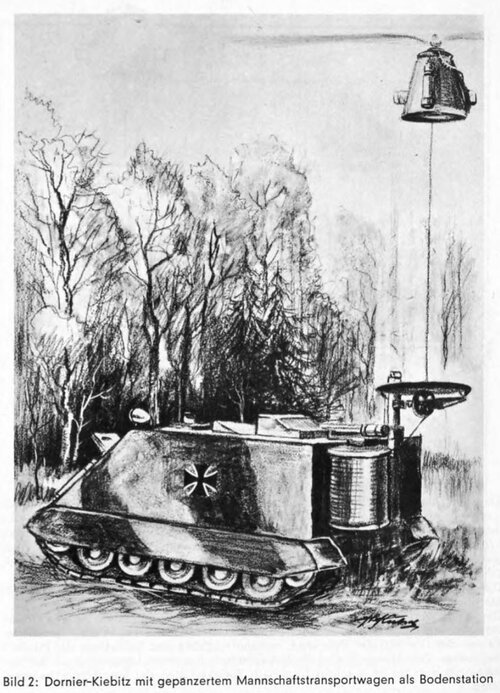

Edit: found that the original drawings are from the Dornier Post: Do-Post_71-1,2


Attachments

  • Kiebitz1.JPG
    90.2 KB · Views: 35
  • Kiebitz2.JPG
    192.1 KB · Views: 37
  • Kiebitz3.JPG
    74.2 KB · Views: 36
  • Kiebitz4.JPG
    110.6 KB · Views: 36
  • Kiebitz5.JPG
    66.5 KB · Views: 34
  • Kiebitz6.JPG
    70.7 KB · Views: 33
  • Kiebitz7.JPG
    75.2 KB · Views: 44
Last edited:

Attachments

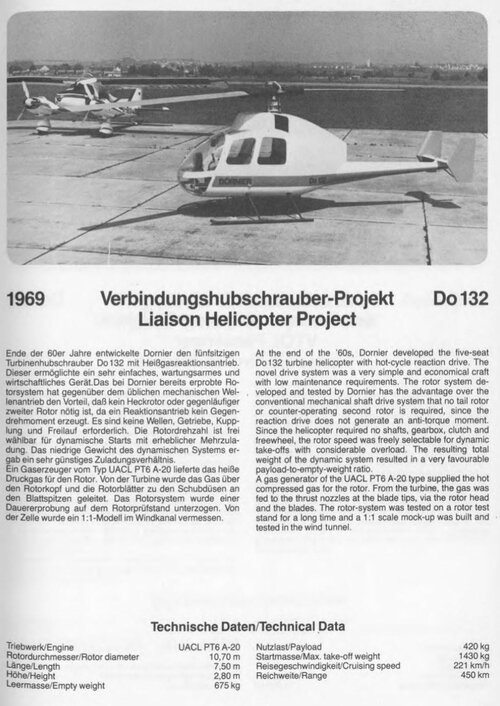

  • LiaisonHelicopterProject.JPG
    199.1 KB · Views: 32

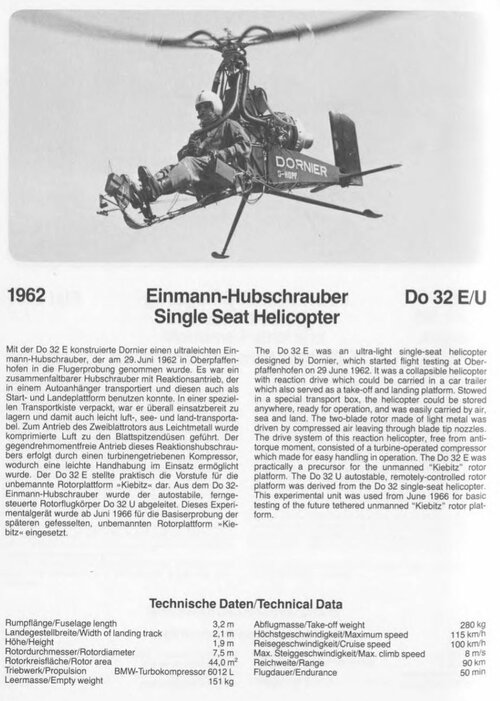

  • SingleSeatHelicopter.JPG
    170.6 KB · Views: 33

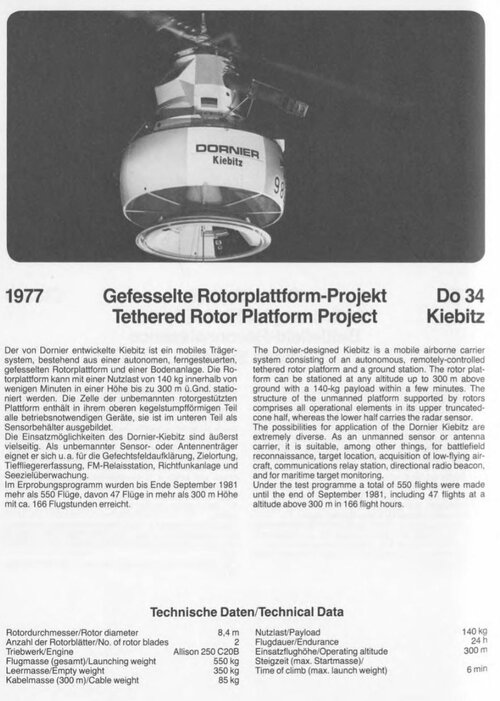

  • TetheredRotorPlatform.JPG
    151.7 KB · Views: 32
  • TetheredRotorPlatformProject.JPG
    152.5 KB · Views: 50
From the light combat helicopter thread:

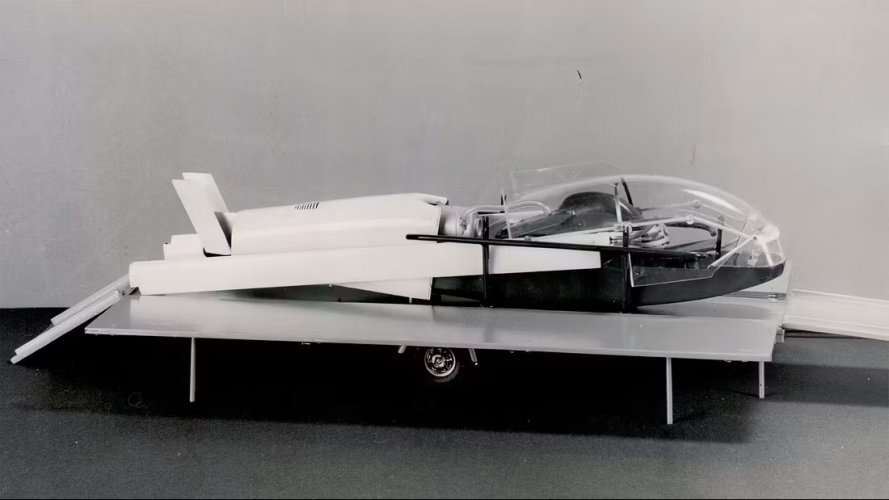

Silent footage from the San Diego Air & Space Museum (SDASM) posted today (23-September-2014) on YouTube of the Dornier 32 apparently on a promotional trip to Washington, D.C. Apparently Ryan was Dornier's partner in promoting the aircraft here in the United States. Aside from flight footage, there is also some interesting footage beginning at approximately the 10 min 15 sec mark of the aircraft being disassembled and stowed back into its trailer.
View: http://www.youtube.com/watch?v=RWNBp-8mIRY
Its very impressive how small the helicopter is in the folded configuration.

Another video from a demonstration in Florida that shows the "unpacking":
The opened crate also serves as a starting and landing pad

And a demonstration in Georgia:
