Hallo,
we can speak about little known helicopters and some post WW2 atogyros from many countries.
from france:
Aerospatiale X-380 :was a SA-365N with combined composite rotorhub/mast, 5 blade
rotor and swept tips.
Cantinieau-SNCASO C.100 :eek:pen frame single seat helicopter with a triangulated tube structure surrounding the pilot and carring the engine and rotor
installation at its apex above the pilot's head,FF 1951.
Cantinieau-Matra Bomby :single seat helicopter similar to Aerotecnica AC series but embodied a triangular end to the tailboom , FF 1963.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Also from spain;

AISA H-51 :was experimental ultra-light helicopter with tip mounted
pulse jet propulsion.
AISA H-52 :was the same to H-51 but of conventional layou and
featured by a single-blade main rotor.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

Indonesia Lipnur X-08 :single seat light helicopter.
USA Logan :single seat amateur-built light helicopter.
Poland Matula Liliput :ultra light helicopter with Ramjet at rotor tips,
design in 1957.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
Poland Matula Liliput :ultra light helicopter with Ramjet at rotor tips,
design in 1957.

Hesham,

The only ramjet helicopters from Poland I know are

* JK-1 Trzmiel
* Kaminski Gigant 2 (amateur-built/never flown)

Could you give more details on the Matula Liliput (information, reference, illustrations)?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi boxkite,

the soure for Liliput was in encyclopedia of aircraft by Robert Jackson,with
no more detail.
from finland:
Kokkola Ko-1 was a single seat gyroglider,it was redesignated as Ko-2
with a 28 hp Poinsard engine,the Ko-3 Nousukas gyroplane was flew
successfully in 1961,the Ko-4 was two seat autogyro,FF 1968.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hallo,

Belgium Maschelin M.58 Masquito: was a side-by-side ultra light two seat of
all-composite construction with a pod and boom fuselage,skid under-
carriage and a 65 hp Rotax 582 engine.
USA Galaxie G-100 : single seat light helicopter of the end of 1960s.
Germany Kindermann helicopter :experimental light machine with direct
powered contra-rotating rotors.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

Germany Havertz HZ-5 :a single seat light helicopter and was developed
from two earlier designs HZ-3 of 1953 and HZ-4
of 1966.
Russian Kharkov KhAI-27 :ultra-light helicopter (not mention in Encyclopedia
of russian aircraft).
Hungary SOH SOH-1 :two seat experimental helicopter of 1956.


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Hi Everyone!

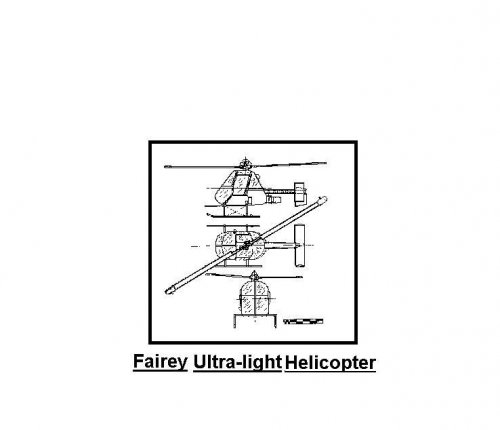

Here's another helicopter you may find of interest, the Fairey Ultra-light Helicopter.

SOURCE:
Fairey Aircraft Since 1915
pp. 398-404
Author: H.A. Taylor

Chuck


Attachments

  • Fairey Ultra-Light Helicopter,.JPG
    Fairey Ultra-Light Helicopter,.JPG
    30 KB · Views: 576

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
ChuckAnderson said:
Hi Everyone!

Here's another helicopter you may find of interest, the Fairey Ultra-light Helicopter.

SOURCE:
Fairey Aircraft Since 1915
pp. 398-404
Author: H.A. Taylor

Chuck

Hi!

I apologise for the small illustration in the attachment again!

Chuck


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Thanks Chuck,

Germany Merckle E98D:experimental high-speed helicopter,project
in collaboration with Bolkow in 1960s.
Britain Thruxton Gagfly :two seat light autogyro,project only.
South Africa VOS Springbok :two seat light helicopter of 1964.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Here's the Thruxton Gadfly E.S.102
(from Janes 1964-65)


Attachments

  • Gadfly_ES102.JPG
    32 KB · Views: 534

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

Silvercraft (Italy) XY :light multi-purpose helicopter of 1963.
Siemetski (Germany) ASRO-3T: single seatexperimental helicopter,it wasan open-
frame machine of conventional layout,with a rudimentary
windshield to protect the pilot,a skid undercarriage and
a BMW 6002 turboshaft engine.
,, ASRO-4 :was developed from 3T as a side-by-side two seat,which
had a fully enclosed fuselage pod and tapered tubular
tailboom and was fitted with a 130 hp MAN Turbo 6012
turbine driving a three blade rotor.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Thanks dear Jemiba about your pictures,

Brazil Super Rotor AC-4 Andorinha :was a single seat autogyro with 85 hp Volkswagen
1600 cc engine.
,, ,, ,, M-1 Montalva :was a two seat version of AC-4 autogyro and with
97 hp Volkswagen 1600 cc engine.
USA Glenview GMP-1 Flyride : it was a streamlined all-metal monocoque helicopter
with an automobile-style forward fuselage and forward-
swept rotor pylon, powered by 125 hp Lycoming engine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

Fuji XMH :research high speed compound helicopter,a version
of Bell 204B-1 fitted with a 22 ft. span wing and
enlarge horizontal tail surfaces.
Kamov Ka.33 :a utility helicopter based on Ka.29.
Kamov Ka.34 :a heavy transport helicopter project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Thanks Jemiba,
some helicopters:
Mil GM-1 :four seat helicopter,with a pod and boom fuselage
and all metal monocoque,later refine as Mi.1.
Mil Mi-53 :military attack and light transport helicopter as Hind III.
De Lackner Cloudster :light helicopter,it was a small enclosed rotor
two seat cockpit in the nose,two three blade rotor pylons
-one at each end of the fuselage and 135 hp Lycoming
engine.
Wagner Rotorcar I,II,III :were a coaxial rotor helicopters and the
III was a roadable machine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hallo,

USA Lift System LS-3 :two seat experimental light helicopter of 1967.
Belgium CW CW-205 :high speed three seat all metal light helicopter
powered by one 245 hp Lycoming O-435 engine.
For Jemiba,
France Helicop-Air L-50 :side-by-side two seat gyrocopter, it had a
substantial wing and three fin tail,powered
by a 90 hp Continental C.90 engine.
for the CW, it had designed a several aircraft from CW-1 to CW-8
but I don't know they were a helicopters or not.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

Swidnik JK-1 Trzmiel :single seat open frame ultra-light helicopter
with two rotor-tip mounted Wojcicki pluse-
jets engines,FF 1957.
Swidnik SM-6 :light helicopter project based on SM-4 Latka,fitted
with one GTD-350 turboshaft engine.
Mitsubishi RP-1 :eight seat helicopter,was a modification of Sikosky
S-76 airframe,later developed into MH-2000.

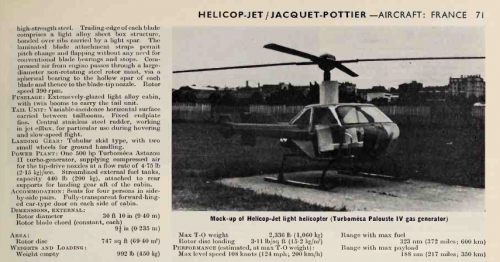

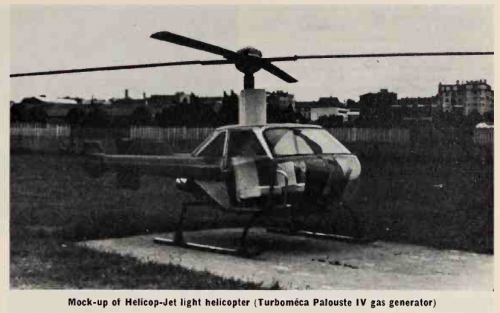

Helicop-Jet Helicopter :four seat tip-driven light helicopter,powered by
600 hp Turbomeca turbine engine.
Swidinik BZ-2 (Gil-2) BZ-3 (Gil-3) :two seat light helicopters developed
from Gil-1.

The PZL-Swidnik had a project of 20-seat medium helicopter
powered by two turbine engines during 1950s,but no details
are available (believed SM-3).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

Sikorsky S-78 :was 29 passenger helicopter, a civil version of S-70
with enlarge cabin and retractable undercarriage,it
had new shape.
Piasecki 16H-3K Pathfinder III :a new design from Pathfinder I compound
helicopter for executive transport,powered by PT 6B-30
turboshaft engines.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

Eurocopter Deutschland Hubschrauber 2010 :twin engined medium
helicopter of a new design and V-tail and 352 km/h
cruising speed, project of 1995.

anther new helicopters;
Agusta-Westland AW-149 is multi-role medium helicopter intend for civil and military used.
Bell Model-449 Supercobra AH-1Z two seat attack helicopter.
Bell Model-417 is developed from Model-407 as combat helicopter.
Eurocopter EC-130 is light multi-mission helicopter.

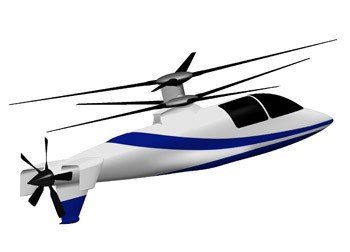

Sikorski X2 high speed helicopter.
Eurocopter EC-175 is heavy lift helicopter.
Bell JRX turbine helicopter.
Groen Hawk 4 twin boom four seat autogyro.


Attachments

  • X2_Demonstrator_Aircraft.jpg
    13.7 KB · Views: 703
  • ec130_5s.jpg
    4.8 KB · Views: 1,546

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
In a jet flap rotor, the lift of the blades is controlled by bleed air, which can
be ejected through slots along the blade length. So the lift ratio between hte
advancing and retreating blade can be improved.
At least, that's what I thought, I understould ... ???


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
hesham said:
Also from spain;

AISA H-51 :was experimental ultra-light helicopter with tip mounted
pulse jet propulsion.
AISA H-52 :was the same to H-51 but of conventional layou and
featured by a single-blade main rotor.

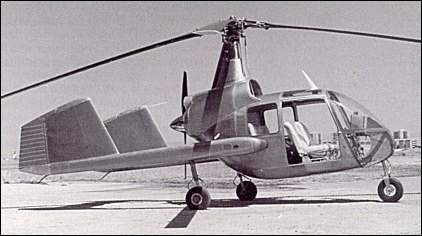

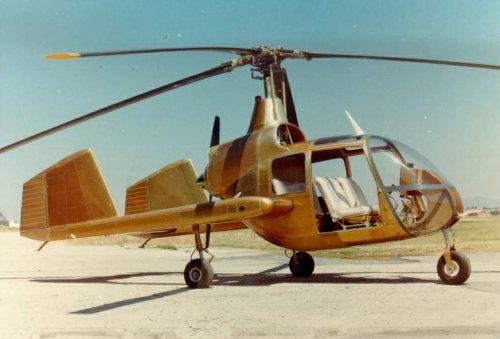

A beautiful AISA autogyro from Spain which I can't identify:


Attachments

  • aisa.jpg
    59.9 KB · Views: 382
  • aisa_gn.jpg
    29.1 KB · Views: 475

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Sorry about the topic being locked! Thanks to those who sent me a PM to tell me that the type pictured above was simply known as the AISA GN.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
hesham said:
USA Lift System LS-3 :two seat experimental light helicopter of 1967.

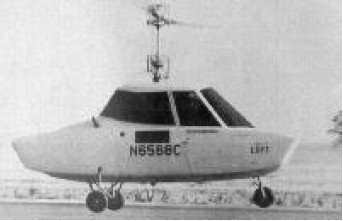

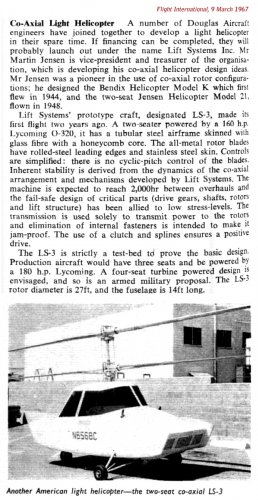

Pics and a text about the 1965 Lift System LS-3, which had an accident on Sep. 10 of that year and probably never flew again after that.

Noteworthy is the fact that this very original-looking machine had the names of R. Bendix and M. Jensen associated to its inception.


Attachments

  • Lift Systems LS-3.jpg
    Lift Systems LS-3.jpg
    485.3 KB · Views: 304
  • LS-3.jpg
    15 KB · Views: 63

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,774
Reaction score
1,911
ChuckAnderson said:
Hi Everyone!

Here's another helicopter you may find of interest, the Fairey Ultra-light Helicopter.

SOURCE:
Fairey Aircraft Since 1915
pp. 398-404
Author: H.A. Taylor

Chuck

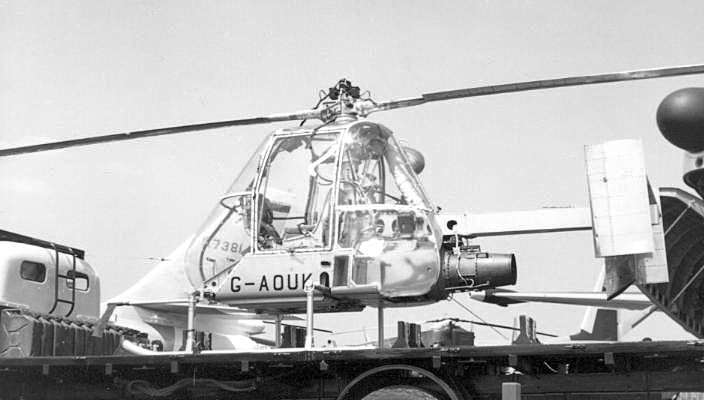

Via Wikipedia, a photo of one of the prototypes (G-AOUK) being displayed on (and apparently demonstrated flying off, though not shown here) a lorry at the 1957 Paris Air Show:


antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
725
Reaction score
69

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
hesham said:
Helicop-Jet Helicopter :four seat tip-driven light helicopter,powered by
600 hp Turbomeca turbine engine.


And from jane's All the World's Aircraft 1974-75.


Attachments

  • 1.png
    328.6 KB · Views: 132
  • 2.png
    80.1 KB · Views: 113
  • 3.png
    323.2 KB · Views: 104

Similar threads

Top
