Hawker P 1030

gilslo

ACCESS: Restricted
Joined
Aug 12, 2008
Messages
3
Reaction score
0
Hello
Any one can help me please.
I'm looking for more precise 3-view drawings and fuselage sections (if it's possible) of the Hawker P 1030 because I want make a radio controled aircraft of this plane.
Many thanks


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
Have a look at Tony Buttlers "British Secret Projects: Fighters & Bombers 1935 - 1950",
page 30 ;) ...


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881
Please NO postings of any scans from Ian Allan Publishing Group editions at the forum. Just low-res teasers are available.
Thank you.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154
hello
on this site : scale modelling part you have :
flitzer's british ww2 and you have 2 coloured p 1030
bye


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,003
Reaction score
45
Hi Gilslo

I have my black and white keyline drawings of the P1030 somewhere in my files.
I'd be most happy to fish them out and send them to you.

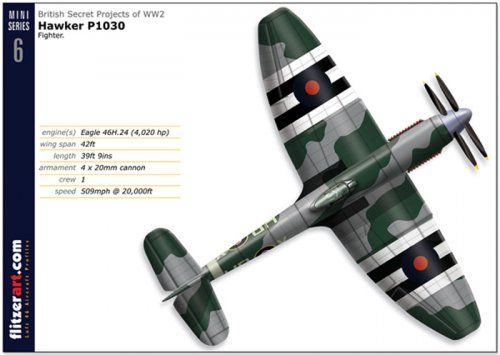

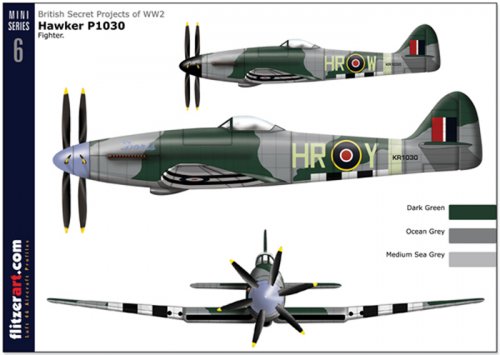

I've attached the colour profiles to be going on with.

Let me know.
Cheers
Peter
;D


Attachments

  • Hawk1030top.jpg
    176 KB · Views: 954
  • Hawk1030side.jpg
    169.8 KB · Views: 887

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,003
Reaction score
45
Hi again.

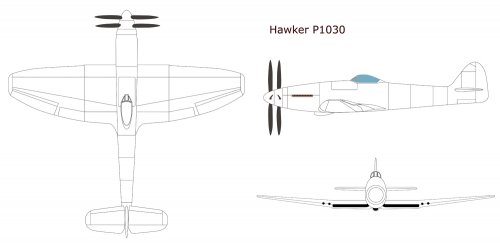

I found my keyline 3 -view.
Please see attached.
If you need a higher res. please let me know and I'll send.

Hope its useful.

Cheers
Peter
;D


Attachments

  • Hawker P1030 Schematic.jpg
    Hawker P1030 Schematic.jpg
    191.8 KB · Views: 903

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,336
Reaction score
4,715
Website
www.amazon.com

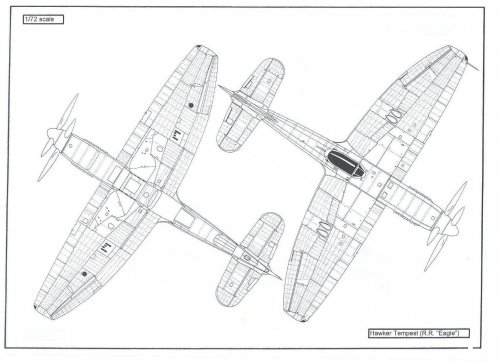

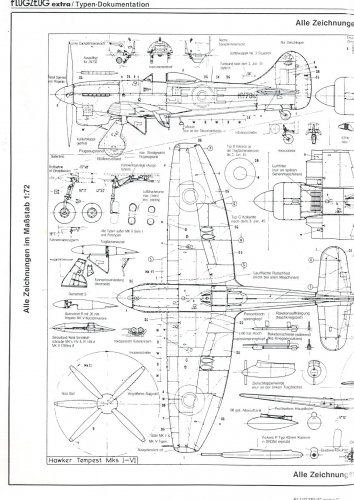

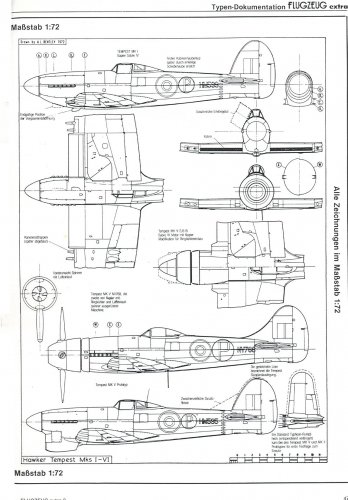

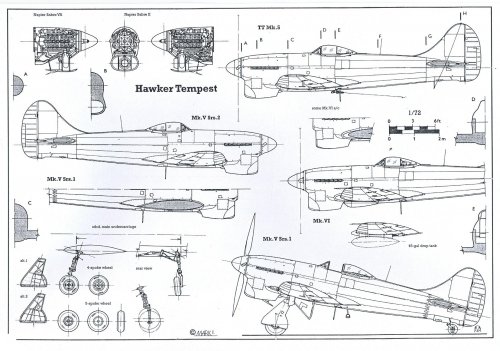

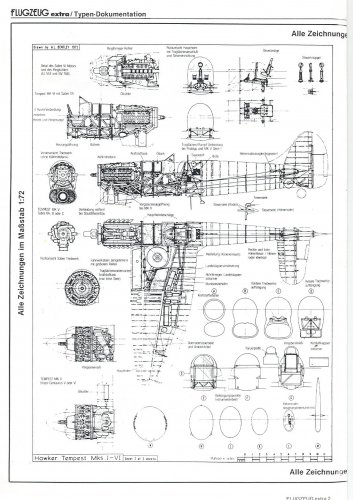

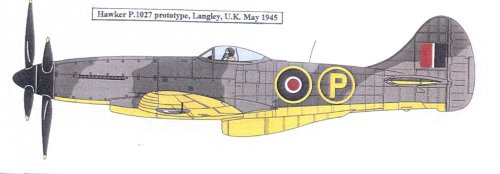

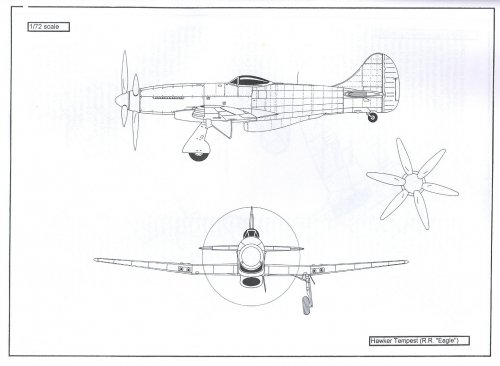

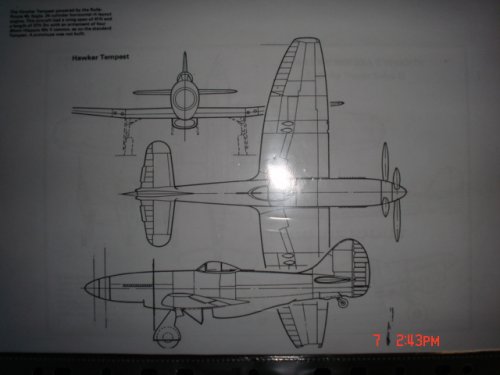

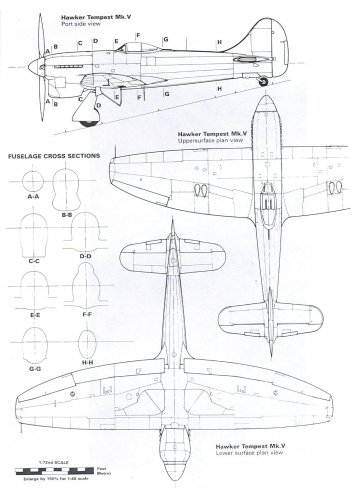

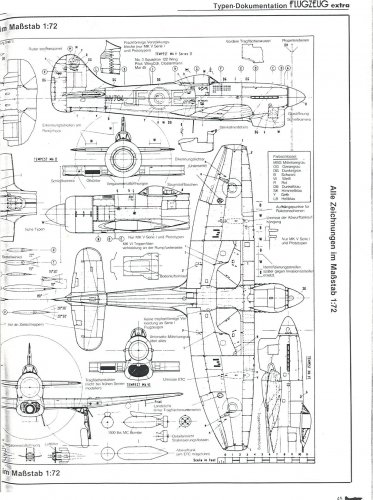

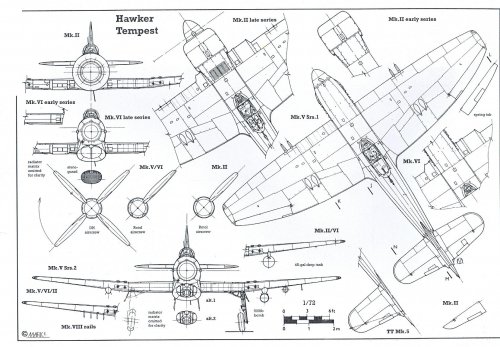

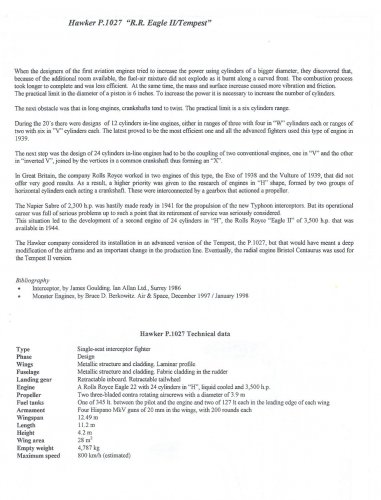

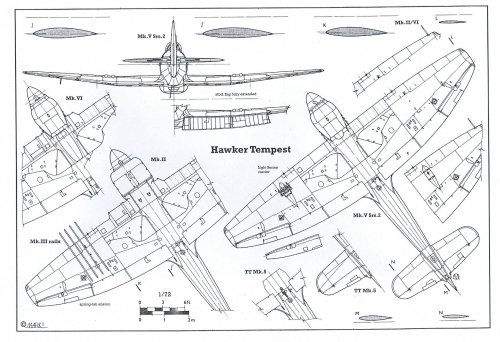

Here some Tempest & P.1027 stuff
Hope its useful. (Post 1)


Attachments

  • Escanear0012.jpg
    42 KB · Views: 346
  • Escanear0011.jpg
    222.5 KB · Views: 311
  • Escanear0010.jpg
    256.6 KB · Views: 822
  • Escanear0001.jpg
    138 KB · Views: 890

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,336
Reaction score
4,715
Website
www.amazon.com
Here some Tempest & P.1027 stuff
Hope its useful. (Post 2)


Attachments

  • Escanear0002.jpg
    190.6 KB · Views: 231
  • Escanear0003.jpg
    308.7 KB · Views: 243
  • Escanear0004.jpg
    321.8 KB · Views: 211
  • Escanear0005.jpg
    298.8 KB · Views: 219

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,336
Reaction score
4,715
Website
www.amazon.com
Here some Tempest & P.1027 stuff
Hope its useful. (Post 3)


Attachments

  • Escanear0008.jpg
    342.3 KB · Views: 248
  • Escanear0007.jpg
    254.1 KB · Views: 290
  • Escanear0006.jpg
    324.2 KB · Views: 241

Spark

ACCESS: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
48
Hi,
Has any one any drawings of the projected twin Whittle jet version of the Tempest Circa 1942 please?


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,653
Reaction score
531
Justo,

many thanks for your posts, you're amazing!


Antonio


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi!

http://alternathistory.com/proekty-istrebitelei-hawker-p1027-i-p1030-velikobritaniya?mini=calendar%252F2015-07
"Flight specifications of project P.1030
Wingspan 12.8 m
Length 12,1 m
Wing area with ventral part 32.3 m²
The maximum weight of 6441 kg
Powerplant Rolls-Royce 46H Eagle
Engine power 4020 hp
The maximum speed at an altitude of 6096 meters is 819 km / h
Armament of a 4 × 20 mm cannon

The ultimate development of British piston engines was to be the 24-cylinder H-shaped 3500-horsepower Rolls-Royce 46H Eagle engine. The first development work on the Eagle was started in late 1942. With this engine flying only Westland Wyvern Mk.I, but in Hawker and Supermarine were drafted fighters with this engine.

The "rivalry" between the two companies is known since Spitfire and Hurricane, then Spiteful and Fury, and then into the jet era between Attacker and Sea Hawk, Swift and Hunter. Due to different dates these projects were not competitors to each other, but they represent the ultimate designs of piston fighters of two famous British aircraft manufacturing firms.

In 1943, Hawker completed the project of its P.1027, essentially a development of the Tempest-equipped 465 Rolls-Royce engine. It had four 20mm cannon mounted in the wing and located under the fuselage on half the length of the aircraft (directly under the pilot - similar to the North American P-51 Mustang equipped with a Merlin engine) radiator. The span of the wing was 12.5 m, length 11.4 m.

The September 1943 draft of P.1030 was very similar to its predecessor, but was larger and its radiators were moved to the leading edge of the wing (this arrangement was attempted on Tempest I). As it seems to the P.1030 project, a full description in the form of a brochure (full brochure) was not produced, but only a four-page report describing the results of the wind tunnel tests and making up the estimated weight.

This project was developed when the Rolls-Royce 46H Eagle existed only on the drawings, but using estimates based on the figures of Rolls-Royce Merlin and Griffon, Hawker expected to receive 4200 hp. It was assumed that this power could be obtained by increased supercharging up to 1.62 kg / cm² and using a fuel grade "140" with 60% intercooling. The wings were made one-piece and 1146 liters of fuel were to be placed in tanks, located and the center wing and fuselage between the engine and the cockpit.

The diameter of the two four-bladed propeller screws (4.1 m) was chosen to give a balance of the level of efficiency between altitude and maximum speed, but it was noted that much better efficiency in climb and in the speed of horizontal flight could be obtained if it were installed Two-speed screw reducer. The document stressed that the development of such a screw should be boosted if the Rolls-Royce 46H engines are put into production.

In the P.1030 project, the maximum horizontal flight speed was to be 819 km / h at an altitude of 6,096 m, the climb rate of 1951 m / min (32.51 m / s), the rise time to a height of 6,096 m should be 4 min, to a height of 9,144 Meters a little less than 7 minutes, the practical ceiling should be more than 12,802 m.

Later in 1944, Hawker proposed a project P.1032, which was the development of Fury with the Eagle engine installed, but to date there are no its drawings found. "

Source: TONY BUTTLER "BRITISH SECRET PROJECTS FIGHTERS & BOMBERS 1935-1950"



Attachments

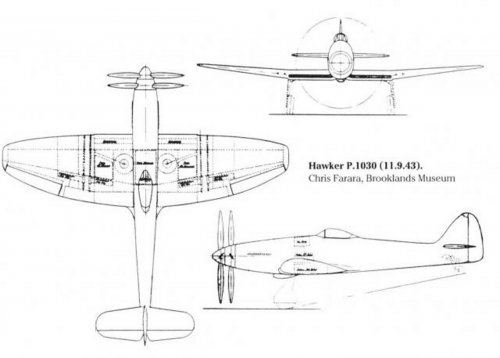

  • Hawker_P_1027_P_1030-01-640x457.jpg
    90.3 KB · Views: 160

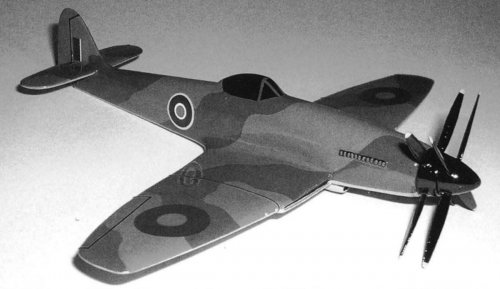

  • P.1030_model.jpg
    128.9 KB · Views: 164

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

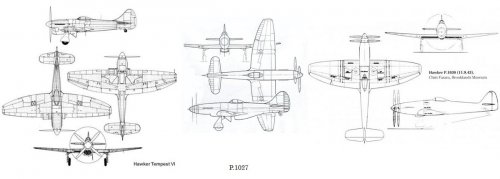

Hi! P.1027. Justo-san's work is excellent. :D
http://www.whatifmodellers.com/index.php/topic,36955.msg729100.html#msg729100

http://www.whatifmodellers.com/index.php?topic=42285.0


Attachments

  • Eagle%20Engined%20Tempest%20Dwg_zpsuvrbomqg.jpg
    138.2 KB · Views: 108
  • Eagle_powered_Tempest Brooklands Museum P-1027.jpg
    Eagle_powered_Tempest Brooklands Museum P-1027.jpg
    223 KB · Views: 144

kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
494
Reaction score
272

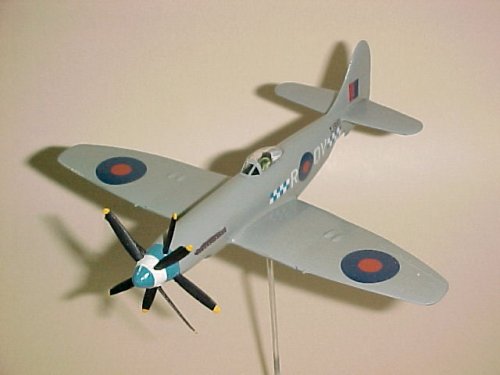

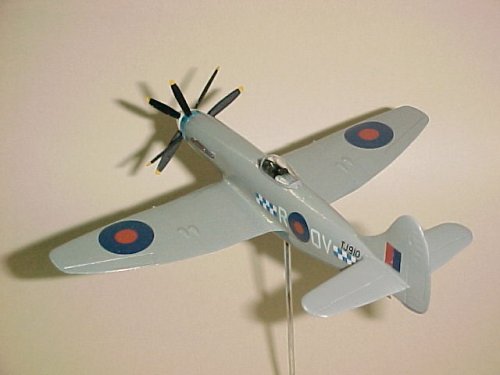

Hmm! who's Justo-san, that's my P.1027 in the top link.

here's some more


Attachments

  • P.1027-11.JPG
    28.7 KB · Views: 109
  • P.1027-6.JPG
    31.7 KB · Views: 115
  • P.1027-5.JPG
    31.8 KB · Views: 111

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Thanks a lot. Excellent model!! :D


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
383
Reaction score
154
Because of the development of jet engined aircraft and the end of hostilities we never got to see these ultimate single piston fighter aircraft in action. Besides the a fore mentioned Hawker P 1030 we never got to see Nakajima Ki-87, Tachikawa Ki-94-II, Kyushu J7W, Kawanishi J6K, Republic P-72, Dornier Do 335 (technically 2 engines I know and it was built in limited numbers (12?), Chance Vought F2G Super Corsair (also built in limited numbers (10?)), Hawker Sea Fury (production but too late to see action), and the Grumman F8F (also production but too late to see action). Many of these designs would have incorporated air borne interception radar. Who knows what other developments might have come out of the minds of the engineers and designers if the jet engine had not arrived on the scene???


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
F.13/44 OR.194
Long-range fighter with Eagle 22 piston engine capable of accepting a turboprop at a later date - RAF version of N.11/44 (q.v.)
- see also N.12/45 Westland Wyvern, Hawker P.1027/P.1030
https://en.wikipedia.org/wiki/List_of_Air_Ministry_specifications

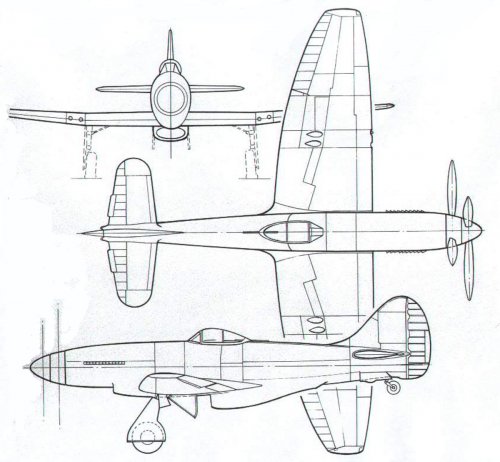

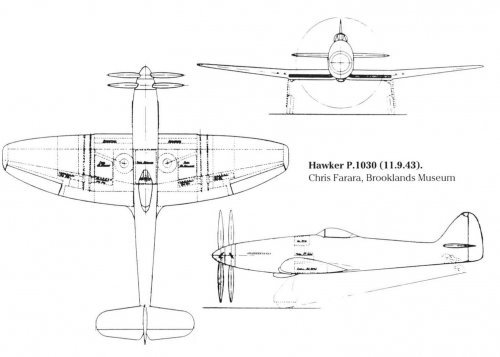

Larger three side view drawing is here.
https://www.rcgroups.com/forums/showthread.php?2744579-Hawker-P-1027-and-P-1030-%2A%2Apaper-projects%2A%2A

Beautiful artwork is here.
http://www.aeroscale.co.uk/modules.php?op=modload&name=Sections&file=index&req=viewarticle&artid=1293


Attachments

  • Hawker_P_1030-01.JPG
    101 KB · Views: 456

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi!
https://www.youtube.com/watch?v=sW_jM5NNq1g

https://www.youtube.com/watch?v=4GnQBIfsEOg

https://www.youtube.com/watch?v=OY9zRO9jg2M


Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
97
Reaction score
88
blackkite said:

Wow ! On sent qu'il y a des watts sous le capot ! A powerfull model, it seems ... Does it exist plans of it ? Really a very beautiful realization ! Has any points of seen !

Tonton


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi!


Attachments

  • Almost_same_scale.jpg
    77.1 KB · Views: 281

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

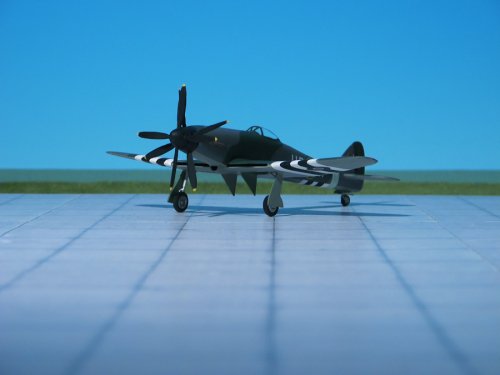

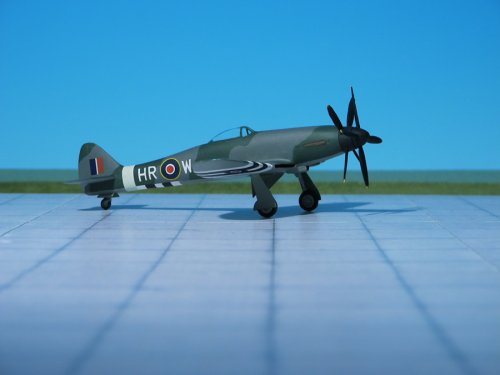

Hi!
http://modelplanes.de/royal-air-force/jaeger-royal-air-force/hawker-p-1030-super-tempest-unicraft-resin/


Attachments

  • 064.jpg
    184.3 KB · Views: 182
  • 034.jpg
    180.7 KB · Views: 160
