Grumman Model 623 VSTOL/CTOL Navy Fighter (VFAX)

hesham

ACCESS: USAP
Senior Member
Joined
26 May 2006
Messages
32,300
Reaction score
11,306
Hi,

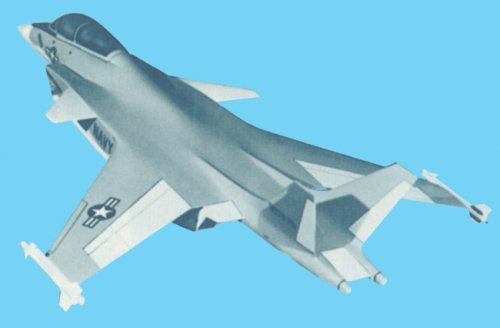

Grumman Model 623.


Attachments

  • G-623.jpg
    17.6 KB · Views: 2,154
hesham said:
Hi,

it was Grumman Model-623.

A very strange,the Grumman G-623 mention here,but with canard !.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19890000646_1989000646.pdf


Attachments

  • G-623.JPG
    36.6 KB · Views: 1,918
Grumman G-623 was designed for VFAX; G-623V was a vertical takeoff variant.


The Grumman HATOL design above appears to be derived from this basic concept but engines moved inboard and with canards.


Attachments

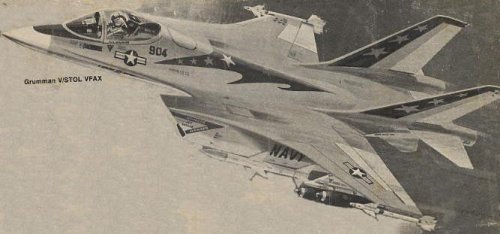

  • Grumman VSTOL VFAX.jpg
    Grumman VSTOL VFAX.jpg
    37.5 KB · Views: 2,300
From a 1979 NASA Contractor report - CR-166365

Different variant with highly swept wings. According to Tony Buttler G-623V V/STOL version was distinguished by highly swept wings, so I suspect this is G-623V.


Attachments

  • grummanvstol.623.1.jpg
    75.9 KB · Views: 2,075
  • grummanvstol.623.2.jpg
    126.1 KB · Views: 688
STUDY OF AERODYNAMIC TECHNOLOGY FOR VSTOL FIGHTER/ATTACK AIRCRAFT - PHASE I FINAL REPORT
Walter R. Burhans, Jr, Vincent J. Crafa, Jr, Nicholas F. Dannenhoffer, Frank A. Dellarnura, Robert E. Krepski, GRUMMAN AEROSPACE CORPORATION
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790001856_1979001856.pdf

In 1973, Grumman and General Electric participated in a Navy exhaust nozzle development program. The resulting Grumman Design 623 using the General Electric ADEN nozzle has since been extensively tested in wind tunnels both here and abroad. This testing has ranged from VTOL hot gas tests to transonic and supersonic powered and flow-through model tests. This background data provided a starting point for this study.

Since its initial conception five years ago, advances in the state-of-the-art in propulsion, aerodynamics and materials, as well as a better understanding of the VTOL requirements has allowed Grumman to update Design 623 into a more potent fighter/attack aircraft.


Attachments

  • Model 623-2004B.JPG
    Model 623-2004B.JPG
    105.5 KB · Views: 407
  • Model 623-2004B  3-view.JPG
    Model 623-2004B 3-view.JPG
    30.6 KB · Views: 401
Hi,


I think that aircraft was Grumman G-623,but am I right ?.


http://arc.aiaa.org/doi/abs/10.2514/3.58753?journalCode=ja


Attachments

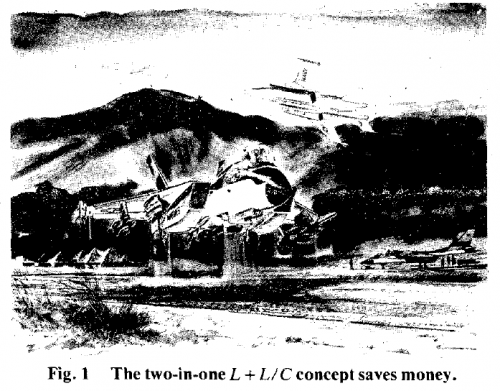

  • 623 IV.png
    623 IV.png
    19.1 KB · Views: 447
  • 623  III.png
    623 III.png
    26.4 KB · Views: 322
  • 623  II.png
    623 II.png
    33.2 KB · Views: 290
  • 623.png
    66.5 KB · Views: 356

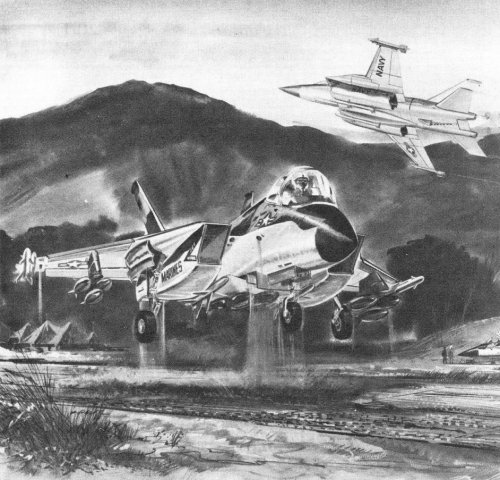

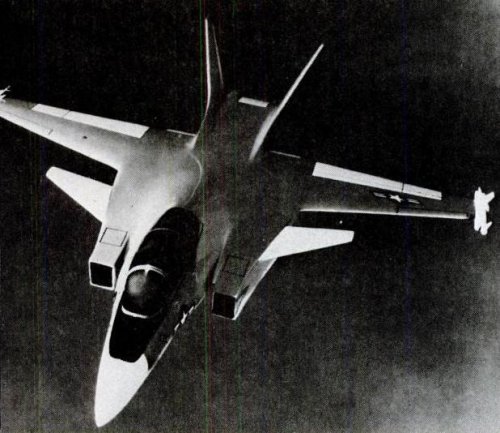

Grumman G-623 Conventional and VSTOL versions for VFAX requirement from Aviation Week Archive.


Attachments

  • Grumman623VFAXCTOL.jpg
    61.7 KB · Views: 457
  • Grumman623VFAXVTOL.jpg
    303.7 KB · Views: 482

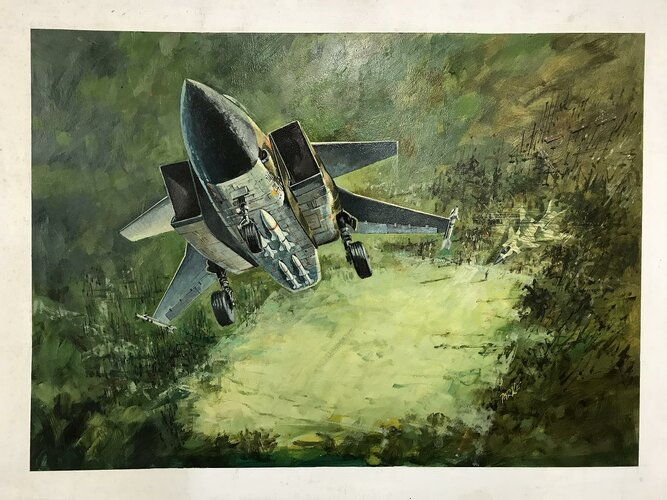

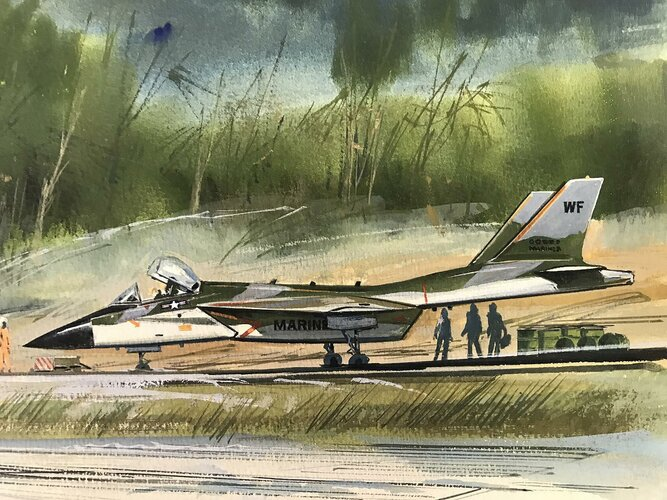

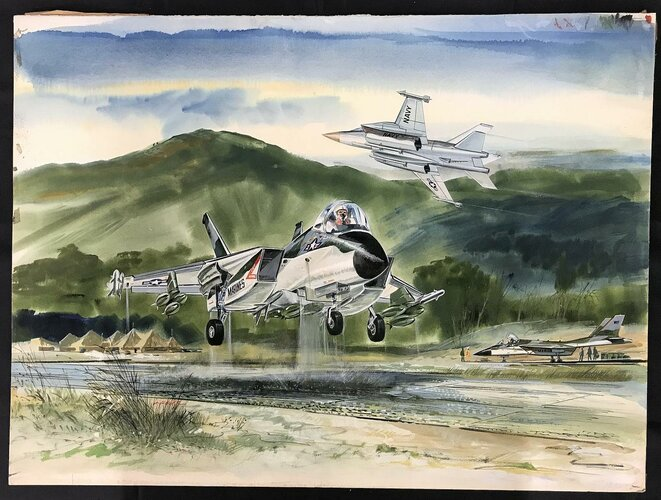

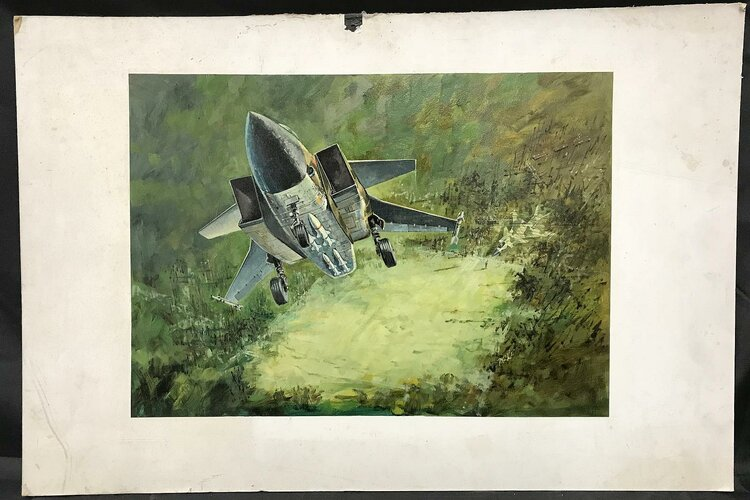

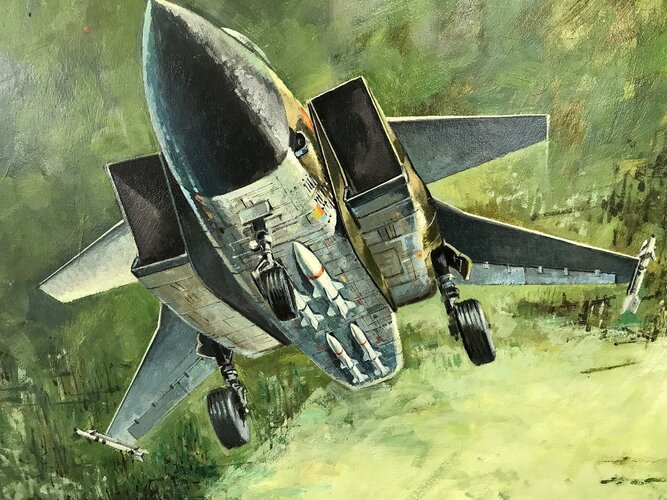

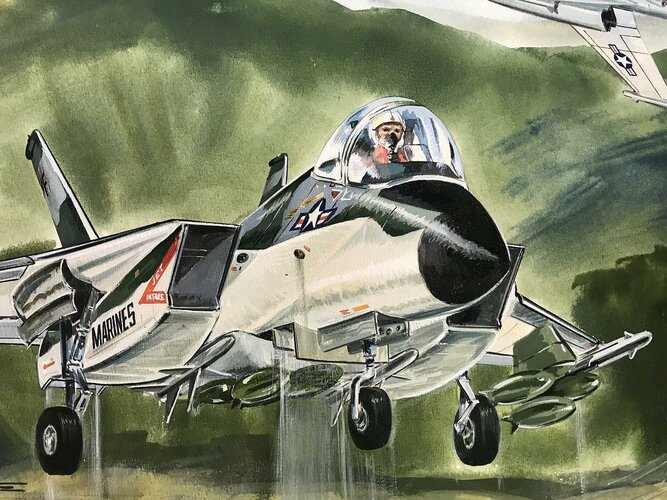

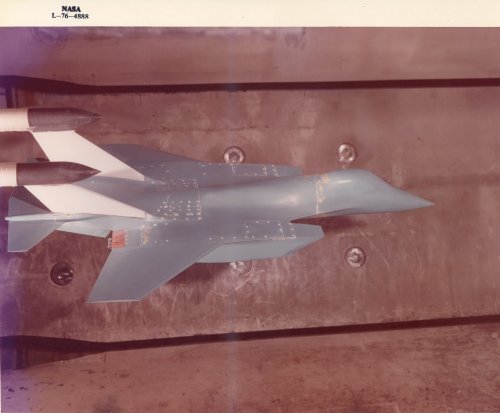

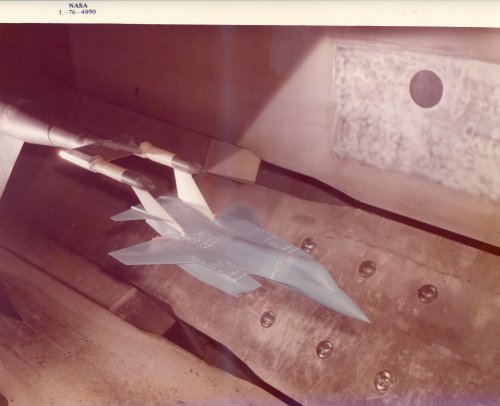

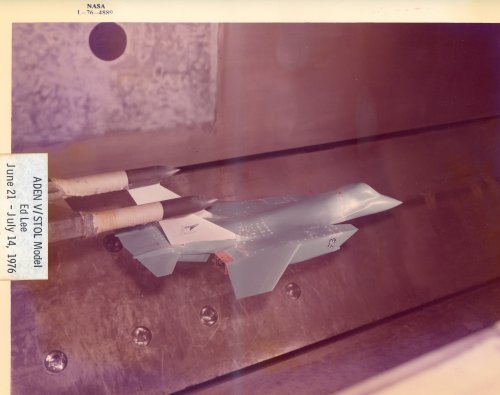

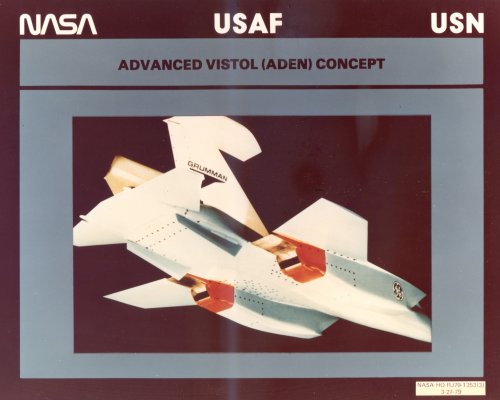

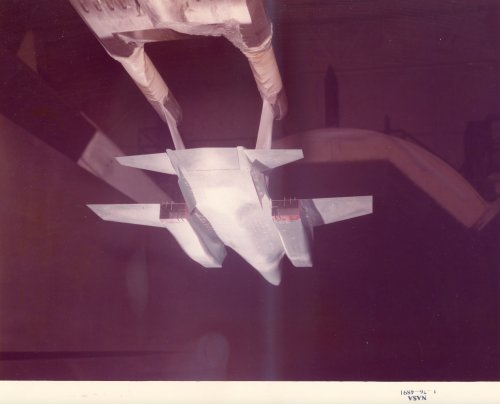

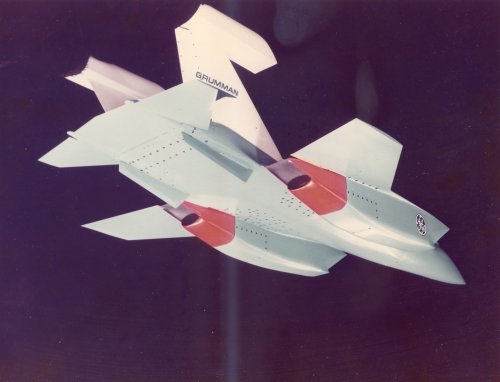

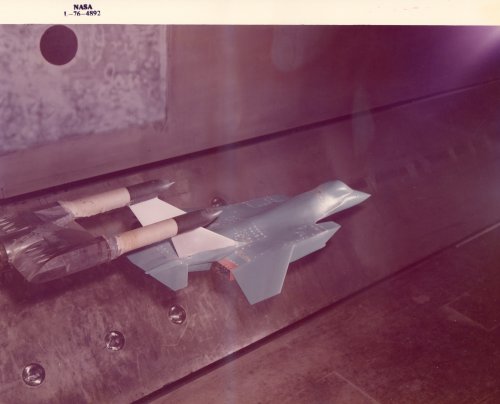

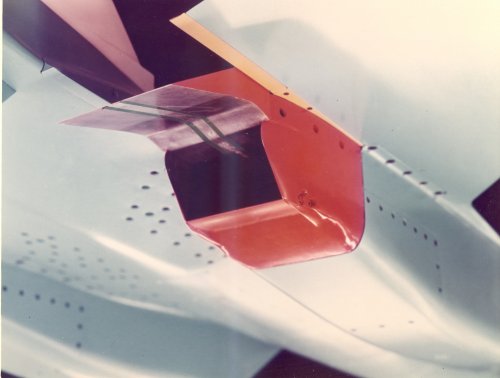

These pics are listed a Grumman model 723 on the NASA CRGIS website, but appear to be Model 623 to me.


Attachments

  • L-76-4892_Grumman-GE_ADEN_model_Test_316_1976.jpg
    851.4 KB · Views: 327
  • L-76-4891_Grumman-GE_ADEN_model_Test_316_1976.jpg
    811.2 KB · Views: 300
  • L-76-4890_Grumman-GE_ADEN_model_Test_316_1976.jpg
    796.2 KB · Views: 276
  • L-76-4889_Grumman-GE_ADEN_model_Test_316_1976.jpg
    807.1 KB · Views: 265
  • L-76-4888_Grumman_723_Airplane_Model_Test_316_1976.jpg
    738.6 KB · Views: 269
  • Grumman-GE_vectored_ADEN_nozzle_Test_316_1976.jpg
    723 KB · Views: 269
  • Grumman-GE_ADEN_model_2_Test_316_1976.jpg
    862.1 KB · Views: 276
  • Grumman-GE_ADEN_model_Test_316_1976.jpg
    817.7 KB · Views: 315
Another beautiful piece of art. Thanks for sharing.

g-623-vstol_1-jpg.669669


Tomcat vibes from the front.

Last edited:
Similar, but not identical.

grummanvstol-jpg.88904


grumman-vfax-ctol-jpg.157358

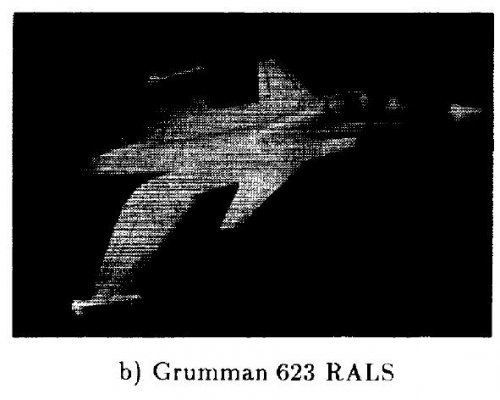

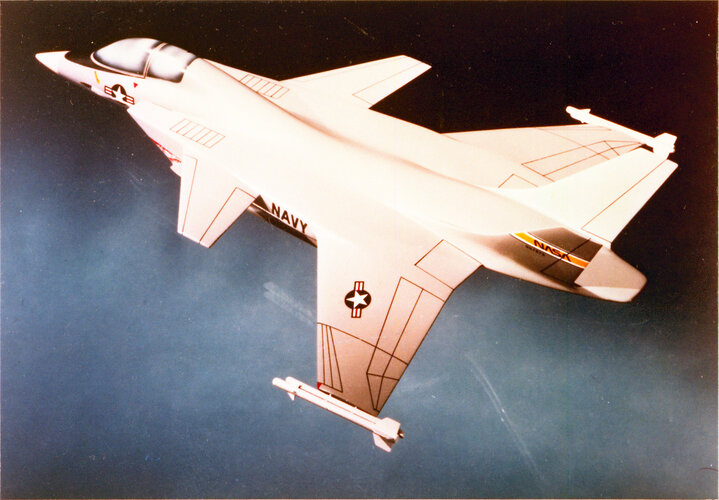

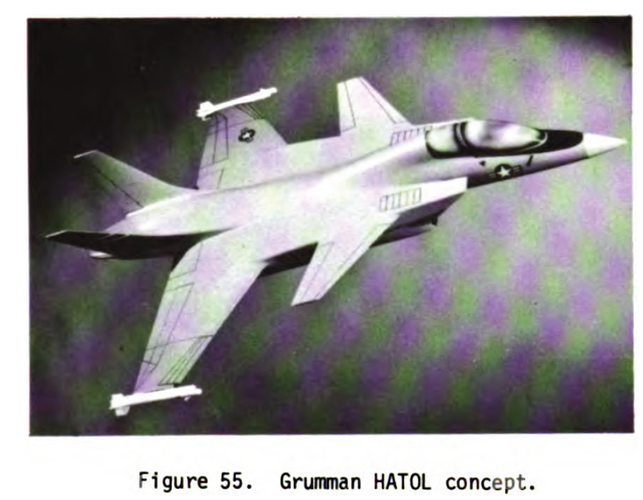

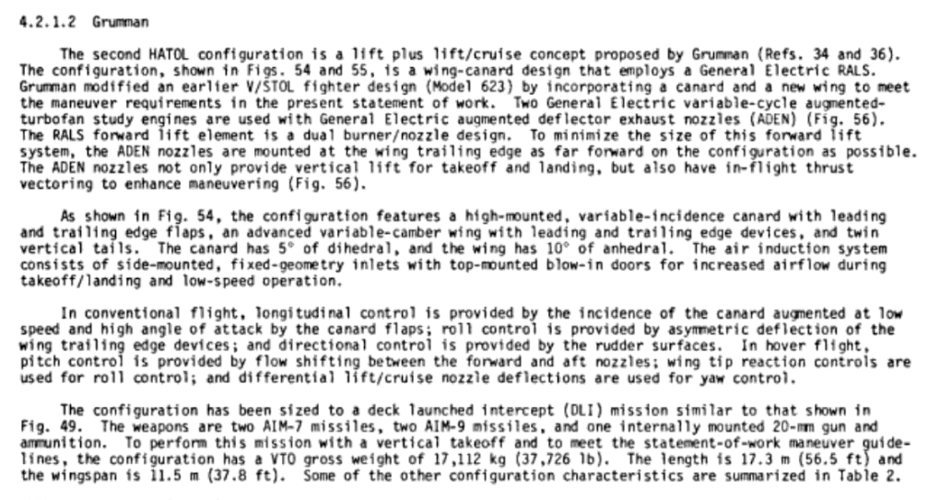

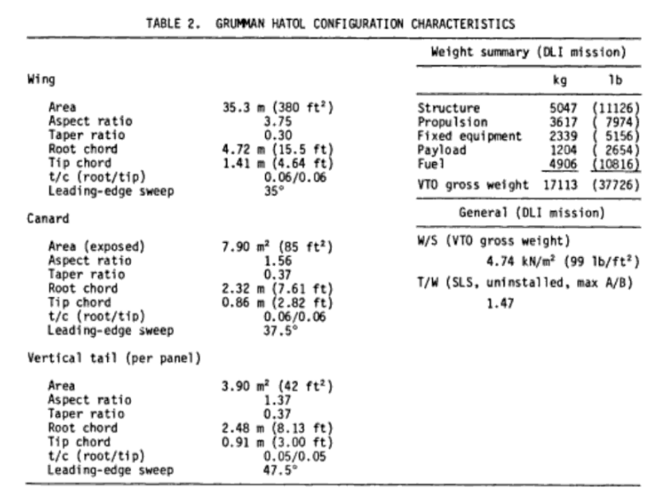

The second HATOL configuration is a lift plus lift/cruise concept proposed by Grumman (Refs.34 and 36). The configuration, shown in Figs.54 and 55, is a wing-canard design that employs a General Electric RALS. Grumman modified an earlier V/STOL fighter design (Model 623) by incorporating a canard and a new wing to meet the maneuver requirements in the present statement of work. Two General Electric variable-cycle augmented-turbofan study engines are used with General Electric augmented deflector exhaust nozzles(ADEN (Fig.56). The RALS forward lift element is a dual burner/nozzle design. To minimize the size of this forward lift system, the ADEN nozzles are mounted at the wing trailing edge as far forward on the configuration as possible. The ADEN nozzles not only provide vertical lift for takeoff and landing, but also have in-flight thrust vectoring to enhance maneuvering(Fig.56).



grumman-1978-hatol-jpg.3391

Last edited:

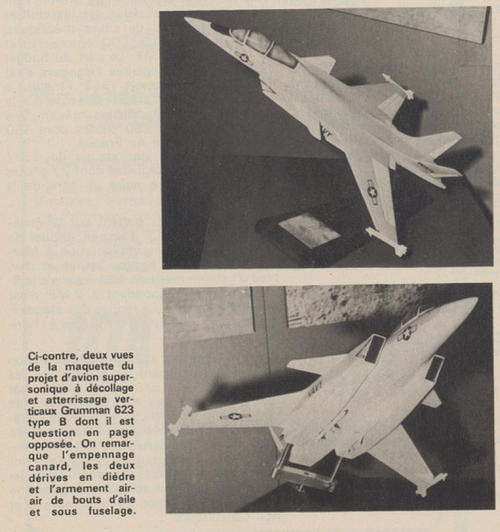

From Aviation magazine 1977,

G-623B


Attachments

  • 1.png
    1.1 MB · Views: 236

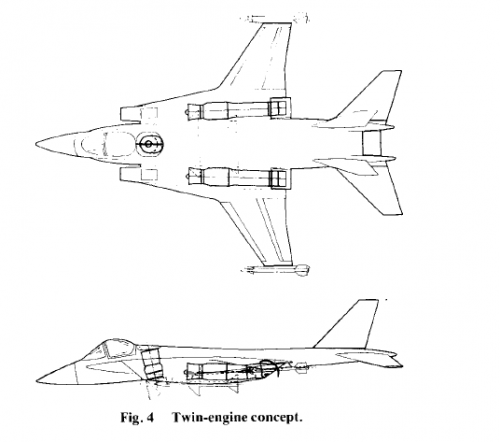

A few bits and pieces on the Grumman Model 623.

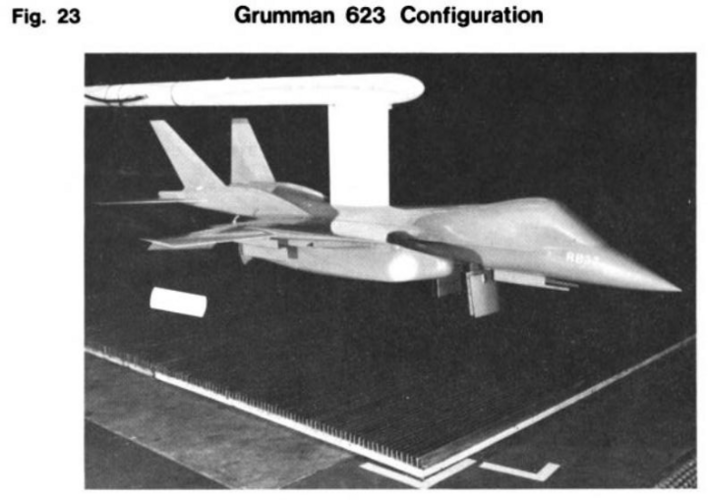

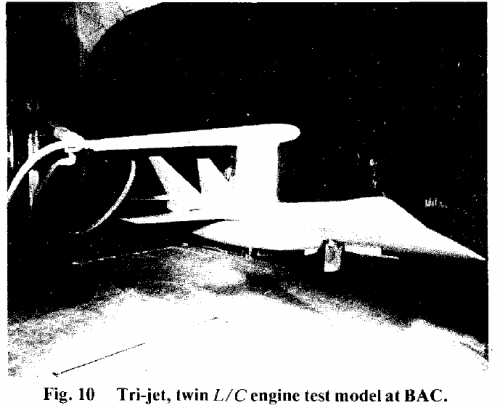

The first image is of a wind tunnel model from a report entitled "A Review of Some Fundamentals of Lifting Jet Interference with Particular Reference to US Navy Type A and B Concepts". The Paper is by P. G. Knott of the BAe Warton Division, which had performed wind tunnel testing for Grumman.

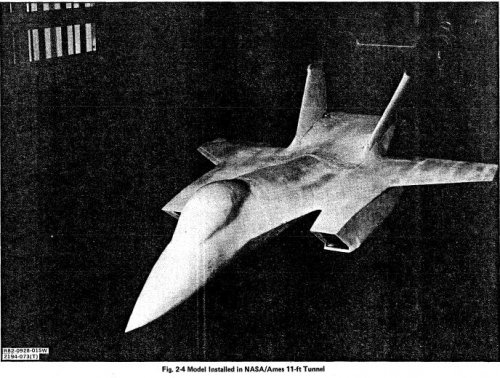

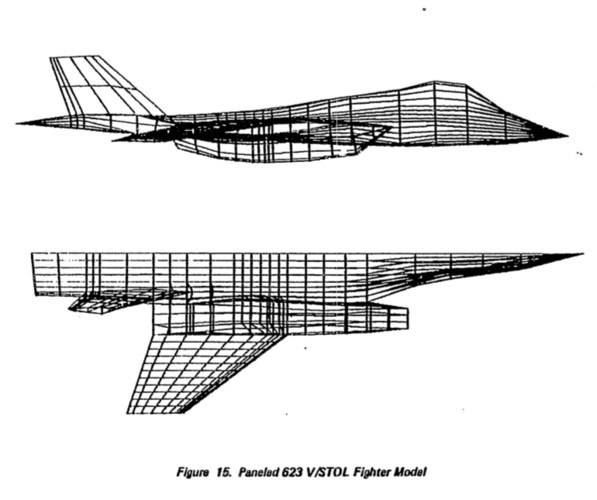

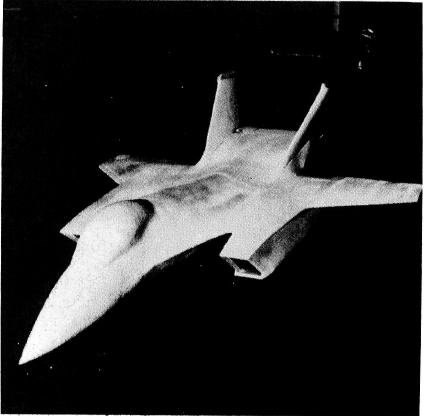

The second image is a paneled model from NASA Contractor Report 166466, by Boeing and covering flow analysis of nozzle installations with strong airplane flow interactions, and gives a good impression of the aircraft's shape.

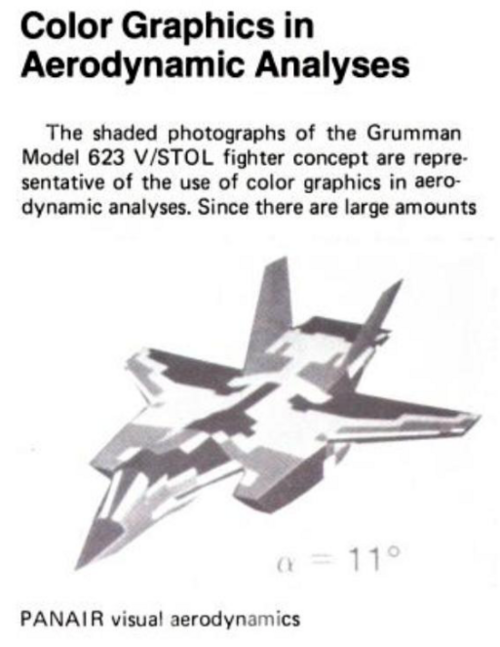

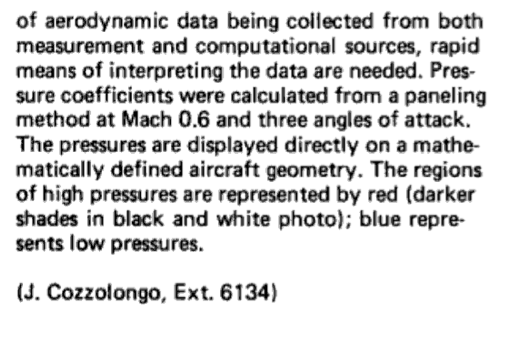

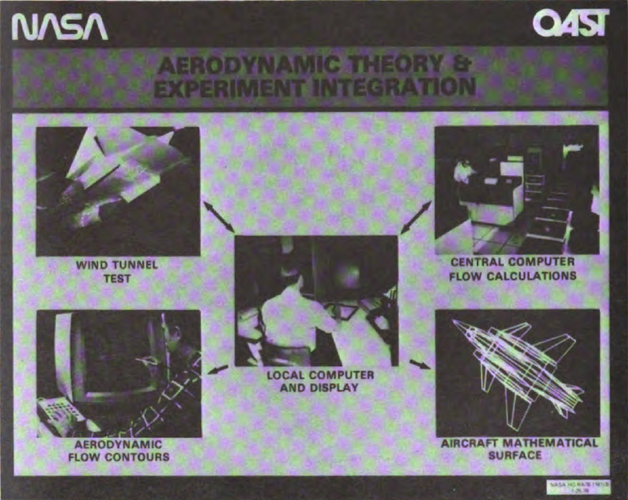

Images 3 and 4 relate to the use of the colour graphics in aerodynamic analysis using the Model 623 as an example. they are from the NASA Ames Research Center Research and Technology Annual Report, 1982.

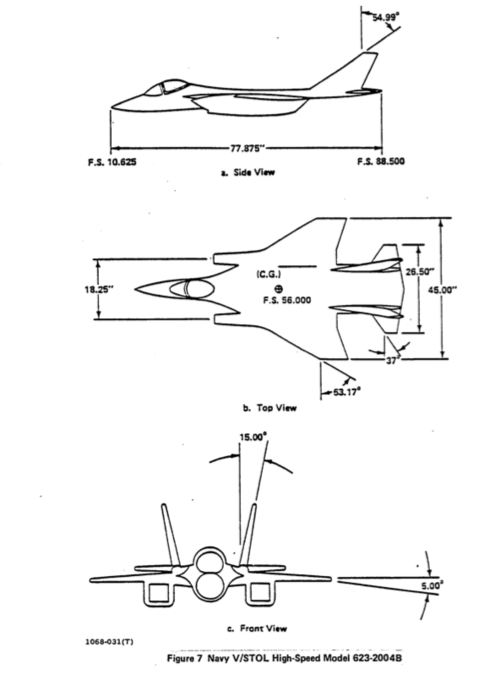

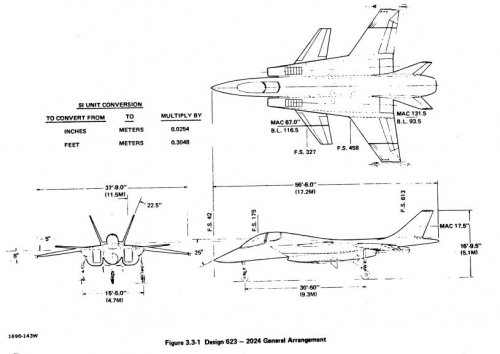

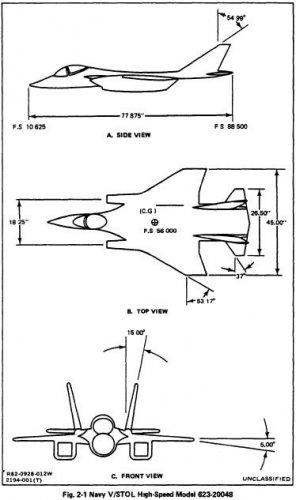

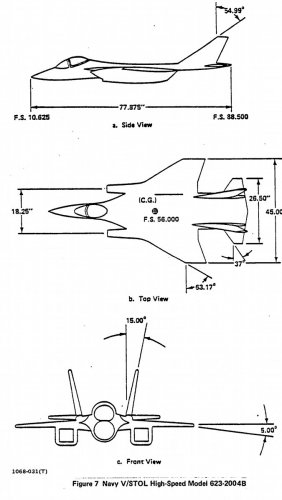

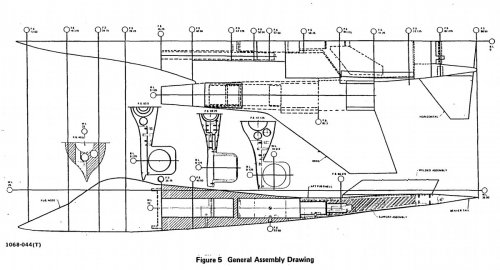

Also attached is a higher quality capture of the wind tunnel model dimensions plan Hesham posted previously. This is used in a three-part series of NASA reports produced by Grumman (Contractor Reports 166146, 166365 and 166147) that compared axisymmetric and non-axisymmetric (e.g. the Augmented Deflector Exhaust Nozzle - ADEN that the Model 623 was designed around and the derivative CTOL Asymmetric Load Balanced Exhaust Nozzle - ALBEN), Scaling up, the model was 1/8 scale, gives the following dimensions for the full size aircraft:

Length: 51ft 11"
Span: 30ft
Tailplane Span: 17ft 8"
Span between engine axis: 12ft 2"

All these images cover the Model 623-2004B, not the later 623-2024. The two had different baseline potential IOC dates, the 2004 being 1985 and the 2024 being 1995.


Attachments

  • Model 623-2004B Schematic.png
    Model 623-2004B Schematic.png
    101.9 KB · Views: 141
  • Screen Shot 2023-03-22 at 06.49.19.png
    Screen Shot 2023-03-22 at 06.49.19.png
    248.4 KB · Views: 135
  • Screen Shot 2023-03-22 at 06.49.40.png
    Screen Shot 2023-03-22 at 06.49.40.png
    106.5 KB · Views: 126
  • NASA_166466_G623.png
    160.6 KB · Views: 120
  • 1979_V?STOL Aerodynamics Workshop_G.623.png
    1979_V?STOL Aerodynamics Workshop_G.623.png
    289.9 KB · Views: 172
Last edited:
Cross post from the G-607 thread, and thanks to @hesham .

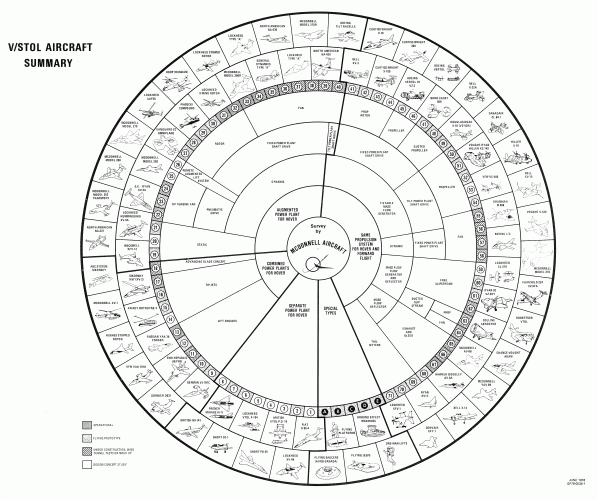

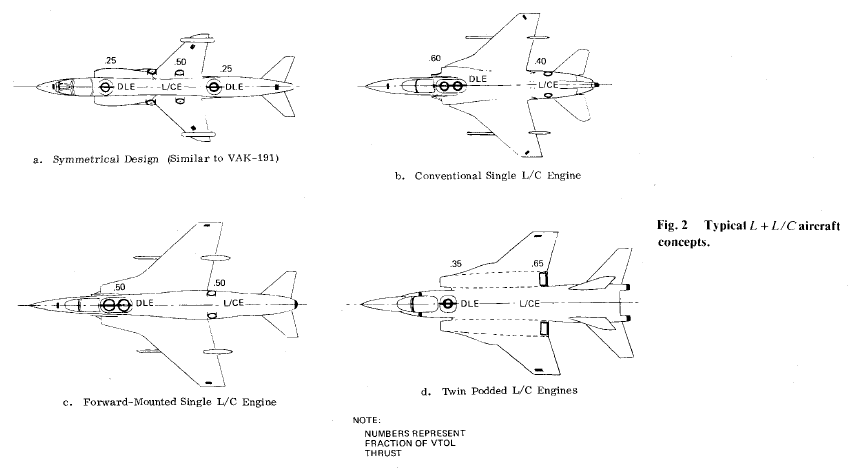

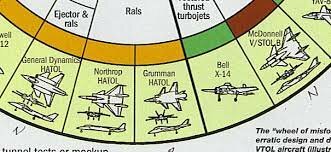

Concept D in the attached is the basic, original, Grumman 623 configuration. It is notable that the 623 configuration only uses a single Direct Lift Engine (DLE). This is depicted on the various models and artists impressions in the posts above as either a single jet efflux or single squarish intake cover behind the cockpit. The later VFA-V/STOL concepts that utilised a single F401 (Convair Model 200 and Vought V-521) proposed the use of two DLEs, 13,000lb each in the Model 200. Based on the ratios used here, and assuming a similar weight, the single DLE in the Model 623 would have probably required a higher thrust, perhaps 15,000lbs. For the era, this three post V/STOL configuration consisting of 2D nozzles on the lift/cruise engines (presumably YJ101s with ADEN) and a single DLE appears quite elegant, in principle, as it minimises the space and weight required for the DLE portion of the lift system.

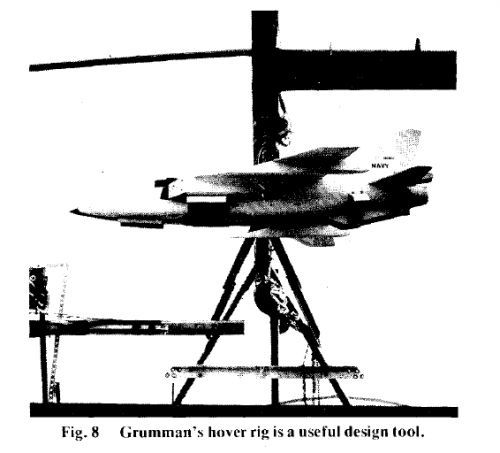

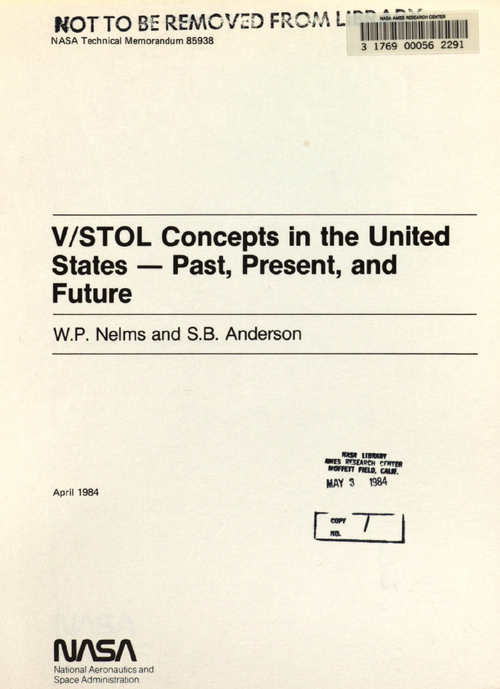

For completeness, also attached is some additional info on the later Model 623-2024 canard design from the NASA publication V/STOL Concepts in the United States - Past Present and Future by W. P. Nelms and S. B. Anderson, April 1984.


Attachments

  • Grumman.png
    30.5 KB · Views: 192
  • Screen Shot 2023-03-23 at 21.52.59.png
    Screen Shot 2023-03-23 at 21.52.59.png
    338.8 KB · Views: 159
  • Screen Shot 2023-03-23 at 21.51.37.png
    Screen Shot 2023-03-23 at 21.51.37.png
    168.9 KB · Views: 124
Last edited:
From Hearing report.


Attachments

  • 1.png
    1.9 MB · Views: 99
  • 0.png
    104.8 KB · Views: 114
From Naval Air System Command 1975.


Attachments

  • 23.png
    454 KB · Views: 93
