From Flightglobal;the early drawing to NA X-15

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467

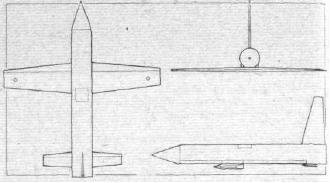

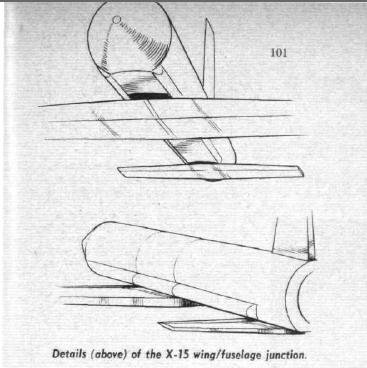

Hi,

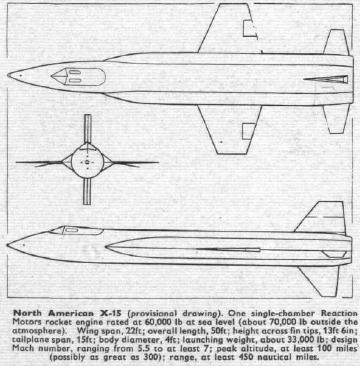

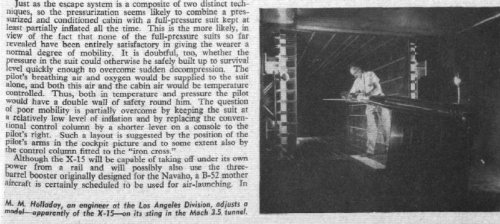

http://www.flightglobal.com/pdfarchive/view/1958/1958%20-%200098.html
http://www.flightglobal.com/pdfarchive/view/1958/1958%20-%200099.html


Attachments

  • 1.JPG
    10.6 KB · Views: 902
  • 2.JPG
    24 KB · Views: 873
  • 3.JPG
    73.2 KB · Views: 867

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
And;

http://www.flightglobal.com/pdfarchive/view/1958/1958%20-%200186.html


Attachments

  • 1.JPG
    28.5 KB · Views: 844
  • 2.JPG
    20.2 KB · Views: 828

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
hesham said:


Great find Hesham!!


I suppose that the 3 views you provided isn't an early design (not in 1958 of course when NAA frozen the configuration well earlier) but it should be the X-15B draft. The X-15B was initially intended as a two seat space going version of the X-15, later it become a single seat launched by an G-26 Navaho booster.


The X-15B should perform a suborbital or at least a once around flight, re-enter into the atmosphere and splashdown into the ocean, when the pilot should left the spacecrat with his ejection seat before the impact with water (in the same fashion of Russian Vostok).

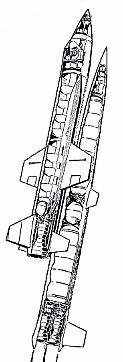

Before your 3 views all I had found about it is only this tiny image (a cutaway of X-15/G26 stacking), but you may see that the similarity between the two designs is striking.


Attachments

  • G26-X15B.jpg
    10.8 KB · Views: 63

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
I have an old Aurora model that looks like that than rather what was built.

Regards,
Barry


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303

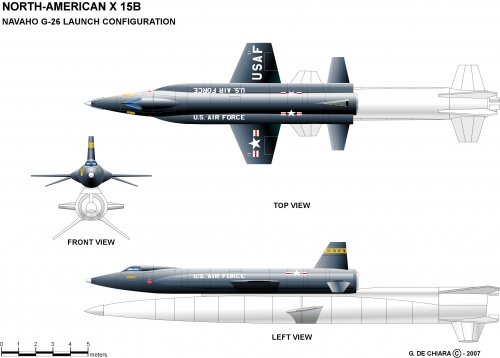

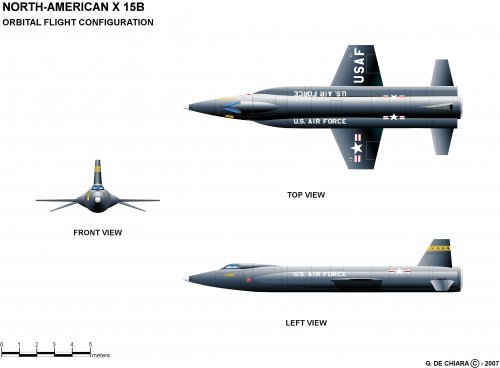

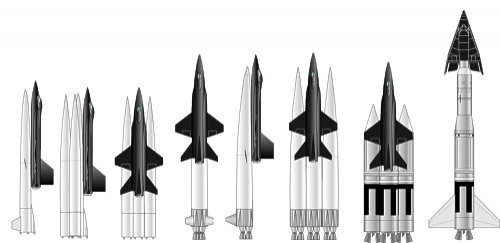

Enclosed my personal interpretation of X-15B/Navaho concept. It was realized in 2007 for the AstronautiCon 2 (held in Montecatini near Florence) and also printed out inside the Космические крылья ("Space Wings") book, by Vadim Lukashevitch and Igor Afanasiev.

Anyway I could exploit latest drawings provided by hesham in order to update my job.


Attachments

  • X-15B flight profile.jpg
    X-15B flight profile.jpg
    652.2 KB · Views: 94
  • X-15B_02.jpg
    240 KB · Views: 86
  • X-15B_01.jpg
    174.2 KB · Views: 71

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

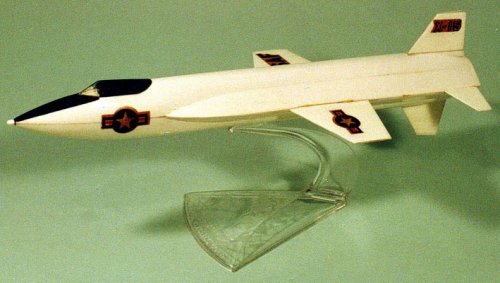

Found this piccy of the old Aurora kit..


Attachments

  • MI X-15 Aurora 01.jpg
    MI X-15 Aurora 01.jpg
    68.2 KB · Views: 50

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
Barrington Bond said:
Found this piccy of the old Aurora kit..

Really nice, it is consistent with hesham's drawings (and also mine ones).


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
Yes, but was it produced from the Flight drawings (which say they are provisional and from NAA descriptions!).

Regards,
Barry


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303

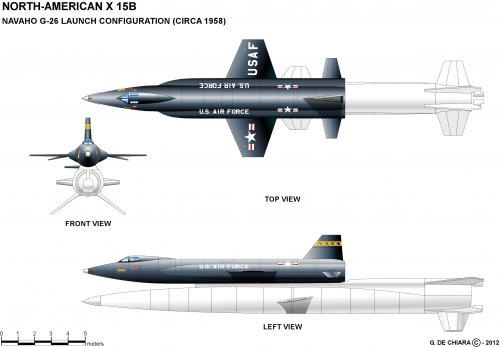

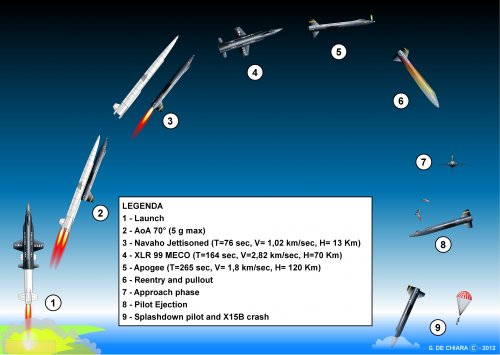

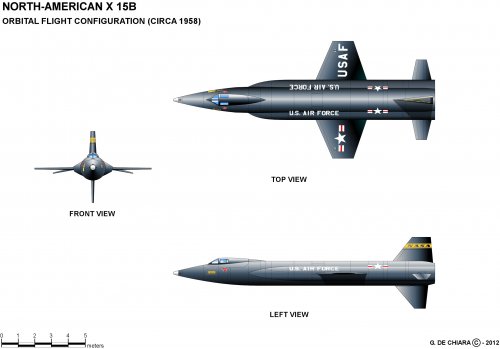

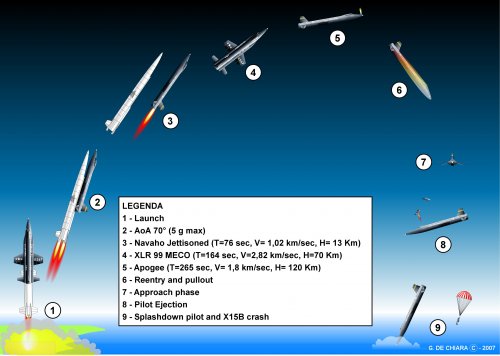

Based upon flightglobal drawings (kindly provided by hesham) I enclose the new and updated version of mine ones dedicated to X-15B topic.


Enjoy them...


Attachments

  • X-15B_01 new.jpg
    X-15B_01 new.jpg
    189 KB · Views: 59
  • X-15B_02 new.jpg
    X-15B_02 new.jpg
    252.8 KB · Views: 60
  • X-15B flight profile new.jpg
    X-15B flight profile new.jpg
    667.5 KB · Views: 66

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

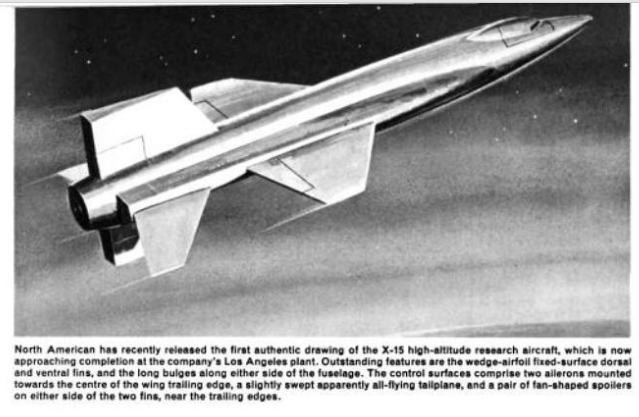

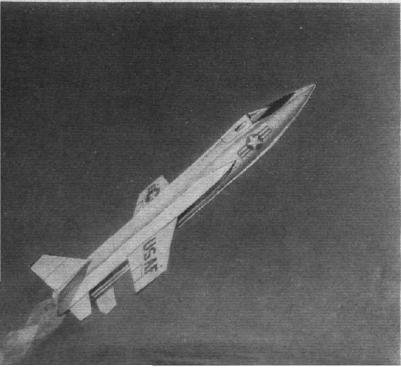

The two pictures from Flight 14 February1958 first appear in Aviation Week 3 February 1958. In the 14 April 1958 edition is a picture of the X-15 as we correctly know it and is labelled thus, "North American Aviation artist's drawing of X-15 rocket research plane is first official drawing, confirming accuracy of Aviation Week drawing and article". Accurate in the sense that they almost got it right except for the tailplanes and cockpit/nose area.

Where did the picture of the X-15 on the Navajo come from any idea of date?
Regards,
Barry


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
From Great Expectations: North American's Exotic Advanced X-15 Concepts Part 1 by Dave Stern
American Aviation Historical Society Journal, Spring 2011.
Sub-orbital and fully Orbital X-15 programme.
Step I Standard generic X-15 31,250 pounds plus 1,500 pound payload.
Engine: XLR-99-RMI-1 fuel Flourine – Hydrogen
Pinnacle mounting atop single G-26 booster.
Downrange capability 1,115 nautical miles.
Step II Modified X-15A 34,850 pounds gross weight - advanced structural metals.
Pinnacle mounting atop middle booster of tri-parallel G-38 booster.
Two variants – Research package or photo reconnaissance.
Downrange capability 1,741 nautical miles.
Step III super advanced X-15B one man (two man also offered) low Earth orbital military missions.
Single seat 40,200 pounds gross weight. Modified Rocketdyne S-4 liquid fluorine-hydrogen.
Pinnacle mounting atop middle booster of tri-parallel G-38 booster.
Take off from Cape Canaveral pre-programmed to land (crash – pilot to parachute down) at Eglin Proving Ground Reservation.

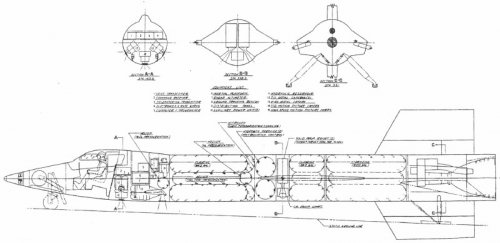

In the article is a cutaway side view of presumably the Step III but this has Fluorine and Hydrazine in its tanks?! Also has in the middle 2 down and slightly outward pointing solid rocket motors presumably for de-orbit?
Regards,
Barry


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
Barrington Bond said:
In the article is a cutaway side view of presumably the Step III but this has Fluorine and Hydrazine in its tanks?! Also has in the middle 2 down and slightly outward pointing solid rocket motors presumably for de-orbit?
Regards,
Barry


Thanks Barry, for such additional informations.
Anyway it would be great to have the scan of the cutaway view you mentioned.


Ciao
Giuseppe


JimK

ACCESS: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8
Barrington Bond said:
Take off from Cape Canaveral pre-programmed to land (crash – pilot to parachute down) at Eglin Proving Ground Reservation.

The section drawing does not correspond with the description of the mission described for the X-15B. What would be the purpose of the nosewheel and skid landing gear if the aircraft was to be abandoned after deorbit, and how would the film from the camera payload be recovered?


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
Good point!
I'm trying to get hold of the next 2 parts of the article perhaps they might have an errata... ;)
Regards,
Barry


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Hi,

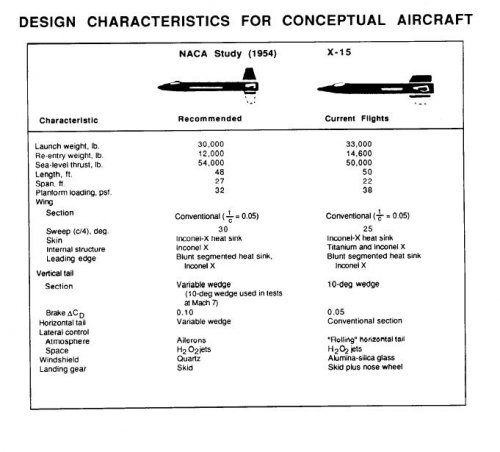

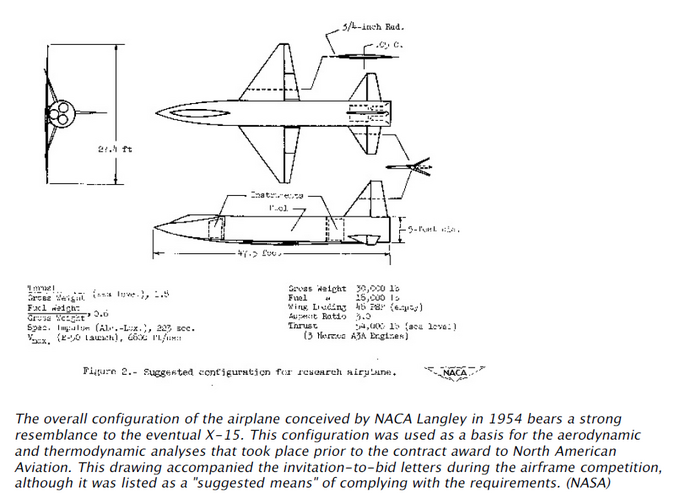

also from NACA,the recommended studied for a design of 1954.


Proceeding of the X-15 first flight 30th anniversary celebration report.


Attachments

  • 15.JPG
    51.4 KB · Views: 501

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Hi,

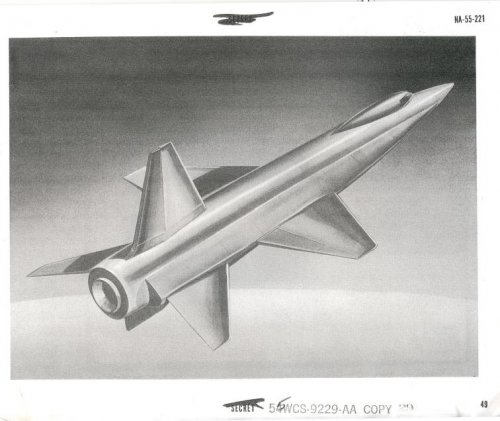

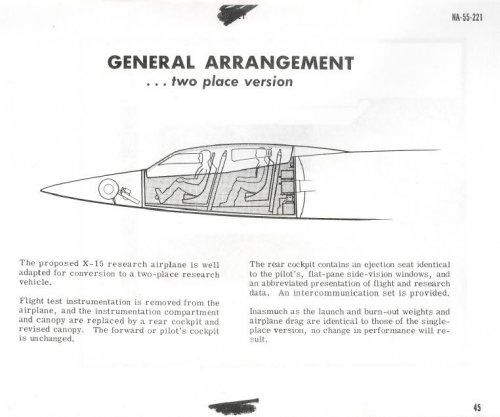

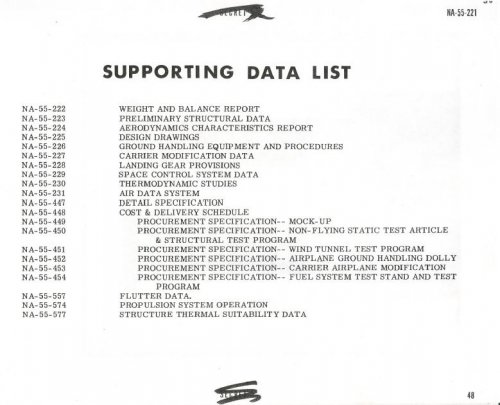

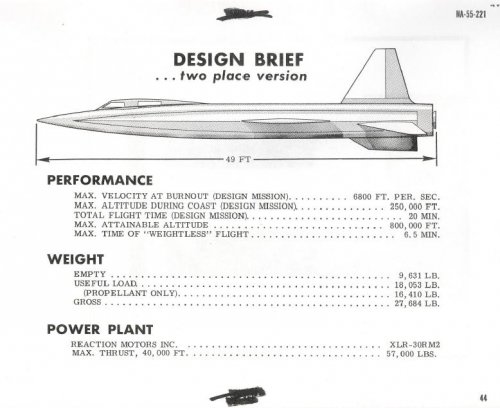

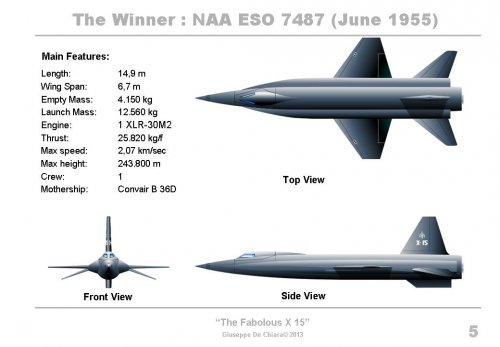

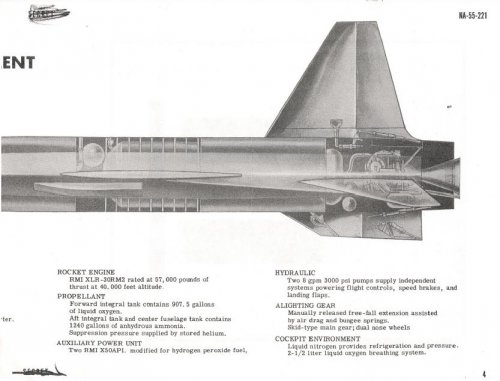

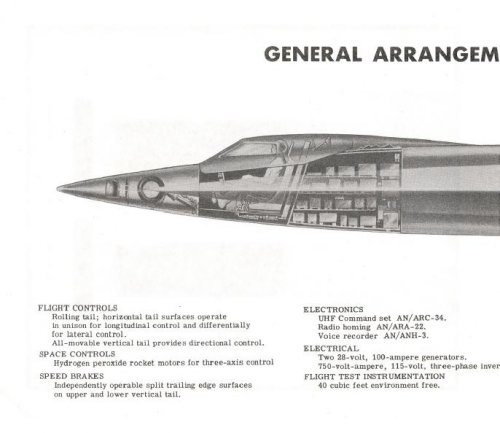

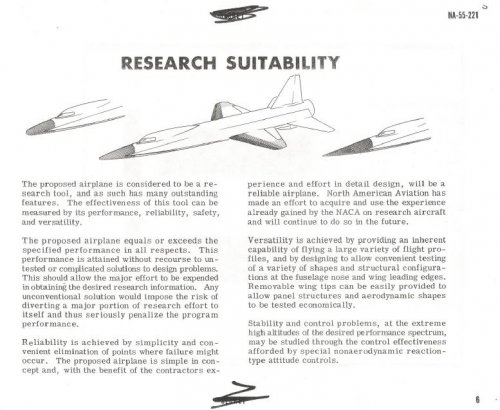

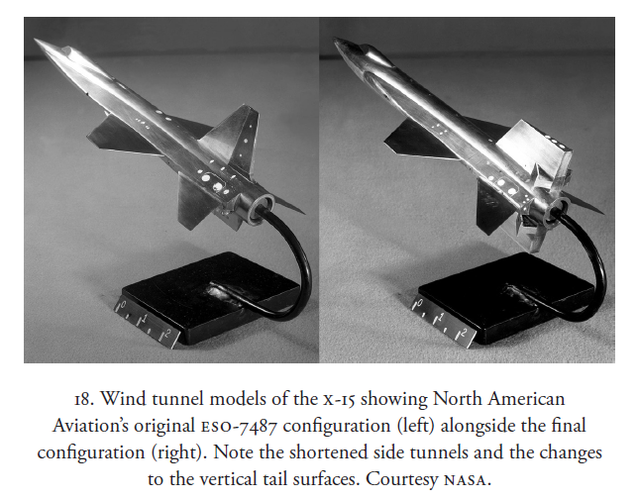

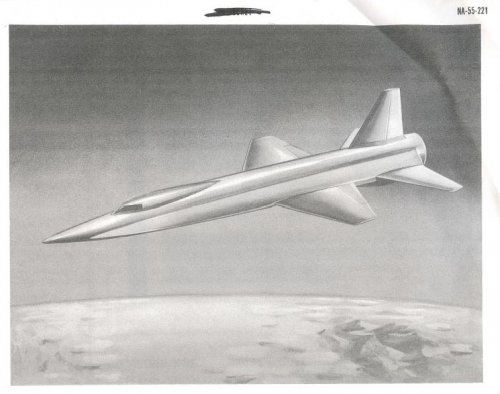

here is some drawings from old NASA file about North American X-15 of 1955.


Attachments

  • 1.JPG
    56.7 KB · Views: 411
  • 8.JPG
    61.8 KB · Views: 32
  • 7.JPG
    65.3 KB · Views: 36
  • 6.JPG
    51.8 KB · Views: 40
  • 5.JPG
    61.8 KB · Views: 44
  • 4.JPG
    78.8 KB · Views: 43
  • 3.JPG
    61.3 KB · Views: 389
  • 2.JPG
    43.4 KB · Views: 400

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

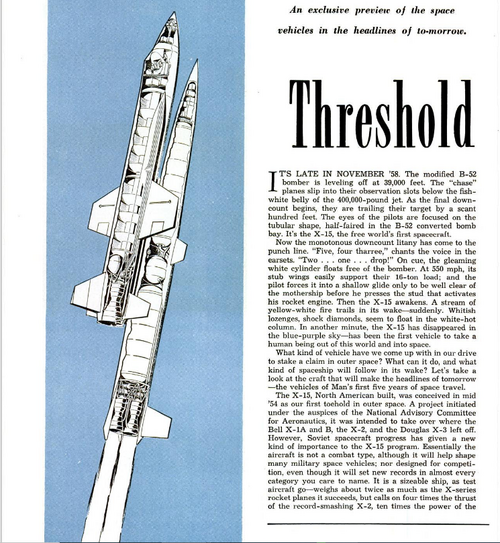

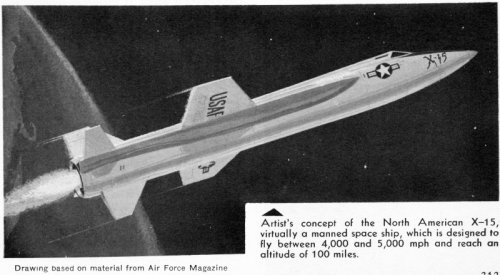

Foundations of Air Power, USAF publication published Sept 1958.

Note based on material from Air Force Magazine - must have been drawn for the book before its accurate shape was released!

Regards,
Barry


Attachments

  • X15-001.jpg
    109.4 KB · Views: 53

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Barrington Bond said:
Foundations of Air Power, USAF publication published Sept 1958.

Note based on material from Air Force Magazine - must have been drawn for the book before its accurate shape was released!

Regards,
Barry


Nice drawing Barrington,


by the way,I have that NASA report,if someone want it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467

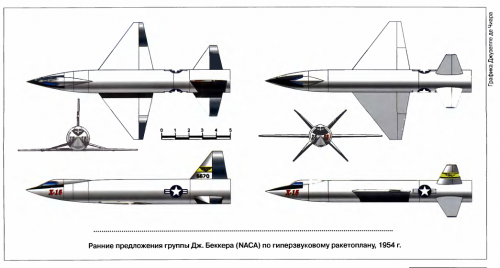

From the book; Космические крылья


here is an early artist drawings to North American X-15 aircraft,the left with a cockpit
step forward and the right with X-tail.


Attachments

  • X-15.png
    249.9 KB · Views: 74

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
hesham said:
From the book; Космические крылья


here is an early artist drawings to North American X-15 aircraft,the left with a cockpit
step forward and the right with X-tail.


Such drawings are mine ones.... ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
archipeppe said:
Enclosed my personal interpretation of X-15B/Navaho concept. It was realized in 2007 for the AstronautiCon 2 (held in Montecatini near Florence) and also printed out inside the Космические крылья ("Space Wings") book, by Vadim Lukashevitch and Igor Afanasiev.

Anyway I could exploit latest drawings provided by hesham in order to update my job.

My dear Archipeppe,

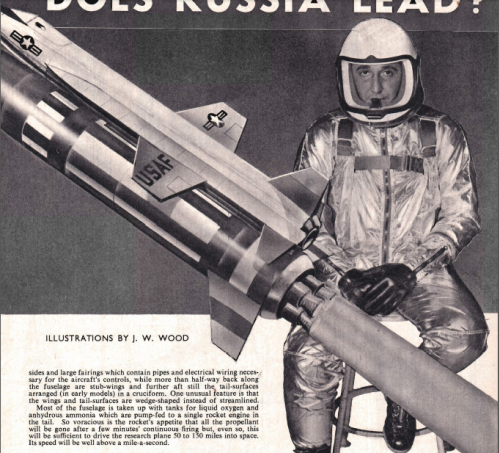

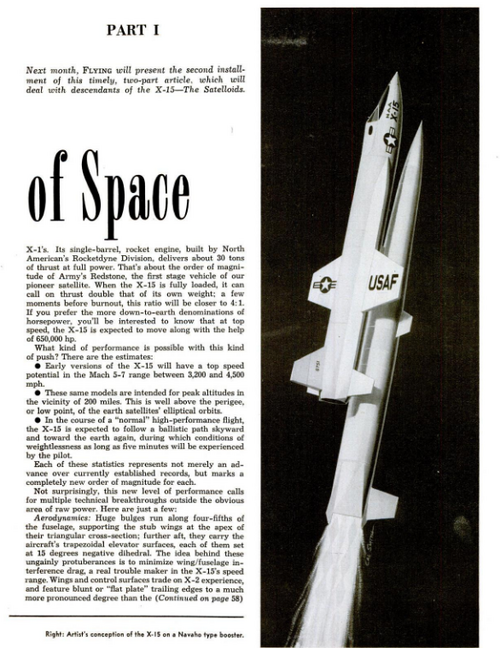

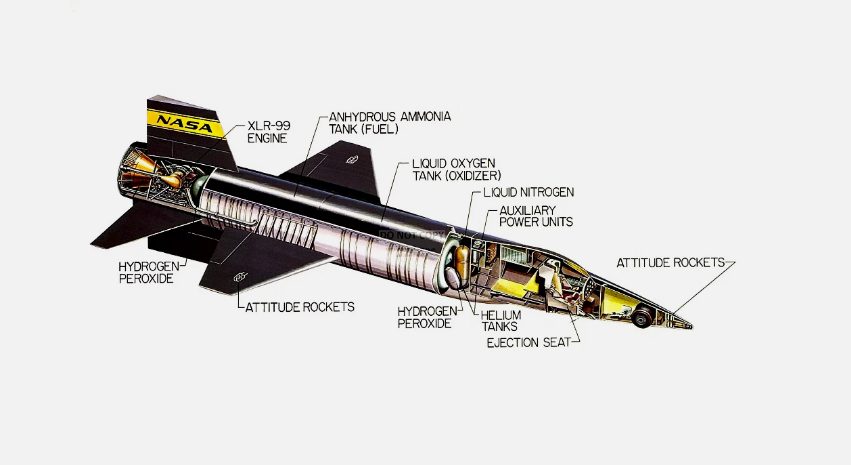

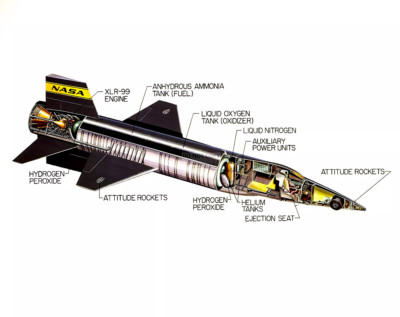

here is an artist drawing to X-15 with Navaho rocket-booster,intended to go to the Moon,
also some drawings from Astronautix site.

Flying Review 6/1958


http://www.astronautix.com/craft/x15b.htm


Attachments

  • 1.png
    868.1 KB · Views: 48
  • 1.jpg
    19.3 KB · Views: 64

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
hesham said:
archipeppe said:
Enclosed my personal interpretation of X-15B/Navaho concept. It was realized in 2007 for the AstronautiCon 2 (held in Montecatini near Florence) and also printed out inside the Космические крылья ("Space Wings") book, by Vadim Lukashevitch and Igor Afanasiev.

Anyway I could exploit latest drawings provided by hesham in order to update my job.

My dear Archipeppe,

here is an artist drawing to X-15 with Navaho rocket-booster,intended to go to the Moon,
also some drawings from Astronautix site.

Flying Review 6/1958


http://www.astronautix.com/craft/x15b.htm


Great find, many thanks Hesham!!!!


BTW the Flying Review drawing is really interesting since it maches (more or less) with my drawings.
Only the booster seems to be rahter a fantasy product, I mean that probably should represent some sort of Saturn 1 (ahead of its times) or "Super Jupiter" or some four engined Titan II.
