Delta-wing X-15

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Hi,

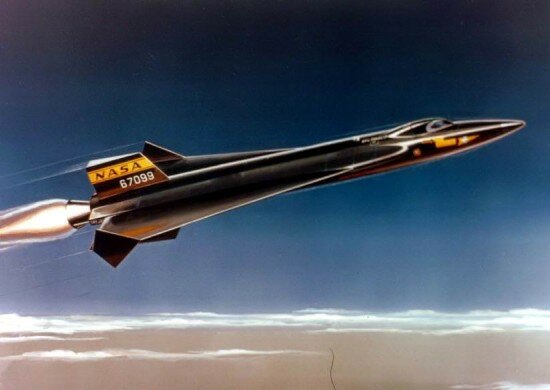

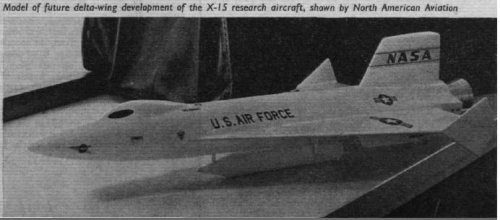

here is the North American delta-wing X-15 research aircraft project.
http://www.flightglobal.com/PDFArchive/View/1966/1966%20-%201382.html


Attachments

  • Delta-wing X-15.JPG
    Delta-wing X-15.JPG
    31.5 KB · Views: 925

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,649
Reaction score
666
needs a XB-70 as Launch platform

picture from here
http://xplanes.free.fr/x15/index.html
French only webpage


Attachments

  • x15d_13.jpg
    92.3 KB · Views: 895

CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
Assuming that the XB-70 was used as a launch aircraft, what speed/altitude/attitude would be required for successful separation between the X-15 and XB-70?

Did the XB-70 + X-15 combination ever make it as far as wind tunnel testing, or was the painting of the X-15 launching from the XB-70 merely a piece of PR artwork?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,905
Reaction score
1,139
Website
www.aerospaceprojectsreview.com
CFE said:
Did the XB-70 + X-15 combination ever make it as far as wind tunnel testing, or was the painting of the X-15 launching from the XB-70 merely a piece of PR artwork?

It was more PR than engineering. By that point, it was well known that launching something off the back of a Mach 3 plane was suicide.

There were also plans for launching from underneath a B-70 (such as the orbital X-15B proposal), but those would have required either landing gear modifications or launching from a trolley of some kind.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

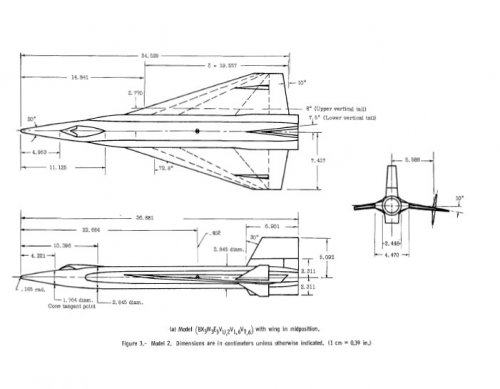

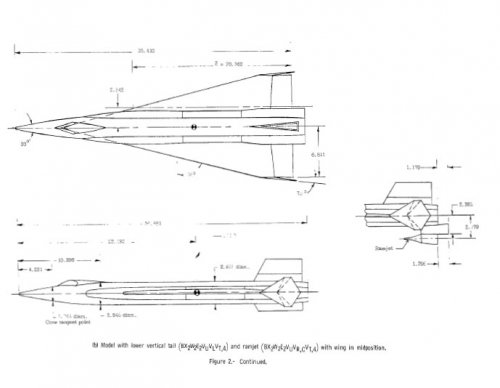

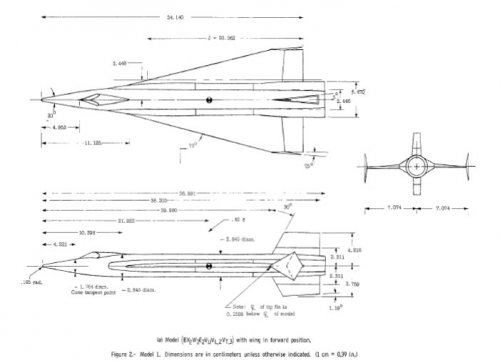

In the late '60s NASA studied at least two basic delta X-15 configurations, with two variations of one (wing slightly forward in one). All dimensions are in centimeters. Don't know scale used. Original report here http://hdl.handle.net/2060/19700001407


Attachments

  • Delta-X-15-3.jpg
    41.4 KB · Views: 243
  • Delta-X-15-2.jpg
    32.4 KB · Views: 246
  • Delta-X-15-1.jpg
    37.8 KB · Views: 256

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303

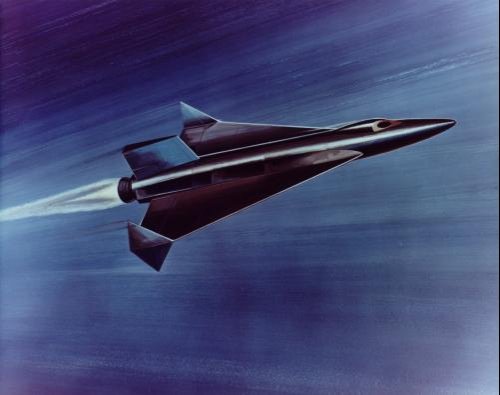

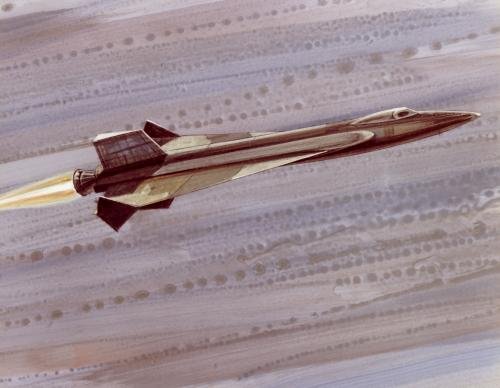

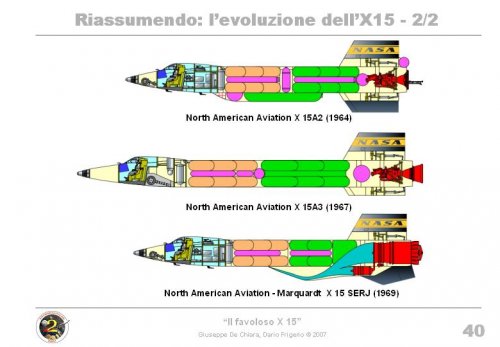

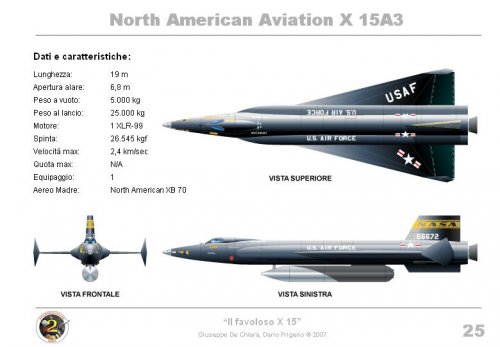

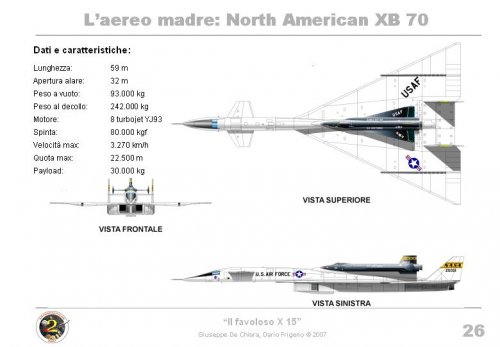

That's my personal contribution to this interesting topic (extracted from a presentation I did the last November in Montecatini to the last AstronautiCon convention...).

Enhoy it....


Attachments

  • Slide25.JPG
    43.5 KB · Views: 433
  • Slide26.JPG
    41.9 KB · Views: 462
  • Slide40.JPG
    48.4 KB · Views: 483

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

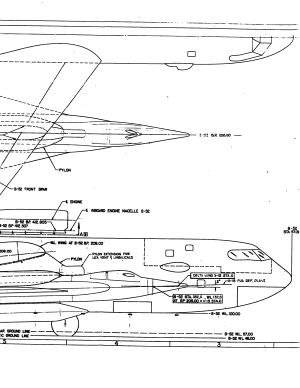

Dennis' opus of the X-15 program finally freely available online here http://hdl.handle.net/2060/20080008340. Interesting and precise info on the delta-wing X-15. And at page 306 a fine series of drawing of the B-36D carrier aircraft, for Archipeppe, in case he wanted to update his presentation rendering... ;)


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
Skybolt said:
(...) And at page 306 a fine series of drawing of the B-36D carrier aircraft, for Archipeppe, in case he wanted to update his presentation rendering... ;)

Of course Skybolt!!

Many thanks for your precious suggestion, I'd really missed these info..... :)


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,016
Reaction score
248
Skybolt said:
Dennis' opus of the X-15 program finally freely available online here http://hdl.handle.net/2060/20080008340. Interesting and precise info on the delta-wing X-15. And at page 306 a fine series of drawing of the B-36D carrier aircraft, for Archipeppe, in case he wanted to update his presentation rendering... ;)

What a great read, thanks for sharing this!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870

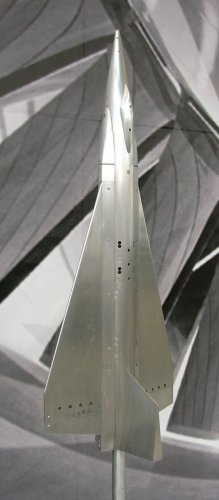

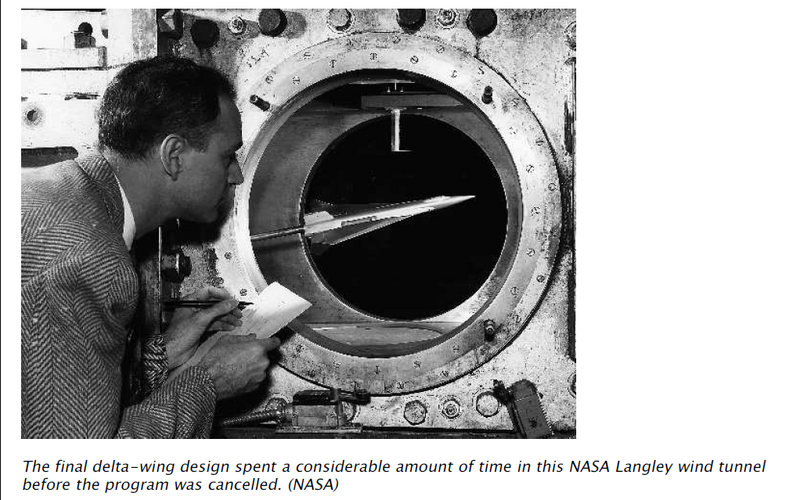

Delta-wing X-15 wind tunnel model from
photo (c) Greg Goebel
Seattle Museum of Flight, Washington
source http://www.vectorsite.net/gfxpxc_10.html


Attachments

  • Yax15_2b.jpg
    151.6 KB · Views: 199

RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
926
Reaction score
374
Orionblamblam said:
CFE said:
Did the XB-70 + X-15 combination ever make it as far as wind tunnel testing, or was the painting of the X-15 launching from the XB-70 merely a piece of PR artwork?

It was more PR than engineering. By that point, it was well known that launching something off the back of a Mach 3 plane was suicide.

There were also plans for launching from underneath a B-70 (such as the orbital X-15B proposal), but those would have required either landing gear modifications or launching from a trolley of some kind.
Uhm "suicide?" How so? It was well known that launching off the back of a delta-wing platform was relativly safe as long as positive control was maintained at all times between the launch vehicle and the launched vehicle. Due to the more pronounced "nose-up" atitude of the supersonic carrier aircraft there was also a much bigger "space" between the back of the aircraft and the "mach-shock" of the carrier aircraft than a bottom mount position. NASA did a study of using their own SR-71s to launch a fairly substantial sized test vehicle in the 90s and no issues were indicated.

I suspect you're thinking of the M-20/D-21 accident? That was due to a control failure on the drone. The drones were set at an angle for launch where they had positive lift away from the carrier vehicle, with the drone control systems taking active command JUST before the drone passed through the CV Mach-shock. In this case a malfunction of the control system ordered the drone to pitch DOWN as soon as the system took over and caused it to collide with the CV.

The biggest issue with launching the proposed delta-wing X-15 (and booster in some cases) from the XB-70 was ensuring positve seperation prior to engine ignition. The X-15 was rather "heavy" for its wing loading in all configurations so there were a lot of questions if it could generate enough overall "lift" in the realtivly "still" (calm at any rate) air flow over the back of the delta-wing.

Going to read those reports and see if that's mentioned in there.

Randy


Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
394
Reaction score
21
IIRC, the built X-15s' stubby wings were rather 'square'. Would the delta form have less heating of their sharply swept leading edge ??


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130

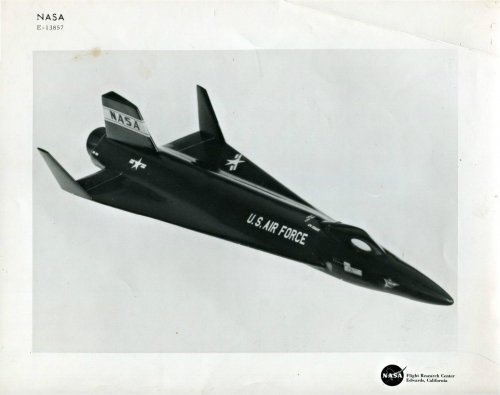

Delta-wing X-15 with canted wingtip verticals. I am unfamiliar with this variant.


Attachments

  • NAA X-15A-3 NASA Model.jpg
    NAA X-15A-3 NASA Model.jpg
    151.6 KB · Views: 139

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,905
Reaction score
1,139
Website
www.aerospaceprojectsreview.com
That's an earlier iteration of the design, before NAA finalized the "diamond" shaped tip-fins. Oddly, Lockheed had a CL-number for this configuration... I'm not sure why Lockheed would think they were going to build an X-15. Perhaps they thought they'd get the contract to modify an NAA X-15A-2 into this configuration.

A

AAAdrone

Guest
I'm guessing NAA must have been insecure about whether the central tail had enough area to provide enough yaw authority at such high speeds and tried to compensate by sticking two more vertical surfaces on there. It wasn't the first time they had that concern. Their Long Range Interceptor designs had two vertical surfaces on the wings mid-span.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13
I understand the delta wing configuration was to be used with a Titan, Navaho or a Scout launch vehicle and was therefore probably seen as a possible space vehicle - although that's just my guess.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

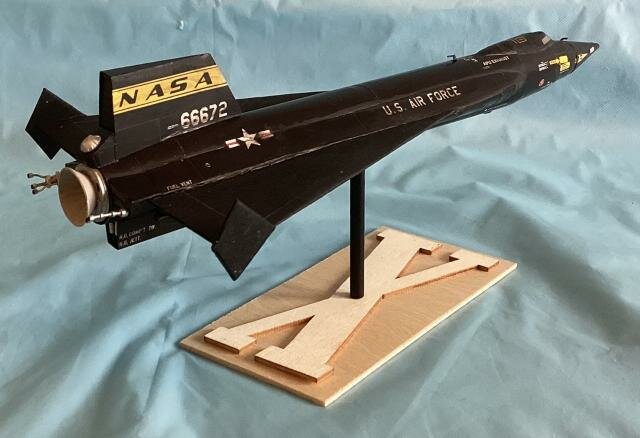

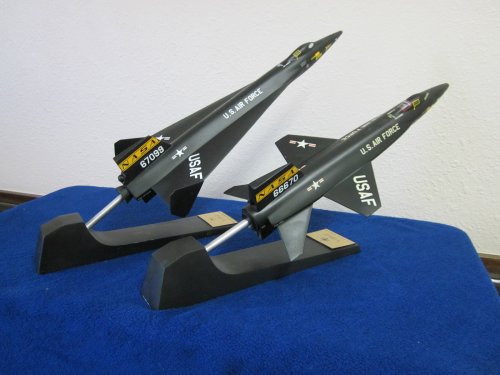

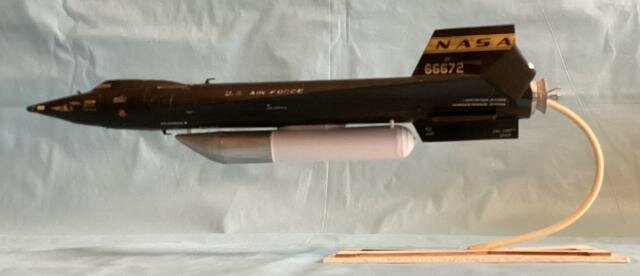

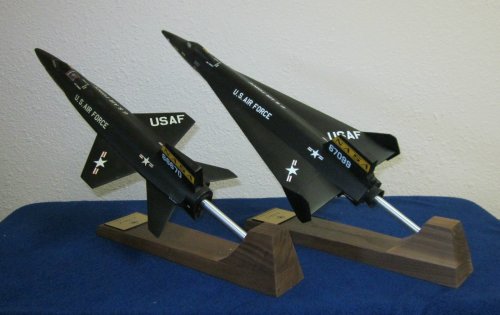

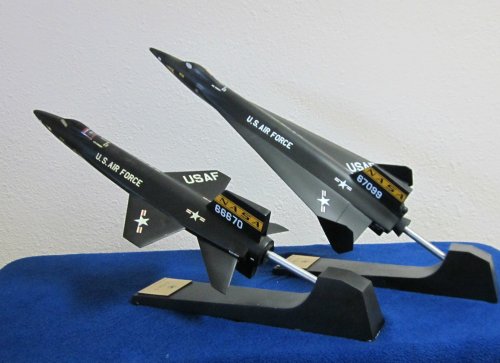

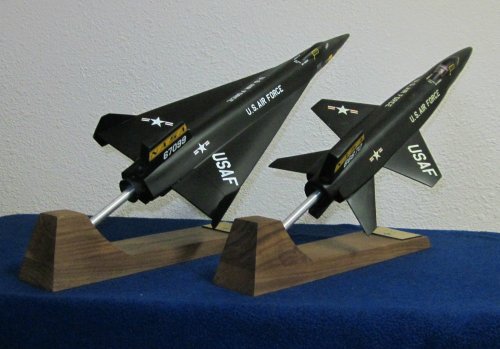

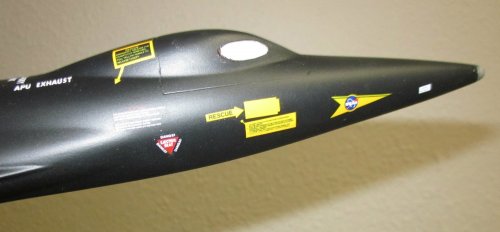

Model of North American X-15 and North American X-15-A3 manufactured by Topping found on eBay.

Source:
http://www.ebay.com/itm/Rare-Topping-X-15-and-X-15-A3-in-NASA-markings-/180995606515?pt=LH_DefaultDomain_0&hash=item2a242dc7f3


Attachments

  • $(KGrHqN,!psFBcucSFSQBQeHcg(6Fw~~60_57.JPG
    455 KB · Views: 150
  • $(KGrHqF,!lkFBsdsy2hHBQeHcbDPkw~~60_57.JPG
    346.7 KB · Views: 145
  • $(KGrHqF,!lMF!iFJh4nmBQeHcTN9K!~~60_57.JPG
    229.3 KB · Views: 148
  • $(KGrHqN,!o8FBkT2zGLGBQeHcR(Uw!~~60_57.JPG
    408.3 KB · Views: 156
  • $(KGrHqN,!okFBL5c6MS3BQeHcKb4Ng~~60_57.JPG
    374.1 KB · Views: 163

GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
791
Reaction score
121
The description is somewhat confusing. Is he saying it's a Topping X-15A3 or that he's modifying a Topping model to create an X-15A3?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
George Allegrezza said:
The description is somewhat confusing. Is he saying it's a Topping X-15A3 or that he's modifying a Topping model to create an X-15A3?

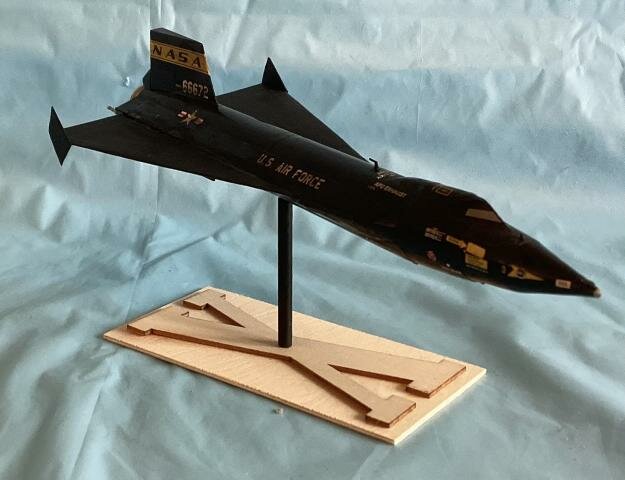

Shoot! Re-reading the description, it looks like he's modifying an existing Topping X-15 model to create the X-15A3.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86

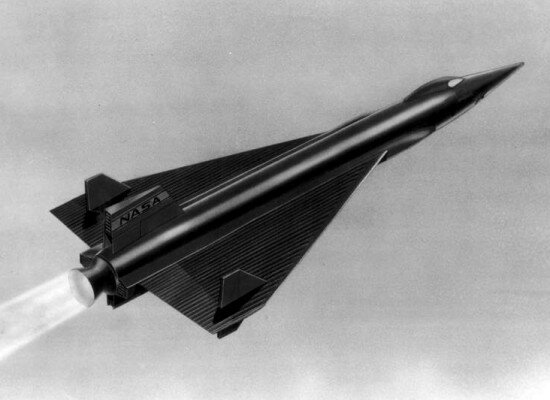

Attachments

  • X-15 Delta 1967.jpg
    X-15 Delta 1967.jpg
    22.3 KB · Views: 475

airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
7
Website
RetroFlight.com
Like those wind tunnel pics....the next step up would have been the SERJ that would have been world beater. Just google it.....


Zeppelin

ACCESS: Confidential
Joined
May 29, 2009
Messages
82
Reaction score
9
What was the proposed use for this delta adaptation. Was it to be carried close to enemy borders ( halfway around the globe ) released to enter at high speed, deliver a payload/bomb on a city and have fuel to land. I'm assuming this was all to be a similar flight altitude to the early X-15 flights, as in almost sub orbital. How far was it planned to fly? and was there a[/size]ny though[/size]t to put it into orbital. if so was any additional re-entry protection considered.? I [/size]know they painted some or one of the later X-15s white. ( like the lead entry photo ) I presume this was heat ablative paint - only enough to survive the heat friction generated by the mach 6+ speed. Best regards


Byeman

ACCESS: Top Secret
Joined
Jan 8, 2010
Messages
794
Reaction score
19
Zeppelin said:
What was the proposed use for this delta adaptation. Was it to be carried close to enemy borders ( halfway around the globe ) released to enter at high speed, deliver a payload/bomb on a city and have fuel to land.

Huh? It was a test vehicle and not a weapons system.


Zeppelin

ACCESS: Confidential
Joined
May 29, 2009
Messages
82
Reaction score
9
Sorry, I guess I mistook all that launching of the back of the XB-70, or riding atop of large rockets to have something to do with fast deployment military applications. although, I could not quite see where they could carry anything other than a awful lot of fuel. Apologies, I should apply these Q's to your Future Speculations forum. That said would using a rocket launch begin to approach an orbital use? or was the rocket ride just to reach a high altitude separation.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
I'll help you out, bud. Here's a link the the Orbital X-15 thread. ;)

http://www.secretprojects.co.uk/forum/index.php/topic,230.0.html


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
647
Reaction score
263
source: https://static1.squarespace.com/static/56c78acd0442626b2590f5ea/t/59059235b3db2ba7ea02a699/1493537352324/2011-1_Spring.pdf


Attachments

  • naa x15a3.png
    naa x15a3.png
    194.3 KB · Views: 201
  • naa x15a3 model.png
    naa x15a3 model.png
    782.4 KB · Views: 197
  • naa x15a3 art.png
    naa x15a3 art.png
    792.5 KB · Views: 172
  • naa x15a3 b70 carrier.png
    naa x15a3 b70 carrier.png
    140.2 KB · Views: 160
