X-15 ?

airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
7
Website
RetroFlight.com
Aside from this single artistic rendering I have not seen any other documentation of this X-15 design concept. Was this merely a single artistic exercise or were there actually design studies, drawings, plans etc... to back it up?


Attachments

  • X15 Dart.jpg
    X15 Dart.jpg
    45.3 KB · Views: 496

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
For starters, it seems to be suggesting air-breathing engines, which in turn suggests to me it was an artist's concept before knowledge of the X-15's eventual powerplant became available.


airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
7
Website
RetroFlight.com
For starters, it seems to be suggesting air-breathing engines, which in turn suggests to me it was an artist's concept before knowledge of the X-15's eventual powerplant became available

I have one lead to go on which if accurate would rule out pre-X-15 design but rather late fifties follow-on concept. NACA Ames Aeronautical Laboratory 1957 "beyond X-15" mach 10 technology demonstrator concept? Anyone able to substantiate or elaborate on this?


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,290
Reaction score
1,246
This picture appears in Dennis Jenkins' Space Shuttle with this caption:
One of the most radical advanced X-15 proposals was this delta-wing configuration that was to have been powered by a pair of ventral scramjets. Noteworthy are the canards mounted under the windscreen, which were to be used for trim during transonic and low-supersonic flight, and retracted into the fuselage during high-speed portions of flight (North American Rockwell)

Sadly, there are no additional details in the text.

Edit: The Jenkins book does have a section on the Ames Mach 10 concept, which was not this design. I don't have a scanner, but it's discussed in APR V2N4.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,907
Reaction score
1,140
Website
www.aerospaceprojectsreview.com
TomS said:
Sadly, there are no additional details in the text.

There are very few details to be had, period. The artwork, which I found a very nice glossy of in the Boeing archives some years back, was clear, detailed and very impressive, but nobody knows anything about the design other than the art was in an X-15 binder.


airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
7
Website
RetroFlight.com

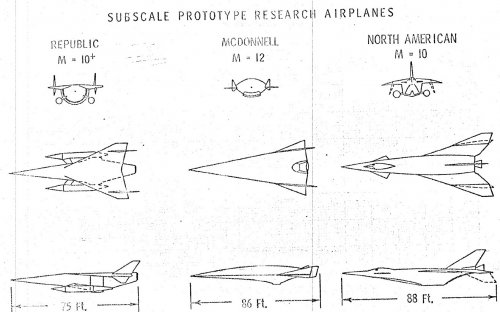

North American Emblem on the vertical stab. Now is that a single central vertical stab? Or is there possibly another vertical stab hidden from view by the fuse? I was hoping to find a drawing to clarify that


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

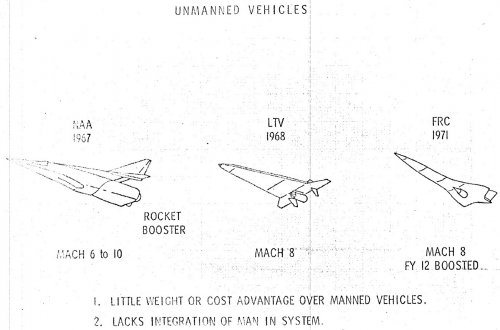

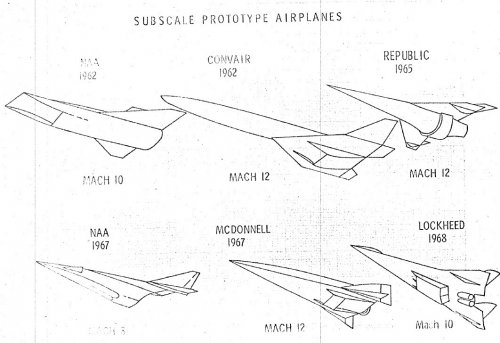

And an unmanned version with rocket booster.


Attachments

  • Hyper2.jpg
    188.5 KB · Views: 305
