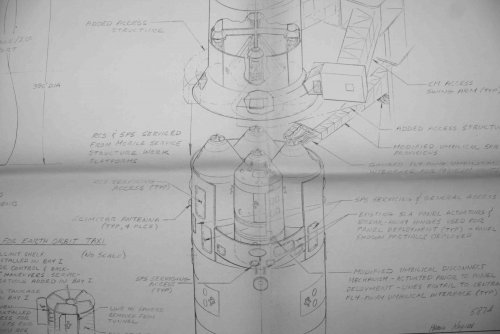

Here was a proposal to launch four Apollo spacecraft on a single Saturn V rocket.


Attachments

  • Apollo1.jpg
    211.1 KB · Views: 188
  • Apollo2.jpg
    223.2 KB · Views: 137

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
128
The presence of escape rockets suggests the CMs would be manned. Twelve astronauts in one launch -- any indication of what missions would be performed by this arrangement?


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,639
Reaction score
644
on first paper is text: Space Orbital Taxi

I think this 12 men launch to Space Station or Interplanetary Space ship in low orbit

from were are those picture ?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,901
Reaction score
1,134
Website
www.aerospaceprojectsreview.com
circle-5 said:
The presence of escape rockets suggests the CMs would be manned.

The abort towers, however, are shrouded within a structure that itself would have to be disposed of before the capsules could be jettisoned. This has "not man rated" written all over it.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
128
Orionblamblam said:
circle-5 said:
The presence of escape rockets suggests the CMs would be manned.

The abort towers, however, are shrouded within a structure that itself would have to be disposed of before the capsules could be jettisoned. This has "not man rated" written all over it.

But then, why have launch escape towers if nobody is on board during launch? Don't you think the "LES Fairing" and "Blow-Out Panels" could do just that -- be jettisoned or shredded as part of the escape procedure? The extra delay would be minimal. It would really help to see the rest of the drawing -- I'll bet there is a fairing abort motor up on top.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,901
Reaction score
1,134
Website
www.aerospaceprojectsreview.com
circle-5 said:
But then, why have launch escape towers if nobody is on board during launch? Don't you think the "LES Fairing" and "Blow-Out Panels" could do just that -- be jettisoned or shredded as part of the escape procedure? The extra delay would be minimal.

In such matters, milliseconds count. As does the ability to fly away without having to fly through a cloud of debris or other escaping capsules.

There's just something goofy about this concept.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,639
Reaction score
644
Orionblamblam said:
circle-5 said:
But then, why have launch escape towers if nobody is on board during launch? Don't you think the "LES Fairing" and "Blow-Out Panels" could do just that -- be jettisoned or shredded as part of the escape procedure? The extra delay would be minimal.

In such matters, milliseconds count. As does the ability to fly away without having to fly through a cloud of debris or other escaping capsules.

There's just something goofy about this concept.

for me too
the drawings look more like NASA engineer invents it in his spare time
as a serous proposal

but the top of the shroud is missing on picture
maybe there a solid rocket on the top, that pull the thing off Apollos

by way were are this picture coming from ? , any source on that ?


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,777
Reaction score
154
Michel Van said:
by way were are this picture coming from ? , any source on that ?

It's real, and it was produced by a major space contractor in 1969 that was obviously trying to sell more stuff to the govt. I'll eventually write something about it.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
128
Orionblamblam said:
In such matters, milliseconds count.

Sometimes, emergency escape systems are less than optimal. I remember the STS Orbiter "escape pole", designed post-Challenger, where astronauts had to slide out one by one along a telescoping pole, deployed by the crew from an open hatch, all while the Orbiter politely refrained from blowing up. By comparison, the LES fairing here could probably be out of the way in under 500ms. But I agree this whole CSM cluster concept does not inspire confidence.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
Interesting about the docking ports and thrusters on the launch? rocket.

Regards,
Barry


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13
Hmm, interesting. According to information I have the diameter of the Apollo CSM was 3.9 m.
The diameter of the third stage Saturn V or Saturn C second stage was 6.6 m.
This means that if you place two CSMs next to each other you get a snug fit within a diameter of 7.8 m.
Kind of does not fit.
I suggest somebody was fantasising and doodling....


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,777
Reaction score
154
They used the same diameter as the S-II stage, 396 inches, or 10 meters.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,639
Reaction score
644

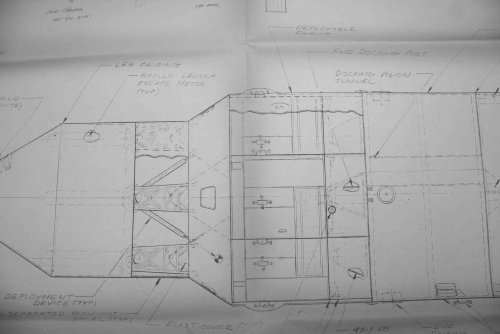

I look closer on second picture

the 4 CSM are not on a Saturn-II stage but om a Space Station
why should have it RCS thruster and Dockingports ?

all this is a one launch 12-men space station in 180 x 500 km orbit

say The name Harold Kaysen something ?
