Fiat AS. 14

[lucamax]

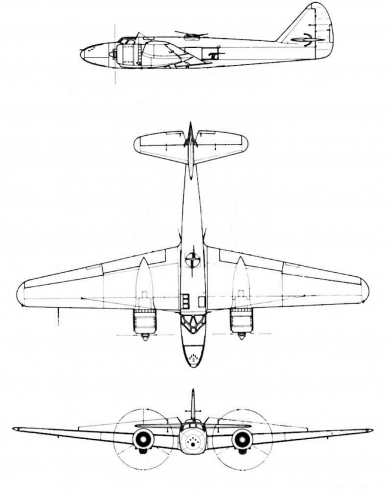

Hi friends! I was looking for a 3-view of the Fiat AS.14, the bomber version of the seaplane Fiat R.S. 14. I didn't find anythig so I decided to do it by myself. I retouched a 3-view of the seaplane aircraft... I know that it's not a correctly and accurate draw, but I did mybest... I'd like to share with you and to know if you appreciate it: tell me suggestion to make better! :-D



[lucamax]

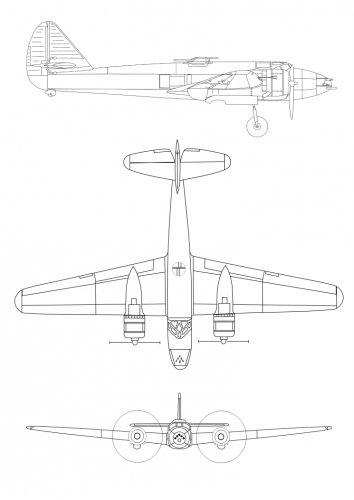

Hi, I retouched again the 3-view and this is the final vork... Hope you'll like it!



[zeroc]

Just found. Very useful. Thank You
