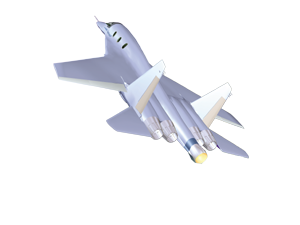

Quite a paper project so far with no real involvement from Sukhoi itself.
http://engine.aviaport.ru/issues/52/page32.html


Attachments

  • pg32pc03.png
    51.2 KB · Views: 760
  • pg32pc01.png
    168.3 KB · Views: 716
  • pg32pc02.png
    58.4 KB · Views: 555

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

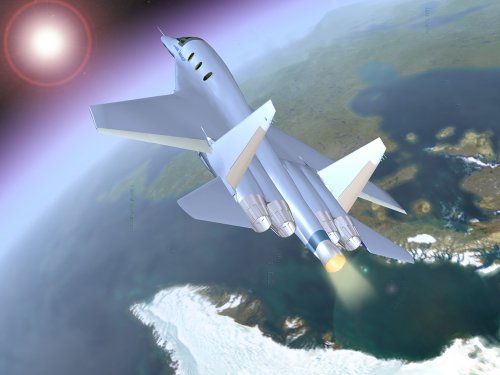

Just wonder how they gonna feed all that 4 engines at suborbital version and where all these intakes would fit.


Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
11
That seems to be the problem of a lot of high performance projects... All of the power, none of the fuel capacity ::)

Makes it hard to take such things seriously.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
16
They should go back and put two bigger engines, or even two of the same engines the Su-34 has now, I bet they can do it.

Maybe D-30s would work, or if they want to try a Western engine, F110s.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,510
Reaction score
1,126
Pictures from their stand at the Hydro Aviation Show September 2008
http://www.flankers-site.co.uk/mos2008_day04.html


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,164
Reaction score
101
The 4-engine layout vaguely reminds of the kitbash Matej posted on here a while back:

http://www.secretprojects.co.uk/forum/index.php/topic,4071.0/highlight,sukhoi+t-12.html

The tail rocket reminds me of this beast from the anime series Stratos 4:

http://cgi.ebay.com/NEW-Cartoon-Stratos4-Fighter-SAC-0-Stratos-0-4-MIP_W0QQitemZ180283735608QQihZ008QQcategoryZ1345QQrdZ1QQssPageNameZWD1VQQcmdZViewItemQQ_trksidZp1638Q2em118Q2el1247


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
So well, FanStream team is finally here...


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
193
Website
www.hitechweb.genezis.eu
I am curious why it has four jet engines. Aircraft of this type does not need the performace like a fighter. (supersonic speed, short take off and landing...). Using the only two of them will cause reducing much dead weight in the upper atmosphere. In fact there cant be the big difference between start of the rocket engine during high subsonic or low supersonic speed.


chornedsnorkack

ACCESS: Confidential
Joined
Oct 1, 2008
Messages
59
Reaction score
2
Matej said:
I am curious why it has four jet engines. Aircraft of this type does not need the performace like a fighter. (supersonic speed, short take off and landing...). Using the only two of them will cause reducing much dead weight in the upper atmosphere.

Because you´d like more safety margin in case one engine fails? If you have just two engines, the other engine must be overpowered to fly the plane alone. If you have four smaller engines, then you can fly on three remaining engines, and remember to make emergency landing before some of the three also fail.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
193
Website
www.hitechweb.genezis.eu
Not likely. Look at B777 and hundreds of other passanger planes. And in fact if it is the suborbital plane, then the most important thing you want to do is to reduce the weight. Once the atmosphere density is too low, then every airbreathing engine is the dead weight and you need the additional rocket fuel to move it to stratosphere and back.


fanstream

ACCESS: Restricted
Joined
Oct 3, 2008
Messages
11
Reaction score
1

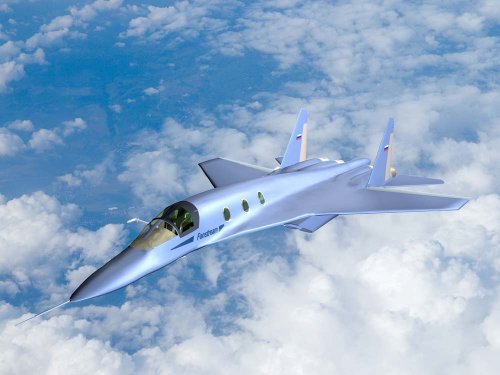

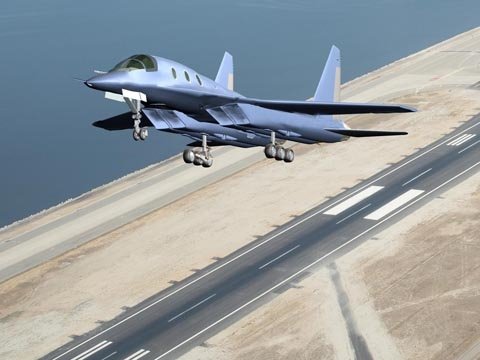

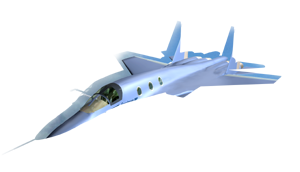

We add some SSBJ Fanstream project pictures.


Attachments

  • 241FDCBA.JPG
    63.2 KB · Views: 337

fanstream

ACCESS: Restricted
Joined
Oct 3, 2008
Messages
11
Reaction score
1

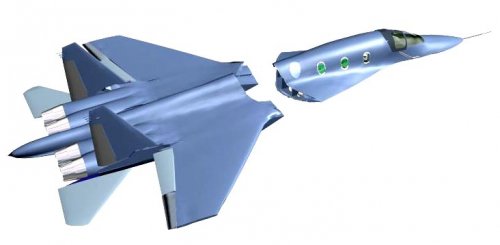

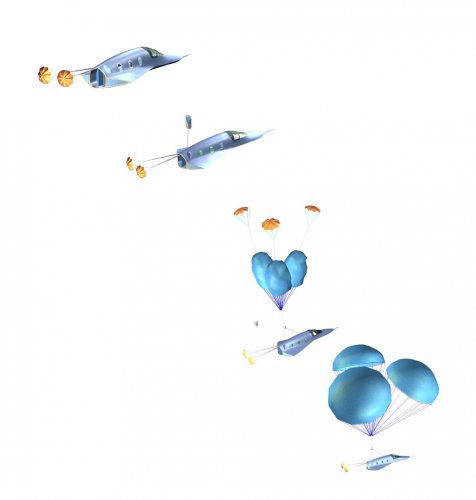

We add rescue system of Fanstream cabin


Attachments

  • Фанстрим_мульти&.jpg
    56.6 KB · Views: 173
