Fairchild FX fighter project (rival to the McDonnell-Douglas F-15)

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706

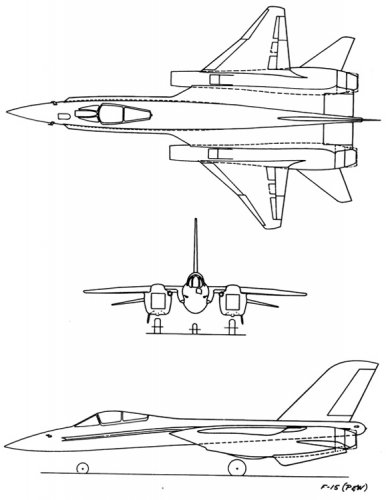

Fairchild F-15 (model number unknown)

Early VG configuration

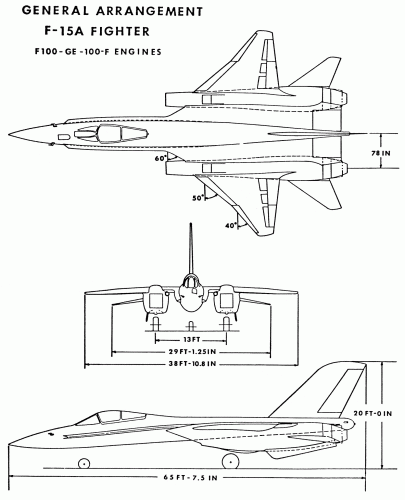

Final submission- fixed wing


Attachments

  • Fairchild-FX-VG.jpg
    67.7 KB · Views: 3,495
  • Fairchild-FX.jpg
    67.6 KB · Views: 2,852
  • FX-Fairchild-Republic.jpg
    55.7 KB · Views: 2,714
  • Fairchild-FX-Final.jpg
    59.4 KB · Views: 2,725

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706
Any US members fancy a trip to NASM in Washington?

http://www.nasm.si.edu/research/arch/findaids/pdf/Fairchild_Finding_Aid.pdf

[Box 178]
Folder 2 Fairchild Hiller Republic Aircraft Division F-X Phase 1B/C Technical Resources, October 18, 1968

[Box 189]
Folder 6 Fairchild F-15 brochures

[Box 381]
Folder 8 F-15 pamphlets

[Box 386]

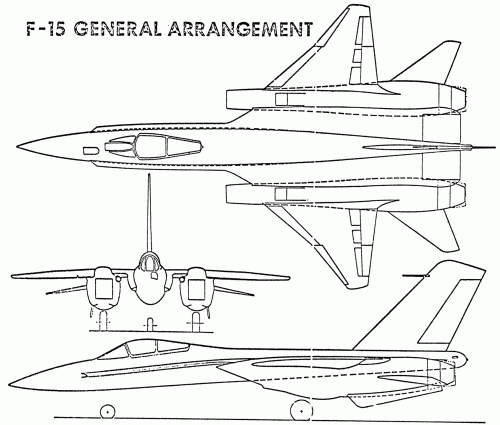

Folder 9 ...and F-15 General Arrangement

[Box 396]
Folder 1 F-15, Air Superiority Fighter pamphlet, advertisements, brochures, photographs and
stickers, 1969
Folder 2 F-15 dismantling, September 1970, photographs
Folder 3 F-15 Design Team, biographical sketches and photographs
Folder 4 F-15 articles
Folder 5 United States Air Force, information on the F-15, February – November, 1969
Folder 6 F-15 contract awarded to McDonnell Douglas, December 23, 1969, statements and
articles
Folder 7 F-15 articles, 1969-1970

[Box 569]
Folder 12 F-15, promotional brochures

[Box 579]
Folder 19 F-15, advertisement order, June 18, 1969, “Happiness is the F-15”

[Box 588]
Folder 7 Fairchild Hiller and F-15, bumper stickers and correspondence


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
9,263
Reaction score
4,049
Website
www.aerospaceprojectsreview.com
This is, sadly, all that the NASM had of any real worth on the Fairchild F-15. A billion copies of the same lame "F-15 Thunder For The 70's" brochure that had nothing on the actual design, scattered throughout their files. And these few drawings. Sigh.

Anyway, you know where to get the higher rez versions...

[Removed - better copies later in topic - Admin]


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706

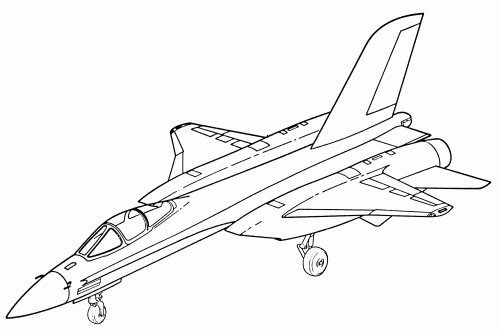

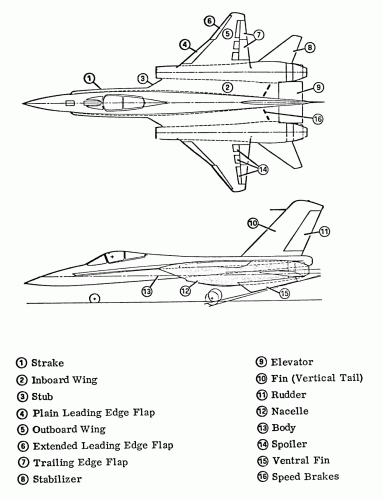

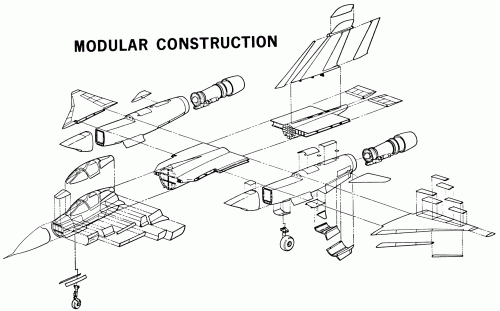

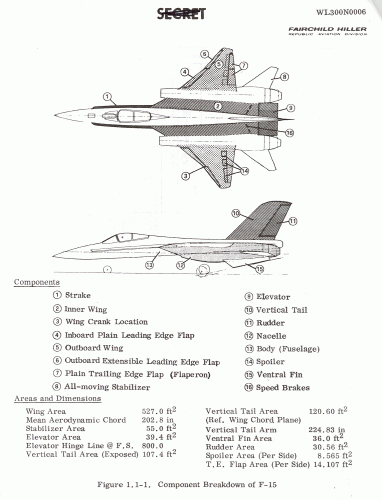

Scott's scans of the Fairchild FX cleaned up. Great design.


Attachments

  • fairchildf-15e2.gif
    115.3 KB · Views: 802
  • fairchildf-15d2.gif
    118.5 KB · Views: 946
  • fairchildf-15c.gif
    90.8 KB · Views: 880
  • fairchildf-15b.gif
    58.4 KB · Views: 948
  • fairchildf-15a.gif
    104.3 KB · Views: 2,321

Pyrrhic victory

This is going to hurt
Joined
Jan 31, 2008
Messages
73
Reaction score
33

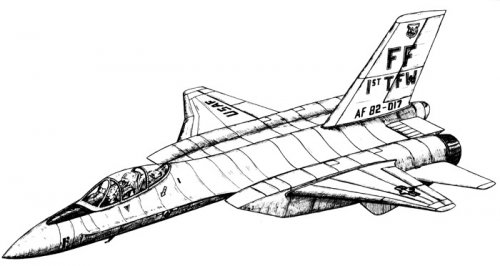

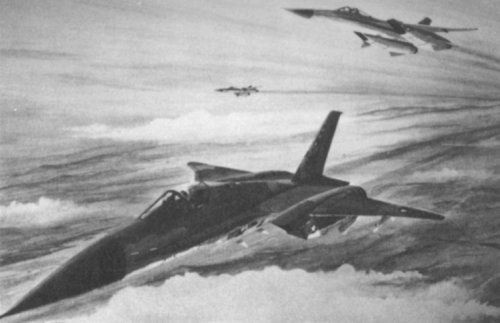

Artist rendition of Fairchild-Republic FX from warbird information exchange. Should be a color version out there somewhere.

Source:
Cradle of Aviation Museum via Leo Polaski and Mark Nankivil

http://www.secretprojects.co.uk/forum/index.php/topic,4512.msg35741.html#msg35741


Attachments

  • Fairchild-Republic_Thunder.jpg
    200.4 KB · Views: 736

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,238
Reaction score
788
Pyrrhic victory said:
Artist rendition of Fairchild-Republic FX from warbird information exchange. Should be a color version out there somewhere.

Source:
Cradle of Aviation Museum via Leo Polaski and Mark Nankivil

http://www.secretprojects.co.uk/forum/index.php/topic,4512.msg35741.html#msg35741

Great find!!!

I have always loved Fairchild FX (F-15) ever since I first sore it in the book 'The Thunder Factor'.
Was the 'Thunder' the official name for the design (as portraid in this picture!)
I look forward to a colour version of this picture and I salute the man who finds it!!!


Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,238
Reaction score
788
God I would give the splene of my enemy to have a coloured copy of these pictures (and the specifications) of the Fairchild FX design proposal!!!

Regards
Pioneer


Demon Lord Razgriz

ACCESS: Confidential
Joined
Nov 1, 2008
Messages
189
Reaction score
2
Pioneer said:
God I would give the splene of my enemy to have a coloured copy of these pictures (and the specifications) of the Fairchild FX design proposal!!!

Regards
Pioneer

You're not the only one... I wonder if the original paintings still exist somewhere? ???


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,882
Reaction score
3,922
I'd have swore both of these are on this site somewhere in color.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,238
Reaction score
788
Hey Sferrin - would you like that spleen gift rapped or snap frozen if you are able to find it? ;D

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,238
Reaction score
788
G`day gents

Does anyone know if Fairchild-Republic built a mock-up of their FX design??
I can not say that I have read anything acknowledging this.




Regards
Pioneer


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706

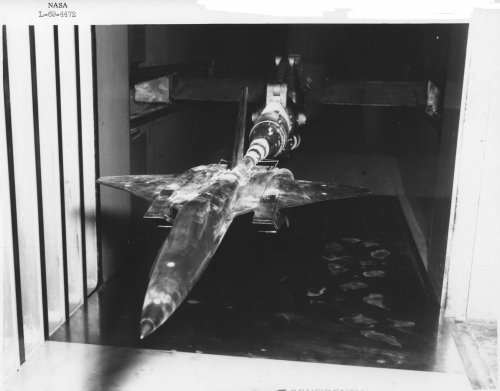

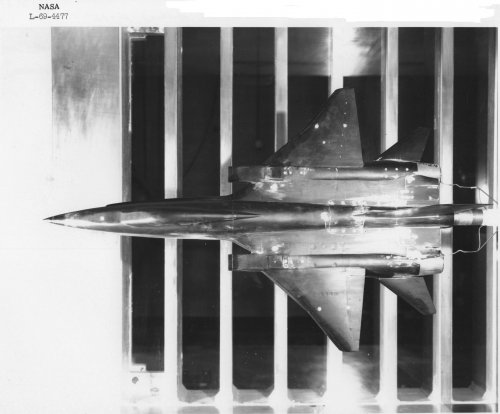

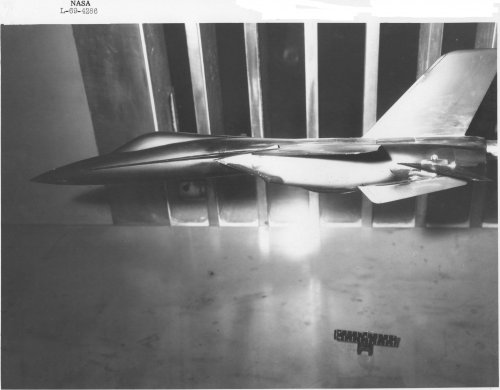

Fairchild F-15

http://crgis.ndc.nasa.gov/historic/Additional_Photos_for_Unitary_and_Continuous-Flow_Hypersonic_Tunnels_4#Republic_F-15_Model


Attachments

  • L-69-3761.jpg
    433.7 KB · Views: 461
  • L-69-4286.jpg
    380.1 KB · Views: 420
  • L-69-4477.jpg
    367.1 KB · Views: 441
  • L-69-4475.jpg
    322.6 KB · Views: 389
  • L-69-4473.jpg
    411.3 KB · Views: 374
  • L-69-4472.jpg
    378.4 KB · Views: 349

mithril

ACCESS: Confidential
Joined
Mar 12, 2009
Messages
113
Reaction score
5
question. did Fairchild ever do art of a twin tailed version of the FX proposal Pioneer posted?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706

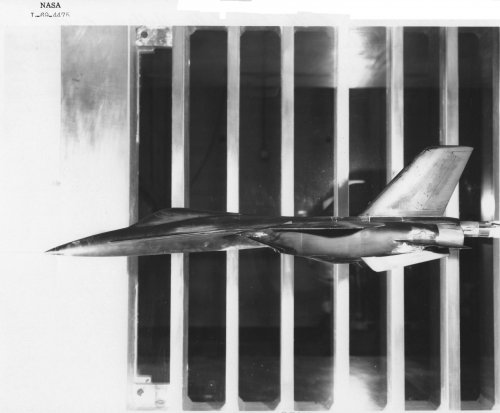

What appears to be a 1965 Republic Aircraft Corporation (later, Fairchild) FX study. It has no similarity to the final Fairchild FX design above except for the vertical fin, but rather shows some similarities to the AVS designs.

http://crgis.ndc.nasa.gov/historic/Additional_Photos_for_Unitary_and_Continuous-Flow_Hypersonic_Tunnels_4#Republic_FX


Attachments

  • L-65-6887.jpg
    404.6 KB · Views: 281
  • L-65-6884.jpg
    387.7 KB · Views: 268
  • L-65-6880.jpg
    413.7 KB · Views: 389
  • L-65-6879.jpg
    366.8 KB · Views: 381
  • L-65-6783.jpg
    391.1 KB · Views: 401
  • L-65-6781.jpg
    387.2 KB · Views: 408
  • L-65-6780.jpg
    353.5 KB · Views: 399

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706

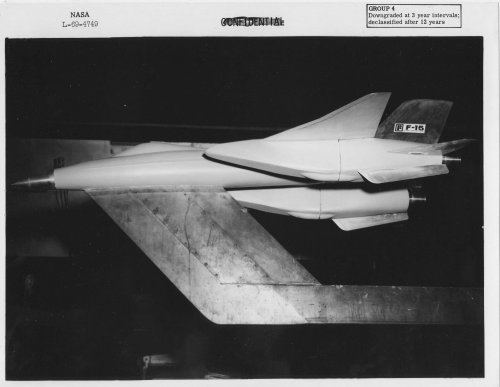

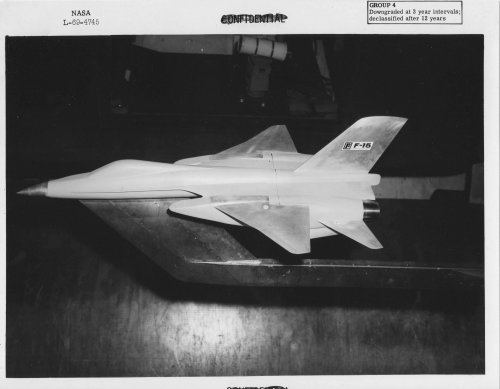

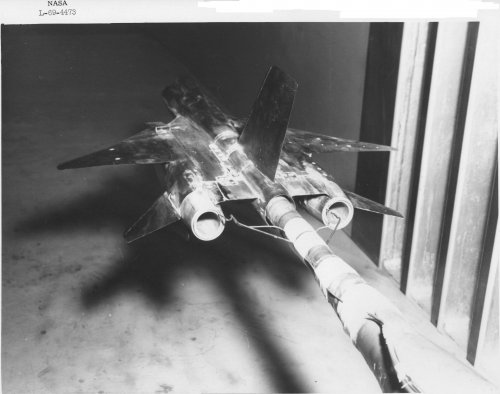

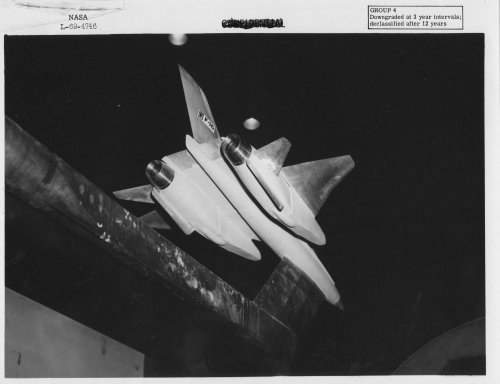

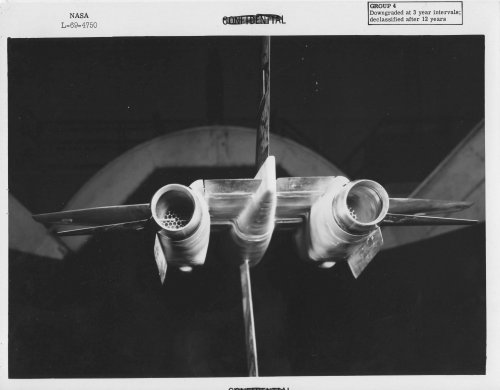

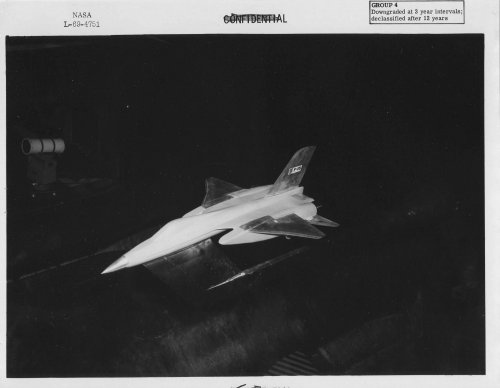

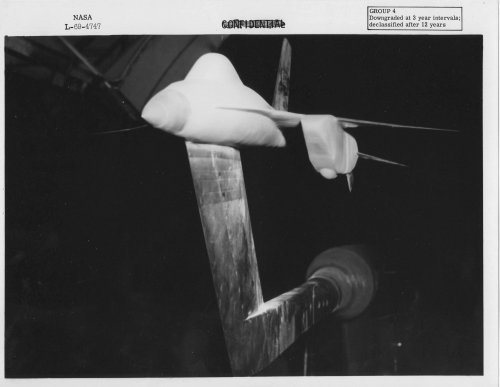

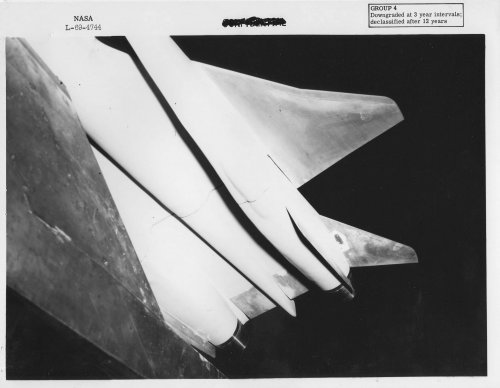

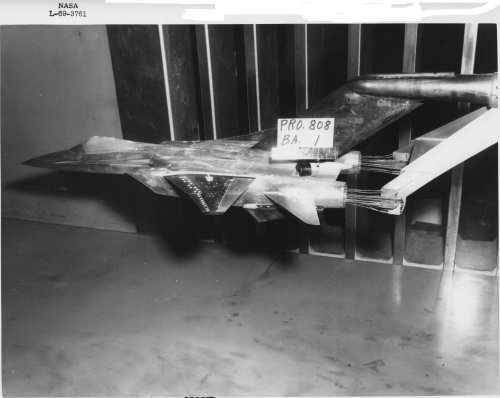

A bunch more Fairchild F-15 wind tunnel model photos

http://crgis.ndc.nasa.gov/historic/Test_246:_Republic_F-15


Attachments

  • L-69-4751.jpg
    296.8 KB · Views: 323
  • L-69-4750.jpg
    299 KB · Views: 297
  • L-69-4749.jpg
    356.8 KB · Views: 303
  • L-69-4747.jpg
    288.8 KB · Views: 315
  • L-69-4746.jpg
    335.5 KB · Views: 523
  • L-69-4745.jpg
    340 KB · Views: 519
  • L-69-4744.jpg
    334.9 KB · Views: 537

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241

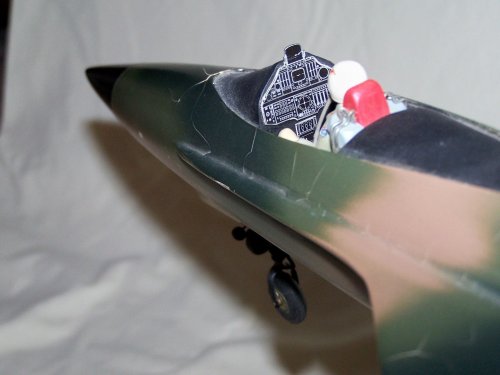

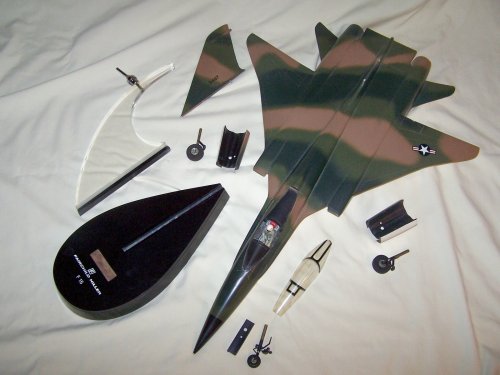

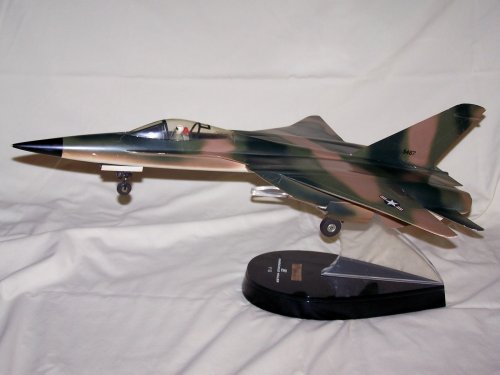

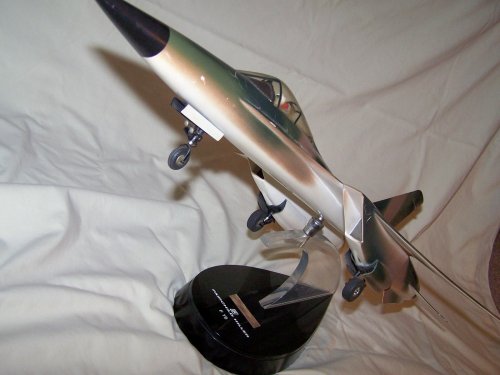

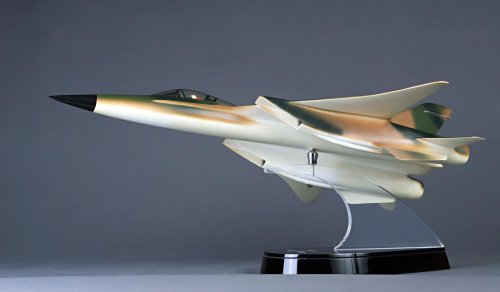

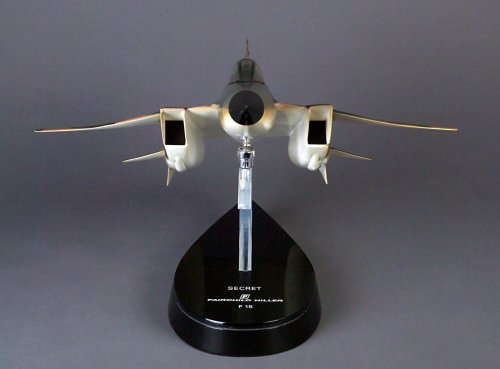

Manufacturer's proposal model of the Fairchild-Hiller (Republic) F-15, from about 1967-68. The vertical fin is taller than what appears in most drawings and illustrations: not sure which came first.

Just like the proposal documentation itself, it was customary for certain concept models to carry a caption such as "Secret" or "Classified", especially when the mission or aircraft performance could be ascertained from direct observation.


Attachments

  • Fairchild Hiller F-15 Model 02sml.jpg
    Fairchild Hiller F-15 Model 02sml.jpg
    65.7 KB · Views: 1,820
  • Fairchild Hiller F-15 Model 03sml.jpg
    Fairchild Hiller F-15 Model 03sml.jpg
    53.3 KB · Views: 1,877
  • Fairchild Hiller F-15 Model 01sml.jpg
    Fairchild Hiller F-15 Model 01sml.jpg
    72 KB · Views: 1,885

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,346
Reaction score
2,045

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,733
Reaction score
1,019
Fantastic - sure glad it is in good hands!

I'd be "flying" it around the house making airplane noises for a while :)

Enjoy the Day! Mark


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241
Mark Nankivil said:
I'd be "flying" it around the house making airplane noises for a while :)

You bet! In fact, it's already shot down a MiG-29 model and a Su-27 model (note to our Russian members: no miniature pilots were injured during this air-superiority exercise).


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,104
Website
deeptowild.blogspot.com
circle-5 said:
You bet! In fact, it's already shot down a MiG-29 model and a Su-27 model (note to our Russian members: no miniature pilots were injured during this air-superiority exercise).

I presume that the MiG-29 and the Su-27 belonged to a virtual rogue state or a defunct regime. ;) Thank you for sharing the photographs circle-5, it is very much appreciated.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,238
Reaction score
788
Wow thanks so very much for the fantastic 'Fairchild FX' desktop models Circle-5 !!!

You have made my day :)


Regards
Pioneer


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241

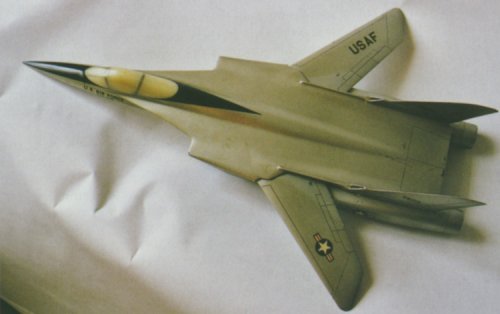

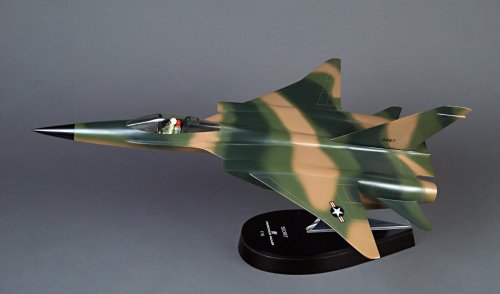

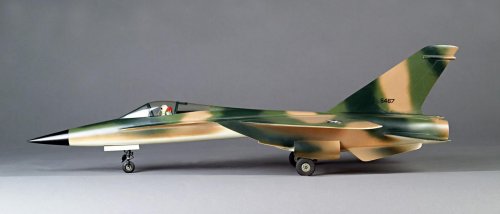

Another view of the Fairchild-Hiller (Republic) F-15 proposal model. A short drive away, Grumman was developing the F-14 (which had a single fin at the time). I wonder if somebody left the door open...


Attachments

  • Fairchild Hiller F-15 Model 04sml.jpg
    Fairchild Hiller F-15 Model 04sml.jpg
    112 KB · Views: 1,555

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,643
Reaction score
6,510

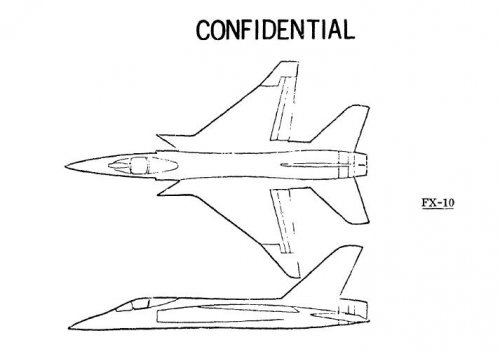

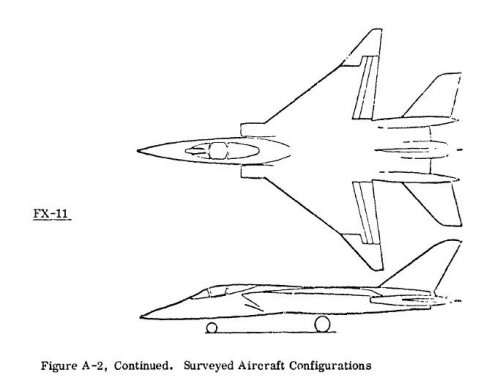

Attachments

  • FX-E.JPG
    30.7 KB · Views: 367
  • FX-C & FX-D.JPG
    FX-C & FX-D.JPG
    36.4 KB · Views: 319
  • FX-A & FX-B.JPG
    FX-A & FX-B.JPG
    34.2 KB · Views: 317
  • FX-12.JPG
    36.8 KB · Views: 343
  • FX-11.JPG
    30.3 KB · Views: 354
  • FX-10.JPG
    28.2 KB · Views: 374
  • FX-8.JPG
    31.8 KB · Views: 379
  • FX-6.JPG
    25.8 KB · Views: 1,038

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,346
Reaction score
2,045
link now fixed
beware - 30 Mb file and slow server


Hesham - thanks for finding


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241
flateric said:
link now fixed
beware - 30 Mb file and slow server

Hesham - thanks for finding

Yes, I had to wait almost 90 seconds for this report. That's just not acceptable.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706
Nice find.

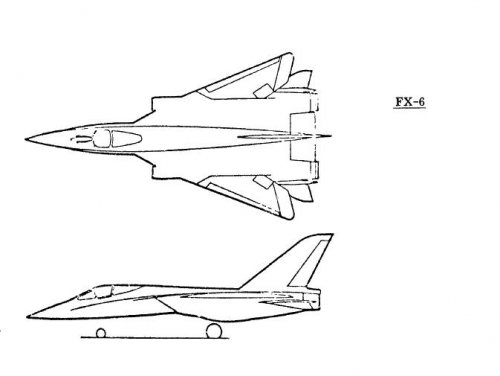

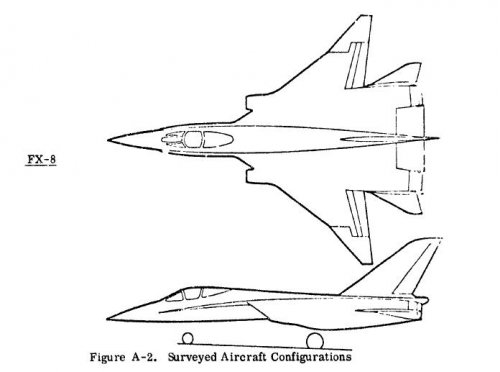

I think FX- designs with number suffixes are Republic FX designs while designs with letter suffixes are FX designs by other companies. They are much rougher but correspond quite closely with FX designs from other companies.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706

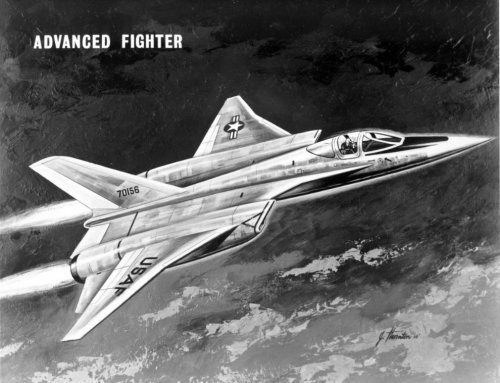

Republic FX art posted in another topic by Mark Nankivil.


Attachments

  • Republic entry copy.gif
    Republic entry copy.gif
    354.4 KB · Views: 1,731

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,326
Reaction score
876
Reminds me irresistibly of a cross between the Su-27 (podded, widely spaced engine placement, fixed wing, front fuselage) and Tornado ADV (inlet position, wind screen, tail fin, wing moving surfaces)!


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
241
Painting of the Fairchild-Hiller (Republic) F-15 by Keith Ferris. Learning from the lessons of the F-4 in Vietnam, the Air Force wanted engines separated for survivability, and a large bubble canopy for enhanced visibility. Republic design engineers took these two requirements to the extreme.

Document courtesy Mike Machat


Attachments

  • Republic F-15 Thunder Eagle sml.jpg
    Republic F-15 Thunder Eagle sml.jpg
    166.5 KB · Views: 1,373

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,882
Reaction score
3,922
circle-5 said:
Painting of the Fairchild-Hiller (Republic) F-15 by Keith Ferris. Learning from the lessons of the F-4 in Vietnam, the Air Force wanted engines separated for survivability, and a large bubble canopy for enhanced visibility. Republic design engineers took these two requirements to the extreme.

Document courtesy Mike Machat

Heh, from that angle I can see "F-105". :)


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
657
Reaction score
475
That's what he said!


Attachments

  • Ferris Republic FX Painting.jpg
    Ferris Republic FX Painting.jpg
    217 KB · Views: 1,280

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,837
Reaction score
8,706
Cleaned up a bit.


Attachments

  • Republic F-15 Thunder Eagle sml.jpg
    Republic F-15 Thunder Eagle sml.jpg
    111.3 KB · Views: 1,215

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,095
Reaction score
1,214
Just what I was thinking.
The Canberra T.4 was used for initial qualification training, Instrument Rating Tests (IRTs) and various checks for trainee and operational pilots. A critical regime that the trainee needed to be properly trained in was “engine out” or “asymmetric” handling. The Canberra was designed in an era when engine-out flight characteristics were not as stringently specified as with modern aircraft. This resulted in single engine safety speed ( i.e. the speed at which the aircraft could be safely controlled with one engine out and one engine on full power) which was high by modern standards. For the B.2 and the T.4 there is a 45 knots gap between the single engine safety speed and the speed at which it the Canberra lifted off the ground. In contrast a Boeing 747 Jumbo Jet has a safety speed that is below its stall speed, which means it is fully controllable with 2 engines out on one side and full power on the engines on the opposite side (the worst situation) at any time that it is flying. Whereas for the Canberra after liftoff, if there were problems with one engine before the safety speed was reached, engine power on the good engine had to be reduced to keep the aircraft in control. All this was counter intuitive to Canberra novitiates, since the aircraft had lost half its power already, was close to the ground and needed to climb away. This situation usually called for ALL the power one could muster. Without a simulator to practice this regime safely in an earthbound building, the Canberra T.4 was the torture machine that the pilot learned how to save his and his QFI’s life in!
Source: http://www.bharat-rakshak.com/IAF/History/Aircraft/Canberra/Canberra02.html


Similar threads

Top
