English Electric P.8

JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,897
Reaction score
806
I apologise if this has already been discussed here but I was unable to find anything using the search function or just scanning back through the old threads.

I have come across two different strories for the P.8, the first that it was basically a much improved Lighting, still single seat, (reffered to at least once as the F-7) with an area-ruled rear fuselage and fuselage mounted main undercarriage, with a Blue Vesta mounted on each wingtip. According to some sources it was one of the projects cancelled in 1957 by Sandys? ???

Then there is the other version, according to this one it was the English Electric proposal for the F.155T project (ultimately would have produced the Fairey Delta-3). Under this tale the idea varies greatly with solid noses and side mounted intakes, some with swing wings. So what is the truth? ???

Thankyou in advance sealordlawrence.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
It is covered pretty well in British Secret Projects: Jet Fighters.

P8 was EE's F155T proposal, basically an improved Lightning. Single and twin seat versions were considered, the submission was single seat.

Later, VG Lightning derivatives were proposed, but these were not P8.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377

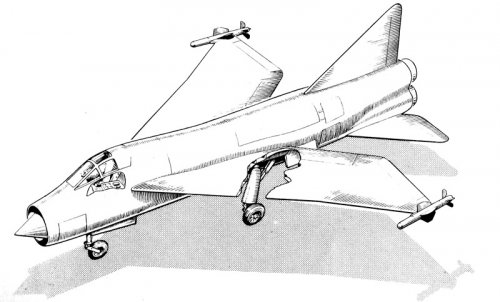

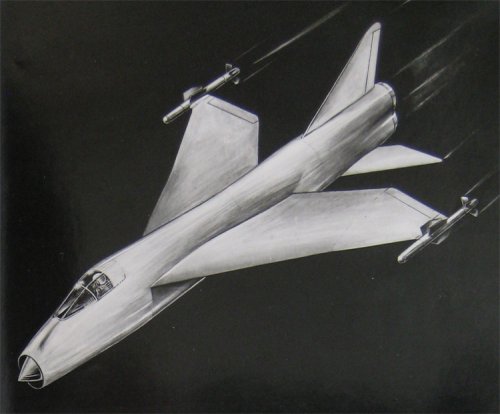

Here's a drawing of P.8, despite its crudeness its actually from the brochure.


Attachments

  • P8.jpg
    110.3 KB · Views: 838

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377

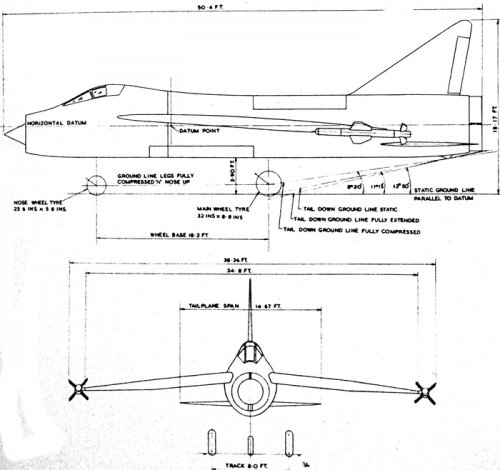

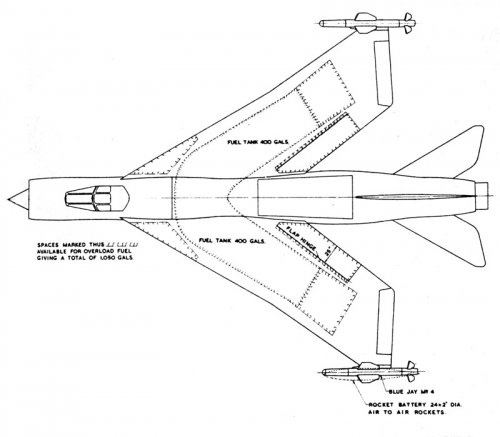

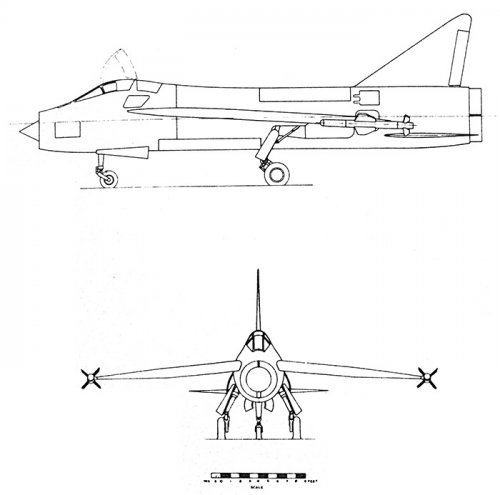

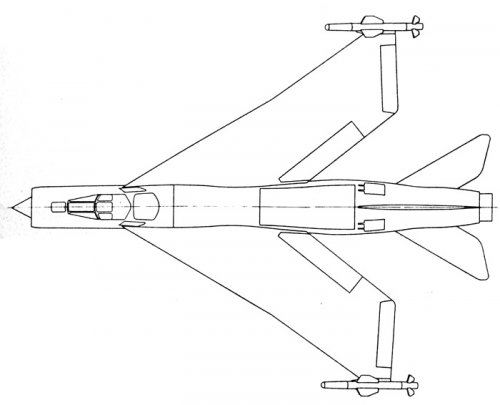

Drawings

Updated with better copies 13/10/07


Attachments

  • P8a.jpg
    53.6 KB · Views: 708
  • P8b.jpg
    42.3 KB · Views: 676

JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,897
Reaction score
806
Thanks guys, I did read the BSP section, but I was confused by all the other stuff that I came across, plus the fact that the type looks really out of place with the other F-155T contenders, the P.8 lacks the exciting design insanity of the other contenders. So was the P.8 an active project, would it have made it to service?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
Last drawing.

English Electric's P.8 was by far the most realistic F155T project; achievable, and affordable. Therefore it didn't make it past even the first consideration, neither did the Fairey Interim Fighter (based on ER.103) project or the Hawker P.1103 which were arguably similarly realatively sensible.

[Edited for better copy of drawing 13/10/07]


Attachments

  • P8internals.jpg
    105.1 KB · Views: 848

zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
2,006
Reaction score
710
Errr correct me if I'm wrong but the 55ft length figure is caused by the airdata probe.
The Naval VG variant of the Trainer had a folding probe that took its length back down to 50ft if I remember correctly.

P.8 did interest the RAF, they just thought it not ideal for F155T, which required the ability to tote the Red Hebe AAM and the second crewman.

Of the two P8 and P1103, the P.8 is closer to the then existing hardware. Frankly it was in everyones interests save the Treasurey to fund the new fusilage even with the existing systems inside.

But then so was the P.6 a better option than the existing Lightning we know.

Interesting to look at the cutaway, showes potential in the design for a 'solid nose' if EE had been disposed to consider it. I have read somewhere they did look at that in the 50's long before the VG studies.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929
There was an article about the P.8 on http://www.concentric.net/~Rojo1/,
a very good site, unfortunately just a dead link in the moment, and it seems to be
unsure, if site will be available again.

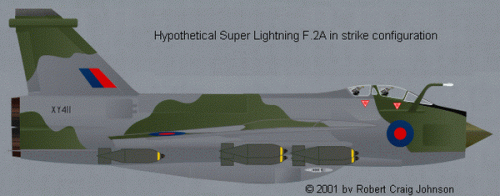

So I post the What-If colour profiles here, in low res.


Attachments

  • slightning-f1.gif
    48.9 KB · Views: 743
  • slightning-f2a.gif
    71.6 KB · Views: 336
  • slightning-f2as.gif
    65.4 KB · Views: 311
  • slightning-f2a-swiss.gif
    66.1 KB · Views: 293
  • slightning-f3.gif
    67.7 KB · Views: 388

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233
so i would be right in thinking that, had the P.8 reached the hardware stage, it would have sported an enlarged fin, like the later lightnings?

cheers,
Robin.


zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
2,006
Reaction score
710
Certainly, and better visibility, Roy Boot (I think) was emphatic it needed both.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377

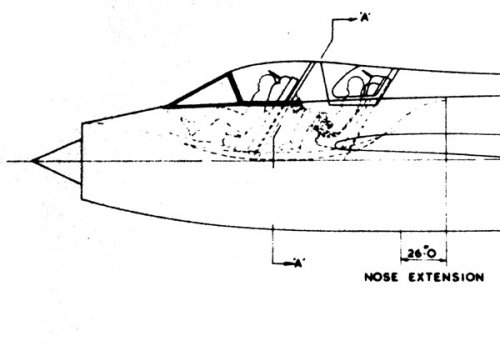

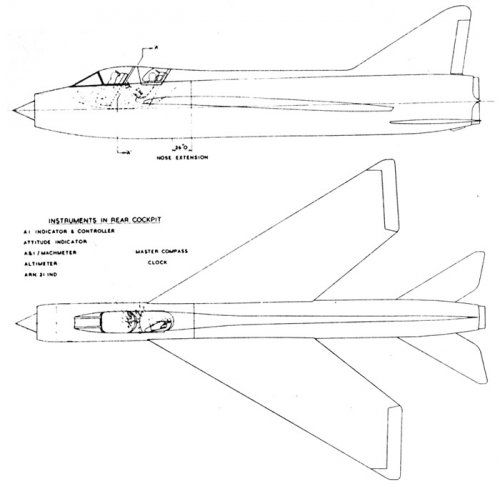

2 seat variant


Attachments

  • P8-2-seat.jpg
    55.8 KB · Views: 249
  • P8-2-seat-close.jpg
    37.4 KB · Views: 197

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377
More drawings


Attachments

  • P8-detail.jpg
    72.4 KB · Views: 218
  • P8-detail2.jpg
    86.1 KB · Views: 256

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,355
Reaction score
3,377

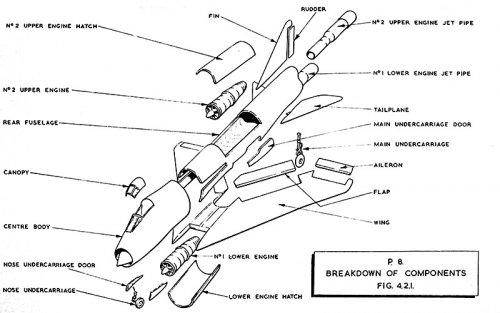

Looks like an Anigrand kit perhaps? :)


Attachments

  • P8-parts-breakdown.jpg
    87.1 KB · Views: 513

Hammer Birchgrove

ACCESS: Top Secret
Joined
May 13, 2009
Messages
583
Reaction score
7
If the P.8 had been chosen as the F.155T interceptor, would EE still produce *Lightning* as a point defence interceptor? ???


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,897
Reaction score
806
P.8 came nowhere near meeting the F.155T requirements so would never have been chosen. In an alternate reality it may have become Lightning Mk2 and been procured following on from the early P.1 variants. The design appears to have been well received by the Air Ministry but rejected for F.155T (for the simple reason it did not meet the stated requirements).

F.155T was more of Javelin replacement.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Hi!
Only P.8 did not have rocket engine.

http://alternathistory.livejournal.com/1909760.html
Powerplant: 2 × 126 RB.maximum thrust 2 × 13400 lbs (2 × 59.6 kN)
Dimensions:
wingspan 38.36 CFT (11.7 m), length 50.4ft (15.3 m)
wing area: 471 CFT ² (43.8 m ²)
the relative thickness of the profile of the wing at the roots of 5.3% endings have 2.4%
Weight:total flight 31768 lbs (14409 kg)
Flight characteristics:maximum speed: Mach 2.0 2.5.
Armament: 2 × Blue Jay MK. 4 or 2 × 24 UNGUIDED ROCKETS calibre 2 "(50 mm)

http://beyondthesprues.com/Forum/index.php?topic=5284.165


Attachments

  • English_Electric_P_8-02.jpg
    19.1 KB · Views: 191
  • EE P.8 - 1.jpg
    EE P.8 - 1.jpg
    46.5 KB · Views: 186
  • EE P.8 - 5.jpg
    EE P.8 - 5.jpg
    48.6 KB · Views: 184
