From my dear Jemiba,

To meet Spec ER.134T which called for a research vehicle
capable of high supersonic speed and long endurance,the
English Electric desided to submitt an improved fighter deve-
loped from P.1 Lightning,investigations were made into P.6/1
with a slim fuselage and single RB.106 engine ;P.6/2 with two
Armstrong Siddeley S.2.7 or Rolls-Royce RA.18 engines with
fully variable reheat and a delta wing variant.In addition a
canard aircraft (P.6D) and a straight wing design with wing
mounted engines (P.6B) were drawn.


Attachments

  • P.6.JPG
    10 KB · Views: 977

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
Interesting information about the EE P-6 variants.
Thanks Jemiba and Hesham.
The complete story of ER.134T is told in :
Air Enthusiast No.60-November December 1995.(9p.)


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
296
The specifications for the P.6 design studies (from Tony Buttler's book British Secret Projects: Jet Fighters Since 1950) are as follows:


P.6/1P.6/2P.6BP.6D
Length52.15 feet (15.9 meters)54.5 feet (16.6 meters)62.67 feet (19.1 meters)56.7 feet (17.3 meters)
Wingspan34.8 feet (10.6 meters)35.5 feet (10.8 meters)40 feet (12.2 meters)34.5 feet (10.5 meters)
Wing area460 sq ft (42.7 sq meters)473 sq ft (43.9 sq meters)550 sq ft (51 sq meters)?
t/c %6.26.24?
Weight26,978 lb (12,237 kg)29,993 lb (13,604 meters)35,900 lb (16,284 kg)30,000 lb (13,608 kg)
Powerplantone Rolls-Royce RB.106R turbojet with 15,000 lb (66.7 kN) thrust (20,750 lb [92.2 kN] thrust when reheated) two Armstrong Siddeley Sapphire turbojets with 11,000 lb (48.9 kN) thrust (15,400 lb [68.4 kN] thrust when reheated) two Armstrong Siddeley Sapphire turbojets with 11,000 lb (48.9 kN) thrust (15,400 lb [68.4 kN] thrust when reheated)two derated Rolls-Royce RB.106R turbojets with 10,000 lb (44.4 kN) thrust (13,800 lb [61.3 kN] thrust when reheated)
SpeedMach 2Mach 2+Mach 2Mach 2


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,892
Reaction score
3,736

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,892
Reaction score
3,736

Attachments

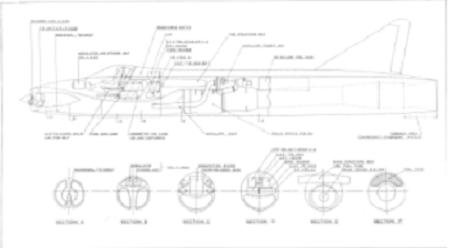

  • general and detailed layout English Electric P.6  1 (11.5.53) BAe.jpg
    general and detailed layout English Electric P.6 1 (11.5.53) BAe.jpg
    146.4 KB · Views: 34

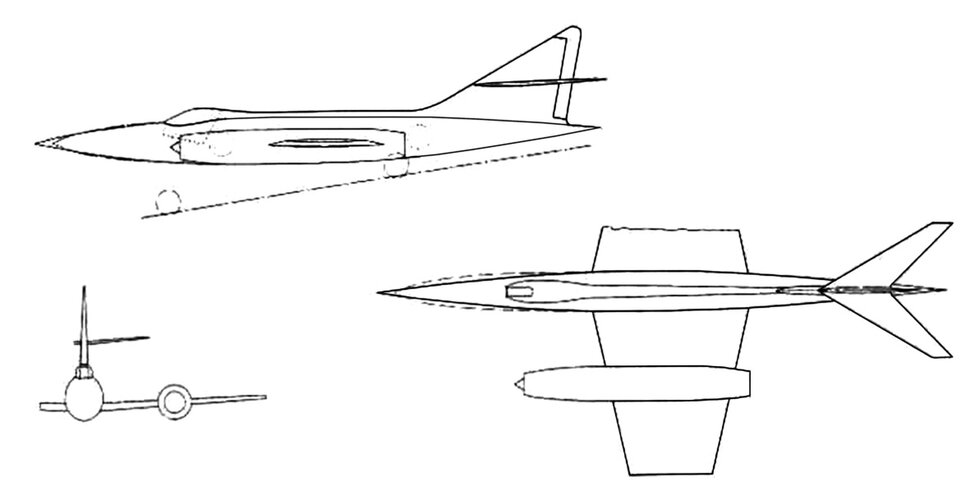

  • the project of the straight wing P.6B aircraft by English Electric, May 11, 1953. The dotted l...jpg
    the project of the straight wing P.6B aircraft by English Electric, May 11, 1953. The dotted l...jpg
    58.7 KB · Views: 30

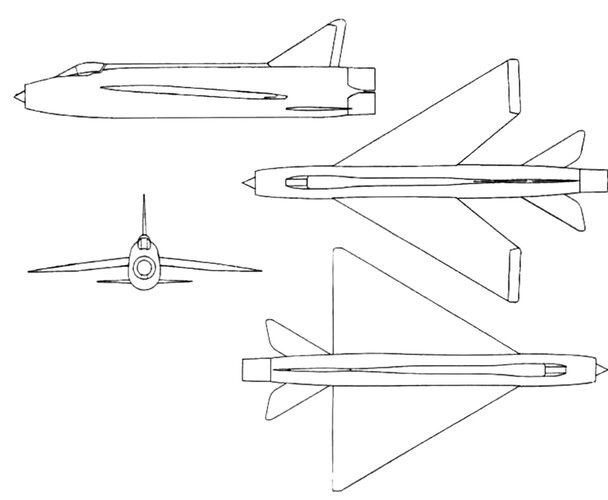

  • Project P.6  2 by English Electric, May 11, 1953. The top view of the delta wing project was d...jpg
    Project P.6 2 by English Electric, May 11, 1953. The top view of the delta wing project was d...jpg
    79.6 KB · Views: 26
  • P.6D trapezoidal wing duck interceptor design by English Electric, 17 September 1953; BAe.jpg
    P.6D trapezoidal wing duck interceptor design by English Electric, 17 September 1953; BAe.jpg
    84.3 KB · Views: 59
