Tupolev 1922-1945 projects


Don't laugh, don't cry, don't even curse, but.....
31 May 2007
Reaction score

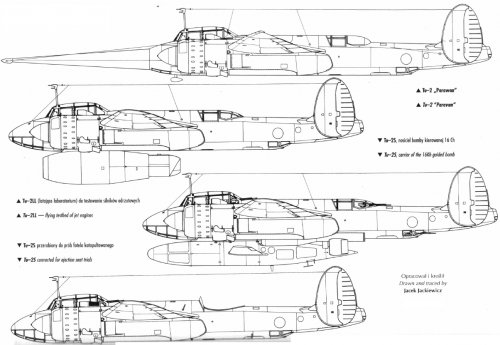

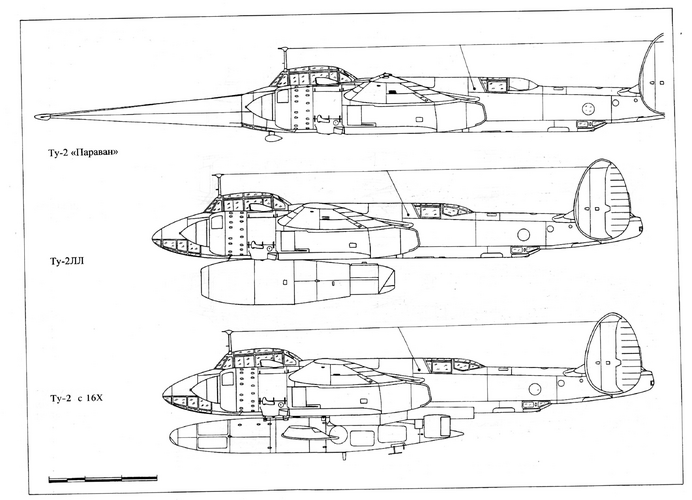

Tu-2 Paravan
"The most startling modification was the Tu-2 Paravan (paravane). Two of these were built, to test a crude way of surviving impact with barrage-balloon cables. A special cable woven from high-tensile steel was run from one wingtip to the other via the end of a monocoque cone projecting over 6m (20ft) ahead of the nose. The nose and wingtips were reinforced. First flown in September 1944, this lash-up still reached 537km/h (334mph) despite the strange installation and a 150kg (331 lb) balancing weight in the tail. These trials were not considered to have been successful."
"Yet another 1944 modification was the Tu-2K (Katapult), fitted with test ejection seats. The first Tu-2K fitted the test seat in the navigator’s cockpit just behind the pilot. A second ejection-seat tester had the experimental seat mounted in an open cockpit at what had been the radio operator’s station in the rear fuselage."

Source : https://weaponsandwarfare.com/2015/09/08/tupolev-tu-2-and-variants/

Picture top shows Tu-2 Paravan. Picture bottom shows Tu-2K.

Another picture source


  • sderfwsergrge.jpg
    368.2 KB · Views: 1,013
  • TU2_paravan.jpg
    25.4 KB · Views: 919
  • tu2paravan.jpg
    30.9 KB · Views: 889

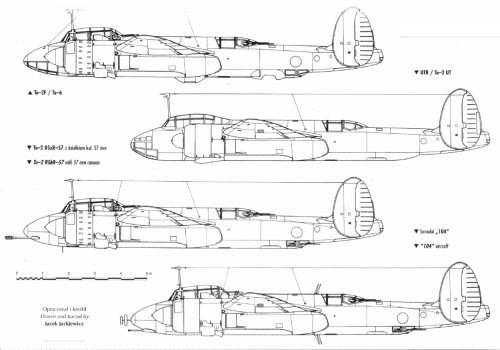

"In early 1945 the Type 104 radar-interception system began flight testing (the first to be airborne in the Soviet Union). The system had been designed from 1943, by a team led by A L Mints, and the Type 104 test aircraft had begun flight testing on 18th July 1944 but with the vital radar simulated by ballast. The pilot had a modified sight, which was later linked to the radar, and fired two VYa-23 cannon installed under the forward fuselage. The rear fuselage was faired over and contained nothing but a balancing mass."

Picture bottom shows " Type 104 test aircraft".


  • ngfxnfgxh.jpg
    146.4 KB · Views: 924
Hi ANT-29.

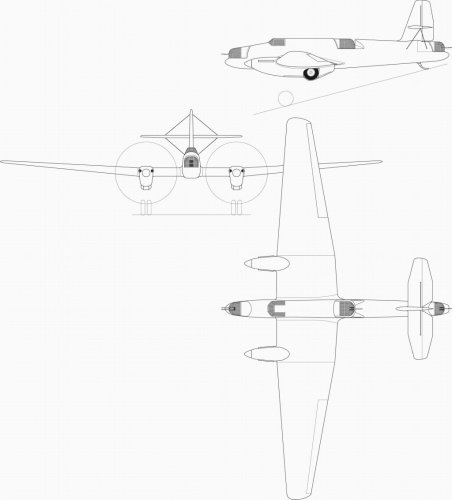

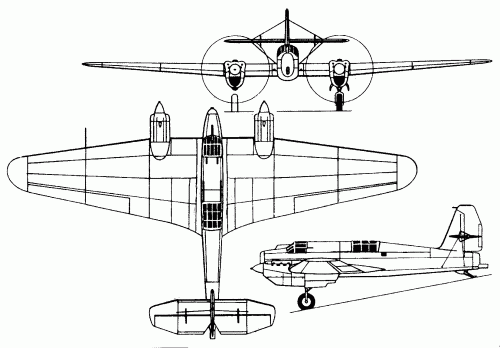

"The Tupolev ANT-29 (military designation DIP – Dvukhmotorny istrebitel pushechny, "twin-engined cannon fighter") was a 1930s twin-engined, cannon-armed fighter designed by Alexander Arkhangelsky and built by Tupolev."
General characteristics
Crew: 3, Length: 13.2 m (43 ft 4 in), Wingspan: 19.19 m (62 ft 11 in), Wing area: 55.1 m2 (593 ft2), Empty weight: 3900 kg (8598 lb), Gross weight: 5300 kg (11684 lb), Powerplant: 2 × Hispano-Suiza 12Ybrs, 760 kW (1019 hp) each
Maximum speed: 352 km/h (219 mph),
One moveable machine gun, Two recoilless cannon


ANT-29 was developed from ANT-21. Also ANT-30 was developed from ANT-21.


  • ANT-30.jpg
    54.5 KB · Views: 165
  • ant-29-fightp572-1a.jpg
    43.6 KB · Views: 132
  • ant-29.gif
    30.9 KB · Views: 714

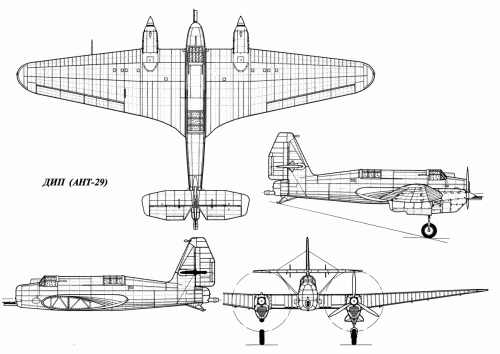

Another 3-side view of ANT-29.

APK-100 recoilless cannon.
PRD-76 explanation. Almost same mechanism compared with other recoilless cannon?
"On this plane were mounted guns RPD-76, modernized to ensure degree in flight. To reduce drag muzzle guns were closed cones, released before firing. Each gun had a shop at five rounds with feeding and refreshing mechanism. The shop was a pipe reinforced parallel barrel guns. For loading the gun once the cartridge is supplied on a shelf on the muzzle part of the trunk, and then under the influence of the oncoming air flow and the stored energy of the spring cartridge in the barrel in the dosylalsja PIN. Loading management produced pilot. The shot came when closing an electric circuit using combat buttons mounted on the control stick."

"More promising was the ANT-29. This was a conventional, highly streamlined twin-engined monoplane, with a single 102mm DRP or two APK-8 in the fuselage. The ANT-46, a basically similar design, instead had two APK-11 guns in the wings, and apparently the design goal was to use the 100mm APK-100. But the arrest of Tupolev and the disappearance of Kurchyevskii ended the development of fighters with recoilless guns."

APK-4 coilless cannon images by borovik-san.


  • ANT-29.gif
    212.4 KB · Views: 168

since I noted that some of the topic where you post your contributions are developing into a sort of "project encyclopedias" I've decided to change the tittle of this one with a most descriptive one. That will help the forum's search engine to locate it, making the topic more accessible to everyone.
pometablava said:

since I noted that some of the topic where you post your contributions are developing into a sort of "project encyclopedias" I've decided to change the tittle of this one with a most descriptive one. That will help the forum's search engine to locate it, making the topic more accessible to everyone.
Many thanks Antonio-san. :D I'm sorry to trouble you so much.
I know that many masters of this forum already knew the aircraft which I post.
Are they angry? ;D
Are they angry?

Of course not :)

Just a matter of encouraging all the members to keep the forum growing the best way. That's a great place to learn and enjoy, don't you think?. Let's share a little effort to keep information tidy.
Thank you for your gentle words, Antonio-san. :D

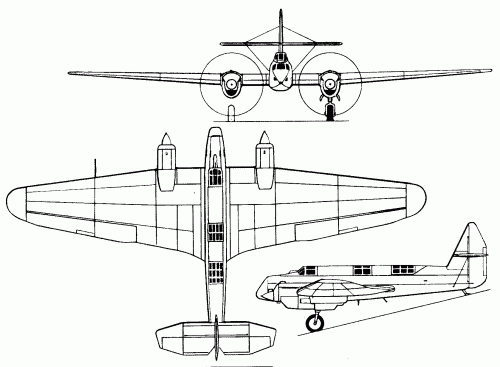

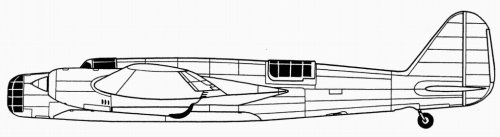

Tupolev DB-2(ANT-37).
"The Tupolev ANT-37 (or DB-2) was a Soviet twin-engined long-range bomber designed and built by the Tupolev design bureau,[1] the design team operating under the guidance of Pavel Sukhoi.The aircraft did not enter production, but three examples of the type were used for research and record breaking flights."

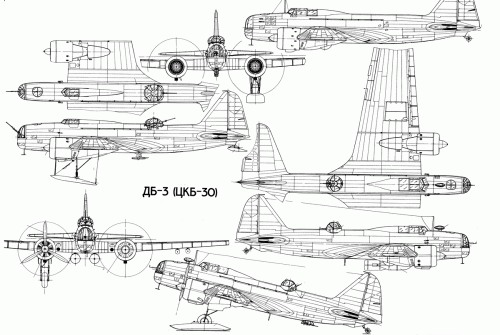

Video! Ilyushin DB-3 and Tupolev DB-2(ANT-37bis)

"ANT-37bis was the third aircraft of the DB-2 family. Fourth airframe with a wing serving as a huge fuel tank was abandoned on assembly stage.

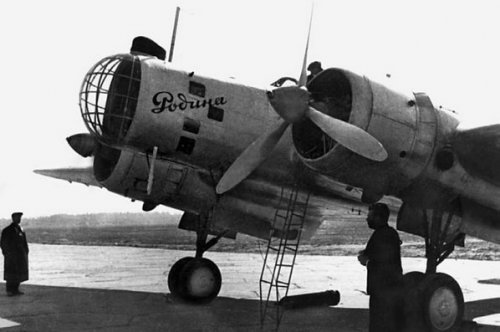

'Rodina' rolled out in February 1936.
Record flight was performed by women crew (pilots V.S.Grizodubova and P.D.Osipenko, navigator M.M.Raskova) on September 24-25 1938. 6000km route across the expanse of the Soviet Union from Moscow to Komsomolsk-on-Amur in the Far East. With the aircraft icing up over the Siberian wilderness, the women tossed everything movable out of the aircraft to try and gain altitude. Finally, Raskova, who had been the navigator, decided she would have to go as well. She marked the aircraft's compass heading on a map and bailed out into the darkness. Local hunter eventually rescued Raskova, and helped her to get to the landing site on October 5.
The two remaining pilots performed a safe emergency landing in the dry marches near Kerby village, slightly short of their destination. 'Rodina' covered 5908km in 26h29min."

So following aircraft were completed?

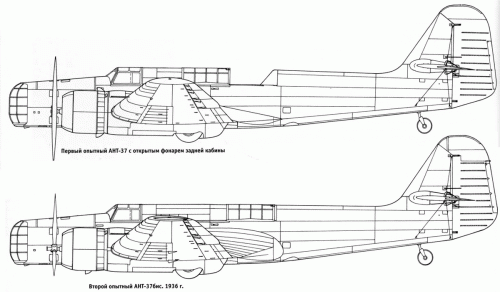

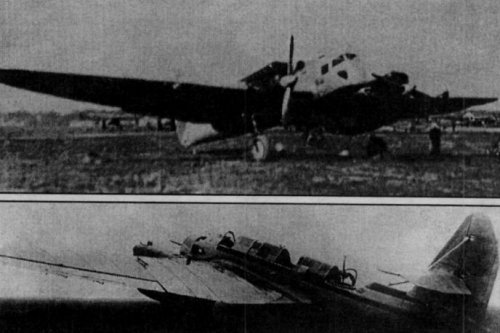

(1) The first prototype.(Crushed)(Top of the first drawing?)
(2) The second prototype(DB-2D) (Bottom of the first drawing? Reinforced wing root?)

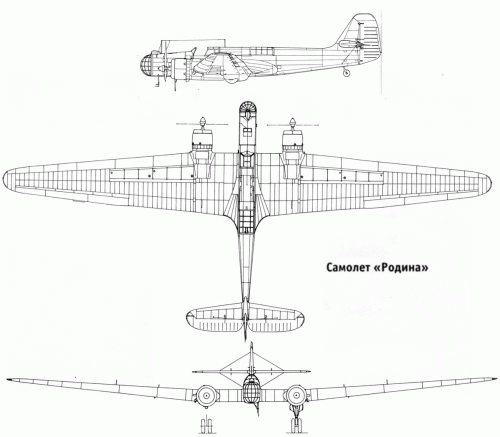

(3) One DB-2B(ANT-37bis)(Round nose? Called Rodina?)(Bottom picture shows modified Rodina for record flight?)


  • May be No2 prototype.jpg
    May be No2 prototype.jpg
    36.8 KB · Views: 157
  • llyushin DB-3.gif
    llyushin DB-3.gif
    250.3 KB · Views: 164
  • rodina-c2.jpg
    25.7 KB · Views: 162
  • rodina-1.gif
    311 KB · Views: 159
  • db2-1.gif
    255.9 KB · Views: 128
Russian beauty! ;)


  • samolet-db-2-05.jpg
    78.9 KB · Views: 90
  • ANT-37bis.jpg
    49.2 KB · Views: 107
I've attached a drawing that I did of the ANT-29 fighter, also known as the DIP.


  • an29dip.jpg
    263 KB · Views: 149
Excellent work!! :D
May I ask you a question?
Did you make ANT-25/ANT-36 3-side view drawing?


Number built
1 (1933) + 1 (1934) + 1 (1989)

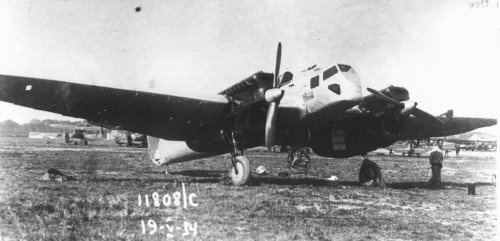

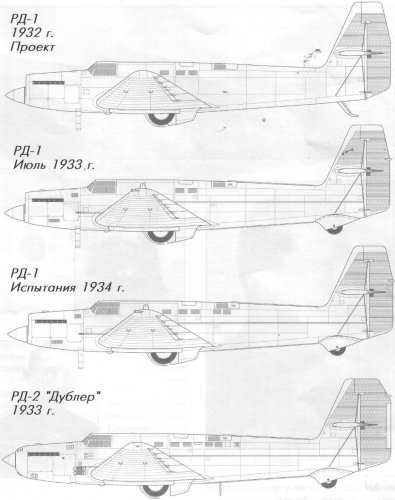

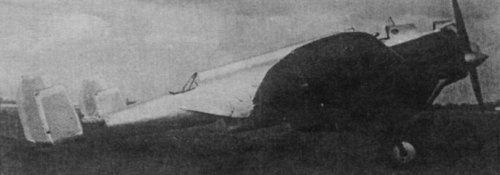

No.1 prototype and No.2 prototype early stage had skin cooler?



  • No2 aircraft.jpg
    No2 aircraft.jpg
    115.6 KB · Views: 148
  • No1 aircraft.gif
    No1 aircraft.gif
    39.6 KB · Views: 135
  • 2.jpg
    134.2 KB · Views: 133
  • 1.jpg
    177.1 KB · Views: 125

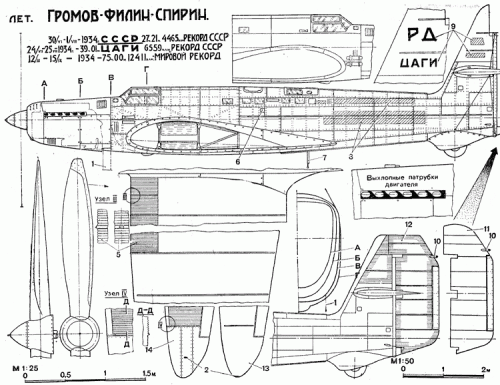

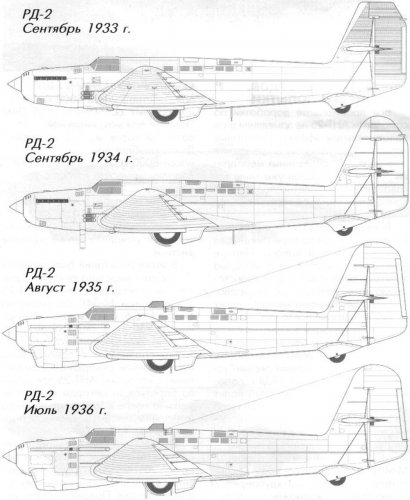

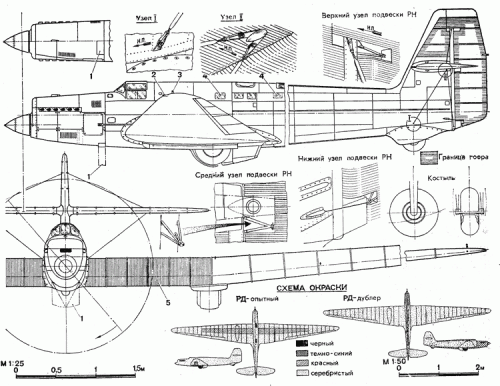

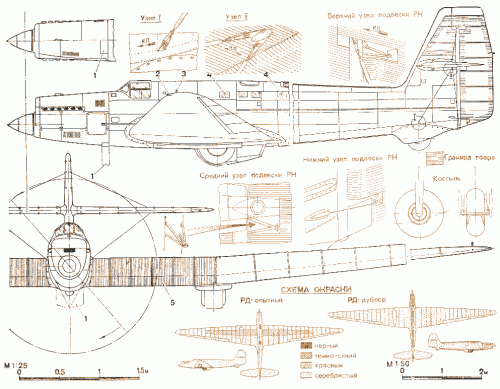

Ant-25 PLANE:
1-retractable water radiator, 2-onboard air fire, 3-piroshashki, 4-window cut during tests 5-mounted water radiators, 6 t-Cap step 7-retractable, Periscope, inscription 8 (red), 9-inscription (red), 10-tail aeronautical fire 11-modified rudder understudy-12 primary and Kiel understudy 13-ending double wing, covered with canvas, 14-wing ending up foiling stand-in canvas , 15-venturi on Ant-25, 16-inscription on the sides of Ant-25 during the Paris aviation salon and flight in the United States "Stalin route", 17-o servokompensator at the Kiel Ant-25, 18-servokompensator in Kiel Ant-25-1, 19-inscription on the Kiel Ant-25 and Ant-25-1, 20-21, starboard hatches-starboard hatches, 22-venturi on Ant-25-1, 23-Dasher co-pilot, 24-dashboards Navigator.


  • ant_25_1.gif
    56.4 KB · Views: 98
  • ant_25_3.gif
    54.9 KB · Views: 95

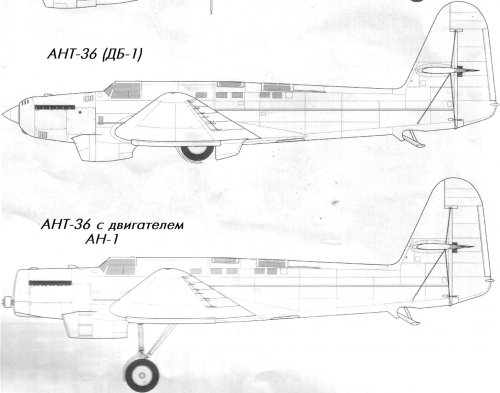

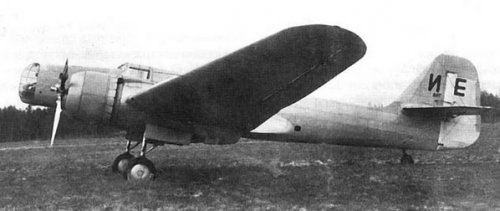

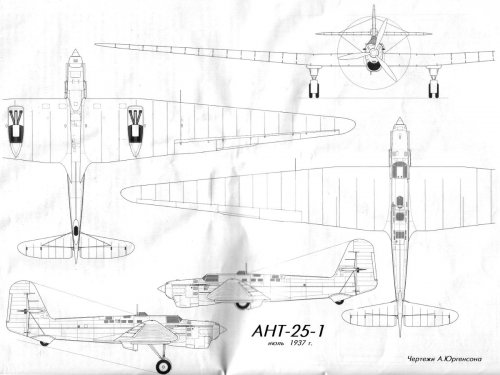

DB-1/ANT-36 was developped from ANT-25.

"In the summer of 1936, one of the mass-produced Ant-36 was remade for fitting an-1 diesel engine. The work was carried out under the supervision of A.s. Moskaleva and went into the mainstream establishment record Rd-d. Unlike serial DB-1 on it was the contractor in excess of chassis. From June 1936 year plane Pro test showing walked the reliable operation of the diesel engine and the possibility of a significant increase in range."

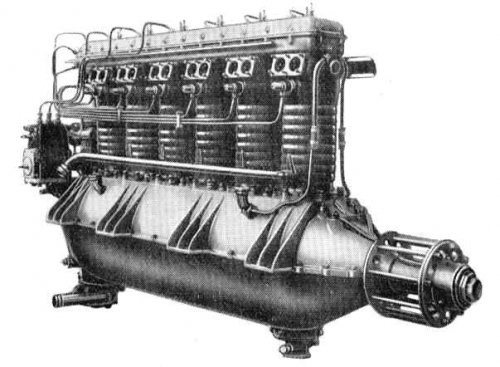

Fiat AN-1 diesel engine.


  • 17-3.jpg
    32.5 KB · Views: 67
  • Fiat AN-1 DIESEL ENGINE.jpg
    Fiat AN-1 DIESEL ENGINE.jpg
    27.6 KB · Views: 82
  • 11-2.jpg
    179.6 KB · Views: 98

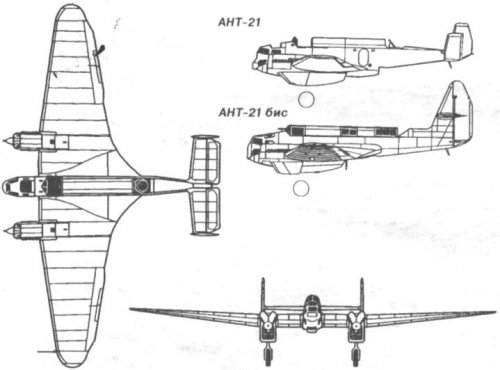

Please enjoy ANT-21 and ANT-21bis pictures.

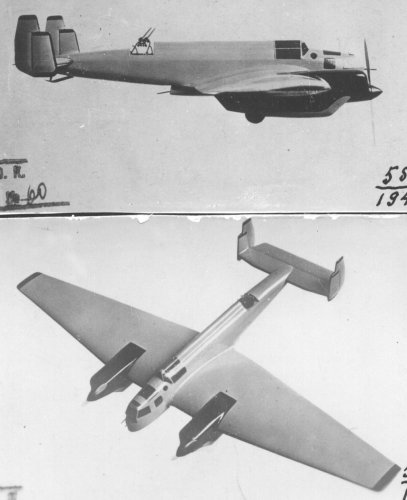

Model picture shows twin vertical tail stabilizer and closed cockpit.



"The Tupolev ANT-21 was a Soviet twin-engined four-seat heavy fighter, which also had the designation MI-3 (Mnogomestnyi Istrebitel – Multi-seat fighter). It was not accepted for production, only two prototypes being built."
General characteristics
Crew: 3, Length: 11.57 m (38 ft 0 in), Wingspan: 20.76 m (68 ft 1 in), Wing area: 59.2 m2 (637 sq ft), Empty weight: 4,058 kg (8,946 lb), Gross weight: 5,463 kg (12,044 lb), Powerplant: 2 × M-34N liquid-cooled V12 engine, 610 kW (820 hp) each
Maximum speed: 350 km/h (217 mph; 189 kn) at 5,000 m (16,400 ft), Service ceiling: 8,300 m (27,231 ft)
Guns: 1 × 20 mm cannon in flexible mounting in nose, 2 × fixed forward-firing 7.62×54mmR PV-1 machine gun and 2 × Degtyaryov machine guns in dorsal position

"The new aircraft, the ANT-21bis or MI-3D (Doubler – understudy) was completed in April 1934. Despite the new tail, it suffered tail vibration at certain power settings which resulted in the addition of tail bracing struts." (As you can see.)


  • 1.jpg
    80.3 KB · Views: 81
  • ant-21bis.gif
    31.6 KB · Views: 87
  • 68-3.jpg
    43.8 KB · Views: 85
  • 68-1.jpg
    52.8 KB · Views: 72
  • 67-1.jpg
    24.6 KB · Views: 80
  • ANT-21.jpg
    122.8 KB · Views: 84

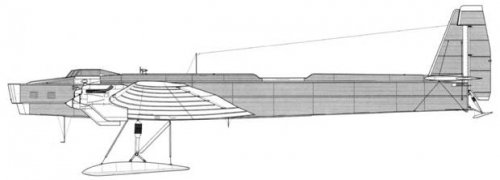

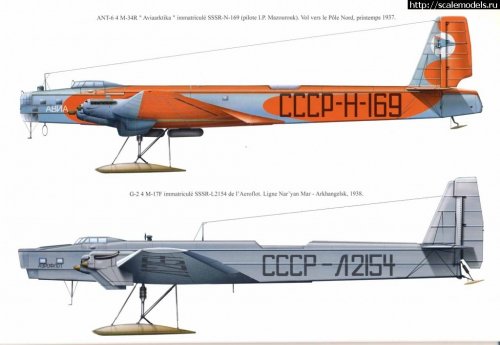

Hi! Tupolev G-2. Number of converted from TB-3 to G-2 were unknown.

From Wikipedia,
G-2 : Retired TB-3s with M-17 and M-34 engines converted for freight duties with Aeroflot



  • Civilian g-2 based on the TB-3 4 m-17 early series.jpg
    Civilian g-2 based on the TB-3 4 m-17 early series.jpg
    12.2 KB · Views: 914
  • 1447778252_ant-6__g-2.jpg
    132.9 KB · Views: 922

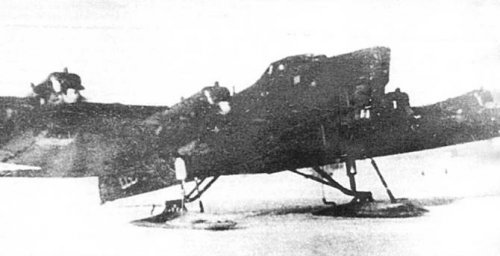

  • G-2 on skis. Note the closed cabin.jpg
    G-2 on skis. Note the closed cabin.jpg
    24.9 KB · Views: 895

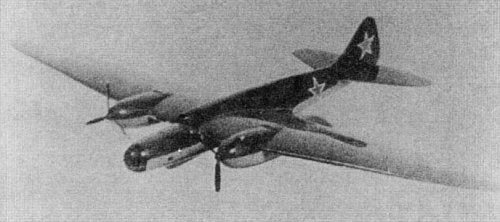

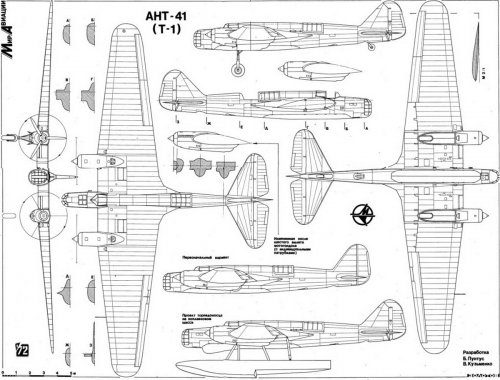

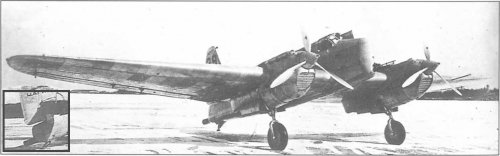

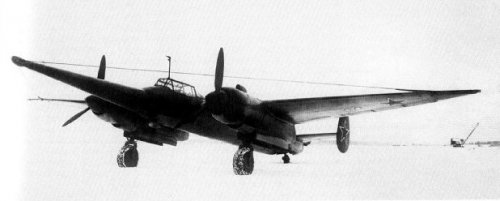

Hi! Very clean ANT-41 torpedo bomber prototype.

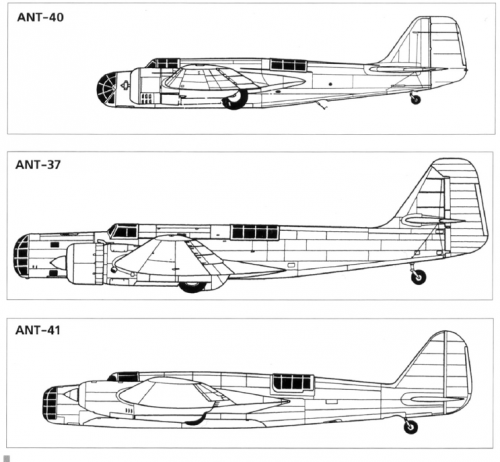

"The Tupolev ANT-41 was a prototype Soviet twin-engined torpedo-bomber of the 1930s. A single prototype was built, which was destroyed in a crash. No production followed, with the Ilyushin DB-3 serving as a torpedo bomber instead."

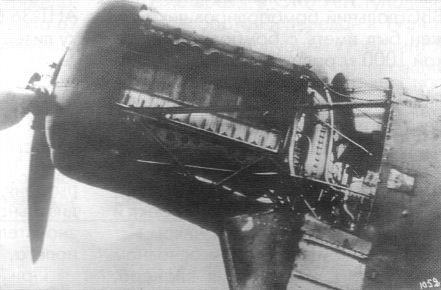

You can see the radiator which is located at inside of the engine nacelle.


  • img1.jpg
    113.9 KB · Views: 103
  • ANT-41 MODEL.jpg
    ANT-41 MODEL.jpg
    53 KB · Views: 99
    64.5 KB · Views: 101
  • ANT-41 SIDE VIEW.jpg
    ANT-41 SIDE VIEW.jpg
    37.4 KB · Views: 804
    220.4 KB · Views: 875

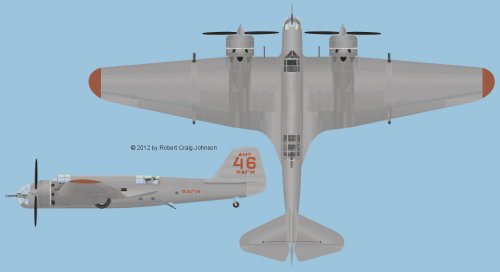

Here is the ANT-46 (DI-8), a three-seat fighter developed alongside the SB. It was powered by 800-hp Gnome-Rhone K-14 radials and armed with two 76.2-mm recoiless cannon in the outer wings, two 20-mm ShVAK cannon in the wing roots, a 12.7-mm ShVAK machine gun in the nose, and two defensive 7.62-mm ShKAS machine guns in the rear fuselage. It was not a success.


  • ant-46_di-8.jpg
    182.7 KB · Views: 170
Thanks for super drawing!!

A provisional drawing of the ANT-18(TSh-1) ground attack aircraft.

Source : OKB TUPOLEV A History of the Design Bureau and its Aircraft, Yefim Gordon and Vladimir Rigmant, MIDLAND, ISBN 1 85780-214-4

iverson said:
Here is the ANT-46 (DI-8), a three-seat fighter developed alongside the SB. It was powered by 800-hp Gnome-Rhone K-14 radials and armed with two 76.2-mm recoiless cannon in the outer wings, two 20-mm ShVAK cannon in the wing roots, a 12.7-mm ShVAK machine gun in the nose, and two defensive 7.62-mm ShKAS machine guns in the rear fuselage. It was not a success.

A minor correction:

The Di-8 variant with the two APK recoilless rifles only had a single ShKAS for the rest of its fixed forward firing armament. The Di-8 variant armed with 2x20mm ShVAK (or 5x20mm ShVAK) didn't carry any recoilless rifles. See this interesting post:
From; Tupolev SB Soviet High Speed Bomber


  • 2.png
    186.4 KB · Views: 129

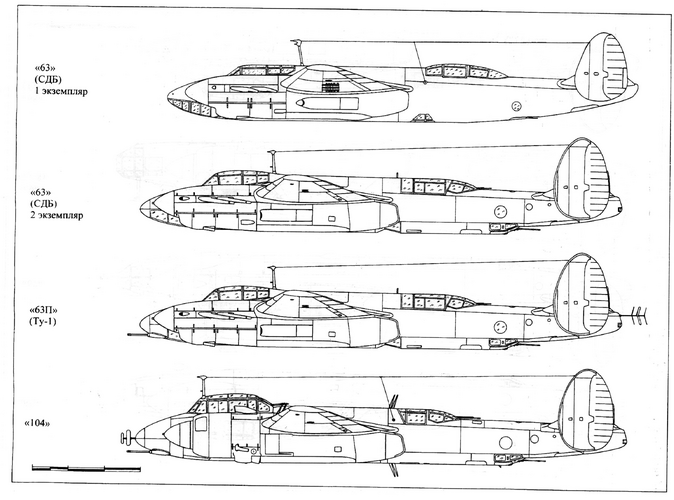

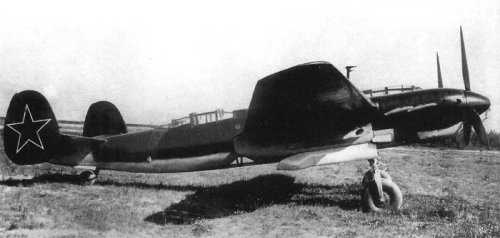

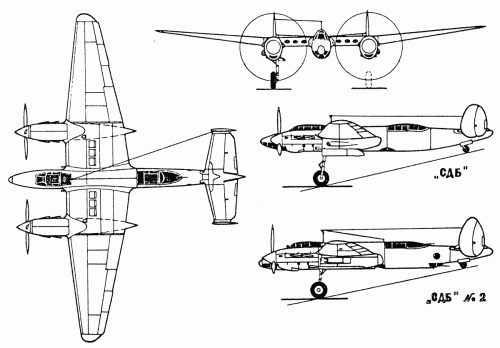

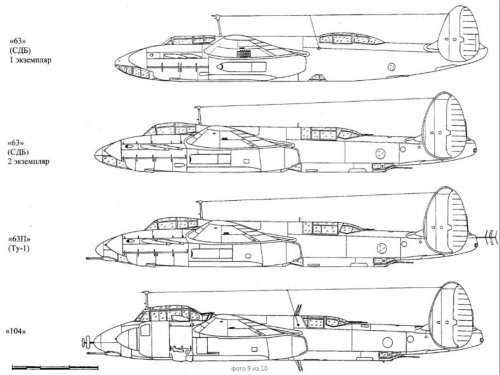

Hi! Tupolev SDB(СДБ).
"The experience of using the Tu-2 to solve various combat missions led the Air Force to the conclusion that it was necessary to create a new type of front-line vehicle - a high-speed day bomber ( SDB ). High speeds and large flight heights were supposed to provide him with the possibility of applying daily bombing to enemy targets without escorting fighters. The Tu-2 was considered the most suitable as the base vehicle for the creation of such an air force aircraft. That is why the State Defense Committee adopted a decision on May 22, 1944, according to which the OKB was to build a DRB aircraft in duplicate with the time of their presentation for testing: the first copy - June 1, 1944, the second copy - October 10, 1944."

"The report noted that the SDB on its flight data far exceeds the same type of domestic and foreign aircraft, including Mosquito. A number of defects were noted, the most serious of which was the insufficient survey of the navigator. The aircraft was not recommended in the series, since the tests of the ╚68╩ (Tu-10) machine were already beginning, from which even higher characteristics were expected.

SDB specification
Wing span : 18.80m , Length : 13.60m , Height : 4.55m
Wing area : 48.80m2
Weight : Empty 8280kg, Normal take-off 11850kg
engine's type 2 PD AM-39F, Power, hp 2 x 1885
Maximum speed : at the ground 547km/h, on high 640km/h
Cruising speed : 612km/h
Practical range : 1530km
Maximum climb rate : 575 m / min
Practical ceiling : 10100m
Crew : 3
Armament : two defensive 12.7-mm machine guns UBT and two 20-mm ShVAK cannons in the roots of the wings
bomb load : 1000 kg, maximum - 3000 kg"

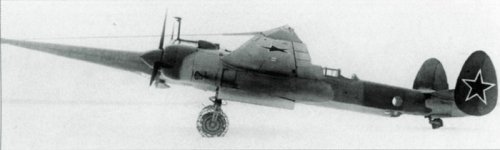

Tu-1 is here.


  • Tupolev RDB.gif
    Tupolev RDB.gif
    110.5 KB · Views: 114
  • sdb-1.jpg
    37.1 KB · Views: 101
  • sdb-5.jpg
    57 KB · Views: 89
  • RDB.jpg
    149.3 KB · Views: 144
Oh thanks a lot!!

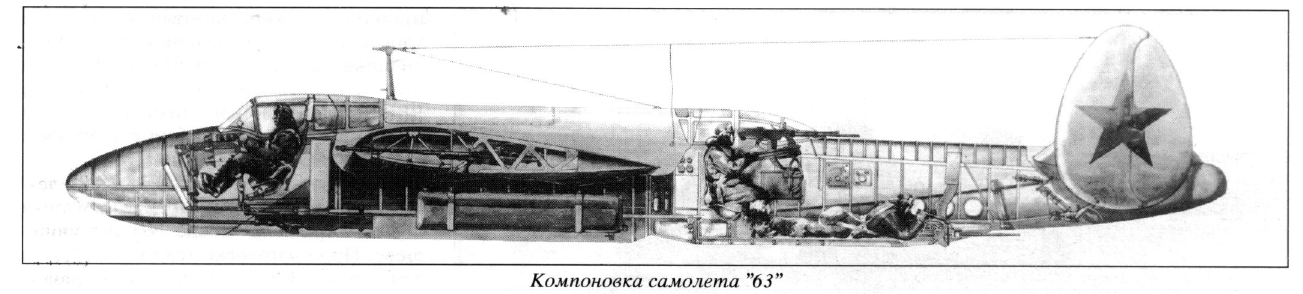

"ANT-63 (SDB)High-speed day bomber prototype."

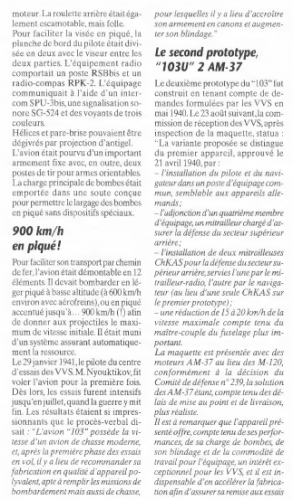

From Le Fana 442,

can anyone explain to me how they intended to reach 900 km/h in 1941,or I understad
wrong ?,they spoke about Tupolev Tu-2.


  • 1.png
    125.8 KB · Views: 100
hesham said:
can anyone explain to me how they intended to reach 900 km/h in 1941,or I understad
wrong ?,they spoke about Tupolev Tu-2.

In dive flight.
Got an odd question:

Did the Soviets engage in any very high altitude/long-range aviation projects post-WW2, similar to the ANT-25/ANT-37?
papacavy said:
Got an odd question:

Did the Soviets engage in any very high altitude/long-range aviation projects post-WW2, similar to the ANT-25/ANT-37?

Thank you my dear Redstar,and good question Papacavy.

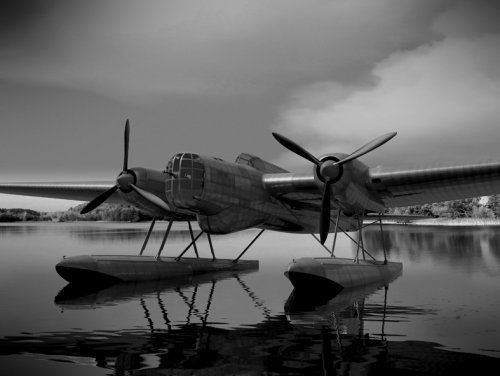

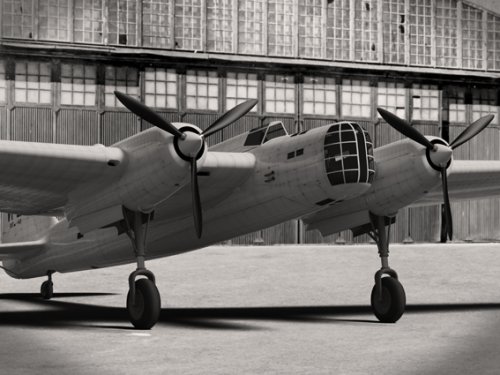

ANT-41 (T-1) and ANT-41 (T-1) on floats.

Source: K. Udalov and Marek Rys. Myasishchev DB. OKB-6.
Artist impressions: Marek Rys


  • T-1-001 spf.jpg
    T-1-001 spf.jpg
    184.2 KB · Views: 100
  • T-1G-002 spf.jpg
    T-1G-002 spf.jpg
    204.2 KB · Views: 113
  • ???-6 spf.jpg
    ???-6 spf.jpg
    221.9 KB · Views: 146
ucon said:
ANT-41 (T-1) and ANT-41 (T-1) on floats.

Source: K. Udalov and Marek Rys. Myasishchev DB. OKB-6.
Artist impressions: Marek Rys

Hi ucon! This is very great and interesting. Where can I get this booK?? (Avicopress? ???)
Thanx and Merry X-Mas!
Hi to all!

Just got a copy of the Encyclopedia of Myasishchev Aircraft, OKB-6 - ANT-41 and Li-2 Story, written by our dear Ucon (Konstatin Udalov) and Marek Rys. I am very impressed with the quality of this material, I had the feeling thar after reading this book no aditional info about these amazing projects are needed, the history of the projects are covered until the smallest details. Incredible images, full of 3-view high quality drawings, magnific action pictures and many surprise aircraft variants never seen before. I really recommend it to all members, it is a trully masterpiece in aviation history.

Hi everyone!
I just received my copy of this book. Like most of avicopress publications, it covers some aspects of the Myasishchev Design Bureau and its aircrafts / aircraft projects. This book is the first volume in a planned series about the aircrafts of OKB-6 (special construction office no. 6). The authors, the well known Konstantin Gennadievich Udalov and artist Marek Rys, present a profoundly researched and well illustrated book about the ANT-41 (T-1) and Li-2 (PS-89) planes. Udalov starts with the designhistory of the ANT-41, which begann in the early 1930s and gives detailed historic and technical background. Every designstage and most of the designs, prototypes, projects and production aircraft are either covered on photo, drawing or 3d illustration (by Marek). But not only the planes are describe, even some of their - more or less well-known - designers are covered; e.g. A.P. Tchernavskii. The second (and main) part of the book is dedicated to the legendary Li-2 (pp. 38-179). Especially this part is brillant: text and illustrations are matching perfectly and many new informations can be found here, not only for historians and aircraft enthusiats, but also for modelers. It´s getting obvious here, that the Li-2 was not just a simple copy of the american DC-3, but the Myasishchev engineers refinde it in an impressive manner and the soviets adapted it to fit the needs. The Li-2 programme gave a serious boost to the whole soviet aviation industrie. It is astonishing to look at the variety of designs and projects derived from the basic airplane. The last 30 pages show nearly all of the realised and planned Li-2 versions, military and civil ones. This plane could be adopted to every need: (night-)bomber, rescue plane, transport, flying testbed, relay aircraft, research aircraft etc. etc. My favorite version is the giant vintokriil (a vtol gyrocopter) version.
The book is written good and even readers with little russian language skills should be able to cope with it.
So, highly recommendations! I´m looking forward for the next volumes...
Greetings, Athpilot
With great pleasure I got acquainted with the first volume of Myasishchev KB about the first independent steps of a talented designer.
Wonderful publication of AVICOPRESS!
A huge archival material with a clear demonstration of documents from that period, excellent 3D graphics, detailed drawings.
I have no doubt that it will be informative, everyone who wants to get acquainted with this book.
I look forward to the next volume and many thanks to KG Udalov for the cool work in the light of the coverage of the history of Russian aviation!

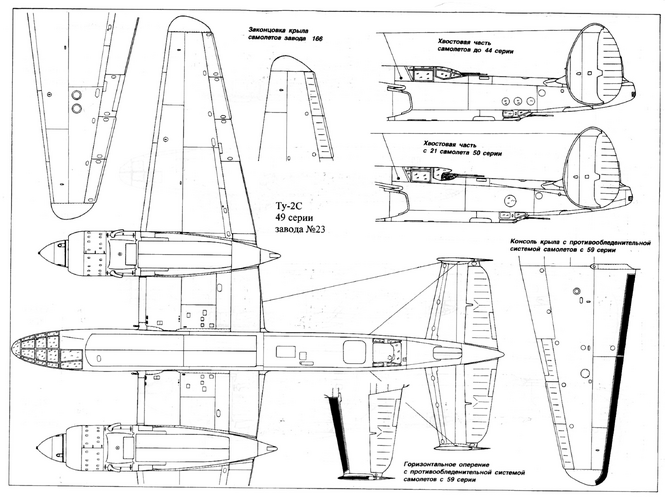

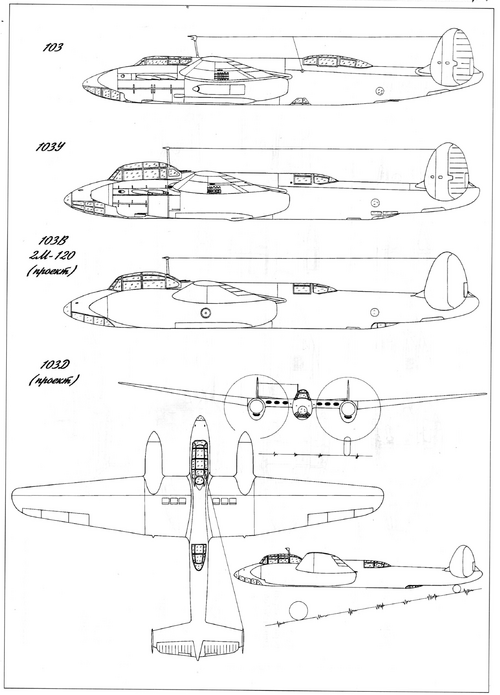

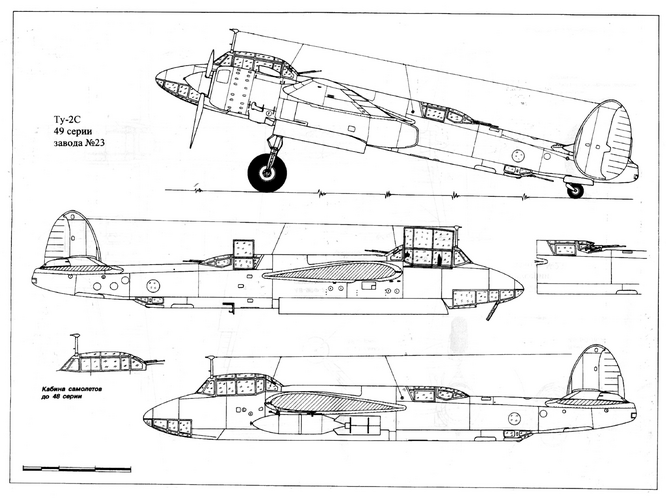

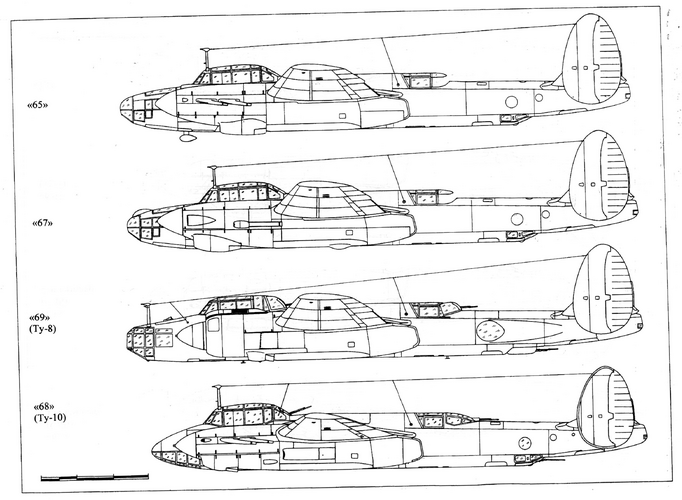

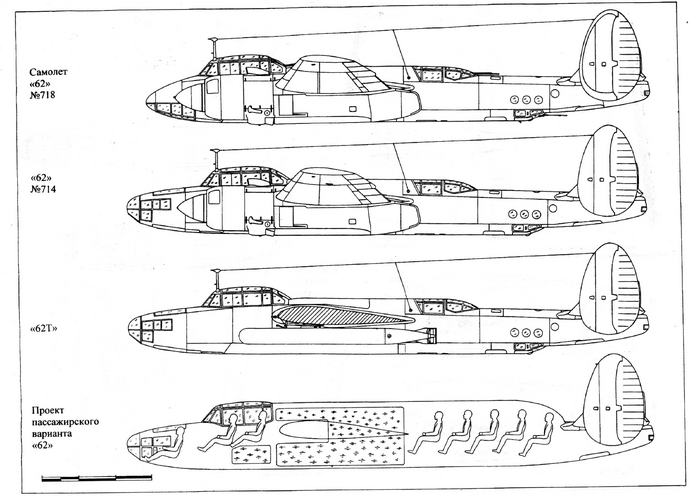

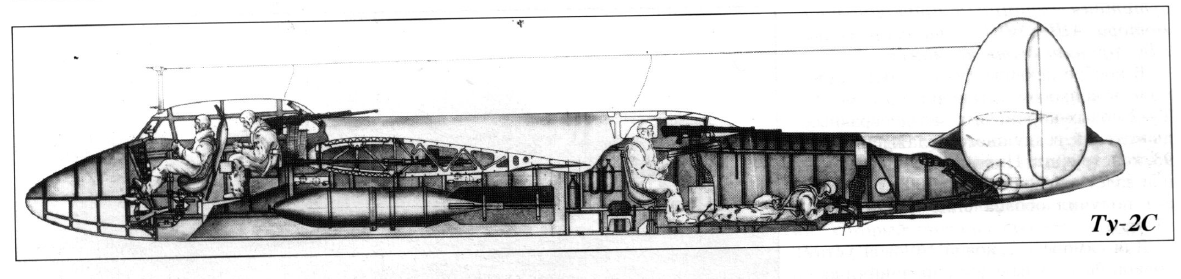

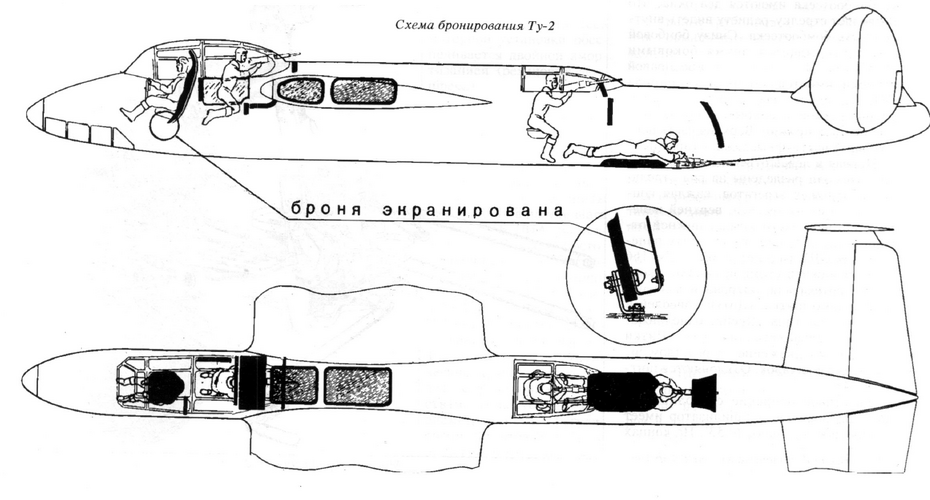

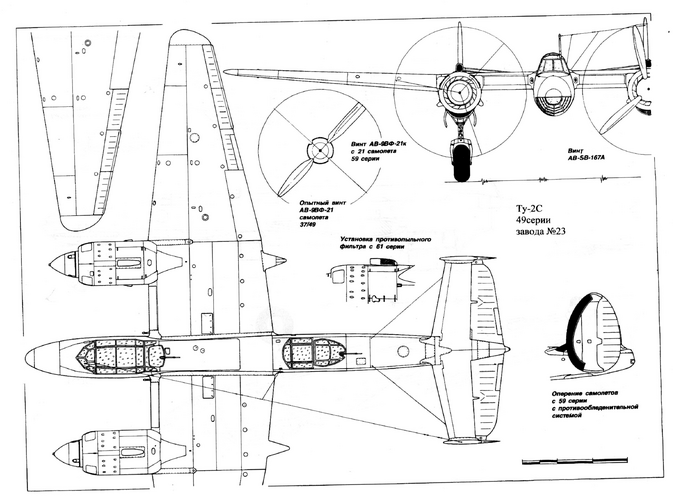

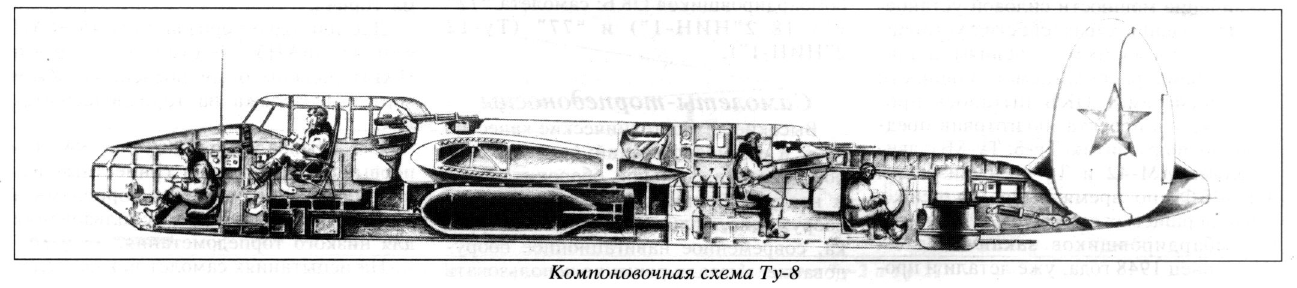

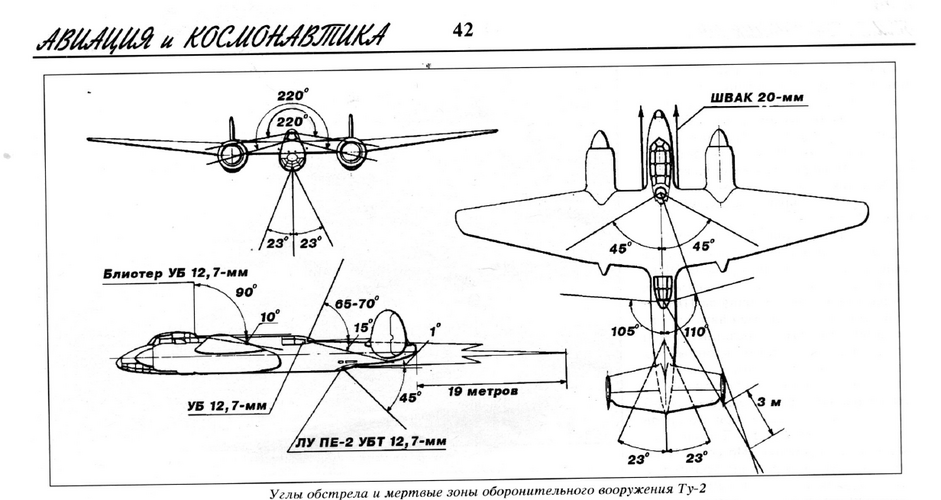

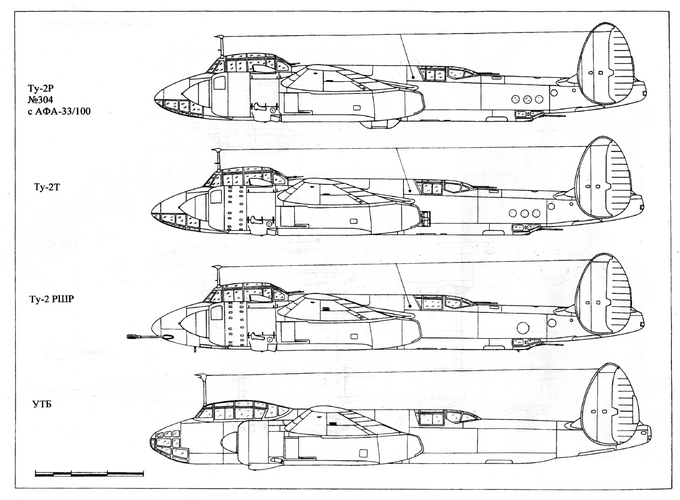

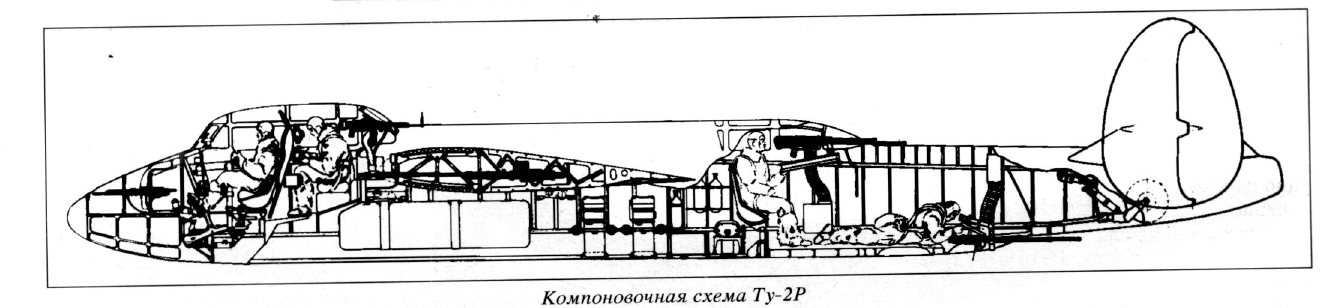

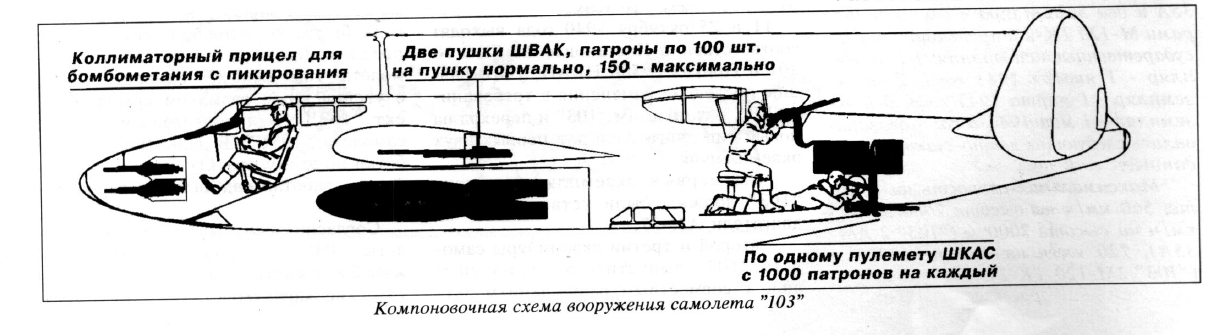

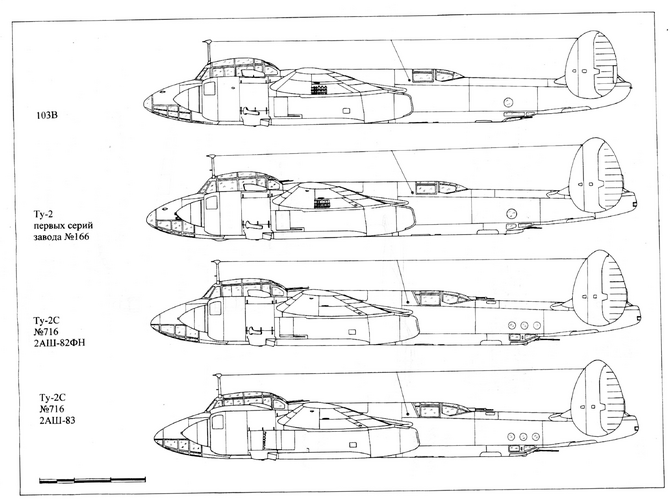

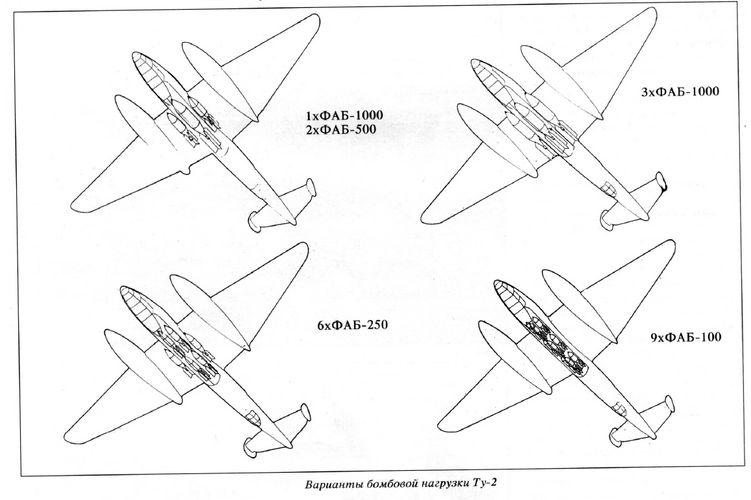

From, Бомбардировщик Ту-2


  • 69.png
    828.9 KB · Views: 50
  • 68.png
    731.6 KB · Views: 43
  • 67.png
    765.5 KB · Views: 39
  • 66.png
    661.7 KB · Views: 36
  • 65.png
    636.4 KB · Views: 37
  • 64.png
    383.2 KB · Views: 35
  • 63.png
    375.4 KB · Views: 37
  • 62.png
    410 KB · Views: 40
  • 61.png
    250.9 KB · Views: 40
  • 60.png
    306.2 KB · Views: 43
  • 70.png
    793 KB · Views: 41
  • 71.png
    783.3 KB · Views: 43
  • 72.png
    788.8 KB · Views: 45
  • 73.png
    888.2 KB · Views: 46
  • 74.png
    663.6 KB · Views: 44
  • 75.png
    236.3 KB · Views: 43
  • 76.png
    286.1 KB · Views: 41
  • 77.png
    273.8 KB · Views: 62

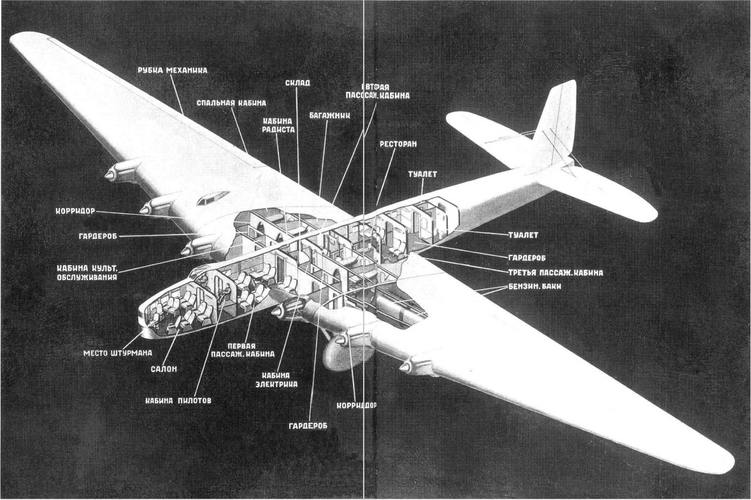

From, Максим_Горький._История_самолет-гиганта.


  • 900.png
    1 MB · Views: 52
