Spey A-4 Project

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,363
Reaction score
570
IMPROVEMENTS WITH THE SPEY
The Spey A-4 is based on the proposed CA-4E airframe which
was a single-seat development of the TA-4E, incorporating many
of the latter's improvements plus new features of its own. Like
the TA-4E, the CA-4E has a 9,300 lb st (4220 kgp) Pratt &
Whitney J52-P-8A turbojet, lift dumpers, steerable nose-wheel,
zero-zero ejection seat and modernized electronics. In addition.
the wing and fuselage store positions have been strengthened, to
permit maximum loads of 4,600 lb (2086 kg) on the fuselage,
2,600 Ib (1180 kg) on each inner wing position and 1,000 Ib
(454 kg) loads on the outer pylons. The maximum weight is
increased by 2,920 lb (1325 kg) to 27,420 lb (12440 kg), and low
pressure tyres are introduced for operations from unprepared
fields.
All these features are offered in the Spey A-4, but use of the
Rolls-Royce turbofan offers 41 per cent more thrust and 17-24
per cent lower cruising sfc compared with the J52-P-6A in the
standard Navy A-4E, with consequent performance improvement.
The Spey version in the Skyhawk is the RB.168-20, rated
at 12,000 lb st (5443 kgp) and specified also for the HS 801
(maritime Comet); it is essentially an unreheated version of the
RB. 168-25R specified for the F-4K Phantom II and is a military
version of the RB.163-25 in the later Tridents and One-Elevens.

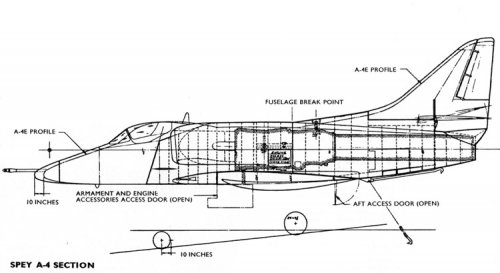

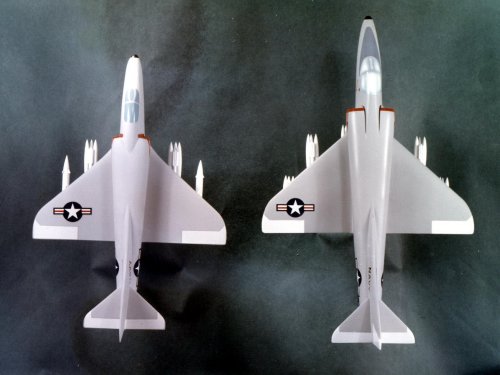

The Spey weighs some 470 lb (213 kg) more than the J52 and
has a frame diameter 3.5 in (8.9 cm) greater. To accommodate
this larger engine, the fuselage of the Skyhawk is deepened by
5 in (12.7 cm) aft of the self-sealing fuel tank behind the cockpit,
and is lengthened by a 10 in (25.4 cm) section just aft of the
cockpit. The engine air intakes are enlarged to match the greater
air mass flow requirement, the minimum cross-section of the
inlet duct being increased from 3.3 sq ft to 5 sq ft (0.31 to 0.46
m'). The changes to the fuselage involve a small increase in fin
area by increasing the chord and the overall height of the fin.
Approximately one-third of the bare airframe (less engine) by
weight is modified for the Spey installation. Materials and
construction methods are unchanged, but the changes in the
fuselage shape require some re-arrangement of the equipment in
the centre and rear fuselage and some re-routing of control
cables. Other items needing modification in the Spey installation
include the cockpit environment control system (for compatibility
with the higher pressures and temperatures of bleed air
from the 152; the pneumatic system which pressurizes the fuel
system; and the hydraulic system (because of larger-displacement,
lower-speed pumps used on the Spey).

The Spey A-4 has an empty weight of 10,739 lb (4871 kg),
compared with 9,853 lb (4470 kg) for the standard A-4E. As
already noted, there is a 2,920 Ib (1325 kg) difference in maximum
weights and the maximum ordnance load is increased to 12,000 lb
(5443 kg). Key points of the Spey A-4's performance are its
ability to take-off in 3,840 ft (1170 m) at max weight: its 2,750
naut mile (5 095 km) ferry range without refuelling and its Mach
0.92 max speed (590 knots-1093 km/h) at 35,000 ft (10670 m).
Douglas estimate that there is currently a market for about
2,000 low-cost ground attack aircraft, to replace F-84s, F-86s and
other obsolescent aircraft. The competition for this market is
growing, not only from other US manufacturers (primarily
Northrop with the F-5A and Ling-Temco-Vought with the A-7A)
but also from the European industry, primarily with the BAC/
Breguet Jaguar (see Vol 21 No 6 p 371). At $764,000 (£272,000)
complete with all-weather navigation equipment. the Spey A-4 is
among the lowest priced of the available types, and is offered in
quantity in less than two years from go-ahead.

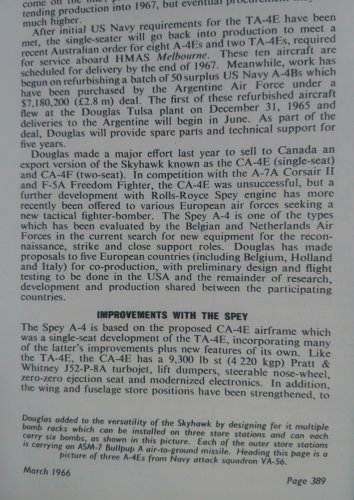

Flying Review March 1966


Attachments

Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,253
Reaction score
79
Another Spey- project to add to the list!!! seems that all well-known aircraft of the 60's was proposed in a spey-powered variant... this include french and american aircrafts...


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
7
overscan said:
The competition for this market is
growing, not only from other US manufacturers (primarily
Northrop with the F-5A and Ling-Temco-Vought with the A-7A)
but also from the European industry, primarily with the BAC/
Breguet Jaguar (see Vol 21 No 6 p 371).
Flying Review March 1966
It is worth noting that the CVA-01 carrier was cancelled in February of 1966, but Royal Navy participation in the SEPECAT Jaguar continued until May of that year. In the brief interval when the RN considered smaller conventional carrier and the navalized Jaguar M, a Spey powered A-4 proposal might have elicited some interest in the UK....or perhaps not.

I have never seen the CA-4E designation before, though. I always knew the TA-4E had a slightly stretched fuselage, but I never knew that a single seat TA-4E variant had been proposed. I wonder if this CA-4E proposal had any bearing on the later A-4M?

I also have to ponder the relationship between the TF30 powered A4D-6 of 1963 and this Spey A-4 of 1966? It is certain that a TF30 powered Skyhawk would have had similarly enlarged intakes, increased fuel load and all-weather avionics. Does this proposal represent a Rolls Royce powered revival of the A4D-6?


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,363
Reaction score
570
TF-30 wasn't having the best time of it in the mid 60s, the Spey was seen as a more reliable solution - hence TF41.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,657
Reaction score
30
Can anyone verify the time frame we're talking about in regards to this CA-4E proposal to the Canadian?

I noticed tinwing making mention of
Spey A-4 of 1966?
, is this in relationship to the Canadian CA-4E proposal?

Regards
Pioneer


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,253
Reaction score
79
... and in the end the Netherlands bought F-5A and Belgium bought Mirage VF triggering a small crisis that was solved many years through the Deal of the Century.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,657
Reaction score
30
"The Spey A-4 is based on the proposed CA-4E airframe which
was a single-seat development of the TA-4E, incorporating many
of the latter's improvements plus new features of its own.
"

Excuse my ignorance, but would someone be able to denote via a profile drawing where the 71cm (27.95 in) of the TA-4Es fuselage extension would be incorporated into the CA-4E in comparison to a A-4E please?
I've just watched a Douglas promotional video
(at aboutTime 18:00), and for the first time seen and appreciated the three major components of assembly which not just made the Skyhawk simple, but strong... So Im wondering, if this 71cm (27.95 in) extension is in the forward fuselage; for wouldn't a single-seat derivative of the TA-4E make complete sense in terms of either additional sensors/avionics or in terms range on internal fuel.....

Regards
Pioneer
