Handley Page HP.128 short-range transonic airliner

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,970
Reaction score
374

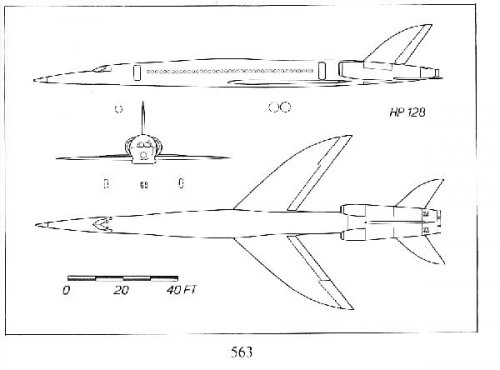

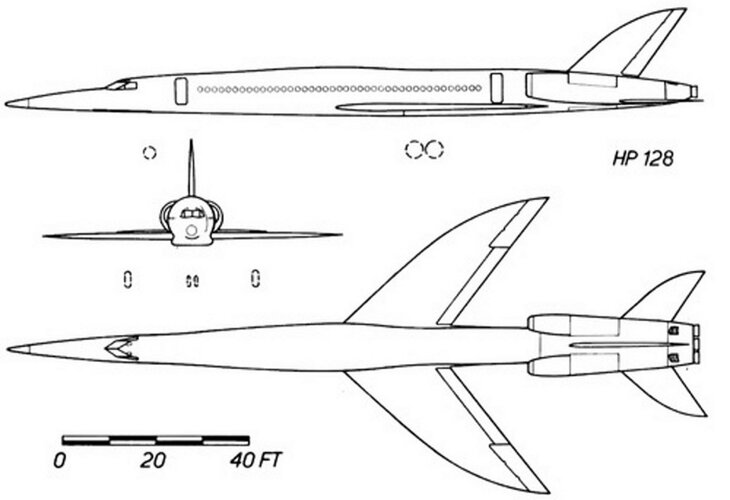

H.P. 128 from putnam's Handley Page, pp. 562-563

H.P. 128 short range airliner :-

cruising speed M1.15 with no sonic boom.
stage length 500nm.
pax capacity - 125 @ 30" pitch.
maximum auw 117,700 lb, payload 25,000 lb
span 67.5 ft
area 1,300 sq ft.
sweepback 45 degrees.
aspect ratio 3.5
t/c ratio 6%
section NACA 65 or RAF100 series.
engines - 3 turbojets each of 15,000 lb s.t. [1.45 X enlarged RR speys]
structure - aluminium.
high lift devices - leading edge flaps with suction when deflected, blown trailing edge flaps.

the aircraft was expected to achieve a 20% saving in block time, for a 15% increase in direct operating cost over convention airliners over the design 500 mile stage length.
studies continued until 1964.

cheers,
Robin.


Attachments

  • hp.128.jpg
    27 KB · Views: 178

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,461
Reaction score
943

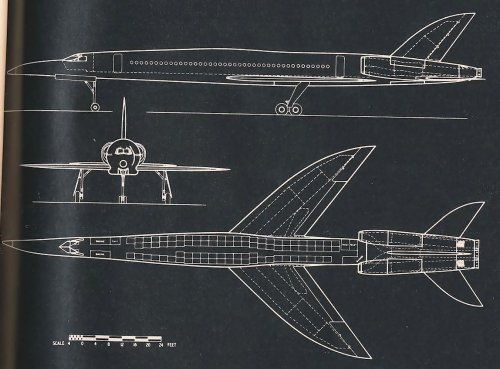

A slightly better 3-view drawing of the Handley Page HP.128, published in the German magazine Flug-Revue, January 1963
Please notice the seating arrangement and the arrangement of the "3 rear-mounted engines (of unspecified type) aspirated via two bifurcated intakes"(1).
(1) Source: hesham's post #1, FLIGHT International, 6 September 1962, page 401


Attachments

  • Handley Page HP 128.jpg
    Handley Page HP 128.jpg
    161.7 KB · Views: 152
