Just came across this very interesting 1978 paper prepared for NASA by General Research Corp. and depicting a great number of hypothetical orbiter designs, including a "Martin VTO" and a "Boeing HTO". I hope they do not appear elsewhere on the forum already. (my search for them brought no results).

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790019021_1979019021.pdf

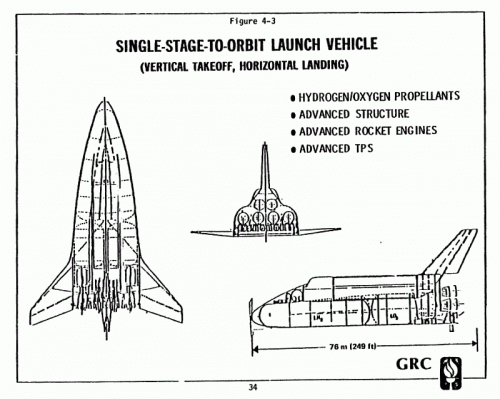

The so-called "Martin VTO" is a 249-ft. vertical takeoff/horizontal landing single-stage-to-orbit (SSTO) launch vehicle (first attachment).

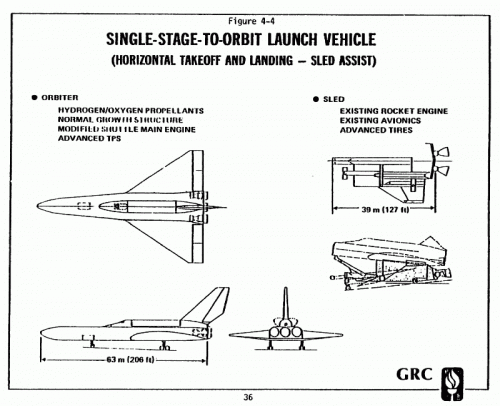

The so-called "Boeing HTO" is a 206-ft. horizontal takeoff and landing single-stage-to-orbit (SSTO) launch vehicle (second attachment).

The other designs in the same paper are by GRC (with one by LaRC) and will be depicted in the next post below.


Attachments

  • 4-3s.gif
    66.5 KB · Views: 643
  • 4-4s.gif
    50.2 KB · Views: 644

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
856

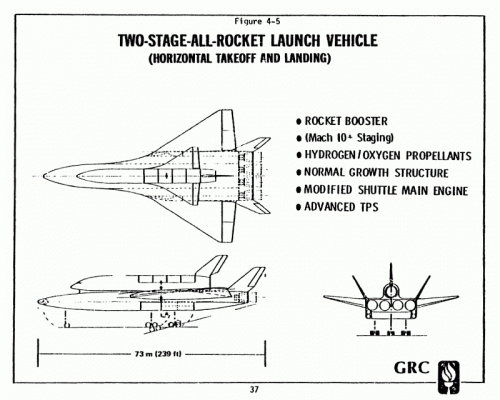

Next comes a GRC design for a 239-ft. two-stage vehicle (C).
Like the Martin and the Boeing design, it is all-rocket and sled-assisted.
Like the Boeing design, it is also a horizontal takeoff and landing vehicle.


In parallel with the above three designs, the paper presents three more notional designs:

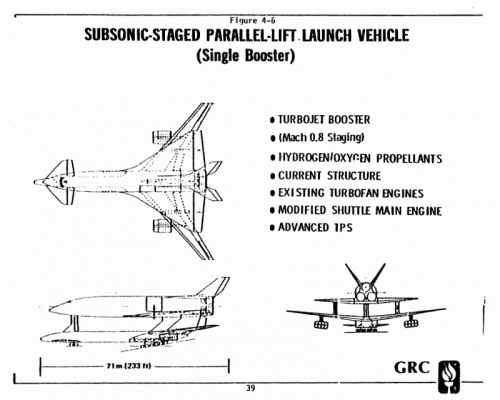

- a GRC-designed subsonic-staged parallel-lift launch vehicle with single turbojet booster (D)

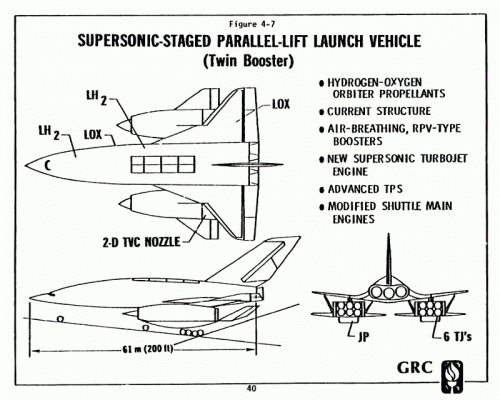

- an LaRC-designed supersonic-staged parallel-lift launch vehicle with twin booster (E)

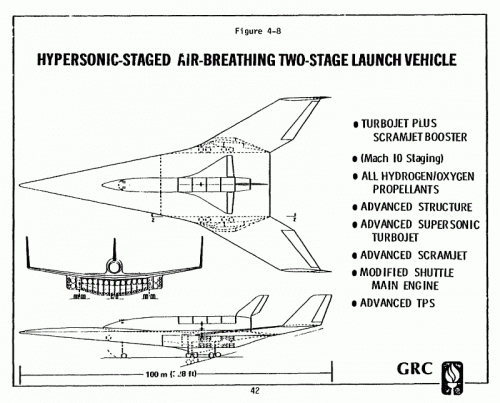

- a GRC-designed hypersonic-staged air-breathing two-stage launch vehicle with turbojet plus scramjet booster (F)

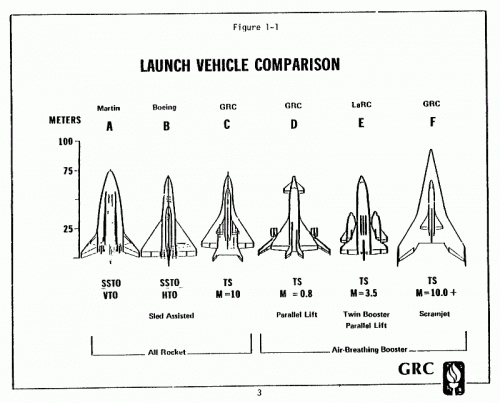

The last diagram below recapitulates all six designs.


Attachments

  • 4-5s.gif
    59.3 KB · Views: 614
  • 4-6s.gif
    60.6 KB · Views: 604
  • 4-7s.gif
    69.1 KB · Views: 596
  • 4-8s.gif
    58.4 KB · Views: 75
  • 1-1s.gif
    33.9 KB · Views: 95

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
856

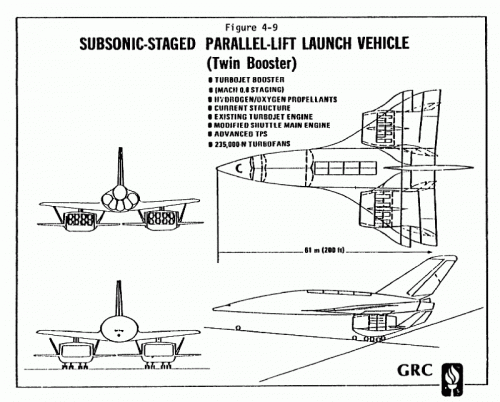

Interestingly, a seventh design is introduced, which is not on the above diagram, for a GRC-designed subsonic-staged parallel-lift launch vehicle with twin turbojet booster. In the words of the author "the vehicle design (Fig. 4-9) was available only late in this study, and hence is considered only in the cost analyses". However, the paper presents no less than 4 paintings of the same configuration, with large winged boosters hanging under the main wings.


Attachments

  • 0-4s.jpg
    305.9 KB · Views: 86
  • 0-3s.jpg
    313.8 KB · Views: 79
  • 0-2s.jpg
    317.3 KB · Views: 106
  • 0-1s.jpg
    304.1 KB · Views: 116
  • 4-9s.gif
    62.7 KB · Views: 85

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,998
Reaction score
6,624
It would seem to me that the subsonic-staged parallel-lift launch vehicle would be quite a good investment right around now.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,721
Reaction score
3,680
This thread is both cool and depressing at the same time.


Grif

ACCESS: Confidential
Joined
Jan 19, 2008
Messages
52
Reaction score
2
Has anyone else noticed the resemblance to the mis-named "lifting bodies" on the "Zero-X" spaceship in the film "Thunderbirds are Go"?
Grif


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
30
Website
www.io.com
Grif said:
Has anyone else noticed the resemblance to the mis-named "lifting bodies" on the "Zero-X" spaceship in the film "Thunderbirds are Go"?
Grif

...Not here. Which particular design is triggering the thought in your case?


Gridlock

ACCESS: Secret
Joined
Aug 4, 2010
Messages
241
Reaction score
5
Zero X:


I'm more intrigued by the resemblance between certain details on the GRC and one particular sighting from Tikabook Peak.


Attachments

  • 4205773841_b0f121aecb.jpg
    24.6 KB · Views: 46

RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
993
Reaction score
495
Stargazer2006, this is your official "Thanks" for finding that document from me :)

It was cross-posted to a thread over at nasaspaceflight.com on the forums. The main concept is the Langley "Spacejet" Launch Vehicle Concept which is one I've been interested in for quite a while.

Found topic here:
http://www.secretprojects.co.uk/forum/index.php?topic=11026.msg103877;topicseen

But again thanks because I hadn't had any economic analysis before this helps a lot.

Randy


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,045
Website
deeptowild.blogspot.com
Artist's impression of Boeing single-stage-to-orbit (SSTO) spacecraft press photo found on eBay.

Source:
http://www.ebay.com/itm/1975-Press-Photo-Boeing-Aerospace-Craft-Drawing-/390448206209?pt=Art_Photo_Images&hash=item5ae886d181


Attachments

  • 4402746.jpg
    93.1 KB · Views: 69
