Some time ago, I saw a model of a WW1 Junkers(?) fighter that was not produced. It was fairly streamlined for the era and sported a scoop ala Mustang. I'm hoping the membership here might know something about it and maybe have some pics of it. My thanks in advance.

Hello

It seems to be the Junkers J 2 (military designation E II)

Some pics here :
http://www.google.fr/images?hl=fr&source=imghp&q=Junkers+J+2&btnG=Recherche+d%27images&gbv=2&aq=f&aqi=&aql=&oq=&gs_rfai=

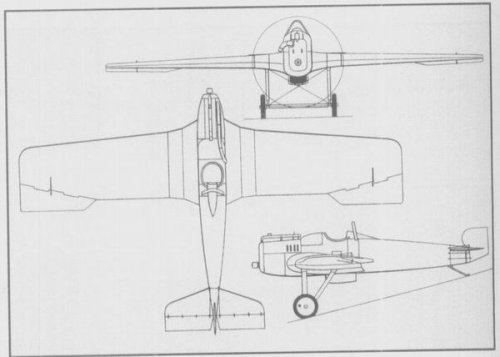

A 3-view from Green/Swanborough "Jagdflugzeuge der Welt" (Fighters Of The World):


Attachments

  • Junkers_J-2_01.jpg
    23.7 KB · Views: 397
Yes, that's the bird. I wonder what would have happened had it had a better engine?

Out of curiousity, what was wrong with the Mercedes D.II? True it put out less power than, say, the D.III in Junkers' CL.I, but the D.II was also several hundred pounds lighter than its 'bigger brother'.

It was much too heavy (covered with thin IRON sheets)
The J 7 and J 9 (D I ) were similar ,but covered with light alloy ,they were more successful .

Apophenia said:
Out of curiousity, what was wrong with the Mercedes D.II? True it put out less power than, say, the D.III in Junkers' CL.I, but the D.II was also several hundred pounds lighter than its 'bigger brother'.

Not a thing wrong per se with the engine, but, as mentioned, the aircraft was all metal, frame and skin, significantly heavier than most of their contemporaries.

Just for the record, specifications from German Aircraft of the First World War - Gray & Thetford

Engine 120 h.p Mercedes D II
Span 11.0 m.
Length 7.3 m.
Height 3.13 m.
Area 19.84 sq. m.
Weight Empty 1018 kg.
Weight Loaded 1160 kg
Speed 145 km.hr.

Regards Bailey.

Hi,


http://translate.google.com/translate?sl=de&tl=en&js=n&prev=_t&hl=ar&ie=UTF-8&eotf=1&u=http%3A%2F%2Fwww.ju-f13.de%2Findex.html

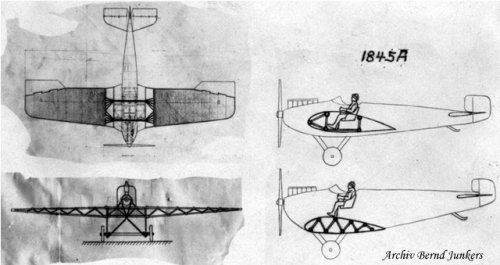

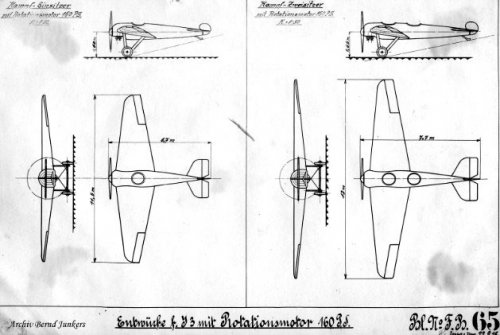

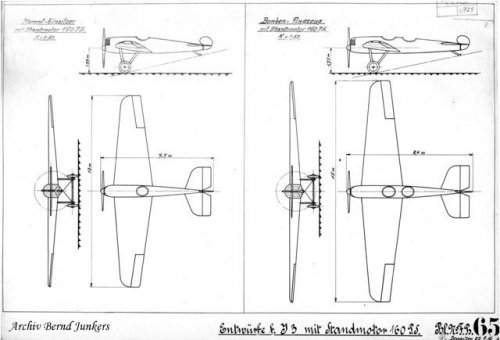

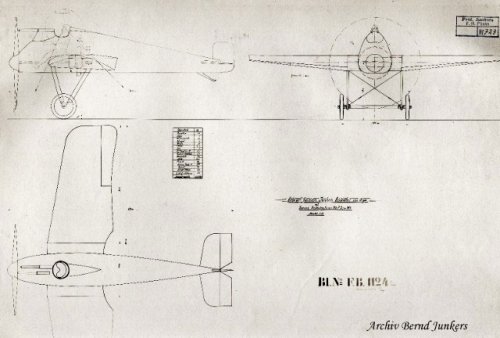

Attachments

  • J.3.jpg
    42.4 KB · Views: 288
  • J.3  II.jpg
    J.3 II.jpg
    54.1 KB · Views: 267
  • J.5.jpg
    53.5 KB · Views: 253
  • Junkers fighter.jpg
    Junkers fighter.jpg
    49.2 KB · Views: 250

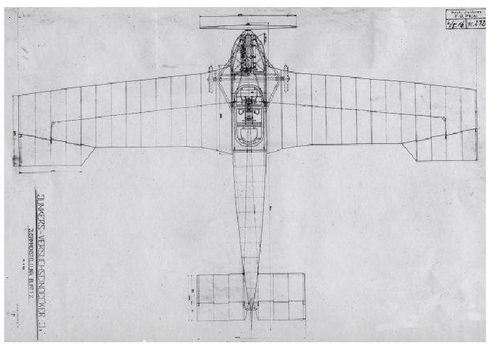

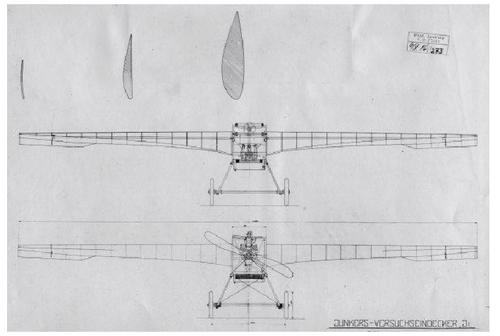

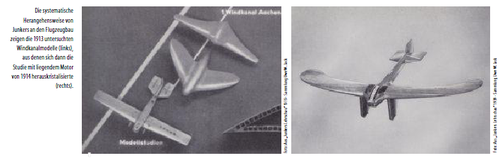

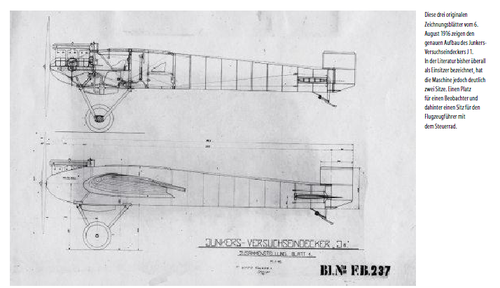

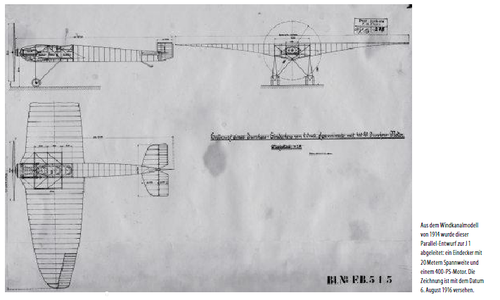

From, Flieger Revue Extra 83.


Attachments

  • 1.png
    124.3 KB · Views: 70
  • 2.png
    180 KB · Views: 72
  • 3.png
    210.3 KB · Views: 67
  • 4.png
    187.2 KB · Views: 70
  • 5.png
    232.3 KB · Views: 67
