Ducted prop spinners: what was the point/purpose of these?

Merv_P

ACCESS: Confidential
Joined
Jul 29, 2006
Messages
115
Reaction score
7
http://www.flightglobal.com/pdfarchive/view/1948/1948 - 1659.html

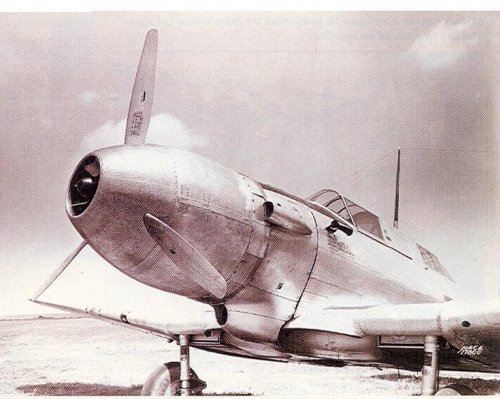

I came across this picture of a Tempest, just postwar; the article mentions the ducted spinner without giving an explanation. To an untrained eye, it looks like a sort of halfway house between a conventional propellor and a turboprop. Is that right, or does it have a different purpose?


Attachments

  • Clipboard01.jpg
    64.5 KB · Views: 151

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,095
Reaction score
222
They were a fad for a time to try and improve the streamlining and reduce the drag. The idea was to duct air through the spinner into the engine (usually a radial but occasionally an inline with an annular radiator) and thereby reducing drag by eliminating extra scoops for the radiators. They invariably didn't work, as far as I'm aware. They were tried on various American, German and British aircraft (not aware of any Japanese ones).


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
498
From the US side, the Curtiss XP-42

http://www.nationalmuseum.af.mil/factsheets/factsheet.asp?id=2244


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
That's not a ducted spinner, tho.


pometablava said:
From the US side, the Curtiss XP-42

http://www.nationalmuseum.af.mil/factsheets/factsheet.asp?id=2244


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
498
Ups, sorry Frank, you're right

According to Enzo Angelucci's "The American Fighter" (page 169)

"Curtiss engineers installed a P&W R-1830 engine with an extremely aerodynamic cowling and with a large spinner covering the propeller hub. The air intake for the radiators was located under the engine, the inlet for the carburetor being above it"


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

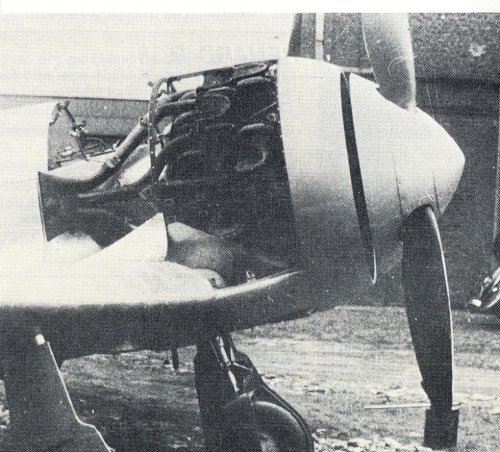

Northrop A-17 samples with ducted ans streamlined spinners


Attachments

  • Escanear0001.jpg
    93.6 KB · Views: 144
  • Escanear0002.jpg
    101.5 KB · Views: 123

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

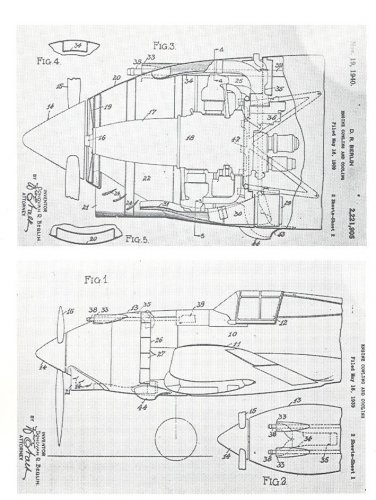

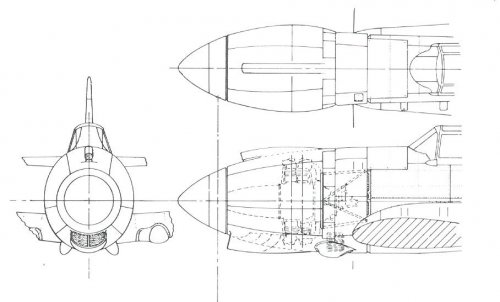

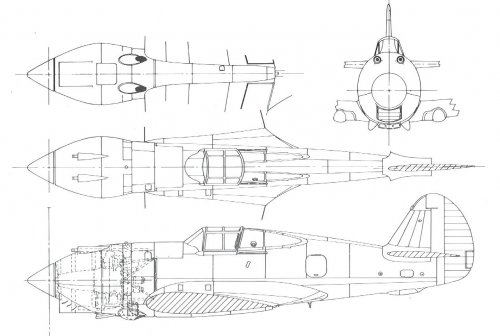

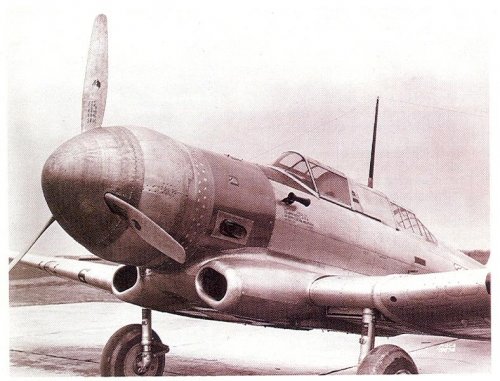

Curtiss XP-42 cooling system


Attachments

  • Escanear0001.jpg
    159.3 KB · Views: 130
  • Escanear0003.jpg
    52.4 KB · Views: 133
  • Escanear0002.jpg
    103.3 KB · Views: 92

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

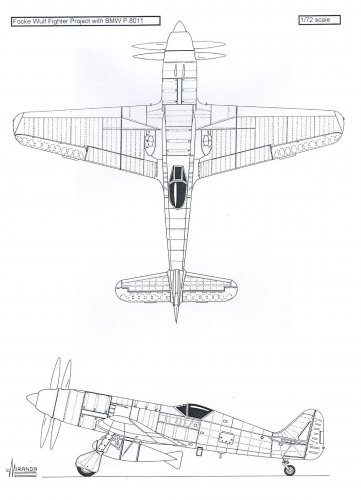

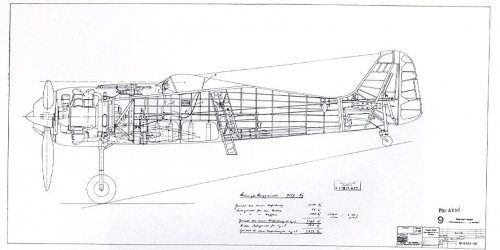

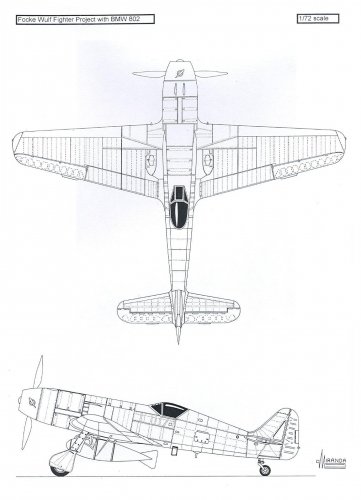

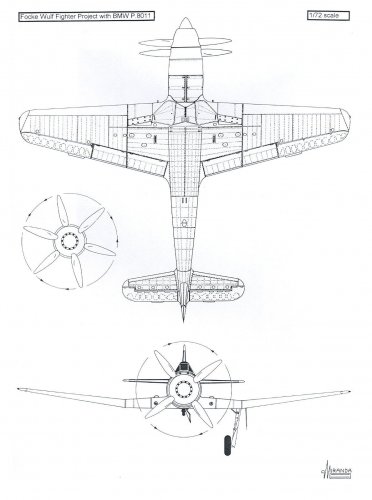

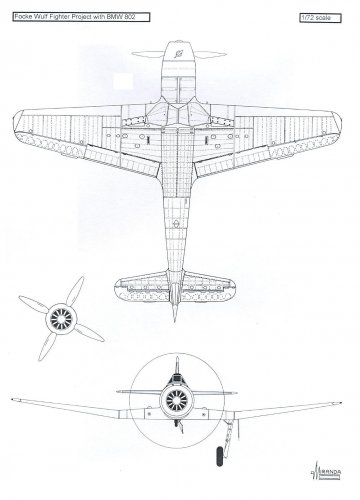

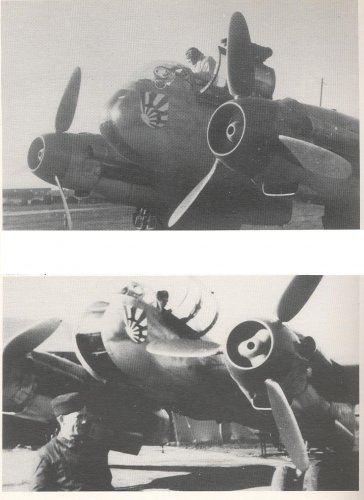

Here some Focke Wulf samples...


Attachments

  • Escanear0005.jpg
    162.2 KB · Views: 86
  • Escanear0004.jpg
    175 KB · Views: 89
  • Escanear0003.jpg
    156.7 KB · Views: 79
  • Escanear0002.jpg
    165.7 KB · Views: 101
  • Escanear0001.jpg
    31.9 KB · Views: 93
  • Escanear.jpg
    78.3 KB · Views: 103

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

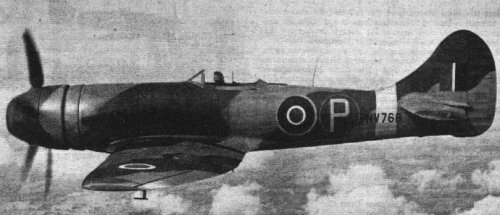

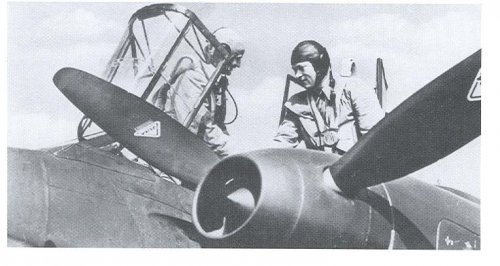

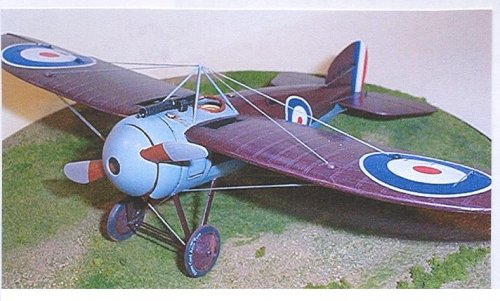

Bristol M.1C and Hawker Tempest MkV NV768


Attachments

  • Escanear0008.jpg
    48.3 KB · Views: 85
  • Escanear0007.jpg
    68.2 KB · Views: 97
  • Escanear0006.jpg
    76.3 KB · Views: 50

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

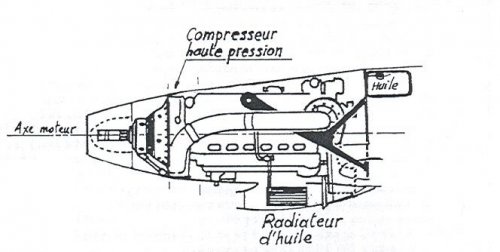

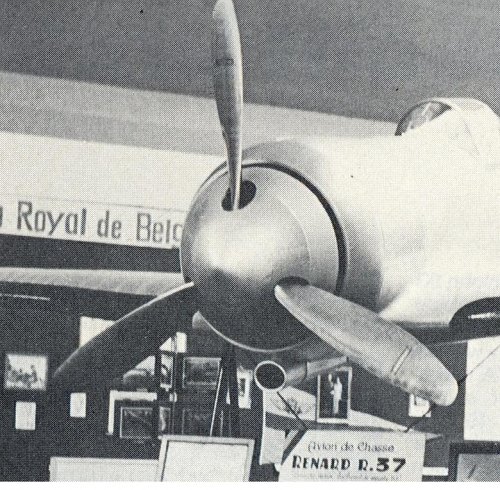

Renard R.37 cooling system


Attachments

  • Escanear0002.jpg
    217.4 KB · Views: 46
  • Escanear0003.jpg
    346.8 KB · Views: 51
  • Escanear0001.jpg
    103.7 KB · Views: 58

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

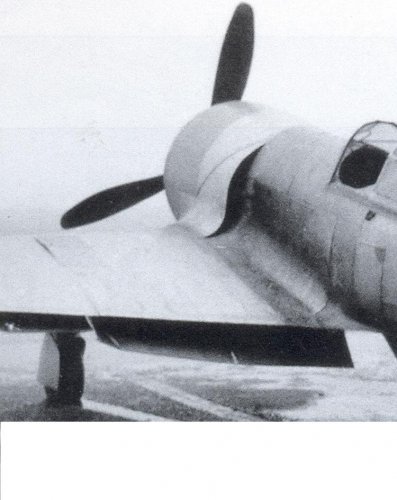

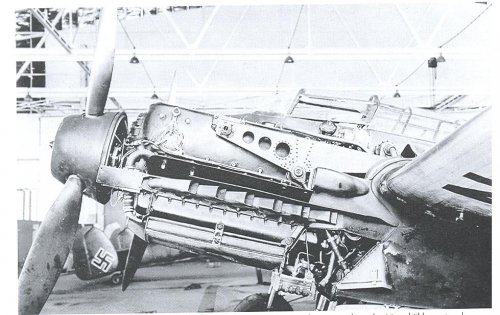

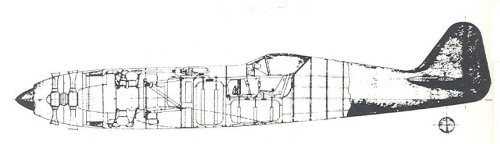

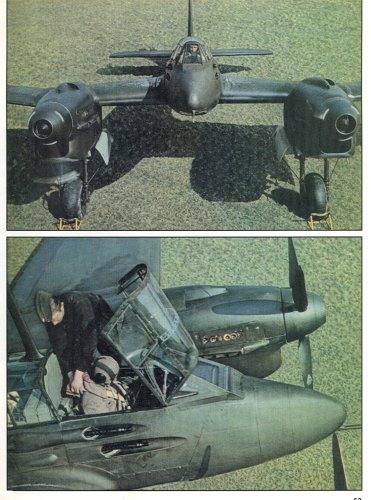

Focke Wulf 187 ducted spinners


Attachments

  • Escanear0005.jpg
    482.5 KB · Views: 72
  • Escanear0002.jpg
    65.5 KB · Views: 70
  • Escanear0001.jpg
    129.4 KB · Views: 63

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com

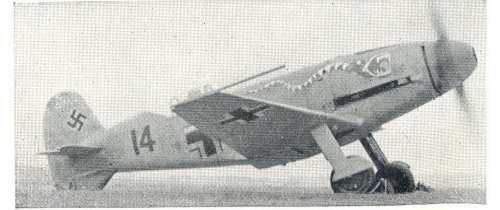

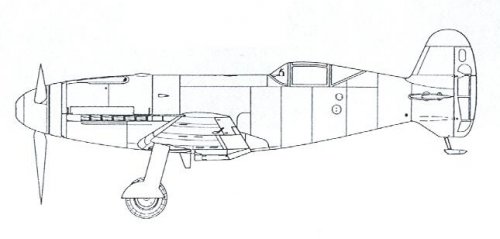

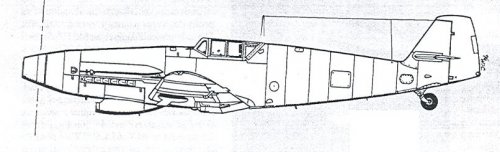

Arado Ar 240 A-10,Messerschmitt Bf 109 H and Me 209 V4


Attachments

  • Escanear0005.jpg
    20.3 KB · Views: 66
  • Escanear0004.jpg
    65.4 KB · Views: 57
  • Escanear0003.jpg
    118.5 KB · Views: 66
  • Escanear0002.jpg
    30 KB · Views: 70
  • Escanear0001.jpg
    36.2 KB · Views: 77
  • Escanear.jpg
    324.4 KB · Views: 69

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

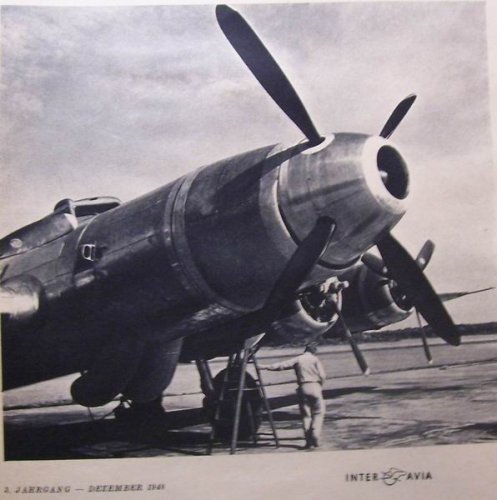

Just found today in InterAvia 12/1948, a 5-engined B-17 with
