Hi,

the Douglas Astro was delta-wing vehicle and spacecraft,it was
combined aircraft and rocketry concepts.
http://www.flightglobal.com/FlightPDFArchive/1963/1963%20-%201667.pdf


Attachments

  • Astro.JPG
    37.4 KB · Views: 376

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
156

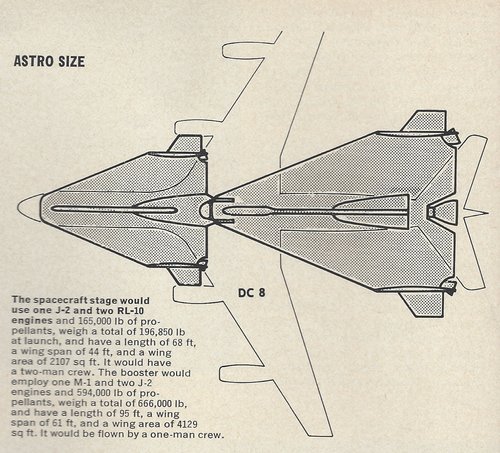

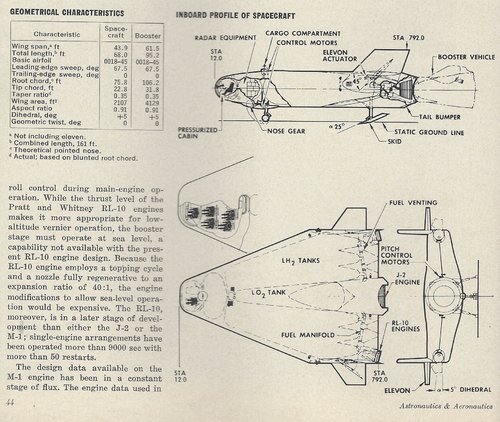

Poor quality source for the first pic I'm afraid...


Attachments

  • scan0030 (2).jpg
    scan0030 (2).jpg
    58.1 KB · Views: 277
  • scan0034 (2).jpg
    scan0034 (2).jpg
    20.3 KB · Views: 271

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,211
Reaction score
1,511

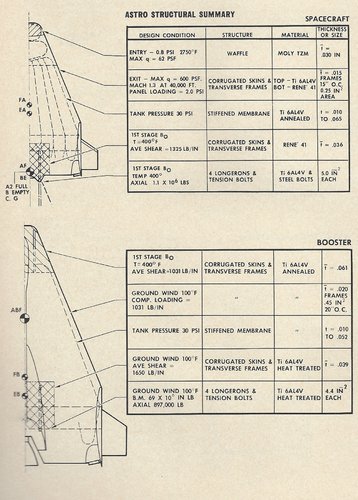

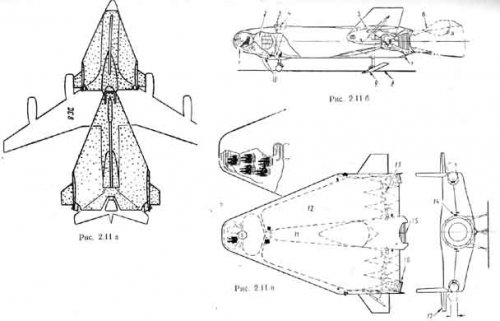

From I.I. Shuneyko's 'Winged Spaceships" (1966)


Attachments

  • sh2-10.jpg
    18.3 KB · Views: 289
  • sh2-11.jpg
    23.2 KB · Views: 345

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
156
From The Look-It-Up Book of Space 1969 Random House a better pic of Hesham's one.


Attachments

  • scan0041 (3).jpg
    scan0041 (3).jpg
    163.5 KB · Views: 99

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
156

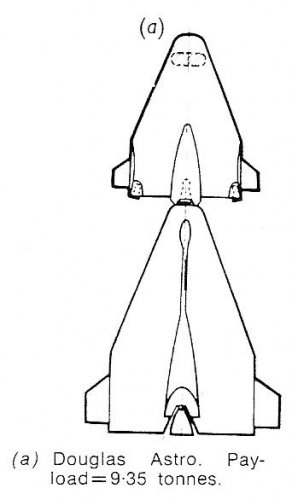

From,

The Look-It-Up Book Of Space by Maurice Allward ISBN 0 00 102206 7

Regards,
Barry


Attachments

  • scan0002.jpg
    251.8 KB · Views: 76

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,211
Reaction score
1,511
Sincere thanks!


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
835
Reaction score
346
Looks a bit like the British MUSTARD, though I suppose there are only a limited number of shapes for spacecraft.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
156
A Douglas ad with what looks like Astro in it..


Attachments

  • scan0005b.jpg
    51.6 KB · Views: 120
  • scan0005a.jpg
    208.6 KB · Views: 200

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,164
Reaction score
99
Oh, look! In the corner of the Douglas add, it would seem Starfleet contracted Douglas to join four K-7 space stations together. :D


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,357
Reaction score
2,198
Website
www.aerospaceprojectsreview.com
XP67_Moonbat said:
Oh, look! In the corner of the Douglas add, it would seem Starfleet contracted Douglas to join four K-7 space stations together. :D

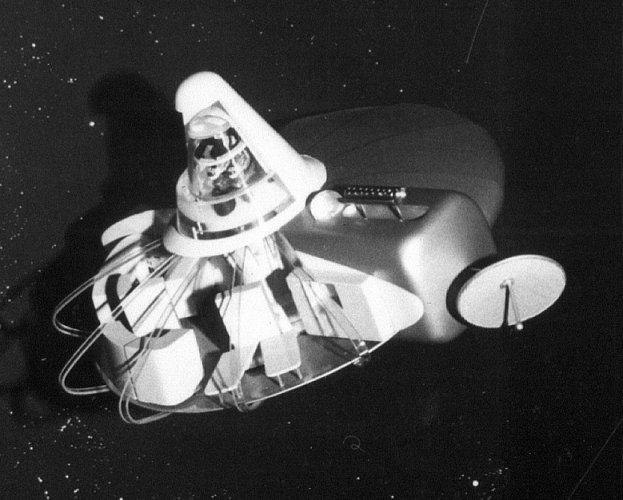

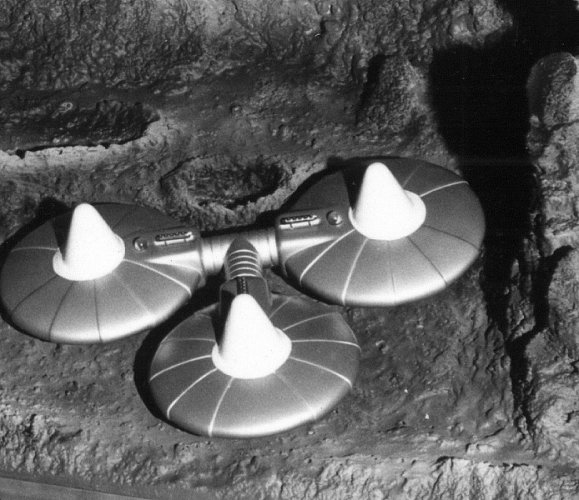

Got it backwards. The "K-7" was copied from some earlier Douglas space station module designs.

http://www.cloudster.com/RealHardware/SIVBStage/Models/ModelsTop.htm





OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
25
Website
www.io.com
...Those space stations bring only one question to mind: how did they clean up all the Tribbles?


:D


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
156
Hmmm, that looks familiar. Think I've seen a small b/w of that in some mag but hadn't twigged that it was Astro.

Thank you Scott,
Regards,
Barry


magnus_z

ACCESS: Confidential
Joined
Aug 15, 2009
Messages
115
Reaction score
20
index.php


index.php


What is space station?
I have postage stamps but I do not know this space station.
???





Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,146
Reaction score
1,805
so far i know
it a proposal by Douglas for Space Station (around 1965 ?)
build from empty S-IV B and S-IV stages


magnus_z

ACCESS: Confidential
Joined
Aug 15, 2009
Messages
115
Reaction score
20
Michel Van said:
so far i know
it a proposal by Douglas for Space Station (around 1965 ?)
build from empty S-IV B and S-IV stages
Thank you very much!
:)





I have questions:

1 - This is S-IVB Saturn-IB second stage?
2 - This is S-IV Saturn-I second stage?
3 - Douglas "Astro"
4 - ???
5 - ???


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com
Text by Marcus Lindroos from the late Space pages:

The Douglas "Astro" was a VTHL TSTO system designed for launching space station crews and cargo by the 1968-70 period. A key requirement was that off-the-shelf technologies must be used, e.g. existing M-1, J-2 and RL-10 engines from the Saturn and Nova expendable launch vehicle programs. Both stages are manned and employ lifting-body configurations. The (empty/gross) mass fraction was quite high (0.89 for the booster,0.844 for the orbiter) and the designers attributed this to the thick-wing lifting body configuration which results in less weight due to lower stresses and thermal loads during reentry.

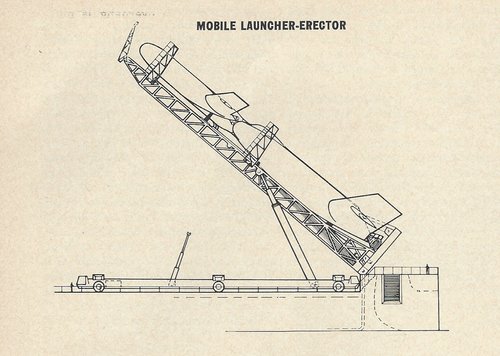

After separating from the orbiter at an altitude of 82km, the booster would make an unpowered landing 830km from the launch site since it has no jet engines for atmospheric cruise. The flight rate assumptions were quite high: 240 flights per year for a fleet of 12 boosters & 24 orbiters with a turnaround time between missions of less than 18 days. A mobile launcher erector would eliminate the need for large gantrys. The planned service life was 100 flights for the orbiter and 200 flights for the booster. The engines would have been capable of 50 firings between major overhaul (the airframes would last up to 300 flights).

Development cost: $1.2 billion [1964 dollars -- $6.45B in FY 1999]. Marginal cost per mission: $1.5M (=$41/lb at 1964 economic conditions; $485/kg in 1999).

Liftoff Thrust: . Total Mass: 407,870kg. Total Length: 49m.

Payload capability: 16,851kg payload to 555km 28.5 degree orbit.

Stage Number 1: 1 x M-1 plus 2 x J-2. Gross Mass: 302,183kg. Empty Mass 32,558kg. Thrust: . Isp: Length: 29m. Span: 18.6m. Propellants: LOX/LH2.

Stage Number 2: 2 x RL-10 plus 1 x J-2. Gross Mass: 89,290kg. Empty Mass 14,000kg. Thrust: . Isp: Length: 20.7m. Span: 13.4m. Propellants: LOX/LH2.

Source:
”ASTRO Concept” -- Root & Fuller, Astronautics & Aeronautics 1964/January/p.42
http://web.archive.org/web/20050310234602/www.abo.fi/~mlindroo/SpaceLVs/Slides/sld006.htm


Attachments

  • astro2.jpg
    75.5 KB · Views: 50

carmelo

ACCESS: Secret
Joined
Mar 11, 2009
Messages
220
Reaction score
10
A great vehicle..on the paper.
But,would work?
In yours opinion this Douglas astro could be a valid space transportation system ?


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
744
Reaction score
232
Pretty much as valid (or unvalid) as any other rocket propelled TSTO from that timeframe, like the Junkers RT-8, the Martin Astrorocket, the BAC MUSTARD, and any other number of RLV studies from the Sixties...

Martin


cfiav8tor

ACCESS: Restricted
Joined
Mar 4, 2010
Messages
3
Reaction score
0
[font=helveticaneue, helvetica neue, helvetica, arial, lucida grande, sans-serif]I recently added this Douglas Aircraft wind tunnel model to my collection of wind tunnel models. The model is what I believe to be a Douglas Astro delta-wing spacecraft (lifting body) dating back to the late 1950's to the early 1960's. The wtm is made of solid Mahogany with a phenolic canopy and has a wingspan of 17.75 inches (fin to fin), fuselage length of 18.5 inches and weighs 11.25 pounds. [/font]


Attachments

  • 20141114_083806 (6).jpg
    20141114_083806 (6).jpg
    135.9 KB · Views: 42
  • 20141114_083751 (6).jpg
    20141114_083751 (6).jpg
    133.4 KB · Views: 38
  • 20141114_083744 (6).jpg
    20141114_083744 (6).jpg
    130.2 KB · Views: 40
  • 20141114_083736 (6).jpg
    20141114_083736 (6).jpg
    130.2 KB · Views: 38
  • 20141114_083729 (6).jpg
    20141114_083729 (6).jpg
    82.9 KB · Views: 35
  • 20141114_083720 (6) (2).jpg
    20141114_083720 (6) (2).jpg
    133.1 KB · Views: 45
  • 20141114_083705 (6).jpg
    20141114_083705 (6).jpg
    99.7 KB · Views: 60

cfiav8tor

ACCESS: Restricted
Joined
Mar 4, 2010
Messages
3
Reaction score
0
I have about 60 wind tunnel models in my collection ranging from a 1928 Vought biplane (my oldest), 1940's Lockheed Ventura, 1936 Curtiss Shrike, 1940's Beechcraft Grizzly, 1942 Pratt-read training glider, X-24B, 1950's / 1960's X-20 Dyna-Soar, 1972 Convair Tri-mese, 1980's McDonnell Douglas NASP, early 1970's North American Aviation B-1, SST models, plus numerous other aircraft, drop tanks, missiles, bombs, jet engine nacelles, and ramjet center bodies.


carmelo

ACCESS: Secret
Joined
Mar 11, 2009
Messages
220
Reaction score
10
My usual luck! :'(
The spaceplane project that i like more,the Douglas Astro,is that with less information and concept art drawings.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,123
Reaction score
5,630
From, Revista de Aeronautica y Astronautica 1964,

was that Mustard or not ?.


Attachments

  • 1.png
