Dornier Do 20?

arc3371

ACCESS: Restricted
Joined
Nov 11, 2006
Messages
39
Reaction score
0
Anyone have data and drawings of the Do 20 which was supposed to replace the Do X?


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,584
Reaction score
885
http://www.histaviation.com/Dornier_Do_20.html

Type Transatlantic passenger carrying flying boat (15-16 passenger in high comfort, 60 passengers short distances)
Engine 8 Diesel engines (2 coupled driving one prop. through gearbox and shaft)
Dimensions Length 40.0 m, height 9.50 m, span 40.00 m, wing area
Weights Empty 29500 kg, load 26500 kg, flying weight 56000 kg
Performance Max. speed ~340 km/h, cruising speed ~250 - 300 km/h

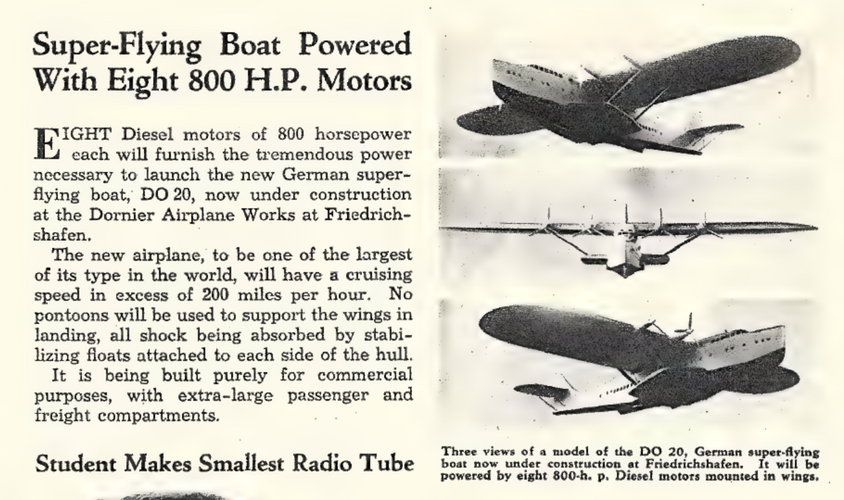

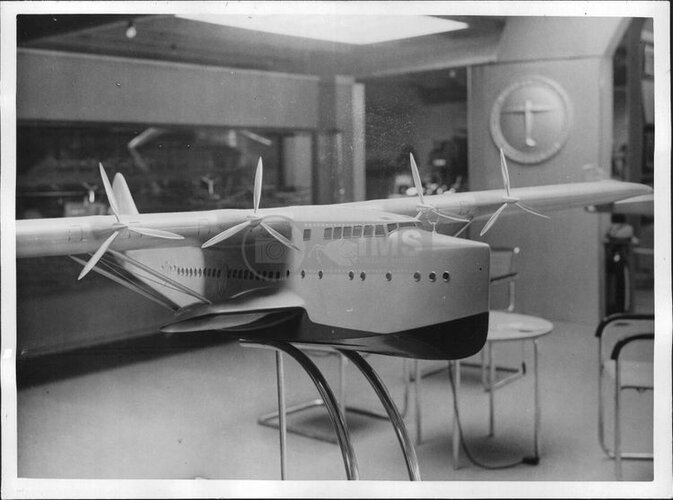

No drawings but there are front and side views of a model.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
34
Late in 1936 ,Lufthansa asked for flying boats crossing without stop the Atlantic .

- Dornier proposal was the Do 20 ,8x1000hp,4 propeller,56t.
- Heinkel proposal was the He 120 ,4x800hp, 4 propeller ,29t.
- Blohm&Voss (Hamburger Flugzeugbau) proposal,and contest winner, was the P54 wich became the Ha 222 and at last the BV 222 ,6x1000hp,6 propeller,49t .


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,223
Reaction score
931

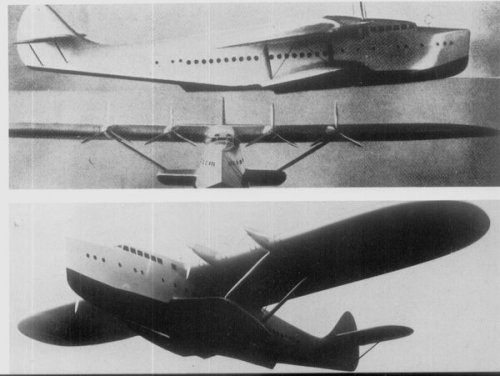

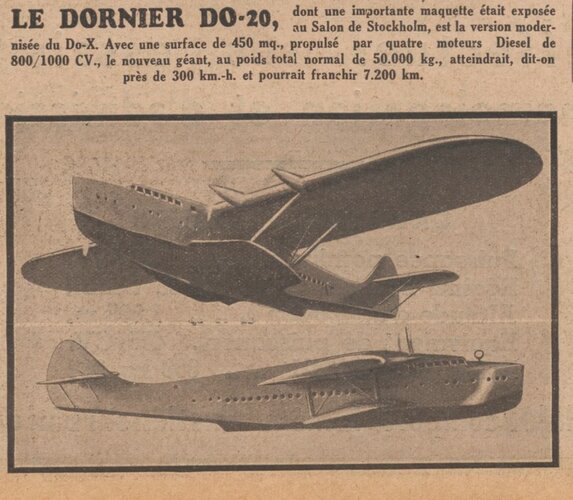

"o drawings but there are front and side views of a model."

Probably the same, as shown in Gütschow "Die deutschen Flugboote"
(edit : yes, could open the link now, "access forbidden" this morning .. ):


Attachments

  • Do_20.JPG
    36.6 KB · Views: 338

markenschaetze

ACCESS: Restricted
Joined
Aug 4, 2009
Messages
1
Reaction score
0
Here you can find a wonderful illustration of Dornier Do 20:
http://www.markenschaetze.de/reklamedatenbank/suchmaschine.html?action=in_galerie_suchen&gs_suchbegriff=Do 20


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
markenschaetze said:
Here you can find a wonderful illustration of Dornier Do 20:
http://www.markenschaetze.de/reklamedatenbank/suchmaschine.html?action=in_galerie_suchen&gs_suchbegriff=Do 20
do you mean this ?
http://www.markenschaetze.de/reklamedatenbank/suchmaschine.html?action=in_galerie_suchen&gs_suchbegriff=Do20

:)


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
Probably candidate engines for Dornier 20 could be Jumo 207, i think!
So seems inspired by Latecoere 521-523
:)


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12

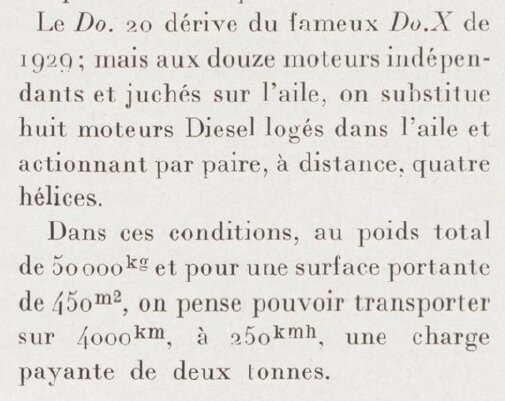

According to "Modern Seaplanes of the capitalistic countries", I.Baranov, K.Ekimova, Moscow, 1939,
Do-20 has following main characteristics:

Max take-off weight - 58 000 kg;

max speed - 290 km/h;

max range - 7 400 km

load-to-weight ratio - 49,2%


Panzerknacker

ACCESS: Restricted
Joined
Feb 22, 2010
Messages
35
Reaction score
10
According to "Modern Seaplanes of the capitalistic countries", I.Baranov, K.Ekimova, Moscow, 1939

It almost felt like the author wanted to said " dirty capitalistic countries" hehe, just kidding, good info there.
