My dears,

we know Dornier Do-E was three seat single engined reconnaissance
flying boat,Do-S four engined transport flying boat,Do-T ambulance
version of Merkur,Do-Y four seat three engined all metal bomber and
Do-U a civil version of Do-Y;
but do you know Dornier Do-30 ?, which was mentioned in :

http://www.collectionstrust.org.uk/aircraft/7444.htm

Last edited:

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
63
Dornier Do 30 was a 1959 projected STOL- transport
2xRR Dart each 1938 PS ;rectangular high wing
length: 17,5m
span:22,0m
wing area :65,0m2
take off weigh: 10800kg
payload:3500kg


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
794
Reaction score
204

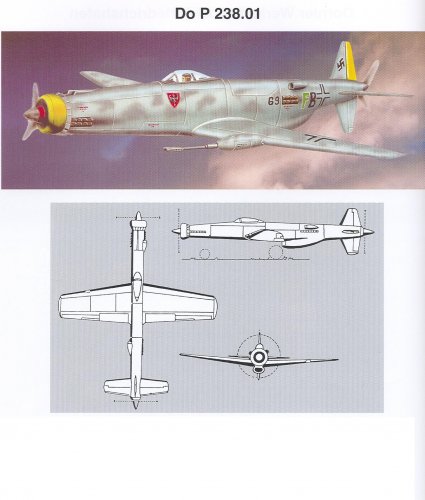

As to the do-238, the correct designation was used Do-P.238 / internal designation for the company.

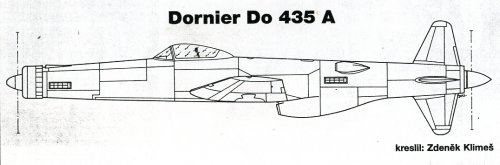

I have a picture from the Czech magazine "Aero PK Revue" where the draft was a serial designation Dornier Do-435 A. ???


Attachments

  • Do 435 A.jpg
    Do 435 A.jpg
    245.9 KB · Views: 2,062

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,666
Reaction score
565
Dornier Do 335 Arrow. J R Smith and E. J. Creek

http://www.amazon.co.uk/Dornier-Do-335-Luftwaffes-Piston-engine/dp/1903223679

Chapter 3 "What might have been". Pg 97-98

Do 435 was a long span version for which the Do 335 V4 served as a prototype. A number of variants were proposed on 12 September 1944 according to original German sources.

A-1 and A-2: Bombers.
B-1 to B-3: Night/Bad Weather fighter
C-1 and C-2: Reconnaissance
D-1 and D-2: Führungsflugzeug

All variants with DB603L engines.

According to British Intelligence document:

It was a modified Do 335 version intended as a night fighter. Crew of two seated syde-by-side in pressurized cockpit. Radar equipment. Long-span wooden panels. Jumo 222 engines.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
9,263
Reaction score
4,051
Website
www.aerospaceprojectsreview.com
borovik said:
As to the do-238, the correct designation was used Do-P.238 / internal designation for the company.
I have a picture from the Czech magazine "Aero PK Revue" where the draft was a serial designation Dornier Do-435 A. ???

I've seen this design several times referred to as post-war mythology. I've certainly never seen any wartime drawings or references to it.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,425
Reaction score
4,920
Website
www.amazon.com
Do 238
from
-Die Luftwaffe Projecte der deutschen luftrüstung-Band 1 , by Ingolf Meyer 2004


Attachments

  • Escanear0001.jpg
    398.3 KB · Views: 1,831

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,425
Reaction score
4,920
Website
www.amazon.com

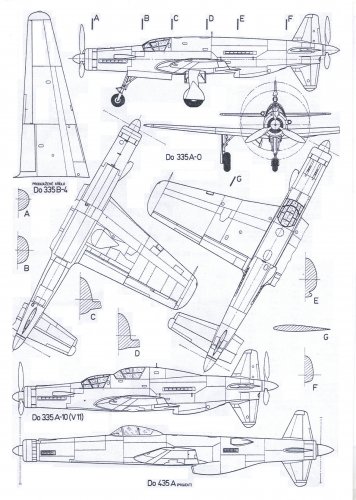

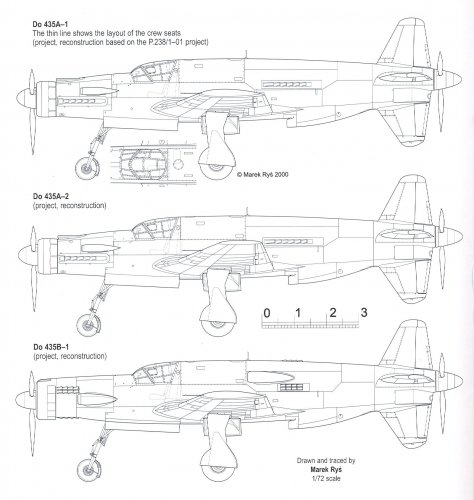

Dornier Do 435 as per Aircraft Monograph nº 15 -Aj press by Marek Rys


Attachments

  • Escanear.jpg
    256.2 KB · Views: 1,475

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,425
Reaction score
4,920
Website
www.amazon.com

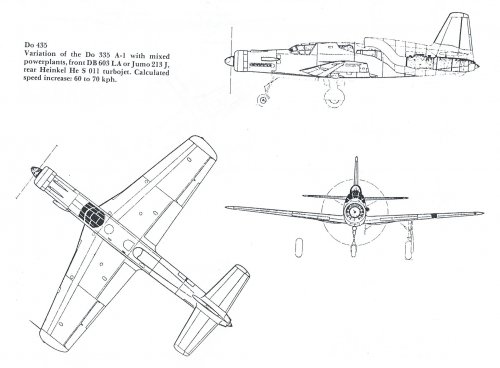

Dornier Do 435 as per "Dornier Do 335 "Pfeil" by Heinz J.Nowarra-Schiffer


Attachments

  • Escanear.jpg
    215.5 KB · Views: 377

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
890

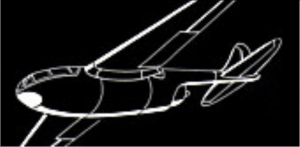

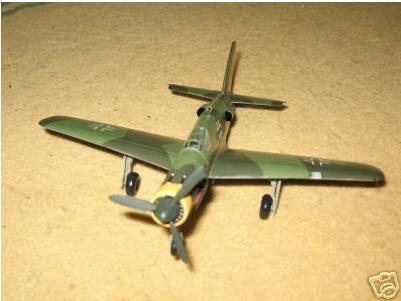

From an old split topic, Dornier's "Volksjäger" proposal.

Source: http://www.unicraft.biz/


Attachments

  • do-volks-th.png
    39.4 KB · Views: 719

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
890

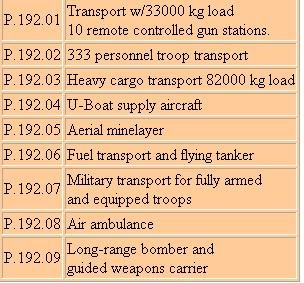

hesham shared this list of Dornier P.192 variants in an old generic topic that has been split:


Attachments

  • P.192 variants.JPG
    P.192 variants.JPG
    30 KB · Views: 212

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511
Hi,

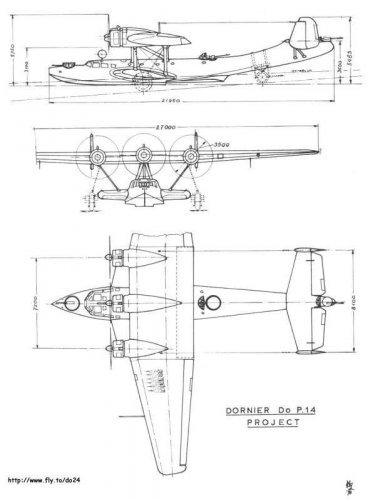

the Dornier Do P.14,which later became Do.24.


Attachments

  • P.14.jpg
    31.9 KB · Views: 398

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
157
Bonjour Hesham

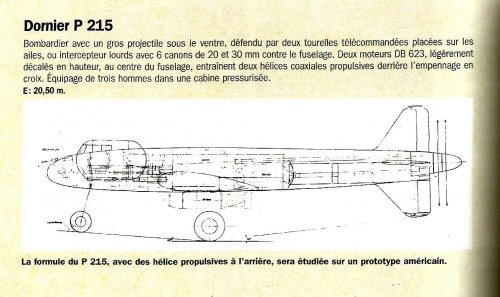

From docavia " les avions Dornier"Pierre Gaillard


Attachments

  • do p 215.jpg
    do p 215.jpg
    146.1 KB · Views: 1,054

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
157
From the same books.......

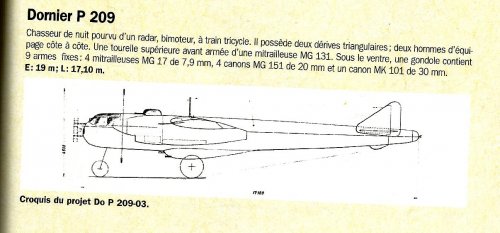

The DO P 209


Attachments

  • do p 209.jpg
    do p 209.jpg
    104.8 KB · Views: 1,012

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511
Thank you my dear Toura,


I have this book,but the most notable thing,that's the Dornier P projects
are very rare,why ?!.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511
Anther mystery,


in that polish site,they speak about P.92 as the basis for Dornier Do.214,and they
mention after that the projects,which begin with P.192.1,and I am asking if P.92
is a misprint and they mean P.192 ?.


http://pl.wikipedia.org/wiki/Dornier_Do_214


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
890

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
63
I think you could go to the LEMB (Google LEMB) , and then go to "projects , prototype etc ..." : I hope that it is open to the guess too ...


Good Luck


Richard


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
63
Désolé , je n'ai pas été clair :)


I am a member of LEMB , where the scans are .


I think , you could use google : search for "LEMB"


open the LEMB site .


Then , go to projects ,prototypes,what if ..."


The topic is there .


Bonne chance


Richard


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511
Hi,

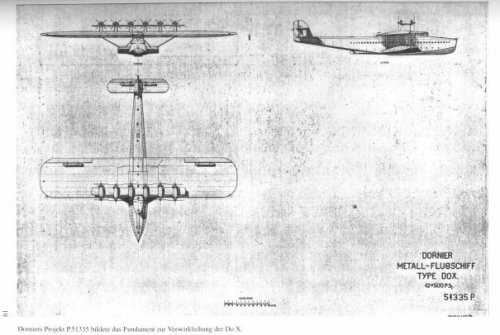

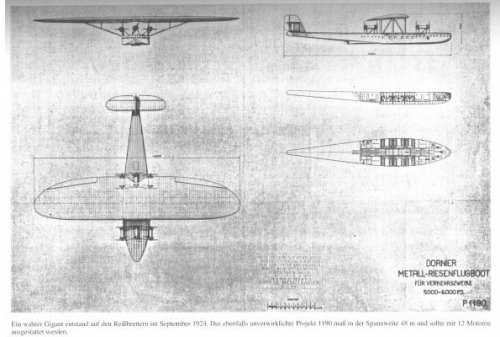

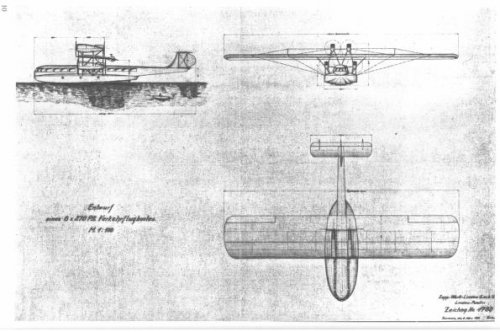

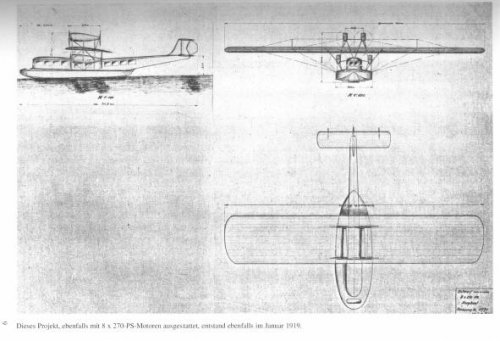

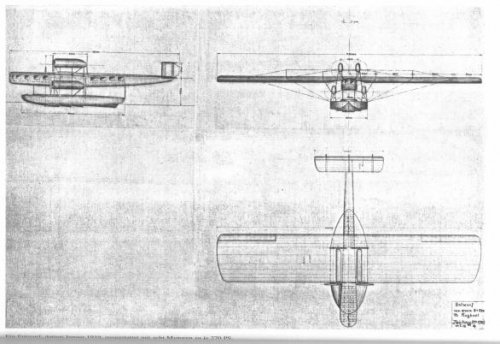

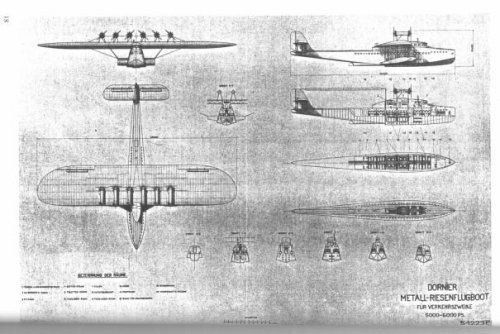

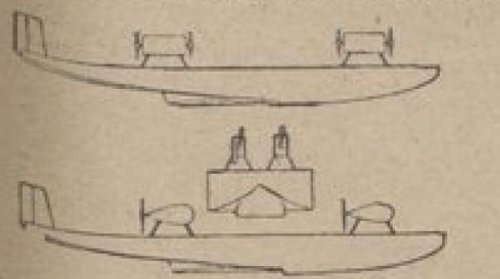

from the book; Bernard & Graefe Verlag, Vom Original Zum Modell; Dornier Do X,
here is the original projects and aircraft,which led to Dornier Do X,they are; P.1769,
P.1771,P.1780,P.1190,P.51223 and P.51335.

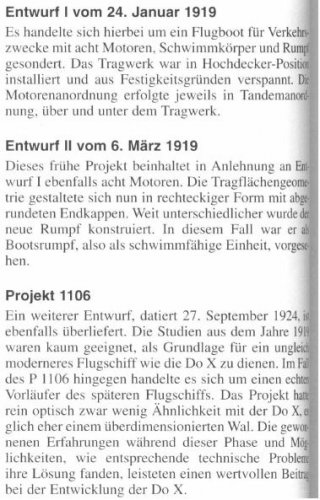

Also in the book a reference to Entwurf I,Entwurf II and P.1106


Attachments

  • I-II-P.1106.JPG
    59.2 KB · Views: 250
  • 51335.JPG
    42.8 KB · Views: 238
  • 51223.JPG
    53.9 KB · Views: 244
  • P.1190.JPG
    44.2 KB · Views: 223
  • 1780.JPG
    41.4 KB · Views: 639
  • 1771.JPG
    38.4 KB · Views: 659
  • 1769.JPG
    39 KB · Views: 716

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511
Hi,

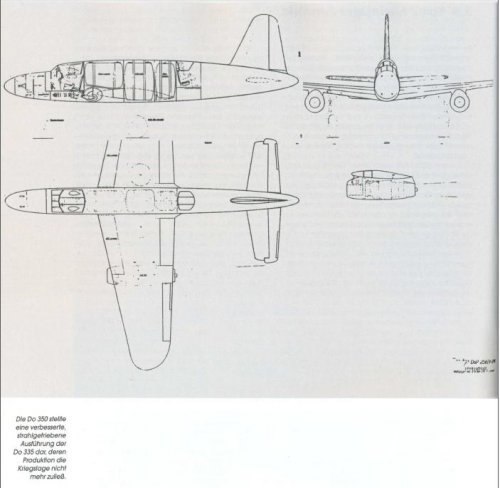

a strange thing,I found in the book; Luftwaffe '45 letzte Fluge und Projekte,they mentioned
the Do 350 designation under the drawing for Do P.256,and I can't explain,what was this ?.


Attachments

  • Do 350.JPG
    Do 350.JPG
    43.3 KB · Views: 321

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
890
Translation:

The Do 350 represented an improved jet-powered version of the Do 335, but its production was no longer possible because of the war situation.

This must have been the caption to another image on the opposite page.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511
Yes Stargazer,


but that's a new designation for me.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511

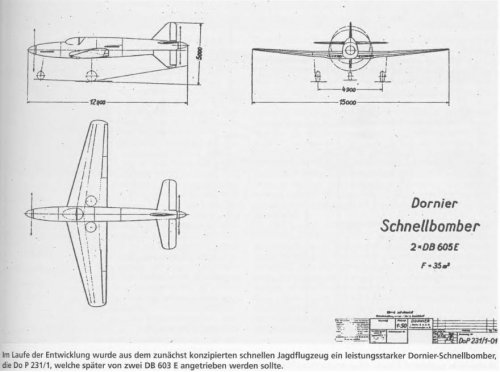

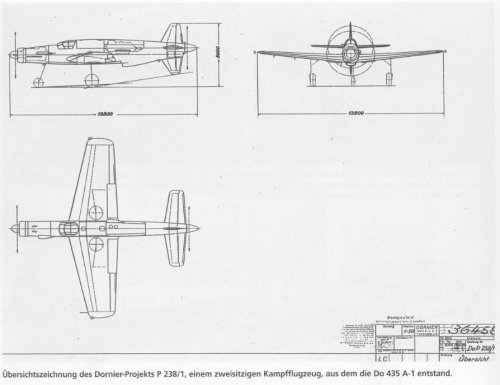

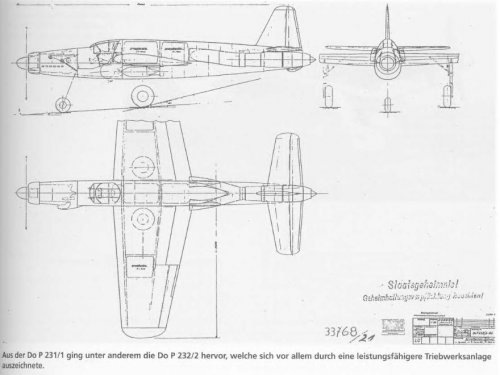

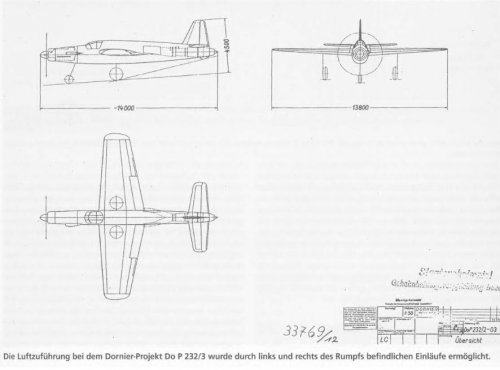

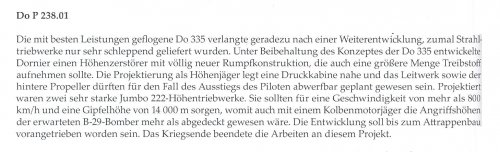

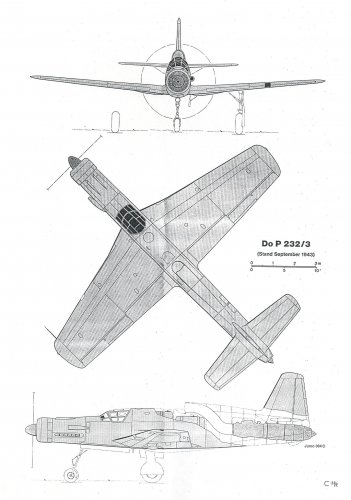

From the book; Dornier Do 335,435,635 Kampfflugzeuge-Aufklarer-Zerostorer-Nachtjager.


Attachments

  • Do P.238--1.JPG
    Do P.238--1.JPG
    49.9 KB · Views: 373
  • Do P.237--3.JPG
    Do P.237--3.JPG
    40.9 KB · Views: 335
  • Do P.232--3  1.JPG
    Do P.232--3 1.JPG
    49.1 KB · Views: 827
  • Do P.232--3.JPG
    Do P.232--3.JPG
    45 KB · Views: 862
  • Do P.232--2.JPG
    Do P.232--2.JPG
    58.2 KB · Views: 897
  • Do P.231--1.JPG
    Do P.231--1.JPG
    51.8 KB · Views: 903
  • Do P.231.JPG
    Do P.231.JPG
    56.8 KB · Views: 901

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511

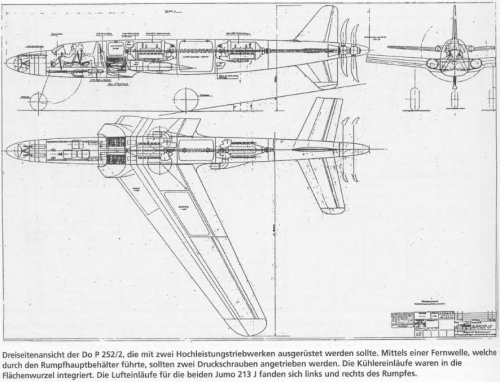

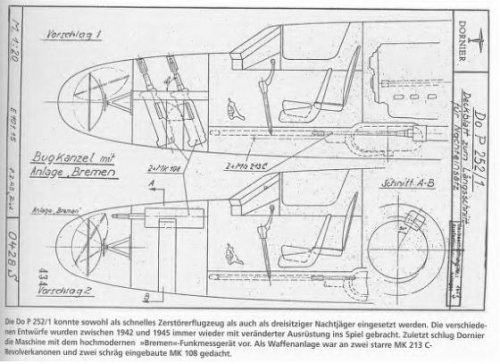

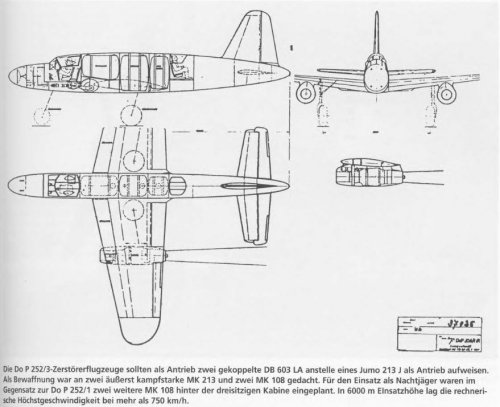

And;


Attachments

  • Do P.252--1.JPG
    Do P.252--1.JPG
    47 KB · Views: 294
  • Do P.252--2.JPG
    Do P.252--2.JPG
    90.9 KB · Views: 366
  • Do P.252--3.JPG
    Do P.252--3.JPG
    71.4 KB · Views: 365

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664

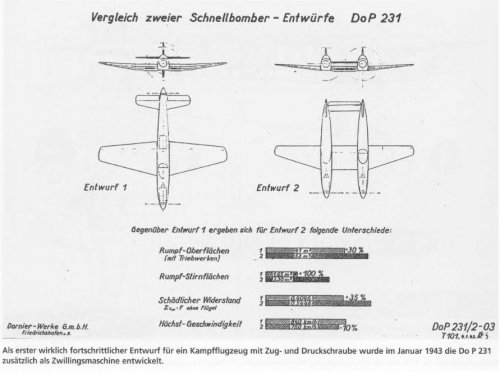

About the first picture, showing the twin fuselage design: Although mentioned in the caption as
"P.231 design", the compared predictions for frontal area, drag and maximum speed, to my opinion
show pretty well, that the twin fuselage wasn't shown there as a "project", but as a prove of the
superiority of the push-pull concept.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511
OK my dear Jemiba,


but why they wrote on it, Entwurf 2 ?.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664
To my opinion it was an attempt to promote the push-pull concept by proving,
that a more conventional design would be inferior.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,511
I agree with that my dear Jemiba,


but it is the first time to me to see Do P.237 drawing .


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664
hesham said:
but it is the first time to me to see Do P.237 drawing .

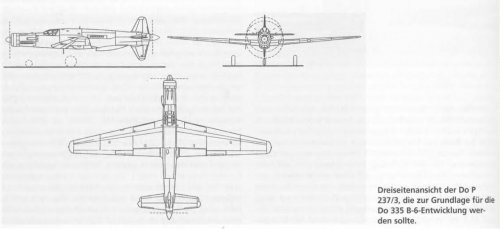

As the caption says, the P.237 was the basis for the Do 335B-6, so at least in this
case it could be regarded more as an internal designation, I think


Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
17

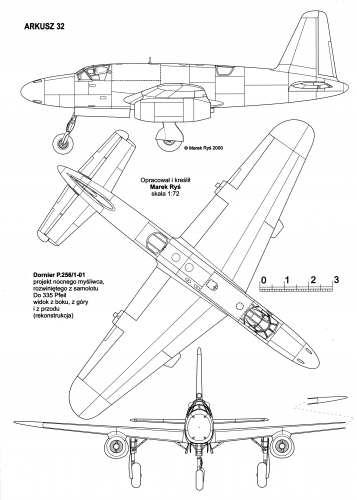

P.256 drawings from AJ Press monograph


Attachments

  • dop256blueprint001.png
    806.9 KB · Views: 352

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,664
Those are pre-studies of the Do X, AFAIK.
