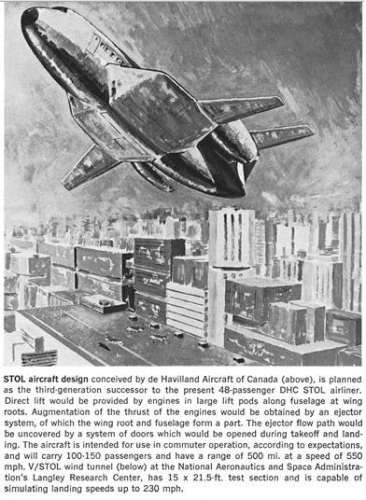

Is anybody familiar with DeHavilland of Canada concepts? This is a STOL interurban commuter airliner, shown in Air Progress July 1968 without designation or specification? Maybe NASA was involved to create the basics for this design ...


Attachments

  • DHC und--oder NASA (STOL-Projekt).GIF
    DHC und--oder NASA (STOL-Projekt).GIF
    59.7 KB · Views: 834
  • DHC und--oder NASA (STOL-Projekt).JPG
    DHC und--oder NASA (STOL-Projekt).JPG
    52.8 KB · Views: 677

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,315
Reaction score
1,383

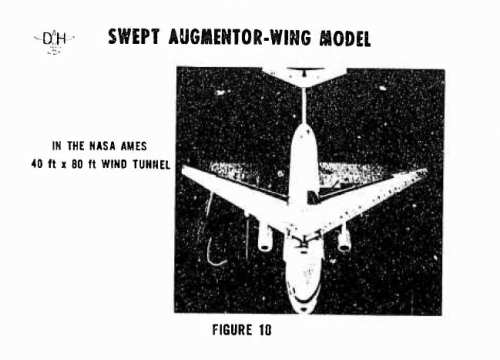

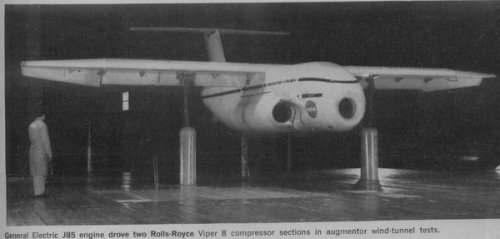

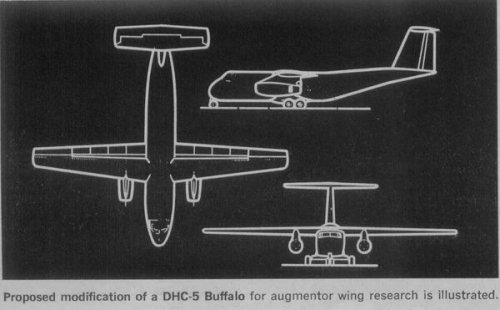

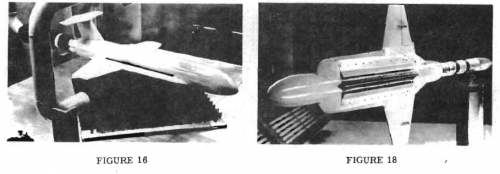

In Aviation Week 3/68 an augmentor wing concept is shown, for which a
DHC-5 should be used as a test bed (shown). A model with this system was
tested in the Ames Research center. This model was just intended as a proof-
of concept demonstrator and the "real thing" would have had podded engines,
with a crossfeed for bleed air to the augmentor flaps. Maybe that's the origin
of this project ?


Attachments

  • DHC_augmentor_wing_01.JPG
    31.1 KB · Views: 633
  • DHC_augmentor_wing_02.JPG
    23.4 KB · Views: 646

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
boxkite said:
Is anybody familiar with DeHavilland of Canada concepts? This is a STOL interurban commuter airliner, shown in Air Progress July 1968 without designation or specification? Maybe NASA was involved to create the basics for this design ...

This looks very similar to a DeHavilland Canada project from the mid-70s. The main difference is tha the mid-70s proposal had Spey turbofan engines with bifuricated exhausts, much like the Medways proposed for the HS.681. This allowed the landing gear to be stowed in the engine nacelles!


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,315
Reaction score
1,383

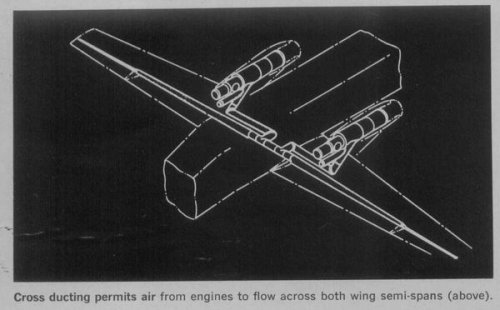

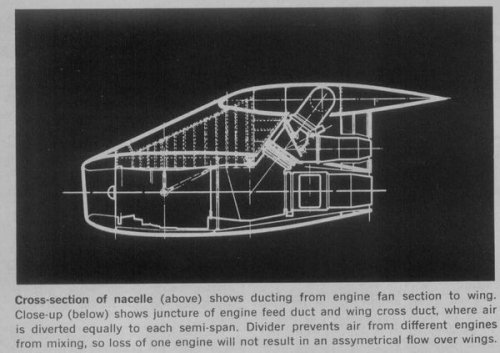

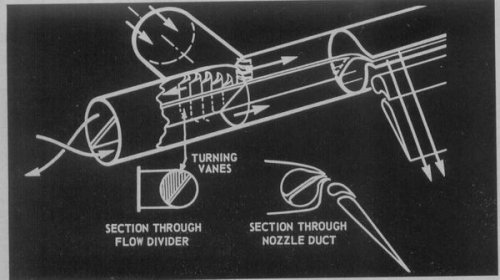

The planned engine and ducting arrangement is shown in
this article, too. The engines would have been installed in
nacelles and not in the fuselage, as the wind tunnel model
may suggest.


Attachments

  • installation_3.JPG
    33.3 KB · Views: 135
  • installation_2.JPG
    41.3 KB · Views: 132
  • installation_1.JPG
    31.5 KB · Views: 598

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98

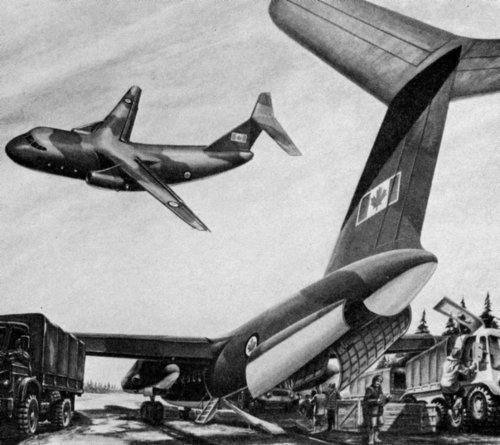

This de Havilland Canada supplied illustration is from the August 1976 edition of Air International.

The DHP-72 was intended to carry a 20,000lb payload over 700 nautical miles at a Mach .80 cruising speed.

Spey turbofans were used for both vectored trust and wing blowing, but the twin, vectored exhaust nozzles resemble the thrust vectoring arrangement of the Medway powered AW681. It is interested that this bifurcated exhaust arrangement allows the main landing gear to be stowed in the engine nacelles.


Attachments

  • DHP-72STOL.jpg
    311.2 KB · Views: 416

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
860
Reaction score
200
FLUG REVUE issue from September 1970 reported on a 100-seat STOL airliner De Havilland of Canada DHC-11, but the author missed to add an artwork or drawing. Did another magazine a better job publishing any illustration?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
Think 'Flight Internatonal' did.
Have to look for it...


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
49

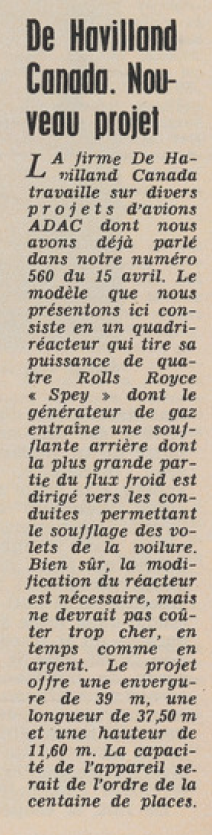

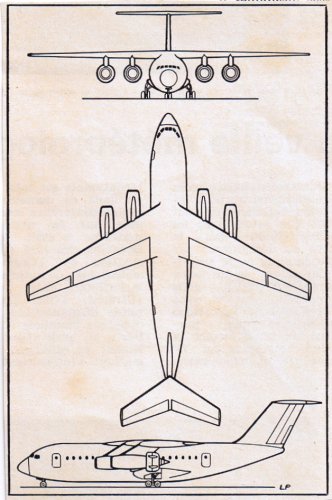

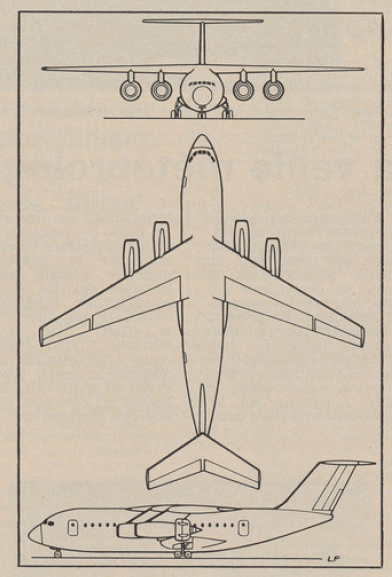

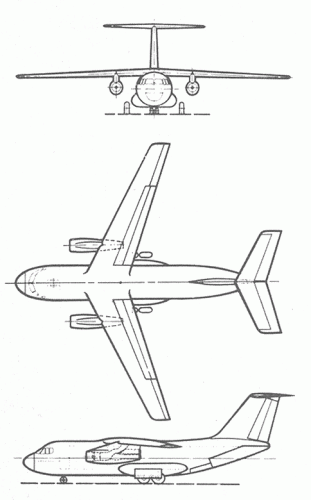

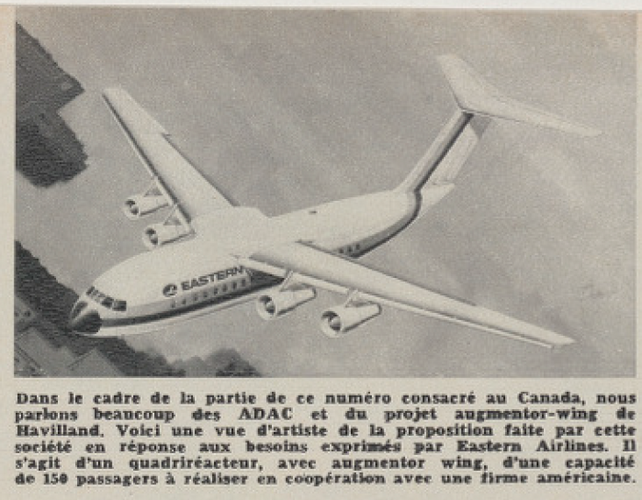

From an "Aviation Magazine" of may 1971,a 3 views without any name of a STOL projected by De Havilland Canada .
4x RR Spey ,most of the cold gaz going out of the motors going trough pipes to blowthe "flaps" ;(Sorry ,my tailor is rich ,but my dictionnary poor )
span 39m ; length 37,5m


Attachments

  • DHC.jpg
    284.1 KB · Views: 365

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,011
Reaction score
417
...you speak about the DHC.11, there must be also the DHC.9 and DHC.10!
Anyone knows this projects?

Servus Maveric


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
860
Reaction score
200
you speak about the DHC.11, there must be also the DHC.9 and DHC.10

It would make sense, but there is no mention of "predecessors" in this designation line/row :( .


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,367
IIRC, DHC-10 was the type number for licence-built Grumman CS-2F-1 Trackers (later CP-121s, now mostly converted to Conair Firecat or Turbo-Firecat standard).

There is also a cryptic ref to a DHC-10 at http://marchairmuseum.com/rouen10.php

"2745 UV- DeHavilland Canada (F) 19xx DHC-10 Canada"

The UV designation suggests that this may have been a DHC-5 successor study.

I mention this possibility because the DHC-9 was the Twin Otter follow-on designation.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,141
Reaction score
5,663
Hi,

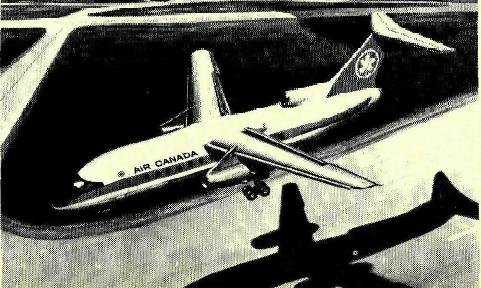

and here is unknown Canada STOL aircraft.
http://www.flightglobal.com/PDFArchive/View/1975/1975%20-%200602.html


Attachments

  • Canadair STOL.JPG
    Canadair STOL.JPG
    38.4 KB · Views: 228

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,367
Hesham,

That three-engined DeHavilland Canada design is the civil version of the DHP-72.

The civil DHP-72 was to have with a third, hush-kitted Rolls-Royce Spey in the tail. This third engine would be propusion only (whereas the wing engines would remain dual flap blowing and vectoring propusion). The civil aircraft also had a refined fuselage (without the rear loading ramp, obviously). The wings and tailplane would be essentially the same as the ramped military version to be developed for Canada and Australia.

http://www.secretprojects.co.uk/forum/index.php?PHPSESSID=da302984a75066a70bb923add62dd39a&topic=1629.0


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

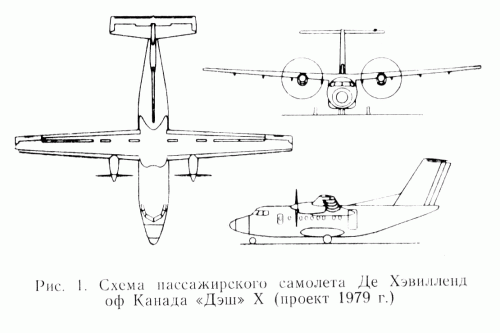

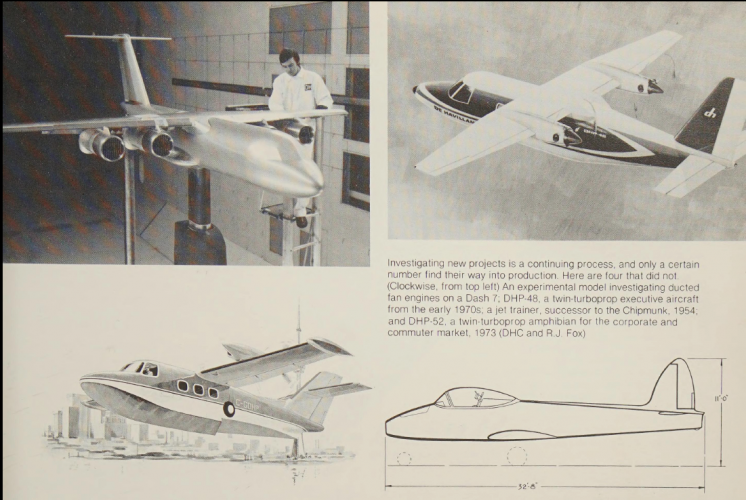

I could be wrong, but I don't think I've seen the following project before.

It's described as a 1979 project, the de Havilland Canada Dash X by TsAGI's Tekhnicheskaya Informatsiya (No.2, 1984), which I suppose indicates that it must have been the DHC-10 in the company's designations sequence. If it's already somewhere on the forum, sorry about it, but I wasn't able to find it...

If there isn't already a mention of this project elsewhere, however, I suggest that this topic be renamed as "Various de Havilland Canada projects" since there are already several different types tackled here. Thanks!


Attachments

  • DHC Dash X.gif
    DHC Dash X.gif
    76.8 KB · Views: 199

Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
13
Website
rwrwalker.ca

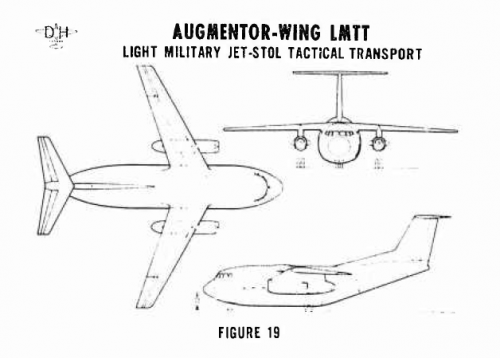

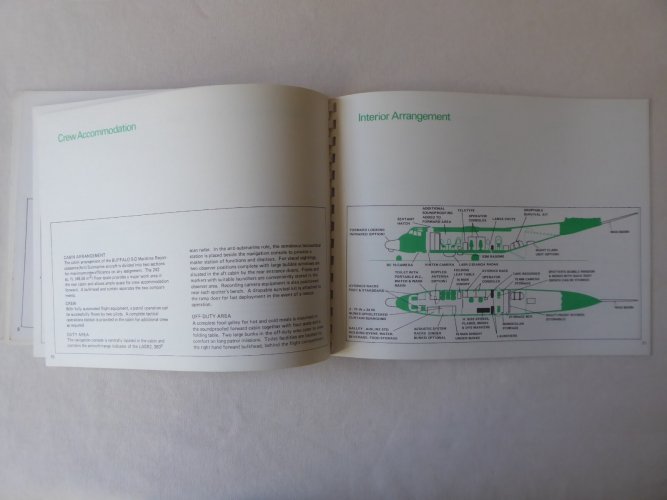

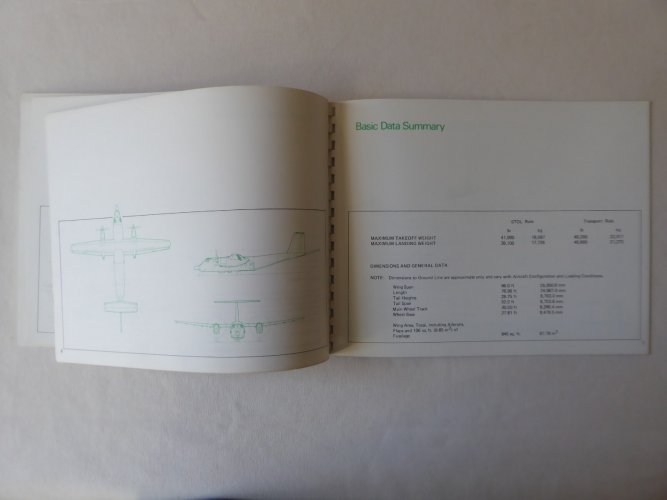

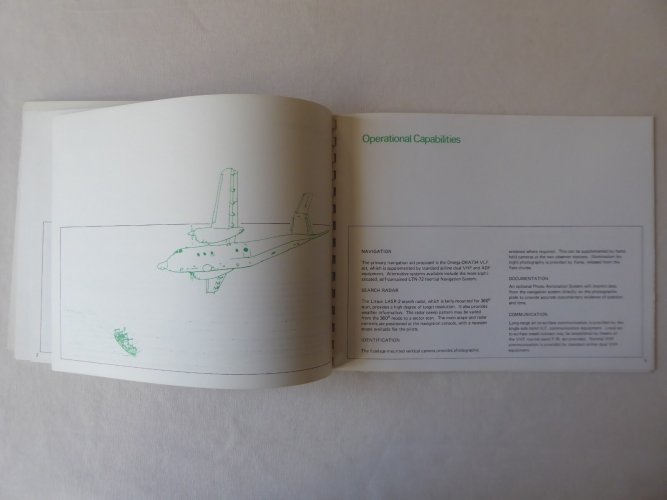

Sorry I don't have details, but I do know that in about 1980 to 1983 the DHC projects group was working on a number of high wing jet powered transports, military and civil, with and without augmenter wing. They were also working on a pressurized Buffalo (DHC-5) with a rounded fuselage but basically unchanged wing and power plants. I have never seen any drawings of these, just know them from lunch time conversations with people working on the projects. I was working on Dash 8 wing structure at the time.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
Bill Walker said:
Sorry I don't have details, but I do know that in about 1980 to 1983 the DHC projects group was working on a number of high wing jet powered transports, military and civil, with and without augmenter wing. They were also working on a pressurized Buffalo (DHC-5) with a rounded fuselage but basically unchanged wing and power plants. I have never seen any drawings of these, just know them from lunch time conversations with people working on the projects. I was working on Dash 8 wing structure at the time.

Thanks Bill. We have topics on the DHC-11 (http://www.secretprojects.co.uk/forum/index.php/topic,2886.0) and the similar DHP-72 (http://www.secretprojects.co.uk/forum/index.php/topic,1629.0) which probably correspond to the high-wing projects you're mentioning, and probably also the first one in this page. Perhaps some merging would be profitable here? I'm leaving it with the mods to decide.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,141
Reaction score
5,663
Apophenia said:
I mention this possibility because the DHC-9 was the Twin Otter follow-on designation.


My dear Apophenia,


maybe this one was the DHC-9 ?.

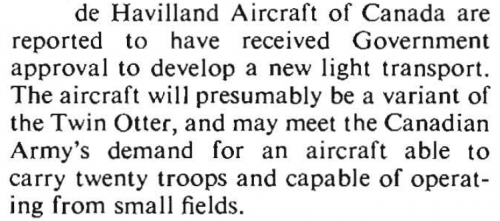

Air Pictorial 10/1956


Attachments

  • 1.png
    164.4 KB · Views: 574

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,141
Reaction score
5,663
Hi,

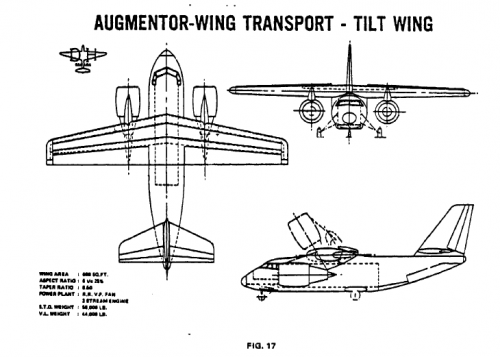

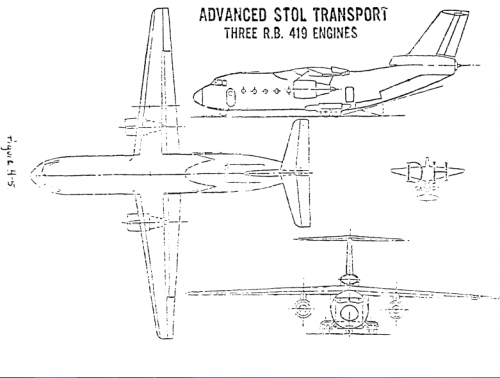

here is two DHC transport aircraft projects,one of them had a tilt-wing configuration.


http://www.dtic.mil/dtic/tr/fulltext/u2/a124264.pdf


Attachments

  • DHC transport-2.png
    DHC transport-2.png
    42 KB · Views: 458
  • DHC transport.png
    DHC transport.png
    43.6 KB · Views: 470

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,141
Reaction score
5,663
Hi,

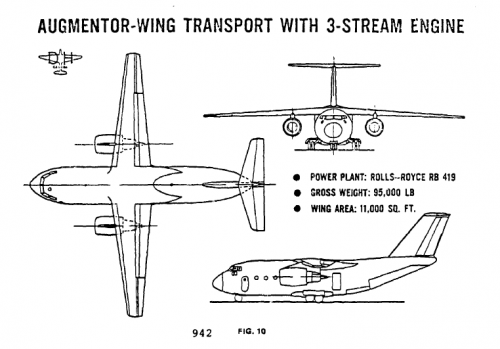

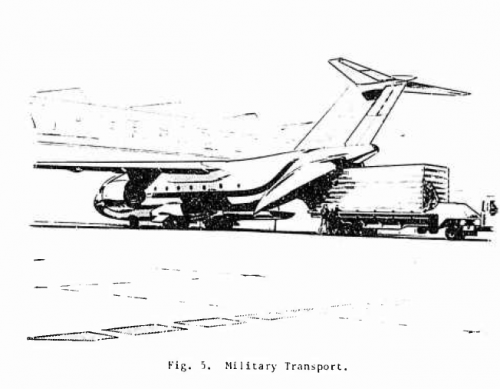

the DHP-72;


http://www.dtic.mil/dtic/tr/fulltext/u2/761972.pdf


Attachments

  • DH-1.png
    154.2 KB · Views: 354
  • DH-2.png
    86.8 KB · Views: 341
  • DH-3.png
    114.8 KB · Views: 116
  • DH-4.png
    267.2 KB · Views: 119

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,141
Reaction score
5,663
Hi,

here is a strange DHC STOL Transport Project ?.

http://archive.aviationweek.com/image/spread/19700622/73/2


Attachments

  • DHC.png
    233.4 KB · Views: 147

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,141
Reaction score
5,663
Hi,

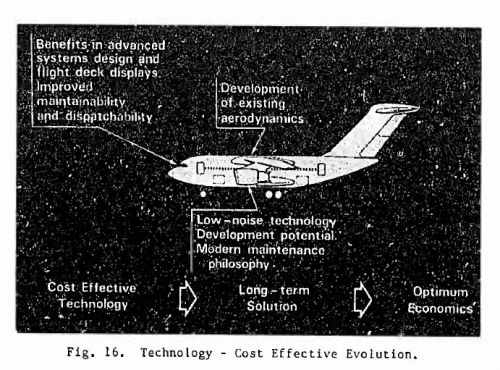

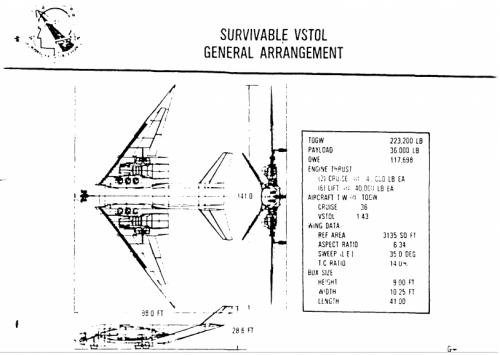

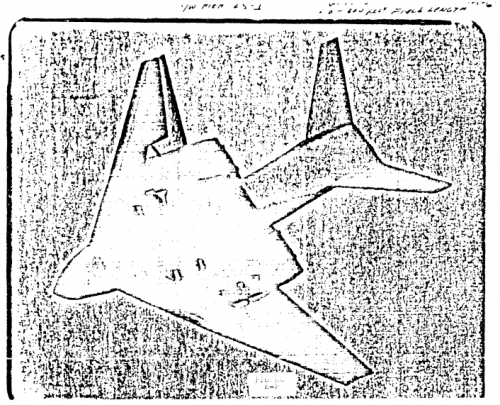

Very advanced transport in early two drawings.

https://apps.dtic.mil/dtic/tr/fulltext/u2/a177750.pdf


Attachments

  • 6.png
    77.3 KB · Views: 124
  • 3.png
    252.5 KB · Views: 117
  • 2.png
    84.5 KB · Views: 132

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,472
Reaction score
917

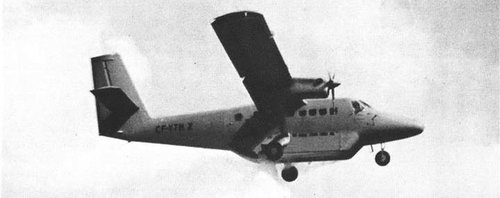

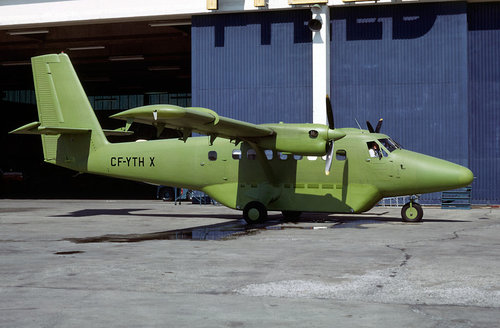

That looks like a stock Twin Otter -200 or -300 series with a popular baggage pannier bolted to the belly.
Not sure if those are windows. Pannier would be “seated height only.” Probably need to delete belly fuel tanks if you wanted to carry passengers in that pannier.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,367
... Probably need to delete belly fuel tanks if you wanted to carry passengers in that pannier.

That was my thought too. If added passenger accommodations, it would be severely impractical. But, if those aren't windows, what are they? o_O


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
330
Reaction score
228
Pure speculation: it looks to me like the illustration could depict a water-bomber variant. What could be a water-column is visible beneath the rear of the pannier, which would suggest that the "windows" are air vents included to speed loading and dumping of the water.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,048
Reaction score
541
From an "Aviation Magazine" of may 1971,a 3 views without any name of a STOL projected by De Havilland Canada .
4x RR Spey ,most of the cold gaz going out of the motors going trough pipes to blowthe "flaps" ;(Sorry ,my tailor is rich ,but my dictionnary poor )
span 39m ; length 37,5m

This design looks so British Aerospace 146, and yet the BAe146 design was started "In August 1973, Hawker Siddeley launched a new 70-seat regional airliner project, the HS.146". And yet this 'STOL project by De Havilland Canada' is in a 1971 dated magazine.

Regards
Pioneer
