Darrol Stinton Aircraft Projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,

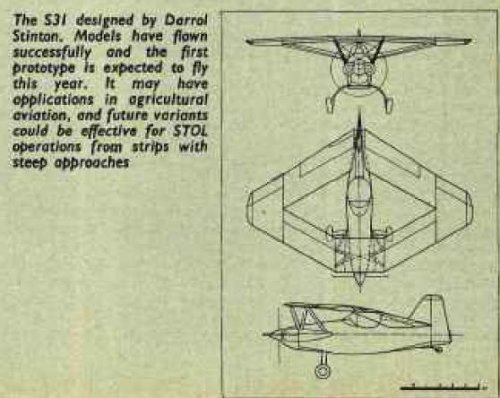

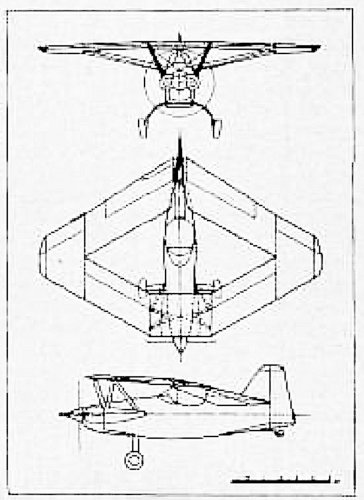

I think this aircraft was never built,I search about it in Google.
http://www.flightglobal.com/pdfarchive/view/1970/1970%20-%200381.html


Attachments

  • S31.JPG
    41.7 KB · Views: 892

Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
6
Re: Stinton joined-wing light aircraft of 1970s

Hi

All I can trace on this aircraft are the following details from it's certificate of registration.

Reg: G-AYJC
Type: Stinton - Warren S31-2
C/N: S31-2/001
Owner: Darrol Stinton, Farnham, Surrey.
Certificate: R.11715/1
Date: 08/09/1970.
Removed: 05/12/1977. Permanant withdrawn from use.

Regards Bailey


Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
6
Re: Stinton joined-wing light aircraft of 1970s

O.K I lied, found some more info courtesy of Putnams British Civil Aircraft 1919-1972 vol 3. A.J.Jackson

Page 443.

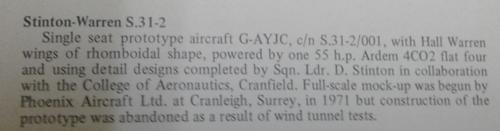

"Stinton-Warren S.31-2: Single seat prototype aircraft, G-AYJC, c/n S.31-2/001, with Hall Warren wings of rhomboidal shape, powered by one 55 h.p Ardem 4C02 flat four and using detail designs by Sqn.Ldr D.Stinton in collaboration with the College of Aeronautics, Cranfield. Full scale mock-up was begun by Phoenix aircraft Ltd at Cranleigh, surrey in 1971, but construction of the prototype was abandoned as a result of wind tunnel tests."

Regards Bailey.


Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
6
Re: Stinton joined-wing light aircraft of 1970s

Hi, Here is some follow up research on the Hall-Warren wing idea.


http://www.flightglobal.com/pdfarchive/view/1950/1950 - 1511.html

http://www.flightglobal.com/pdfarchive/view/1950/1950 - 1517.html

http://www.flightglobal.com/pdfarchive/view/1952/1952%20-%201299.html

http:
//www.flightglobal.com/pdfarchive/view/1980/1980%20-%200017.html


http://www.flightglobal.com/pdfarchive/view/1971/1971%20-%202190.html

http://www.flightglobal.com/pdfarchive/view/1962/1962%20-%202565.html

Regards Bailey.


Richard N

Lost in the Sky
Senior Member
Joined
Jun 18, 2009
Messages
503
Reaction score
279
Re: Stinton joined-wing light aircraft of 1970s

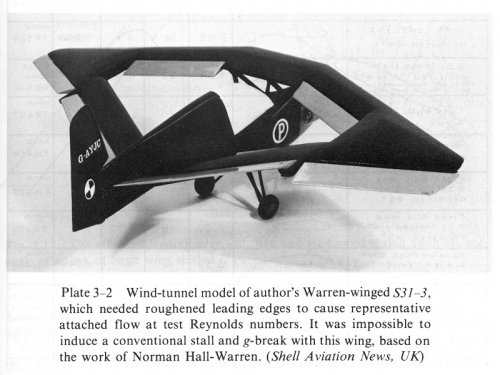

I found this picture of a Hall-Warren S.31-3 model somewhere on the web, but have not been able to retrace my steps to find out where it came from.


It appears to have a different cockpit location and tricycle landing gear unlike the taildragger gear in the 3 view in the first post.


Attachments

  • Hall-Warren S31-3.jpg
    Hall-Warren S31-3.jpg
    276.9 KB · Views: 626
  • Hall-Warren S31 3V.JPG
    Hall-Warren S31 3V.JPG
    291.4 KB · Views: 560

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Re: Stinton joined-wing light aircraft of 1970s

Great find Richard N,thanks.


Richard N

Lost in the Sky
Senior Member
Joined
Jun 18, 2009
Messages
503
Reaction score
279
Re: Stinton joined-wing light aircraft of 1970s

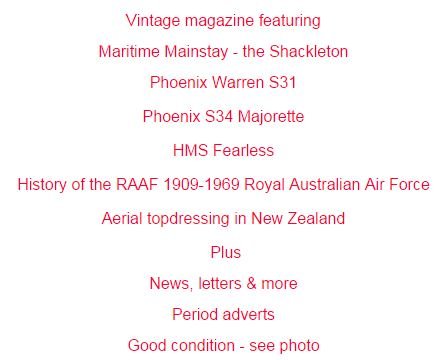

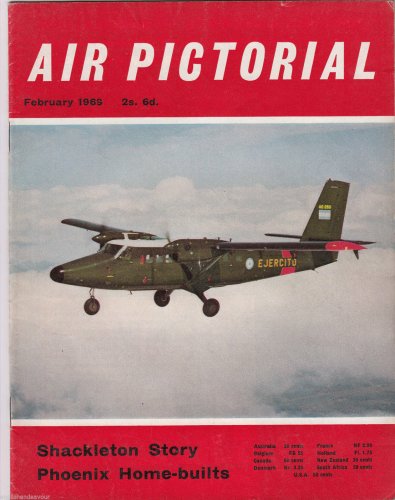

There is information about the Phoenix Warren S31 in the Air Pictorial February 1969 issue according to this eBay listing: http://www.ebay.co.uk/itm/AIRCRAFT-PICTORIAL-FEBRUARY-1969-SHACKLETON-STORY-PHOENIX-HOME-BUILTS-/331241464469. Hopefully, someone here has access to that issue.


Attachments

  • AP Feb 1969 Contents.JPG
    AP Feb 1969 Contents.JPG
    28.5 KB · Views: 401
  • Air Pictorial Feb 1969 w Phoenix Home-Builts.JPG
    Air Pictorial Feb 1969 w Phoenix Home-Builts.JPG
    624.3 KB · Views: 411

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Re: Stinton joined-wing light aircraft of 1970s

Hi,

what was Phoenix S.34 Majoretti,anther Project ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,

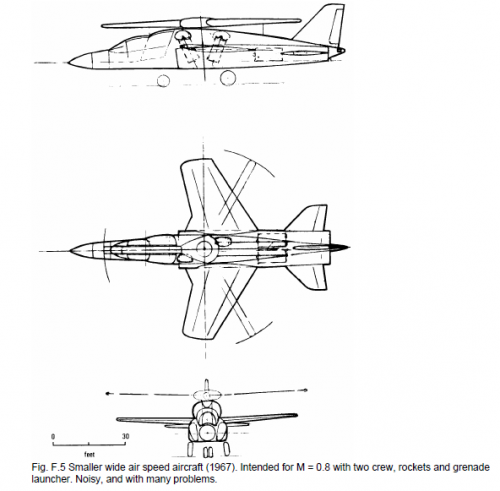

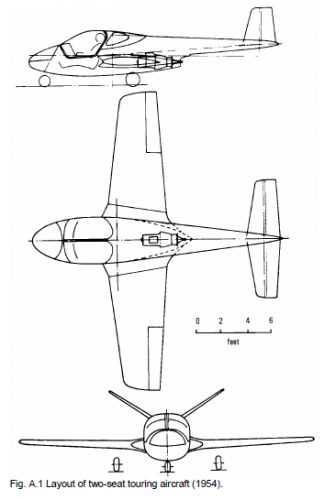

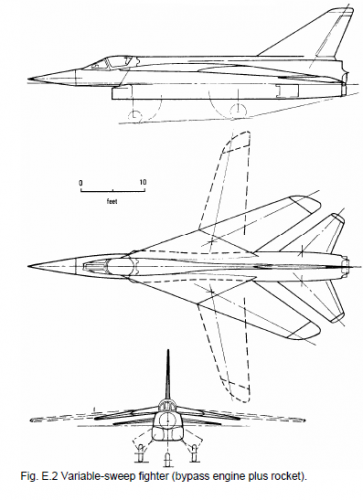

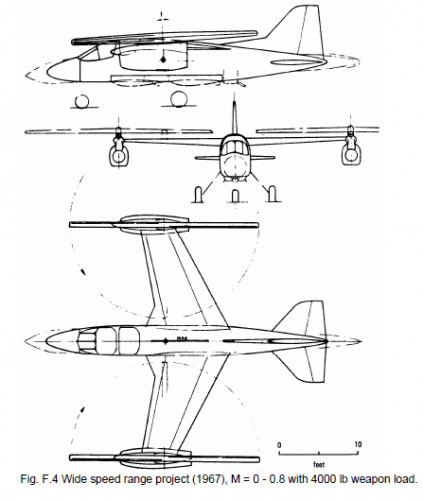

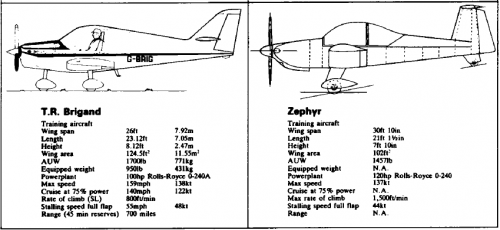

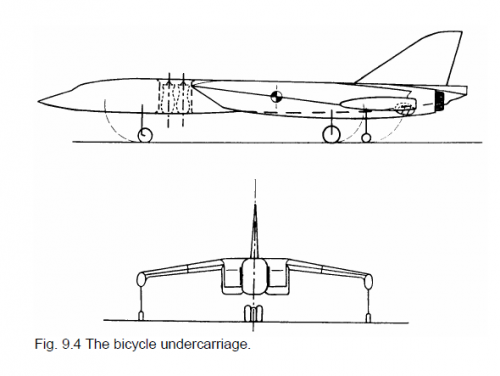

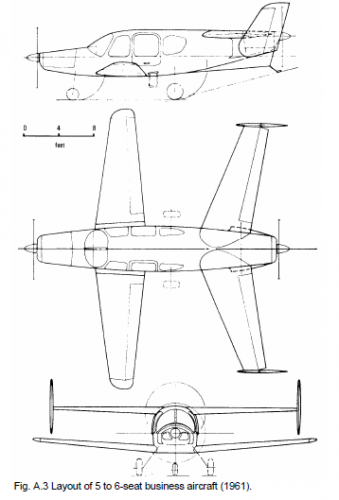

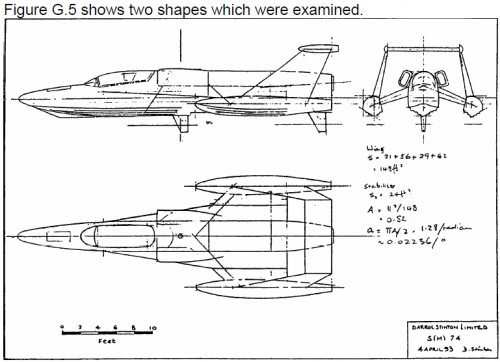

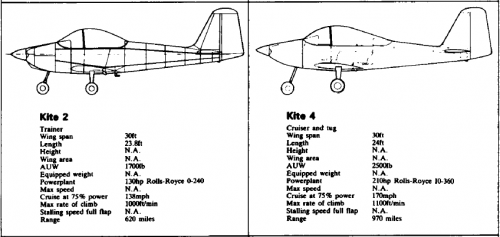

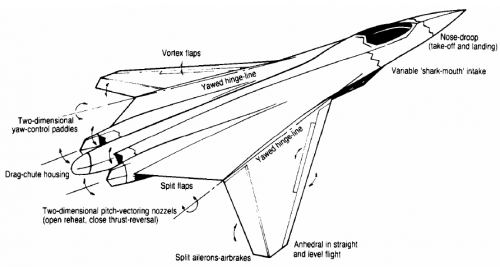

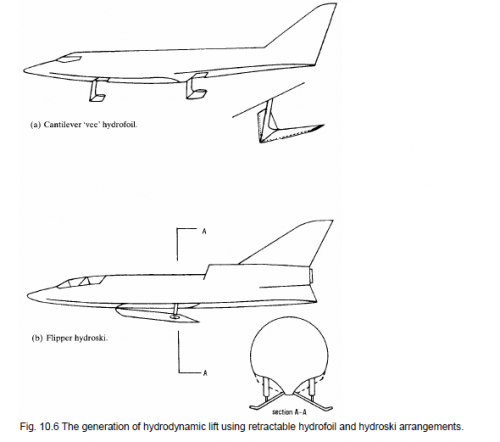

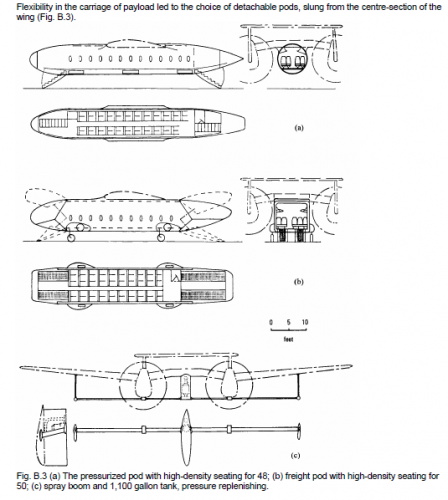

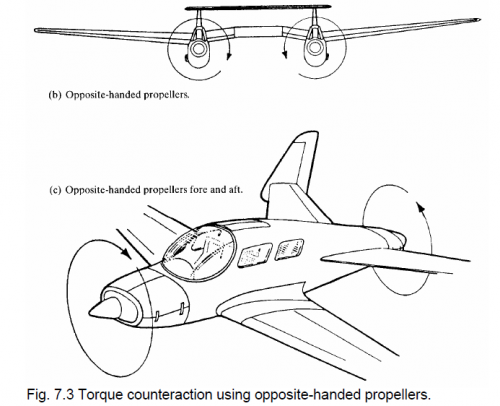

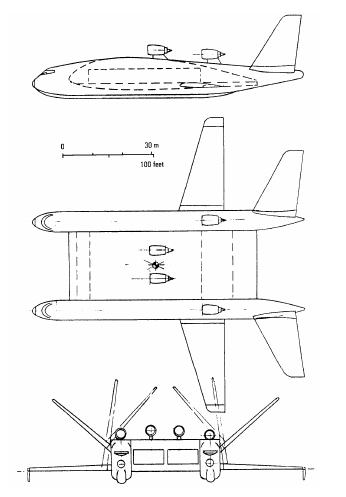

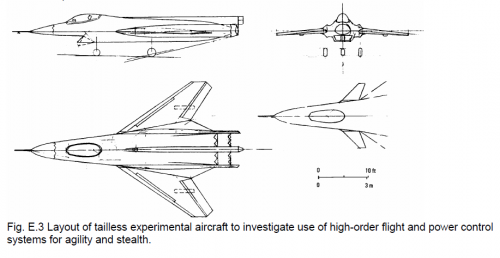

here is some interested concepts for the designer ,Mr. Darrol Stinton,which created
about 340 designs in his career of Aviation.

http://club66pro.com/documents/The-Anatomy-of-the-Airplane.pdf


Attachments

  • 8.png
    43.3 KB · Views: 55
  • 7.png
    24 KB · Views: 57
  • 6.png
    48.8 KB · Views: 54
  • 5.png
    25.6 KB · Views: 44
  • 4.png
    22.7 KB · Views: 48
  • 3.png
    18 KB · Views: 81
  • 2.png
    35.6 KB · Views: 80
  • 1.png
    38.7 KB · Views: 48

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
And;


Attachments

  • 16.png
    46.7 KB · Views: 78
  • 15.png
    32.7 KB · Views: 74
  • 14.png
    32.7 KB · Views: 96
  • 13.png
    42.3 KB · Views: 87
  • 12.png
    35.1 KB · Views: 62
  • 11.png
    46.5 KB · Views: 59
  • 10.png
    23.9 KB · Views: 65
  • 9.png
    29.3 KB · Views: 52

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Finally;


Attachments

  • h.png
    32.3 KB · Views: 90
  • g.png
    39.5 KB · Views: 65
  • f.png
    36 KB · Views: 51
  • 17.png
    23.8 KB · Views: 42

thefrecklepuny

ACCESS: Confidential
Joined
Jan 19, 2008
Messages
72
Reaction score
10
Many of these images are included in an old Darrol Stinton book I have, ''Anatomy of the Aeroplane''.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
thefrecklepuny said:
Many of these images are included in an old Darrol Stinton book I have, ''Anatomy of the Aeroplane''.

Thank you Thefrecklepuny,

and please can you send anther drawings from his book.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,360
Reaction score
3,395
Um.

The PDF posted above is Darrol Stinton's Anatomy of an Airplane. That's where these designs are from.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
PaulMM (Overscan) said:
The PDF posted above is Darrol Stinton's Anatomy of an Airplane. That's where these designs are from.

That's right my dear Paul,

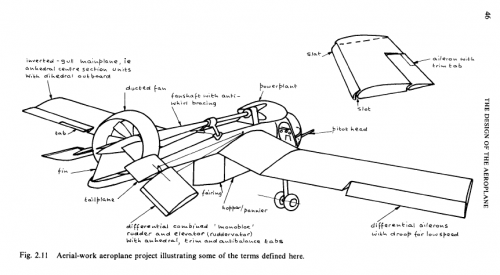

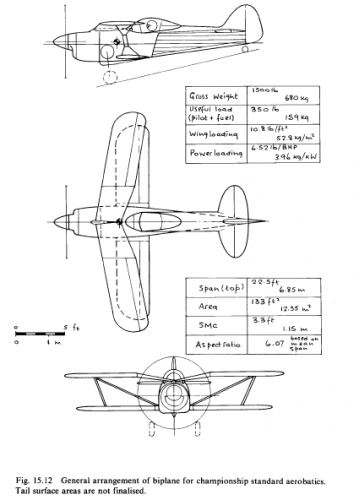

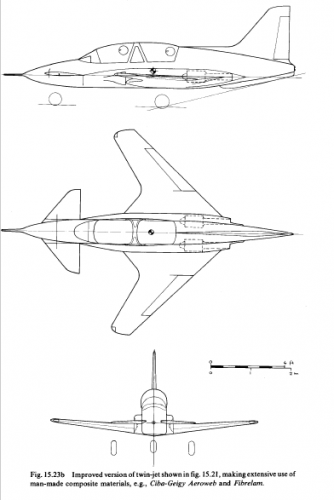

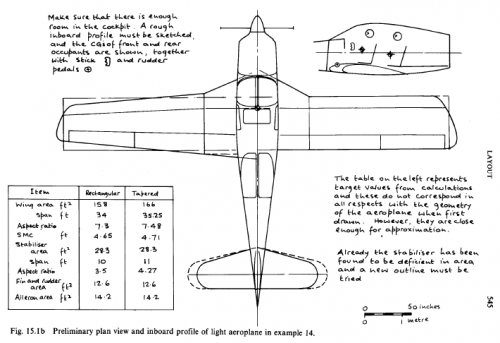

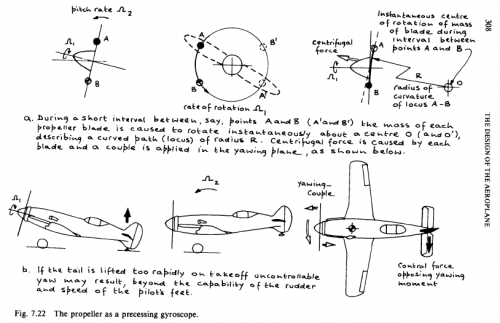

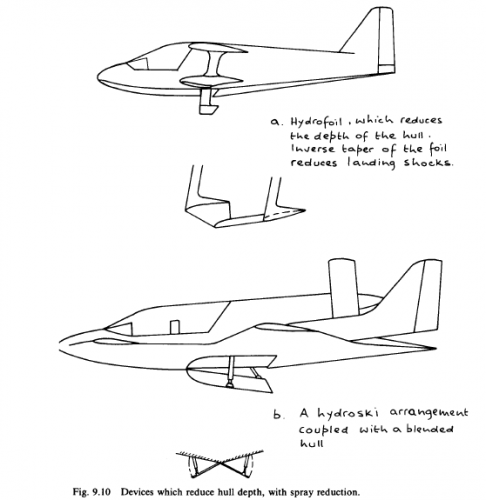

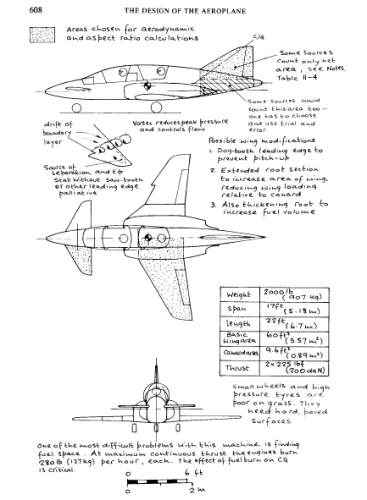

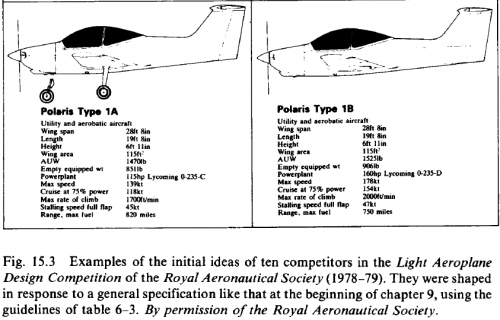

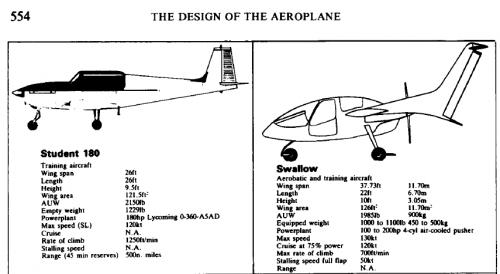

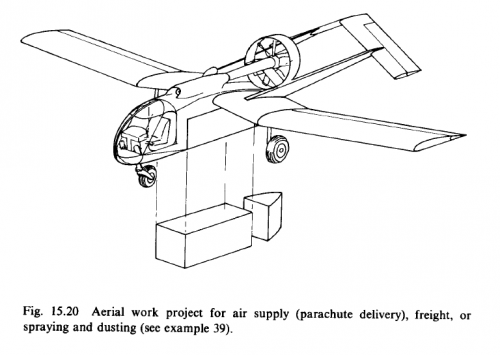

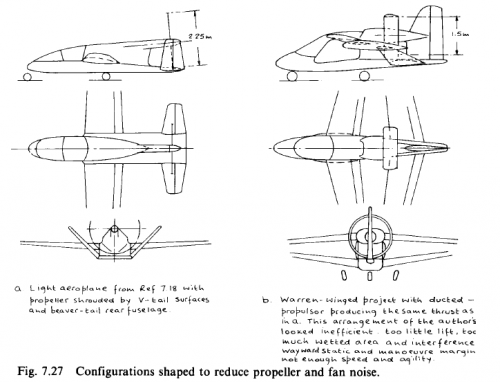

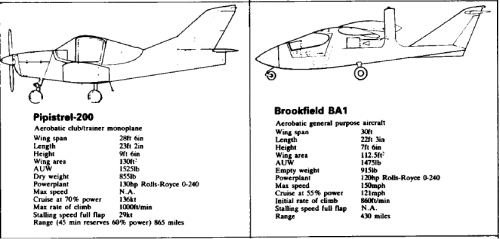

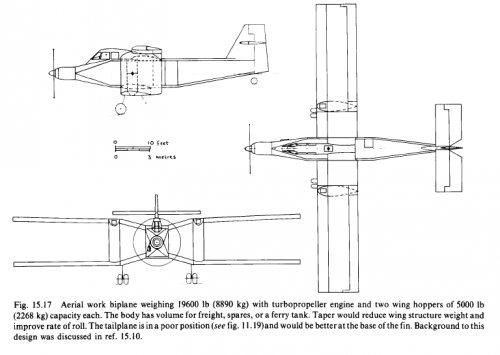

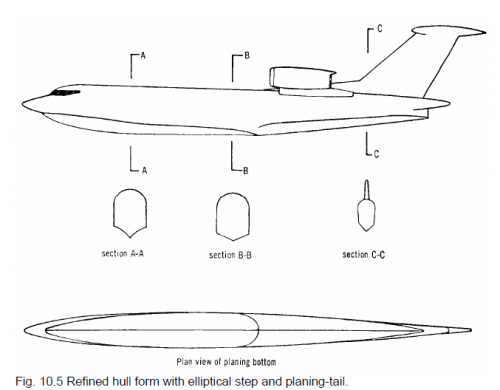

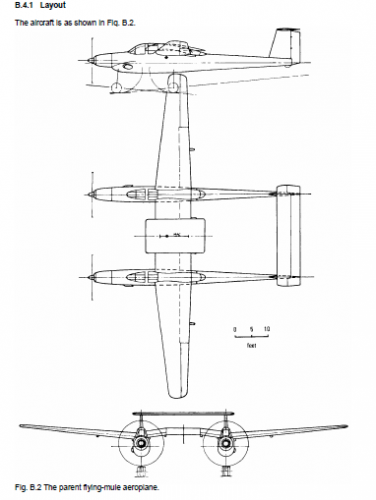

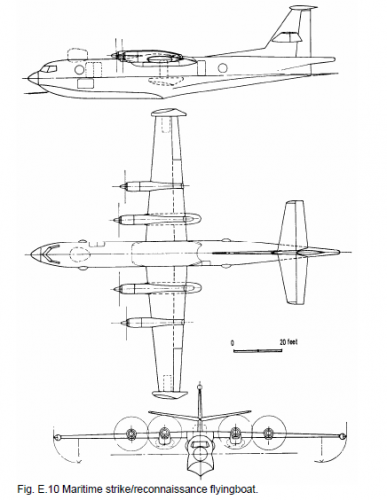

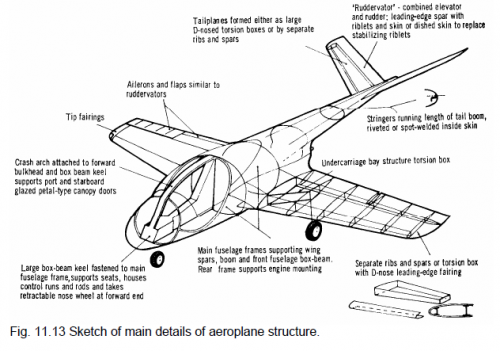

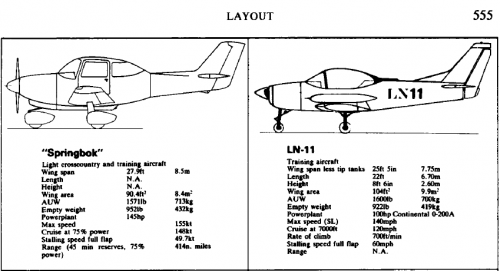

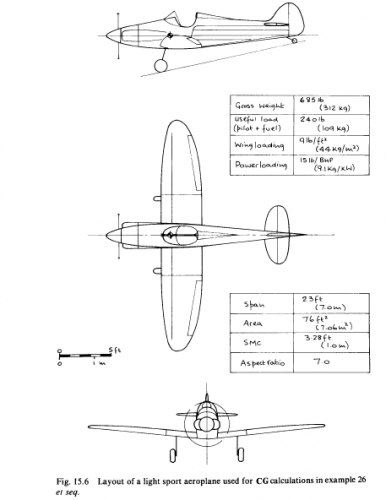

but there is anther reports as I think,such like this one,which contains a competition
for light aircraft in Royal Aeronautical Society.

http://airspot.ru/book/file/183/stinton_design_of_aeroplane.pdf


Attachments

  • 6-2.png
    32.6 KB · Views: 45
  • 6-1.png
    35.8 KB · Views: 42
  • 5-2.png
    52.4 KB · Views: 40
  • 5.png
    54.4 KB · Views: 192
  • 4.png
    31.8 KB · Views: 191
  • 3.png
    42.2 KB · Views: 198
  • 2.png
    57.3 KB · Views: 201
  • 1.png
    45.6 KB · Views: 210

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
And;


Attachments

  • 10.png
    34.5 KB · Views: 46
  • 9.png
    42.8 KB · Views: 48
  • 8.png
    36.2 KB · Views: 41
  • 7.png
    31.1 KB · Views: 41
  • 6-6.png
    33.5 KB · Views: 30
  • 6-5.png
    31.1 KB · Views: 27
  • 6-4.png
    35.7 KB · Views: 29
  • 6-3.png
    48.3 KB · Views: 31

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Finally;


Attachments

  • 11.png
    47 KB · Views: 51
  • 12.png
    27.3 KB · Views: 57

thefrecklepuny

ACCESS: Confidential
Joined
Jan 19, 2008
Messages
72
Reaction score
10
I've just had a quick look and most of the images posted ate within said publication - and have been posted on this forum previously, so I guess I could not really add anything new.

P.S. Have always loved the look of that swing wing fighter design. Would be great to see it camouflaged.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
thefrecklepuny said:
P.S. Have always loved the look of that swing wing fighter design. Would be great to see it camouflaged.

Thank you Thefrecklepuny,

and for this hope,I wish I could do this.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Re: Stinton Aircraft & Projects

hesham said:
what was Phoenix S.34 Majoretti,anther Project ?.

Mr. Darrol Stinton designed this airplane,S34,for Phoenix Aircraft Ltd. of UK.
