Very good aircraft Justo,

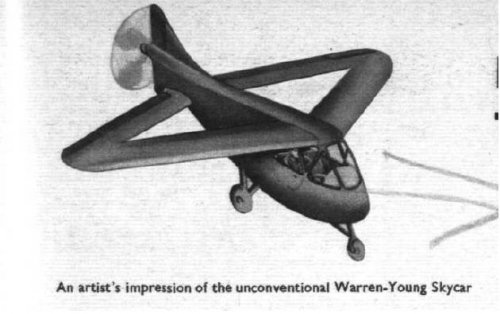

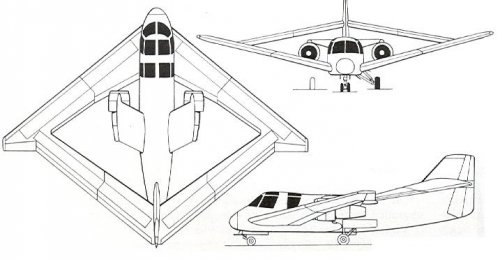

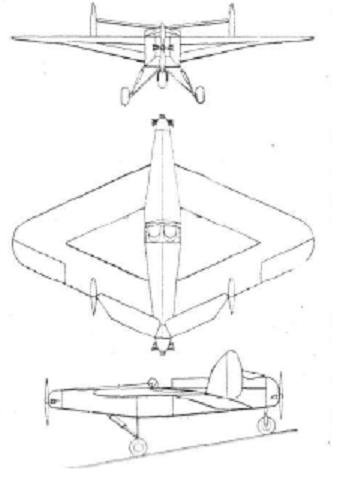

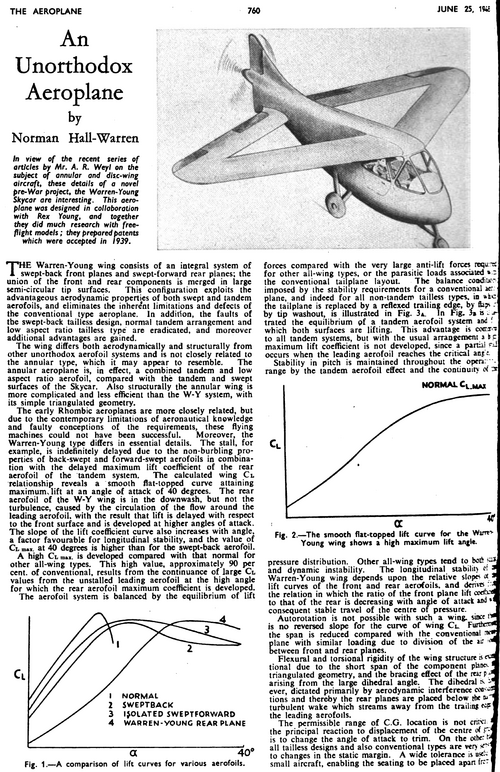

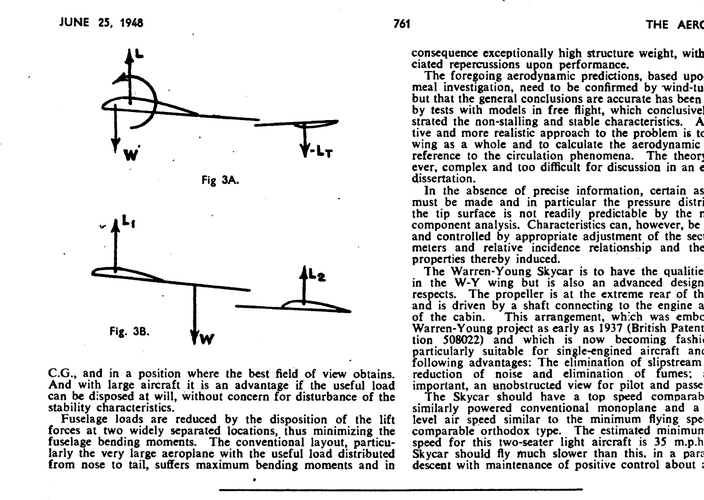

and a 3-view to your last aircraft.

http://www.flightglobal.com/PDFArchive/View/1944/1944%20-%201016.html?search=warren-young%20aircraft


Attachments

Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,418
Reaction score
19
Thanks for the Boxkite references. I believe the Rhomboid wing shares its great aerodynamic inefficency with the Circular Wing. I used the keyword "diamond wing" when using the search option without any results. I should have used "Rhomboid" instead.


AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,145
Reaction score
6
I was wondering if there is a difference between a joined-wing and a Warren-wing configuration. if not, what should it be called?
I know the major proponent of the joined wing, Julian Wolkowitch, was working on it in the eighties. That makes the "Warren wing" at least 40 years older (but then again there might have been even earlier proponents of this configuration).


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
283
Reaction score
2
Warren wing seems to have all wing surfaces on almost the same plane/planform. Warren just eliminated the centre section because it contributes the least to lift or stability.

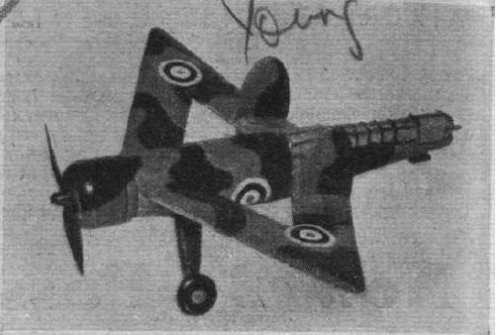

We have to laugh that Warren felt the need to install a gun turret in the tail of his proposed fighter! Hah! Hah!
Must be a British eccentricity like the ill-fated Boulton-Paul Deciant and Blackburn Roc turret fighters. Too bad the Luftwaffe never read that battle plan!
Hah!
Hah!

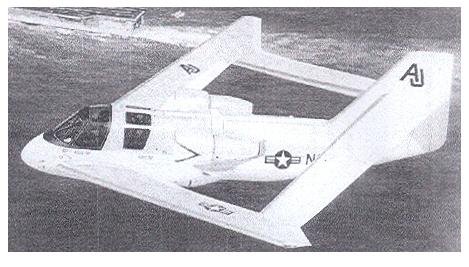

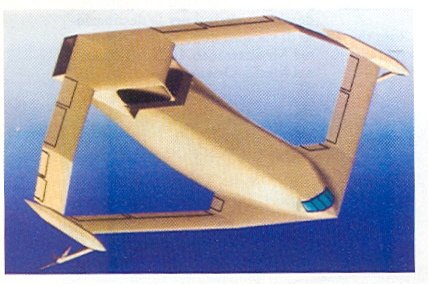

Joined wings start with wing roots at different levels, but dihedral and anhedral make them meet at the wing tips. Supposedly joining wing tips reduces drag by reducing the number of wing tips, like that proposed replacement for Lockheed S-3 Viking. As an aside, they proposed that joined wing configuration to install fixed radar receivers in the leading and trailing edges to allow it to takeover the mission flown by the giant rotating radar disc atop Grumman E-2 and Boeing AWACS.
Joined wings can also enjoy structural advantages if they are aligned with lift and drag loads, creating g essentially a very deep box spar (like a biplane) allowing them to be built lighter than cantilever wings

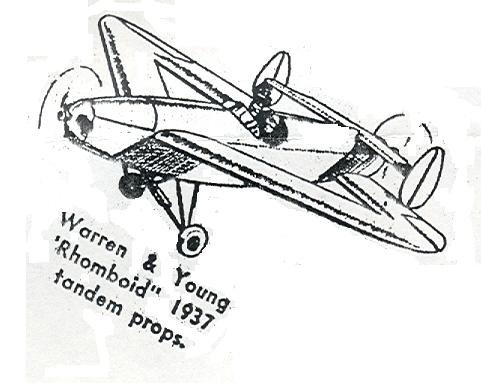

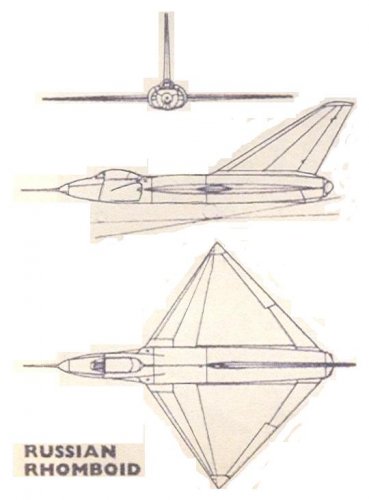

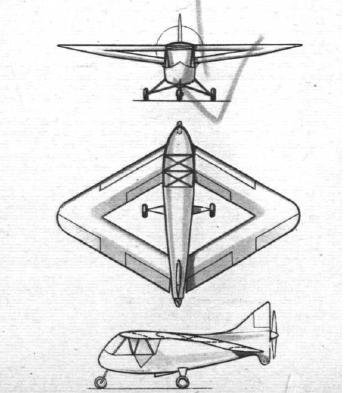

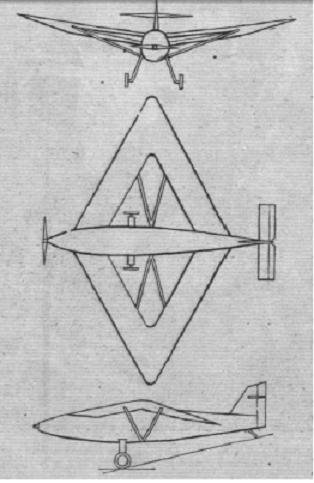

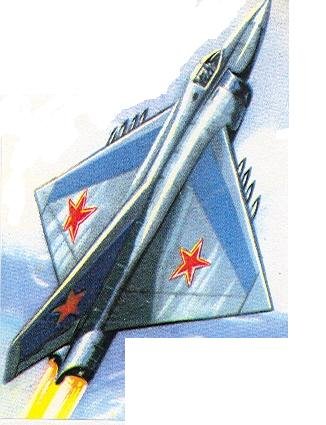

None of those sketches really show rhomboids because true rhomboids are parallelograms without 90 degree corners.
That Canora and fiticious Migs are more lop-sided diamonds or kite shapes. Since the Canora is almost square it wins a prize for the maximum wing area per square foot of deck space!
