Cruise Missile Carrier Airliner conversions

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,399
Reaction score
1,441
(anybody remember this book? :) )

I use to have this book years ago and in it there was a picture of a proposed 747 cruise missile carrier. It would have had nine of those 8-round rotary launchers that could apparently move around in the aircraft as the launch position was to the rear. Does anybody have any pictures of this or similar concepts?


Attachments

  • uswarmachine.jpg
    62.5 KB · Views: 694

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com
Hey I had that book! I still see it popping up in used bookstores here in the Dallas/Fort Worth area and I'll occasionally flip through it for the sake of nostalgia! For the day, it was a fabulous reference.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,399
Reaction score
1,441
This one came out about four years later ('82 vs '78) In it they mention the CSIRS (Covert Survivable In-weather Recon Strike) which I think turned out to be the F-117. It also had a paragraph that was the first I'd ever heard of the program that lead to the F-22. It mentioned an aircraft that could cruise at Mach 1.6 without afterburner, weigh 50,000 lbs, cost $35 million, and called it the ATF.


Attachments

  • Bk-USWarMachine.jpg
    7.4 KB · Views: 702

RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
447
Reaction score
86
Website
rp-one.net
A Rand report on future bombers references The Boeing Company, "747 Air-Launched Cruise Missile
System Concept", Seattle, Wash., April 1974.

There is also a USAF(?) study somewhere on FAS on using C-17s for cruise missile launch.

RP1


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
I still have this book!...it was a very good reference for this time about the US military force at the end of the 70´s.

Raravia


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

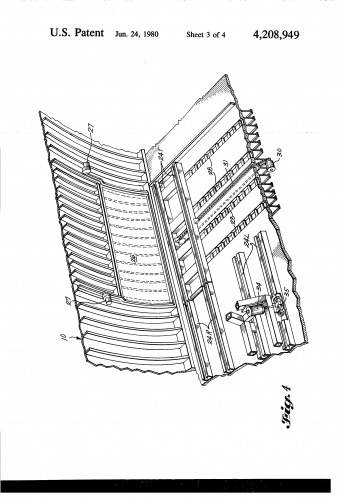

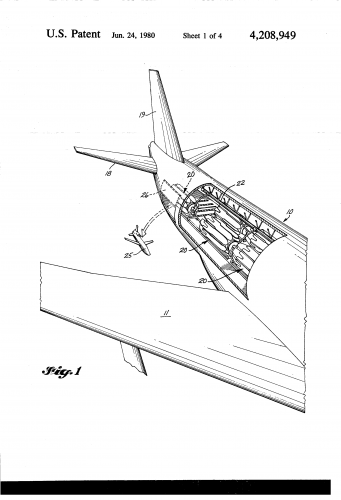

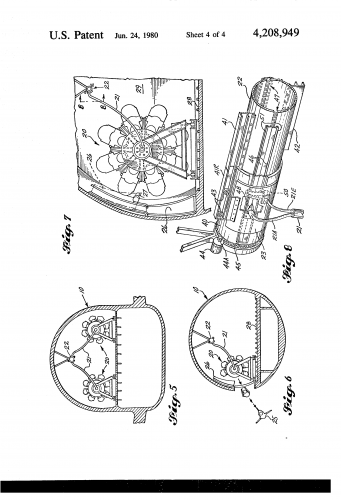

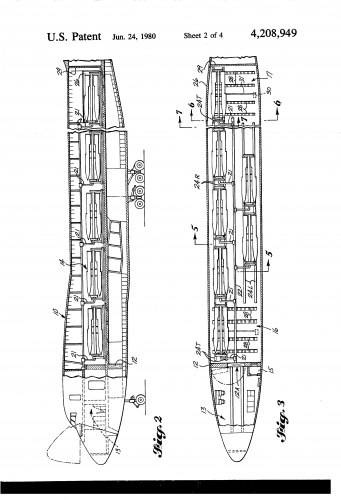

Boeing patent No. 4,208,949 'Missile Carrier Aircraft' filed in May, 1978.


Attachments

  • 004208949-2.png
    140.9 KB · Views: 513
  • 004208949-3.png
    180.3 KB · Views: 467
  • 004208949-4.png
    246.3 KB · Views: 433
  • 004208949-5.png
    224.8 KB · Views: 80

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

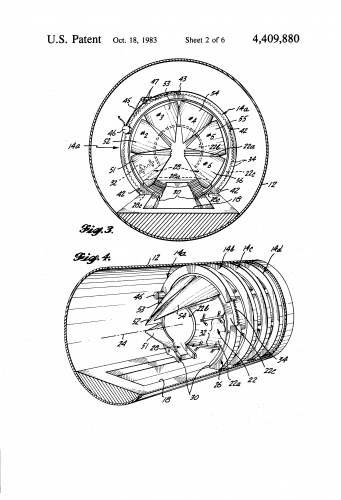

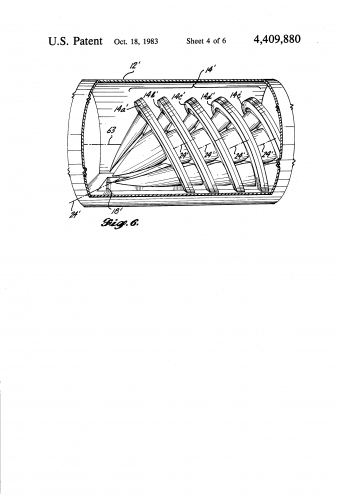

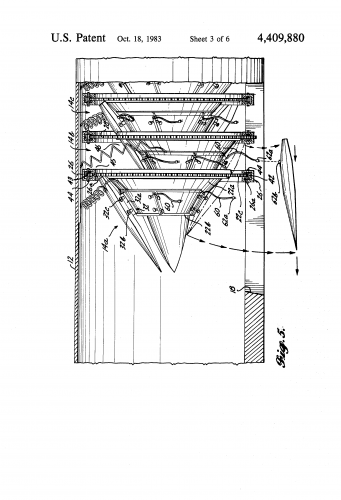

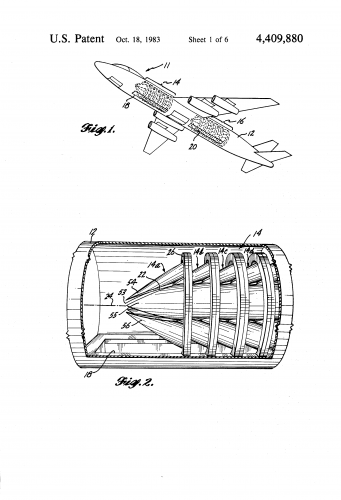

Boeing patent No. 4,409,880 'Missile Stowage and launcher system' filed December 1980.
Note the unique cruise missiles shape.


Attachments

  • 004409880-5.png
    127.8 KB · Views: 70
  • 004409880-4.png
    174.1 KB · Views: 68
  • 004409880-3.png
    219.9 KB · Views: 100
  • 004409880-2.png
    144.2 KB · Views: 106

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

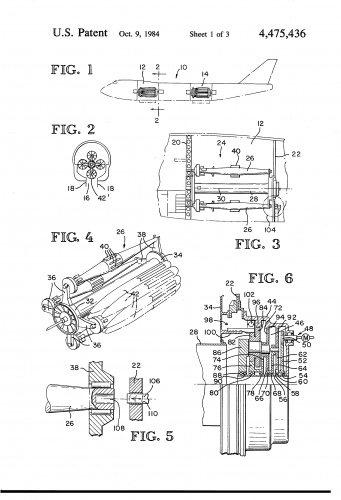

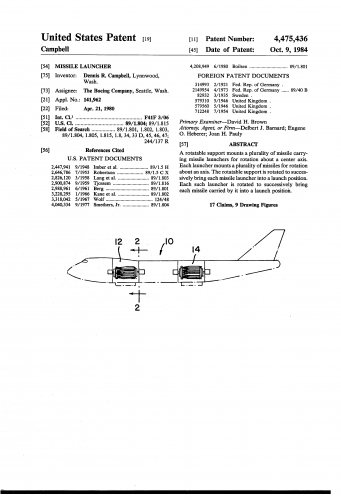

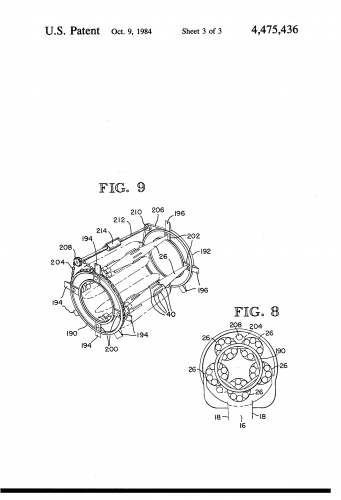

Boeing patent No. 4,475,436 Missile Launcher' filed April 1980.


Attachments

  • 004475436-1.png
    137.8 KB · Views: 82
  • 004475436-2.png
    181.2 KB · Views: 99
  • 004208949-3.png
    180.3 KB · Views: 84
  • 004475436-4.png
    123.2 KB · Views: 77

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

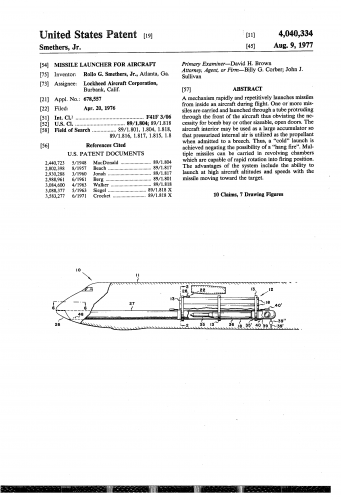

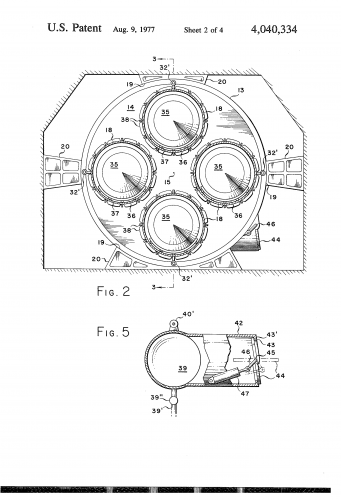

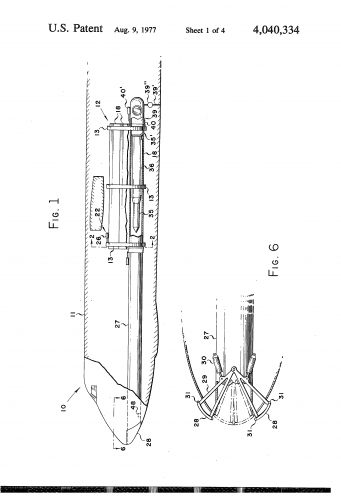

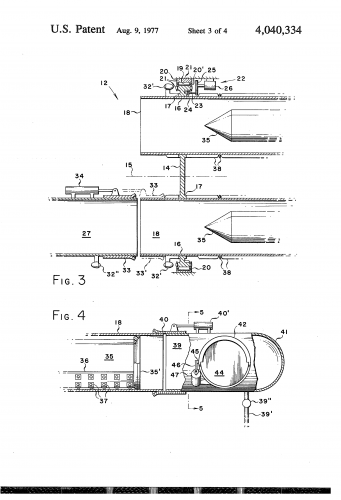

Lockheed patent No.4.040,334 'Missile Launcher For Aircraft' filed April 1976 - pretty strightforward technical solution.


Attachments

  • 004040334-4.png
    130.9 KB · Views: 55
  • 004040334-3.png
    193 KB · Views: 71
  • 004040334-2.png
    123.6 KB · Views: 88
  • 004040334-1.png
    164.9 KB · Views: 90

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

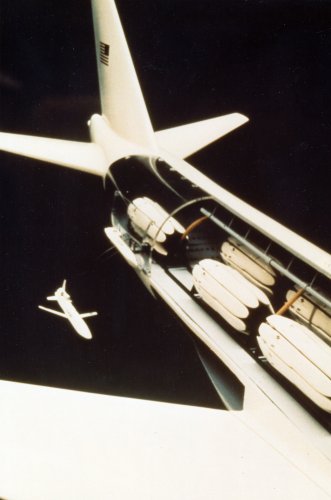

Occasionally, this weird image is all I have.


Attachments

  • boealcmlauncher.jpg
    35.7 KB · Views: 301

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,399
Reaction score
1,441
Thanks! The picture they had in the book was basically the same as that last one but it was an orthographic side shot and in color.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,000
Reaction score
500
Website
beyondthesprues.com
Here is a colour version:

Regards,

Greg


Attachments

  • B-747cruise.jpg
    40.4 KB · Views: 281

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,000
Reaction score
500
Website
beyondthesprues.com
Gregory,

That last patent where the missile is fired through the nose (a bit like a submarine torpedo) is definitely different.

Regards,

Greg


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875
GTX said:
Gregory,

That last patent where the missile is fired through the nose (a bit like a submarine torpedo) is definitely different.

Regards,

Greg

Added this as Sferrin wanted similar concepts. And - thank you for posting this color picture, friend))


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

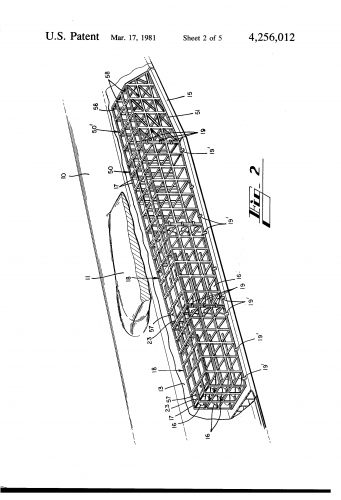

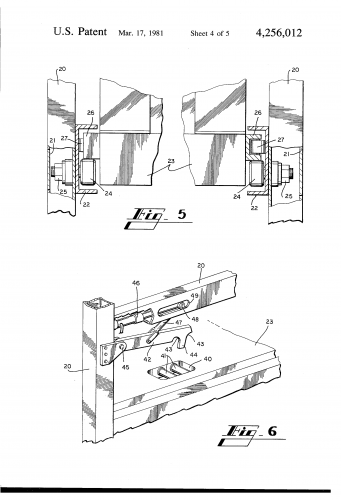

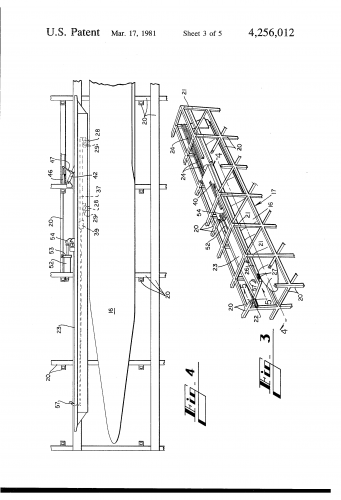

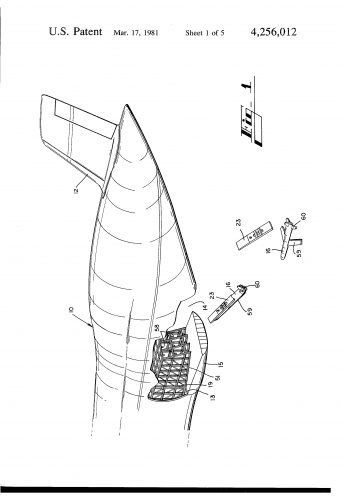

Lockheed patent No 4,256,012 'Missile launcher for aircraft' filed November 1978


Attachments

  • 004256012-2.png
    119.7 KB · Views: 298
  • 004256012-3.png
    214.5 KB · Views: 277
  • 004256012-4.png
    150 KB · Views: 247
  • 004256012-5.png
    143.4 KB · Views: 236

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

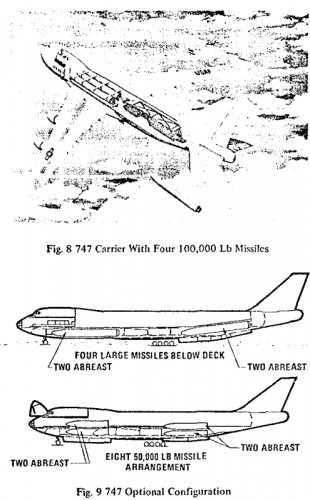

1). Boeing 747 as ALBM carrier

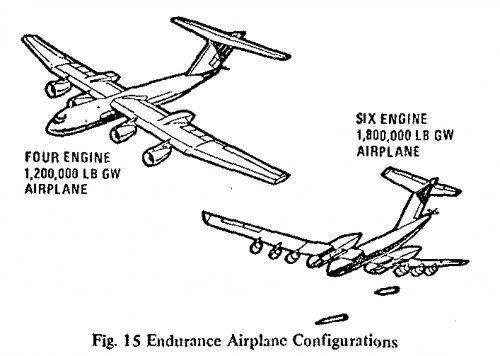

2). 4 and 6-engined 'endurance airplane' ALBM carrier

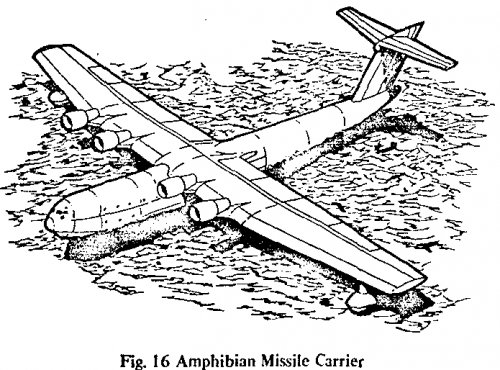

3). Amphibian ALBM carrier
All stuff from 1974


Attachments

  • boe1974-albmcarrier4.jpg
    210 KB · Views: 281
  • boe1974-albmcarrier3.jpg
    92.6 KB · Views: 348
  • boe1974-747albmcarrier-sm.jpg
    173 KB · Views: 606

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875
TriStar-based Lockheed's CMCA


[image removed - better copy below]


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945
Just a short explanation to the L-1011 proposal, the same picture, but b/w only and
with the cruise missiles cut-off, was shown in Aviation Week 9/1978:


Attachments

  • Lockheed_L1011_ALCM-launcher.jpg
    21.3 KB · Views: 141

kian

ACCESS: Restricted
Joined
May 15, 2009
Messages
6
Reaction score
0
where i find tis doc: The Boeing Company, "747 Air-Launched Cruise Missile
System Concept", Seattle, Wash., April 1974! Many thanks


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
503
Website
deeptowild.blogspot.com
According to Flight International, Boeing proposed both the 747-200F and the 747SP as cruise-missile carriers. The 747-200F has an overload gross weight of 870,000 lbs and would have a maximum missile capacity of 72 ALCBM-Bs or TALCMs. The 747SP has an overload gross weight of 735,000 lbs and could carry 48 of either missile. The range of the 747-200F could be extended by using six Advanced Tanker/Cargo Aircraft (ATCA) fuel cells. The missiles would be carried on rotary launchers and dropped through a 246 in by 50 in door in the right rear fuselage. ACTA was also proposed for the 747SP.

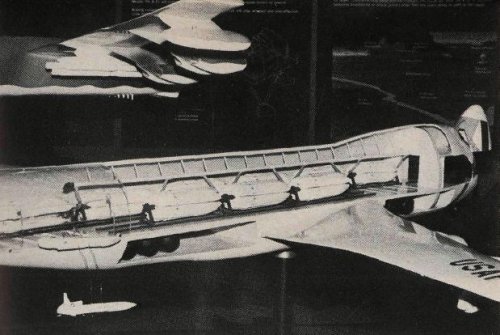

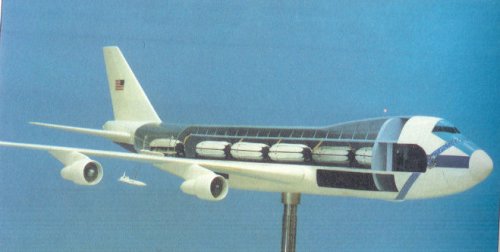

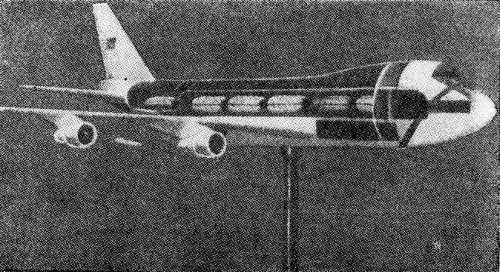

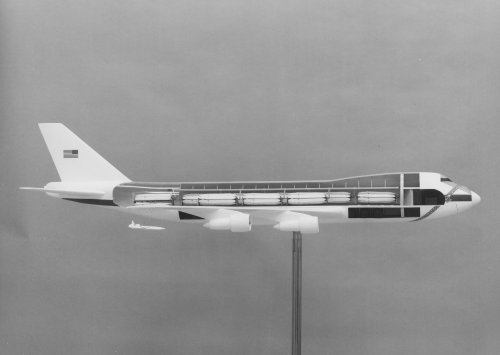

Photograph of model of Boeing 747-200F-based Cruise Missile Carrier Aircraft (CMCA) concept.

Source: Levy, Howard. "USAF Projects on Show" Flight International November 5, 1977 Page 13.
http://www.flightglobal.com/pdfarchive/view/1977/1977%20-%203331.html


Attachments

  • Boeing747cruise.JPG
    52.7 KB · Views: 176

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,915
Reaction score
1,159
Website
www.aerospaceprojectsreview.com
Those're great! A 1/144 ALCM-launcher dispaly model now seems much more likely.



bobbymike

ACCESS: USAP
Joined
Apr 21, 2009
Messages
10,297
Reaction score
1,253
The future concept that should be developed is a large BWB missile carrier, it would have a larger payload than these 747 concepts and be moderately stealthy.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,412
Reaction score
3,448
http://www.codeonemagazine.com/gallery_slideshow.html?item_id=1304


This artist concept shows the Lockheed candidate for the proposed 1970s-era US Air Force Cruise Missile Carrier Aircraft, or CMCA. Based on the L-1011-500 TriStar airliner, the CMCA variant would have had fore and aft internal weapons bays, more powerful radar, and additional sensors and antennae. Promotional material noted that "a number of very advanced systems ... will provide the United States Air Force with the lowest possible life cycle costs -- the direct applications of advanced technology to save energy, operating costs, and maintenance costs throughout the life of the aircraft." The Air Force later abandoned the CMCA concept. Artwork by C.G. Hodgson.


Attachments

  • 2011_06_24_Spotlight_L1011_CruiseMissile_1267828237_7782.jpg
    167.9 KB · Views: 867

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,791
Reaction score
1,924
flateric said:
1). Boeing 747 as ALBM carrier
2). 4 and 6-engined 'endurance airplane' ALBM carrier
3). Amphibian ALBM carrier
All stuff from 1974

The USAF could have definitely done with the 6-engined ALBM carrier in the last 10yrs.


kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,313
Reaction score
134
The South African Airforce had a programme to use Boeing 707's as cruise missile carriers apparently. I don't think these were to be high capacity carriers, more the case of perhaps carrying 4 or 6 cruise missiles and using the 707 as a long range carry platform. I believe this project is mentioned in Those who had the Power.


codeone

ACCESS: Confidential
Joined
Oct 7, 2010
Messages
56
Reaction score
4
OOps! Just saw this post. Sorry about being redundant this morning..


kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,313
Reaction score
134
How easy or difficult would it have been to put a single or multiple bomb bay or internal weapons bay in some of the jet airliners?

Is there a structural issue, such as fuselage cross members or bulkheads?

I'm talking of the fuselage cargo holds beneath the passenger deck, in front or and behind the wings and looking, for example, at the Boeing 707, seeing as it saw a lot of service with airforces around the globe.
