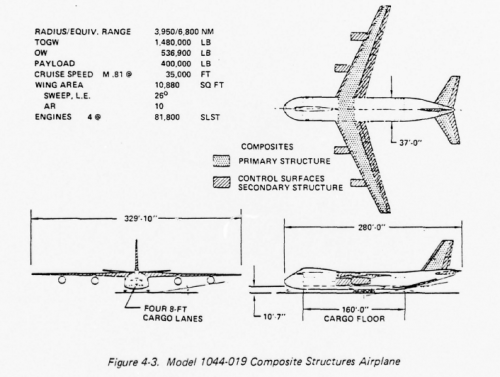

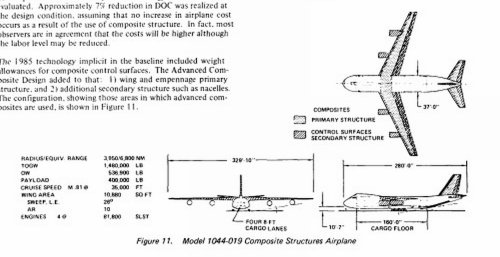

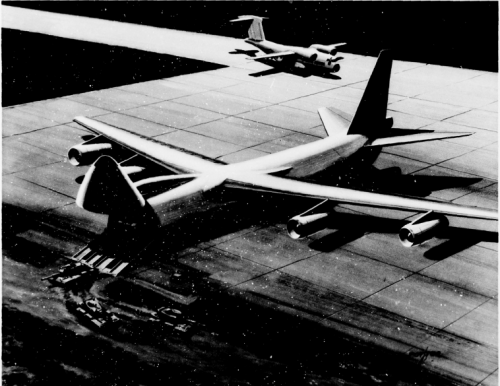

Boeing 1977 Composite Structures Airplane study (Model 1044-019)

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,181
Reaction score
1,407

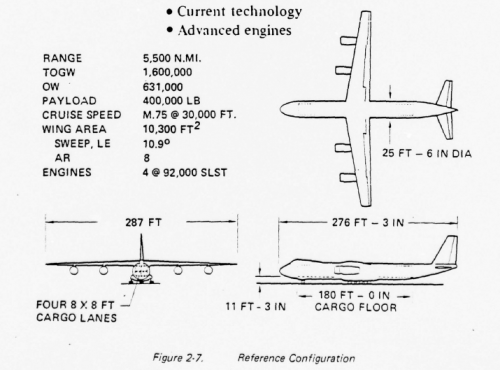

Radius/equivalent range 3600 n.mi./6200 n.mi.
Payload 400.000 Ib
Field length 8.000 ft

Study evolved into Boeing Model 1044-019

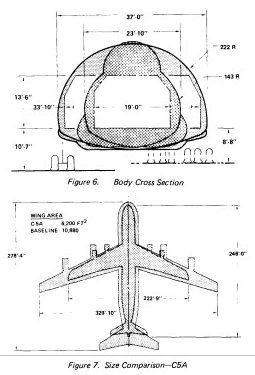

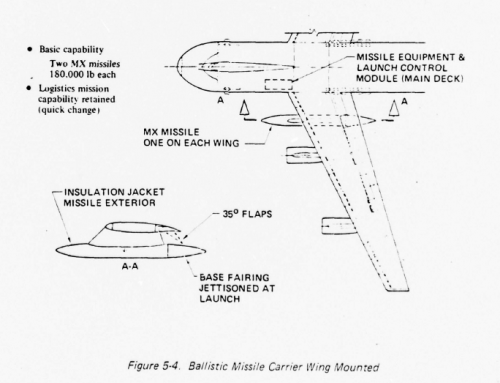

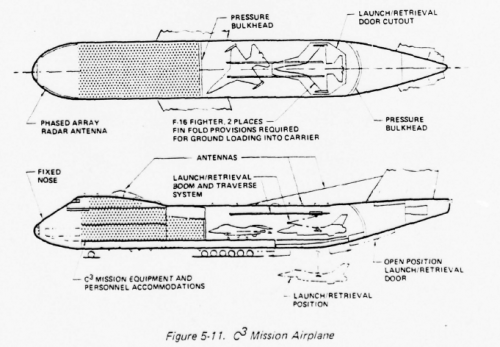

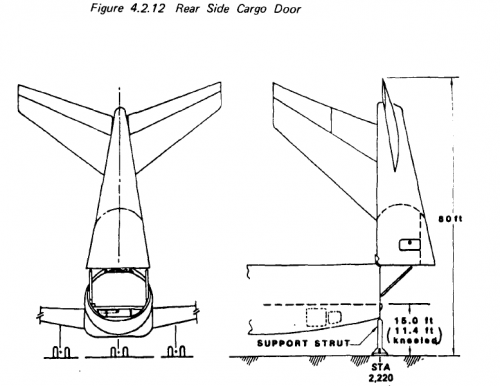

Apart of military and civil cargo freighters, aircraft was studied as Air-Launched Strategic Missile platform.

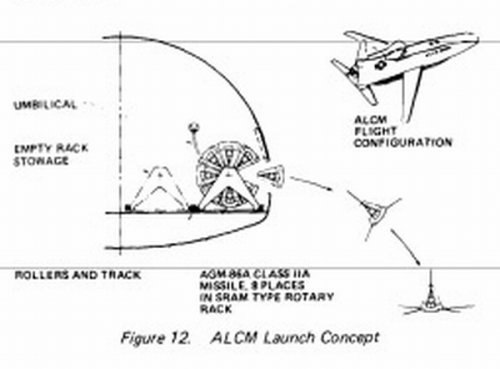

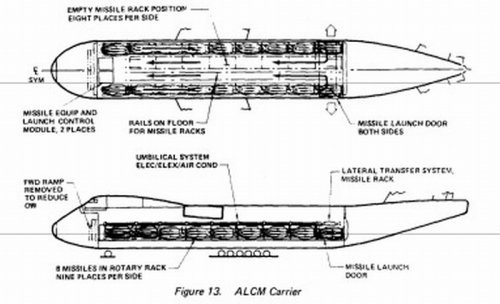

"Various methods of deployment (aft and vertical) in addition to external carriage were studied. A deployment system was devised to allow the launching of Air Launched Cruise Missiles (ALCM's) from the baseline aircraft. The concept involves installation of a small launch door on each side of the fuselage through which the missiles are ejected. Rotary launchers similar to those used on the B-51/SRAM system are postulated. The rotary launchers are mounted on trucks and are circulated aft to the launching station. After ejecting the complement of eight missiles, the rotary launclier is removed and stored forward. Another rotary rack is moved to the launch platform and the launch sequence repeated. Figure [...] shows a configuration for the baseline design which will accommodate 18 rotary racks and 144 ALCM's."

Preliminary Design and Analysis of Large Advanced Military Transports
E.A. Barber and I. Rettie,
Boeing Military Airplane Development, Seattle, Wash.
L .Noggle,
Aeronautical Systems Div., Wright-Patterson AFB, Ohio


Attachments

  • boe1977CSA-1.jpg
    50.9 KB · Views: 1,198
  • boe1977CSA-2.jpg
    197.5 KB · Views: 1,132
  • boe1977CSA-3.jpg
    89.5 KB · Views: 1,073
  • boe1977CSA-4.jpg
    158.7 KB · Views: 1,061

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,295
Hi,

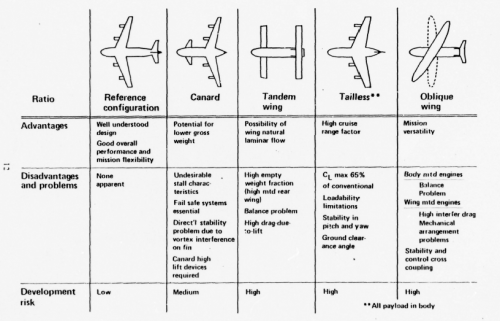

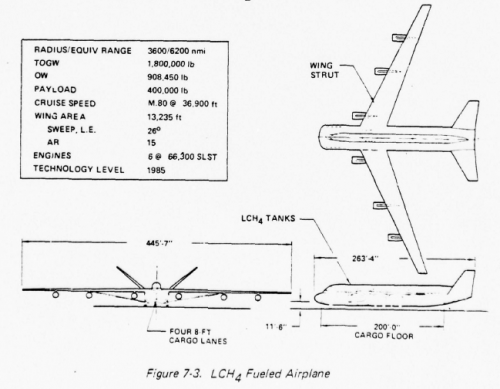

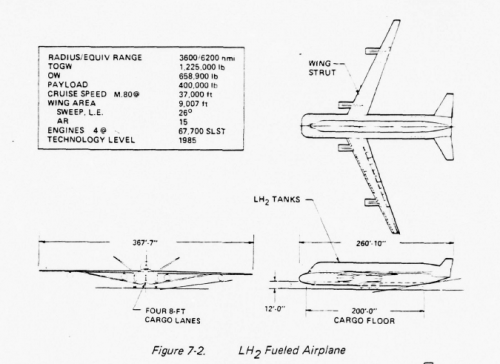

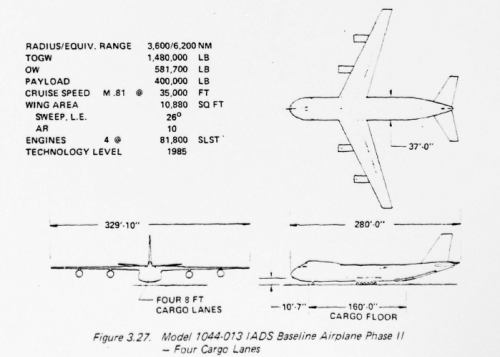

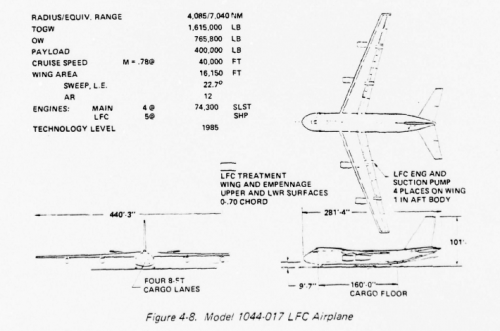

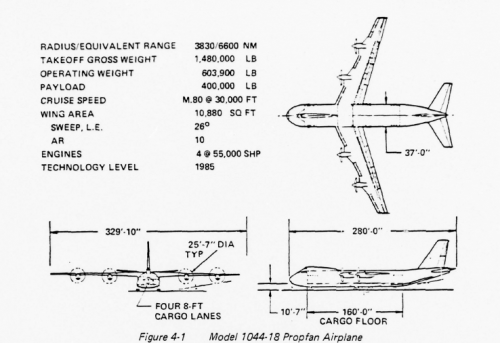

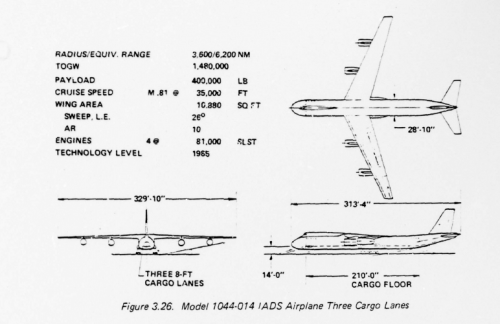

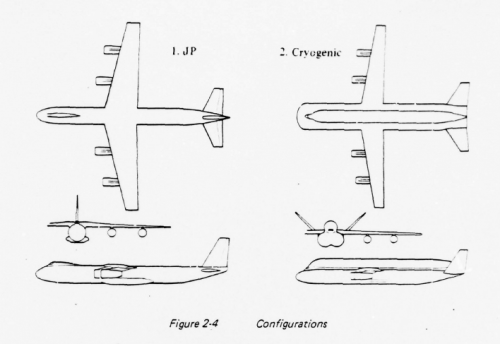

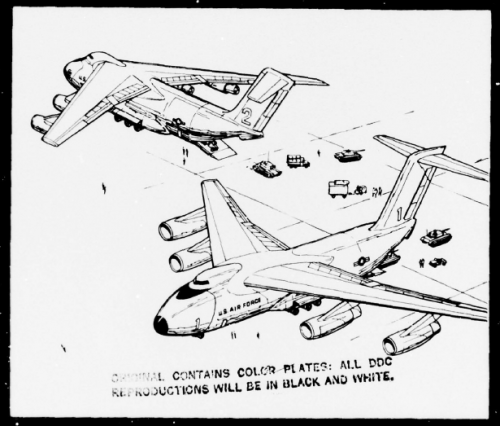

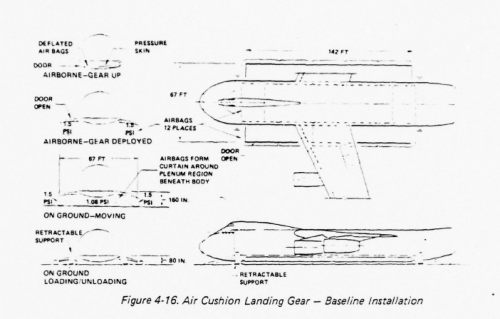

and to complete the story,here is the Boeing Model 1044-13,14,17 & 18,also a more
info about this aircraft project.


http://www.dtic.mil/dtic/tr/fulltext/u2/a041234.pdf


Attachments

  • 3.png
    144.7 KB · Views: 108
  • 2.png
    332.1 KB · Views: 129
  • 1.png
    200.7 KB · Views: 127
  • 1044-019.png
    203.3 KB · Views: 89
  • 1044-018.png
    194.8 KB · Views: 78
  • 1044-017.png
    174.5 KB · Views: 81
  • 1044-014.png
    196.7 KB · Views: 101
  • 1044-013.png
    179.3 KB · Views: 635

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,295
And;


Attachments

  • 10.png
    164.2 KB · Views: 114
  • 9.png
    153.9 KB · Views: 102
  • 8.png
    205 KB · Views: 107
  • 7.png
    172.8 KB · Views: 78
  • 6.png
    160.8 KB · Views: 75
  • 5.png
    204.8 KB · Views: 91
  • 4.png
    250.6 KB · Views: 88

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,295
Hi,


here is the Boeing Model 1044-050,please note that; the drawing "3" is unknown concept ?.


http://www.dtic.mil/dtic/tr/fulltext/u2/a082941.pdf


Attachments

  • 5.png
    57.8 KB · Views: 87
  • 4.png
    36.2 KB · Views: 80
  • 3.png
    34.5 KB · Views: 95
  • 2.png
    43 KB · Views: 90
  • 1.png
    118.3 KB · Views: 74

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,295

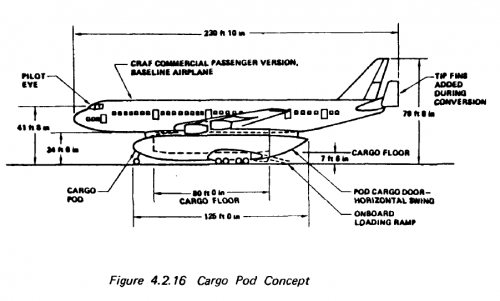

ouroboros said:
The CRAAF cargo pod is conceptually similar to that 747 outsize cargo pod.


Yes Ouroboros,


but the concept is new for me.


Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,676
Reaction score
451

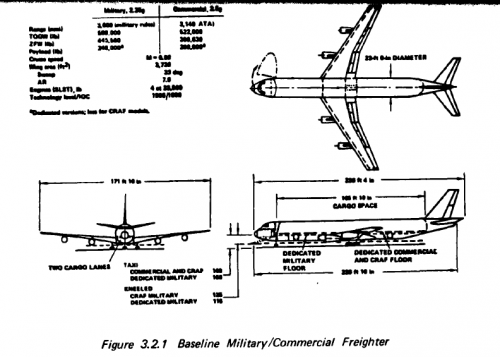

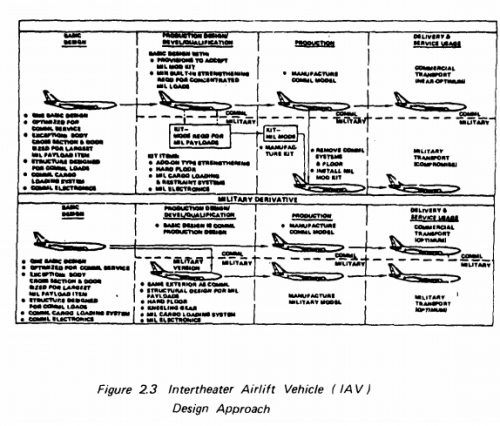

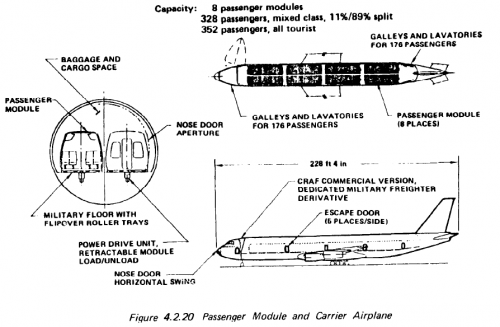

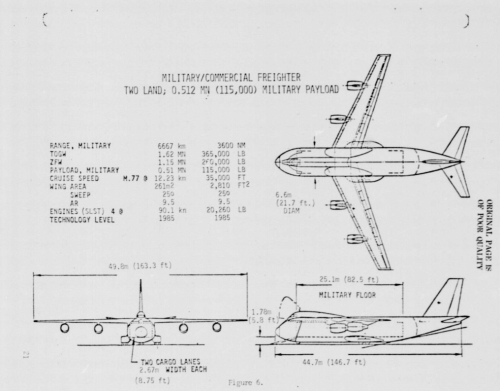

That commercial version intrigues me, are we looking at another '757' or a '767'?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,295
hesham said:
here is the Boeing Model 1044-050,please note that; the drawing "3" is unknown concept ?.

http://www.dtic.mil/dtic/tr/fulltext/u2/a082941.pdf

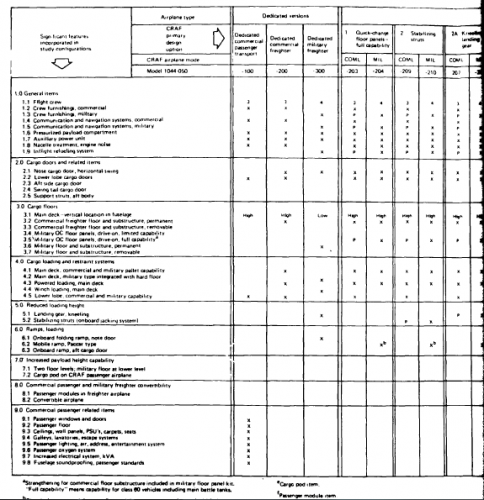

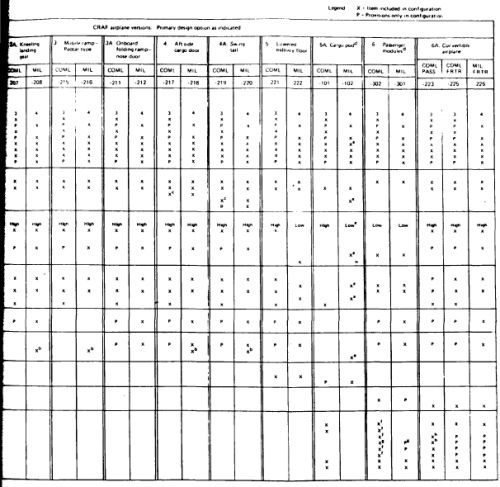

From the same source,

the Boeing Model 1044-050-200,and all Model 1044-505 variants.


Attachments

  • 1.png
    105.4 KB · Views: 51
  • 2.png
    76.1 KB · Views: 48
  • 3.png
    65.9 KB · Views: 24
