Competition of Sikorsky XHR2S-1 and McDonnell XHRH-1

nugo

CLEARANCE: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
2
I know that in competition there were many projects, but know only two:

1) Sikorsky Model S-56---XHR2S-1
2) McDonnell Model M-78---XHRH-1

And that you know about these projects ?


Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
2
I have the following descriptions:

"The Sikorsky S56 was a heavy transport helicopter used by the USMC. Four prototypes were ordered as XHR2S-1 with serials 133732/133735 and the first flight was on 18 December 1953.
This was followed by 55 HR2S-1s with serials 138418/138424, 140314/140325, 141603/141617, 145855/145875 whilst production of 138425/138431, 141618/141645, 143828/143863 and 147101/147136 was cancelled. The first flight was on 25 October 1955 and those aircraft remaining in service on 18 September 1962 were redesignated as CH-37C.
The designation HR2S-1W was allocated to an early warning version of which two examples were built with serials 141646/141647. They carried a large radar radome."

and

"Intended to be a heavy assault helicopter for the USMC three XHRH-1s were ordered on 15 March 1951 with serials 133736/133738 but were eventually cancelled in 1953. A full scale mock up was built and they were to be fitted with rotor tip jets."

Gyrodyne designed, but not built, a similar looking helicopter. I don't know the designation or the timeframe, but a picture is attached.


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
186
Website
deeptowild.blogspot.com
Artist's impression (top) of McDonnell XHRH-1 as it would have appeared in flight.

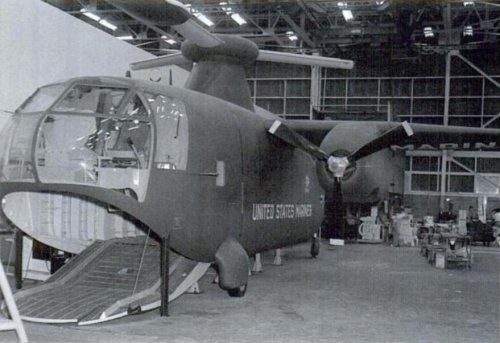

The full-size mock up (bottom) of the McDonnell XHRH-1 showing the nose loading ramp.

Source: Francillon, René J. McDonnell Douglas Aircraft Since 1920 Naval Institute Press 1990


Attachments

nugo

CLEARANCE: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
2
Hi All!
"The Marine Corps, through the Navy, awarded a contract to both McDonnell and Sikorsky for production of heavy assault helicopters capable of carrying either troops or cargo. The two companies were adjudged winners over 23 designs entered."
1) McDonnell Model 78---XHRH-1 (project)
2) Sikorsky Model 56---XHR2S-1 (production)
Does anyone know the designations of any of the other 21 submissions?


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
nugo said:
Does anyone know the designations of any of the other 21 submissions?
My understanding of "over" 23 designs (as opposed to "among") is that there were 25 designs in all, these two beating the other 23...

Or maybe the writer slackened off a bit in his use of English and meant they were part of the 23?

How do native speakers understand it?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,


I suggest that projects were submitted;


1) Piasecki PH-34
2) Piasecki PH-34A
3) Piasecki PH-34B
4) Gyodyne GCA.35
5) Bell D-116
6) Bell D-117
7) Hughes Model-226
8) Hughes Model-326
9) Kellett KH-11


nugo

CLEARANCE: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
2
Hi All!
"The Marine Corps, through the Navy, awarded a contract to both McDonnell and Sikorsky for production of heavy assault helicopters capable of carrying either troops or cargo. The two companies were adjudged winners over 23 designs entered."
Source: old American book
23 proposals:
1) Bell D-116
2) Bell D-117
3) Gyrodyne Model ?
4) Hughes Model 226 (?)
5) Hughes Model 326 (?)
6) Kellett Model 11 (?)
7) Piasecki Model 34
8) Piasecki Model 34A
9) Piasecki Model 34B
10) Sikorsky Model 56---XHR2S-1
11) McDonnell Model 76---Marine Assault Transport Helicopter (Source: McDonnell Model Numbers)
12) McDonnell Model 77---Single Engine Marine Assault Transport Helicopter (Source: McDonnell Model Numbers)
13) McDonnell Model 78---Marine Assault Transport-Twin Engine Jet Rotor Engine Helicopter (Now XHRH-1) ( (Source: McDonnell Model Numbers) )
14 to 23)---unknown


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Jos Heyman said:
Gyrodyne designed, but not built, a similar looking helicopter. I don't know the designation or the timeframe, but a picture is attached.

My be you are right my dear Jos,


that is for Gyrodyne design,and it is called GCA.3,and this helicopter developed in
1951 and called Helidyne,also accommodated 18 seat,and I con give you all of
its data,please see;
http://www.secretprojects.co.uk/forum/index.php/topic,1192.msg104486.html#msg104486
