McDonnell Model 78 assault transport helicopter project (U.S. Marines XHRH-1)

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,527
Reaction score
128

Attachments

Spook

CLEARANCE: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
2

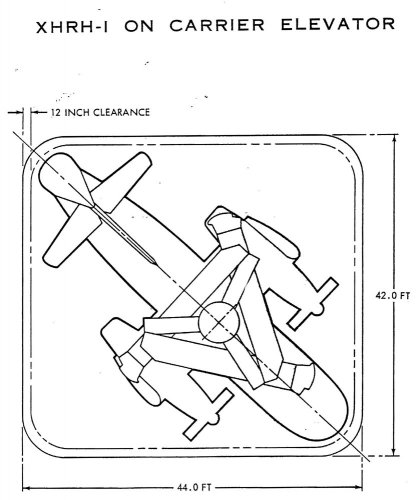

Design of the Model 78 was started in 1950 in answer to a request for proposals for an assault transport helicopter which had been issued by the Navy Department on behalf of the US Marine Corps. Intended to operate from CVE-105 class (USS Commencement Bay) carriers, the new helicopter was to fit on 13.41m by 12.80m deck elevators. Its primary mission was to carry 30 troops to objectives up to 100 naut miles away and return to the carrier without the need to refuel ashore.

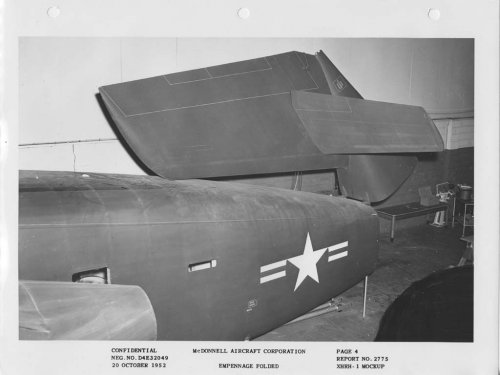

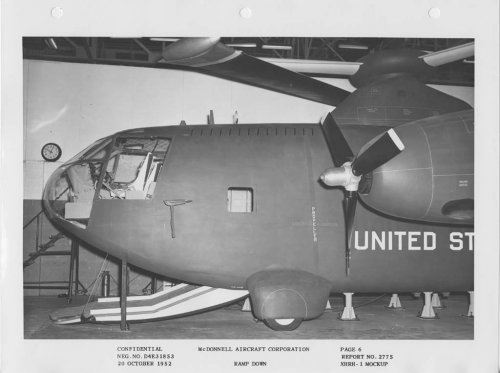

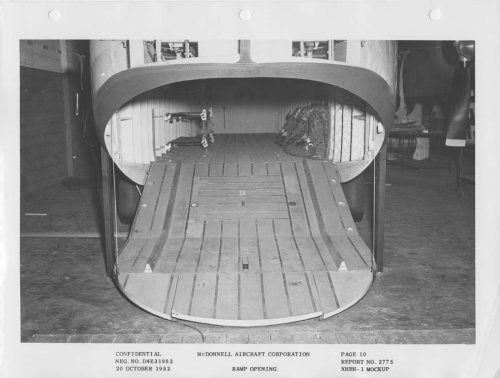

To fulfill what were then most demanding requirements, McDonnell designed a compound helicopter with a three-bladed rotor and short wings on which were mounted two 3507shp Allison XT56-A-4 turbines. For vertical flight, air from engine-driven auxiliary compressors was to be ducted to 726kg thrust McDonnell 12JP20 pressure jets, one at the extremity of each rotor. For forward flight, each engine was to drive a three-bladed propeller, with transition from helicopter flight mode to conventional flight being made by transferring power from the auxiliary compressors to the propellers as soon as the forward speed exceeded the stalled speed of the wing. Normal accommodation was to have been provided for a crew of two and 30 fully-equipped troops. Alternatively, accommodation could have been provided for 36 troops or 24 litter patients, or two Jeep-sized vehicles could have been carried internally. Larger loads (up to a maximum weight of 5224kg) could be carried externally. Another noteworthy design feature was the inclusion of a hydraulically-operated loading ramp in the forward fuselage, beneath the cockpit. Folding wings, rotor blades, and tail unit were to have enabled the Model 78 to fit on the deck elevators of CVE-105 carriers.

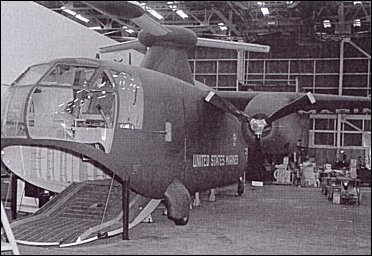

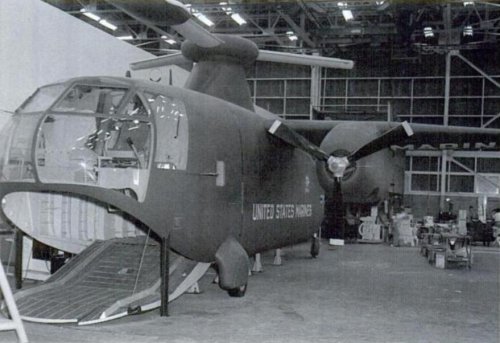

The Navy selected the McDonnell design on 15 March, 1951, and two and a half months later issued a Letter of Intent for three XHRH-1 prototypes (Bu Nos 133736/133738) to be built under Contract N0a(s)-51-1201. A full-scale mock-up of the XHRH-1 was inspected on 22 and 23 October, 1952, and construction of the prototypes was begun. However, after the Korean War had ended, budget cuts and concern over anticipated developmental problems led to the cancellation of the contract before completion of a single XHRH-1. All work on the project ended in April 1954.

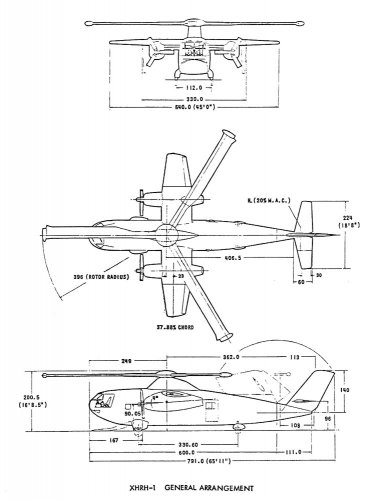

Technical data for XHRH-1

Rotor diameter: 19.81m,
wingspan: 13.72m,
length with rotor blades and tail folded: 16.33m,
height: 5.09m,
wing area: 30.84m2,
empty weight: 8695kg,
loaded weight: 13795kg,
maximum weight: 16329kg,
maximum speed at sea level: 444km/h,
climb rate: 12m/s,
hover ceiling out of ground effect: 3050m,
combat radius: 185km


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
84

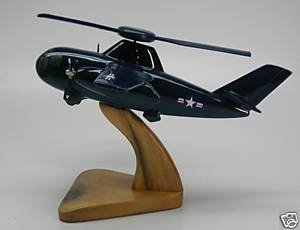

Topic merged with earlier contribution on the subject by Mark Nankivil. Here are slightly better resolution versions of the pics you provided (from this old topic), as well a two photos of a desktop model of that era (from this other topic - apparently still offered on eBay).


Attachments

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,129
Reaction score
101
McDonnell XHRH-1 (Model 78)
McDonnell Model 78 Marine Assault Transport - Twin Engine Jet-Rotor helicopter, designated XHRH-1. Report No. 2738, dated 1 October 1952. Credit:Greater St. Louis Air and Space Museum.
Click here to download report (16 Megs)
Click here to download Mock Up photos in one Zip file (3.3 Megs)
Source: http://aviationarchives.blogspot.com/2017/08/mcdonnell-xhrh-1-model-78.html

Edit 2017-08-14:

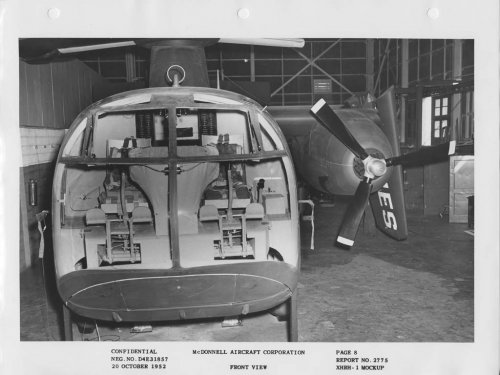

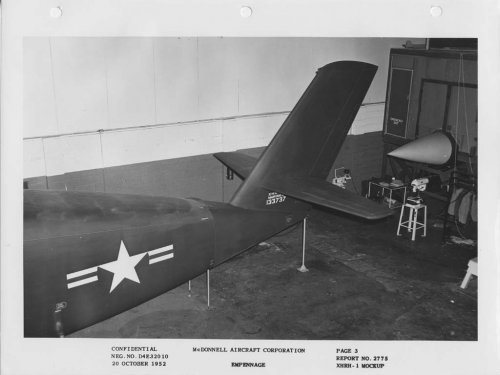

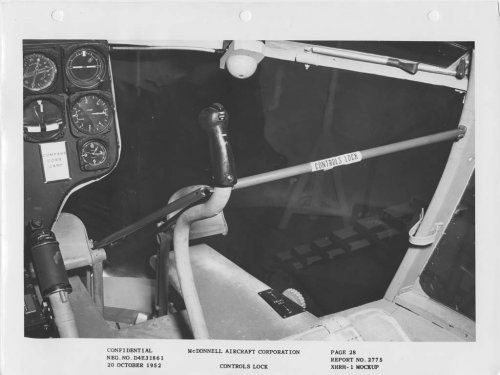

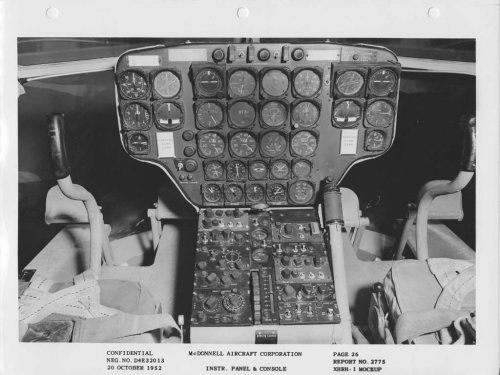

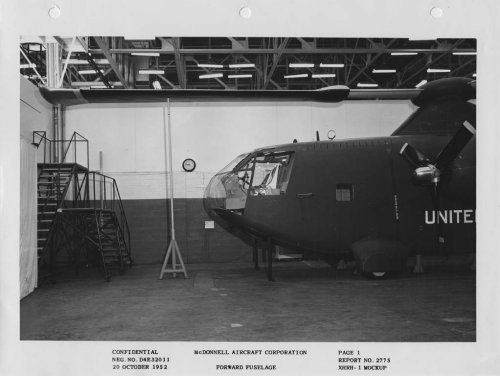

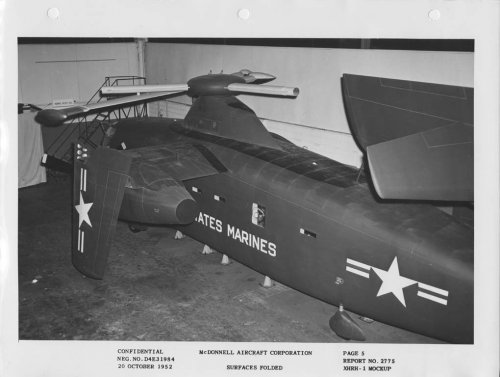

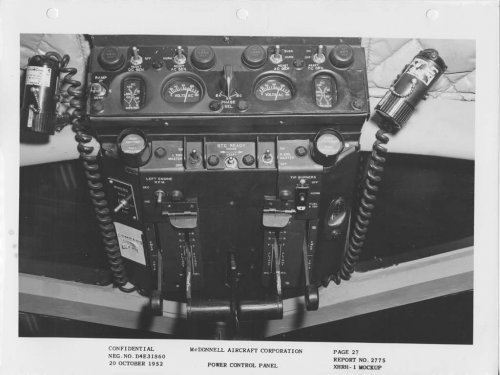

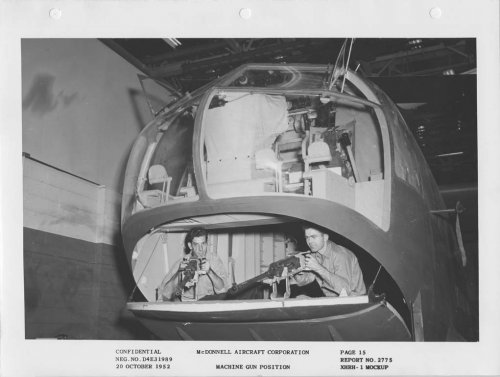

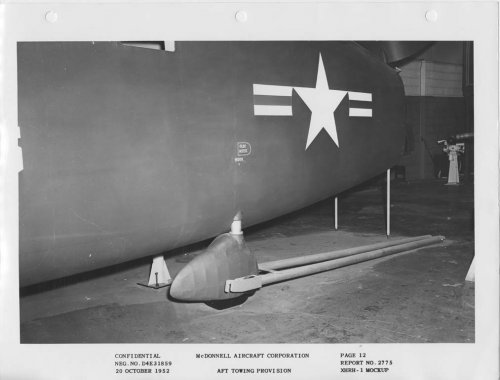

McDonnell XHRH-1 (Model 78) Mock Up Photos
More mock up photos of the McDonnell XHRH-1 Marine Assault Transport - Twin Engine Jet-Rotor helicopter. Part of report No. 2775, dated 20 October 1952. Credit: National Archives via Bill (Phantomologist) Many thanks, Bill!
Click here to download photos in one Zip file (55.3 Megs)
Source: http://aviationarchives.blogspot.com/2017/08/mcdonnell-xhrh-1-model-78-mock-up-photos.html

See also the picture attachments in the following posts. :)


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
1,972
Reaction score
72
Having the ramp in front might have been a smart idea. Pilots would have been more circumspect where they dropped the "crunchies" (aviator term there).

Brilliant set of pictures! Thank you Sir.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,665
Reaction score
34
Thanks Bill S, those picture give me a great appreciation of a design which was miles ahead of its time.

Regards
Pioneer


FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,019
Reaction score
25
Was the Model 78 ever designed to be a competitor to the Chinook? Pity it was never built.


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,527
Reaction score
128
The Model 78 is 8+ years ahead of the Chinook and more in the same generation as the Piasecki H-21 which went into service about 2 years earlier. McDonnell proposed a number of evolutionary developments using the tip powered rotor such as the Model 99 and 113 - see: http://www.secretprojects.co.uk/forum/index.php/topic,16674.0 but the tip powered rotor was a dead end design (noise and fuel burn) and the tandem rotor proved to be the layout of choice to go forward with.

Enjoy the Day! Mark


Tailspin Turtle

CLEARANCE: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
688
Reaction score
10
Website
www.tommythomason.com
FighterJock said:
Was the Model 78 ever designed to be a competitor to the Chinook? Pity it was never built.
The Navy issued contracts to both McDonnell and Sikorsky for this marine assault mission, designated HRH and HR2S respectively. McDonnell's contract was subsequently terminated. The resulting Sikorsky helicopter is better known as the H-37, its Army designation. As Mark noted, this program was almost a decade earlier than the Chinook.


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
539
Reaction score
30
Hi Tailspin Turtle!

Thanks for info about this competition between McDonnell and Sikorsky, with the later as a winner. The resulting product - heavy H-37 was my long time favorite. It has a distinctive shape and some interesting developmennts, like Sikorsky S-60 and (new to me) British
Westland Westminster.

Seems, that idea of heavy helicopters became more clear with turbine engines' intriduction.
