McDonnell Model 120 « Jeep » (U.S. Army "V-1")

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,670
Reaction score
693
Greetings All -

Since it seems like I'll be able to uncover more on McDonnell helicopters with access to the Greater St. Louis Air & Space Museum's archives (and a couple of the museum members which I'll be interviewing soon), it seems like a good time to combine all the different designs into a single thread.

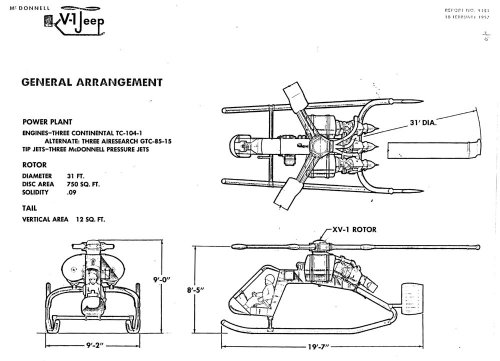

I'll start off with some new information on the Model 120 with what appears to be a refined version called the V-1 Jeep. The vertical fins are not splayed out as on the Model 120 but otherwise it is the Model 120 in general layout.

Enjoy the Day! Mark


Attachments

  • xMcDonnell Model 120 V1 Jeep General Arrangement.jpg
    xMcDonnell Model 120 V1 Jeep General Arrangement.jpg
    127.2 KB · Views: 1,135

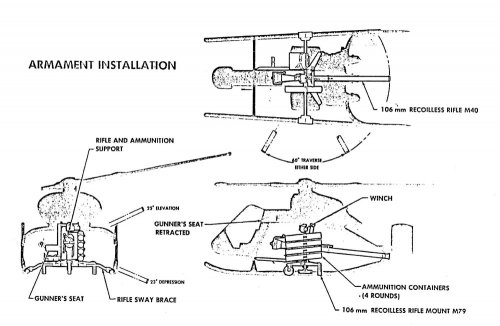

  • xMcDonnell Model 120 V1 Jeep weapons loads.jpg
    xMcDonnell Model 120 V1 Jeep weapons loads.jpg
    120.6 KB · Views: 1,049

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Mark, this is all fabulous!

McDonnell's convertiplanes has always been one of my pet topics, and it's nice to see some other people interested in them as well... I wish the HRH and HCH programs had not been canceled.

As for the Model 120, I've wondered for a long time why the Army demonstrator carried that strange "V-1 Jeep" designator on its frame, considering the "XV-1" designation was already allocated to McDonnell's Model 82 convertiplane, the the V- for VTOL series starting with the OV-1 Mohawk was not around until 1962. Now with this plan, we may get some explanation: probably a commercial name by McDonnell... and wishful thinking in the hope it might stick with the Army, maybe?

Thanks anyway, and I look forward to your great McDonnell discoveries!

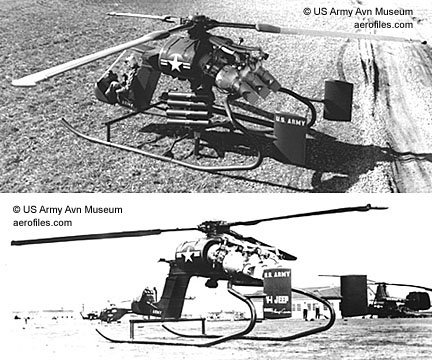

NOTE: I attach two pictures, one of the prototype Model 120 in civilian guise and another one of the V-1 Jeep guise (from the site Aerofiles).


Attachments

  • Model 120.jpg
    Model 120.jpg
    28.8 KB · Views: 974
  • mcdon-120x.jpg
    57.1 KB · Views: 989

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,537
Reaction score
804
This really is fantastic stuff. Thanks so much. Certainly look forward to more.


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
239
Reaction score
9
Mark,

Thanks for the post on the Model 120 and I'm looking forward to more.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,670
Reaction score
693

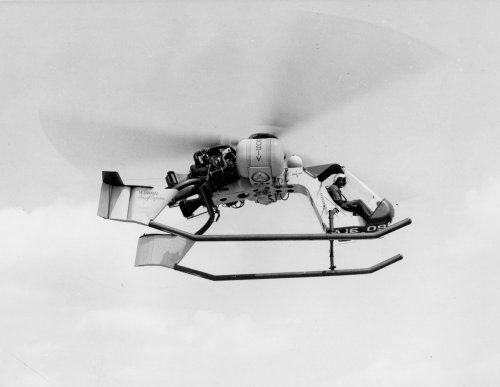

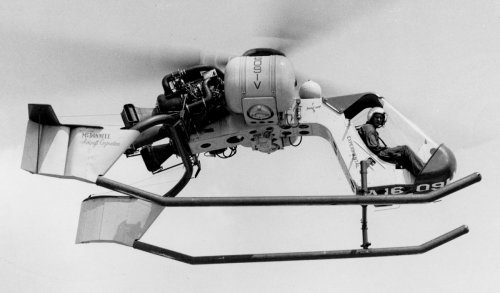

Last night I was over at the museum and found a drawer full of goodies, some if which are McAir rotorcraft.

I'll start off with the Model 120 scans....

Enjoy the Day! Mark


Attachments

  • xMcDonnell Model 120 N6091V cropped close up.jpg
    xMcDonnell Model 120 N6091V cropped close up.jpg
    130.3 KB · Views: 181
  • xMcDonnell Model 120 N6091V flying.jpg
    xMcDonnell Model 120 N6091V flying.jpg
    114.3 KB · Views: 858

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,670
Reaction score
693

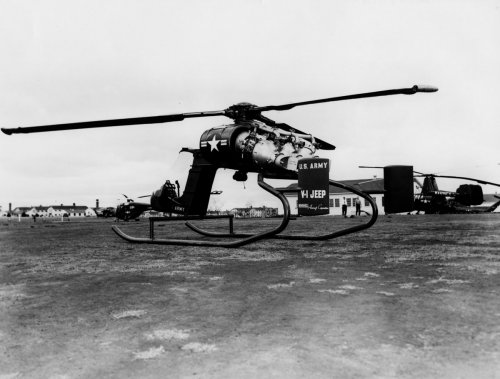

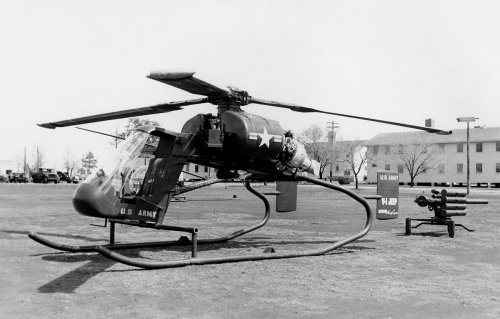

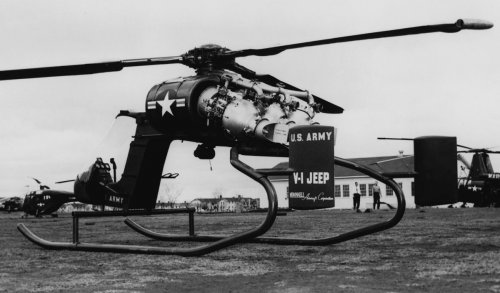

McDonnell V-1 Jeep....


Attachments

  • xMcDonnell V-1 Jeep - 1.jpg
    xMcDonnell V-1 Jeep - 1.jpg
    189.5 KB · Views: 200
  • xMcDonnell V-1 Jeep - 2.jpg
    xMcDonnell V-1 Jeep - 2.jpg
    159.8 KB · Views: 197
  • xMcDonnell V-1 Jeep cropped.jpg
    xMcDonnell V-1 Jeep cropped.jpg
    137.9 KB · Views: 189

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
:eek: :eek: :eek:

Simply amazing! Thank you so much for researching McDonnell archives and for sharing these treasures. Many unseen pics here, and I wonder what is rarer between the front view of the XV-1 (a first for me) or the color picture of the same!

Keep' em comin' Mark, I can't wait! Thanks again...


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,670
Reaction score
693
Thanks Stargazer - I wish it was the McDonnell (McBoeing) Archives but for this area, the next best thing is the Greater St. Louis Air & Space Museum and it is their archives I am sorting, cataloging and uncovering this useful info. Here's hoping more to come....

Enjoy the Day! Mark


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Just a thought: I wonder if the use of the "V-1" designation was not a mere reflection of the fact that the Jeep reused the rotor hub of the Model 82. Of course it would be a little far-fetched to make it a production version of the same (especially considering its experimental status) but that would pretty much explain it.

The flying qualities of the unleaded rotor compound helicopter incorporating the XV-1 principle have been ascertained through many years of theoretical study, model and full scale wind tunnel test programs, and experimental flight test of both the XV-1 convertiplane and the McDonnell Model 120, a crane, pressure jet helicopter designed around the XV-1 rotor system.

Source: www.dtic.mil/dtic/tr/fulltext/u2/232716.pdf


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,670
Reaction score
693
Greetings All -

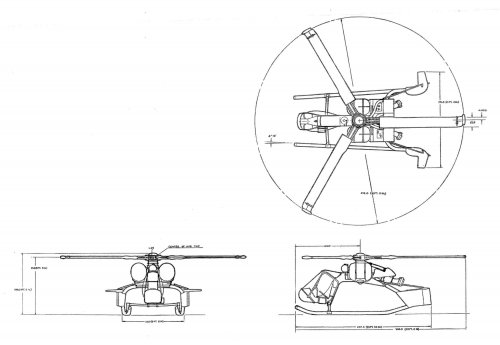

A three view of the Model 120 for your perusal...

Enjoy the Day! Mark


Attachments

  • zMcDonnell Model 120 Flying Crane 3V.jpg
    zMcDonnell Model 120 Flying Crane 3V.jpg
    161.6 KB · Views: 173

Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
151

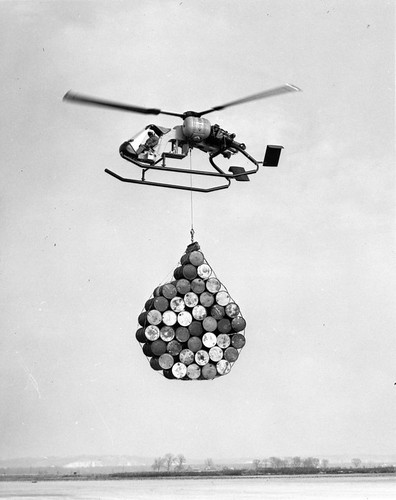

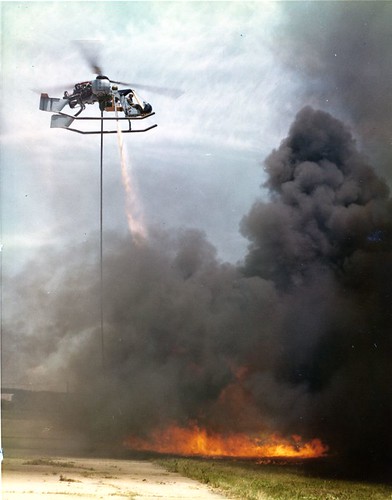

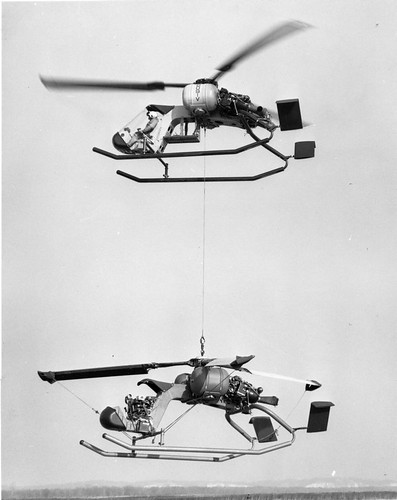

A few photos of the McDonnell Model 120 (McDonnell 120) just posted by the San Diego Air & Space Museum (SDASM) on their Flickr photostream, including one photo illustrating a fire fighting rig mock-up.
https://www.flickr.com/photos/sdasmarchives/13630149953

https://www.flickr.com/photos/sdasmarchives/13630473974

https://www.flickr.com/photos/sdasmarchives/13630115935

https://www.flickr.com/photos/sdasmarchives/13630150763


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
18
These new photos started me thinking about that 'V-1 Jeep' designation again, something that I perhaps should have done way back in 2009 when Mark posted the first images.
Based on information published by Aerofiles, the model 120 was tested by the US Navy from around 1957 and then transferred to the US Army in 1960.
So, if (and I mean 'if') it would have been designated by the Army it would have been in the 1956-1962 designation system and it would have been something like VZ-* or HZ-*, followed by a two letter code for McDonnell. As far as I know, the US Army did not have a two letter code for McDonnell.

The key to the solution seems to be:
1. the US Navy use (and it would be nice to see a photo of it in US Navy use);
2. the fact the US Navy never had a designation for experimental aircraft in their pre-1962 designation system, hence the Douglas D-558 Skystreak and Skyrocket, the Kellett KH-15 and the Kaman K-225 (in spite of suggestions that the HTK designation was used); and
3. the fact that the very first diagram posted by Mark on 13 August 2009 seems to be a McDonnell drawing on which the (presumably) McDonnell V-1 Jeep model designation is mentioned.

So I would suggest that the US Navy simply used the manufacturers type designation as its designation and that the US Army did not bother to change that.
Also significant in this whole thing is that we do not see a US Navy or US Army serial in the usual places and that US Navy or US Army serials listings do not include the model 120. (US Army designation have gaps, potentially allowing something we don't know to be included, but US Navy serials do not have any gaps in that period)
This makes me think that the model 120 was never procured by either the US Navy or US Army, so there was no need for a serial. The military markings were there most likely to ensure that military pilots were capable of flying (= testing) in their military capacity.

OK, so far for my two Aussie dollars worth of contribution....


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Thanks a lot Jos for this perfectly logical explanation, which is probably our best bet until we get a definite answer from company or military documents — if ever.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,462
Reaction score
945
Two old film reels digitized by the San Diego Air and Space Museum.
Code:
https://youtu.be/CSCx3gUCDEM
https://youtu.be/f-IF6sO6ggQ


asiscan

ACCESS: Confidential
Joined
Apr 4, 2014
Messages
50
Reaction score
22

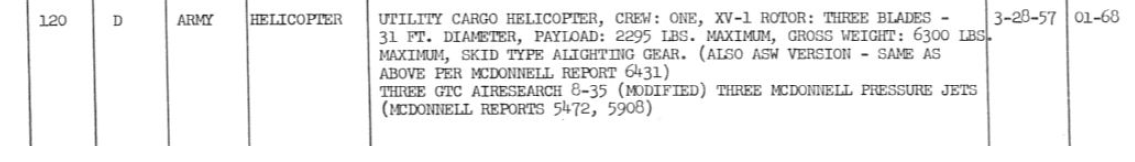

Found an interesting US Army evaluation of the McDonnell Model 120 conducted in December 1959.
It also has some specs of the prototype Model 120 and flight qualities as opposed to the 1957 proposal (but sadly no pictures). Thought this would be of relevance..

Direct link to the PDF document: (note: if you use the site search engine it won't come up..)
