Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,005
Reaction score
1,218
Just "found" at XAC ... not sure if a Y-7-derivate or a completely new type, but anyway most likely something new from China again.

Deino

China naval AEW (most likely) spotted


Attachments

  • New AEW type maybe.jpg
    New AEW type maybe.jpg
    21.3 KB · Views: 610

JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,395
Reaction score
1,118
Well, there is a dish, and it looks like it has three tail-fins, beyond that I have nothing. If it is a fixed wing naval AEW platform it is a game changer compared to what we have seen before and lends credence to the recent rumours (which I still dont believe) that there is a CV under construction in JN.


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,005
Reaction score
1,218
sealordlawrence said:
Well, there is a dish, and it looks like it has three tail-fins, beyond that I have nothing. If it is a fixed wing naval AEW platform it is a game changer compared to what we have seen before and lends credence to the recent rumours (which I still dont believe) that there is a CV under construction in JN.

I would say it has four fins .. the one in red-white-blue-typical Xian-colours for a prototype.

http://cnair.top81.cn/Ka-31_Z-8AEW.htm#Y-7AWACS

I agree with You being quite sceptical about that bird, however some quite reliable "big shrimps" reported already that a prototype is under test at Xian-Yanglian - which si sadly not that accessable like Chengdu - since September.

But again ... let's wait !

Deino


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,226
Reaction score
248
Verryyy interresting...

But understandable given the pace of China's carrier development. A carrier with 600+ nm-radius jets and no AEW is a bit of a nonsense, and AEW is one of the most important assets that the carrier brings to air-sea warfare.


chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
12
LowObservable said:
Verryyy interresting...

But understandable given the pace of China's carrier development. A carrier with 600+ nm-radius jets and no AEW is a bit of a nonsense, and AEW is one of the most important assets that the carrier brings to air-sea warfare.

That would imply a catapult equipped carrier, not something based on the Varyag or needed for the J-15.


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,005
Reaction score
1,218

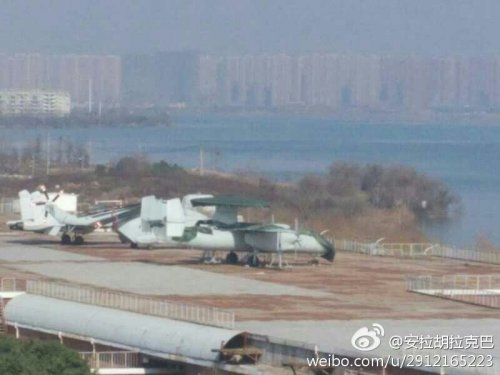

slightly better ...


Attachments

  • New AEW type - better.jpg
    New AEW type - better.jpg
    13.1 KB · Views: 573
  • J-10B new aircraft - 1034 maybe + naval AEW.jpg
    J-10B new aircraft - 1034 maybe + naval AEW.jpg
    10.8 KB · Views: 556

chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
12
Provided this is a carrier based aircraft, could this be based on the cancelled Yak-44? Considering this is China's first outing designing a carrier based aircraft, I suspect they would not strike out entirely on their own if they can benefit from existing foreign experience. I don't think a plane like this is optimized for the Varyag type ski jump ship. If this is a carrier plane, I would think the first indiginous chinese carrier would not be like the Varyag, but would instead be a catapult equipped ship.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,213
Reaction score
89
chuck4 said:
Provided this is a carrier based aircraft, could this be based on the cancelled Yak-44?

Very possible, at least while we're in the speculation stage. Both the Yak-44 and whatever this is resembled copies of the E-2; either China obtained the rights to the Yak-44 or they also went the "copy the E-2" route.


chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
12
Where did they get their hands on a E-2? Did someone in Taiwan defect with the plans?


chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
12
Deino said:
slightly better ...

In the panoramic photo with the j-10, the AWACS seems to have much more haze between it and the camera compared to the j-10. This suggest the AWACS is much further away. This in turn suggest the AWACS is a much larger aircraft whose tail span is nit much less the the length of J-10's fuselage. This suggest it is not a carrier based plane.

The the photo with the guard shack, the AWACS appear to have An slight anhedral to the wings, this suggest to me it is based on a y-8 airframe, with completely new tail. So more reason to think it's not naval.


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,005
Reaction score
1,218
sealordlawrence said:
Deino,

Is that the sole J-10B aircraft or is that a new airframe?

Not sure. We know confirmed a 1031, 1033 (most likely 1032 a static one) and IMO this one looks like 1034. Could be the one we 've seen some log ago without a number, but it could also be only 1031.

Otherwise it is reported that the first Block 7 serial version has flown.

Deino


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,580
Reaction score
1,043
Transport aircraft in the 45000lb class was what BAC and HSA examined in the 60s for the NASR.6166 AEW type, so a Y-7 derivative is plausible. However, both concluded that modifying an land-based transport was more trouble than it was worth. Curious, given the number of AEW projects ongoing in China that they re-invent the wheel? The parallels with the BAC studies are quite interesting.

Chris


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,005
Reaction score
1,218

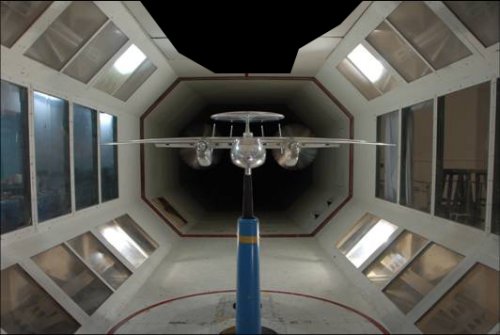

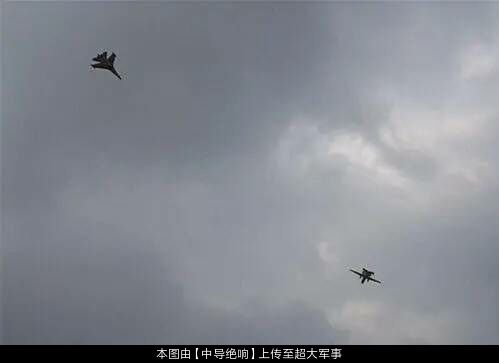

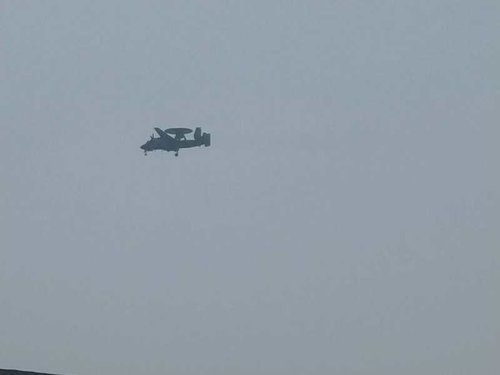

Quite interesting this wind-tunnel model was posted a few days ago and even if I think it still shows an E-2-model for reference, it is clearly in a Chinese WT... others argue that the wing is different and more like the Y-7's. ???
Besides that these two small pictures appeared yesterday.....

Deino


Attachments

  • New AEW type maybe - in flight 2.jpg
    New AEW type maybe - in flight 2.jpg
    3 KB · Views: 964
  • New AEW type maybe - in flight 1.jpg
    New AEW type maybe - in flight 1.jpg
    5.1 KB · Views: 979
  • New AEW type - wt - maybe E-2 but in China.jpg
    New AEW type - wt - maybe E-2 but in China.jpg
    92.9 KB · Views: 869

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
If it is indeed based on the Y-7, that could lend some credibility to something I read in Air International or something in the '80s when all the speculation of USSR carrier aircraft was being spread. There was mention of an AWACS version of the An-24 & I think maybe a COD variant as well. Maybe this Y-7 AWACS has its roots in yet another never realized Soviet project. What will we see next out of China, that Beriev (P-2?) S-3 Viking look-alike?


chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
12
The soviets built a dedicated AWAC airframe for their projected catapult carrier. It's the Yak-44. It's not related to An-24.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Actually, they only made a mock-up of the Yak-44, AFAIK, but they DID build the An-71 'Madcap' but it wasn't used. I'm just relaying what I read in reference to an An-24 development.


chuck4 said:
The soviets built a dedicated AWAC airframe for their projected catapult carrier. It's the Yak-44. It's not related to An-24.


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,005
Reaction score
1,218

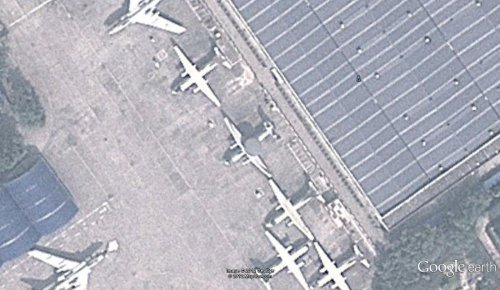

Just "spotted" at the latest GE-images from Xian-Yanglian (CFTE) .... the Y-7AEW-carrier version !


Attachments

  • Y-7AEW at Yanglian - 2012.jpg
    Y-7AEW at Yanglian - 2012.jpg
    141.4 KB · Views: 735

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,546
Reaction score
1,233

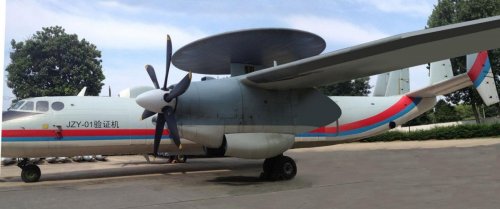

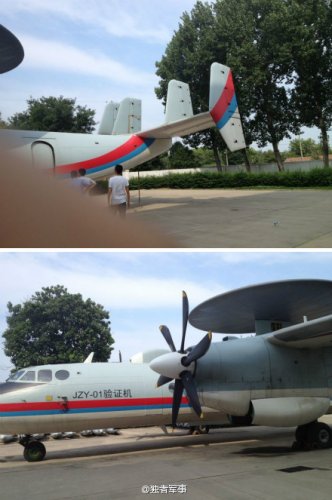

A closeup photo of the Chinese Hawkeye AEW&C has been posted online. The plane’s designation is JZY-01 or JianZaiYun-01. The literal translation means carrier-borne transport zero one.
The plane, based on the Xian Y-7, has reportedly flown and the leak was covertly approved ahead of the 18th party congress. The engine cowling has been redesigned and the engine comes with a six-blade propeller.


Source: http://alert5.com/2012/07/27/photo-closeup-photo-of-chinese-hawkeye/


Attachments

  • JZY-01_Alert_280712.jpg
    89.5 KB · Views: 524

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,226
Reaction score
248
Interesting. It's a whole lot bigger than a Hawkeye, although note from the plan-view here...

http://nwlinux.com/china-carrier-varyag-yellow-sea-images/

... that there is a prominent deck marking to the starboard side of the landing run, that seems to delineate the parking area. It leaves a landing run-out that's about the same as a Y-7 span.

The prototype looks as if it still has standard wheels and tyres - not the high-pressure tyres you see on CV aircraft. Early days yet.

I hope the APY-9 radar team's cybersecurity has been up to snuff for a while.


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,580
Reaction score
1,043

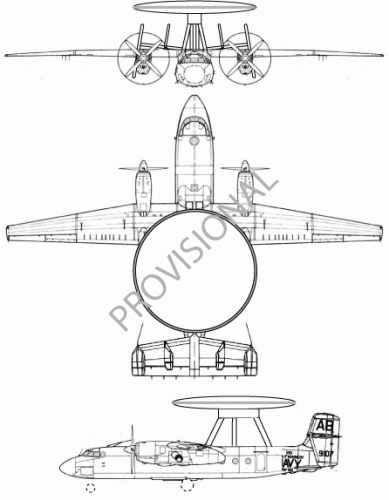

Looks like my GA from a year ago wasn't too bad...a Curl with a Hawkeye tail grafted on.

back to the drawing board for me.

Chris


Attachments

  • Y-7AEW_provisional_GA_first.gif
    59.9 KB · Views: 516

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,604
Reaction score
1,850
Website
beyondthesprues.com
Another shot?




TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,927
Reaction score
2,467
If it's substantially larger than the Hawkeye, perhaps it isn't meant for carrier use. A smaller, less expensive land-based AEW aircraft might have a niche in the PLAAF or for export.


Blitzo

ACCESS: Secret
Joined
Jun 9, 2011
Messages
418
Reaction score
119
TomS said:
If it's substantially larger than the Hawkeye, perhaps it isn't meant for carrier use. A smaller, less expensive land-based AEW aircraft might have a niche in the PLAAF or for export.


The JZY-01 is the airframe of interest for carrier based AEW. A more highly modified Y-7 with virtually the same configuration as E-2, and using a pair of the WJ-6C turboprops seen on Y-9s/Y-8GXs.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
351
Reaction score
22

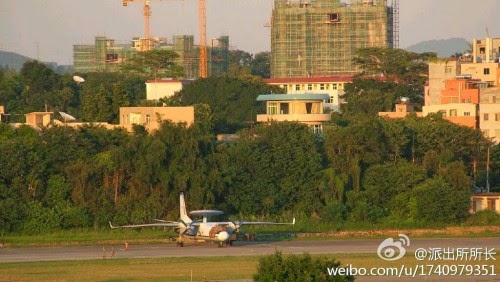

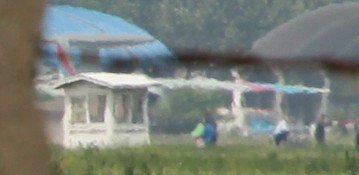

I've been looking at these two online. The Y-7 AWACS is clearly a modified Y-7, of course. However, nearly everything I see on the KJ-600 is either an E-2 Hawkeye with Chinese markings photo-shopped or drawings showing a near or direct copy of an E-2. I'm not sure what might be real or not so I'm curious about your thoughts on the KJ-600. Is it indeed a copy or expected to be a copy of the E-2 or is it just all of the internet propaganda is hung up on it being an E-2 clone? Thanks!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,441
Reaction score
6,100
Hi Famvburg,

I think that,I sent it in this forum,but where ?.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,579
Reaction score
7,548
The KJ-600 has not been photographed, and is mostly likely not actual hardware yet.

What has been seen is the Y-7 AWACS demonstrator JZY-01, a mockup of an AWACS design on the concrete 'aircraft carrier', and a model of what looks like an E-2 on the desk of people involved in another AWACS project.

https://www.sinodefenceforum.com/kj-600-chinese-carrier-capable-aew-developments-news-progress.t8101/


Attachments

  • 2017-01-28-Le-futur-AWACS-embarqué-chinois-émerge-06.jpg
    139 KB · Views: 446
  • PLANAF carrier AEW KJ-600 - mock up at Wuhan 201801.jpg
    PLANAF carrier AEW KJ-600 - mock up at Wuhan 201801.jpg
    96.9 KB · Views: 421
  • UjTziEf.jpg
    41.1 KB · Views: 427
  • JZY-01-03.jpg
    96.2 KB · Views: 450

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,579
Reaction score
7,548

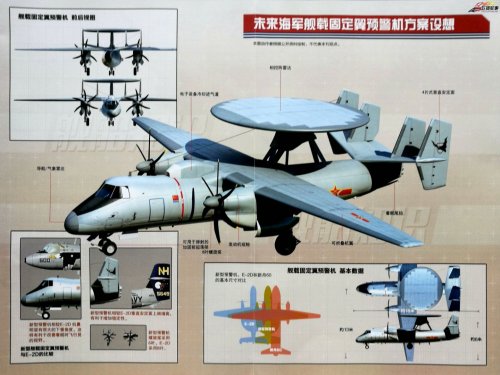

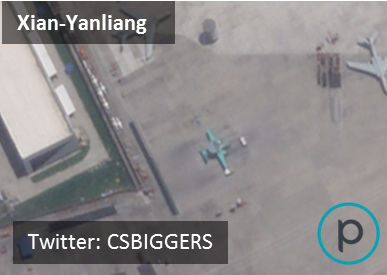

This recentish CGI from a Chinese magazine is of unknown authenticity. Looks broadly consistent with the mockup.

The program exists, to what extent its a modified Y-7 or a new airframe is uncertain.


Attachments

  • KJ-600 CG in magazine - 1.jpg
    KJ-600 CG in magazine - 1.jpg
    244.8 KB · Views: 453

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,579
Reaction score
7,548

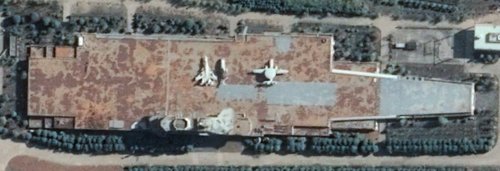

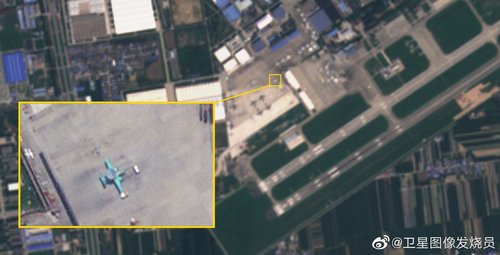

The overhead satellite photo shows the mockup to be shorter than the Su-27 type nearby, which means either its not full size or its not Y-7 based. Its much closer to the E-2 in size.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,895
Reaction score
5,745
The China aviation museum has a chinese Tu-4 with TV-2F 5000 hp turboprops and an AWACS radome on top of that.
Was that aircraft story ever known ? has it been discussed on this forum ?


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,895
Reaction score
5,745
The giant kong, yes (runs for cover). Thank you for the links. ;D


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,546
Reaction score
1,233
Last edited:

Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,005
Reaction score
1,218
