Chengdu WZ-7 Xianglong ("Soaring Dragon") joined-wing UAV/UCAV

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,607
Reaction score
1,082

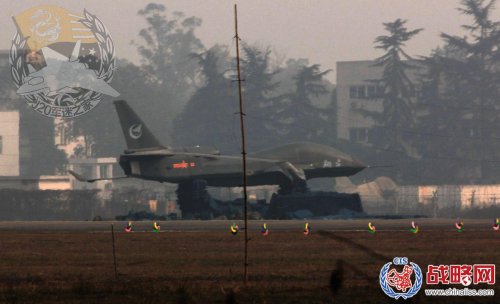

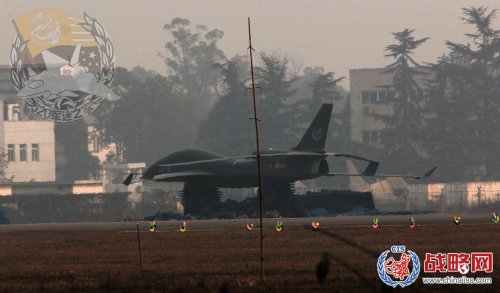

Interesting. The supporting structure seems to be covered in pyramids of RAM, which would support some kind of RF apertures test. +1 to Quellish so far.


rousseau

CLEARANCE: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
5
Did you guys notice that joint wing merely a model maybe by wood, there is no undercarrage there... ...


Blitzo

CLEARANCE: Secret
Joined
Jun 9, 2011
Messages
362
Reaction score
0
rousseau said:
Did you guys notice that joint wing merely a model maybe by wood, there is no undercarrage there... ...
The lack of/retractged undercarriage could be due to the aircraft being tested for rcs or other kinds of testing.

We don't really know if it's real or just a really accurate mock up.


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,529
Reaction score
93
IMO a real one esp. regarding the air-data-probe.

A simple mck-up or one to test the systems would not reqire that.


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,169
Reaction score
27
It could be gear-up but supported at the gear attachment points.

Phantom Works, back in the 1990s, had a compact RCS range that operated in the near-field. The same technology has been used for in-field verification (for repairs, for example). Looks like that's what's happening here.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,230
Reaction score
404
I must admit, I'm a bit envious of Chinese aerospace these days. It seems they've been given the mandate of "move us forward ASAP" with a minimum of bureaucratic nonsense to slow them down. Makes me think of the US back in the 60s. :'(


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,529
Reaction score
93
Blitzo said:
Actually deino, china defense blog said xianglong made its first flight in late 2009...

http://china-defense.blogspot.com/2009/11/xianglong-uav-conductes-its-maiden.html

Actually I don't know, and even if I remember that report, I think these were mixed with the smaller one ("Sky Wing" aka mini-Global Hawk UAV http://www.china-defense.com/smf/index.php?topic=5724.20) ??

I can't think that the first flight of this huge UAV would have been missed by any spotter.

Deino


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,529
Reaction score
93
Here's an interesting video on the "Soaring Dragon" UAV ...

http://www.youtube.com/watch?v=TQqefi9ShRM&feature=player_embedded
(or: http://www.militaryphotos.net/forums/showthread.php?205018-China-s-new-UAV) ... sadly not available in Germany because of some music-gema-problems :(

.... or here:

http://top81.jschina.com.cn/top81bbs/thread.php?cid=1&rootid=3400319&id=3400319


Deino


Blitzo

CLEARANCE: Secret
Joined
Jun 9, 2011
Messages
362
Reaction score
0
Big plane, looks around the size of RQ-4. This thing obviously isn't meant to be a "village hawk".


donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
964
Reaction score
5
Looks bigger than an RQ-4 to me.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,014
Reaction score
199
I would suspect it's intended to support PLAN operations.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,260
Reaction score
100
let see on Reaction in Pentagon and Capitol Hill
On China newest Aircrafts developments





pure panic...


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,230
Reaction score
404
Michel Van said:
let see on Reaction in Pentagon and Capitol Hill
On China newest Aircrafts developments





pure panic...
You give them too much credit. They'd have to recognize it's significance for there to be any concern.

A

AAAdrone

Guest
sferrin said:
Michel Van said:
let see on Reaction in Pentagon and Capitol Hill
On China newest Aircrafts developments





pure panic...
You give them too much credit. They'd have to recognize it's significance for there to be any concern.
I'm thinking the usual response from Congress and the pentagon is that they've "been monitoring the situation for some time" and that "any advancements the Chinese make is not surprising and was expected." ::)


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,631
Reaction score
42
Oh Noes, China has a UAV looking airplane that hasn't flown, isn't operational, but the sky must be falling. Some times you guys are really silly.

Though, as GTX said, that joined wing design is nice looking.


chuck4

CLEARANCE: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
0
2 observations:

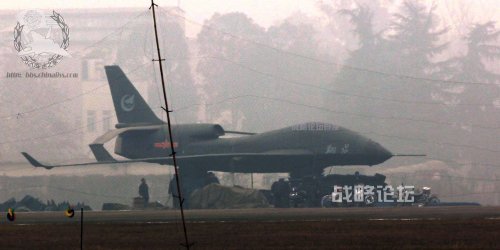

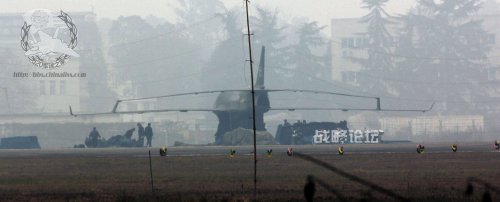

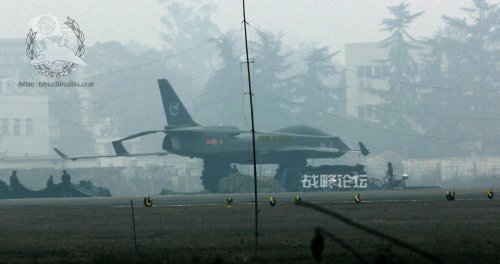

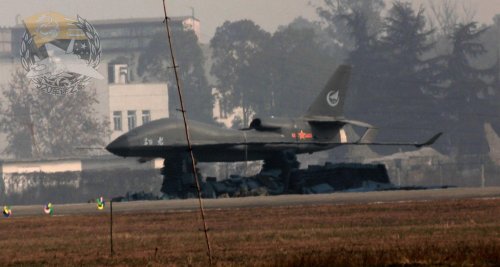

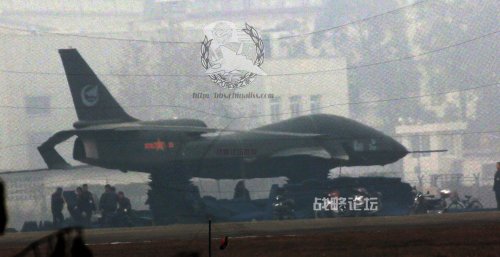

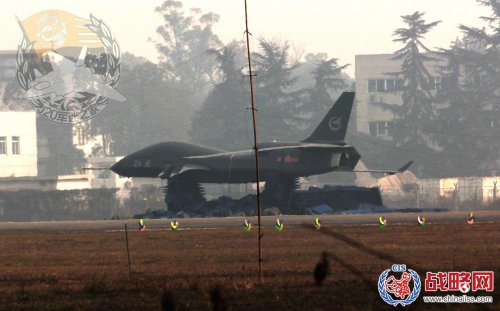

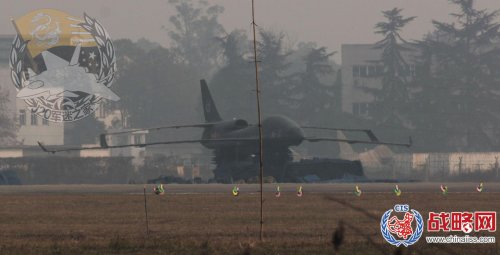

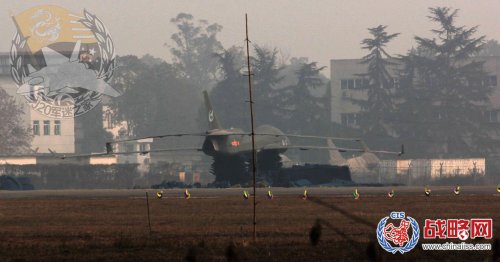

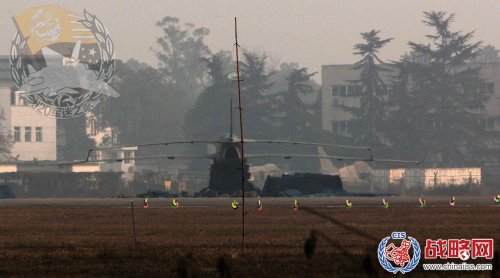

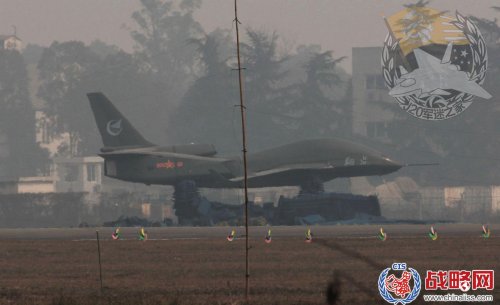

1. That thing doesn't seem to have deployed its landing gears, and appears to be proped up very high on big piles of blocks positioned where a set of bicycle landing gears like those of the B-52 could conceivably be. But it would be odd if the real landing gears are this tall.

2. The wings seem very thin. What kind of airfoil could that be? Certainly no landing gear is going fit in that wing. If the thing has bicycle gears, where are the outriggers?

My conclusion is whatever is in the photo is not an real flying article. It's more likely a mockup for some sort of fit check.


bipa

CLEARANCE: Confidential
Joined
Feb 11, 2008
Messages
80
Reaction score
1
Some sort of EMC testing going on (maybe lightning indirect effects, or HIRF ?).
They did similar kind of testing with the J-20 just few days or weeks before its first flight.


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,529
Reaction score
93
Steve Pace said:
That thing is huge, it is bomber-sized. -SP
YES .... via http://www.top81.cn/top81bbs/thread.php?cid=1&rootid=4764083&id=4764083


Attachments

2IDSGT

Ah tale yew wut!
Joined
Nov 27, 2012
Messages
371
Reaction score
0

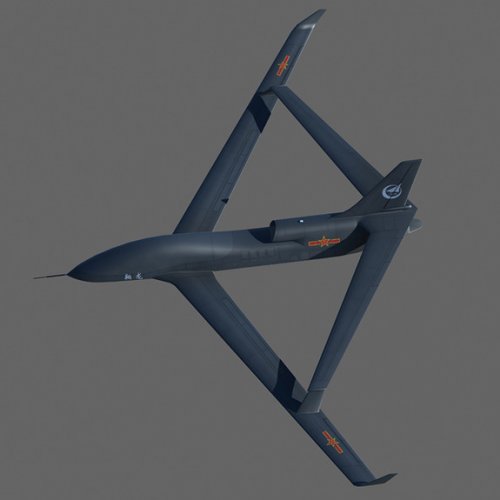

I top-view rendering I found from 2011 (apologies if it's already been posted elsewhere).


Attachments

chuck4

CLEARANCE: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
0
It seems to my eyes that this UAV has rather low wing span and small overall wing area for a high altitude, long endurance aircraft.


Trident

CLEARANCE: Top Secret
Senior Member
Joined
May 8, 2006
Messages
846
Reaction score
27
chuck4 said:
It seems to my eyes that this UAV has rather low wing span and small overall wing area for a high altitude, long endurance aircraft.

Direct result of its wing configuration. As the two wings are effectively act as structural braces to one another their chord can be much narrower than usual, resulting in a shorter span for the same or higher area and aspect ratio. Span itself is irrelevant.


AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,166
Reaction score
26
Given how one of the wings is in the low position, there must be an outrigger somewhere. Otherwise a crabbed landing will inevitably scrape a tip. Either that or a REALLY stalky fuselage landing gear. No obvious place where the outriggers would fold, my guess is a strong attachment point could be found at the joined wing intersection, which is also sufficiently far out spanwise to be effective.
Droppable pogoes a la U-2 seem unlikely...

my .02.


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,529
Reaction score
93
Deino said:

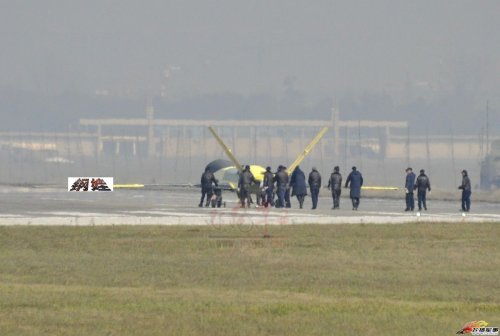

It seems as Chengdu's stealty UAV has started with its taxi-tests !!!

http://www.fyjs.cn/bbs/htm_data/27/0810/159906.html

Cheers, Deino

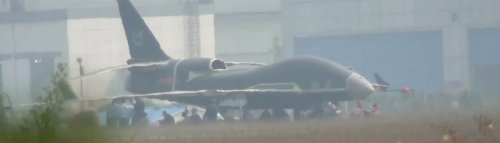

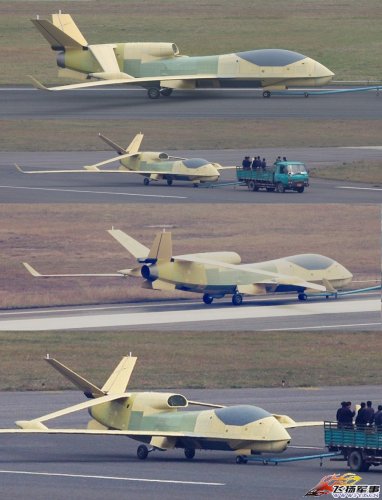

And now similar to the joined wing UAV it seems as here is a version II of the Sky Wing ! ... seen at CAC this morning.

Deino


Attachments

Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,529
Reaction score
93
Deino said:
And now similar to the joined wing UAV it seems as here is a version II of the Sky Wing ! ... seen at CAC this morning.

Deino

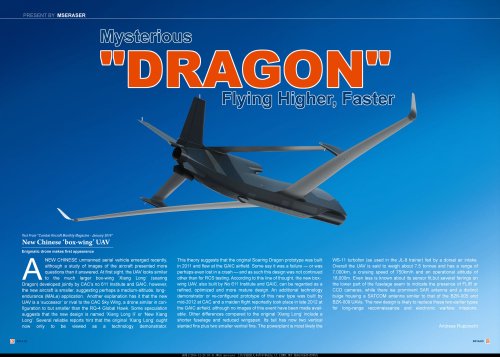

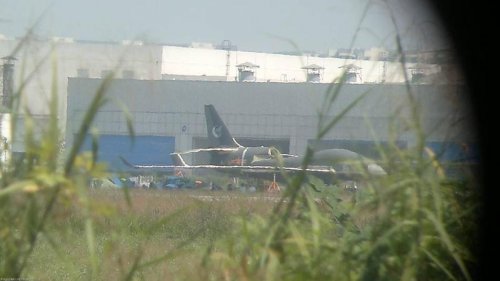

I just noticed that the revised Soaring Dragon II is missing in this tread ... here it is !


Attachments

AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,166
Reaction score
26
AeroFranz said:
Given how one of the wings is in the low position, there must be an outrigger somewhere. Otherwise a crabbed landing will inevitably scrape a tip. Either that or a REALLY stalky fuselage landing gear. No obvious place where the outriggers would fold, my guess is a strong attachment point could be found at the joined wing intersection, which is also sufficiently far out spanwise to be effective.
Droppable pogoes a la U-2 seem unlikely...

my .02.

I stand corrected! thanks for posting the pictures. Crabbed landings are still going to be tough, but looking at the pictures it doesn't look like the geometry is any worse than an MQ-4 Triton...


donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
964
Reaction score
5
are soaring dragon and sky wing interally competing designs for the same mission or meant to fill 2 different missions?


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,169
Reaction score
27

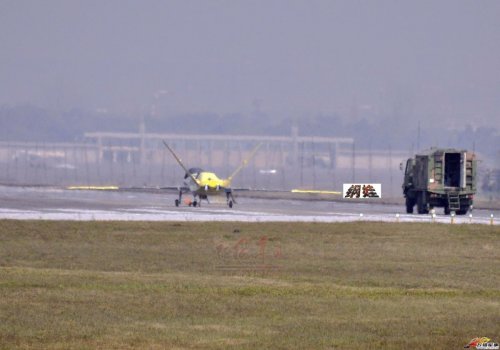

Please pass my thanks on to whoever put the truck in that photo.


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,529
Reaction score
93
LowObservable said:
Please pass my thanks on to whoever put the truck in that photo.

May I ask why ? ... For a better size-comparison ?


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,529
Reaction score
93
Sorry ... I did not notice Your PM before I posted !

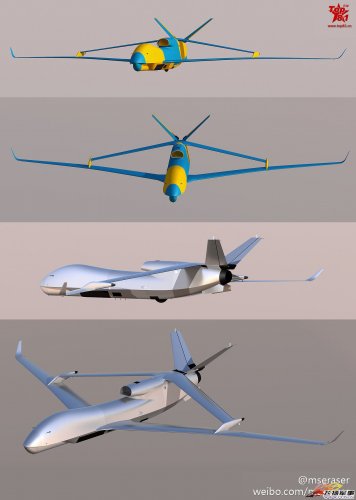

By the way I found this interesting "fan-art" made by a very talented CG-artist, who took my CA-report and did his one (IMO much better one !) ... however I think it is indeed a bit smaller than a Global Hawk.

Deino


Attachments

AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,166
Reaction score
26
Good looking model - the specifications look a bit fanciful, though. A T/W of .56 on a parsimonious HALE seems doubtful.


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,169
Reaction score
27
0.56 would be an 9300 lb st engine - not, therefore, a trainer engine but a non-reheat WP-13-based turbojet (that is, R-11/13 ancestry). The inlet size is not far out of line with such an engine. However, I think the weight is far on the low side - wing area and length are both close to G-Hawk. The jet's SFC is not good - but it's better suited to high altitude and can provide more electrical power.
